Evaporative air cooler — power 1.1~3.0kw, type Duct air cooler/fan. The complete factory specification follows. Made by Xiamen Oupusi Electrical Energy Saving Co., Ltd. (15 years on the platform, typical reply ≤11h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Evaporative Air Cooler
- Model Number: OFS-180A
- Power: 1.1~3.0kw
- Operating Voltage: 230~450v
- Certification: ce
- Place Of Origin: Fujian, China
- Type: Duct air cooler/fan
Technical Specifications
| Type | Duct air cooler/fan |
|---|---|
| Operating Voltage | 230~450v |

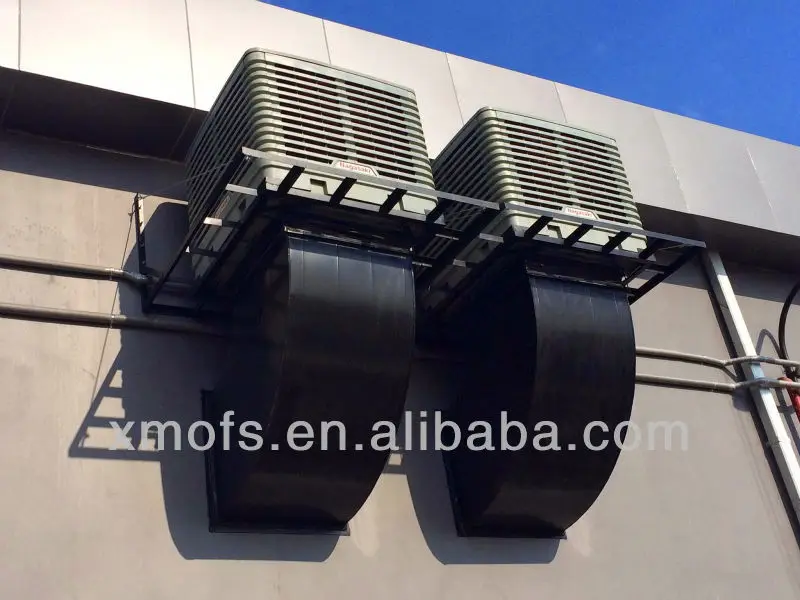

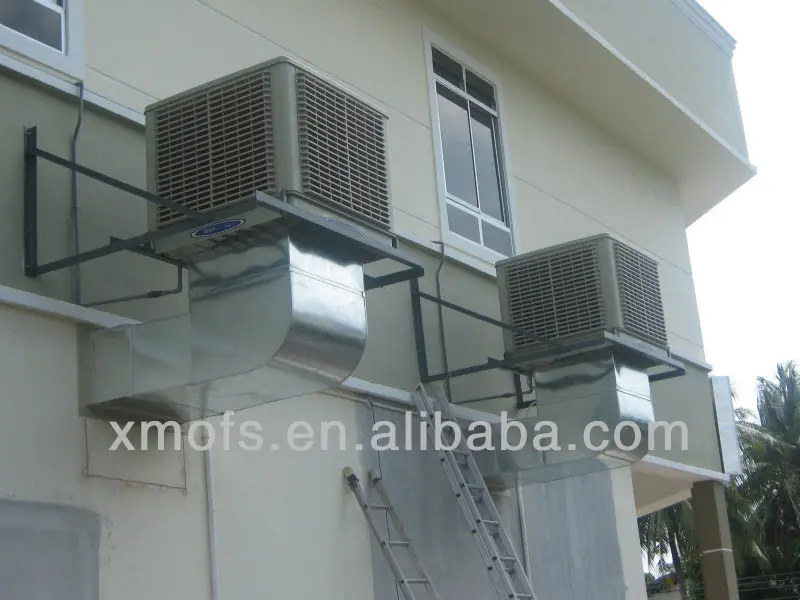

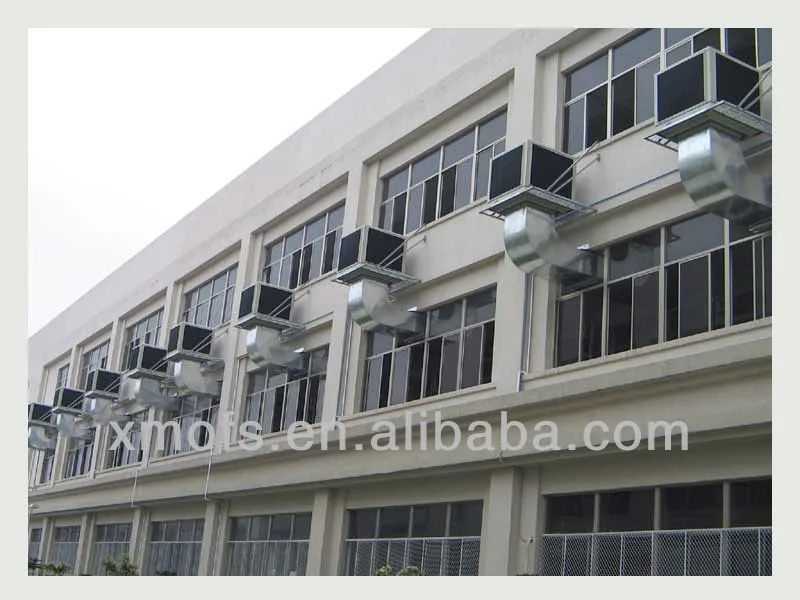

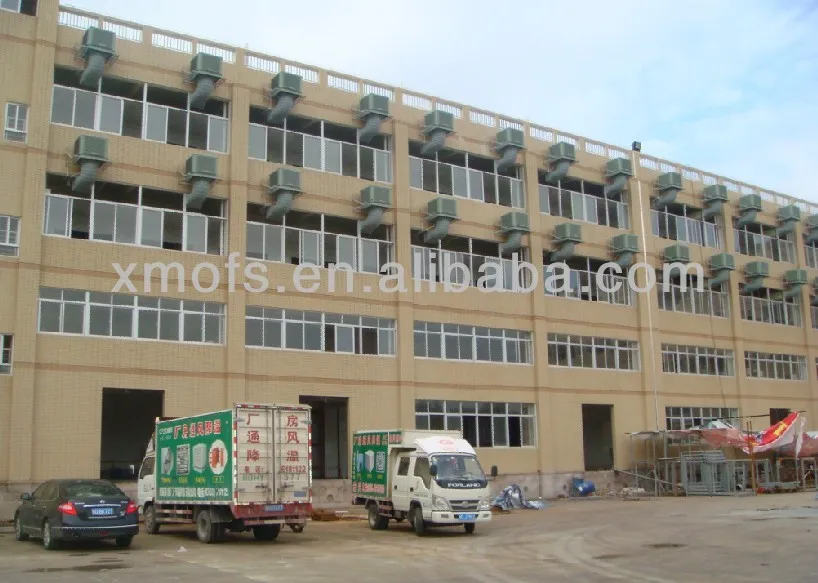

| Mounting Type | Wall / Window Mount |
| Place Of Origin | Fujian, China |
| Brand Name | OFS |
| Model Number | OFS-180A |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Power | 1.1~3.0kw |
| Water Reserior | 20~65L |
| Max Airfow | 18000m3/h~30000m3/h |
| Effective Area | 80~250m2/h |
| Certification | ce |
| Condition | New |
| Packaging Details | in export cartons 1X20" Container: 24 units |
| Port Of Dispatch | Xiamen Port |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 8000 pieces per Month |
Product Details

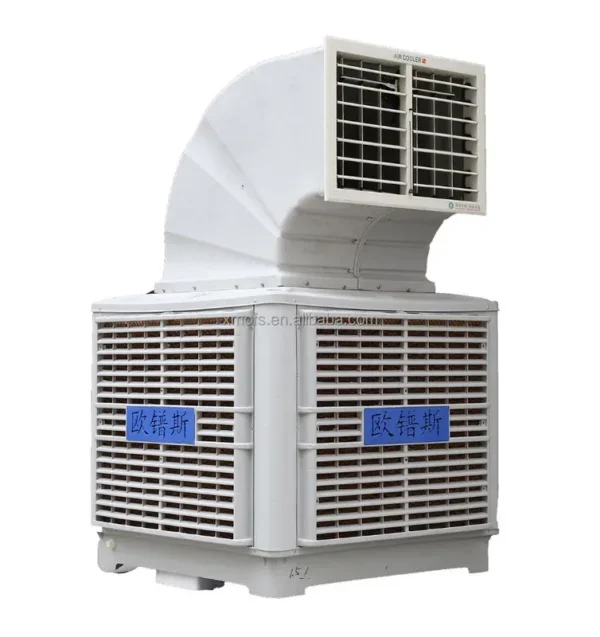

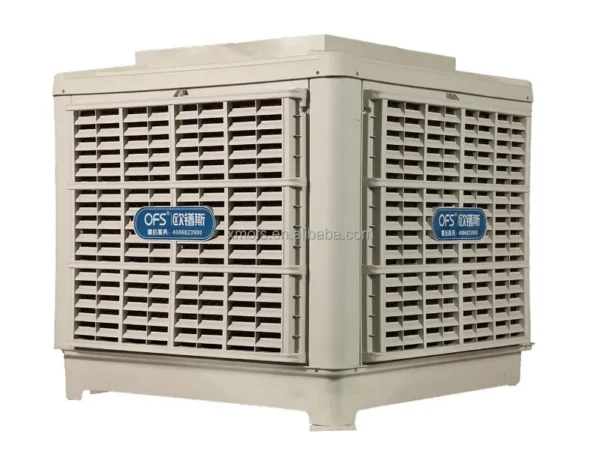

OFS New Evaporative air cooler/ Evaporarive air conditioning/ Desert cooler
Advatage: *Combined motor fan. |
| Tornado Pump * Exceptional reliability in extreme conditions |
| Hushpower Direct Drive Motor *Super efficient over operating range |
| Clean And Dry Function * Automatic water draining when cooler not in use |
| Long life chillcel cooling pads * Honeycomb design optimises cooling effect• Long lasting |
| Cabinet * Non discolouring |
Features :
1. Low installation ,running and maintenance cost
2. Remote control for uncomplicated setting and possibility to run units in parallel
3. Light performance axial fan for ducting options

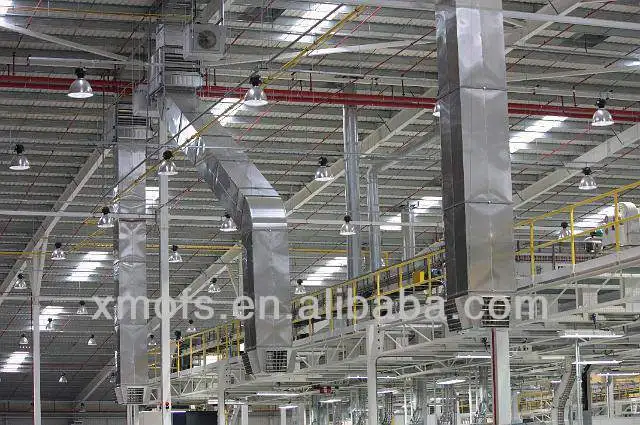

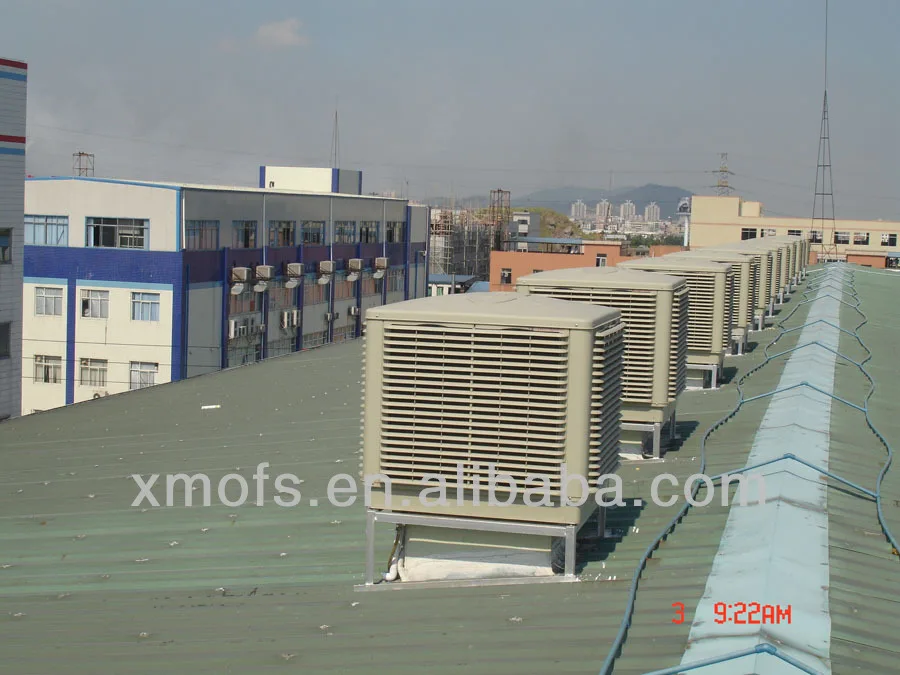

4. Suitable for a wide range of applications
5. Simple and flexible installation
6. Encironmentally friendly
Theoretical principle and how it works :
The evaporative coolers use OFS evaporative cooling pads as media. A system of water distribution and a pump keep the pad continuously wet ,Inside the machine is a large axial fan which sucks the air from the outside through the pad. When the air goes
through the pad which is saturated the air gets cooler.
| Specification | The voltage and herz would be ordered. | |||
| Item No. | OFS-180 | OFS-210 | OFS-250 | OFS-300 |
| Airflow | 18000CMH | 21000CMH | OFS-25000CMH | 30000CMH |
| Effective Area | 80-100 sq.meter | 100-120 sq.meter | 120-150sq.meter | 150-250sq.meter |
| Max Air Pressure | 180 Pa | 200 Pa | 220 Pa | 280 Pa |
| Fan Type | Axial | Axial | Axial | Axial |
| Noise | ≤68db | ≤ 70db | ≤ 75db | ≤78db |
| Power Supply | 220~450v | 220~450v | 220~450v | 220~450v |
| Power Consumption | 1.1kw | 1.5kw | 2.2kw | 3.0kw |
| Water Consumption | 12~20L | 15~25L | 18~28L | 19~32L |
| Speed | Variable | Variable | Variable | Variable |
| Dimension | 1080x1080x980mm | 1080x1080x980mm | 1200x1200x1060mm | 1350x1350x1060mm |
| Net Weight | 80 kgs | 85 kgs | 90 kgs | 118 kgs |
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–199 piece: US $288 / piece
- 200+ piece: US $188 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative air cooler?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this evaporative air cooler carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the evaporative air cooler be supplied for my local voltage?
The standard configuration is 230~450v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Xiamen Oupusi Electrical Energy Saving Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Xiamen Oupusi Electrical Energy Saving Co., Ltd. range on HVACR Nexus.
