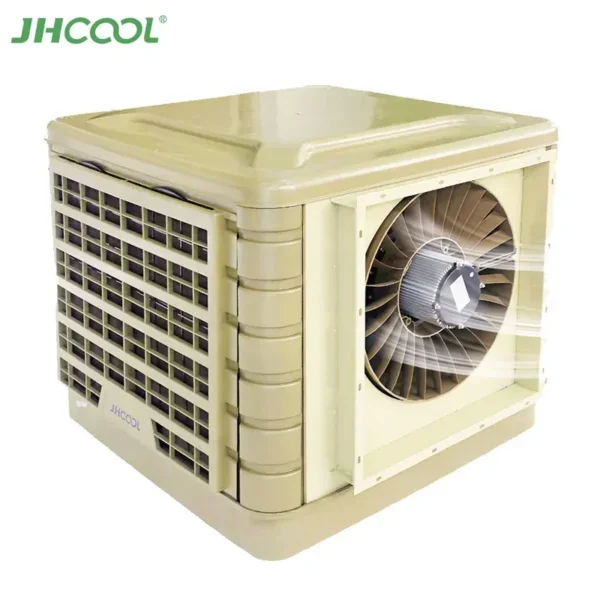

The evaporative air cooler listed here carries type EVAPORATIVE AIR COOLER, model number JH18AP-18S8-B1, documented exactly as the manufacturer publishes it. Made by Fujian Jinghui Environmental Technology Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Evaporative Air Cooler
- Model Number: JH18AP-18S8-B1
- Fan Speed: 16 Speeds
- Warranty: 1 Year
- Place Of Origin: Fujian, China
- Type: EVAPORATIVE AIR COOLER
- Mounting Type: Wall / Window Mount
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Mounting Type | Wall / Window Mount |
| Compressor Brand | no |
| Fan Motors Type | AC |
| Key Selling Points | Eco-Friendly |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump |
| Place Of Origin | Fujian, China |
| Weight (Kg) | 110 |
| Brand Name | JHCOOL |
| Model Number | JH18AP-18S8-B1 |
| Dimension(L*W*H) | 1160*1240*940(mm) |
| Fan Speed | 16 Speeds |
| Cover Area | 100-150㎡ |
| Fan Type | Axial |
| Pressure | 180pa |
| Control | Intelligent touch screen control |

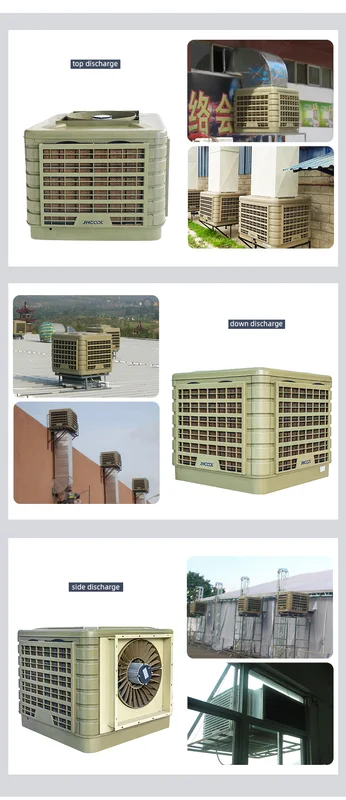

| Wind Direction | Side |
| Water Tank | 30L |
| Water Consumption | 15-20L/h |
| Noise | <68dB(A) |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
| Model Number | JH18AP-18S8-B1 | Wind Direction | Side Discharge | |
| Power | 1.1kW | Dimension | 1160×1240×940mm | |

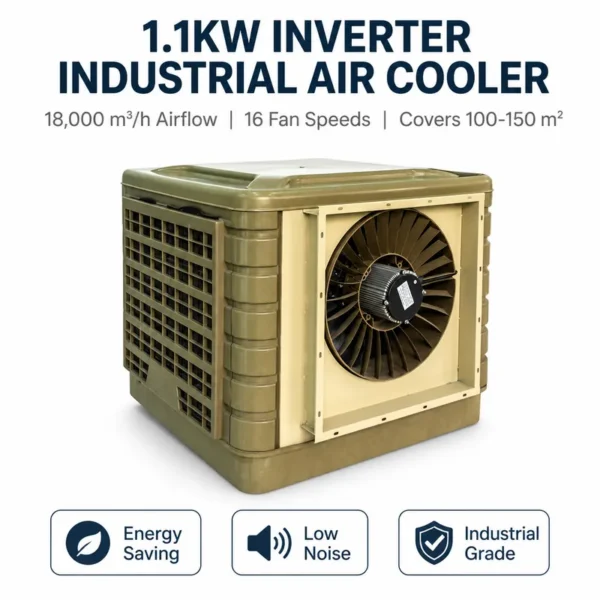

| Airflow | 18000m3/h | Packed Size | 1170×1250×1090mm | |
| Control | Intelligent touch screen | Pad Size | (675+30)*790*100mm | |
| Fan Speed | 16 | Vent Size | 660*660mm | |
| Cover Area | 100-150m2 | Net Weight | 110kg | |
| Voltage | 1PH 220V-240V/50Hz | Gross Weight | 120kg | |
| Noise | <68dB | Auto Water Inlet | Yes | |
| Fan Type | Axial | Overload Protection | Yes | |
| Water Consumption | 15-20L/h | Loading Quantity(assembled) | 20/40units(20GP/40HQ) | |
| Water Capacity | 30L | Loading Quantity(SKD) | 30/72units(20GP/40HQ) |
Factory Best 18000 Water Indoor Best Ice Room Cooler Chilly Evaporative Air Cooler

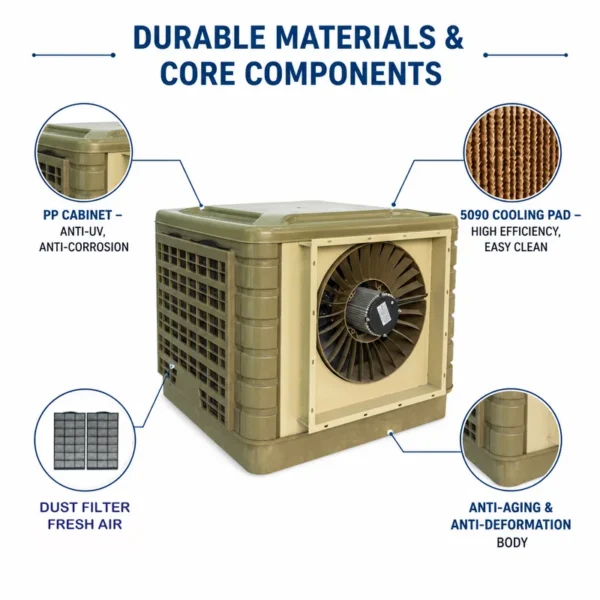

1. 100% new update PP cabinet, anti-UV, anti-corrosion, anti-aging, anti-deformation.
2. High efficient evaporative cooling pad, good cooling effect, easy to clean.
3. Open type water distributor, smooth water flow, and not easy to jam.

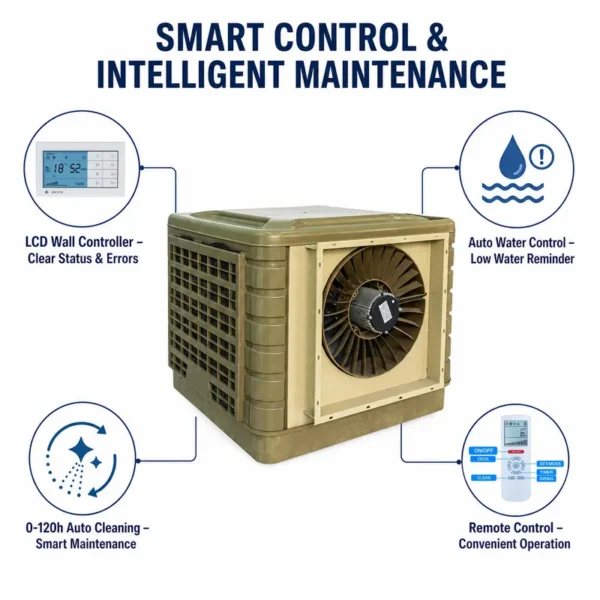

4. Intelligent controller system, equipped with multi-functional LCD controller and remote controller.
5. Aluminum material motor cabinet, 100% copper wire for longer life.

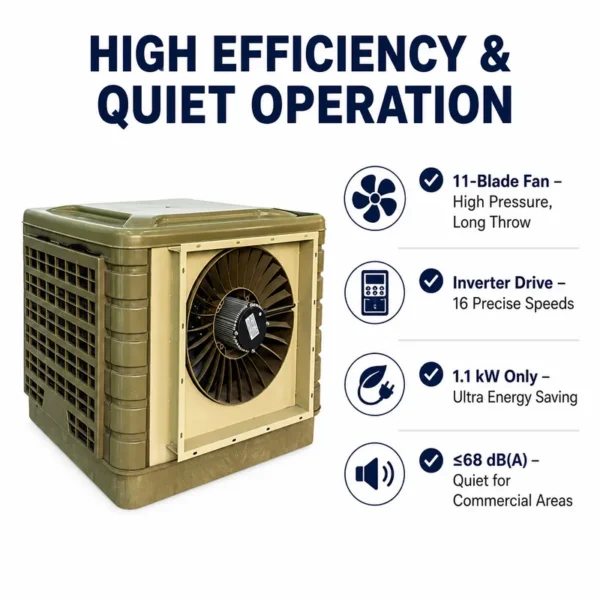

6. Smooth fan blade, low noise, especially for commercial areas.
7. Automatic water inlet system prevents water shortage.
8. 0-48 hours automatic cleaning cycle for option.
Q: What places are suitable for water air coolers?
The water air cooler is especially well suitable for where the air is hot and humidity is low. However, in higher humidity areas there are many proven cost-effective uses for evaporative cooling that make it the right choice, like poultry farms, industrial plants, commercial kitchens, laundries, dry cleaners, greenhouses, spot cooling, etc.
Q: What advantages does water cooling fan have compared to refrigerated cooling systems?
The evaporative air conditioner from Alibaba China will provide substantial energy saving over refrigerated air units. The simplicity of the design allows low maintenance requirements. The electric water air conditioner, air cooler without water and other evaporative air cooler will provide fresh, filtered air. The outside air that has been cooled will blow the stale inside air out.
Q: How often do I clean my pads?
Pads should be cleaned at least once a season before storing for the winter. In hard water areas, cleaning may be required more frequently. Periodic, visual examination is required. Remove the back or top of the cooler following the instructions in the operating manual. Look at the pads, if they show signs of heavy mineral deposits they will need to be cleaned.
Q: How often should the pads be replaced?
Pads should be changed when they no longer cool as effectively as they did when new. This generally happens when mineral deposits on the pads become so heavy that the water running over them during operation cannot be absorbed. If a pad is properly cleaned and maintained, its life can be three to five years or more. But, we advise the customer to replace the pad every 2 or 3 years to keep the best cooling efficiency.
If you are interested in the evaporative air cooler, please feel free to contact me.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–99 piece: US $580 / piece
- 100+ piece: US $550 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative air cooler?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Fujian Jinghui Environmental Technology Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Fujian Jinghui Environmental Technology Co., Ltd. range on HVACR Nexus.
