This evaporative condenser is published with the manufacturer’s full specification — 380V or others, power 7.5. Made by Weifang Heng An Imp & Exp Co., Ltd. (12 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Evaporative Condenser
- Power(W): 7.5
- Voltage: 380V or others
- Material: Metal
- Coil Material: SS304, SS316L, Galvanized
- Casing Material: SS304, SS316L, AZ Steel
- Warranty: 2 Years
Technical Specifications
| Voltage | 380V or others |
|---|---|
| Cooling Type | Counter Flow |
| Power(W) | 7.5 |
| Material | Metal |
| Core Components | Motor, Pump |
| Machinery Test Report | Provided |
| Warranty | 2 Years |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 1500 |
| Brand Name | HACST |
| Dimension(L*W*H) | 5600*2200*2200mm |
| Other Name | Manufacturer NH3 Ammonia freon evaporative condenser unit |
| Coil Material | SS304, SS316L, Galvanized |
| Casing Material | SS304, SS316L, AZ Steel |
| Cooling Tower Coil Shape | Round and Oval |
| Thickness Of Coil | 1mm, 1.2mm, 1.5mm, 2mm |
| Removable Drift Eliminator | PVC |
| Fills | PVC |
| Type Of Cooling Tower | Counter Flow, Combined Flow, Cross Flow |
| Fan Type | Axial Flow Fan |
| Pump Type | Centrifugal Pump |
| Selling Units | Single item |
| Single Package Size | 4420X220X200 cm |
| Single Gross Weight | 2000.000 kg |
Product Details
Combined Flow Closed Type Water Closed Circuit Type Evaporative Condenser
Working Principle of evaporative condenser
For ZNX series combined flow evaporative condenser, the fresh air intakes from bottom air inlet, and will become saturated hot air mixed with spraying water as they flow in reverse direction. The heat will be exhausted out by fans,but the water will be collected to water basin for secondary spraying by its special designed drift eliminator. As no infill inside, ZNX series combined flow evaporative condenser has much space to enlarge its coil unit heat rejection area, more compact structure and requires less footprint.

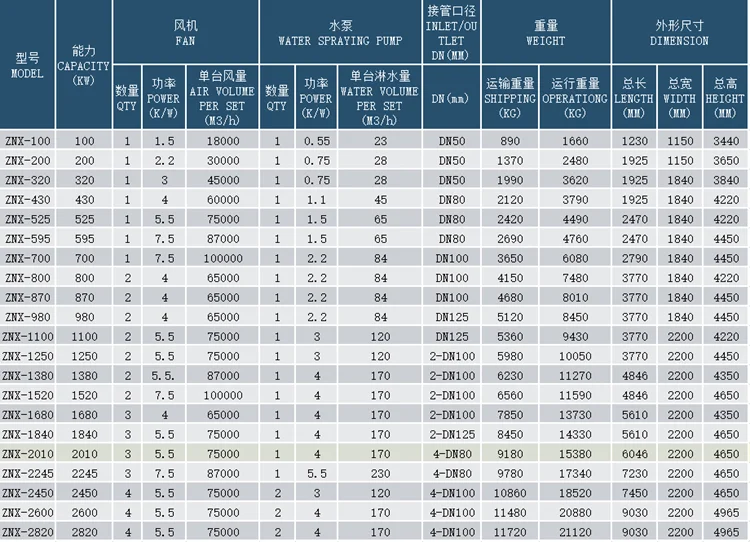

Technical Date for Ammonia Refrigeration Cooling Evaporative Condenser for Mycom Compressor Cooling

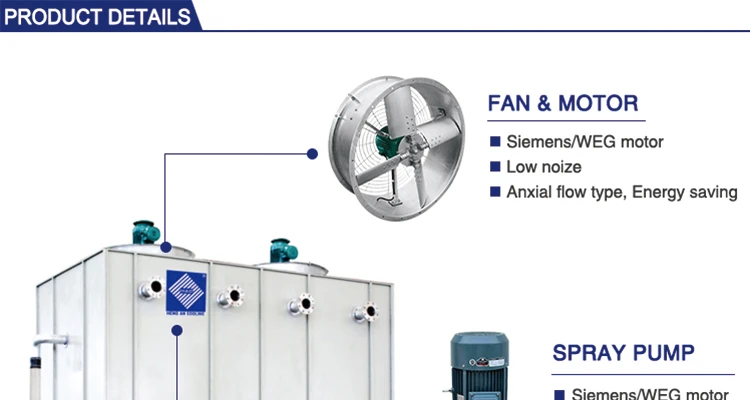

Details of ammonia refrigeration evaporative condenser
1. Coil material: Galvanized steel/stainless steel/red copper
2. Casing material: Al-Zn alloy coated steel sheet/stainless steel
3. Fan type: Axial flow type
4. Cooling tower fill: 100% original PVC material
5. Drift eliminator: Special designed anti-corrosion PVC
6. Water flow loss: Less than 0.005%
7. Maintenance: with access door and ladder
8. Noise Control: Low speed fan, noise damping
7. Fan & water pump motor: Siemens, WEG
8. Customization: Yes
| Evaporative condenser casing material | SS304, SS316L, AZ steel, FRP |
| Heat exchnage coil material | SS304, SS316L, galvanized |
| Coil tube thickness | 1mm, 1.2mm, 1.5mm, 2mm |
| Thickness of casing | 2mm, 3mm |
Production Process for evaporative condenser
Production Process for evaporative condenser
Application of evaporative condenser
Our evaporative condenser used for cold storages, food processing units, C.A stores, milk plants, Breweries, Bottling units, meat and fish plants, ice plants, chilling units and similar ammonia based industrial refrigeration jobs.
What we can supply
Open and closed cooling tower
Evaporative condenser
Evaporative towers
Closed circuit evaporative coolers
Evaporative condensers
Air condensers
Dry cooler (adiabatic and hybrid)
Air cooled heat exchanger
V type air cooler
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $10000 / set
- 3–4 set: US $9950 / set
- 5+ set: US $9900 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative condenser?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the evaporative condenser be supplied for my local voltage?
The standard configuration is 380V or others. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Weifang Heng An Imp & Exp Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Weifang Heng An Imp & Exp Co., Ltd. range on HVACR Nexus.
