This water cooling tower is published with the manufacturer’s full specification — material Stainless Steel, Copper, refrigerant Ammonia, Freon. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Water Cooling Tower
- Material: Stainless Steel, Copper
- Tube Material: Hot Dip Glavanized Steel, SS 304, SS316L, Copper
- Refrigerant: Ammonia, Freon
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Application: Refrigeration Parts
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Heat Exchanger Tube |
| Material | Stainless Steel, Copper |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 1030 |
| Place Of Origin | Shandong, China |
| Brand Name | HACST |
| Tube Material | Hot Dip Glavanized Steel, SS 304, SS316L, Copper |
| Shape Of Coil Tube | Round, Oval |
| Diameter | 25mm, 19mm |
| Thickness | 1.0mm, 1.5mm, 2.0mm |
| Key Wards | Heat Exchange Coil |
| Design Pressure | 2.0MPa |
| Testing Pressure | 2.5MPa |
| Refrigerant | Ammonia, Freon |
| Selling Units | Single item |
| Single Package Size | 150X100X100 cm |
| Single Gross Weight | 1000.0 kg |
Product Details

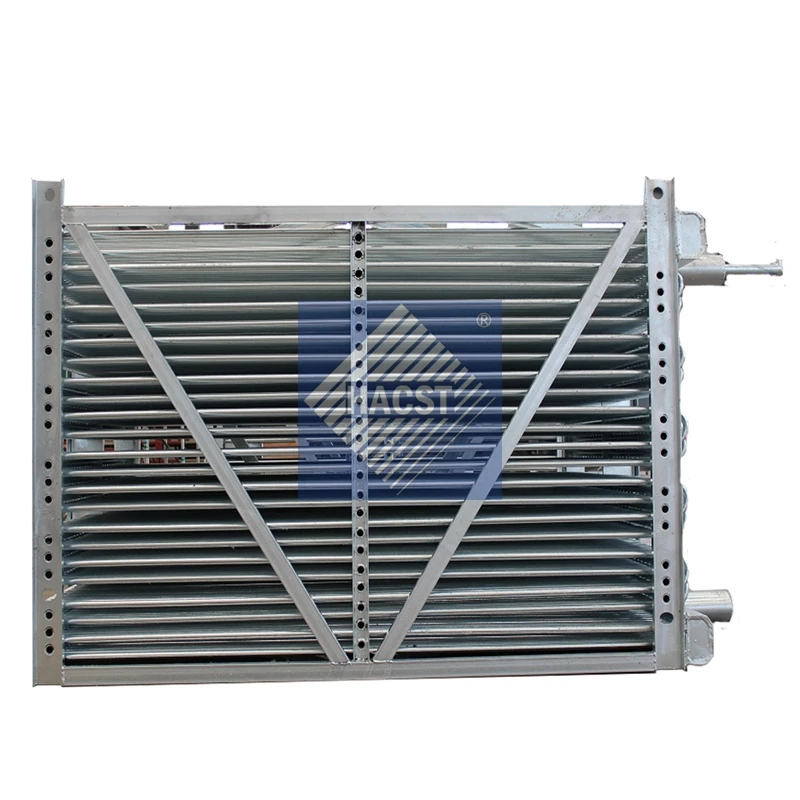

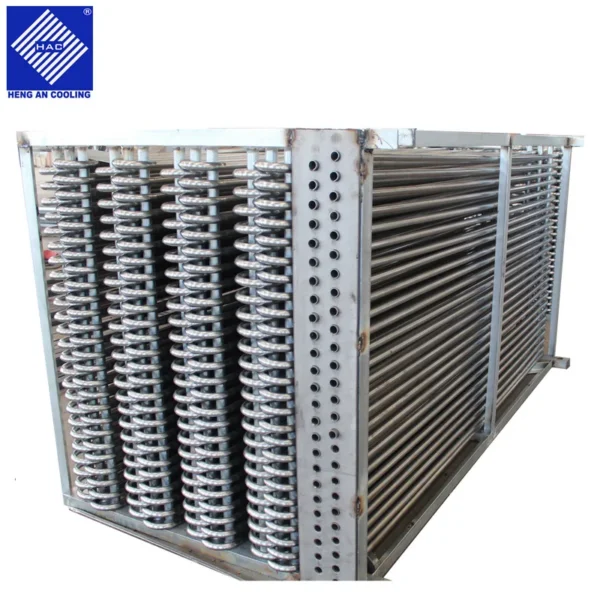

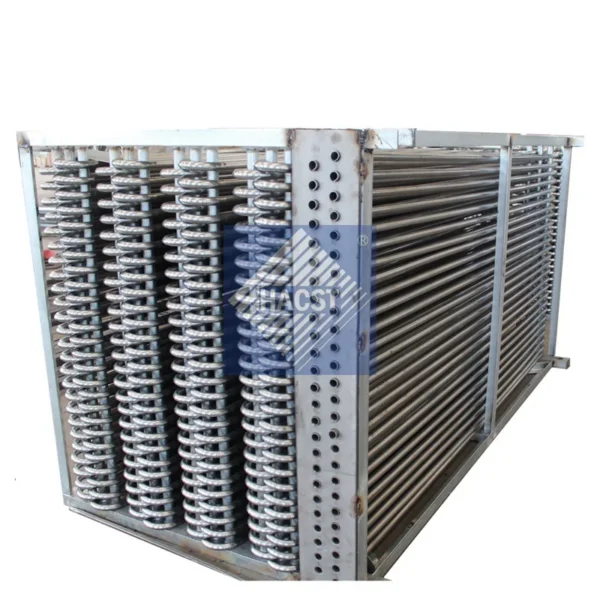

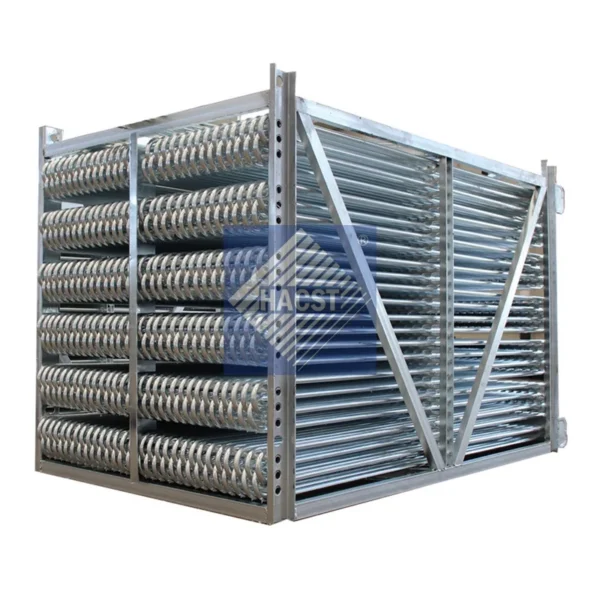

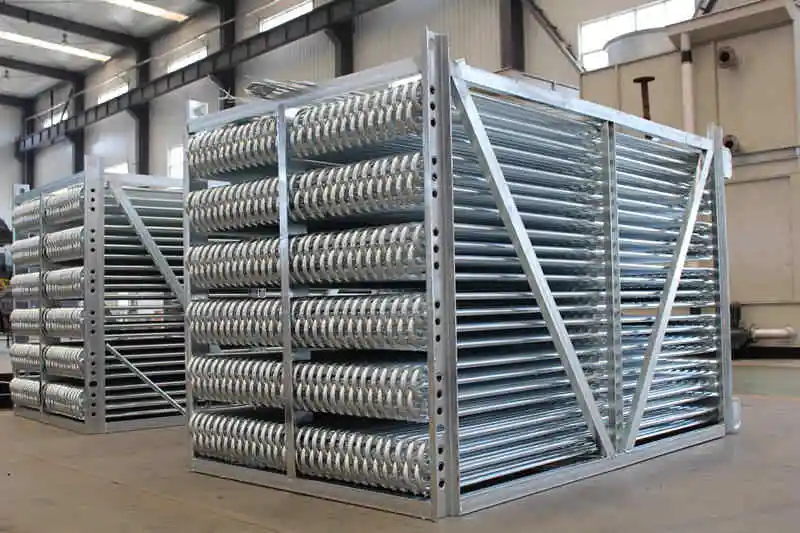

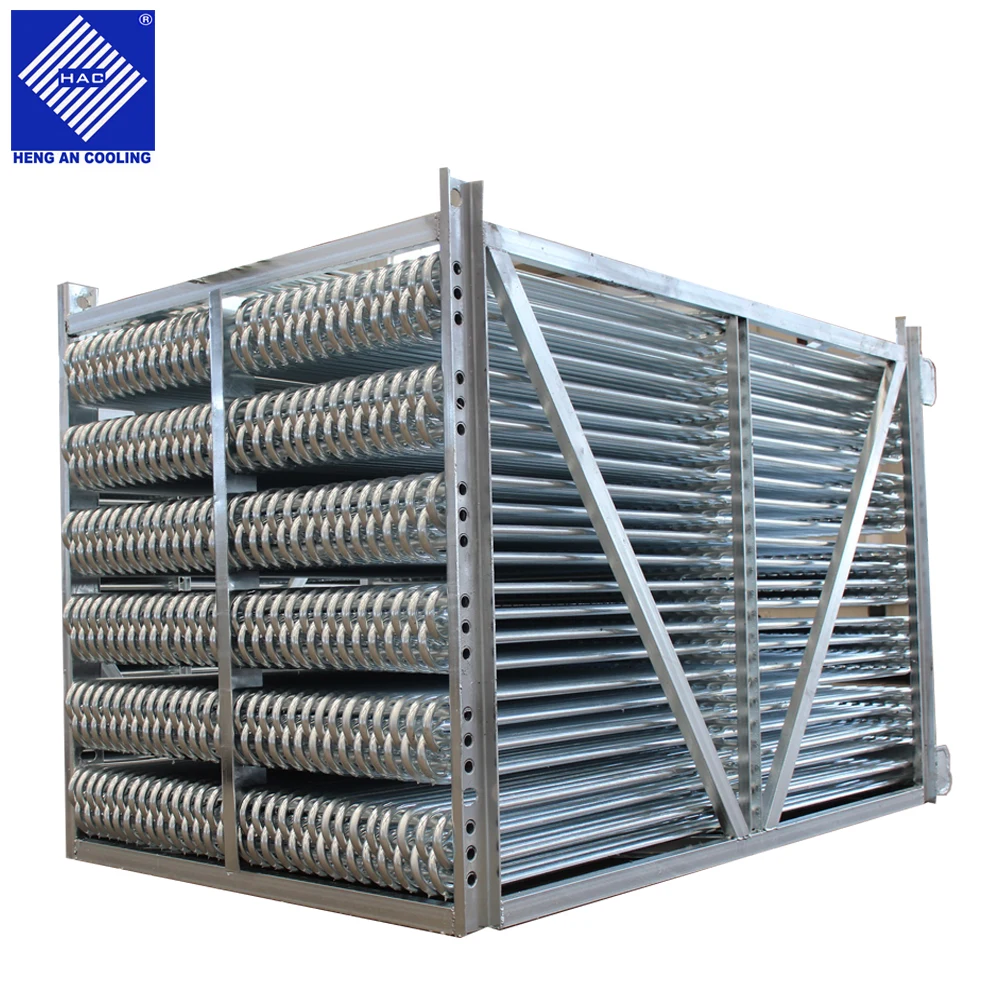

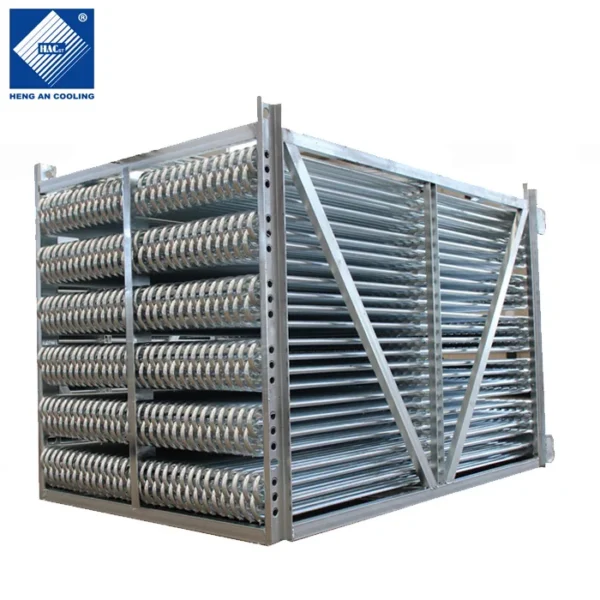

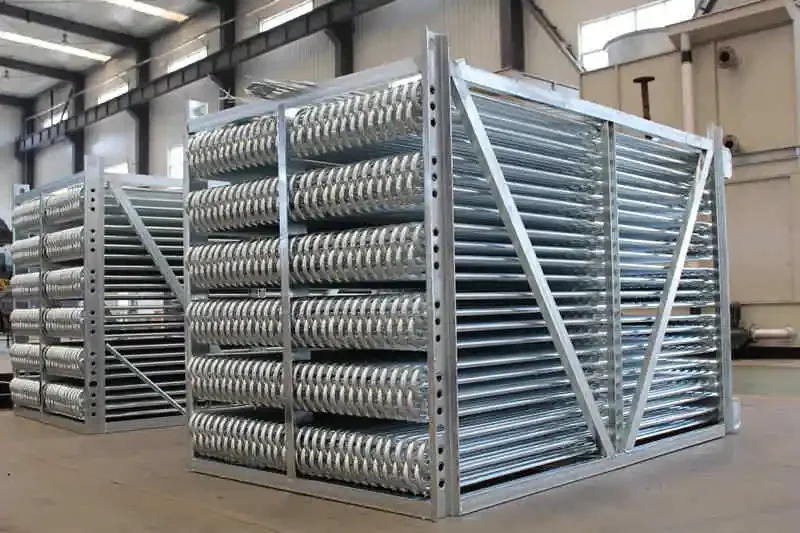

Water Cooling Tower SS304 Heat Exchanger Coils for BAC
What is Coiling Coil / Heat Exchange Coil?
Cooling coils / heat exchange coil as the core parts of closed cooling tower, are maded up of great quality copper coil or steel coil. Coil inside is through cooling medium, outside is cooled by water spray to meet the cooling requirement.
Steel coils are used by high quality D25 mm seamless fluid tube, and processed by H.D.G.(hot dip galvanised) to enhance the coil pipe anti-corrosion ability, extend service life.
Copper coils are used by T2 deoxidized acid copper tube, silver electrode is used to connect between the copper pipe and elbow welding, low solder joint and good quality, design pressure is 1.2MPa.

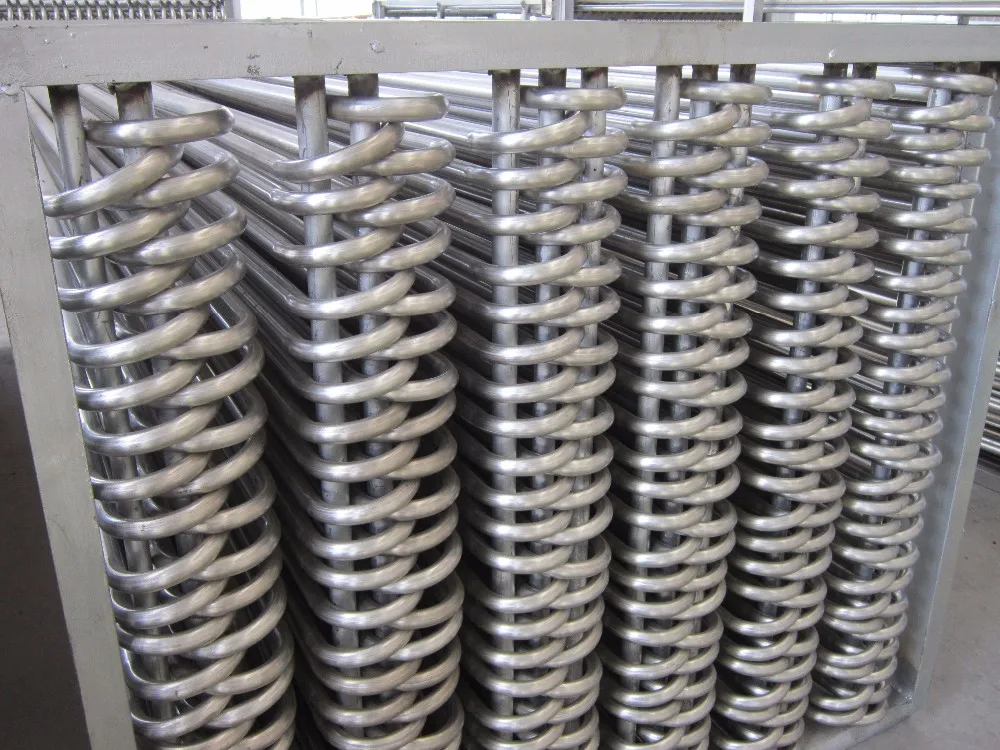

Material Type 304 Stainless Steel Construction are designed for te applications exposed to extremely corrosive conditions or where the longest life if desired. Standard serpentine coil, is constructed of continuous lengths of all prime SS304. The coil is designed for low pressure drop with sloping tubes for ree drainage of fluid. Each coil is pressure-tested to 3000kpa.
Details of Heat Exchage Coil
| Water Cooling Tower SS304 Heat Exchanger Coils for BAC | |
| Materil | Red Copper, Stainless Steel, Galvanized Steel |
| Type | Elliptical tube, finned tube, wave tube, compound type coils. |
| Size | 25*1.5mm, 25*2mm |
| Designed Pressure | 2.0Mpa |
| Test Pressure | 2.5MPa |
| Applications | Heat exchange coil used for BAC / Marley / Evapco cooling tower and evaporative condenser |
A. With new coil design, the spraying water counter flow with fresh air to advance the cooling efficiency.
B. Each group of coil tubes is arranged with consistent slope, and the slope direction same with the water flow direction, in order to facilitate water discharge from the pipe, the slope rate is 0.01.

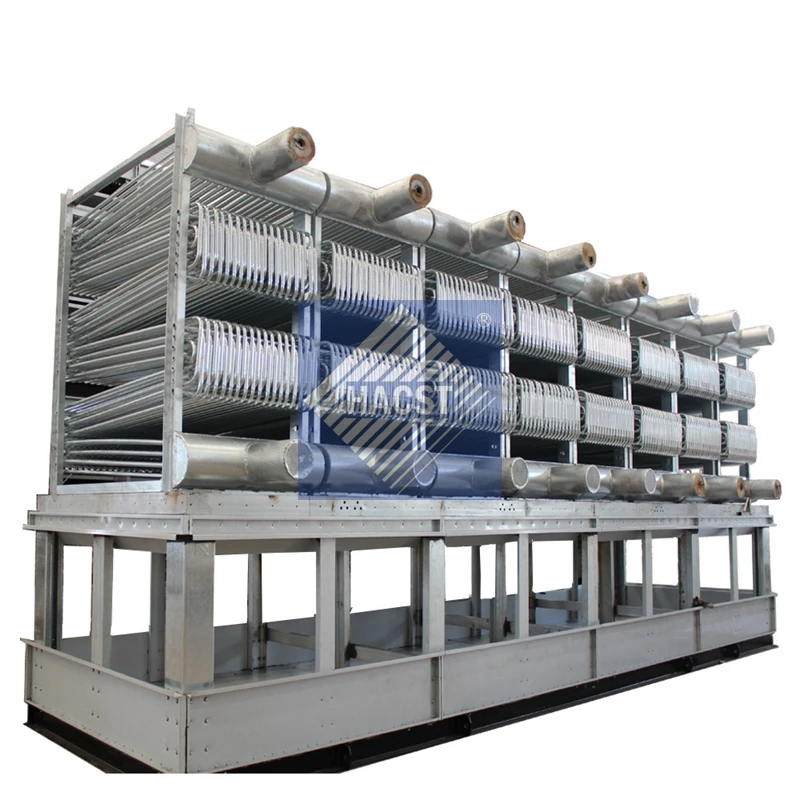

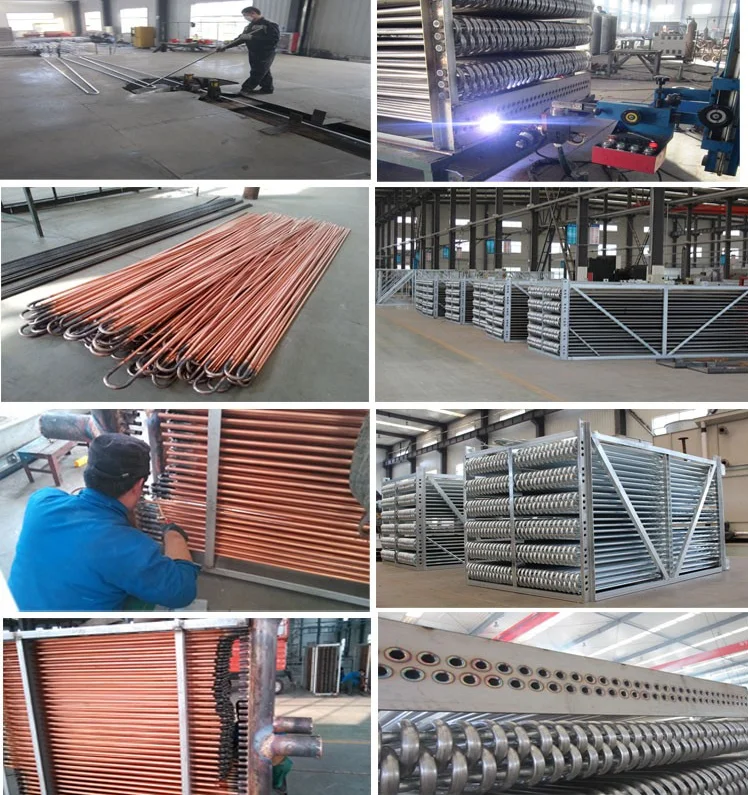

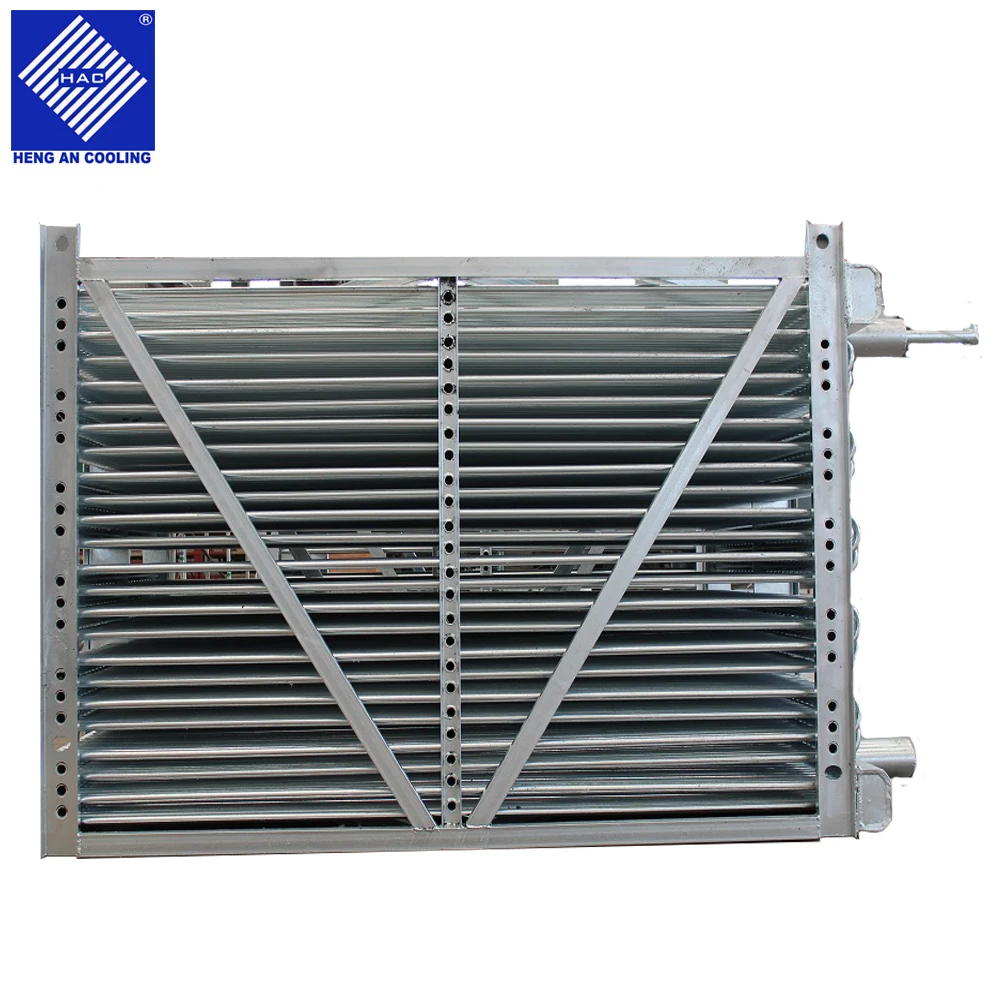

C. Support frame of the coil is made by welded sectional material, and all processing technologies meet Chinese national metal welding processing requirements and standards. The cleaning and coating process of the support frame surface same to the cooling tower frame.
D. Designed pressure is 2.0MPa, tubes in each group go through previewing and pressure test, and then to be assembled after getting through quality test. Test in the water with pressure 2.5MPa after assembled, to ensure no any leakage and high heat performance.
E. Heat exchange coil material is Galvanized, Diameter 25mm, thickness 1.5mm.
Type of heat exchange coil
The heat exchange coil is made by top quality steel pipe. For closed circuit cooling tower, red copper, stainless steel, and galvanized steel available. For evaporative condenser, stainless steel and galvanized steel selected mostly. And the galvanized steel coil is made by top quality seamless steel pipe, strong pressure resistance. Till now, the biggest operating pressure of coil we designed reach to 30mpa, far more than the competitors level.
Various type coil tube available which depends on operating requirements, such like elliptical tube, finned tube, wave tube, compound type coils.

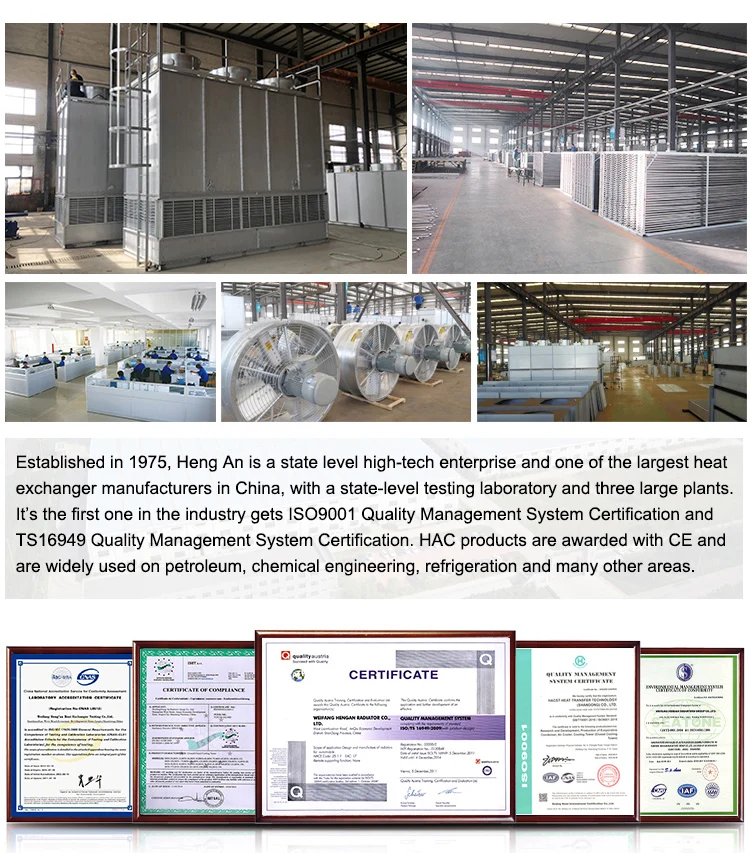

Weifang Heng An Cooling Group
1. One of the biggest cooling tower & evaporative condenser manufacturers in China
2. Annual productivity 2100 sets
3. Our products such as cooling tower, evaporative condenser, pvc fill, heat exchange coil have been exported to many countries such like America, Mexico, Malaysia, Chile, India, Dubai etc
1. What is our main product ?
As a factory, our main products have parts for cooling tower, cooling tower and evaporative condenser.
3. When can I get the price?
We usually offer the quotation within 1 work days.
4. What is the Trade Term?
We accept Ex-work factory , FOB Qingdao, CNF or CIF, as your requirement.
5. What is the Payment term?
T/T or L/C at sight.
6. What are your terms of packing?

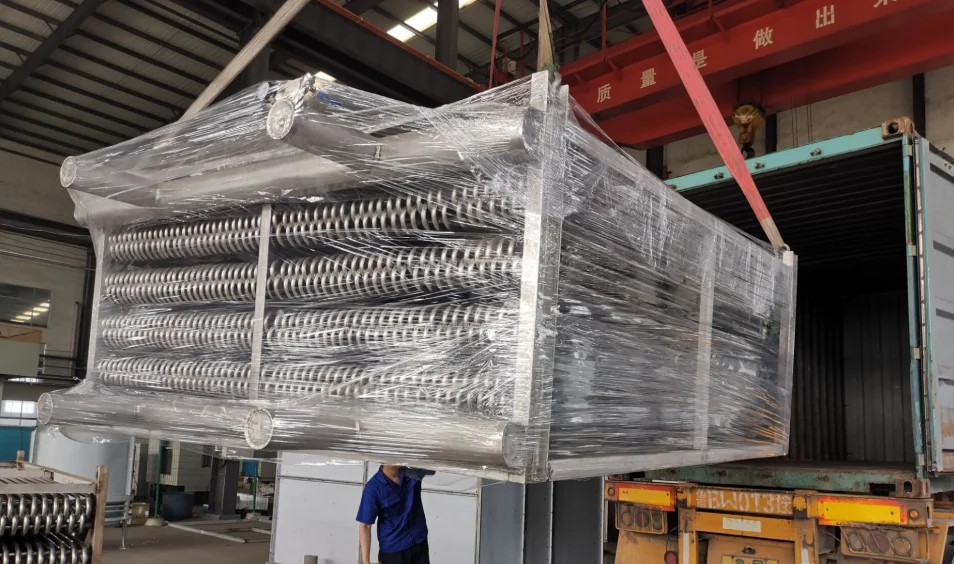

Packing: export worthy package suitable for container transportation.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $5000 / set
- 5–9 set: US $4950 / set
- 10+ set: US $4900 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Weifang Heng An Imp & Exp Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Weifang Heng An Imp & Exp Co., Ltd. range on HVACR Nexus.
