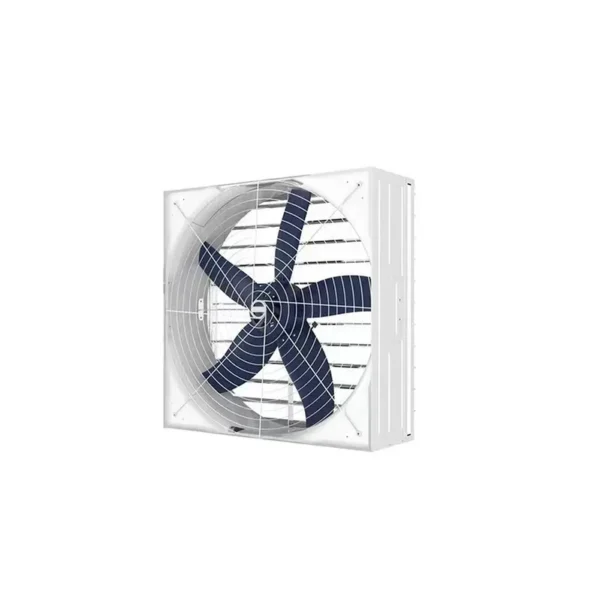

Exhaust Fan, Wall, 380-460V, Electric

Key specification for this exhaust fan: voltage 380-460V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Qingdao Ejoy Farming Machinery Co., Ltd. (9 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Exhaust Fan

• Model Number: ZMD50-2-1.5ECS-125 (EC Cone), ZMD50-2-1.8YSP8-125 (AC Cone), ZMD50-2-1.5ECS-125 (EC Box), ZMD50-2-1.8YSP8-125 (AC Box)
• Power Source: Electric
• Voltage: 380-460V
• Blade Material: PP
• Material: PP
• Speed: 720RPM, 680RPM

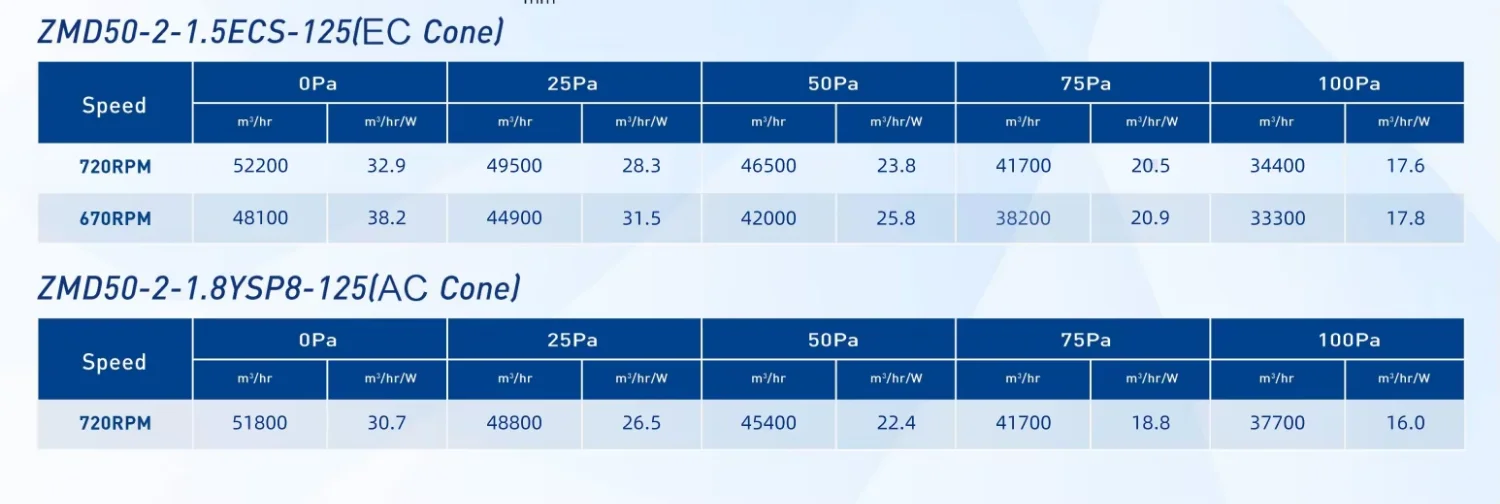

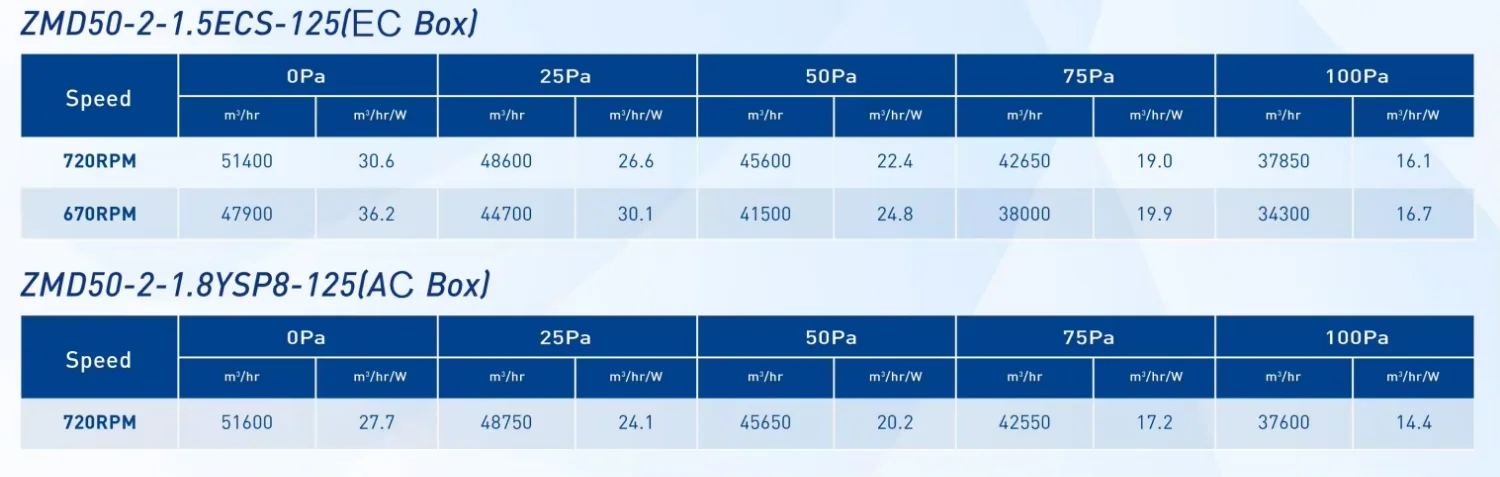

Technical Specifications

Product Details

PRODUCT HIGHLIGHTS

• Outstanding Aerodynamic Design & High Efficiency.Features airfoil-shaped blades and an optimized flow path frame design. This structure improves fan efficiency by significantly reducing air resistance, delivering up to 20% higher efficiency than conventional fans while consuming only 90% of the power.
• High-Performance EC Motor & Direct Drive Structure .Equipped with a high-performance EC motor featuring IP66 protection grade, ensuring high efficiency, low temperature rise, and a long lifespan. The direct drive structure eliminates the need for belts, offering a full life cycle of maintenance-free operation without air volume attenuation.
• Versatile Anti-Backflow Structure Options. Available with two distinct anti-backflow mechanisms to suit different installation needs: durable Shutters (for Box models) or precision Butterfly Dampers (for Cone models), effectively preventing reverse airflow when the fan is off.
• Wide Voltage Adaptability & Intelligent Control.Designed for global compatibility with a wide voltage range of 380-460V and 50/60Hz frequency support. The EC models offer superior energy savings and precise speed control capabilities (e.g., maintaining high airflow even at lower RPMs like 670RPM).

                             HOW TO CHOOSE

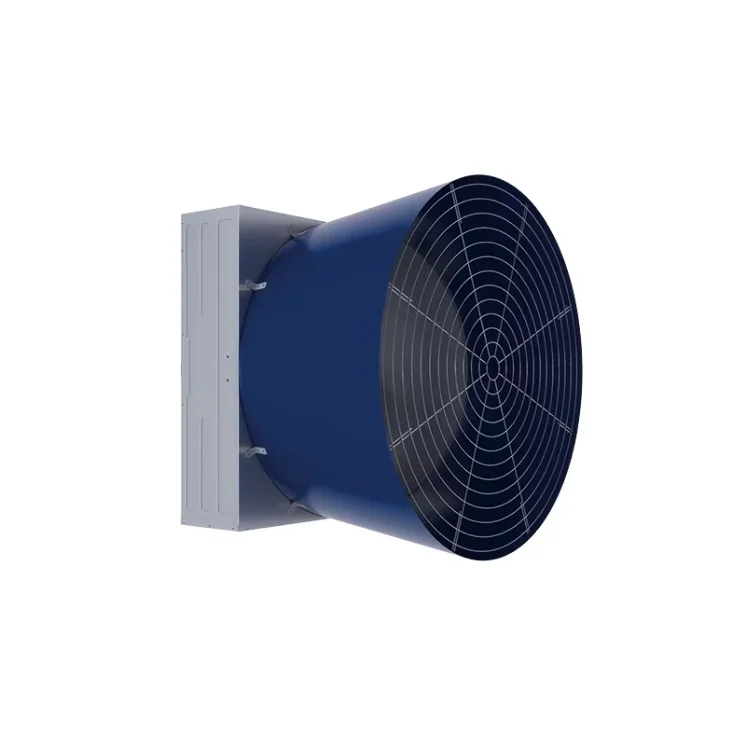

CONE FAN

Cone Fan has a funnel shape with butterfly dampers for better sealing and higher efficiency.

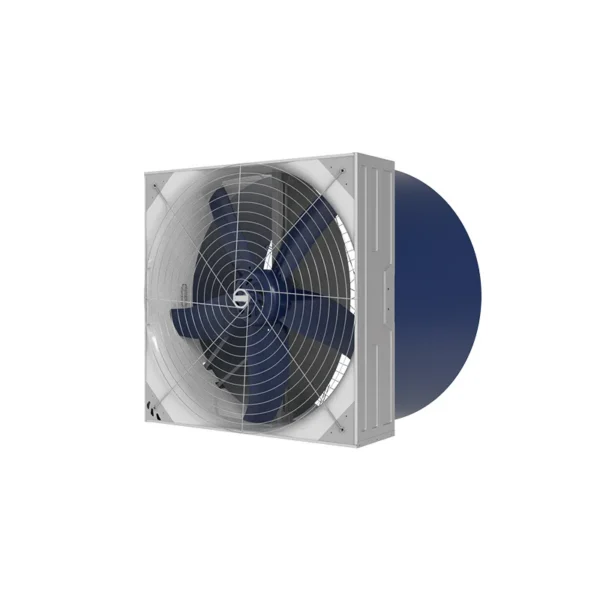

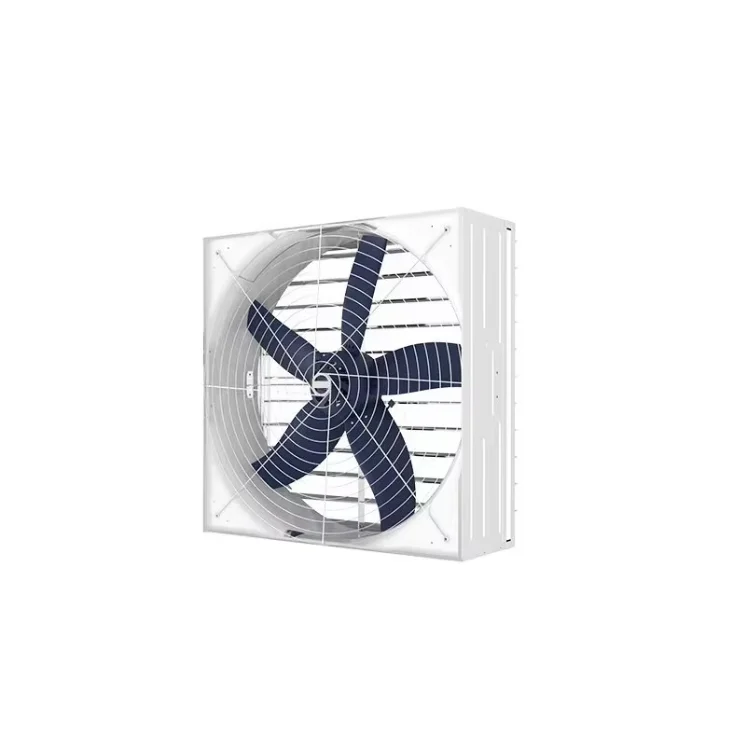

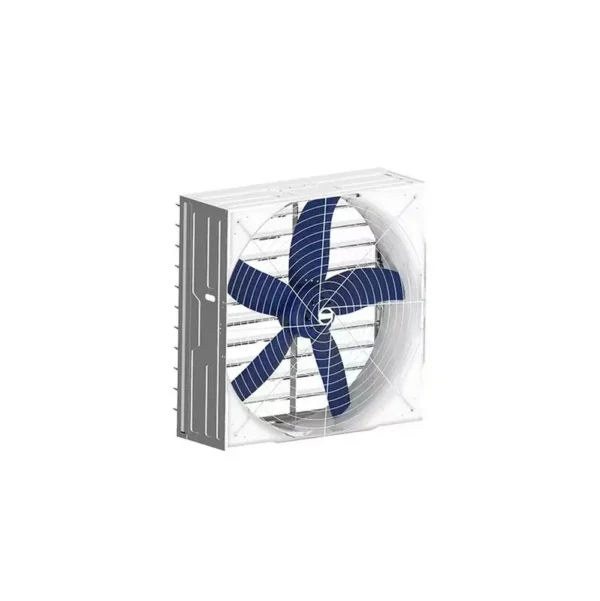

BOX FAN

Box Fan is flat and square with gravity shutters, offering a sleeker look and easier wall-flush installation.

标题

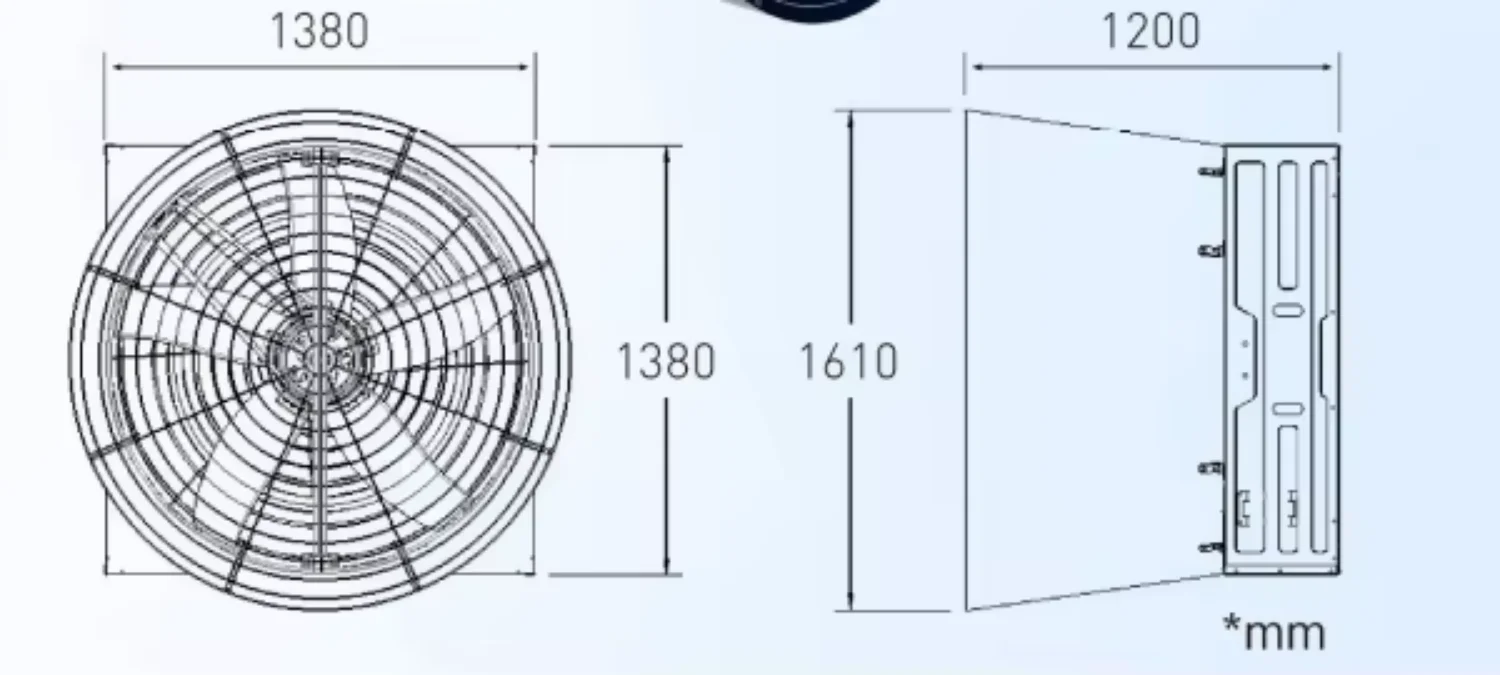

CONE FAN

Width: 1380 mm Height: 1380 mm

Depth: 1610 mm (including the cone structure)

标题

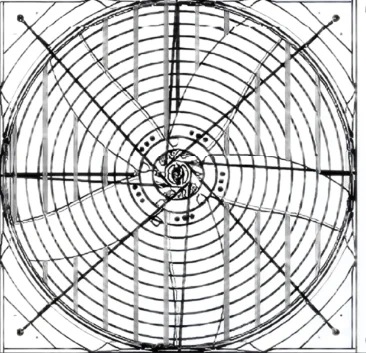

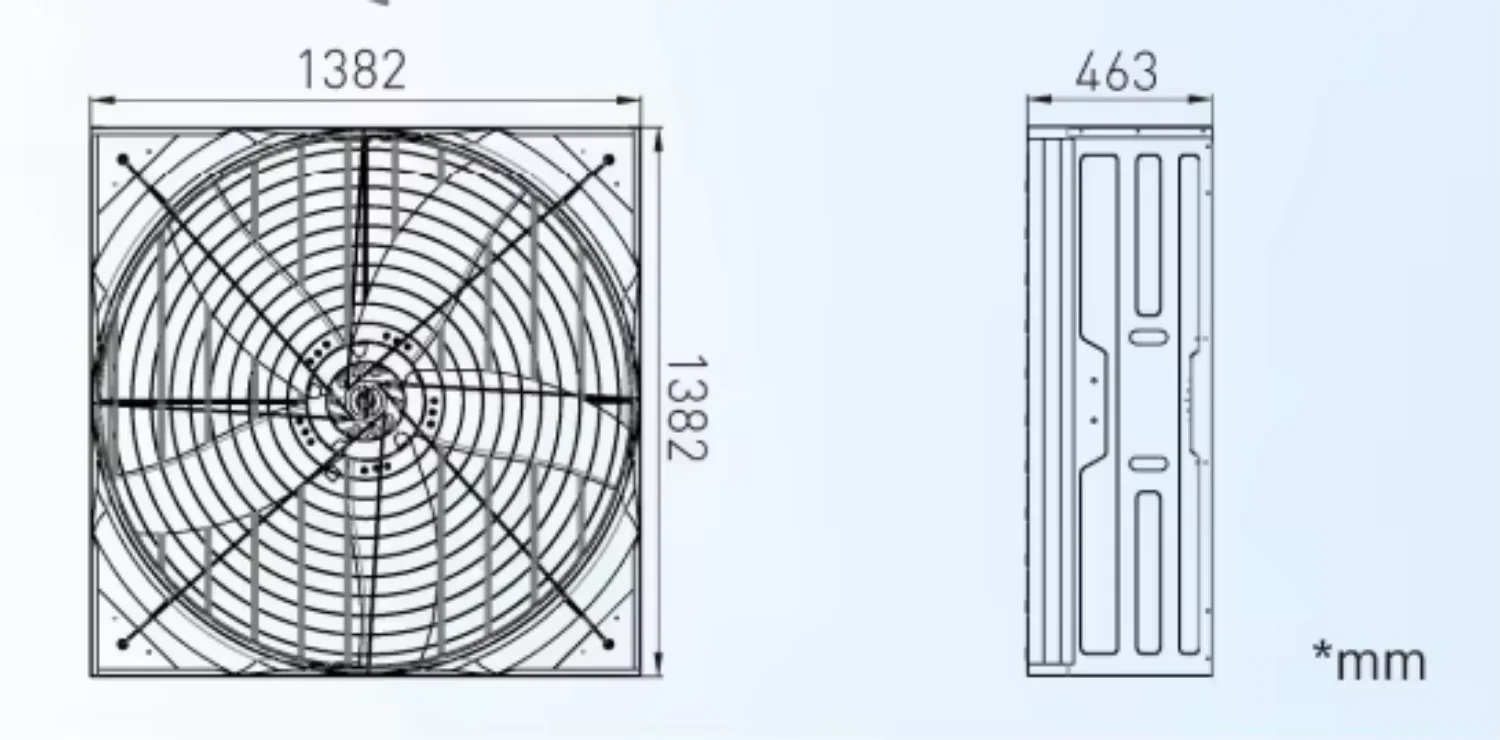

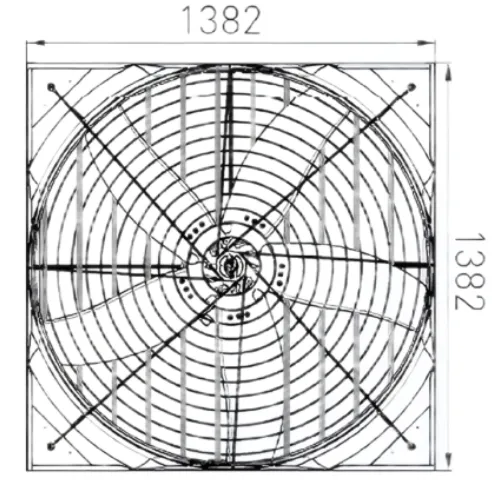

BOX FAN

Width: 1382 mm Height: 1382 mm Depth: 463 mm (box thickness)

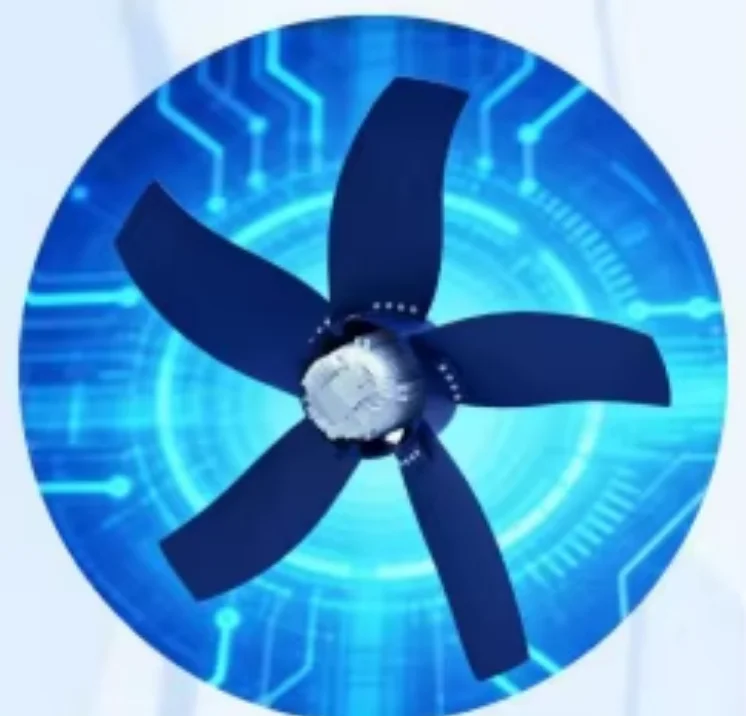

Blades Details
Blades Number	5 higher volume     superior balance
Blades  Materials	PP corrosion resistance high heat tolerance lightweight durability

EC motors excel in high efficiency, quiet operation, and smart control

AC motors are favored for their low cost and high reliability

标题

CONE FAN

标题

BOX FAN

Other Parameters
Voltage			380-460V
Phase			3
Frequency			50/60Hz
Power			1500W
Anti-Backflow structure			Shutters(BOX FAN)                Butterfly Damper(CONE BOX)

                            OUR ADVANTAGES

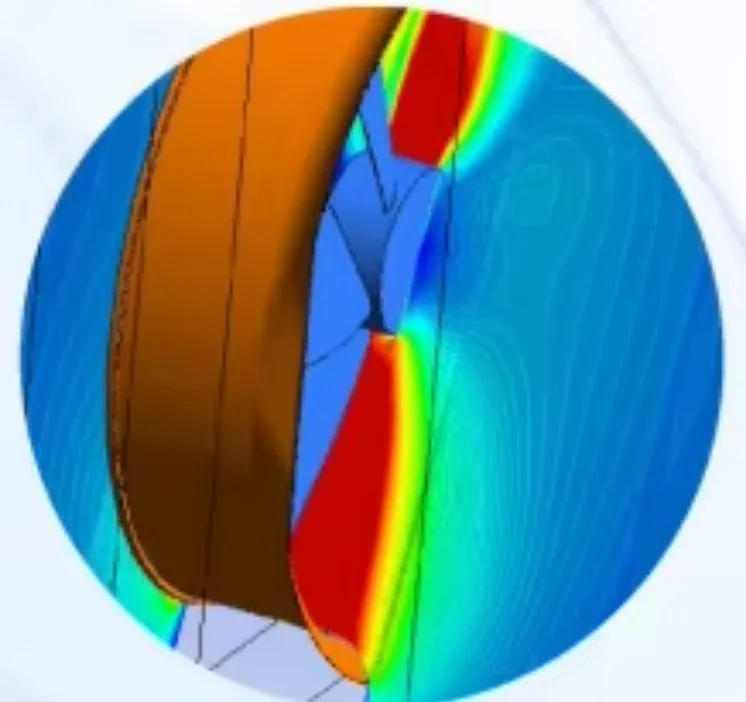

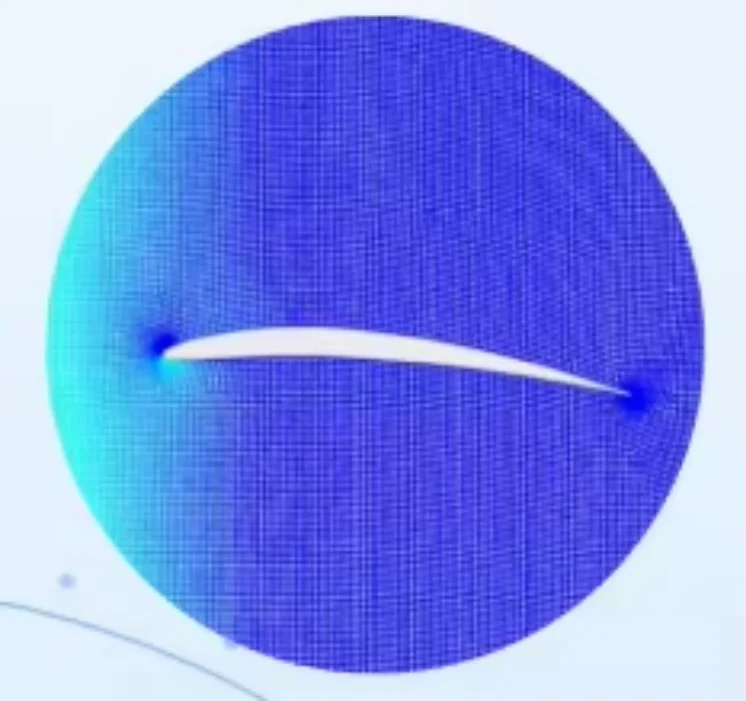

Blades The airfoil-shaped blades optimize airflow for higher efficiency.

Frame Through multiple optimizations the optimal flow path design significantly improves fan efficiency.

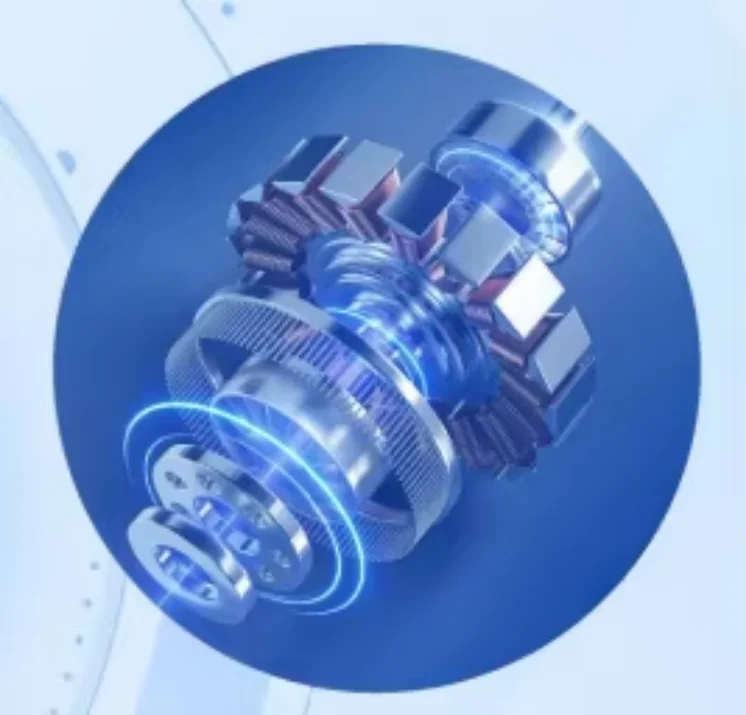

High-performance motor IP66 protection grade. High efficiency, low temperature rise, long lifespan.

Direct drive structure Full life cycle maintenance-free. Air volume without attenuation.

High Efficiency 20% more efficient than conventional fans with only 90% of their power consumption.

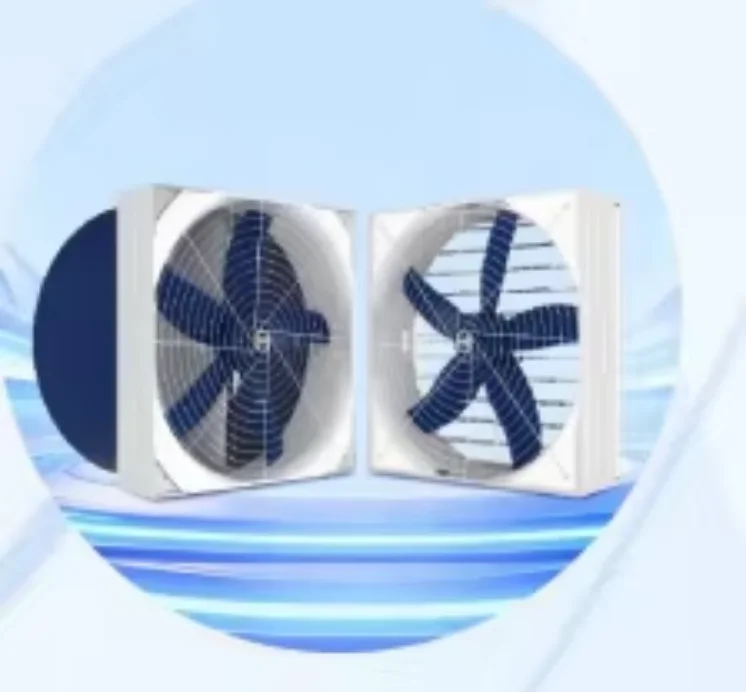

Multiple model options Meet the diverse and various types of customer demands. EC/AC Box/Cone.

                                   CERTIFICATE

标题

标题

The fourth certificate is the Trademark Registration Certificate for the brand "EJOY", issued by the China National Intellectual Property Administration. It legally confirms the company's exclusive ownership of the trademark for agricultural machinery, effectively protecting its brand identity and preventing market infringement.

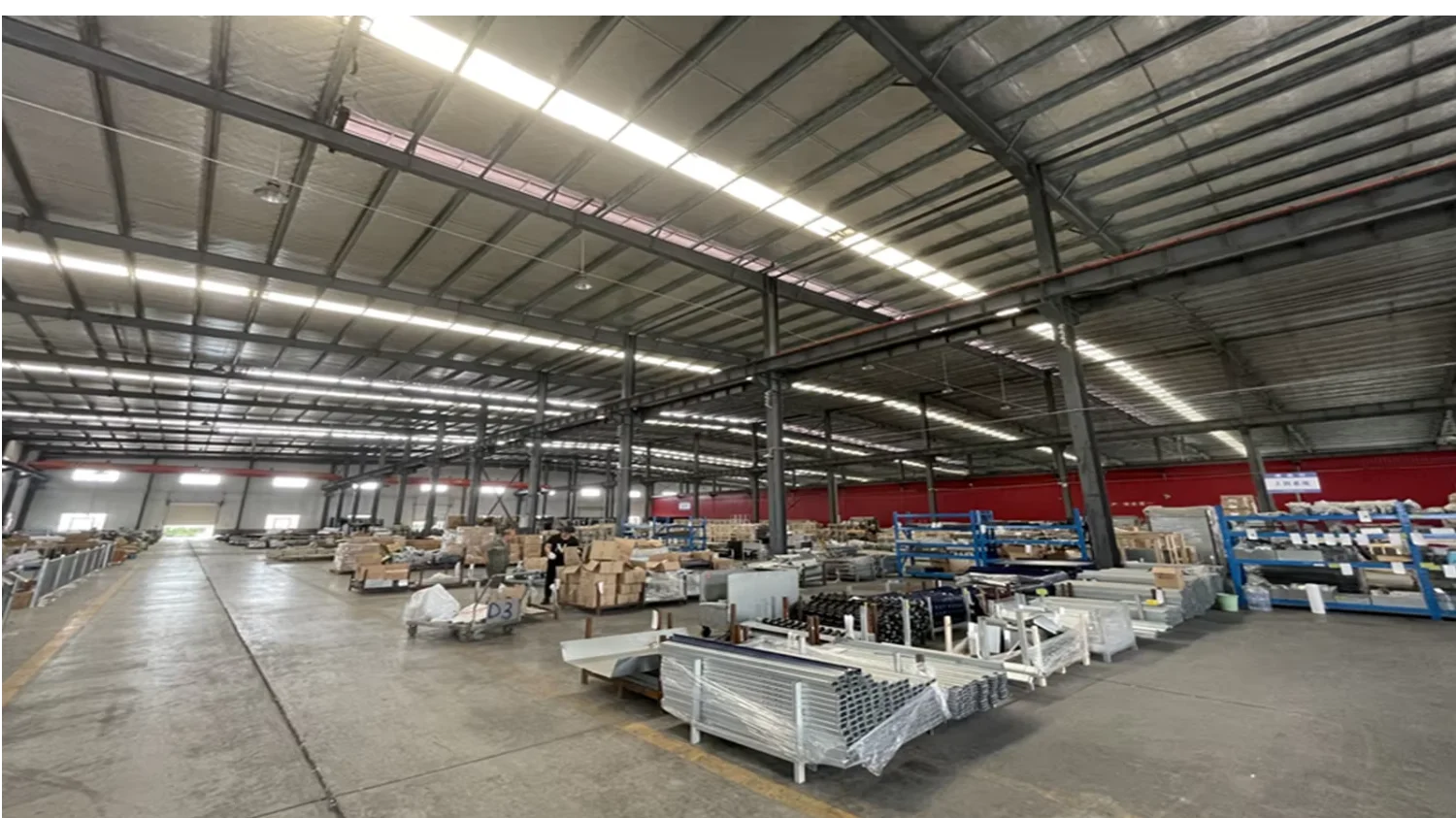

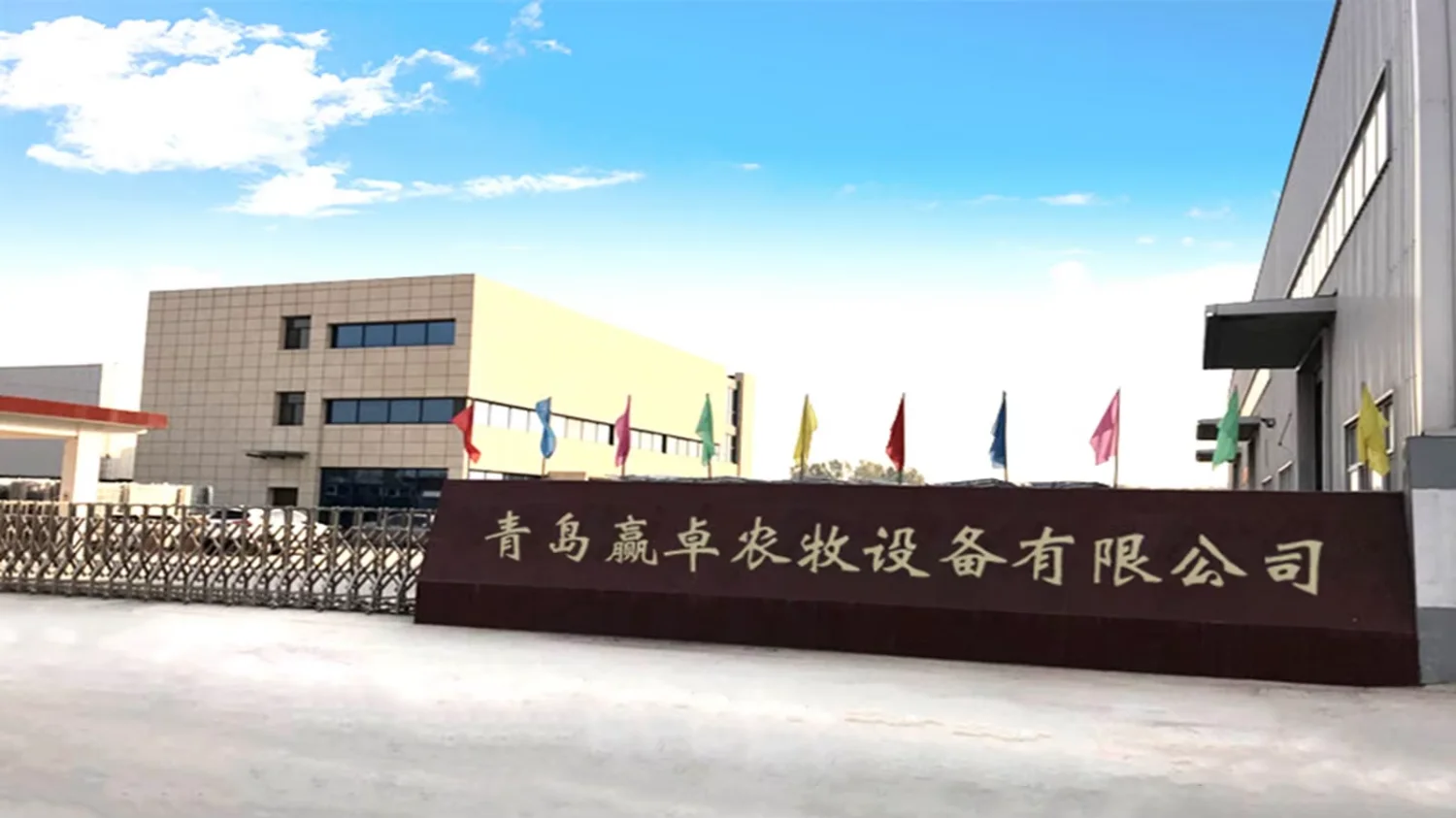

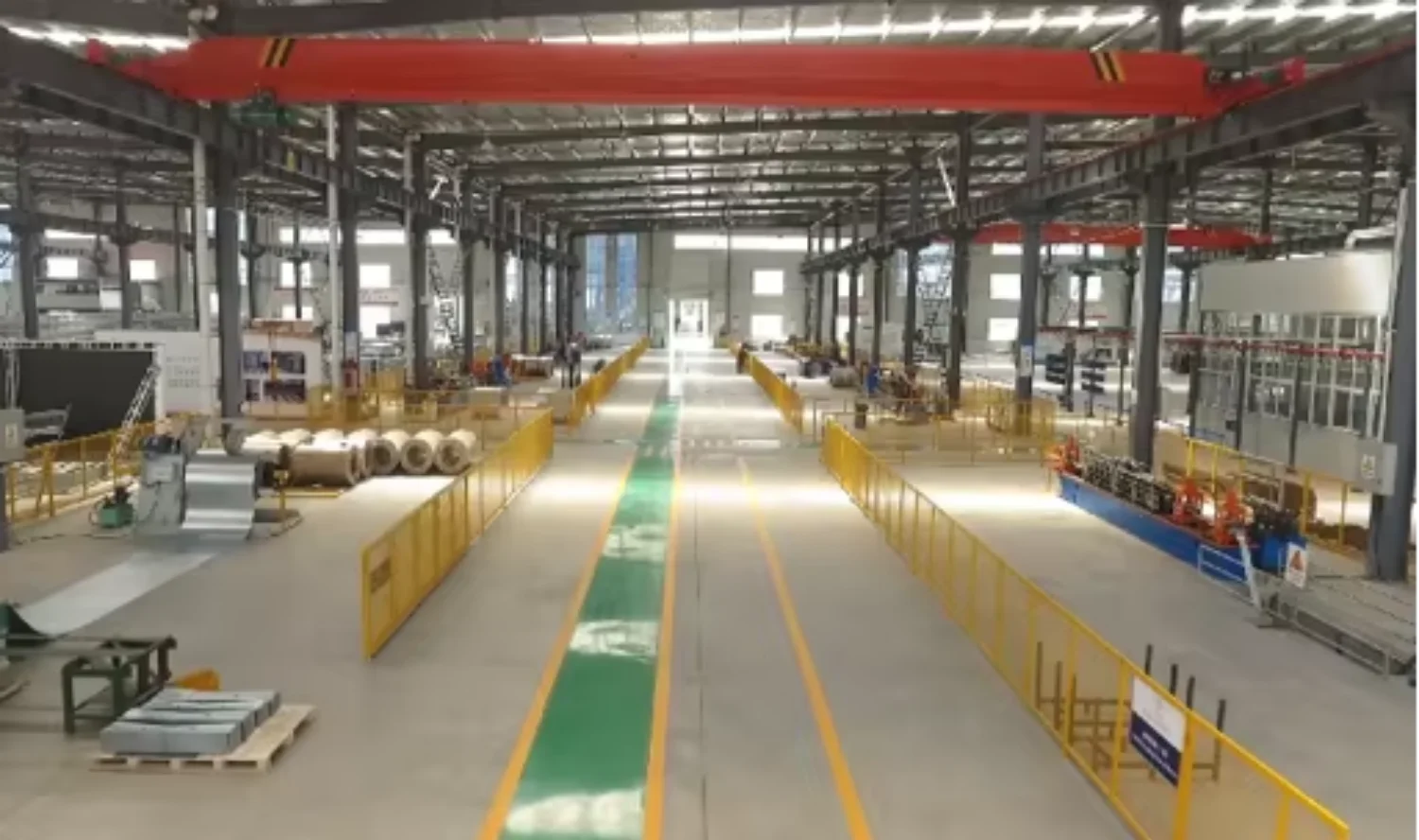

                               COMPANY OVERVIEW

标题

Qingdao Ejoy Farming Machinery Co., Ltd. was established in the year of 2016, the corporation engages in researching, designing and manufacturing products for pig and poultry farming machinery. Besides producing and offering feed system, nipple drinking system, ventilation and cooling system, it also engages in the project design and construction of modernized farms for broilers, breeders, layers and swine.

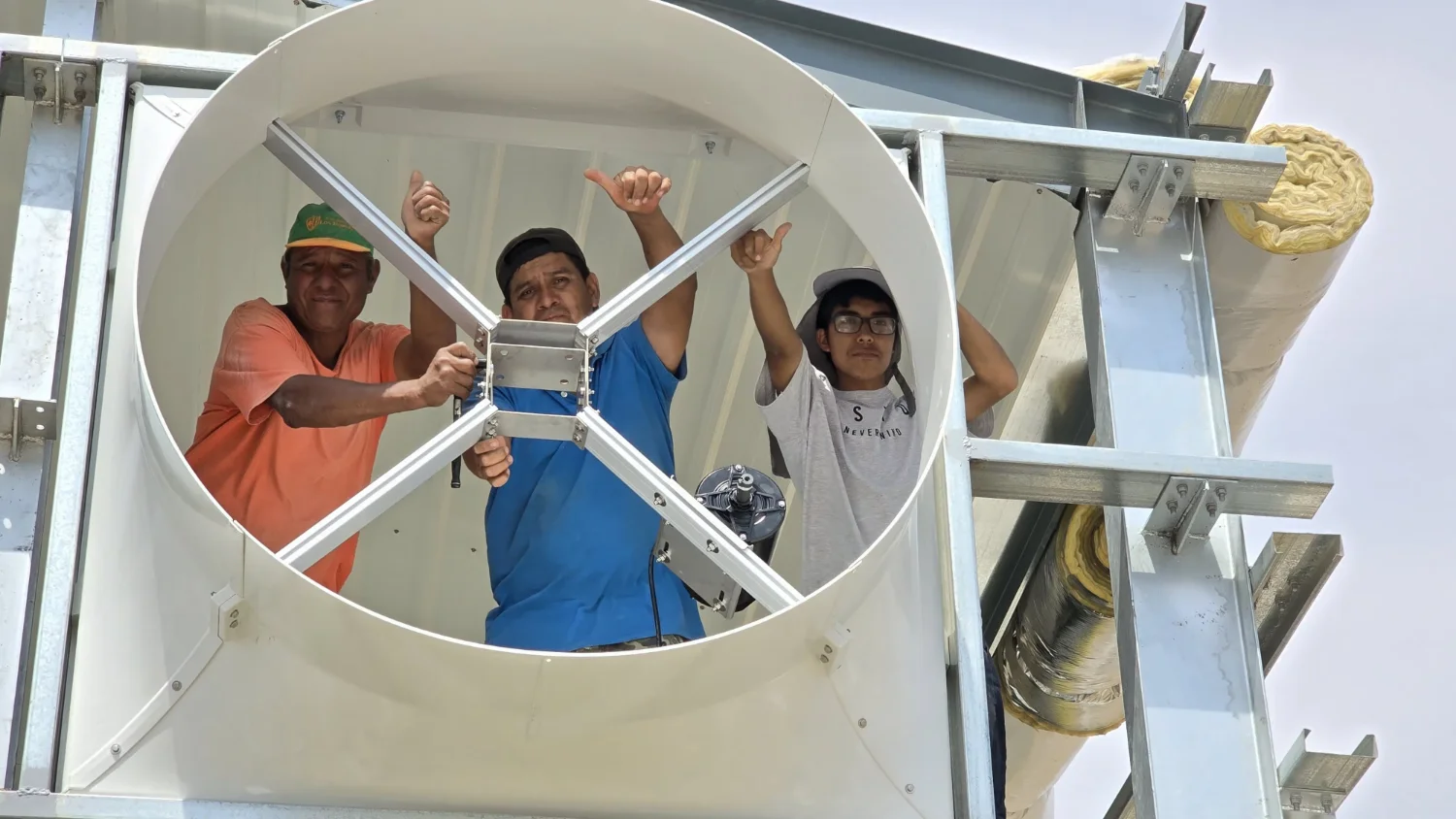

                             CUSTOMER CASE

                 TRADE SHOW PARTICIPATION

                                      FAQS

Ordering and Pricing

• Minimum order quantity: 10 piece
• Volume pricing:
  • 10–14 piece: US $500 / piece
  • 15–99 piece: US $480 / piece
  • 100+ piece: US $450 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this exhaust fan?

The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the exhaust fan be supplied for my local voltage?

The standard configuration is 380-460V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
