Exhaust Shaft Air Fan, Stainless, Steel, 220V/380V, Wall

Exhaust shaft air fan — 220V, 380V, power source Electric. The complete factory specification follows. Made by Shandong Muhe Machinery Co., Ltd. (15 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Exhaust Shaft Air Fan

• Model Number: MH-400 304Stainless steel
• Power Source: Electric
• Voltage: 220V, 380V
• Material: Stainless Steel
• Blade Material: Aluminum
• Speed: 1450RPM

Technical Specifications

Product Details

Products Description

MUHE-SERIES

GREENHOUSE HANGING CIRCULATION FAN

Product Application.

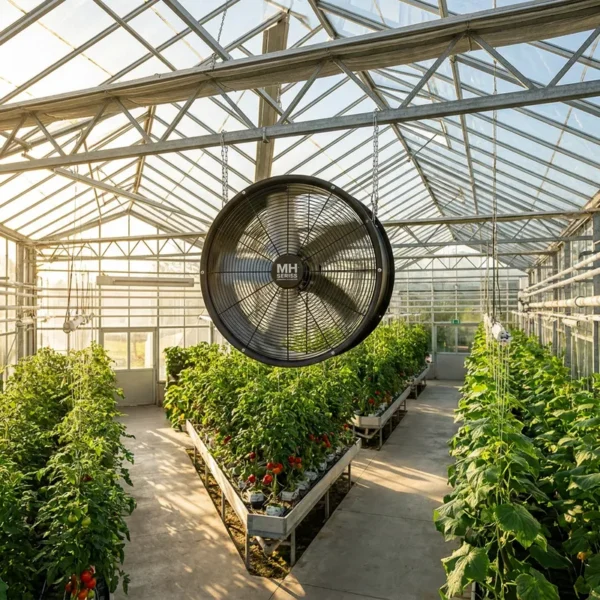

Shandong Muhe Series Hanging Circulation Fans are Widely used in greenhouses, poultry houses especially for enclosed houses for relaying ventilating. The cooling and ventilating efficiency is very good.

Using the circulating fan can ensure the temperature, humidity and CO2 are distributed evenly in greenhouse, and promote growth and reproduction, so as to keep the consistency and obtain excellent quality of the plants.

Advantage:

1. High quality 304 stainless steel frame by stretching forming, attractive appearance, no rusty.
2. Fan blade made by aluminum material , light weight, low noise, and excellent corrosion resistance.
3. Hanging fasteners made of stainless stamping, the angle can be changed and installation easily.

Front and back safety mesh grills ensure operation safety.
4. According to the high temperature and humidity in greenhouse, individually customized high quality motor,

to ensure excellent performance.
5. International advanced power-saving technology and automatically heat protected system makes the circulation

fan having the advantage of low energy consumption and long service life.

Technical Data:
Model (Circulation Fan)	Blade Dia (MM)	Air Flow (M³/H)	Input Power  (W)	Rated Voltage  (V)	Frequency (HZ)	Size: High-Wide-Thickness (MM)
MH-300	300	2880	120	220/380	50/60	380-380-270
MH-400	400	4180	150	220/380	50/60	480-480-290
MH-500	500	5300	180	220/380	50/60	570-570-320
MH-600	600	6500	250	220/380	50/60	680-680-330

Main Feature

1.The motor is the 100% copper wire.
2.International advanced energy conversation technology testing.
3.Light aluminum board punch press fan blade,wide angle,heavy wind and low noise.
4.Outer covering is the stainless steel or steel spraying available.
5.Equipped with beautiful and convenient button type hanging article.
6.Long service,life over 10 years

Details Images

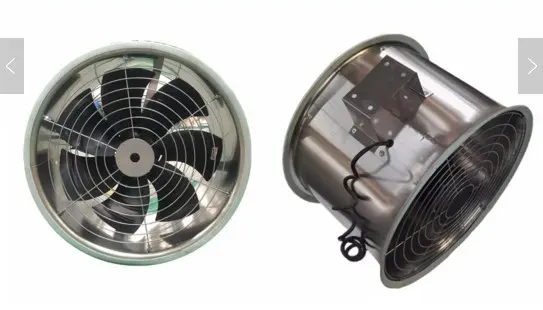

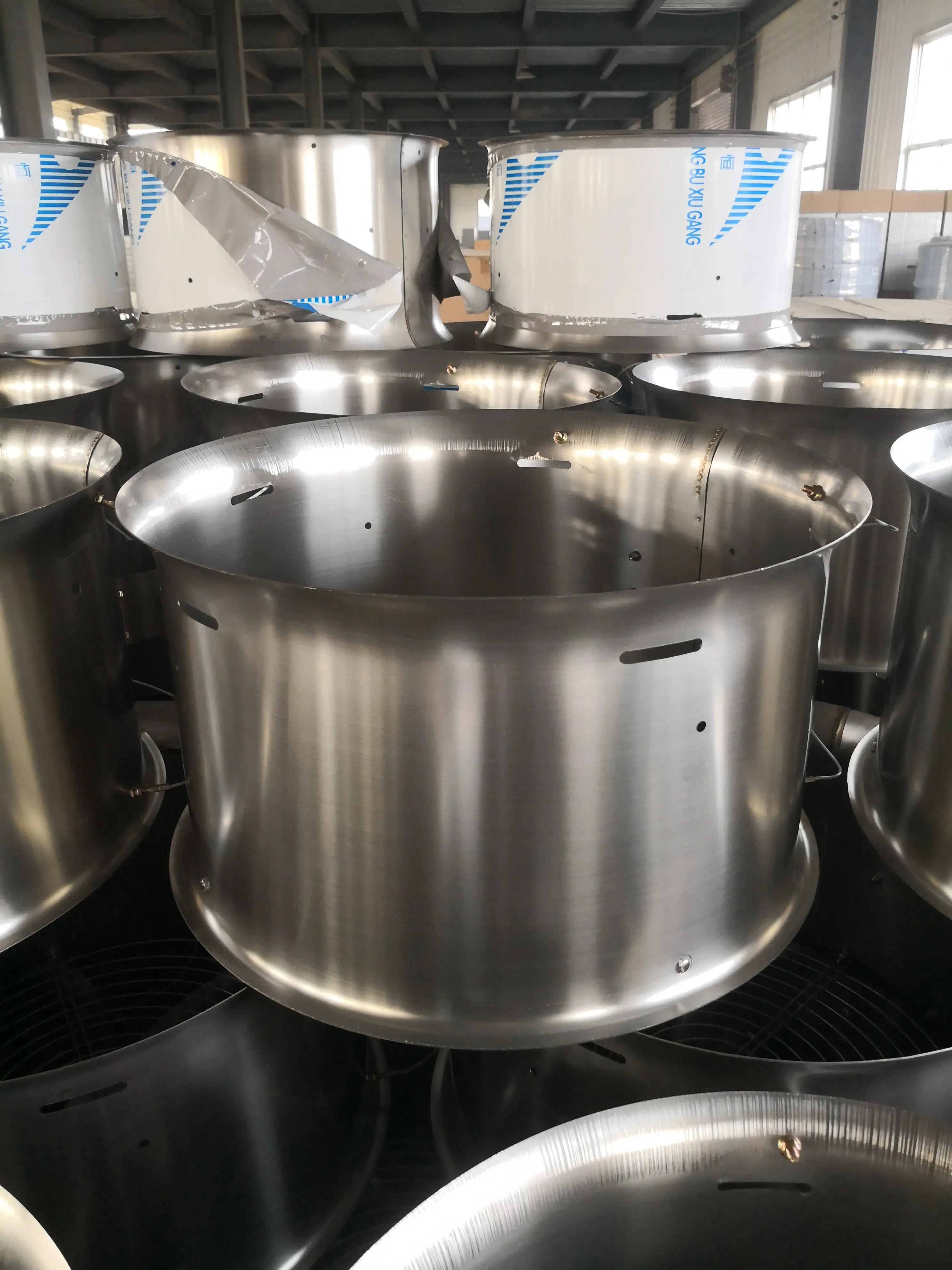

304 SS Frame

1)Stainless Steel 304;

1.0-1.2 mm thickness

2)High quality 304 stainless steel frame

by stretching forming, attractive

appearance, no rusty.

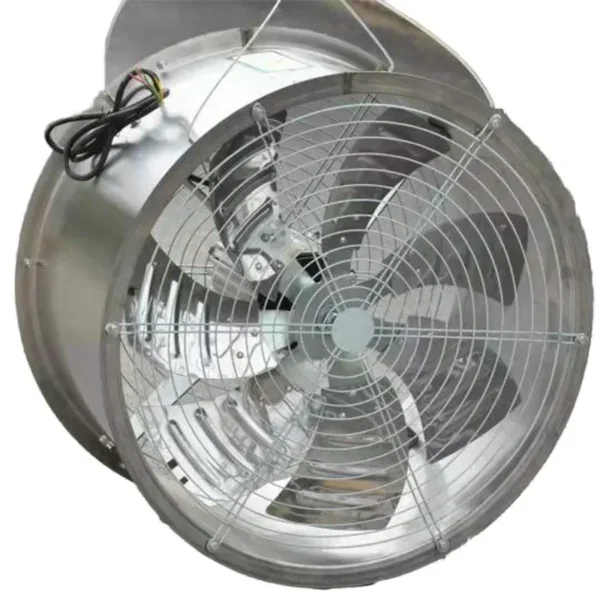

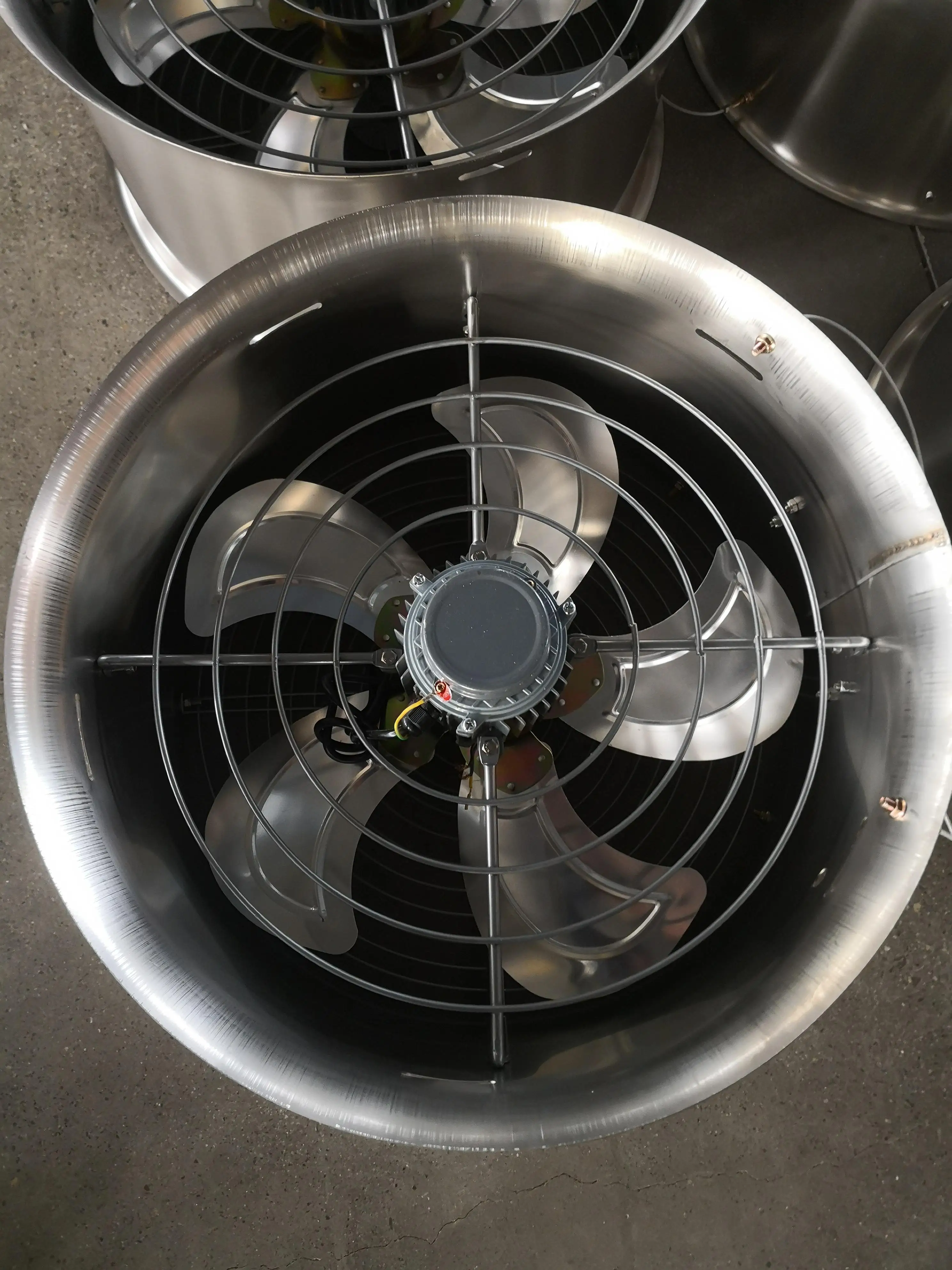

Blades

1) 5 pcs blades, which the air flow is

bigger.
2) Fan blade made by aluminum

material , light weight, low noise, and

excellent corrosion resistance.

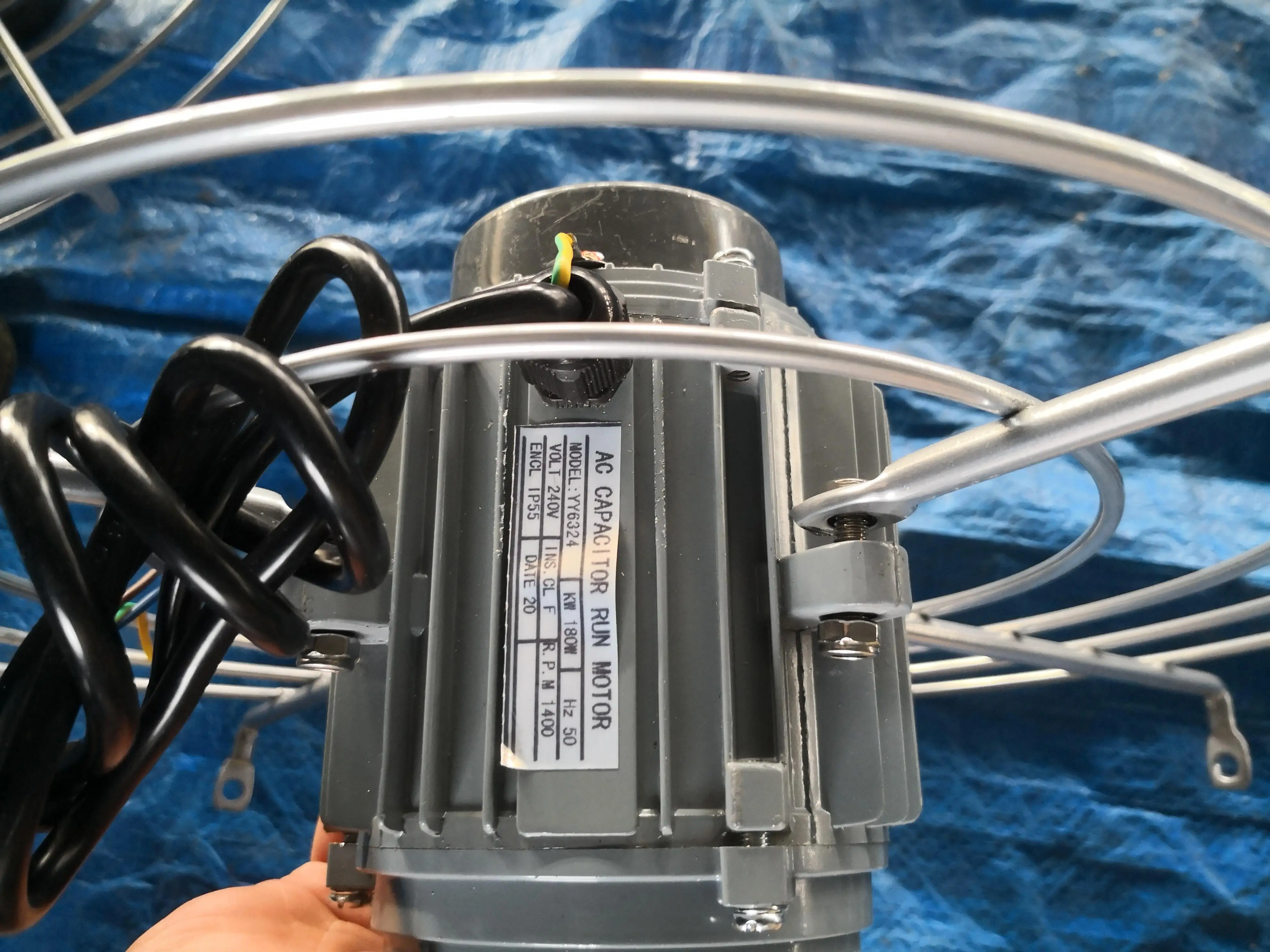

Motor

1) The motor is the 100% copper wire.

2) Both 220V/380V are available.

3) 120W-250W Can be choose.

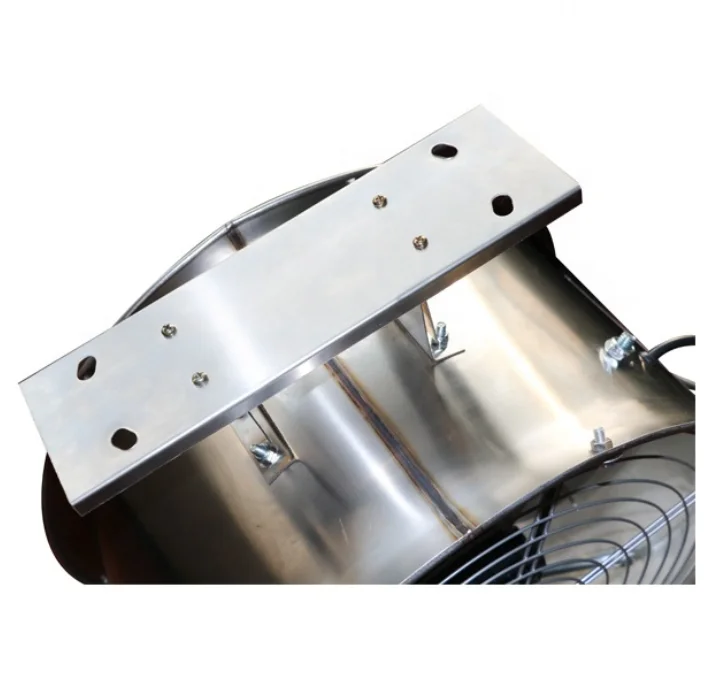

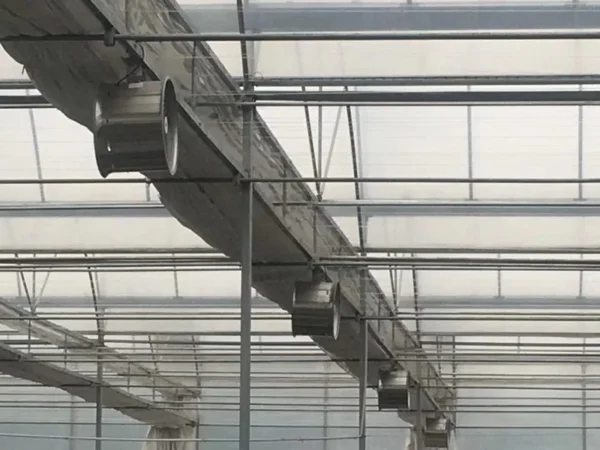

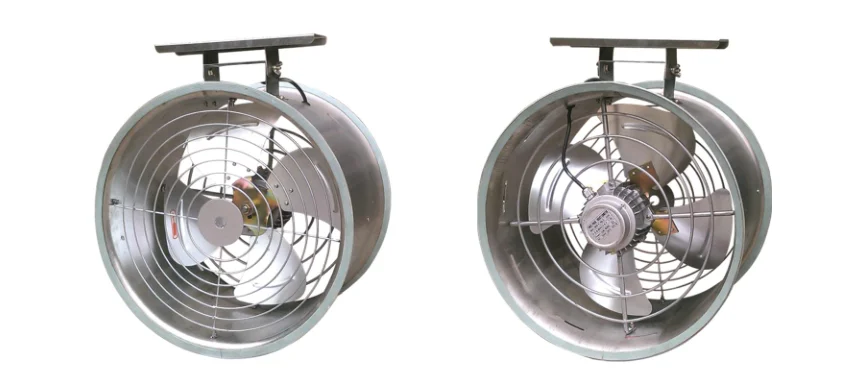

Hanging Type—A

Install on the greenhouse steel structure.

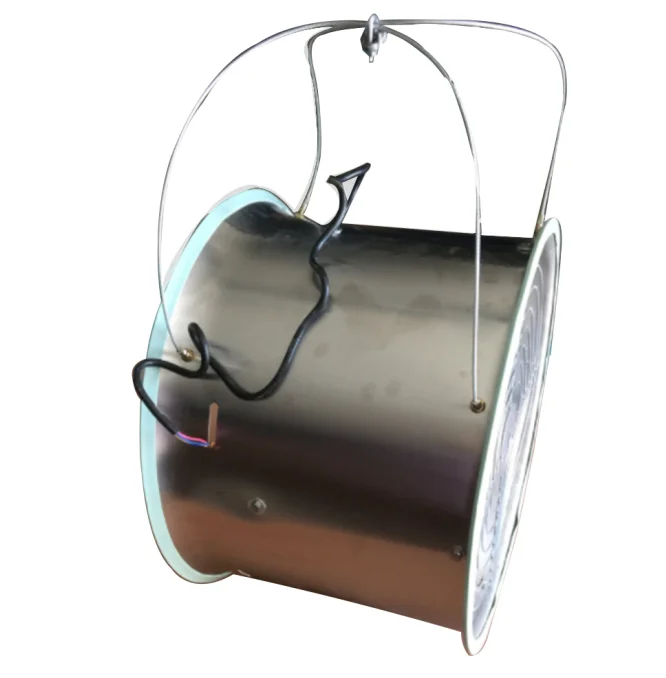

Hanging Type—B

Hanging by the iron chain.

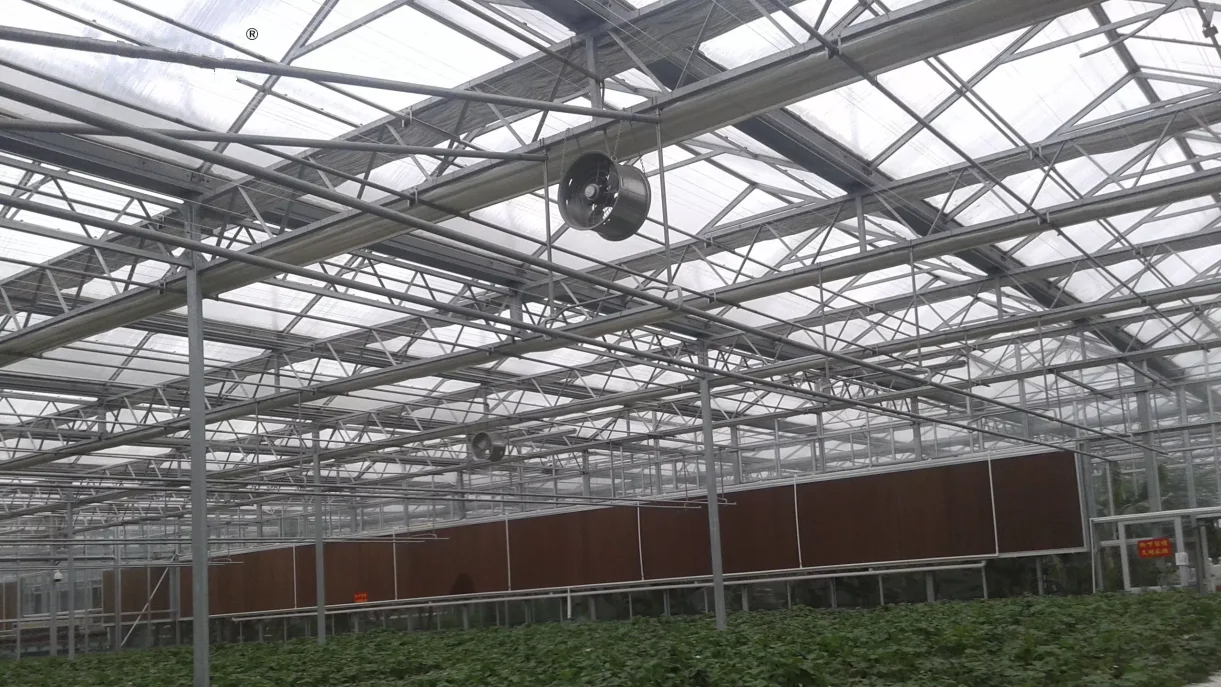

APPLICATION:

Company Profile

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–19 set: US $51 / set
  • 20–39 set: US $49 / set
  • 40–59 set: US $47 / set
  • 60+ set: US $45 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this exhaust shaft air fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the exhaust shaft air fan be supplied for my local voltage?

The standard configuration is 220V, 380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Muhe Machinery Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Muhe Machinery Co., Ltd. range on HVACR Nexus.
