The external rotor motors listed here carries 24V, type Brushless Motor, documented exactly as the manufacturer publishes it. Made by Shanghai Primopal Precision Motor Co., Ltd. (10 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These External Rotor Motors

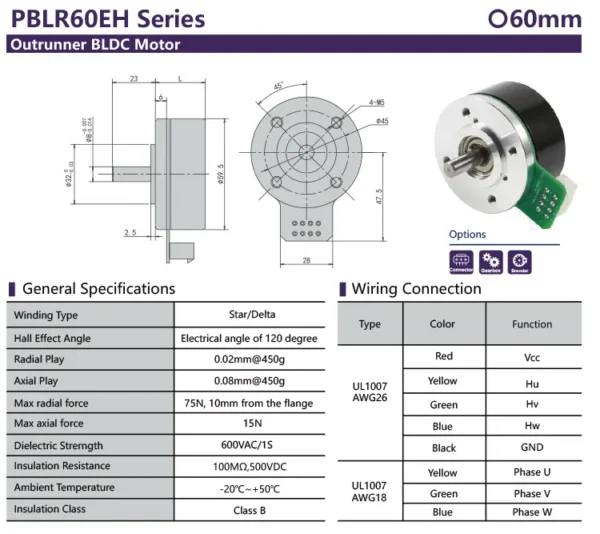

- Model Number: PBLR60EH
- Rated Power: 45~90W
- Rated Voltage: 24V
- Speed Rpm: 3 000 RPM
- Speed(RPM): 3000rpm
- Rated Speed: 3000rpm

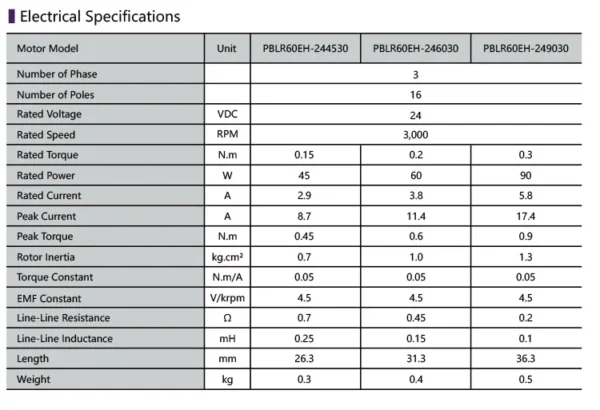

Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | 45~90W |
| Speed Rpm | 3 000 RPM |
| Speed(RPM) | 3000rpm |
| Efficiency | IE3 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Frame | No |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Drip-proof |
| Usage | Home Appliance, Smart Home, HVAC |
| Warranty | 2years |
| Continuous Current(A) | Variable, can be custom |
| Model Number | PBLR60EH |
| Torque | 0.15~0.3N.m |
| Place Of Origin | shanghai |
| Brand Name | PrimoPal |
| Product Name | Dia.60mm Round Industrial Outer Rotor Brushless DC BLDC Motor |
| Frame Size | Dia.60mm |
| Rated Voltage | 24V |
| Rated Speed | 3000rpm |
| Rated Torque | 0.15~0.3N.m |
| Body Length | 26.3~36.3mm |
| Weight | 0.3~0.5kg |
| Application | HVAC, grinder, blender, medical equipment, fitness equipment, etc. |
| Certification | ISO9001, ISO14001, CE, ROHS, CCC |
| Selling Units | Single item |
| Single Package Size | 6X6X4.6 cm |
| Single Gross Weight | 0.55 kg |
Product Details
1.Which types of brushless motors can you supply? | Inner rotor BLDC Motor, Outrunner BLDC Motor, Planetary Gearbox BLDC Motor, IP65 BLDC Motor, Frameless BLDC Motor, Integrated Brushless DC motor, and Micro BLDC motor. |
2.What is the range I can customize? | Motor body diameters from 16mm to 180mm, and the motor Power ranges from 4W to 7.5kW. |
3.Which motor parameters can I customise? | Voltage, power, speed, torque, gearbox ratio, motor drive and motor diameter and body length can all be customised according to your needs. |
4.How long does it take for a customised solution? | Normally it takes 2 days, if our engineering team judge that your requirements need to be highly customised, then it may take 3-4days, the time is based on specific requirements. |
5.What are the approximate lead time of sample order and bulk order for customized solutions? | Delivery time for highly customised samples is typically 3 weeks, and bulk delivery is about 5-7 weeks. |
About Brushless DC motor
Ordering and Pricing
- Minimum order quantity: 5 piece
- Volume pricing:
- 5–99 piece: US $37 / piece
- 100–499 piece: US $36 / piece
- 500+ piece: US $31 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor motors?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this external rotor motors carry?
It is supplied with ISO9001, ISO14001, CE, ROHS, CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the external rotor motors be supplied for my local voltage?
The standard configuration is 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Primopal Precision Motor Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shanghai Primopal Precision Motor Co., Ltd. range on HVACR Nexus.
