This external rotor sickle impeller is published with the manufacturer’s full specification — material Aluminum, Aluminum Alloy, type Axial Flow Fan. Made by Yueqing Winston Electric Co., Ltd. (17 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This External Rotor Sickle Impeller
- Model Number: WST4E-350.FG.V
- Material: Aluminum, Aluminum Alloy
- Place Of Origin: China
- Application: Automation
- Type: Axial Flow Fan
- Single Gross Weight: 0.0 kg
Technical Specifications
| Application | Automation |
|---|---|
| Material | Aluminum, Aluminum Alloy |
| Model Number | WST4E-350.FG.V |
| Place Of Origin | China |
| Brand Name | Winston |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Product Name | 350mm axial fan |
| Name | Fan For Industrial |
| Usage | Industry |
| Item | Industrial |
| Frame | Aluminium die-casing |
| Impeller | metal |
| Protection Grade | IP44 |
| Type | Axial Flow Fan |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
| Plastic impeller | WST12032AB WST17052AB WST15052AB WST9022AB WST18062AB WST8022AB WST23062AB |
| Metal impeller | WST12032MAB WST16052MABD WST14532MAB WST28082MAB WST22082MAB |

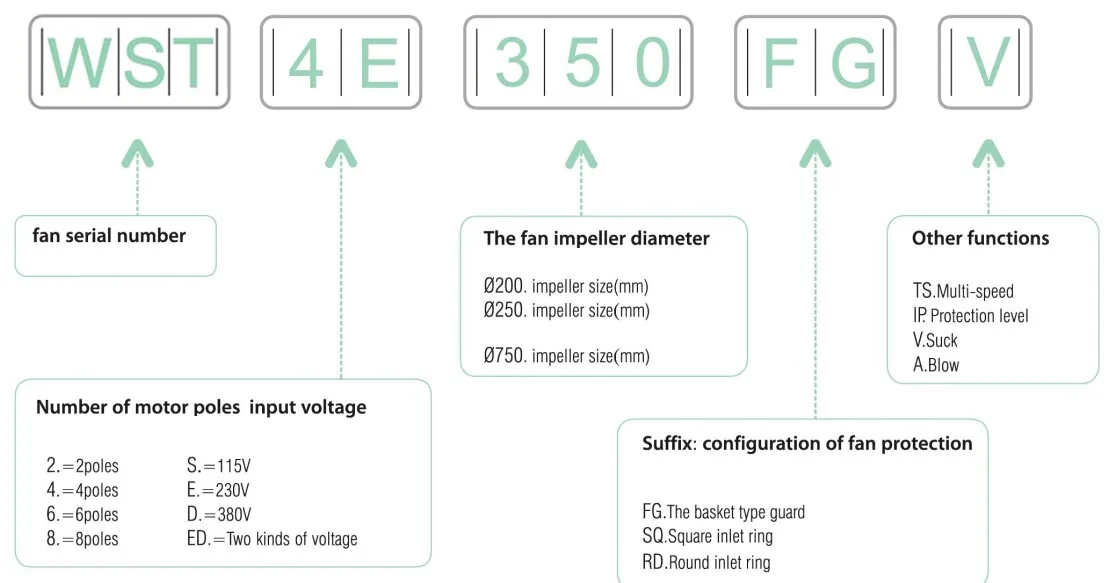

| Sickle impeller | WST2E-200.FG.V WST2E-250.FG.V WST4E-300.FG.V WST4E-350.FG.V WST4E-400.FG.V WST4E-450.FG.V |
| Centrifugal | WST2E-190.45A WST2E-250.48D WST2E-133.41C WST2E-175.45C WST2E-225.63C WST2E-220.44B WST4E-315.101 |

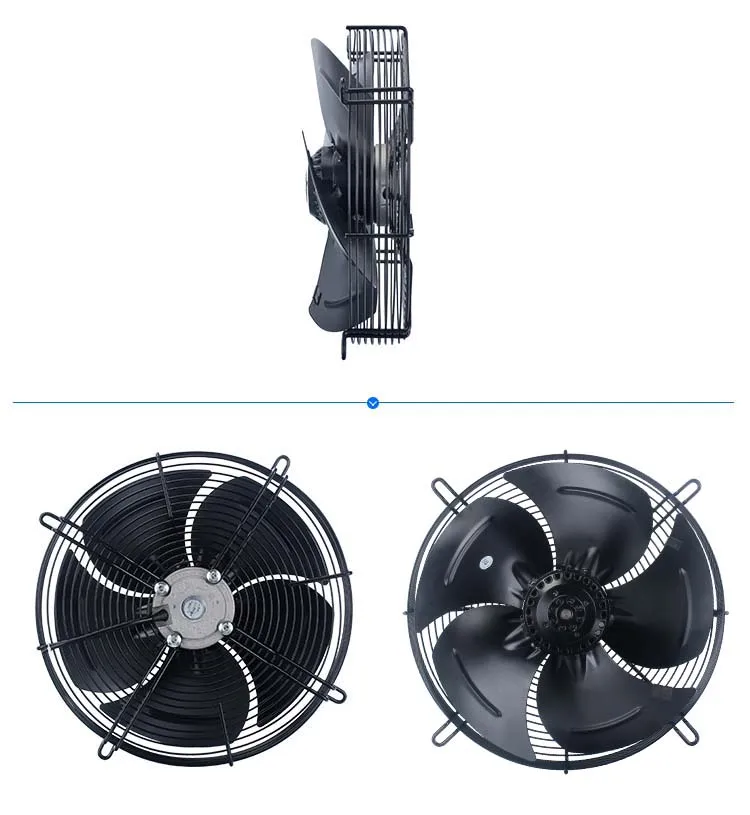

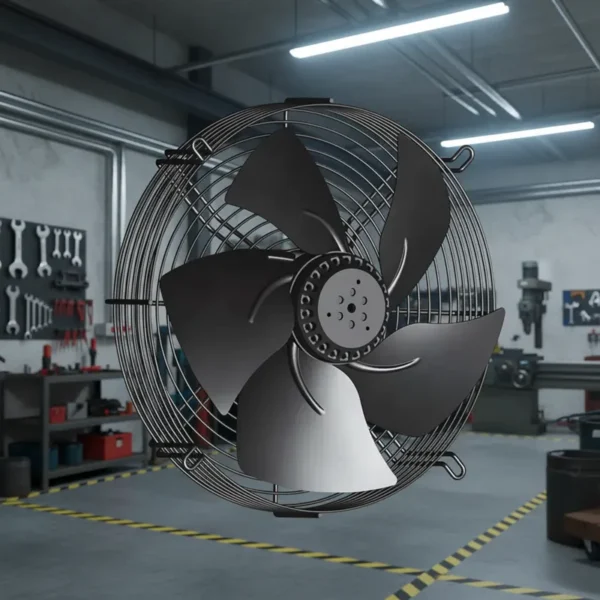

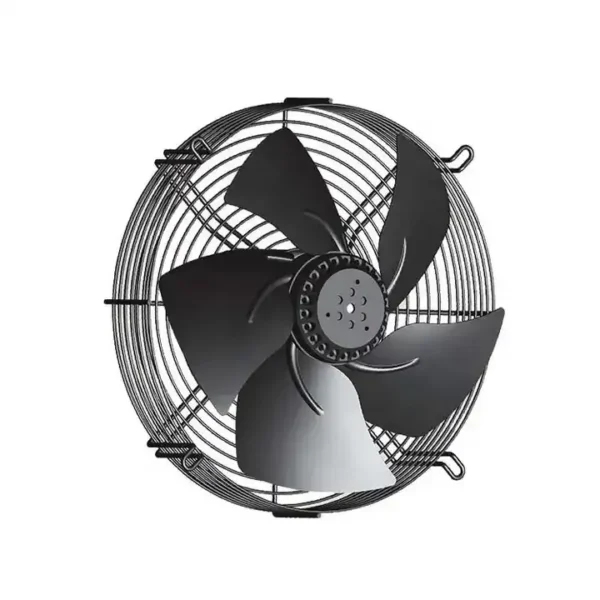

WST4E-350.FG.V External Rotor Sickle Impeller 350mm Axial Fan For Industrial

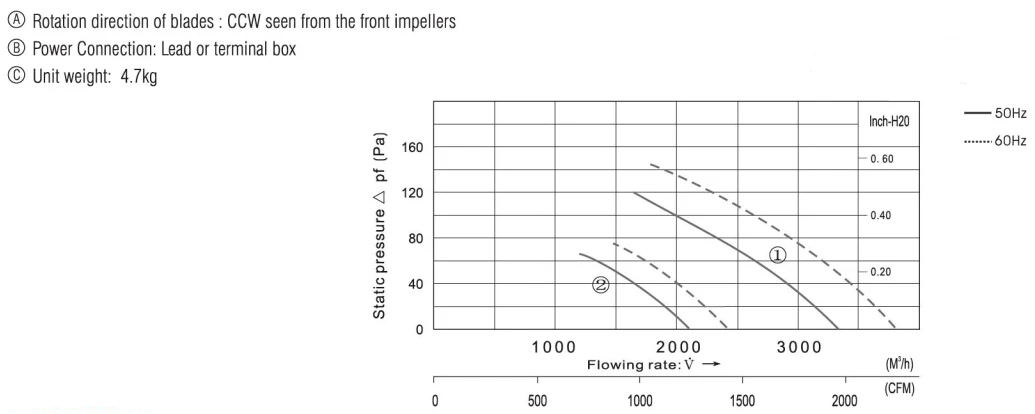

| Type | Rated voltage (V) | Frequency (Hz) | Current (A) | Power (W) +10% -20%
| Speed (min-1) | Max air flow (m³/h) | Static pressure (Pa) | Noise (dB) | Curve | Capacitor (μF) | |
| CFM | m³/h | ||||||||||
| WST4S-350.FGV | 115 | 50 | 1.22 | 130 | 1400 | 1942 | 3290 | 120 | 64 | 1 | 12.0/250 |
| 60 | 1.49 | 170 | 1600 | 2225 | 3770 | 145 | 67 | ||||
| WST4E-350.FGV | 230 | 50 | 0.59 | 135 | 1400 | 1942 | 3290 | 120 | 64 | 1 | 4.0/450 |
| 60 | 0.79 | 183 | 1600 | 2225 | 3770 | 145 | 67 | ||||
| WST4D-350.FGV | 230/400 | 50 | .62/.35 | 137/135 | 1400 | 1942 | 3290 | 120 | 64 | 1 | —— |
| 60 | .58/.32 | 167/170 | 1600 | 2225 | 3770 | 145 | 67 | ||||
| WST6E-350.FGV | 115 | 50 | 0.31 | 65 | 950 | 1307 | 2215 | 40 | 55 | 2 | 2.0/450 |
| 60 | 0.34 | 77 | 1100 | 1510 | 2560 | 45 | 58 | ||||
1.Motor: Cage type capacitor start external rotor motor.
2. Impeller: Pressed from metal armor plate, impellers are welded to motor rotor and its surface is black and anti-corrosion.
3. Fixed guard: Steel wire is finished with black paint and anti-corrosion treatment.
4. Allowable environment temperature and humidity range: (under unconcretionary condition) -40°C~+80°C (temperature) 0%-95% (humidity)
5. Protection:Automatic recovery thermal protection.
6. Withstand voltage: AC 1800V, 1min at 0.5mA, 50/60Hz.
7. Insulation system: Design according to IEC.
8. Protection grade: IP54.
Features
- Compact configuration can save maximum space for users.
- External rotor capacitor type motor can be designed with 2 poles, 4 poles, 6 poles or 8 poles, which can meet the needs of different fields.
- Various kinds of models, sizes and air performance for selection.
- Different speeds and air flow are available by circuit design modulation, which generates different voltages.
- With low noise and remarkable efficiency, it is suitable for refrigeration unit.
- The integral combination of motor and impeller realizes double-caced balancing.
- IP55 grade fan is available.
- Wide choice for fan accessories: protection guard, basket-type guard, capacitor, connection box, connecting wire and so on.
Back to : Home – Products categories
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $129.4 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
