The extractor listed here carries 110V/220V, power source Electric, documented exactly as the manufacturer publishes it. Made by Zhejiang Lavfill Electrical Technology Co., Ltd. (11 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Extractor
- Model Number: LFWW-13X
- Power Source: Electric
- Voltage: 110V/220V
- Blade Material: Plastic
- Material: Plastic Blade
- Motor Material: 100% Copper
Technical Specifications
| Voltage | 110V/220V |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Blade Material | Plastic |
| Mounting Type | Wall/ Ceiling Mount |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Place Of Origin | Zhejiang, China |
| Brand Name | OEM/LAVFILL |
| Model Number | LFWW-13X |
| Material | Plastic Blade |
| Motor Type | Slide Bearing / Ball Bearing |
| Motor Material | 100% Copper |
| Thermal Protection | Yes |
| Timer/Sensor/Humidity Sensor | Optional |
| Panel Dimension | 210mm |
| Outlet Size | 150mm |
| Product Name | 150mm extractor fan wall ventilating fan exhaust system |
| Selling Units | Single item |
| Single Package Size | 17X17X13 cm |
| Single Gross Weight | 0.75 kg |
Product Details
Product Features
- The fan is suitable for wall / window / ceiling mounting.
- Shutter, ring are optional, ring is needed for window mounting.
- Easy installation
- Shaded pole motor with thermo cut-off
- Ball bearing motor to reduce friction for long life operation
- Modern and functional design
- Front louver for safety protection
- Safety design based on IEC requirements
- Approved by SAA TUV SASO CE RoHS
- More functions
+ With humidity sensor adjustable humidity range 60%-90%, the humidity level from 60%-90% can be shown by four LED indicators, adjustable time range 0 -30 mins, the original factory setting is 60%, 1min.
+ With timer adjustable time range 0 -30 mins, the delay time 30s-30mins can be shown by five LED indicators, the original factory setting is 1 mins.
+ With motion sensor sensing range of 0.5m ≤ D ≤8m, angle 180°*360° delay timer adjustable time range 1 -30 mins
Specification

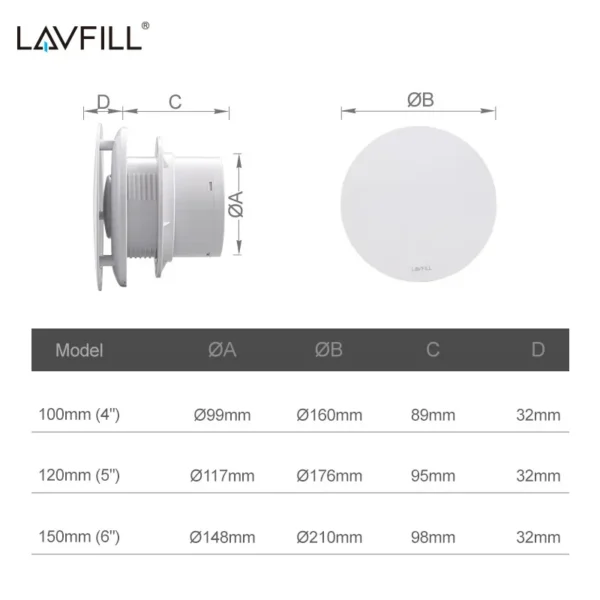

Installation Dimension
Unit: mm
| Article No. | A | B | C | D |
| LFWW-09X | ø160 | 32 | 88.5 | φ96 |
| LFWW-09XT | ||||
| LFWW-09XH | ||||
| LFWW-09XS | ||||
| LFWW-13X | ø210 | 32 | 97.5 | φ145 |
| LFWW-13XT | ||||
| LFWW-13XH | ||||
| LFWW-13XS |
Technical Parameter
| Article No. | Category | Rated Voltage/Frequency | Power | Air Volume | Noise |
| LFWW-09X | Wall Window Mount Ducted Fan | 110V~ 60Hz 127V~ 60Hz 220V~ 50Hz 220V~ 60Hz 220V~ 50/60Hz 220-240V~ 50Hz |
12W |
95m³/h |
34dB |
| LFWW-09XT | |||||
| LFWW-09XH | |||||
| LFWW-09XS | |||||
| LFWW-13X | 18W | 240m³/h | 35dB | ||
| LFWW-13XT | |||||
| LFWW-13XH | |||||
| LFWW-13XS |
Note:
T – With Timer
H – With Humidity Sensor
S – With Motion Sensor

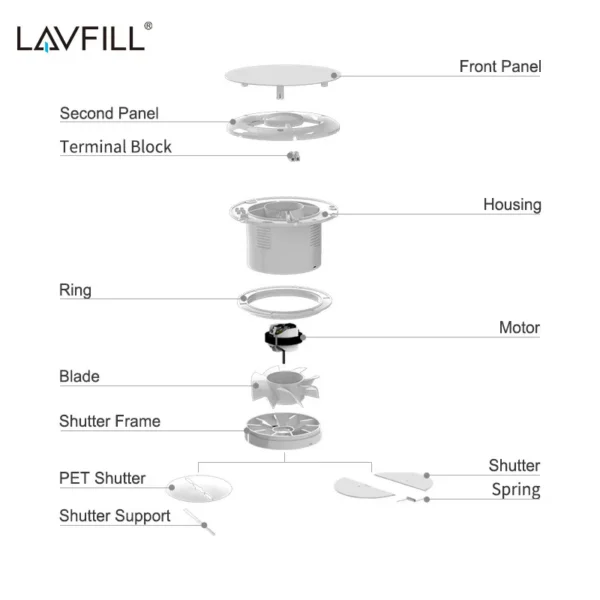

Exploded View
INSTALLATION
Note:
- Please remove the shutter when ceiling installation.
- Please take the installation of series Q as reference, we will update it for series X soon.
Q1: Are you a factory or trading company?
A1: We are manufacturer, specialized in producing domestic fans and fittings, hair dryers, hand dryers etc.
Q2: Do you accept OEM or ODM?
A2: Yes, we do in the means of OEM, ODM, OBM.
Q3: Where is your FOB port?
A3: Ningbo Port or Shanghai Port. And we have our own export rights.
Q4: How can I get some samples?
A4: We are glad to offer you samples, you are excepted to pay for the courier cost and samples fee, we will arrange the samples to send to you. Or you can arrange a remote pick-up service upon FedEx, UPS, DHL,TNT, etc. to have the samples collected via your own account No.
Q5: How long is the delivery time for the samples?
A5: In general, it needs 5-7 days to send samples.
Q6: What is your MOQ?
A6: To use neutral package, MOQ is 200pcs/item, 500pcs/order, while to use customized package, MOQ is 2000pcs/item. For customized package, if the MOQ is below 2000pcs, you have to pay deposit US$400 for eachpackage design and manufacture, only if the total mount of each item reaches 2000pcs, we will return the deposit.
Q7: How long is the delivery time for mass order?
A7: In general, 25-30 days after receiving deposit and confirming the details.
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200–499 piece: US $18.88 / piece
- 500–999 piece: US $16.88 / piece
- 1000+ piece: US $15.88 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this extractor?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the extractor be supplied for my local voltage?
The standard configuration is 110V/220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
