Key specification for this good quality exhaust fan: 220V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Zhejiang Lavfill Electrical Technology Co., Ltd. (11 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Good Quality Exhaust Fan
- Model Number: LFW-30A
- Power Source: Electric
- Voltage: 220V
- Material: Plastic
- Blade Material: Plastic
- Motor Material: Copper
Technical Specifications
| Voltage | 220V |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Wall Fan |
| Bearing Type | Oil Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Zhejiang, China |
| Brand Name | OEM/LAVFILL |
| Model Number | LFW-30A |
| Frequency | 50Hz-60Hz |
| Motor Type | Sleeve Bearing/Ball Bearing |
| Motor Material | Copper |
| Thermal Protection | Yes |
| Certificate | SASO SAA |
| Air Volume | 1100m3/h |
| Product Name | LAVFILL good quality Exhaust fan ventilation 12 inch |
| Selling Units | Single item |
| Single Package Size | 40.5X13X41 cm |
| Single Gross Weight | 2.700 kg |
Product Details

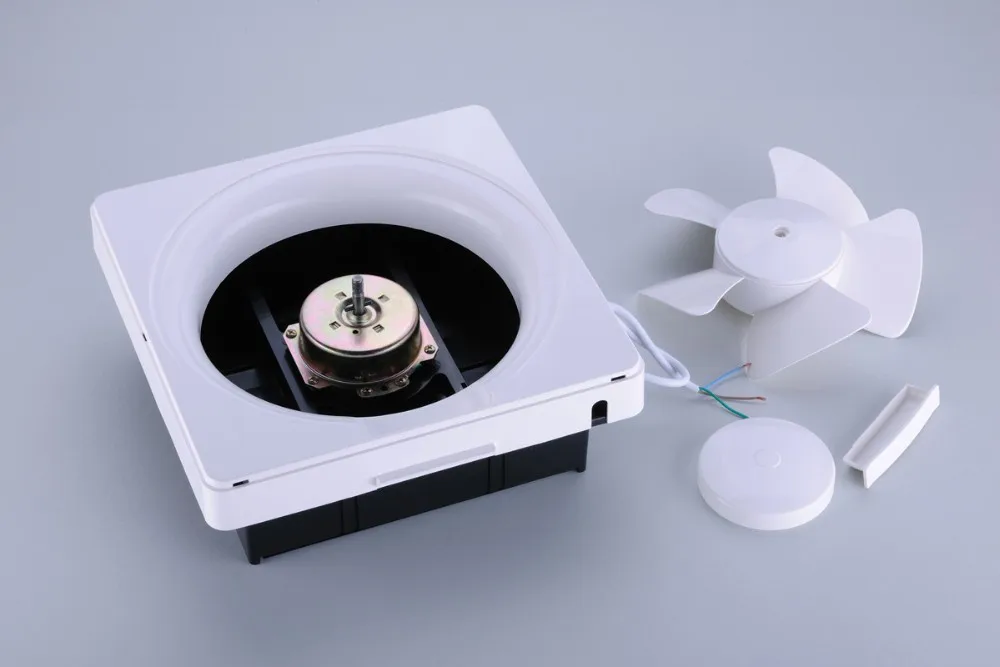

LAVFILL good quality Exhaust fan ventilation 12 inch
Product Features
-
The fan is suitable for wall mounting.
-
Installation hardware bag is included.
-
Easy installation.
-
Condenser motor with thermo cut-off.
-
Ball bearing motor to reduce friction for long life operation.
-
With improved blade design enables powerful airflow with lower noise.
-
Front louver improve safety protection.
-
Orifice designed with oil cup to effectively collect oil drops.
-
Safety design based on IEC requirements.
-
Approved by SAA SASO.
-
More Version
+ Base metal series pre-painted metal frame and shutter strengthen product durability.
+ With pull cord series reverse operation exhaust or intake type, and shutter operated by pull cord which simultaneously turn on or off the fan.
Specification
Dimension
Unit: mm
| Article No. | A | B | C | D | E | F |
| LFW-15A | ∅150 | 250×250 | 35 | 195×195 | 42 | 73 |
| LFW-15AK | ||||||
| LFW-20A | ∅200 | 300×300 | 33 | 240×240 | 42 | 73 |
| LFW-20AK | ||||||
| LFW-25A | ∅250 | 350×350 | 48 | 295×295 | 43 | 73 |
| LFW-25AK | ||||||
| LFW-30A | ∅300 | 400×400 | 57 | 345×345 | 43 | 73 |
| LFW-30AK |
Technical Parameter
| Article No. | Category | Rated Voltage/Frequency | Ventilator Power | Air Volume | Noise |
| LFW-15A | Wall Window Type Extractor Fan | 110V~,60Hz 127V~,60Hz 220V~,50Hz 220V~,60Hz 220V~,50/60Hz 220-240V~,50Hz | 25W | 300m³/h | 40dB |
| LFW-15AK | |||||
| LFW-20A | 30W | 500m³/h | 40dB | ||
| LFW-20AK | |||||
| LFW-25A | 35W | 800m³/h | 40dB | ||
| LFW-25AK | |||||
| LFW-30A | 40W | 1100m³/h | 42dB | ||
| LFW-30AK |
Note:
K-Double Direction Reversible
Product Display

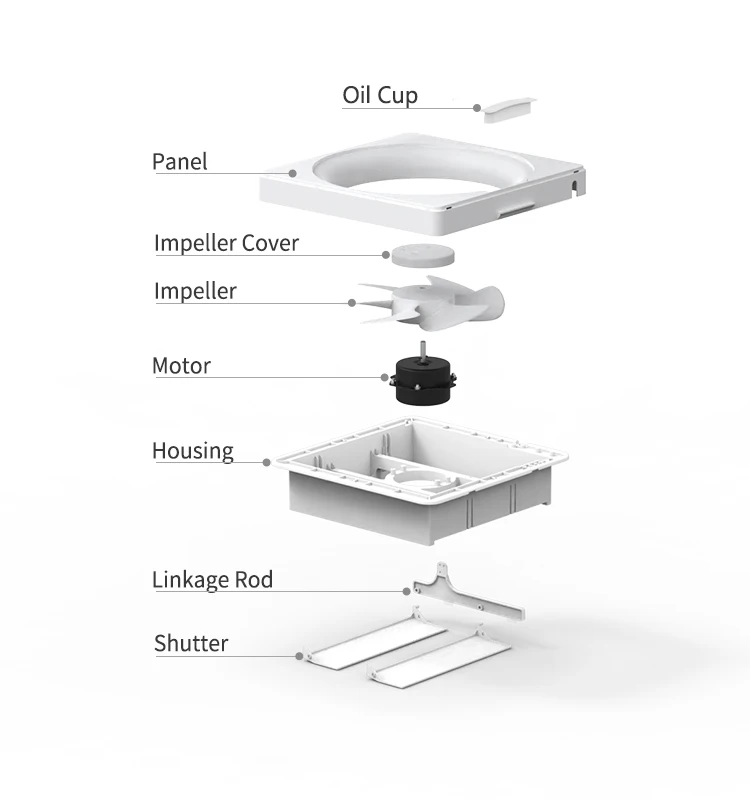

Exploded View
Wenzhou Yudong Electrical Appliance & Sanitary Ware Co., Ltd.
We sincerely welcome more friends to cooperate with us.
Q1: Are you a factory or trading company?
A:We are manufacturer, specialized in producing domestic fans and fittings, hair dryers, hand dryers etc.
Q2: Do you accept OEM or ODM?
A:Yes, we do in the means of OEM, ODM,OBM.
Q3: Where is your FOB port?
A: Ningbo Port or Shanghai port. And we have our own export rights.
Q4: How can I get some samples?
A:We are glad to offer you samples, you are expected to pay for the courier cost and sample fee, we will arrange the samples to send to you. Or you can arrange a remote pick-up service upon FedEx, UPS, DHL, TNT etc. To have the samples collected via your own account No..
Q5: How long is the delivery time for the samples?
A:In general, it needs 5-7 days to send samples.
Q6: What is your MOQ?
A:To use neutral package, MOQ is 500pcs/order, while to use customized package, MOQ is 2000pcs/item. 2000pcs/order. For customized package if the MOQ is below 2000pcs, you have to pay deposit US$400 for each package design and manufacture, only if the total mount of each item reaches 2000pcs in one year since the first shipment considering the storage cost and box damage over time, we will return the deposit.
Q7: How long is the delivery time for mass order?
A:In general, 25-30 days after receiving deposit.
Q8: Can we print our logo on the products?
A:Yes, of course, we print customized logo by laser marking generally.
Q9: What about the product services and quality?
A:We put forward strict components suppliers selection, spare parts testing, safety testing, product durable testing, pre-shipment inspection by senior engineer. And we offer parts one year or three year warranty.
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200–499 piece: US $15.78 / piece
- 500–999 piece: US $15.28 / piece
- 1000+ piece: US $14.88 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this good quality exhaust fan?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this good quality exhaust fan carry?
It is supplied with SASO SAA documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the good quality exhaust fan be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Lavfill Electrical Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhejiang Lavfill Electrical Technology Co., Ltd. range on HVACR Nexus.
