Axial extractor — 12V 110V 220-240V, blade material Plastic. The complete factory specification follows. Made by Zhejiang Lavfill Electrical Technology Co., Ltd. (11 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Extractor
- Model Number: LFI-09S
- Voltage: 12V 110V 220-240V
- Blade Material: Plastic
- Material: ABS
- Motor Material: Copper
- Speed: 3.61M/S
Technical Specifications
| Voltage | 12V 110V 220-240V |
|---|---|
| Speed | 3.61M/S |
| Blade Material | Plastic |
| Mounting Type | Duct Fan |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | LAVFILL/OEM |
| Model Number | LFI-09S |
| Frequency | 50Hz-60Hz |
| Material | ABS |
| Motor Type | Sleeve Bearing / Ball Bearing |
| Motor Material | Copper |
| Thermal Protection | Yes |
| Outlet Size | 100mm |
| Application | Inline Mount |
| Product Name | Axial Extractor Fan 12V Turbine Fan Circular Duct Fan |
| Certification | SAA SASO TUV |
| Selling Units | Single item |
| Single Package Size | 15X15X15 cm |
| Single Gross Weight | 0.75 kg |
Product Details

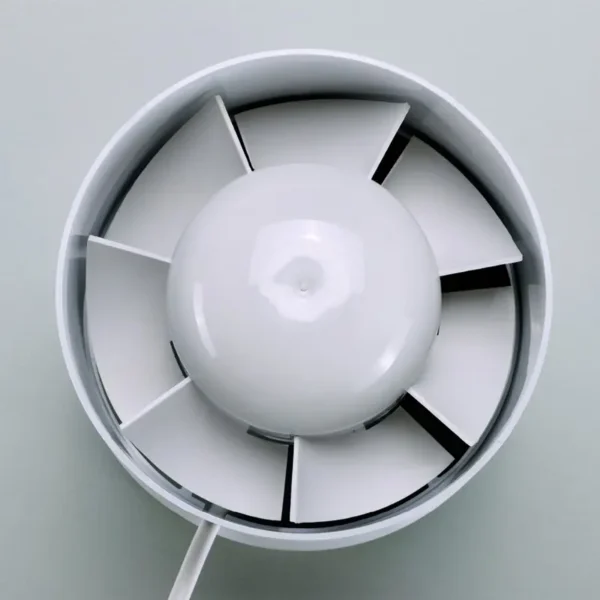

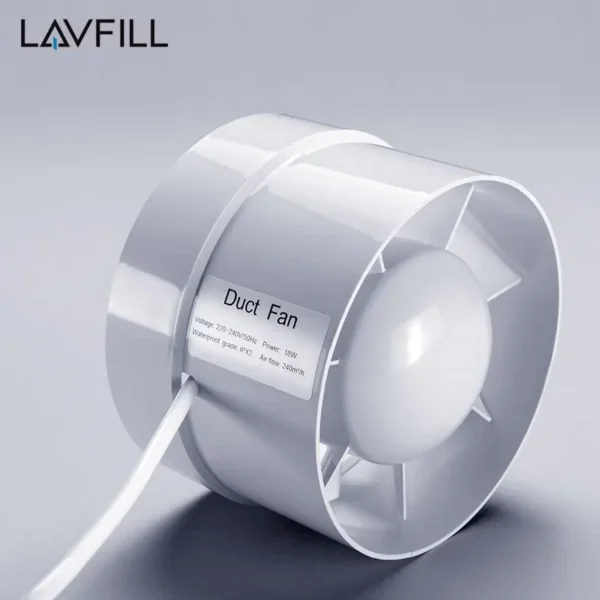

Axial Extractor Fan 12V Turbine Fan Circular Duct Fan
Product Features
- The fan is suitable for inline duct mounting in suspended ceiling
- Flexible inline installation booster

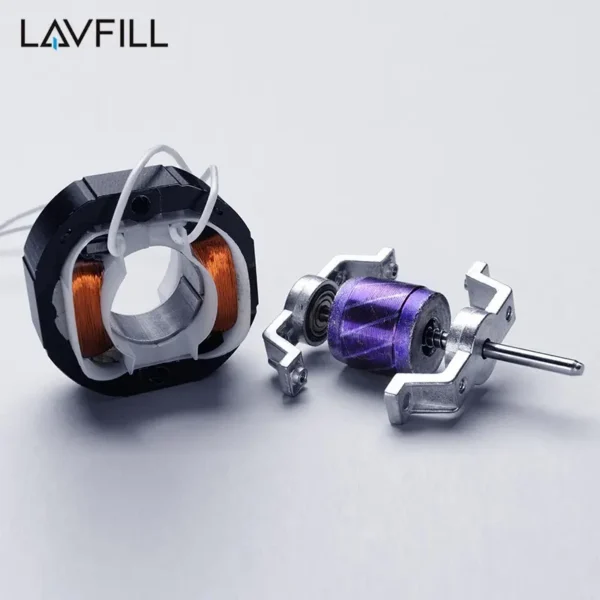

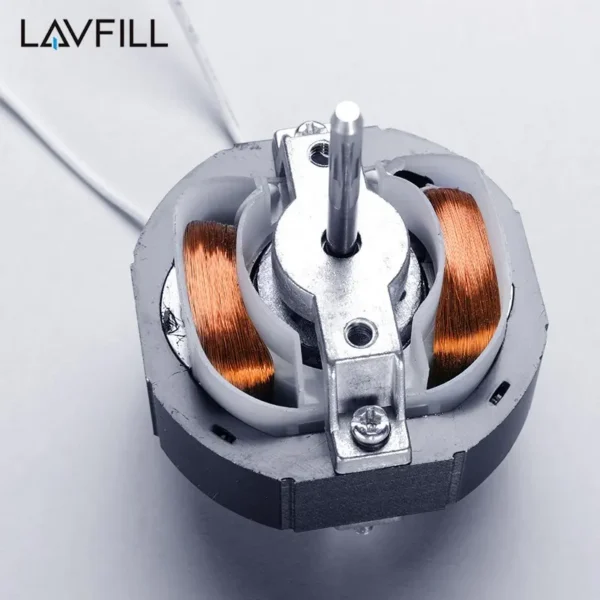

- Shaded pole motor with thermo cut-off
- Ball bearing motor to reduce friction for long life operation
- Operating temperature range -10°C ~ 40°C
- Safety design based on IEC requirements
- Approved by SAA TUV SASO CE RoHS
Specification
Unit: mm
| Article No. | A | B | C | D |
| LFI-09S | ∅96 | ∅104 | ∅100 | 88 |
| LFI-11S | ∅116 | ∅129 | ∅125 | 88 |
| LFI-13S | ∅146 | ∅154 | ∅150 | 108 |
Technical Parameter
| Article No. | Category | Rated Voltage/Frequency | Ventilator Power | Air Volume | Noise |
| LFI-09S | Inline ducted Fan | 110V~,60Hz 127V~,60Hz 220V~,50Hz 220V~,60Hz 220V~,50/60Hz 220-240V~,50Hz | 12W | 130m³/h | 34dB |
| LFI-11S | 16W | 240m³/h | 34dB | ||
| LFI-13S | 18W | 320m³/h | 35dB |
Product Display
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200+ piece: US $6.66 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial extractor?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial extractor carry?
It is supplied with SAA SASO TUV documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial extractor be supplied for my local voltage?
The standard configuration is 12V 110V 220-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
