Key specification for this extractor: voltage AC 220V~240V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Taizhou Qiou Mechanical And Electrical Co., Ltd. (3 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Extractor
- Model Number: GDF-100
- Power Source: Electric
- Voltage: AC 220V~240V
- Material: Cast Iron
- Blade Material: Cast Iron
- Speed: 2800 RPM
Technical Specifications
| Voltage | AC 220V~240V |
|---|---|
| Speed | 2800 RPM |
| Type | Duct Axial Fan |
| Material | Cast Iron |
| Blade Material | Cast Iron |
| Mounting Type | Duct Fan |
| Bearing Type | DUAL BALL BEARING |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | QIOU |
| Model Number | GDF-100 |
| Product Name | Ventilation Exhaust Fan,Axial Flow Fan,In-line Duct Fan |
| Frequency | 50/60hz Ac Axial Fan |
| Application | Duct Exhaust Ventilation |
| Usage | Poultry Industry Greenhouse Ventilation |
| Keyword | Exhaust Fan Ventilation Duct Fan |
| Selling Units | Single item |
| Single Package Size | 31X27X25 cm |
| Single Gross Weight | 4.0 kg |
Product Details
Product Description

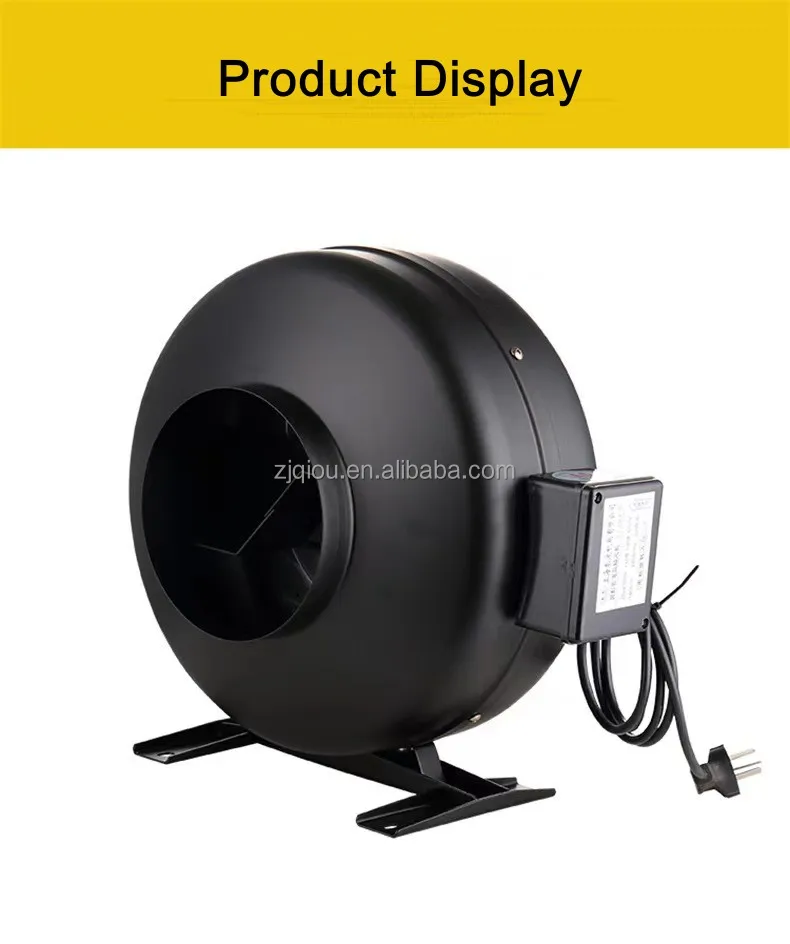

Extractor Duct Booster Fan Metal Housing Air Control 4" 5" 6" 8" 10" 12" Inline Duct Pipe Exhaust Fans 12 inch 270w

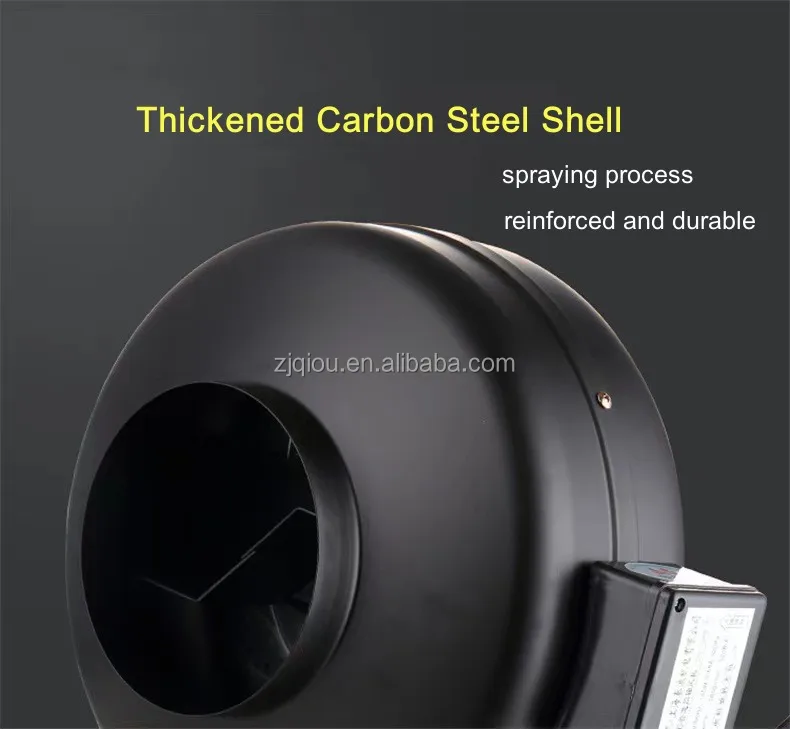

–High-strength carbon steel housing Thickened carbon steel shell, high hardness, wear resistance, impact resistance, corrosion resistance, light weight, shock resistance and drop resistance.
-Aluminum alloy motor housing The motor shell is made of aluminum alloy, which has the characteristics of light weight, corrosion resistance, no rust, and fast heat dissipation.

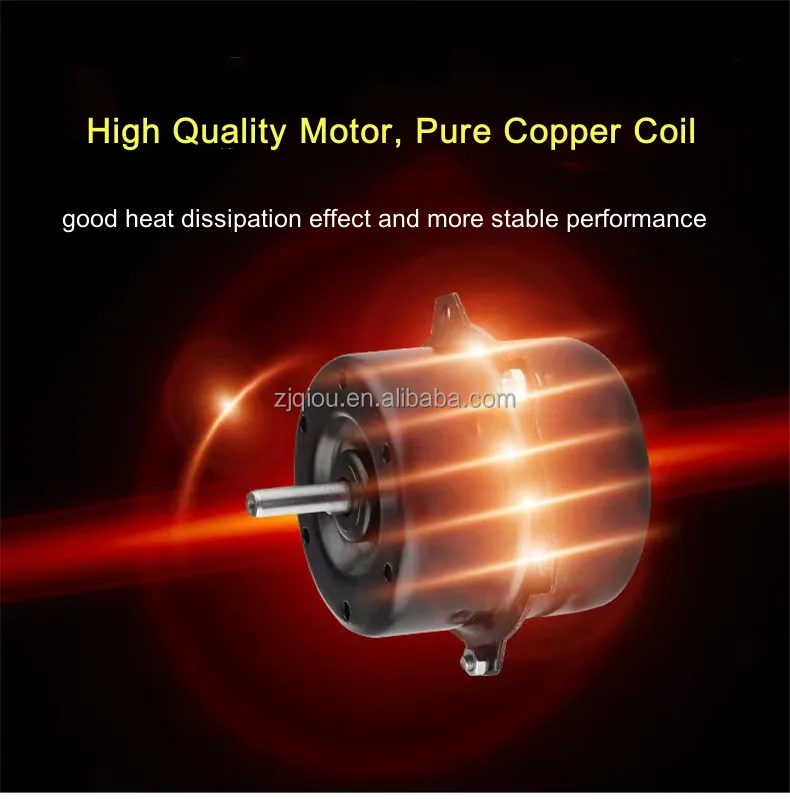

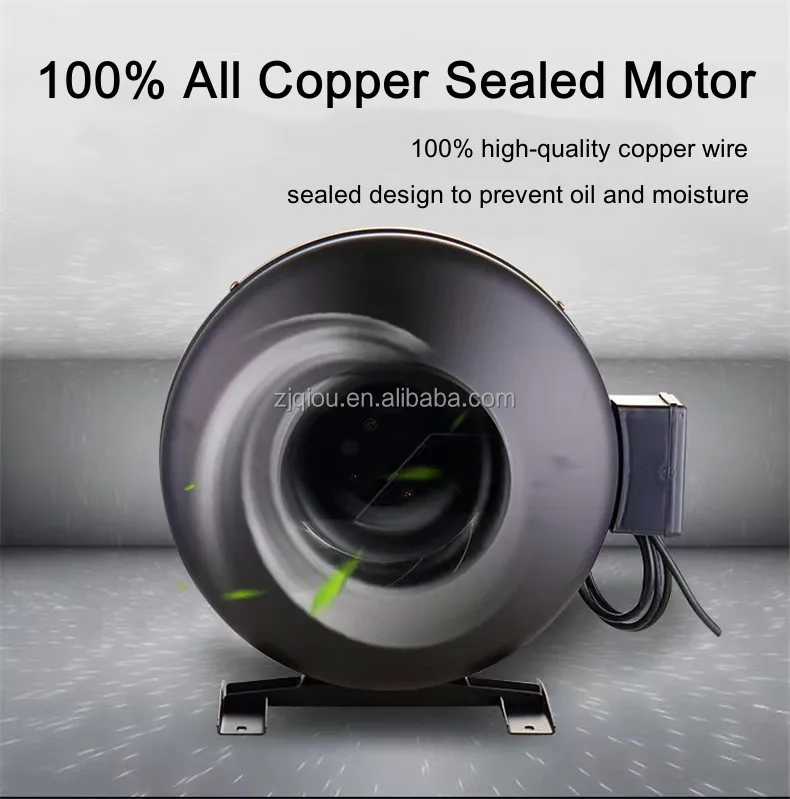

-Outer rotor copper core brushless motor The motor adopts a copper core coil and a permanent magnet brushless motor. It has the advantages of fast speed and strong moisture resistance, protection class IP44, large air volume, low vibration, low noise, reliable performance, high efficiency and stability, and long service life.
-Widened mounting bracket Widened and thickened fixed mounting bracket, easy to install and disassemble, wide application range.
-Combustion Fibre Junction Box It is injection molded from external PVC material with flame-retardant fiber. It has good sealing, moisture-proof, dust-proof and fire-proof performance, convenient wiring and safe use.
-Widened motor fixing bracket The extra-thick and widened fan fixing bracket reduces the vibration generated when the fan is running and ensures the smooth operation of the fan * The Voltage of the Fan is 110-120V 60HZ or 220-240V 50HZ * Leather Jacket: It is design by our company to lower the noise, and it also could be air proof and rust proof. * Fan Mounted Feet: There are various kinds according to customer's request.
Specification

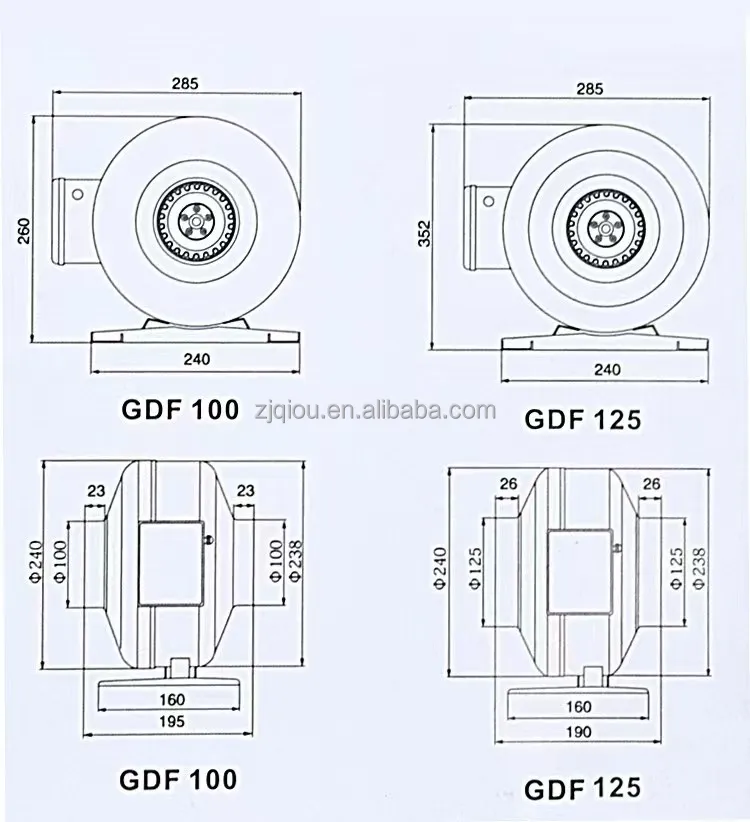

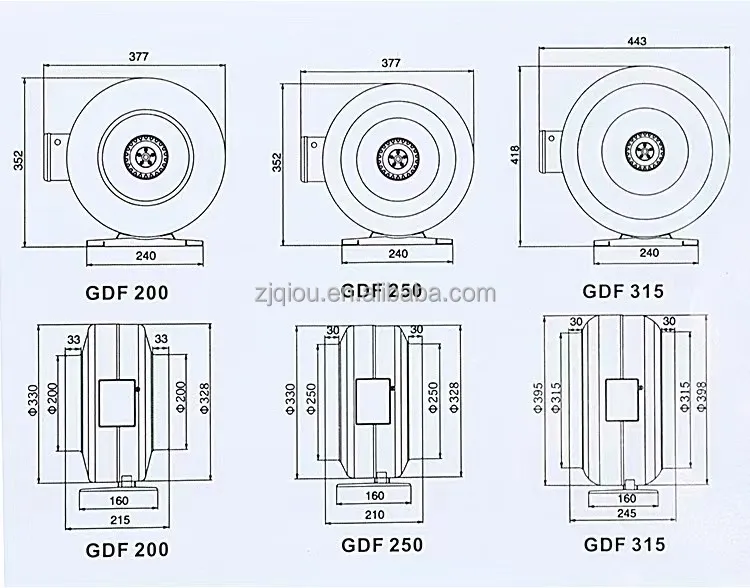

Model | Power | Air Flow | Pressure | Voltage | Frequency | Speed | Noise |
GDF-100 | 70W | 276m3/h | 350Pa | 220-240V | 50-60Hz | 2550rpm | 45dBA |
GDF-125 | 75W | 395m3/h | 390Pa | 2550rpm | 45dBA | ||
GDF-150 | 110W | 620m3/h | 400Pa | 2550rpm | 48dBA | ||
GDF-160 | 125W | 750m3/h | 420Pa | 2500rpm | 48dBA | ||
GDF-200 | 150W | 1050m3/h | 550Pa | 2500rpm | 50dBA | ||
GDF-250 | 165W | 1380m3/h | 570Pa | 2450rpm | 50dBA | ||
GDF-315 | 235W | 1568m3/h | 830Pa | 2450rpm | 52dBA |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Taizhou Qiou Mechanical and Electrical Co., Ltd. is engaged in the field of electric motor, axial fan, blower,centrifugal fan,industrial fan, exhaust fan and other fans. With over 10 years of experience in the design,development,and manufacture of the fans and motors,we export to over 30 countries and regions. High quality, prompt delivery, superior service and competitive prices are always assured. Developing business based on the quality is the tenet we have always held. Besides the products listed in our catalogs, we also offer OEM services. Feel free to reach us for any customized fans and motors solutions. We sincerely wish to cooperate with clients and friends worldwide to build a brilliant future together!
FAQ
Q: How about the quality guarantee period? A: One year. Q: What tests do your products need to go through? A: Air pressure flow test – Flame retardant test of plastic shell – High temperature resistance test – Low temperature test -Noise test – Stacked – Water proof – Drop destructive test. Q: Can you provide samples? A: After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable. Q: Do you accept OEM or ODM orders? A: Yes, we accept OEM and ODM from customers. Q: How long is your delivery time? A: Small quantity is around 5-7 working days after receiving the prepayment. Large quantity orders need to negotiate the delivery time. Q: How are you going to ship my order? A: Usually, for sample order we will ship by express like EMS, DHL, FedEx, UPS, special-line logistic. For bulk order, we will ship by sea or air to your destination sea port or airport. If you have own freight forwarder, we can deliver the goods to them as well. Q: When can I get the quotation? A: We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on other chat tools or call us directly. Q : What are your terms of payment? A : Generally, 30% T/T in advance, 70% balance before shipment.The common way is by T/T. We can also accept other payment.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $25 / piece
- 100–499 piece: US $22 / piece
- 500+ piece: US $17 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this extractor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the extractor be supplied for my local voltage?
The standard configuration is AC 220V~240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
