The gm8-fce modbus rs485 fan listed here carries power supply AC85V-AC260V 50-60HZ, material ABS Plastic, documented exactly as the manufacturer publishes it. Made by Beijing Gaobiao IoT Technology Co., Ltd. (12 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Gm8-Fce Modbus Rs485 Fan
- Model Number: GM8-FCE
- Power Supply: AC85V-AC260V 50-60HZ
- Ambient Voltage: AC 240V, Ac 120V
- Material: ABS Plastic
- Warranty: 1 Year
- Place Of Origin: Beijing, China
Technical Specifications
| Application | Office Building, Hotel, Apartment, Hospital, School, Mall |
|---|---|
| Ambient Voltage | AC 240V, Ac 120V |
| Product Dimension | 86*86 |
| Material | ABS Plastic |
| Current Rating | 1 A |
| Control Signal | ON/OFF |
| Installation | Wall-mounted |
| Shape | Square |
| Feature | Energy Saving |
| Design Style | Contemporary |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Return and Replacement |
| Project Solution Capability | graphic design, 3D model design, total solution for projects |
| Model Number | GM8-FCE |
| Place Of Origin | Beijing, China |
| Brand Name | Gaobiao |
| Color | White&Black |
| Product Name | Gaobiao GM8-FCE Modbus RS485 fan coil thermostat with EC fan motor |
| RS485 Communication Interface | Optional |
| Hole Pitch | 60mm |
| Power Supply | AC85V-AC260V 50-60HZ |
| OEM | Accept |
| Dimensions | 86*86mm |
| Selling Units | Single item |
| Single Package Size | 12X8X8 cm |
| Single Gross Weight | 0.4 kg |
Product Details

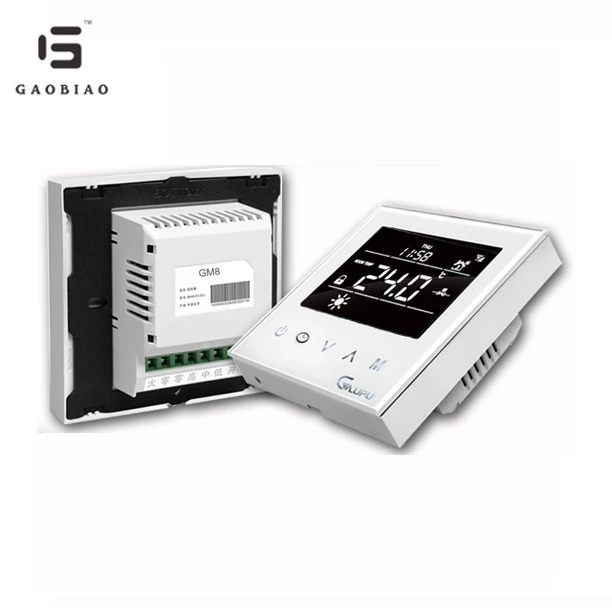

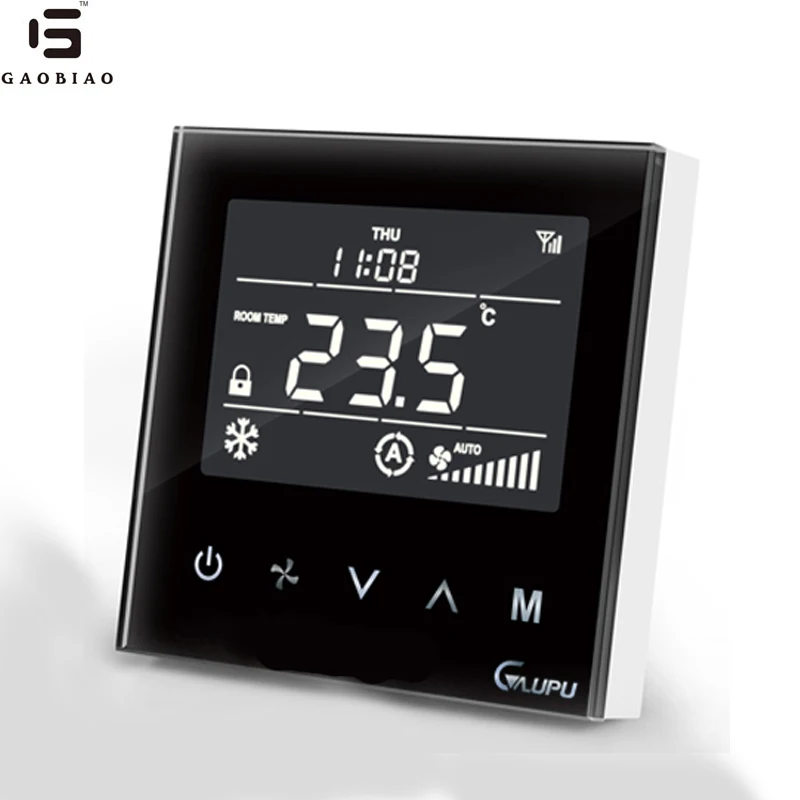

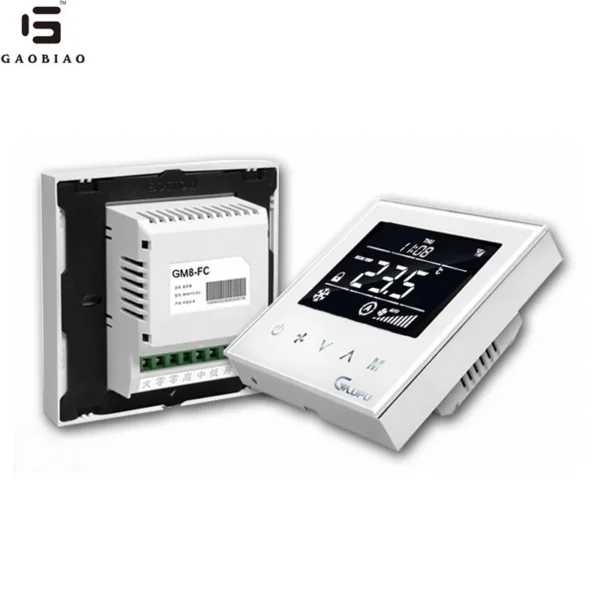

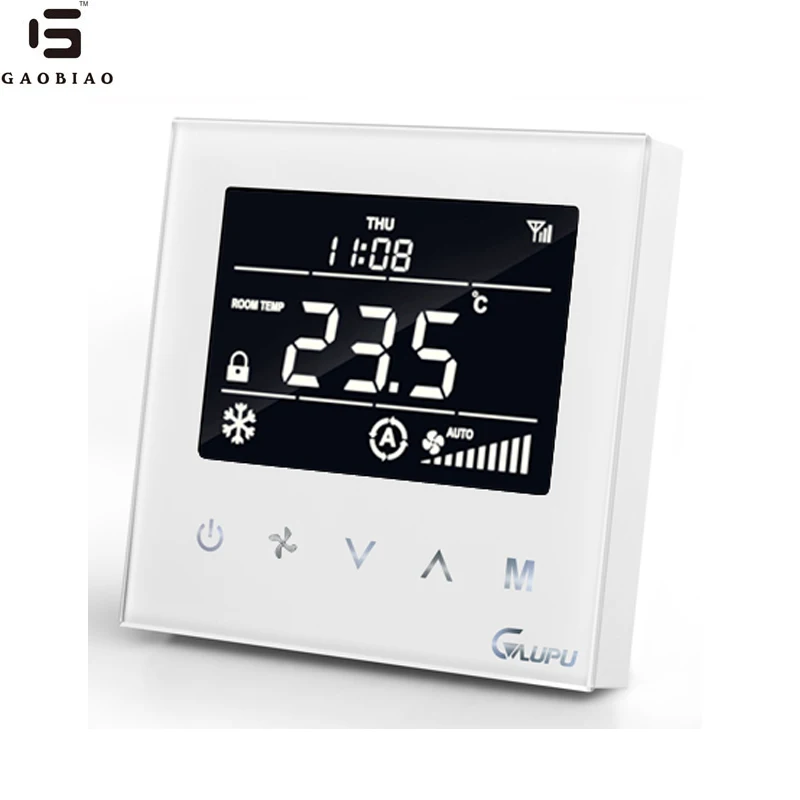

Gaupu GM8-FCE Gaobiao GM8-FCE Modbus RS485 fan coil thermostat with EC fan motor
Fan coil thermostat is mainly applied to the central air-conditioning system or wind pipe system. Through the difference from indoor temperature and set temperature to control the fan–coil, electric valves,electric ball valves etc, then reach the purpose that adjust the room temperature andsave energy, make you feel comfort.While each products has its unique advantages and charm,will meet your individual needs.
Features:
- Capacitive touch buttons
- Toughened glass panel
- Precise temperature calibration function
- Black/White panel can be optional
- Free selection of Auto/ Manual mode
- Easily steel frame back plate installation
- Intelligent control the on/off of fan-coil, electrical ball valve or air valve
- Wired Communication:RS485(Optional)
- Wireless Communication:WiFi(Optional)
| Power Supply | AC85V~AC260V / AC24V 50/60Hz |
| Self Consumption | < 1W |
| Display Temperature | ±0.5℃ |
| Temperature Setting | 0~99 ℃(Adjustable) |
| Button Way | Capacitive touch button |
| Outer Shell | Toughened glass and PC+ alloy |
| Dimensions | 86* 86mm |
| Hole Pitch | 60-65mm(Standard 86 box) |
| Load Current | 2 A(Resistive),1 A(Perceptive) |
| Working Environment | 0~50℃; <95% RH(Non-condensation) |
| 1.Why choose Gaupu? |
|
|
| 2.F&Q |
|
Q: Can I place sample order first?
For bulk OEM orders, usually15~20 working days and it depends on your design. products.We can do the ODM/OEM as your requirements |
| 3.Contact information |
|
Beijing Gaobiao IoT Technology Co., Ltd.
|
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $22 / piece
- 500+ piece: US $18 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gm8-fce modbus rs485 fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the gm8-fce modbus rs485 fan be supplied for my local voltage?
The standard configuration is AC 240V, Ac 120V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Gaobiao IoT Technology Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Beijing Gaobiao IoT Technology Co., Ltd. range on HVACR Nexus.
