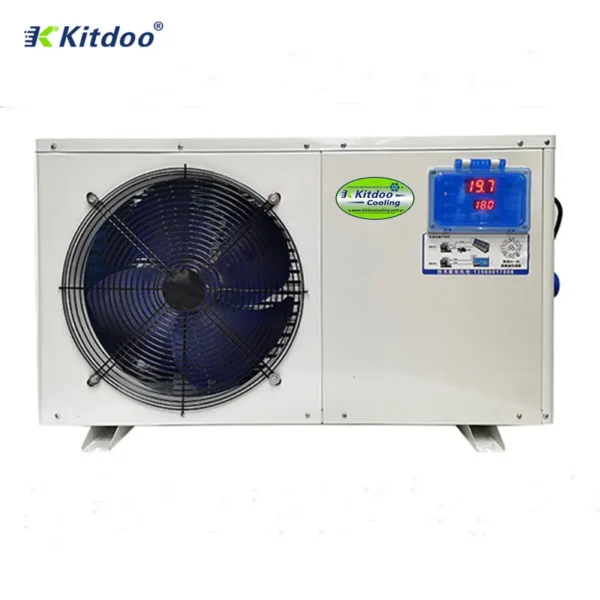

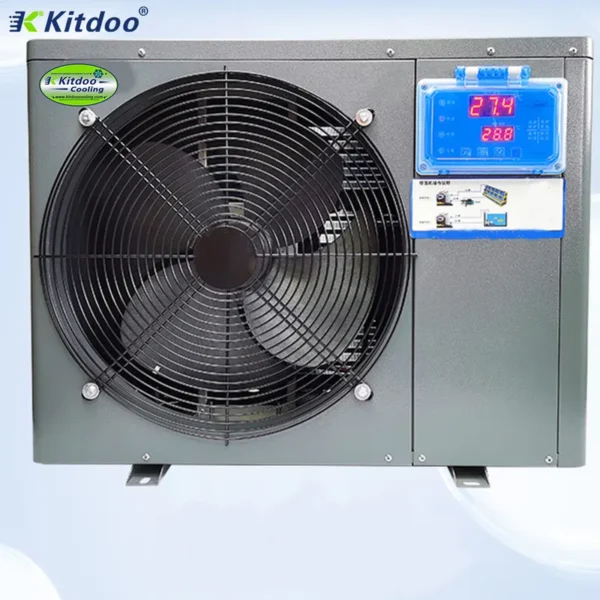

Factory Supplies Seafood Chiller, 220v, 40kw

Factory supplies seafood chiller — 220v, 40kw. The complete factory specification follows. Made by Foshan Kitdoo Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Factory Supplies Seafood Chiller

• Power(W): 40kw
• Voltage: 220v
• Refrigerant: R-404A
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Application: Cold Storage Room Freezer Room

Technical Specifications

Product Details

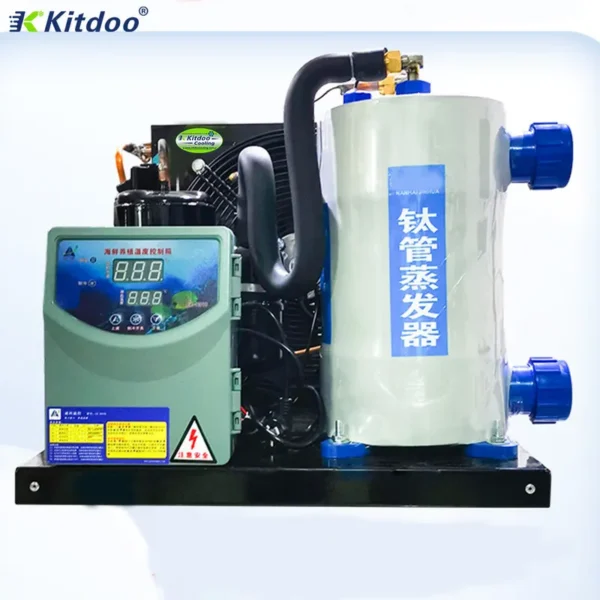

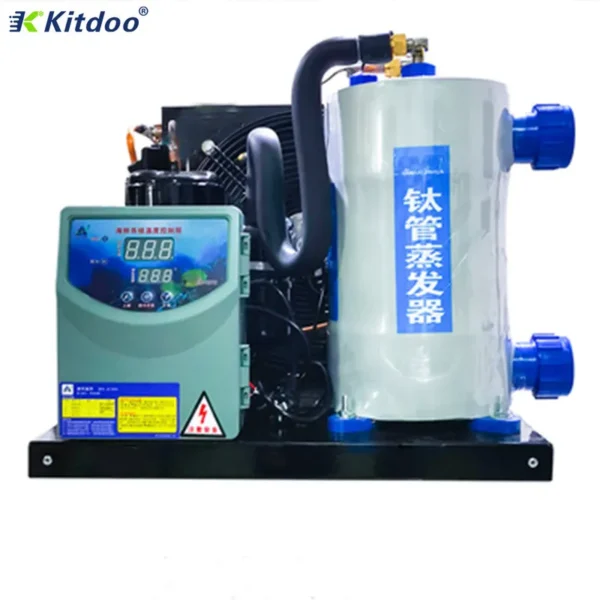

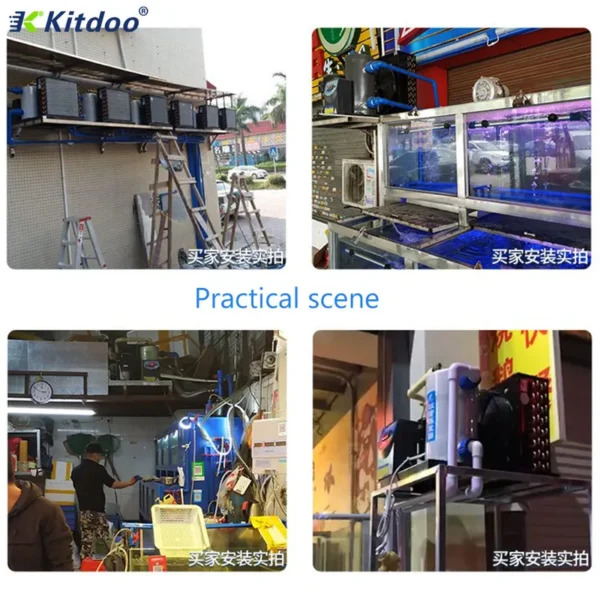

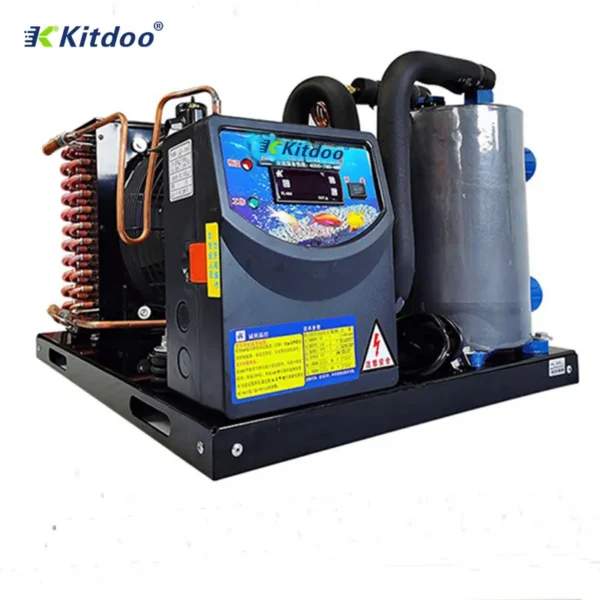

Seafood mostly grows in the cold areas of the sea. If you want them to survive in the seafood pond, you must keep cooling the water in the pond to reach the temperature they are used to. The machine used for cooling is called the seafood fish pond. The machine, also known as the seafood fresh-keeping freezer. The fish pond machine, also known as the seafood fish pond chiller, is used for water temperature control such as seafood farming, and the principle is similar to that of the air conditioner. The main components are titanium evaporator, condenser, compressor, thermostat, four-way valve and other components. Fish pond machines are widely used in seafood ponds, fish tanks, aquariums and other water temperature control systems to maintain a certain water temperature environment for fish to survive. This product can be used for both freshwater and seawater, and is suitable for water temperature regulation and control of fish ponds in hotels, guesthouses, restaurants, fresh sea markets, aquariums, and aquaculture farms.

Features

1.Independent design appearance, exquisite, easy installation and operation;
2.Brand compressor refrigeration accessories, high performance, low noise, energy saving and durability;
3.The evaporator is integrally formed with a high-pressure PCV mold and industrial pure titanium threaded pipe, which can improve
the cooling efficiency, effectively prevent leakage, and enhance the cooling effect;
4.It is suitable for constant temperature breeding of seafood and fresh water.
5.Independent research and development of intelligent thermostat, simple and flexible operation;
6.Adopt brand four-way reversing valve to meet customer needs, for hot and cold models, heating and cooling are automatically switched;

Regularstyle 1hp-15hp(Seawaterchiller)

Model

Power

Voltage

Cooling heating capacity

Cooling water quantity (m³)

Nozzle size

Cryogen

Circulating water quantity

Length *width*height

BS-M1000CH

1HP

220V/50HZ

2700/2700W

1m³

φ32

R22

1m³/h

730*415*560

BS-M1500CH

1.5HP

220V/50HZ

3800/3800W

1.5m³

φ50

R22

1.5m³/h

730*415*560

BS-M2000CH

2HP

220V/50HZ

5200/5200W

2m³

φ50

R22

2.5m³/h

730*415*560

BS-M3000CH

3HP

220V/50HZ

7200/7200W

3m³

φ50

R22

2.8m³/h

730*415*560

BS-M3000CH

3HP

380V/50HZ

8580/8580W

4m³

φ50

R22

4.3m³/h

926*526*908

BS-M5000CH

5HP

380V/50HZ

14890/14890W

6m³

φ50

R22

6.5m³/h

1130*400*1274

BS-M8000CH

8HP

380V/50HZ

22900/22900W

9m³

φ63

R22

8.6m³/h

BS-M10KCH

10HP

380V/50HZ

14890*2/14890*2W

11m³

φ63

R22

11m³/h

BS-M15KCH

15HP

380V/50HZ

14890*2/14890*2W

16m³

φ75

R22

16m³/h

Ordering and Pricing

• Minimum order quantity: 1 unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this factory supplies seafood chiller?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the factory supplies seafood chiller be supplied for my local voltage?

The standard configuration is 220v. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Foshan Kitdoo Refrigeration Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Foshan Kitdoo Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
