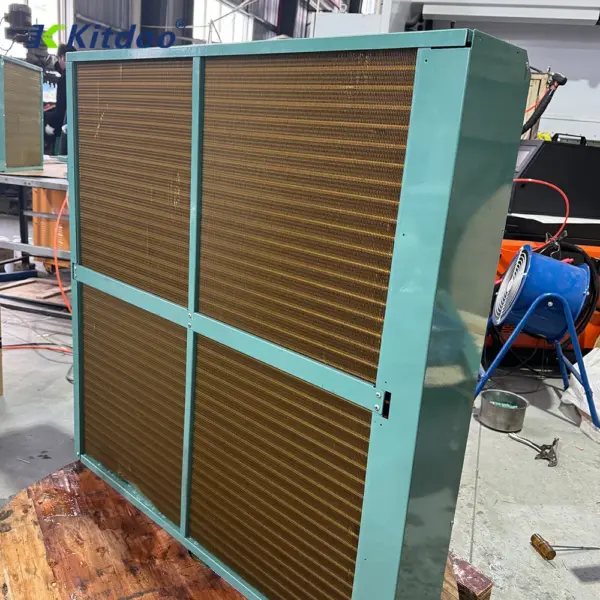

This air cooled condenser unit is published with the manufacturer’s full specification — 220 V, 380 V, material Copper. For a binding price and lead time, send the volume you need and where it ships to.
All-copper construction on an air cooled condenser unit costs more than copper-tube-aluminium-fin, and it buys two things: better heat transfer and far longer life in humid or coastal air where aluminium fin corrodes to powder. At 20kg this is a compact unit for small cold room kits. Working range 0 to 50C on 220V or 380V, with video outgoing inspection supplied from Guangdong.
Key Features of This Air Cooled Condenser Unit
- Voltage: 220 V, 380 V
- Material: Copper
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Heat Exchanger Type: Tube Heat Exchanger
- Weight (KG): 20
Technical Specifications
| Material | Copper |
|---|---|
| Key Selling Points | High-Accuracy, High Productivity |
| Voltage | 220 V, 380 V |
| Heat Exchanger Type | Tube Heat Exchanger |
| Working Temperature Range | 0-50 |
| Core Components | copper |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Guangdong, China |
| Weight (KG) | 20 |
| Brand Name | KITDOO |
| Liquid Flow Rate | 0-50 |
| Selling Units | Single item |

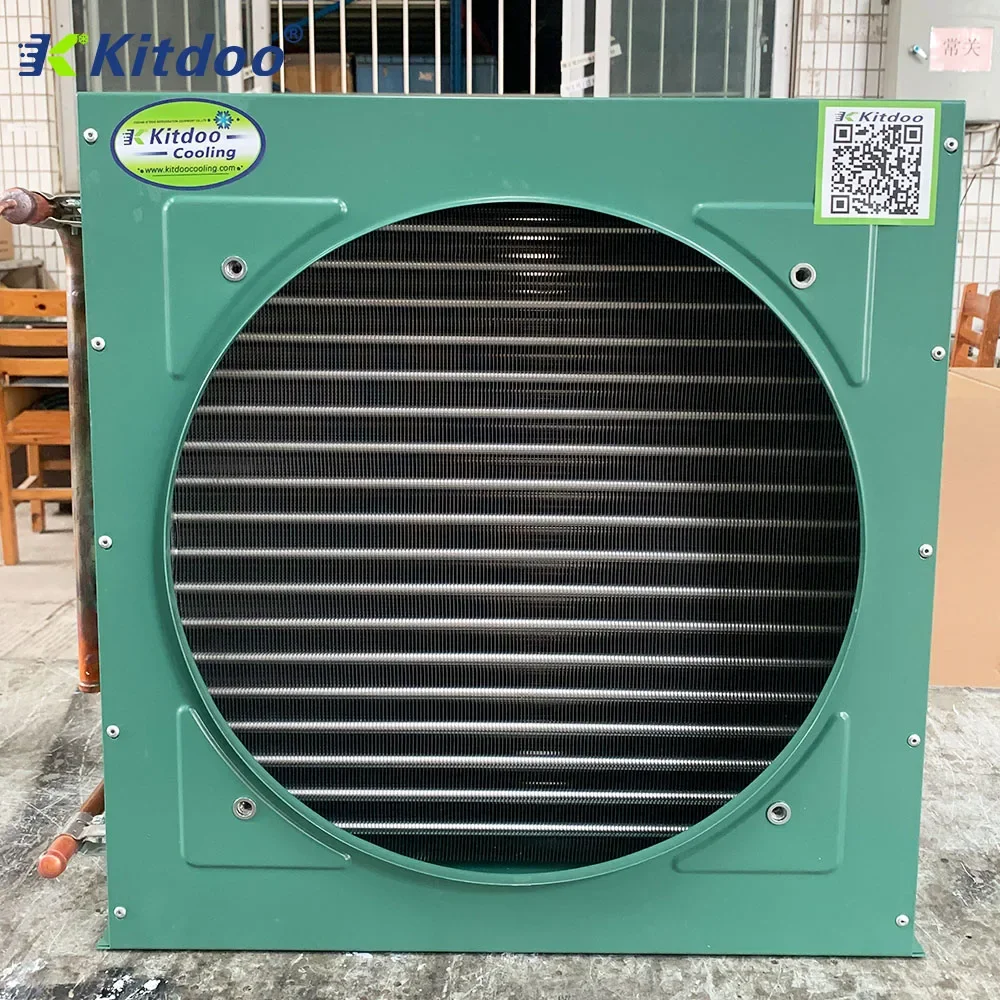

Product Description

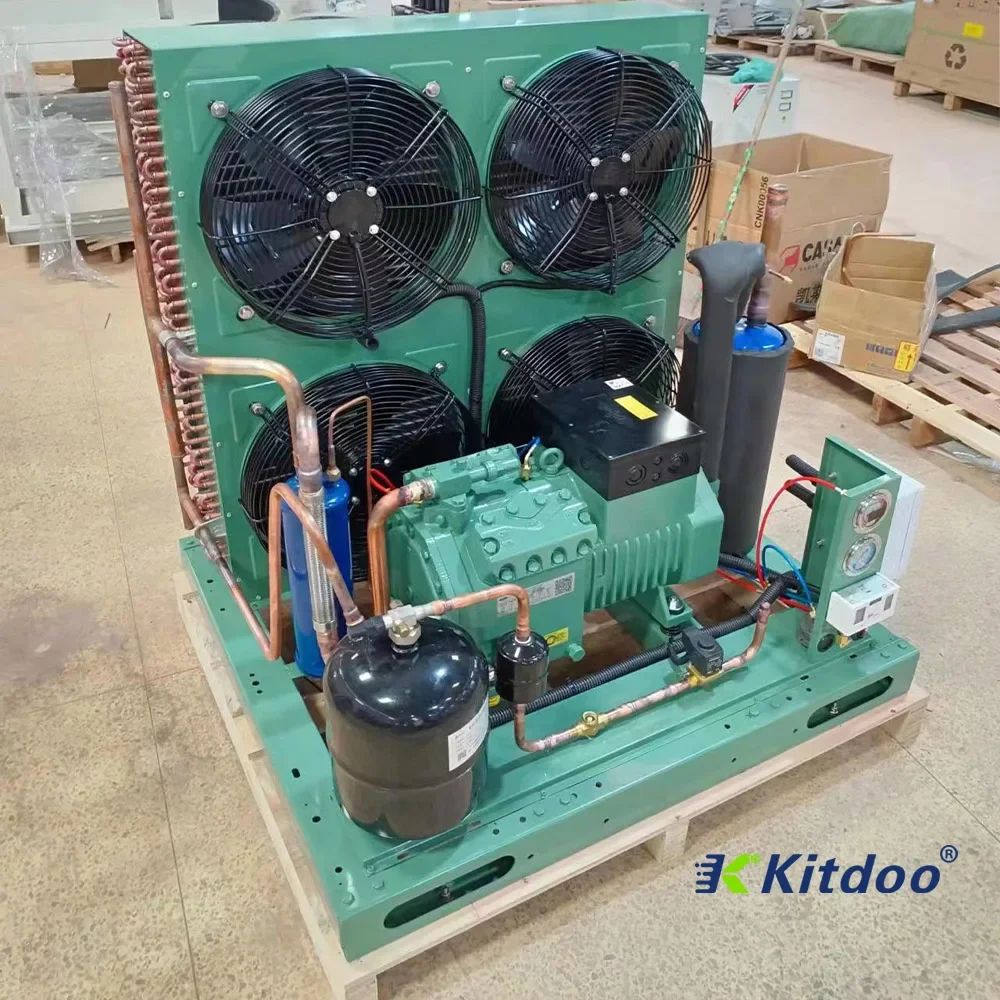

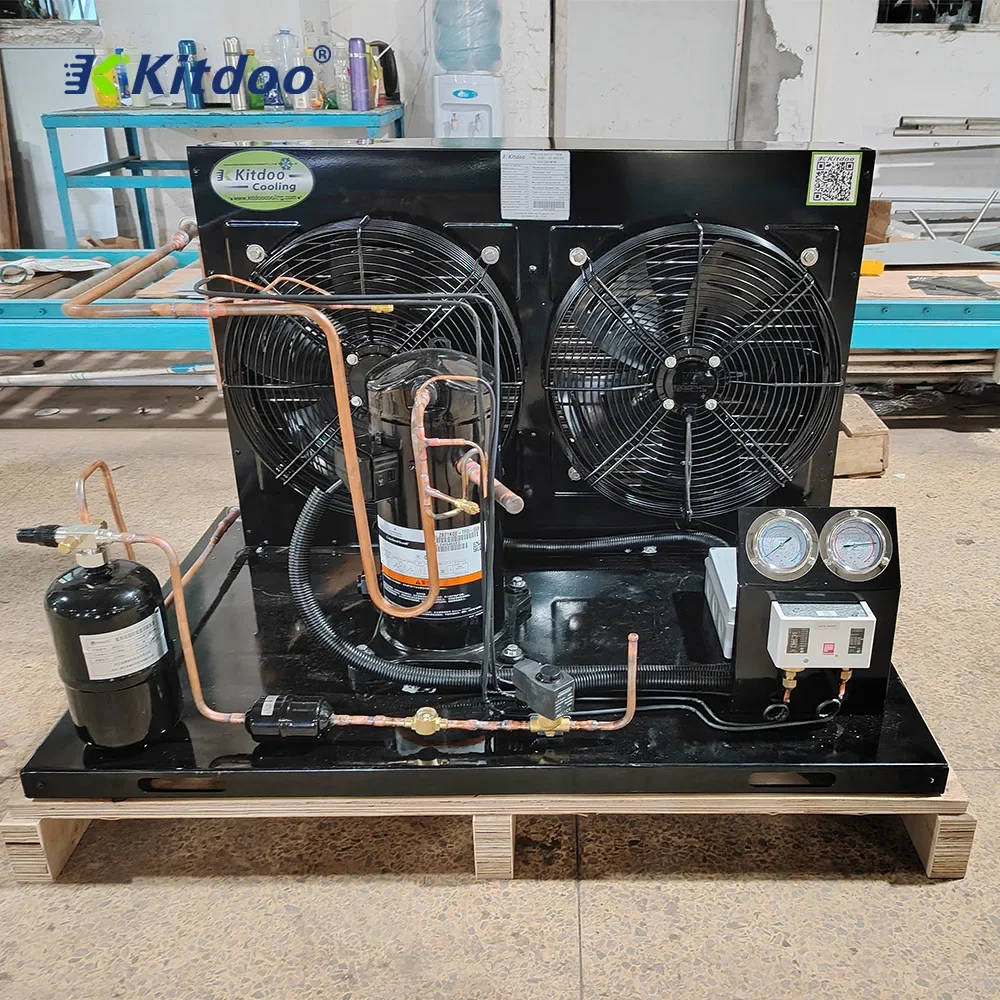

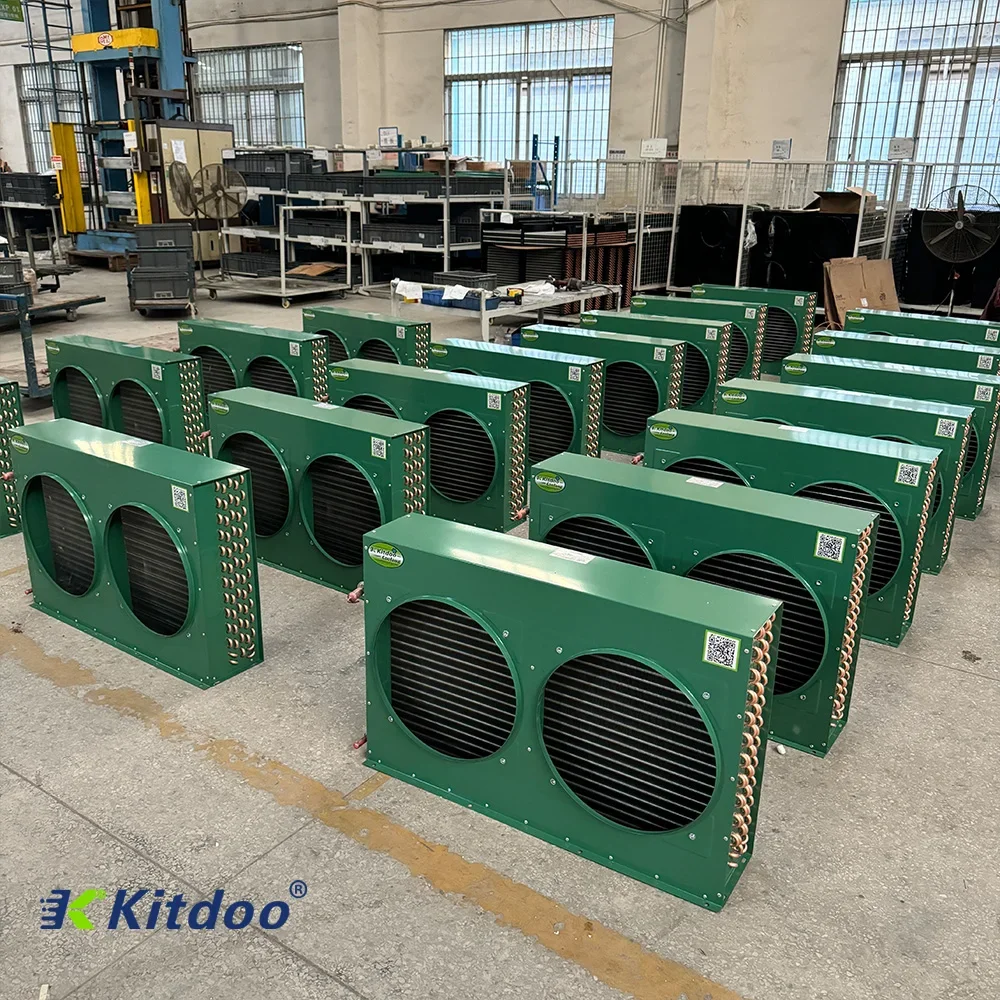

open-type condensing units with scroll compressor,hemertic & semi-hemertic compressor.

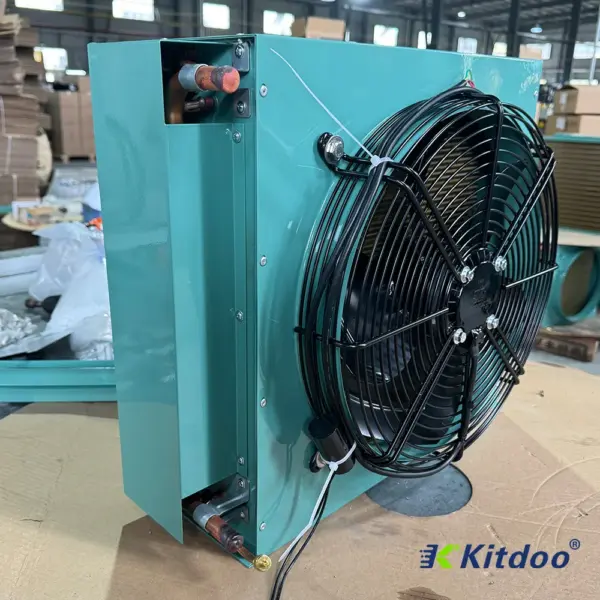

Condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted
Structure .

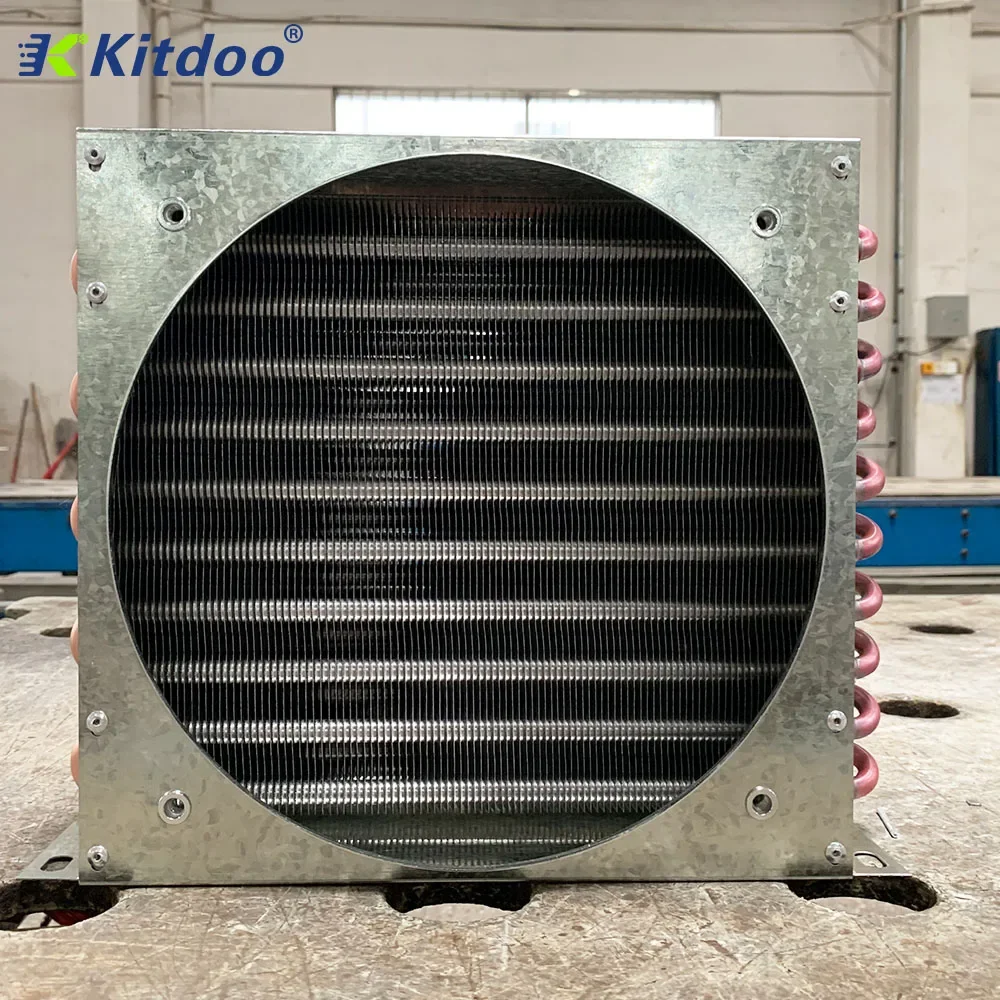

.Copper tube and corrugated aluminium fins with adistance of 2.1 mm are used.
.Fan specifications adopt 400mm, 500mm and 630mm.
.Testing pressure 28bar ‘
.Adopt high-quality steel plate with powder coatingRAL 9003 or RAL6001
.It can meet the requirements of R22, R134a, R404A and other refrigerants.
.Retain 2.6Mpa pressure before leaving factory
|

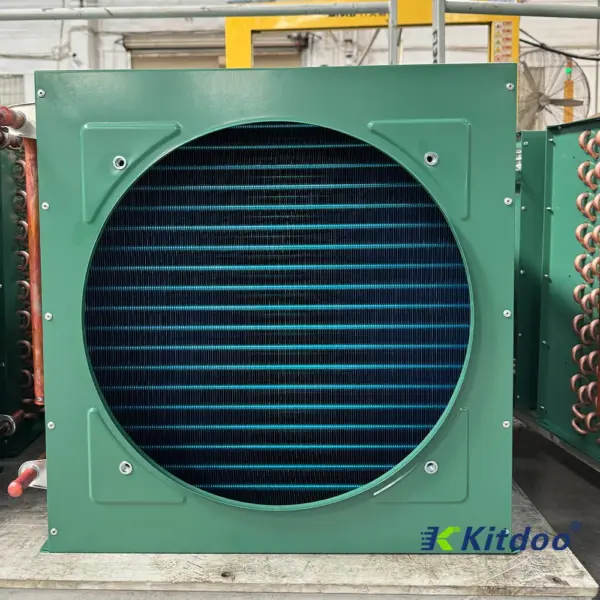

One Fan:
|
||||||||||
|
Model
|
Capacity
|
Cooling surface
|
Dimension
|
Fan quantity
|
fan size
|
|||||
|
(w)
|
(m2)
|
(mm)
|
(mm)
|
|||||||
|
FNF-0.8/3.4
|
800
|
3.4
|
250*120*235
|
1
|
200
|
|||||
|
FNF-0.9/4.0
|
900
|
4
|
300*120*235
|
1
|
200
|
|||||
|
FNF-1.0/4.4
|
1000
|
4.4
|
320*130*280
|
1
|
250
|
|||||
|
FNF-1.1/5.0
|
1100
|
5
|
380*130*280
|
1
|
250
|
|||||
|
FNF-1.15/5.2
|
1125
|
5.2
|
400*130*280
|
1
|
250
|
|||||
|
FNF-1.2/5.4
|
1150
|
5.4
|
360*150*330
|
1
|
300
|
|||||
|
FNF-1.6/8.4
|
1600
|
8.4
|
450*150*330
|
1
|
300
|
|||||
|
FNF-1.7/9.0
|
1750
|
9
|
400*130*280
|
1
|
250
|
|||||
|
FNF-1.9/9.8
|
1850
|
9.8
|
385*150*330
|
1
|
300
|
|||||
|
FNF-2.5/11.3
|
2500
|
11.3
|
440*150*420
|
1
|
350
|
|||||
|
FNF-2.8/13
|
3000
|
13
|
440*150*420
|
1
|
350
|
|||||
|
FNF-4.4/16.5
|
4400
|
16.5
|
460*150*460
|
1
|
350
|
|||||
|
FNF-5.5/20
|
5500
|
20
|
510*165*530
|
1
|
400
|
|||||
|
FNF-6.0/22
|
6500
|
22
|
510*200*530
|
1
|
400
|
|||||
|

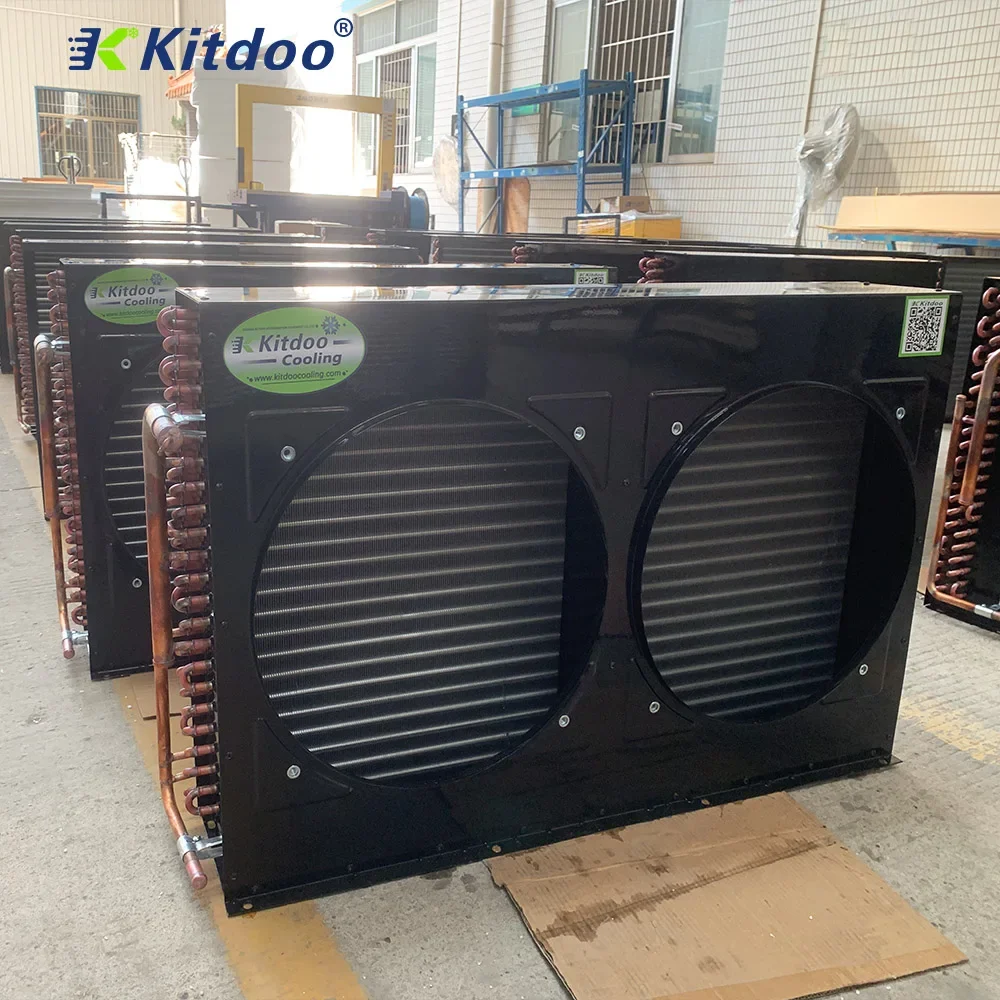

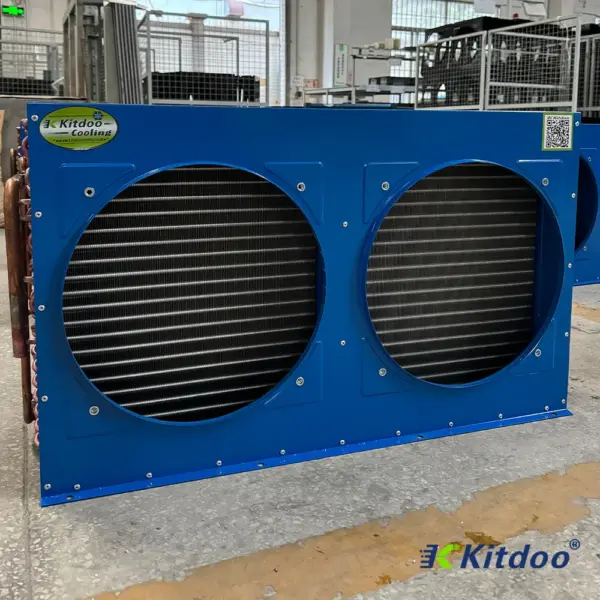

Two Fans:
|
||||||||||
|
Model
|
Capacity
|
Cooling surface
|
Dimension
|
Fan quantity
|
fan size
|
|||||
|
(w)
|
(m2)
|
(mm)
|
(mm)
|
|||||||
|
FNF-7.2/26
|
7800
|
26
|
820*165*430
|
2
|
350
|
|||||
|
FNF-8.8/30
|
8800
|
30
|
950*180*610
|
2
|
400
|
|||||
|
FNF-9.0/42
|
10800
|
42
|
980*200*590
|
2
|
400
|
|||||
|
FNF-10.2/50
|
14000
|
50
|
950*200*530
|
2
|
400
|
|||||
|
FNF-15.2/53
|
15200
|
53
|
980*200*590
|
2
|
400
|
|||||
|
FNF-19/63
|
19000
|
63
|
960*200*630
|
2
|
400
|
|||||
|
FNF-21.5/75
|
22000
|
75
|
960*220*630
|
2
|
400
|
|||||
|

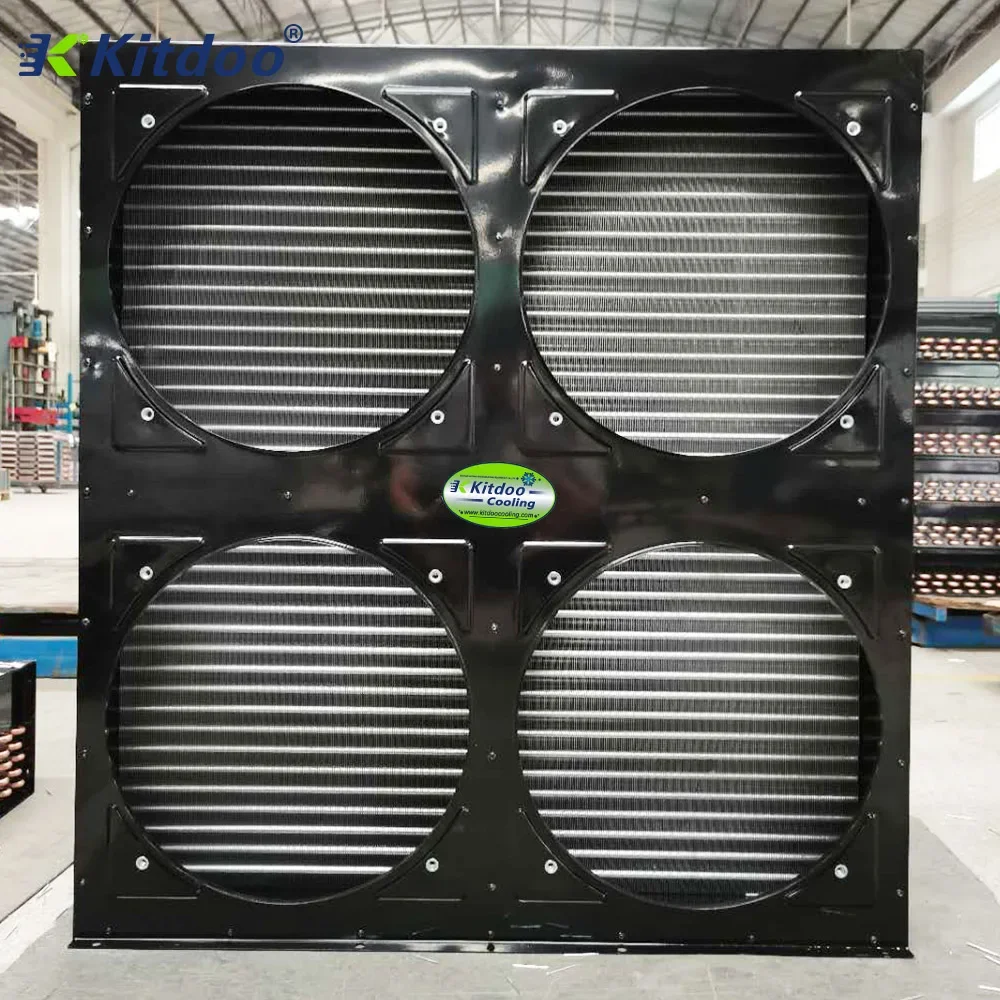

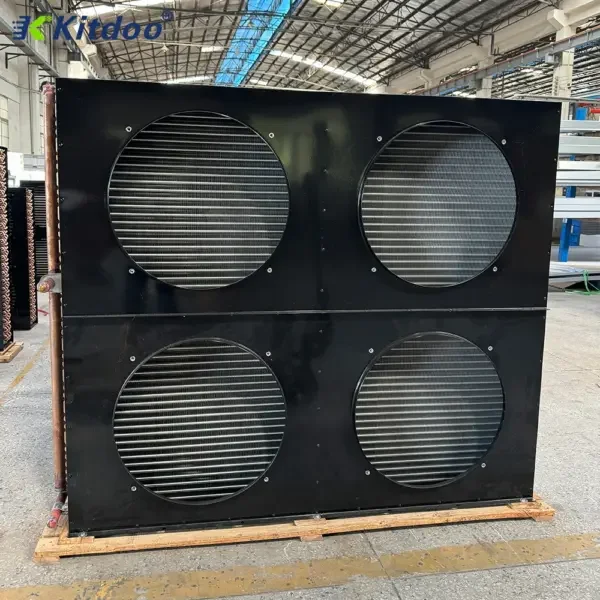

Four Fans:
|
||||||||||
|
Model
|
Capacity
|
Cooling surface
|
Dimension
|
Fan quantity
|
fan size
|
|||||
|
(w)
|
(m2)
|
(mm)
|
(mm)
|
|||||||
|
FNF-24.2/88
|
24200
|
88
|
960*200*1030
|
4
|
400
|
|||||
|
FNF-36/130
|
36000
|
130
|
1180*200*1030
|
4
|
400
|
|||||
|
FNF-42/150
|
42000
|
150
|
1140*200*1230
|
4
|
400
|
|||||
|
FNF-50/180
|
50000
|
180
|
1390*200*1330
|
4
|
500
|
|||||
|
FNF-60/210
|
60000
|
210
|
1390*200*1330
|
4
|
500
|
|||||
Frequently Asked Questions
What is the minimum order quantity for this air cooled condenser unit?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this air cooled condenser unit?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220 V, 380 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
