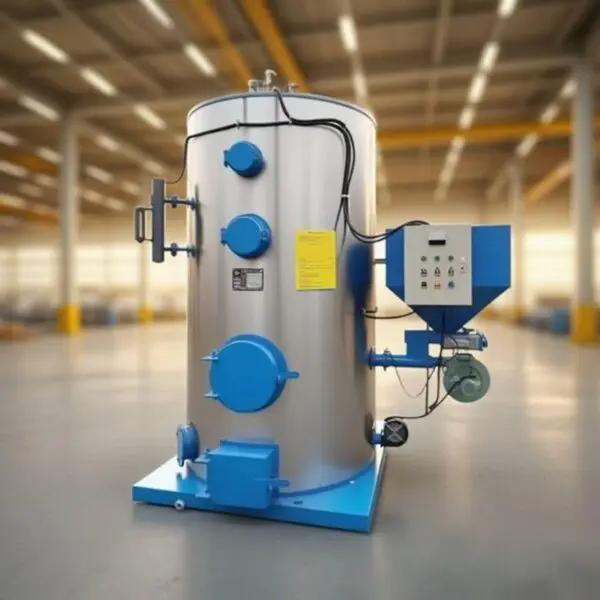

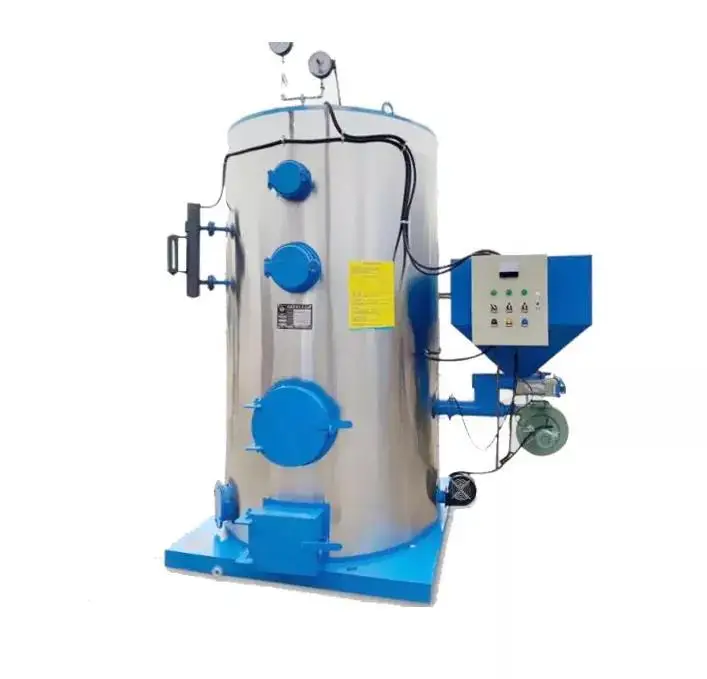

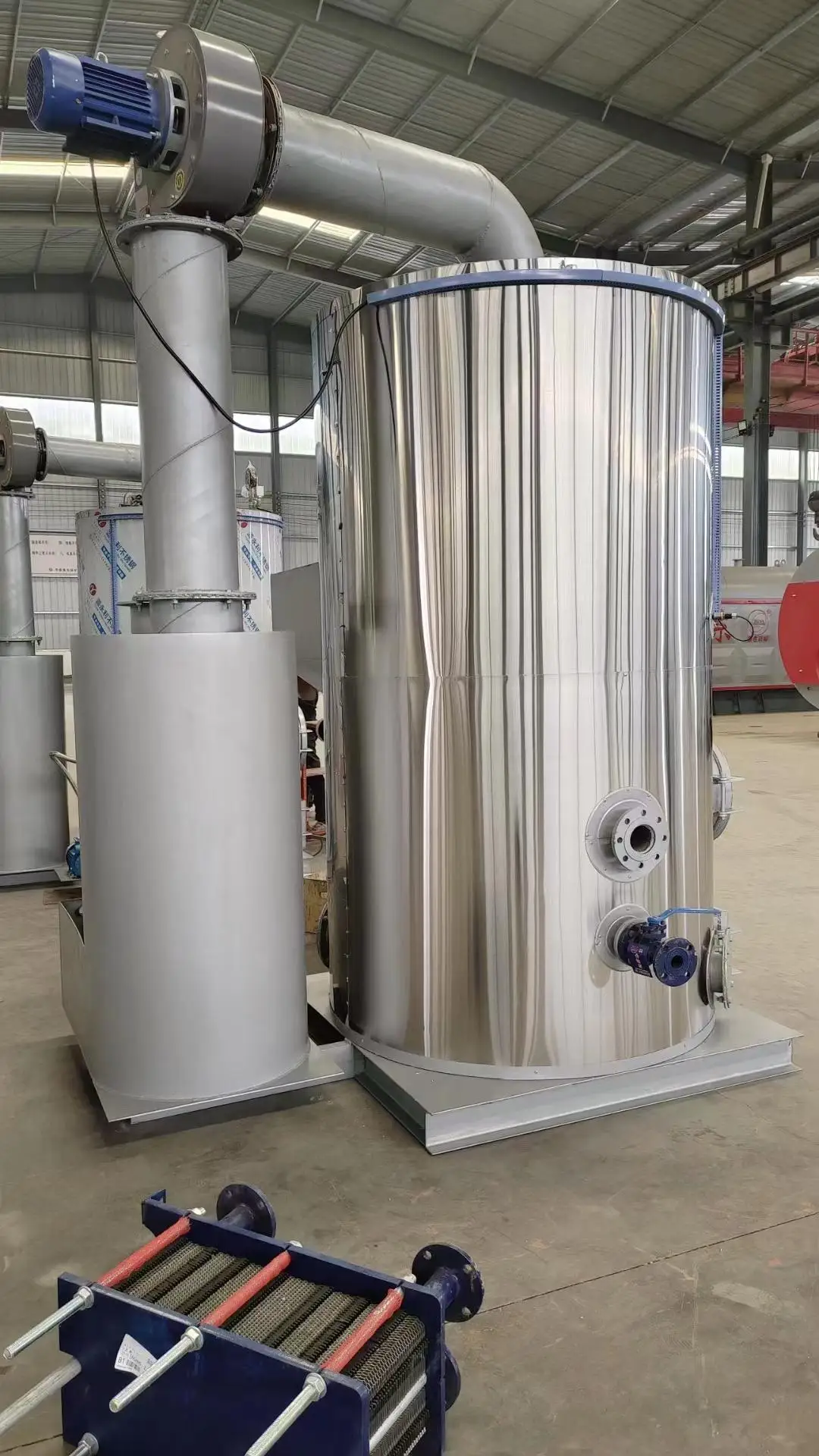

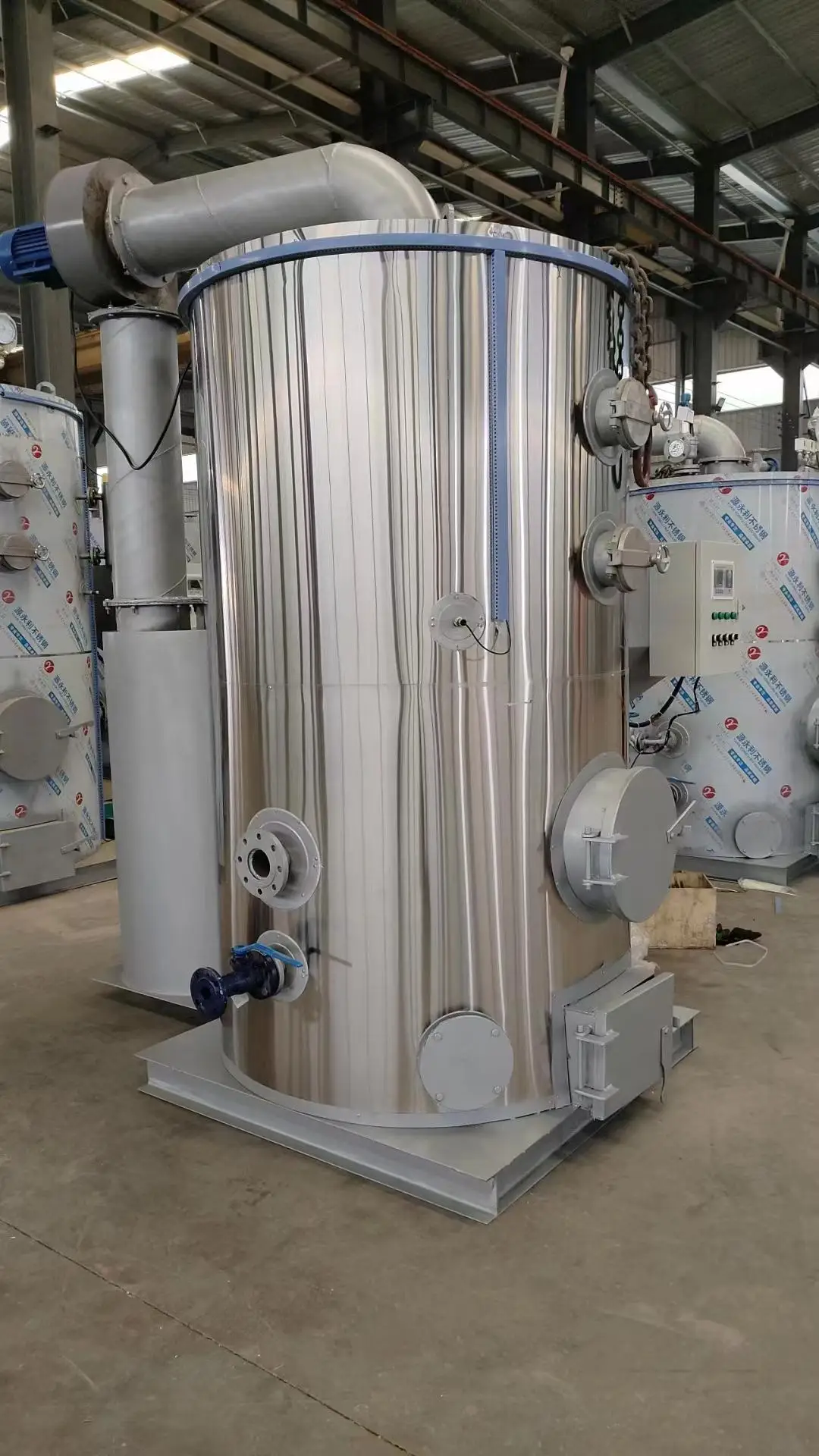

This vertical water tube steam boiler is published with the manufacturer’s full specification — material Carbon Steel, Stainless Steel, type Natural Circulation. For a binding price and lead time, send the volume you need and where it ships to.
Being able to burn bagasse and rice husk in this vertical water tube steam boiler is what makes it relevant to sugar mills and rice processors — those plants generate their own fuel as a waste stream, and a boiler that consumes it turns a disposal cost into free energy. Carbon and stainless steel construction with natural circulation, automatic operation, built for long service life at low fuel cost.
Key Features of This Vertical Water Tube Steam Boiler
- Material: Carbon Steel, Stainless Steel
- Warranty: 1 Year
- Type: Natural Circulation
- Single Package Size: 1200X50X50 cm
- Single Gross Weight: 68.000 kg
- Key Selling Points: Long Service Life
Technical Specifications
| Key Selling Points | Long Service Life |
|---|---|
| Material | Carbon Steel, Stainless Steel |
| Fuel | Coal, Biomass pellet, Rice Husk, Bagasse, etc. |
| Pressure | Low Pressure |
| Structure | Water Tube |
| Output | Steam |
| Usage | Industrial |
| Type | Natural Circulation |
| Style | VERTICAL |
| Warranty | 1 Year |
| Core Components | FIRE TUBE |
| Machinery Test Report | Provided |
| Selling Units | Single item |
| Single Package Size | 1200X50X50 cm |
| Single Gross Weight | 68.000 kg |
3. Manufacturing: Paper Mill, textile factory, food factory, shoe factory, ceramic factory furniture factory.
4. Construction Industry: Highway Use, site use.
5. Others: Accommodation and catering, bath cente, hotel, disinfection of medical instruments and clothing.
|
Model
|
Rated Steam
Capacity
|
Rated Working
Pressure
|
Saturated Steam
Temp.
|
Heat
Efficiency
|
Design Fuel
|
Max Transport
Weight
|
Max Transport
Dimension
(LxWxH)
|
|
Unit
|
t/h
|
Mpa
|
℃
|
%
|
T
|
MM
|
|
|
LSG0.1-0.09-SCII
|
0.1
|
0.09
|
174
|
95
|
Type II Soft Coal/
Biomass
pellet/
Rice Husk
Bagasse etc
|
1.2
|
1200*1200*1800
|
|
LSG0.2-0.09-SCII
|
0.2
|
1.5
|
1350*1350*1850
|
||||
|
LSG0.3-0.09-SCII
|
0.3
|
1.8
|
1500*1500*1900
|
||||
|
LSG0.5-0.09-SCII
|
0.5
|
2.2
|
1600*1600*2000
|
||||
|
LSG0.7-0.09-SCII
|
0.7
|
2.5
|
1750*1750*2200
|
||||
|
LSG1-0.09-SCII
|
1
|
2.8
|
1900*1900*2500
|
|
Name
|
Small capacity wood coal fired steam generator
|
|
Pressure
|
0.09-0.7Mpa
|
|
Fuel
|
Coal, Biomass pellet, Rice Husk, Bagasse, etc.
|
|
Capacity
|
0.1t/h-1t/h
|

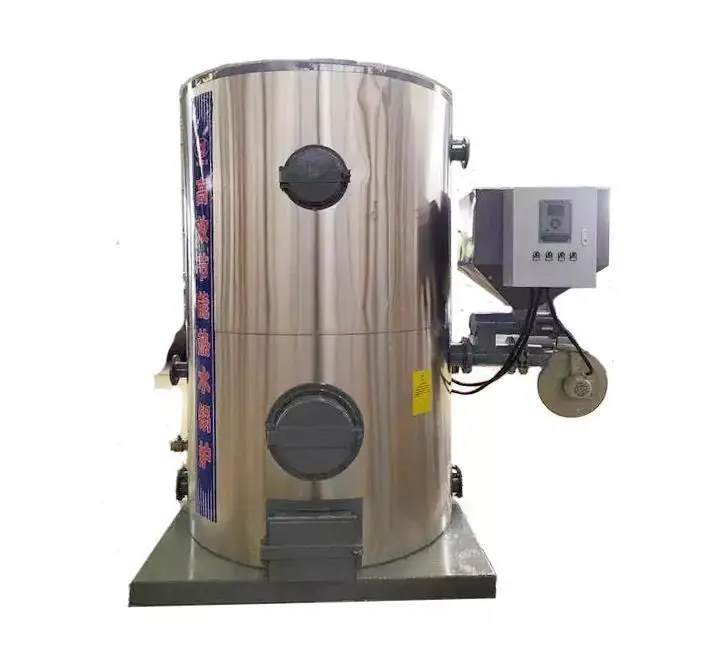

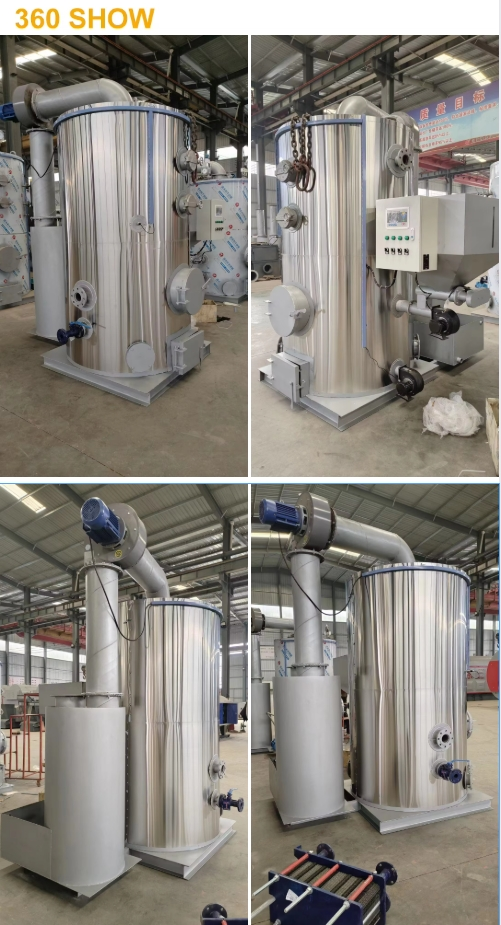

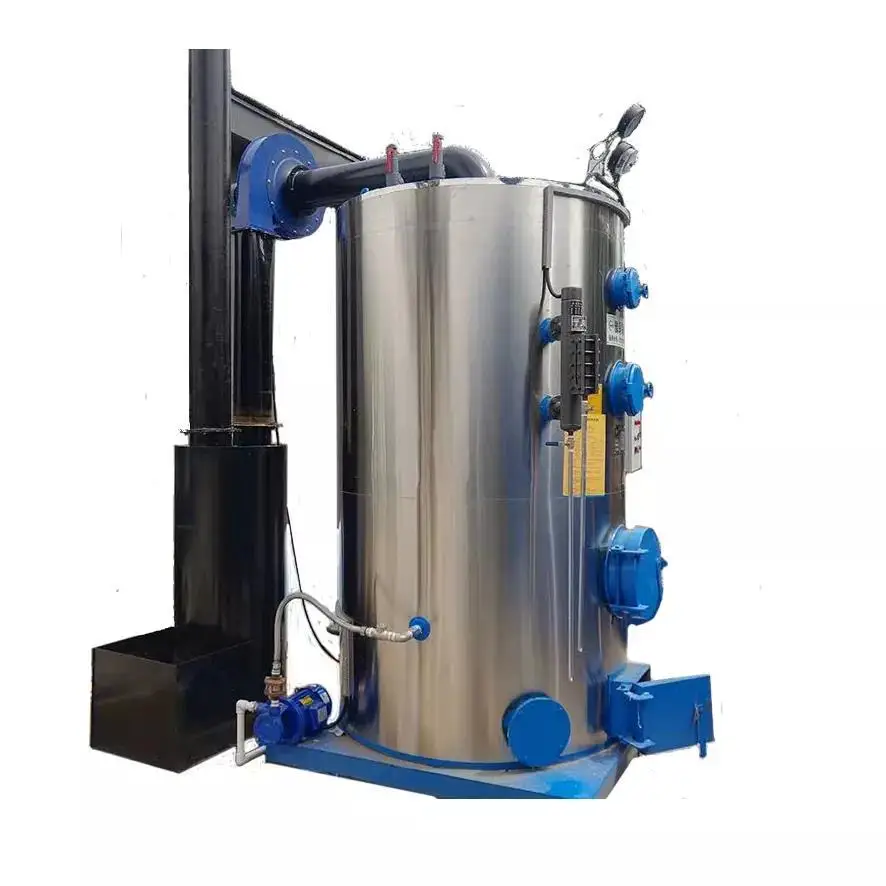

Vertical coal-fired boiler,A head, drum, top Furnace, Furnace, bending pipe and other components. Vertical bending the structural features of water-tube boilers are: Furnace that has the curved pipe, increasing the radiation heating surface. However, a larger Furnace water level, lower the oven temperature, therefore, generally suitable for burning high quality coal. Such as the increase
in the furnace refractory bricks, to maintain a high temperature, can also use the low quality coal species. Better water circulation.
Using double-grate combustion chamber, heating quickly, can burn once again, to achieve full combustion, eliminating smoke, dust removal effect. Reasonable layout of the boiler structure, good heat transfer.
The boiler design is reasonable, simple structure, convenient operation, easy maintenance, small footprint, low investment and production of steam and heating can be used for enterprises and units.
DZL
1. Usually for the boiler with capacity lower than 10Ton
SZL
Q3: What are the differences between vertical type boiler and horizontal type boiler with the same capacity?
1. Structure of vertical boiler is compact, occupy a limited area.
Q4: What are the limitation (size, humidity, chemical element concentrations) of coal fuel/solid fuel/wood fuel?
Size requirement of coal:6-25mm Size requirement of blending coal: <50mm (the coal less than 6mm should less than 30%) Diameter of biomass particle: 6~10mm, length: 25~50mm, water content < 15%, ash content < 2%, sulphur content<0.07%, chlorinity <0.07%, nitrogen content < 0.5%
Q5: What is the size of furnace door and blower hopper?
hopper size: 2 tons conical hopper: 1400*800*1500 4 tons conical hopper: 2200*1400*1500
Q6: What is the combustion mode of coal/biomass fired boiler?
Frequently Asked Questions
What is the minimum order quantity for this vertical water tube steam boiler?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this vertical water tube steam boiler?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
