Fan — 12V, 24V, 48V, power source Electric. The complete factory specification follows. Made by Shenzhen Cooling Technology Co., Ltd. (9 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan
- Model Number: CLD20060M12
- Power Source: Electric
- Voltage: 12V, 24V, 48V
- Blade Material: Plastic
- Speed: 2000rpm
- Warranty: 1 Year
Technical Specifications
| Voltage | 12V, 24V, 48V |
|---|---|
| Speed | 2000rpm |
| Type | dc cooling fan |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | COOLING |
| Model Number | CLD20060M12 |
| Selling Units | Single item |
| Single Package Size | 30X30X20 cm |
| Single Gross Weight | 0.560 kg |
Product Details

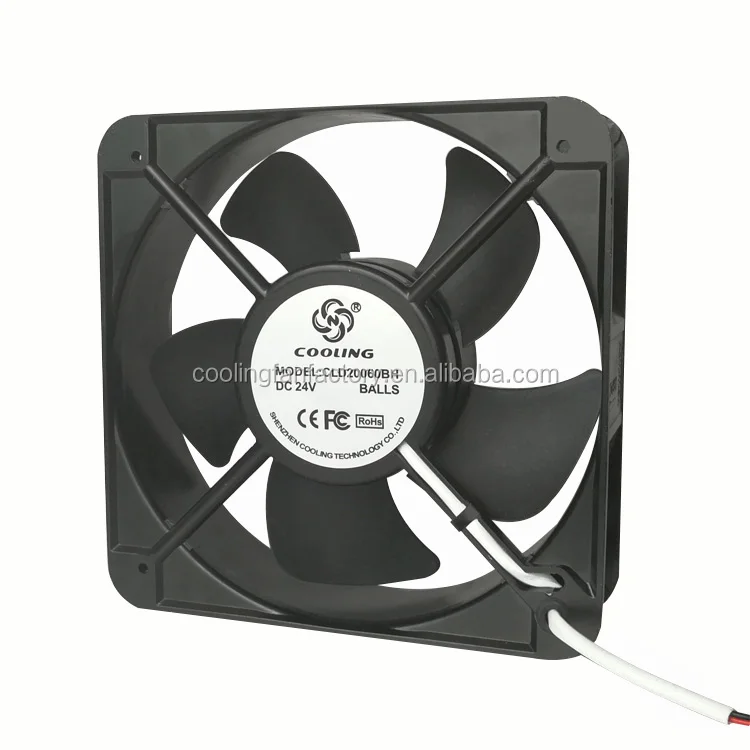

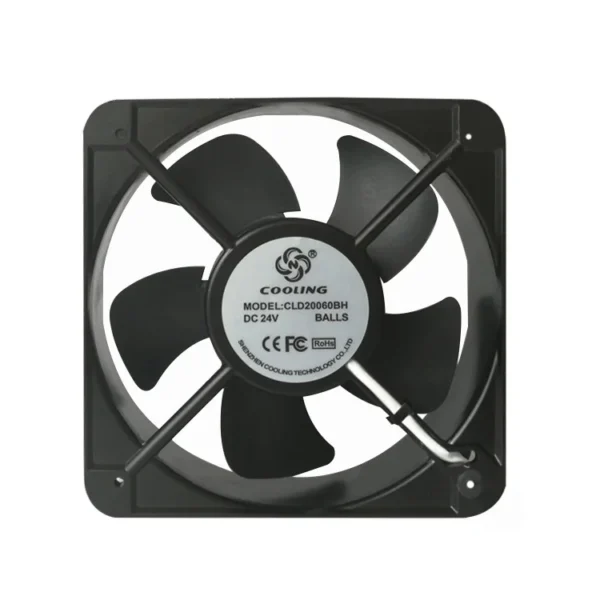

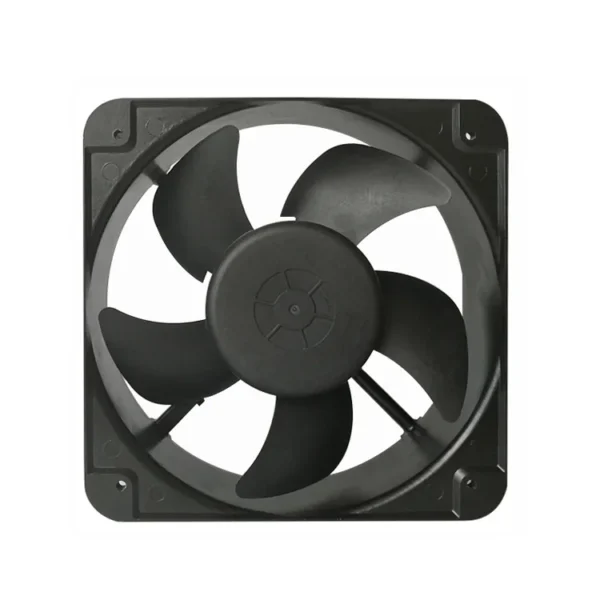

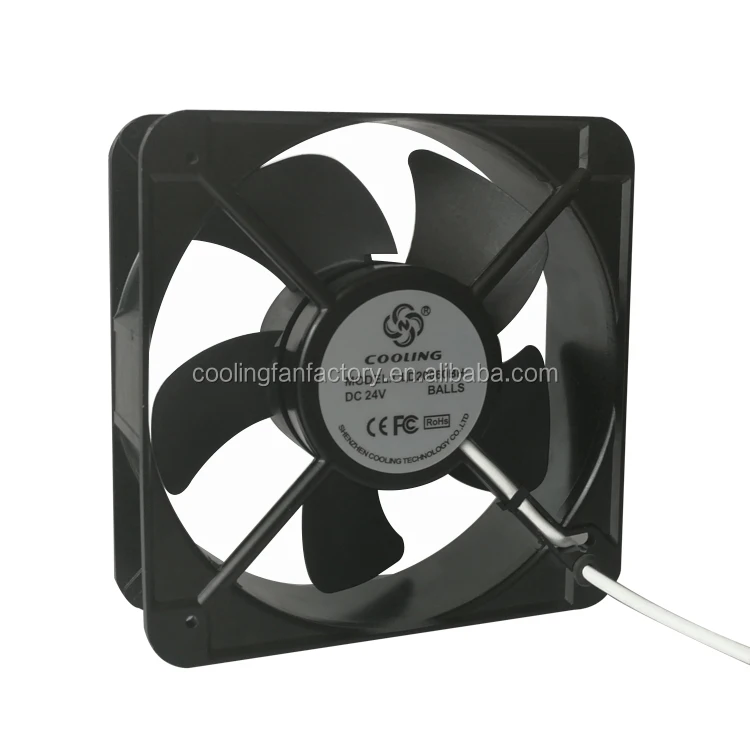

200x200x60 cooling fan 200mm 20060 12v 24v 48v dc brushless fan
| Model | Voltage | Current | Power | Speed | Air Flow | Air Pressure | Noise |
| Part No. | VDC | Amp | Watt | RPM | CFM | mmH2O | dB-A |
| CLD20060M12 | 12V | 1.65 | 19.8 | 2000 | 400.58 | 6.65 | 54.6 |
| CLD20060H12 | 12V | 2.92 | 35.04 | 2500 | 513.39 | 12.15 | 60.0 |
| CLD20060HH12 | 12V | 4.73 | 56.76 | 3000 | 586.69 | 17.28 | 63.6 |
| CLD20060VH12 | 12V | 7.4 | 88.8 | 3500 | 645.61 | 22.02 | 68.5 |
| CLD20060M24 | 24V | 0.78 | 19.8 | 2000 | 400.58 | 6.65 | 54.6 |
| CLD20060H24 | 24V | 1.39 | 35.04 | 2500 | 513.39 | 12.15 | 60.0 |
| CLD20060HH24 | 24V | 2.25 | 56.76 | 3000 | 586.69 | 17.28 | 63.6 |
| CLD20060VH24 | 24V | 3.52 | 88.8 | 3500 | 645.61 | 22.02 | 68.5 |
| CLD20060M48 | 48V | 0.37 | 19.8 | 2000 | 400.58 | 6.65 | 54.6 |
| CLD20060H48 | 48V | 0.66 | 35.04 | 2500 | 513.39 | 12.15 | 60.0 |
| CLD20060HH48 | 48V | 1.07 | 56.76 | 3000 | 586.69 | 17.28 | 63.6 |
| CLD20060VH48 | 48V | 1.67 | 88.8 | 3500 | 645.61 | 22.02 | 68.5 |
| 15*15*4mm | 17*17*8mm | 18*18*4mm | 20*20*6mm | 20*20*10mm | 25*25*7mm |
| 25*25*10mm | 30*30*7mm | 30*30*10mm | 35*35*10mm | 40*40*7mm | 40*40*10mm |
| 40*40*20mm | 40*40*28mm | 40*40*56mm | 45*45*10mm | 50*50*10mm | 50*50*15mm |
| 50*50*20mm | 60*60*10mm | 60*60*15mm | 60*60*20mm | 60*60*25mm | 60*60*38mm |
| 70*70*15mm | 70*70*20mm | 70*70*25mm | 80*80*10mm | 80*80*15mm | 80*80*20mm |
| 80*80*25mm | 80*80*32mm | 80*80*38mm | 92*92*25mm | 92*92*38mm | 120*120*25mm |
| 120*120*32mm | 120*120*38mm | 140*140*20mm | 140*140*25mm | 150*150*50mm | 172*150*51mm |
| 180*180*60mm | 200*200*60mm | 220*60mm | 254*89mm |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–199 piece: US $30.76 / piece
- 200–1999 piece: US $27.56 / piece
- 2000+ piece: US $24.65 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan be supplied for my local voltage?
The standard configuration is 12V, 24V, 48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Cooling Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Cooling Technology Co., Ltd. range on HVACR Nexus.
