Key specification for this fan coil unit: power supply 220-240v /1ph/50Hz, cooling capacity 6.12-19.9Kw. Everything below is reproduced from the factory data sheet. Made by Beijing Midea Overseas Engineering&technology Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan Coil Unit
- Power Supply: 220-240v /1ph/50Hz
- Power Input: 285-950W
- Cooling Capacity: 6.12-19.9Kw
- Heating Capacity: 7.18-30Kw
- Refrigerant: R-410A
- Warranty: 1 Year
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Refrigerant | R-410A |
| Mounting Type | Ceiling Mount |
| Compressor Brand | GMCC |
| Fan Motors Type | Centrifugal, forward-curved blades |
| Key Selling Points | HVAC Systems Central Air Conditioner ceiling cassette fan coil unit |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump, Engine |
| Place Of Origin | Guangzhou |
| Weight (Kg) | 30 |
| Brand Name | Midea |
| Dimension(L*W*H) | fancoil |
| Product Name | Midea Fan Coil Unit |
| Function | Heating/Cooling |
| Cooling Capacity | 6.12-19.9Kw |
| Coil | 2/3 |
| Power Supply | 220-240v /1ph/50Hz |
| Power Input | 285-950W |
| Heating Capacity | 7.18-30Kw |
| Sound Pressure Level | 35-61db |
| Fan Type | Centrifugal, forward-curved blades |
| Fan Motor | Low noise 3-speed fan motor |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 30.0 kg |
Product Details
Product Presentation
Midea HVAC Building Technologies Heat Pump for small to large buildingsFan coil units High Static Pressure Duct

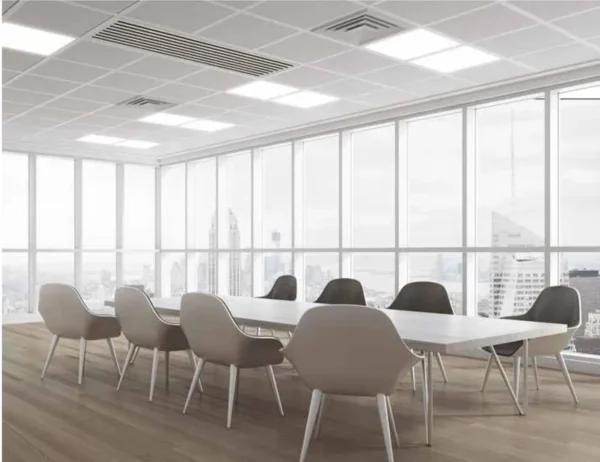

Midea fan coil units are divided into ceiling exposed type, ceiling concealed type, wall-mounted type and floor-standing type according to their structure, design and installation method. The air volume ranges from 150CFM to 2200CFM
(255m3 /h~3740m3 /h). It is a highly versatile product suitable for hospitals, office buildings, hotels, airports and
various other applications.
(255m3 /h~3740m3 /h). It is a highly versatile product suitable for hospitals, office buildings, hotels, airports and
various other applications.
Why Choose Us
1.Experience
Over 50-years Experience in Air
Conditioning/HVAC System. With more than 50 years of experience, we have successfully completed dozens of large-scale HVAC projects and have a deep understanding of global HVAC projects.
2.Professional design
We have a professional design team, can provide you with a suitable AC plane design according to your architectural plan, we will provide you with the most suitable design
scheme.
3.Professional selectoion
According to the different design scheme, we will choose the most suitable design scheme for you from a more professional perspective.
4.Providing One-Stop Solution of HVAC System
We can provide one-stop service, which will save you a lot of money and time. Indoor units and outdoor units, control system, installing accessories, tools and Supply HVAC all materials, including air conditioners, ventilation, installation accessories, etc.
5.Technical Support
We can provide HVAC commissioning service. Air conditioner project engineers can guide and supervise product installation on site.
6.After-sales service
We have Global After-Sales System with expertise installation service. Ensure your after-sales worry-free.
Product Line
Produc name | Fan coil units AC/DC High Static Pressure Duct | ||||||
Power supply | 220-240V/1Ph/50Hz | ||||||
Air flow(H/M/L) | 1090-3740m³/h 8102200CFM | 170-2380m³/h 1001400CFM | |||||
Heating capacity | 7.18-30Kw | 2.22-15.5Kw | |||||
Cooling capacity | 6.12-19.9Kw | 1.52-11.5Kw | |||||
Ciol row | 2/3 | 2/3 | |||||

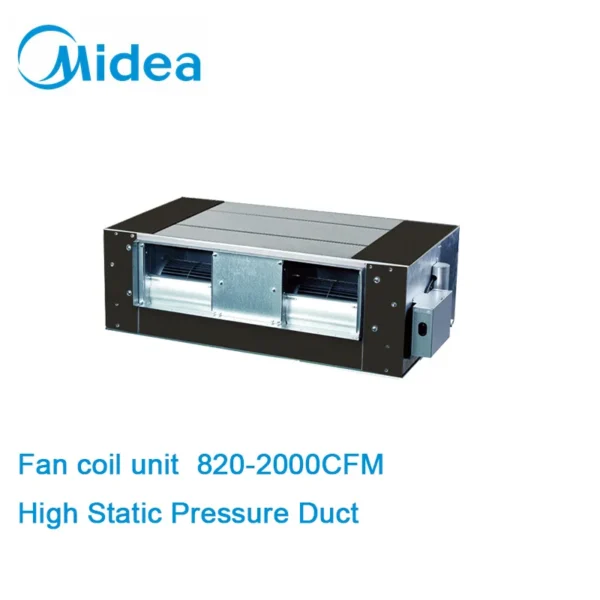

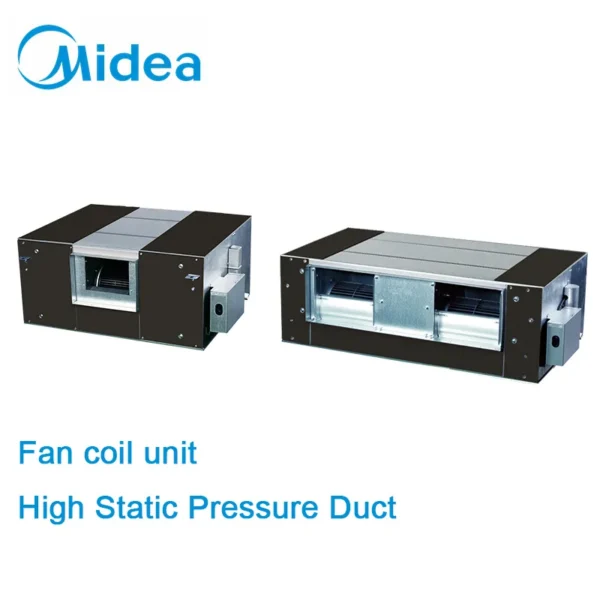

High Static Pressure Duct
—Slim, compact design for limited space with duct distribution to the indoor space
Features
—Large air volume and capacity, high static pressure(Up to 100Pa).
—Easy to clean and change air filter.
—EAH is optional.
—Air return flange and air plenum with filter are standard, air return from the back side.
—220V wired controller is optional.
—Standard extended drainage pan for protecting ceiling better.
—Four-speed motor with super-high speed reserved.
—Pipe connection from left or right.
—Easy to clean and change air filter.
—EAH is optional.
—Air return flange and air plenum with filter are standard, air return from the back side.
—220V wired controller is optional.
—Standard extended drainage pan for protecting ceiling better.
—Four-speed motor with super-high speed reserved.
—Pipe connection from left or right.
1.Flexible Installation
—Left and right hand piping connections are optional, flexible installation
2.Multiple Fan Speeds
The AC Series comes with 3 fan speed option to meet the
needs of difffferent indoor conditions.
needs of difffferent indoor conditions.
3.Flexible Duct Design
High Static Pressure Duct supplies a wide static pressure from 0Pa to 100Pa which can support short to long duct with high ceiling air supply.
4.Compact Size
—All the units are 400mm high, easy for limited space installation.
5.Double-skin Drainage Pan
—A double-skin drainage pan provides double protection for
ceilings.
ceilings.

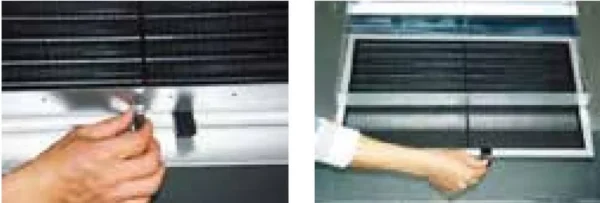

6.Easy to clean and change air filter
—Changing the air filter only needs to loosen a screw at the air supply side to pull out the air filter, easy and effective
operation.
operation.
7.Electric heater is optional
—Different models can be customized with different electrical auxiliary heat capacity.
8.Control solutions
—The duct series controlled by Wired controller, Centralized controller or BMS need to be customization FCU KIT
7.Certifications and Authorization
IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification
How to get a quick quotation?
Information needed Midea Group's management system before prepare quotation details for you.
1.Project name :building name or building type, such as ××× office project, residential house project etc.
2.Project accurate address;
3.Your company contact information ＆ address；
4.Please provide product list or engineer drawing with product type marked.
5.When you expect to process purchase ＆ logistics for this project?
6.Is it tender project or not? Because tender project you may need our authorization letter.
Product packaging
We will use cartons and wooden cases to protect your goods from shock and try our best to ensure that your goods will not be damaged during transportation.
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
Midea Product Show
We have a lot of successful project experience, you can trust to give the project to us.
Company Profile
Contact US
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $2400 / set
- 20–29 set: US $1800 / set
- 30+ set: US $1200 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is 220-240v /1ph/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Midea Overseas Engineering&technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Beijing Midea Overseas Engineering&technology Co., Ltd. range on HVACR Nexus.
