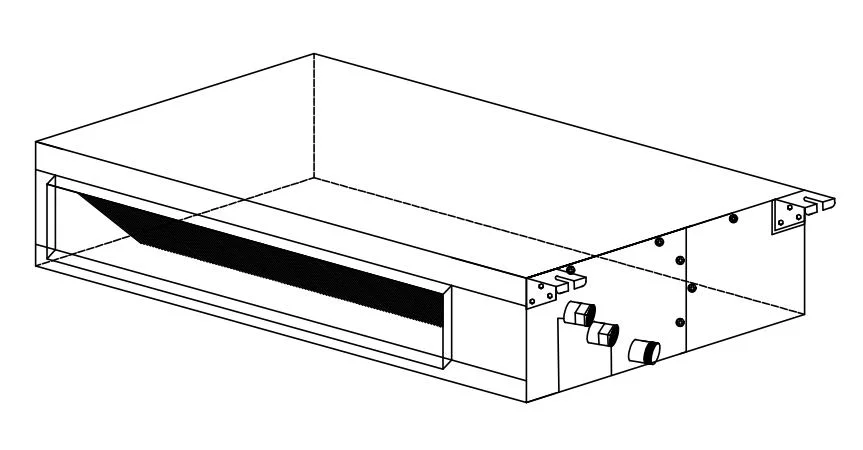

Fan Coil Unit, 180mm, Ceiling

The fan coil unit listed here carries power supply 220-240V~1Ph~ 50Hz, total cooling capacity 3600, documented exactly as the manufacturer publishes it. Made by Tongxing Air Conditioning Technology Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Fan Coil Unit

• Model Number: FP-68BA2/A-K
• Power Supply(V-Ph-Hz ): 220-240V~1Ph~ 50Hz
• Total Cooling Capacity(W): 3600
• Air Flow Volume(M3/H): 680/590/320
• Warranty: 1 Year
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

Specifications

Parameter for Standard (AC motor)
Model			FP-51	FP-68	FP-85	FP-102	FP-136	FP-170
Motor power (w)			12	12	25	25	25+25	40+40
Power input (w)			48	55	72	90	129	148
Motor NO.			1							2
Fan NO.			1	2					3	4
Static Pressure (Pa)			12
Air flow (m3/h)			530	700	875	1030	1360	1750
Cooling capacity kw			2.95	3.8	4.8	5.6	7.4	9.0
Heating capacity kw(60°C hot water)			4.4	5.7	7.1	8.4	11.1	13.5
Heating capacity kw(45°C hot water)			2.9	3.6	4.5	5.4	7.2	8.9
Noise dB(A)	H	39	41	43	45	46	48
		M	36	38	41	42	43	45
		L	33	35	36	38	39	40
Water Pressure Drop(kPa)			30	30	30	40	40	40
Weight(kg)			13.5	15.1	16.4	18.8	25.4	26.7
Coil length mm			500	650	760	900	1330	1330
Coil width mm			210
Coil thickness mm			39

Feature Introduction

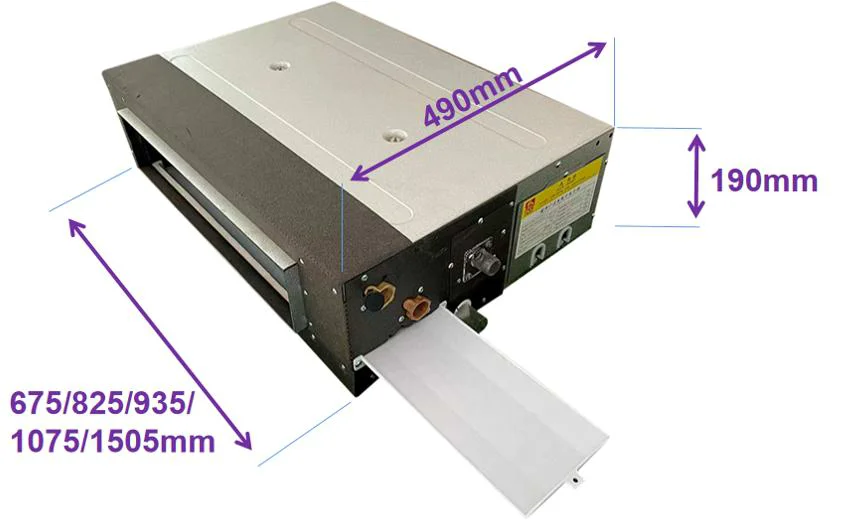

Only 19cm thickness Reduce the ceiling space and increase the space for indoor activity areas

Al-Zn-Si hot-dip galvanized steel sheet The Al-Zi-Si hot-dip galvanized steel sheet has very good corrosion resistance. The servise life is 3-6 times that of the traditional galvanized plate. The smoothness of the surface is more than 2times that of the galvanized plate and it is not easy to stick the dust.

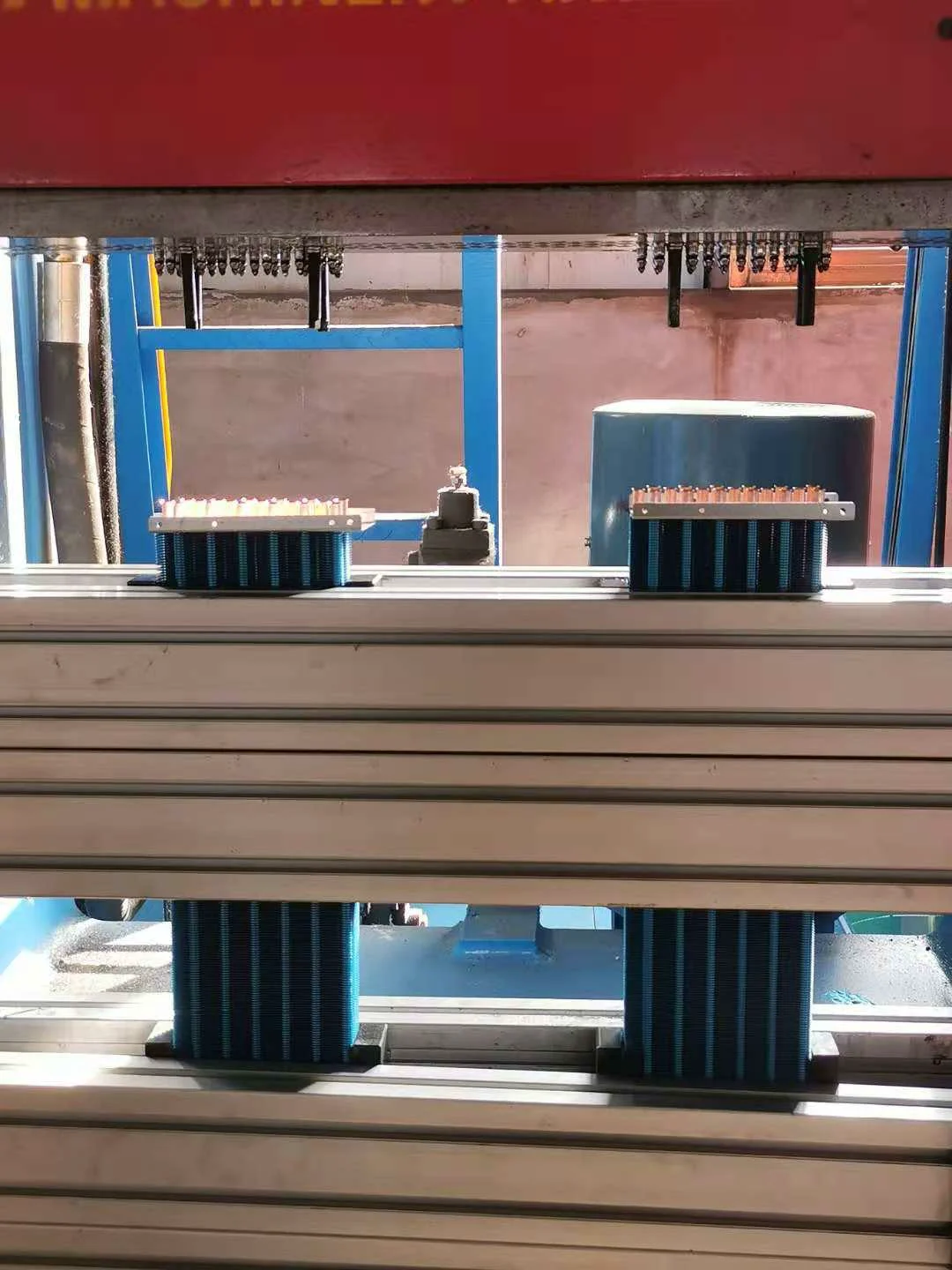

The mechanical tube expansion process sacrifices the length of the copper tube, and the expanded copper tube is tightly combined with the aluminum foil. Compared with the water expansion t u b e o f s o m e manufacturers, the wall thickness of the copper tube is much thicker.

Equipment with the air return plenum The plenum can be air return backward or downward connect the air duct, also can install the the filter.

In order to prevent the condensation of water during cooling, and to ensure the heat preservation effect during heating,we paste a 3mm thick rubber and plastic insulation inside the panel and EVA insulation outside the panel. EVA material has excellent water resistance, corrosion resistance, heat insulation, and is lighter and aslo the shock absober

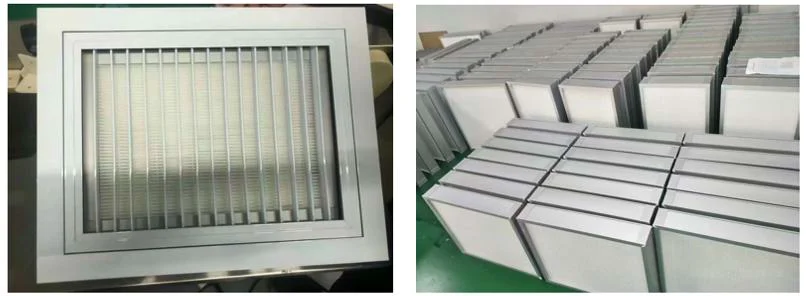

The filter can reach to H13 grade, it can filter the particles with diameter greater than or equal to 5 microns , it is the level of the clean room. The cost is not included in the first quotation, unless you required.

Packing & Delivery

Customer Photos

Contact Information

Ordering and Pricing

• Minimum order quantity: 10 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fan coil unit?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the fan coil unit be supplied for my local voltage?

The standard configuration is 220-240V~1Ph~ 50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Tongxing Air Conditioning Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Tongxing Air Conditioning Technology Co., Ltd. range on HVACR Nexus.
