Fan coil unit — air flow 345-2380, power input 50-198. The complete factory specification follows. Made by Yuexin (tianjin) Artificial Environment Engineering Technology Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan Coil Unit
- Model Number: FP-34, FP-51, FP-68, FP-85, FP-102, FP-136, FP-170, FP-204, FP-238
- Power Input(W): 50-198
- Air Flow(M³/H): 345-2380
- Refrigerant: Water
- Warranty: 3 Years
- Place Of Origin: Hebei, China
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Refrigerant | Water |
| Mounting Type | Ceiling Mount |
| Compressor Brand | none |
| Fan Motors Type | DC |
| Motor Type | DC Motor |
| Filter Type | Regular Filter |
| Application | Hospital, Hotel, Home, School, Plant, Office, Warehouse, Apartment, Mall |
| Key Selling Points | Large air volume, low noise, energy saving, multiple models available |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |

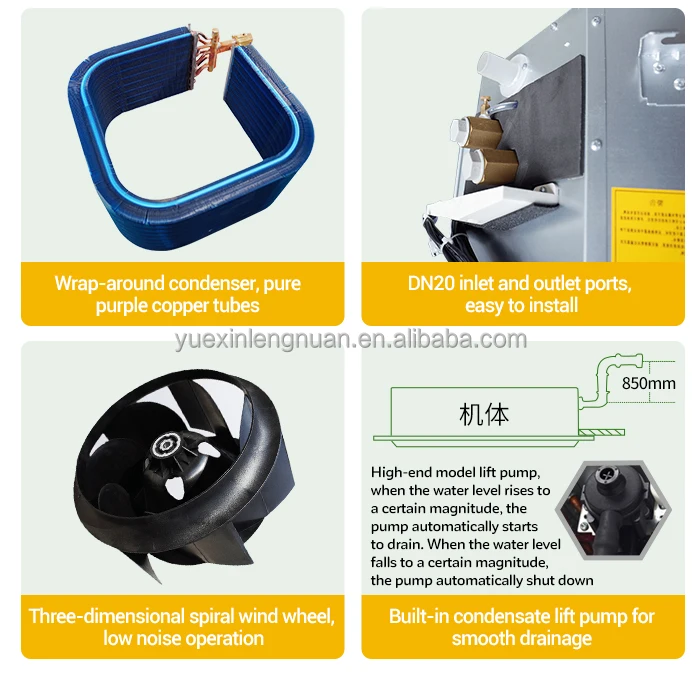

| Core Components | Zhuhai Kaibang Motor (Special for Gree), ABS material panel, never changes color, Hot-dip galvanized sheet shell, Polystyrene flame retardant foam drain pan, Built-in lift pump |
| Place Of Origin | Hebei, China |
| Weight (Kg) | 40 |
| Brand Name | YESNCER or OEM |
| Model Number | FP-34, FP-51, FP-68, FP-85, FP-102, FP-136, FP-170, FP-204, FP-238 |

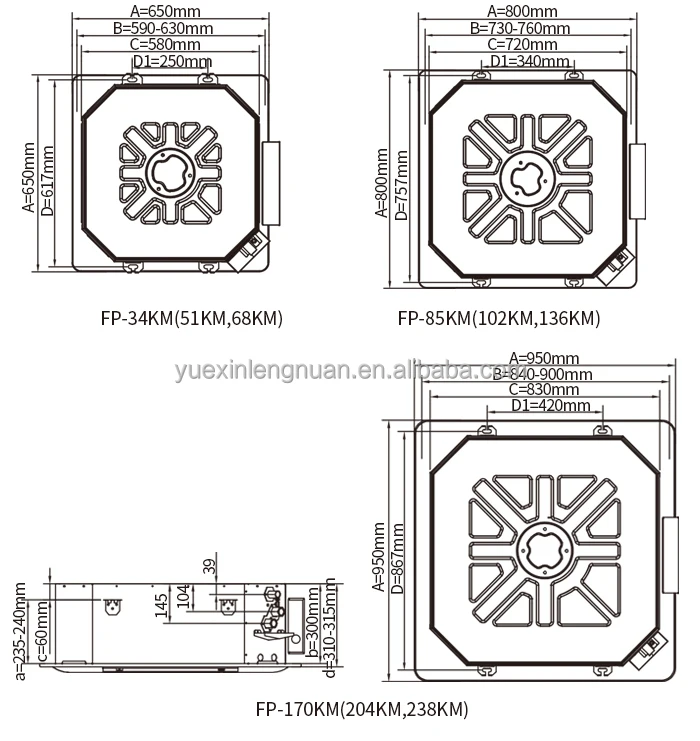

| Dimension(L*W*H) | 650mm*650mm*280mm-950mm*950mm*315mm |

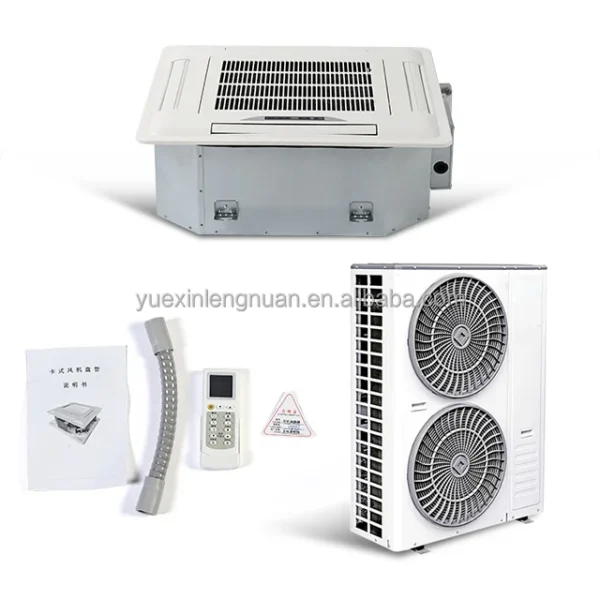

| Name | Cassette type fan coil |
| Cooling Ca. (Kw)(Water In 7°C) | 1.98-12.6 |
| Heating Ca. (Kw)(Water In 60°C) | 2.97-18.9 |
| Air Flow(M³/H) | 345-2380 |
| Power Input(W) | 50-198 |
| Noise(DB) | 37-52 |
| Weight(Kg) | 20.7-40 |
| Controller | Self-configured control system |
| Selling Units | Single item |
| Single Package Size | 110X110X35 cm |
| Single Gross Weight | 30.0 kg |

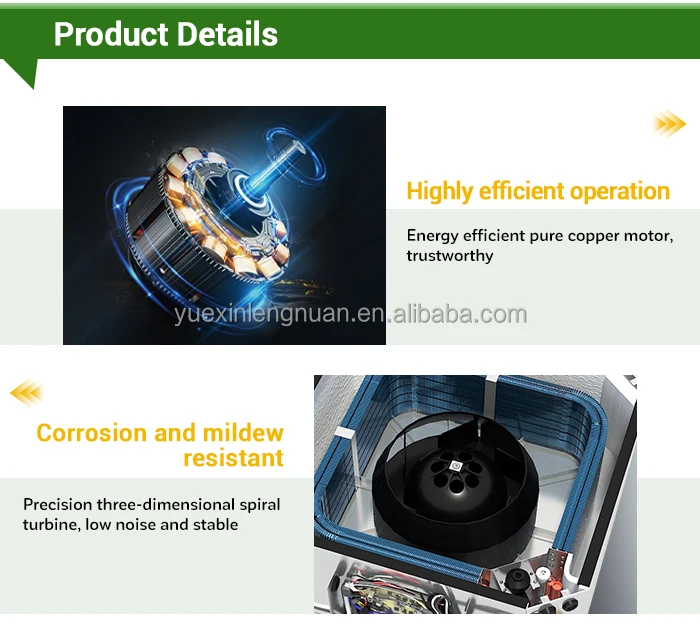

Product Details

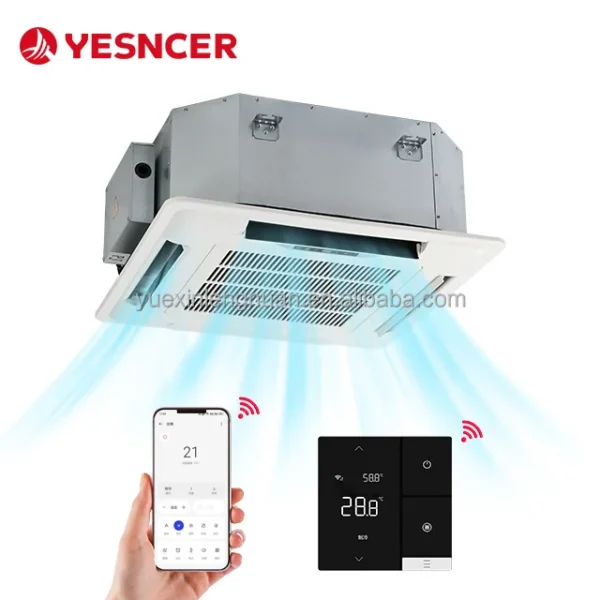

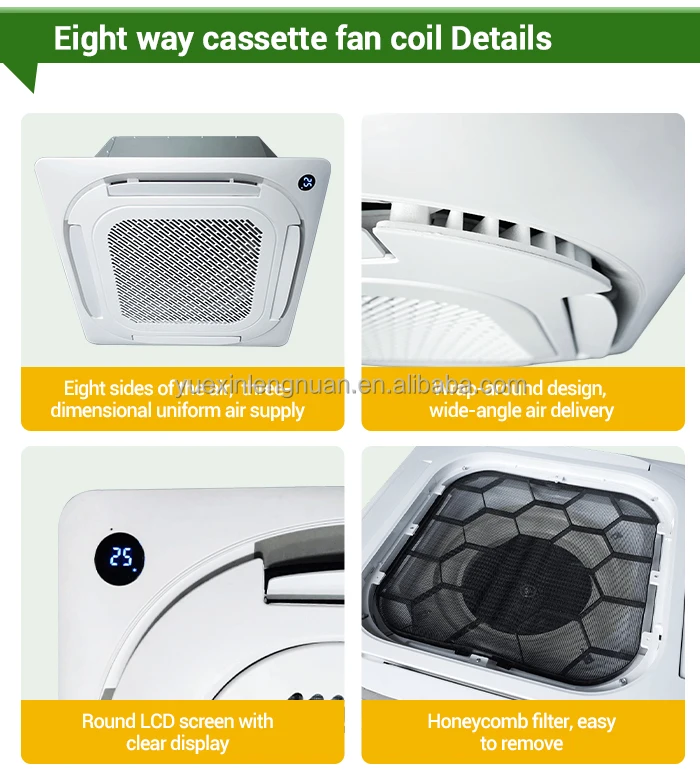

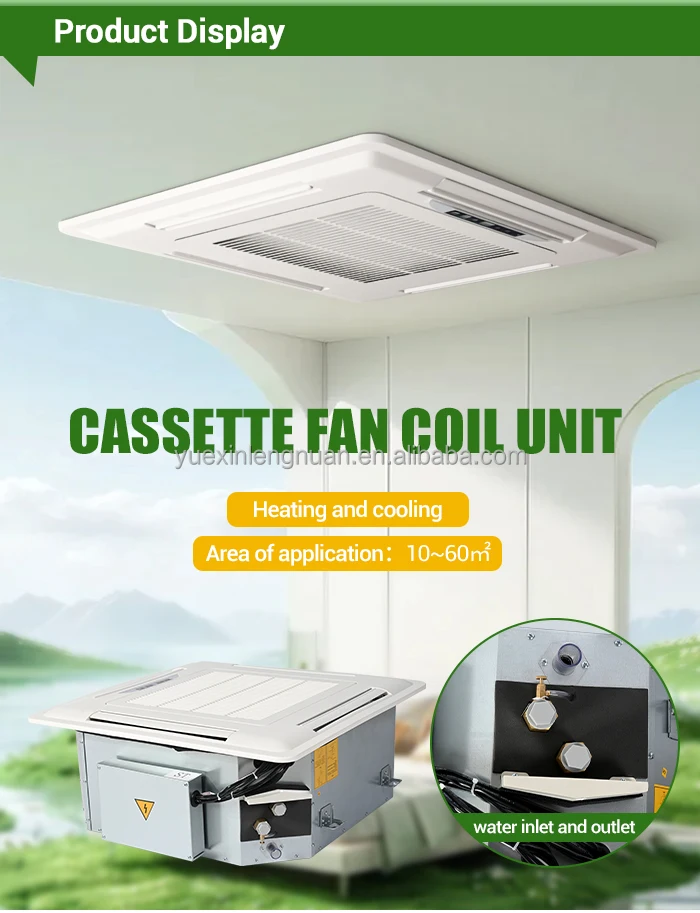

4-way cassette fan coil unit is one of the most popular fan coil units, because of the high efficient performence and beautifulappearance. 4 air outlets make the supply air softer and people feel more confortable.It is widely applicated in hotels,restaurants, bars, schools, offices and other commercial places

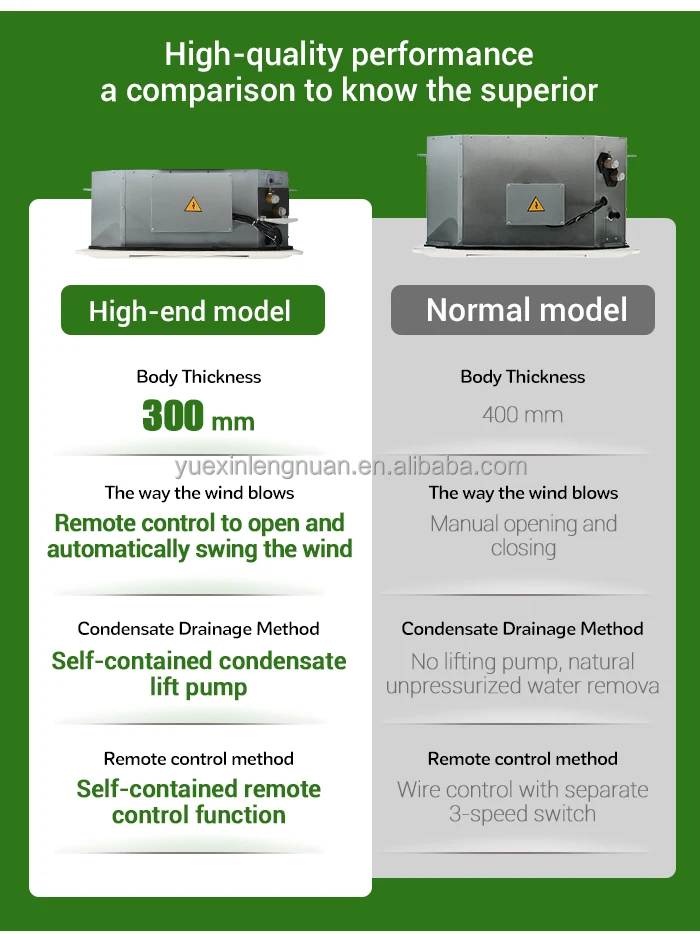

Upgraded model Cassette Fan Coil support customized four-pipe control
Installation & Application

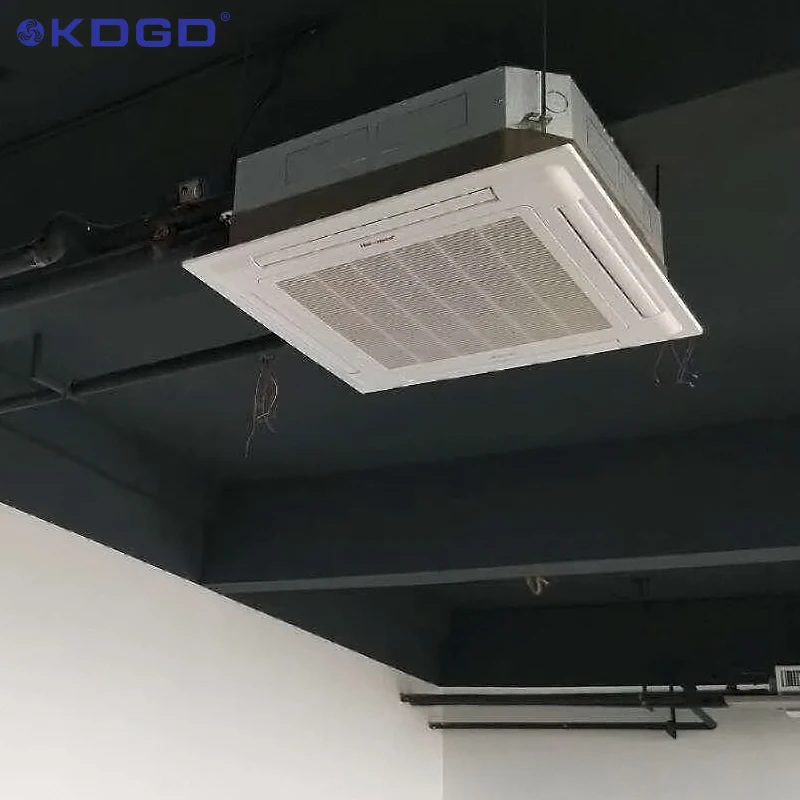

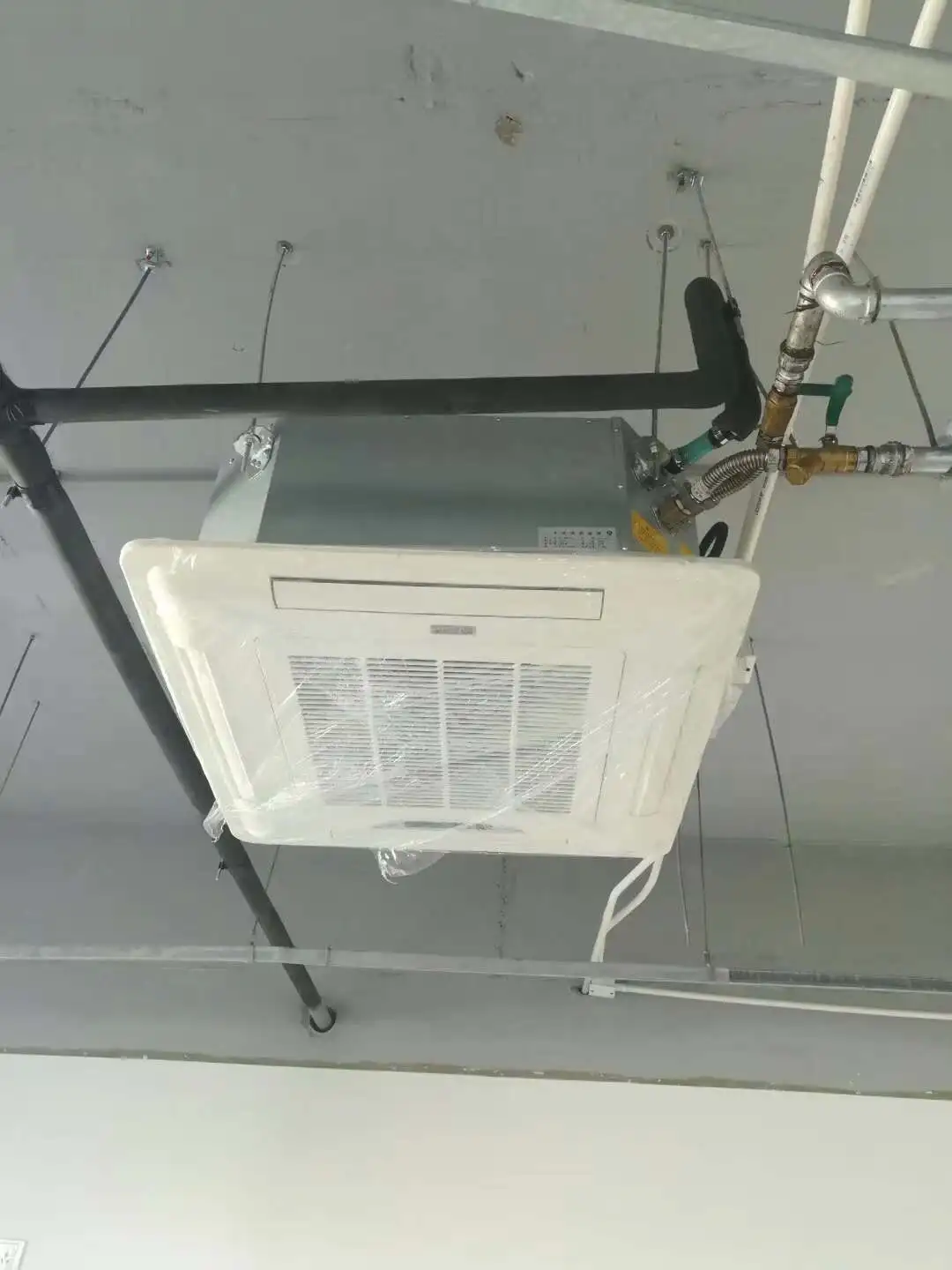

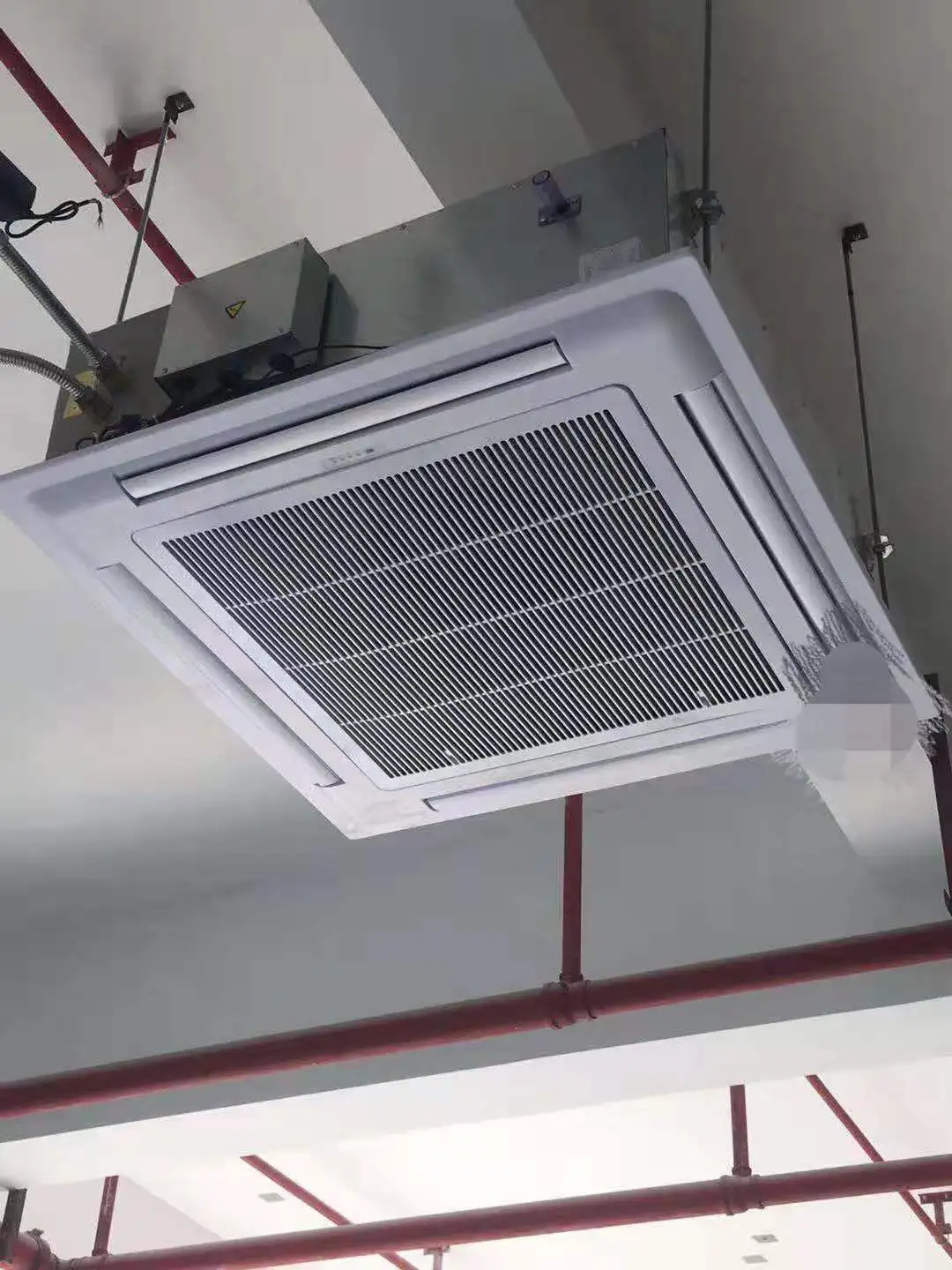

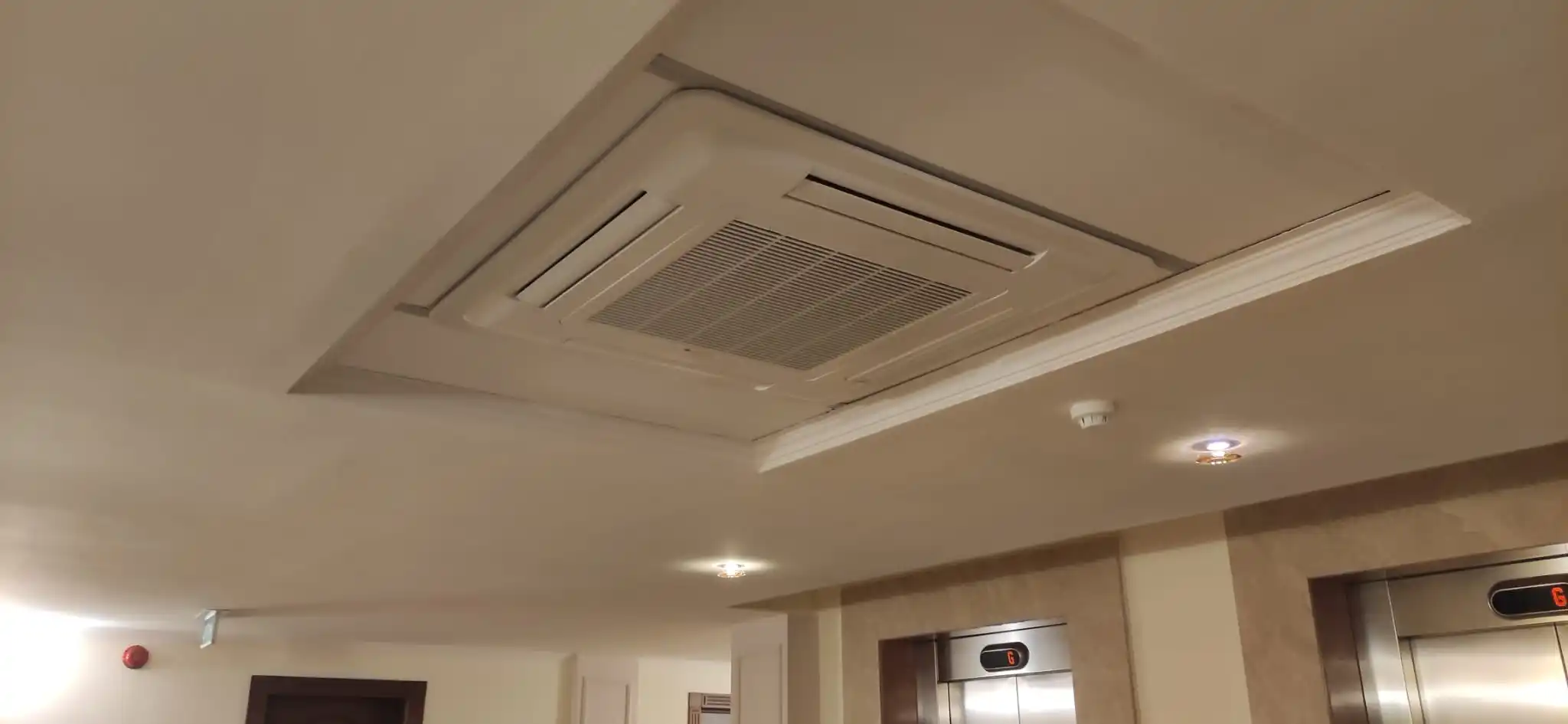

Cassette fan coil unit is suitable for installation in hotel lobbies, hospital corridors, large offices and large exhibition halls. Because its special four-outlet structure can quickly adjust the room temperature, it is deeply loved by major engineering companies and is also suitable for installation. Because of its unique structure, this product has certain requirements for theheight of the room.
Product Parameters
Parameters of ordinary cassette fan coil unit | ||||||||||||||||||
model | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | FP-238 | |||||||||
Air volume range(m²/h) | 345 | 510 | 690 | 875 | 1035 | 1375 | 1705 | 2045 | 2380 | |||||||||
Cooling Ca. (kw)(Water in 7°C) | 1980 | 2980 | 3680 | 4980 | 5400 | 7200 | 9900 | 10800 | 12600 | |||||||||
Heating Ca. (kw)(Water in 60°C) | 2970 | 4800 | 5480 | 7200 | 8100 | 10800 | 14500 | 16200 | 18900 | |||||||||
Power Input(w) | 50 | 50 | 58 | 72 | 92 | 126 | 128 | 152 | 198 | |||||||||
Noise range(dB) | 37 | 39 | 41 | 43 | 45 | 46 | 47 | 49 | 52 | |||||||||
weight(kg) | 20.7 | 20.8 | 21.1 | 28.8 | 29.2 | 29.9 | 38 | 38.1 | 40 | |||||||||
Company Profile

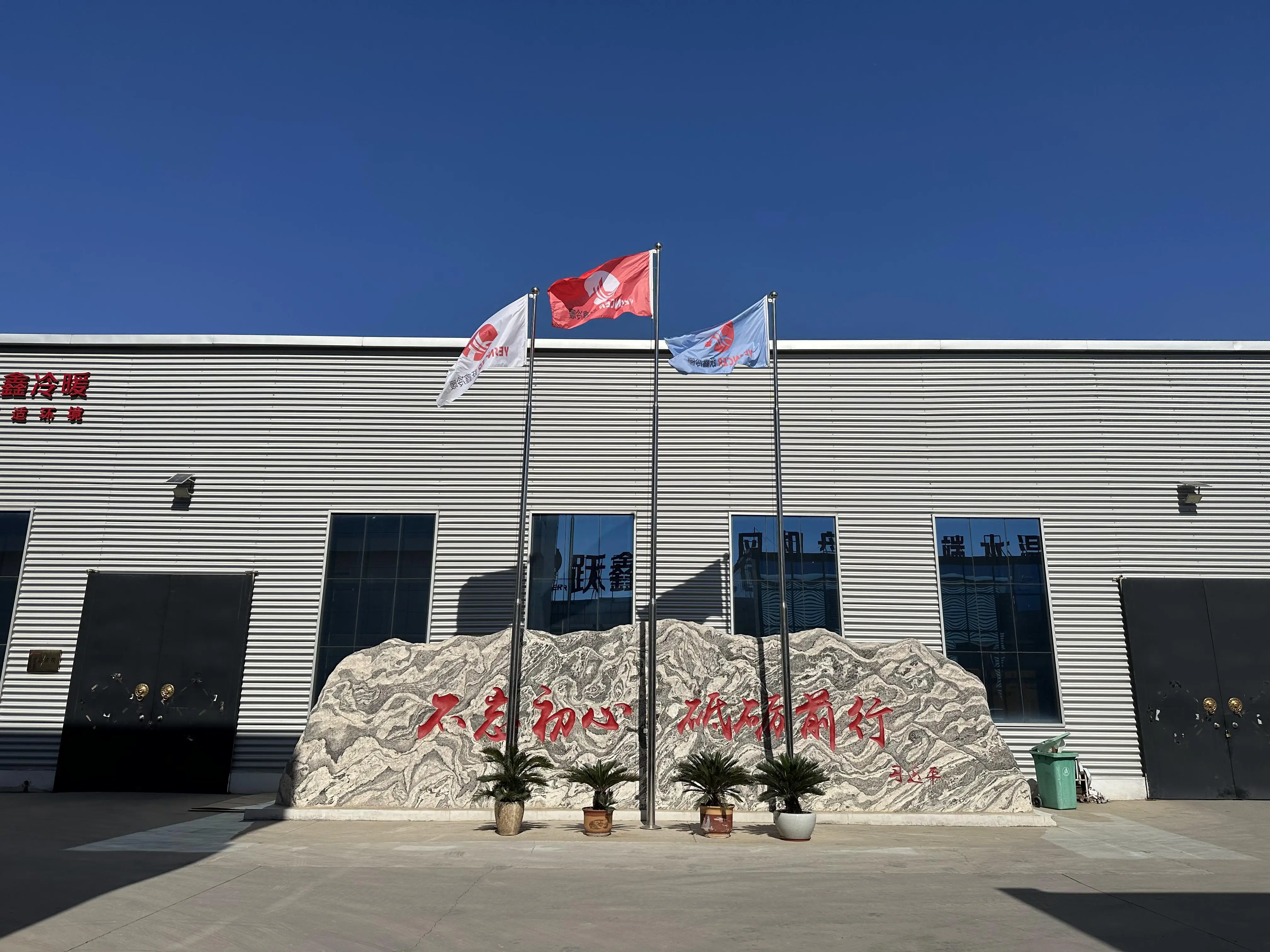

Yuexin (tianjin) Artificial Environment Engineering Technology Co., Ltd.
Yuexin (tianjin) Artificial Environment Engineering Technology Co., Ltd. specialized in the research, development, sale and
service of fan coil unit, air handling unit, air source heat pump, air cooled chiller, rooftop packaged unit, fresh air
ventilation, air curtain. We also welcome OEM/ODM orders. We have obtained CE, ROHS, ISO9001, ISO14001, ISO45001 certificates. Our
products are exported to clients in such countries and regions as Europe, North America, Mid East, Southeast Asia.
service of fan coil unit, air handling unit, air source heat pump, air cooled chiller, rooftop packaged unit, fresh air
ventilation, air curtain. We also welcome OEM/ODM orders. We have obtained CE, ROHS, ISO9001, ISO14001, ISO45001 certificates. Our
products are exported to clients in such countries and regions as Europe, North America, Mid East, Southeast Asia.

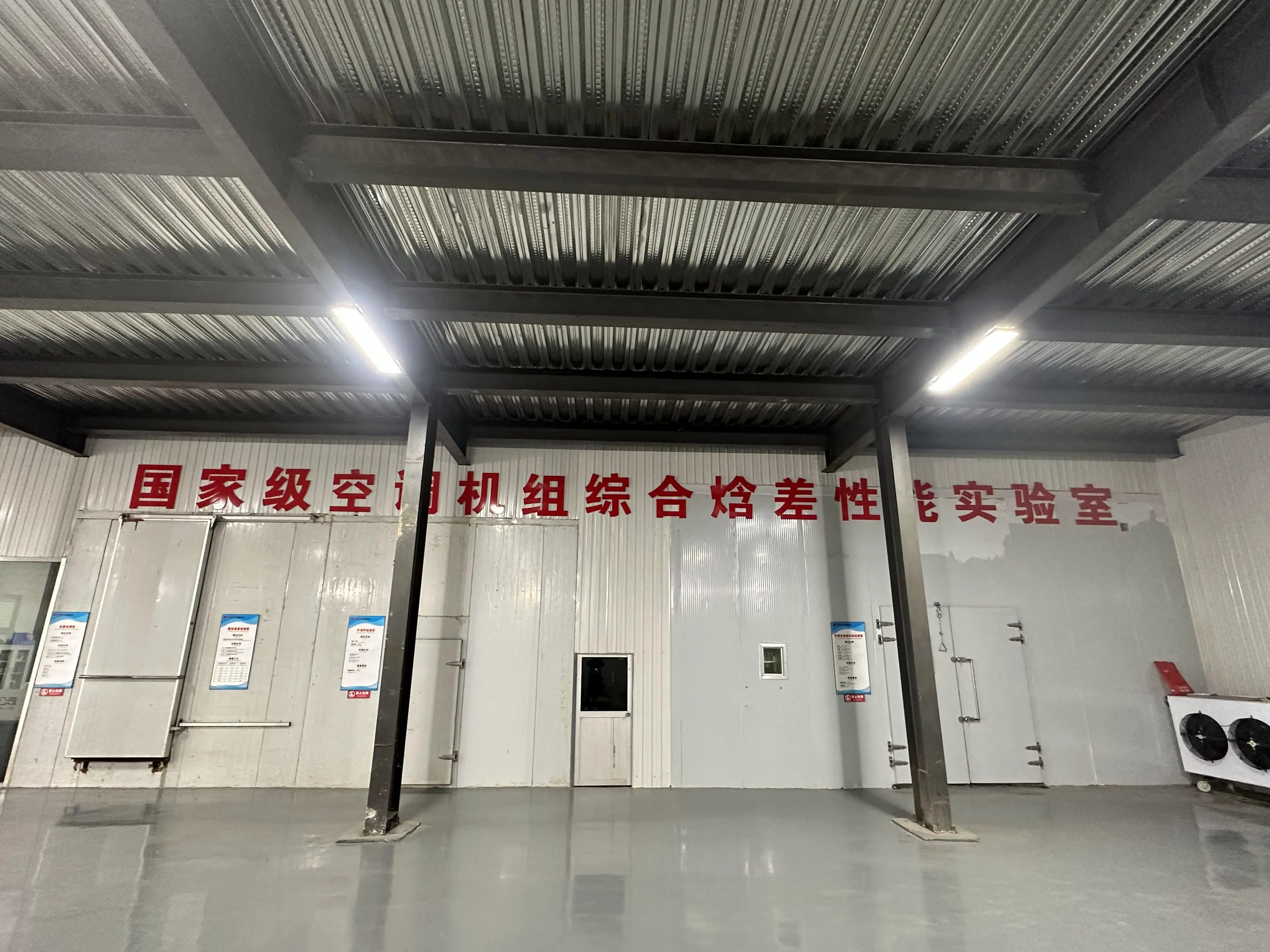

National Comprehensive Enthalpy Difference Performance Laboratory of Air Conditioning Units
The company's local factory has a national standard laboratory. Every data indicator of the products sold is accurate data obtained through rigorous testing to ensure that the products can meet national standards and meet customer needs, and truly achieve Let the data speak for itself and don’t make false propaganda.

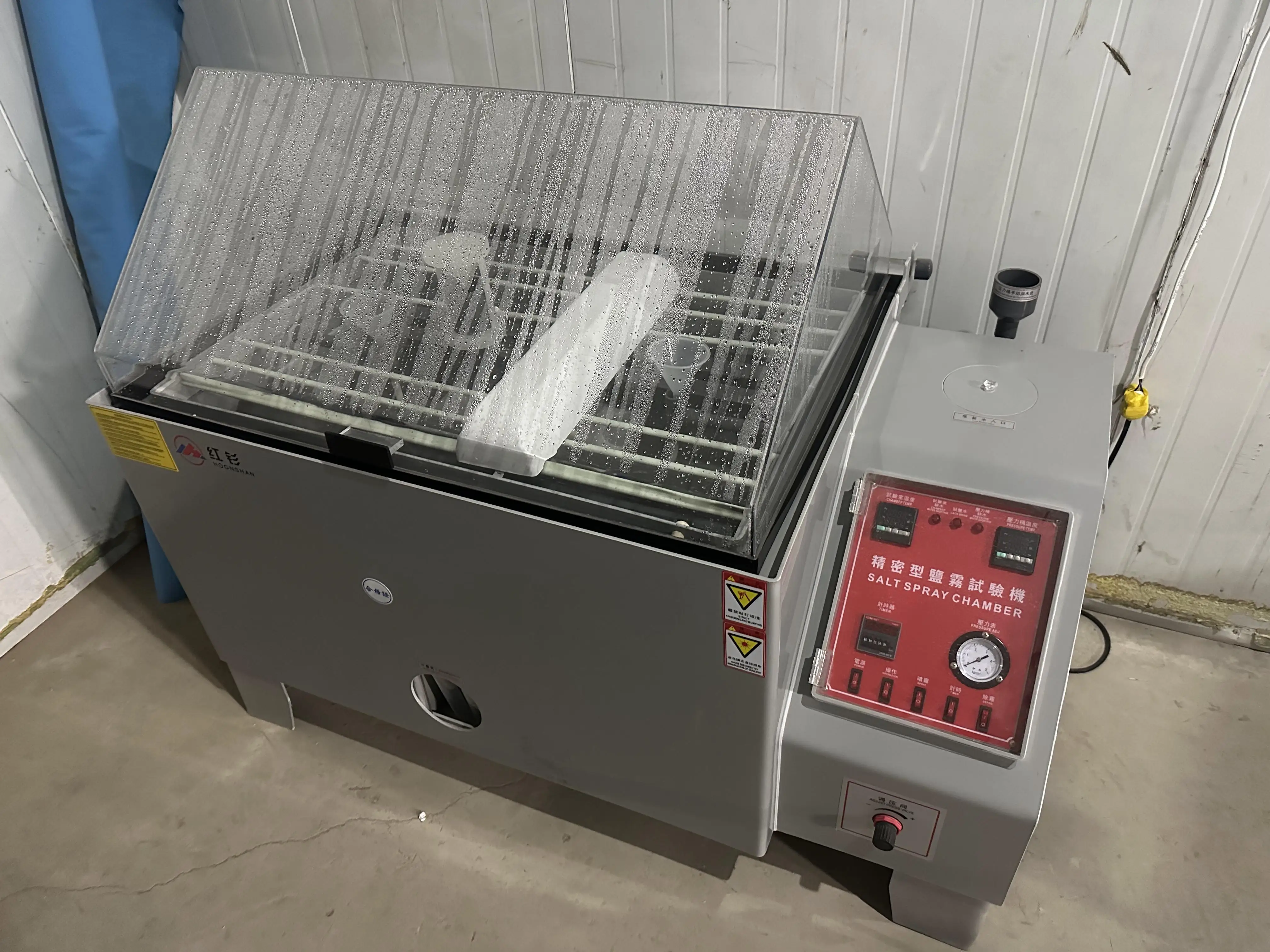

Salt spray testing laboratory
The purpose of this laboratory is to test the corrosion resistance of the outer surface of the product. Put the product to be tested into the machine, add prepared salt water to simulate the salt spray environment, and adjust the anti-corrosion treatment of the product appearance after a week of observation.

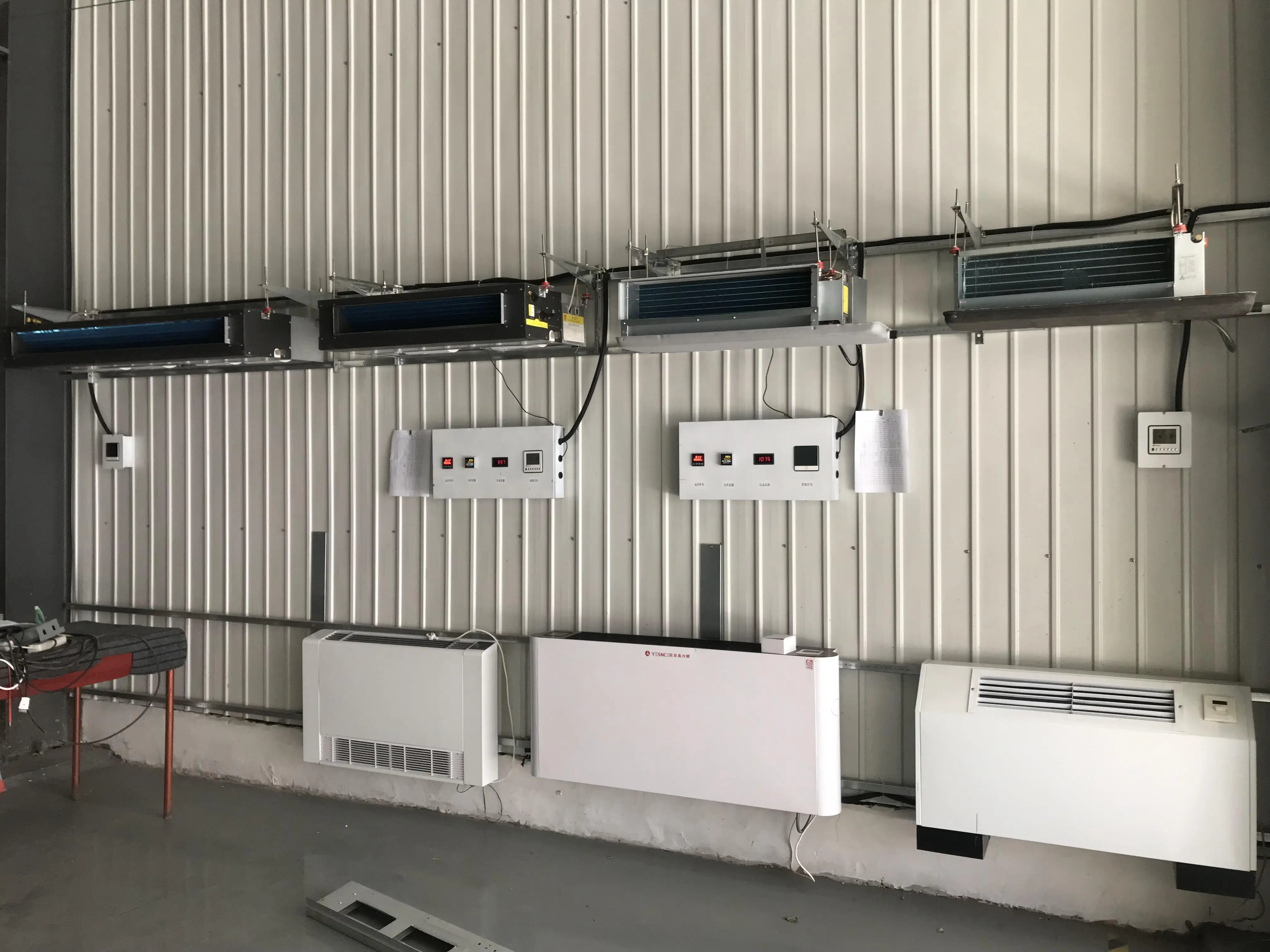

Operating power monitoring wall
The purpose of the construction is to run the machine 24 hours a day without interruption for one year to obtain actual power and electricity consumption data, provide real and effective data, and reflect the excellent characteristics of energy saving.

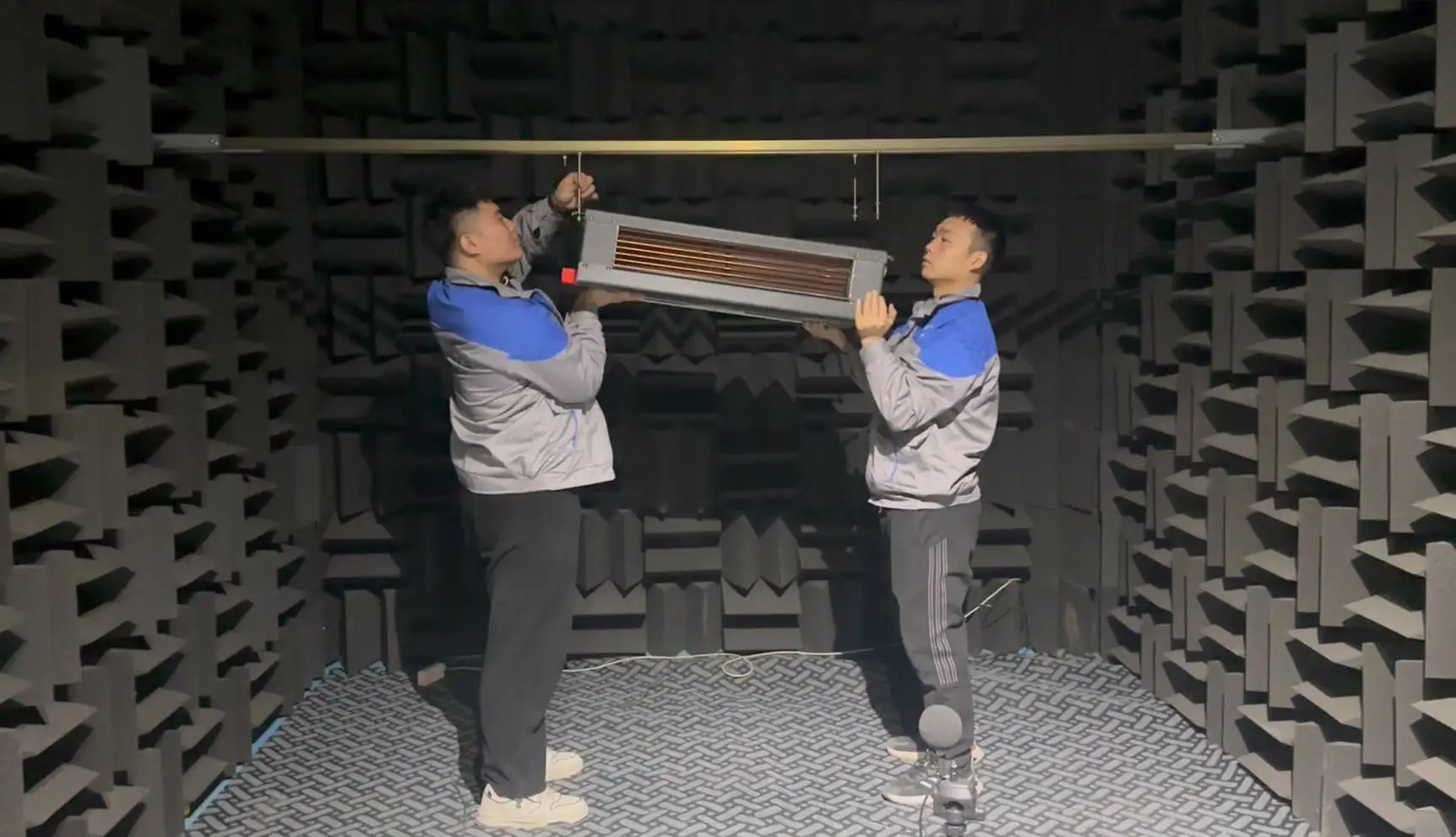

Semi-anechoic laboratory
The purpose of the experiment is to detect the actual noise value of the product in a quiet environment. In order to ensure a good user comfort experience, all data are true and valid, and are controlled within the noise decibel suitable for human body acceptance, in line with national standards.

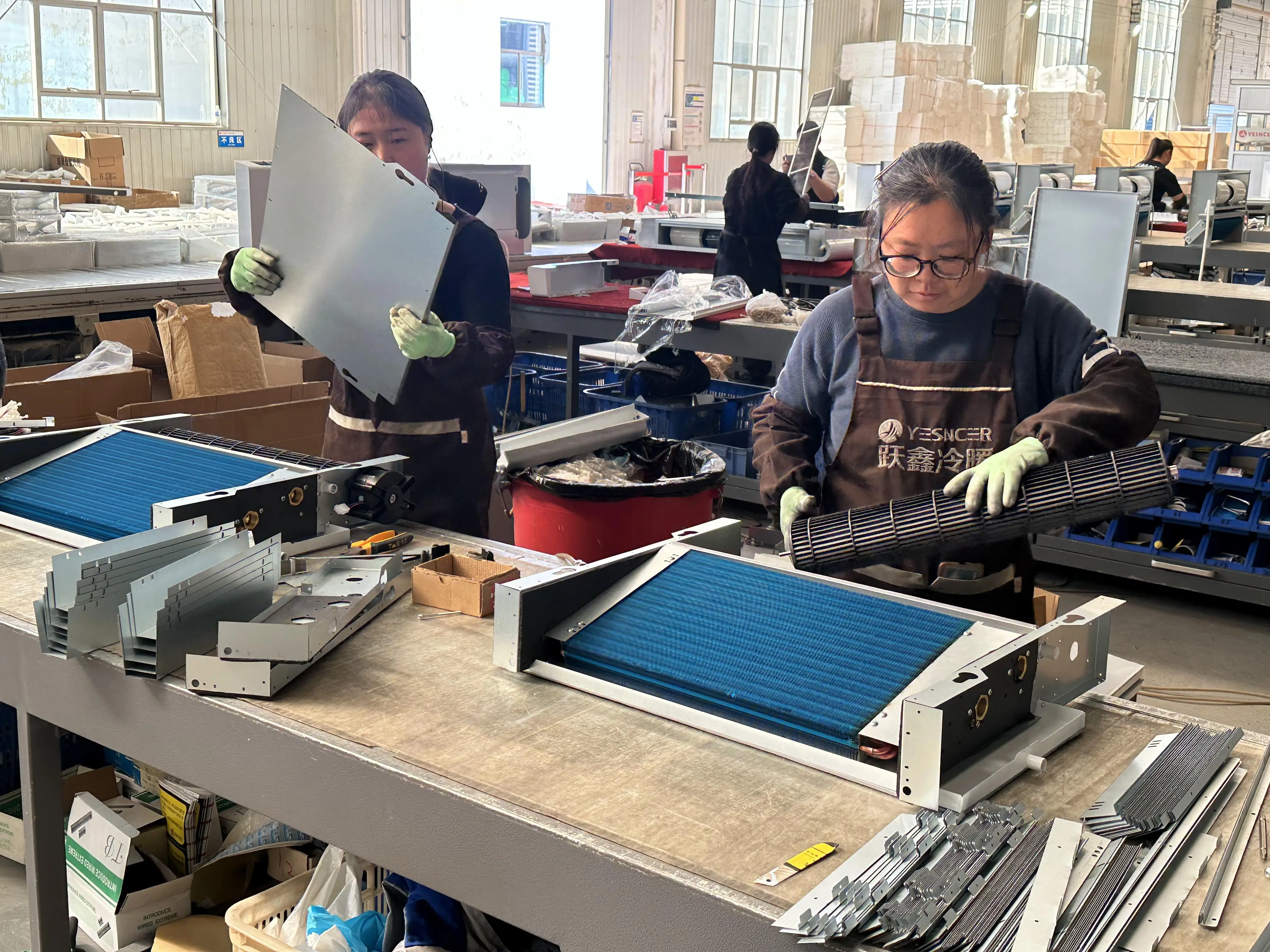

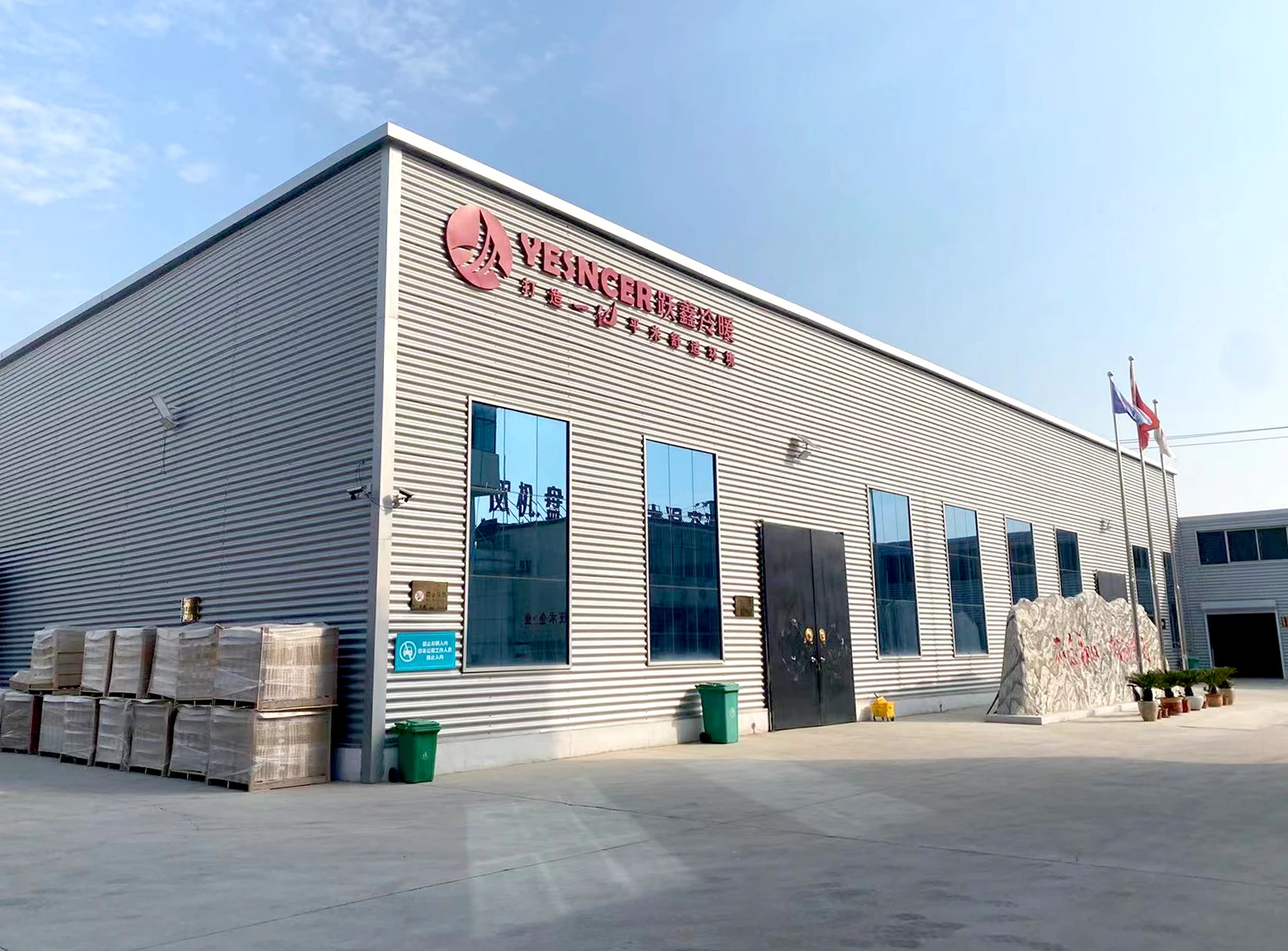

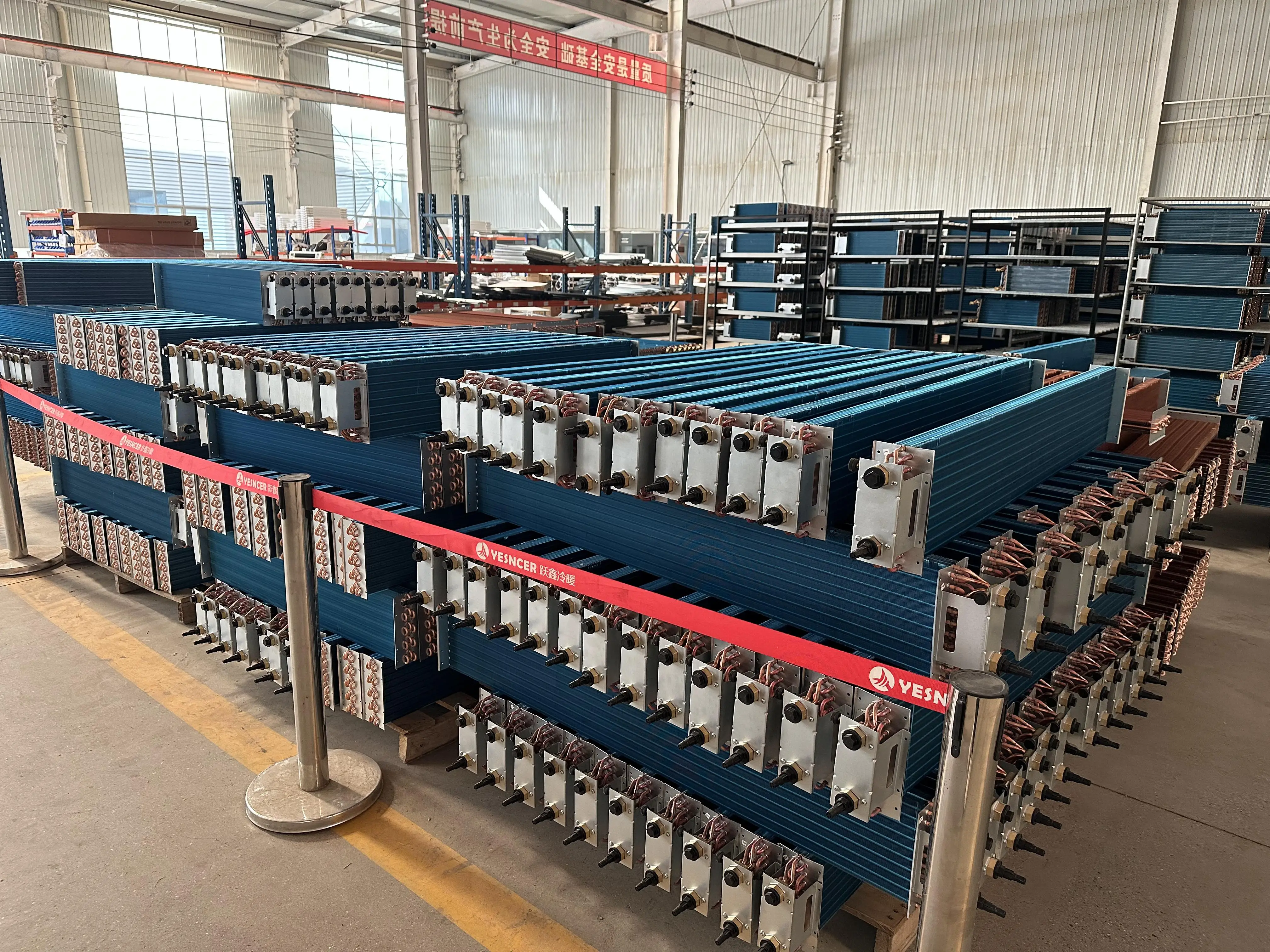

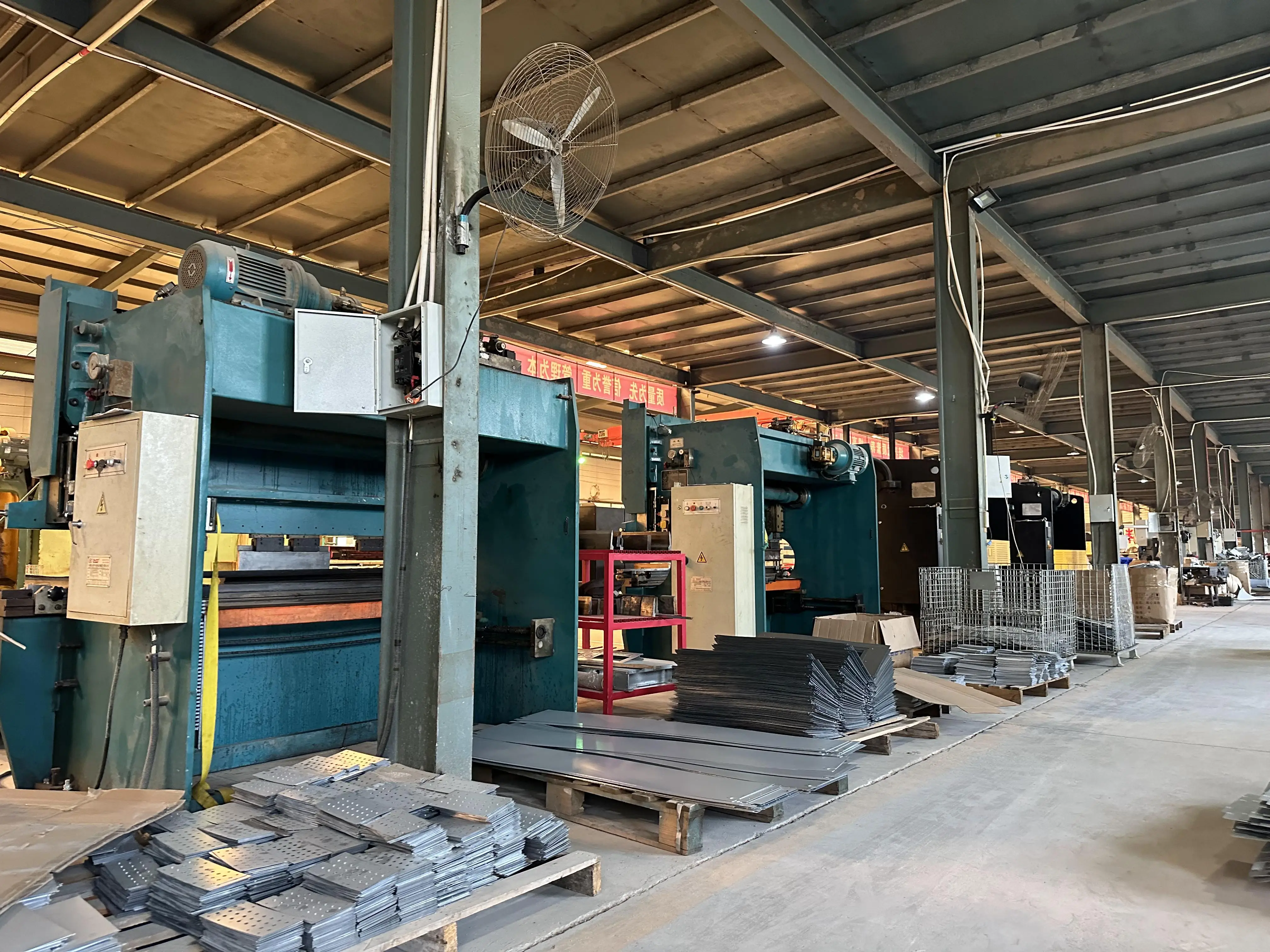

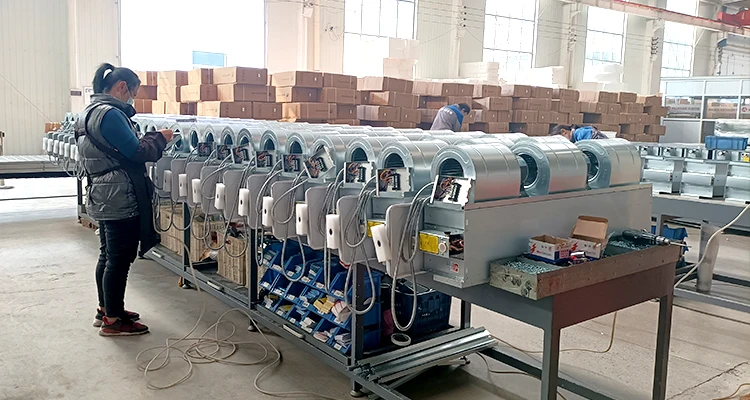

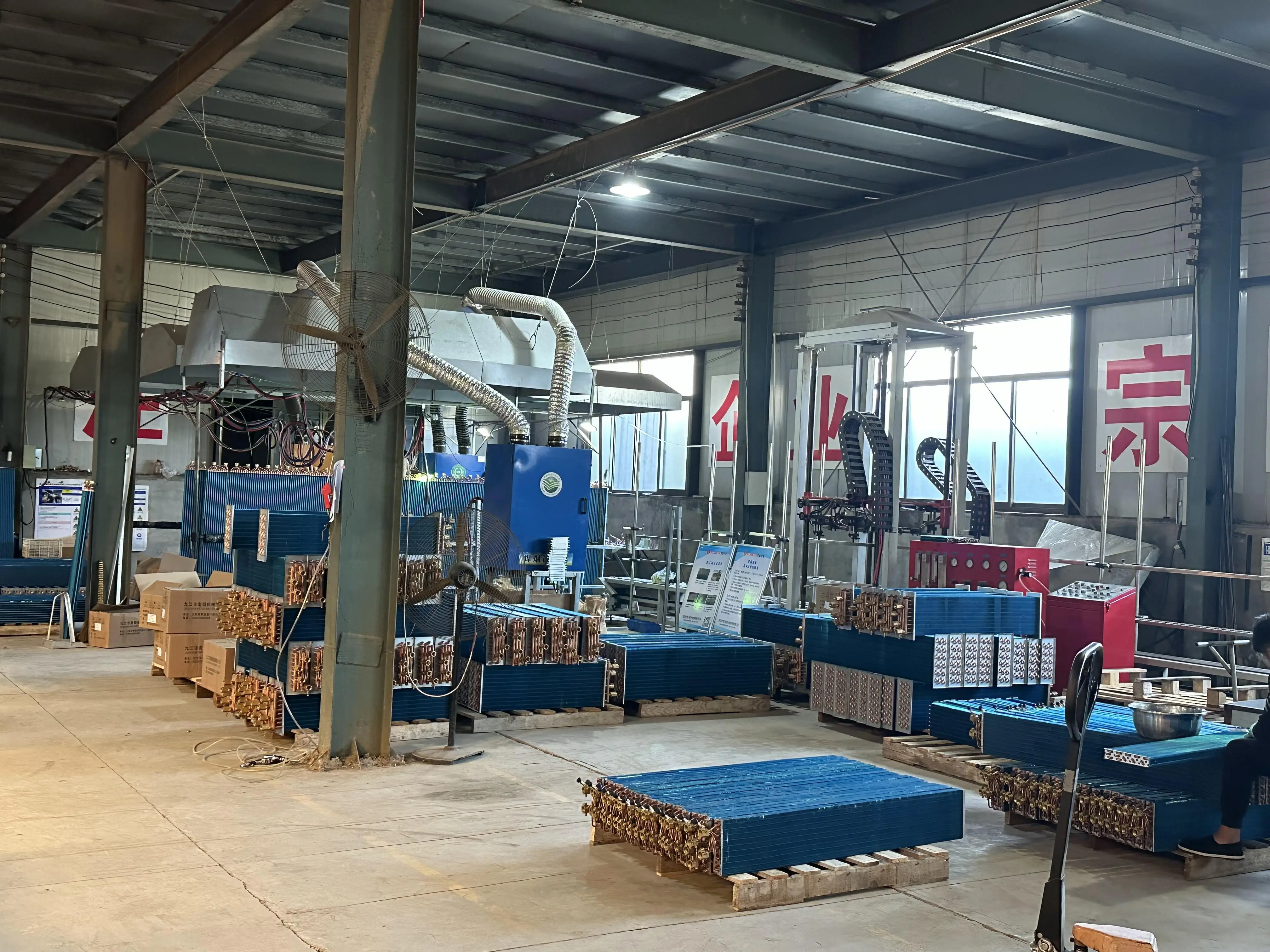

Production workshop environment

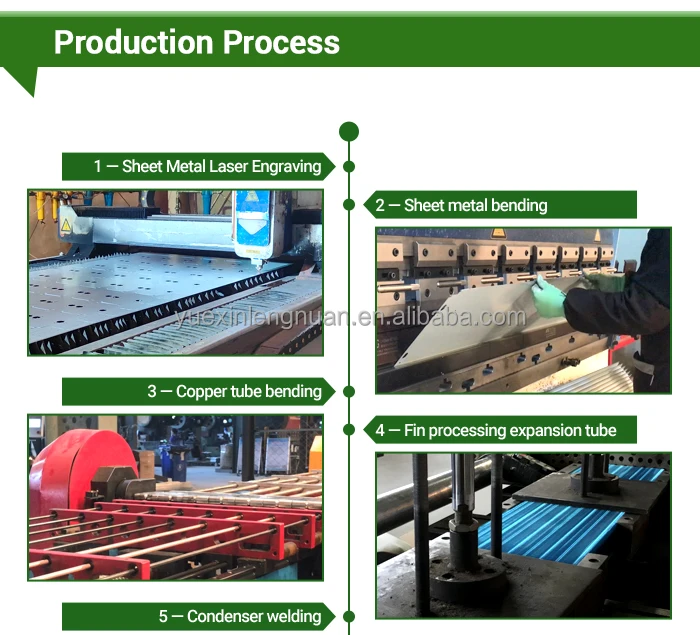

The company's local factory has more than 100 workers. Each worker undergoes strict professional skills training and assessment before taking up the job to ensure that they can complete production work skillfully and conscientiously, and that they can complete production tasks on time while ensuring the quantity of products. The factory also has professional automation equipmentfor producing various components of fan coil units, which greatly improves production efficiency. It can produce an average of20W+ fan coil units per year, which can fully meet the needs of major projects.

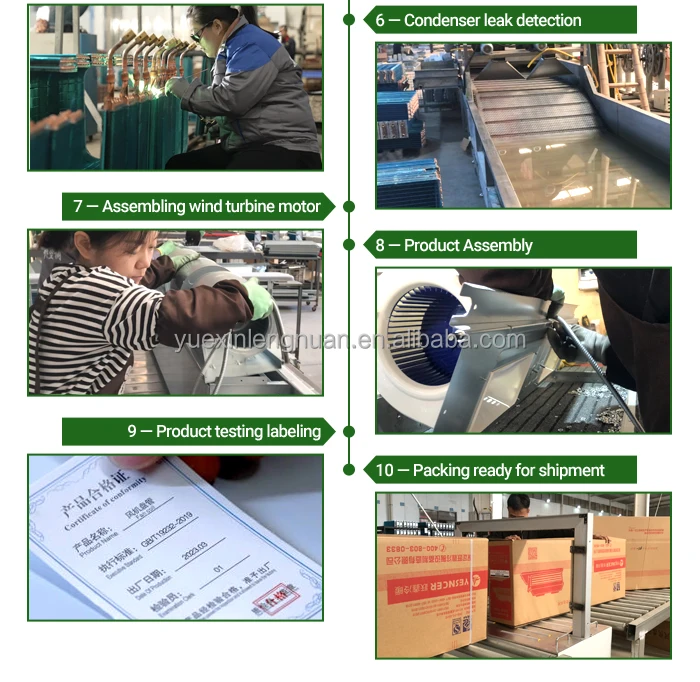

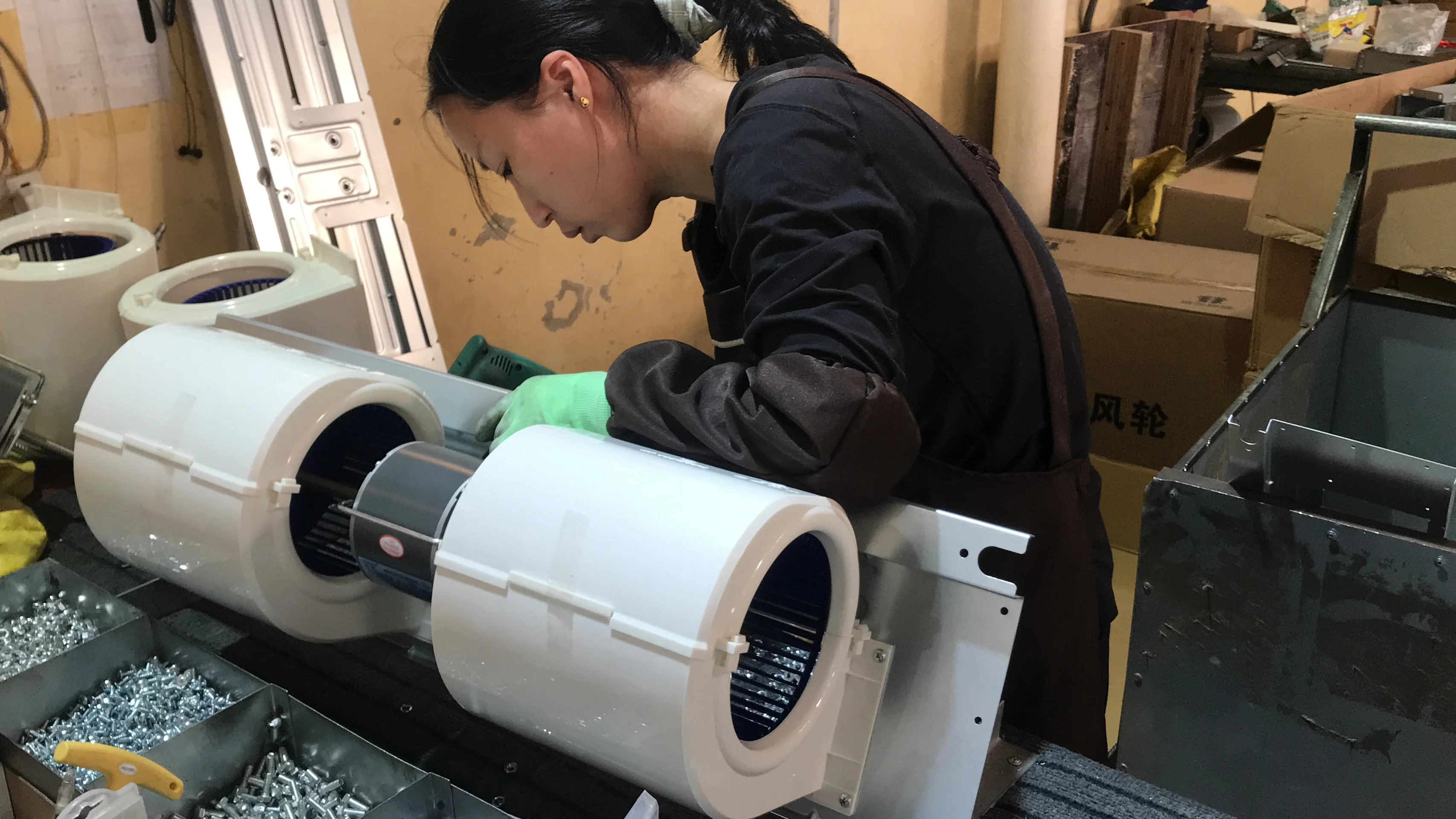

Partial display in the factory
We welcome friends from all over the world who have engineering needs to visit the factory. I believe we can become a good partner.
We have a strong foreign trade team that can help you solve product problems you encounter. At the same time, our team is young and energetic, with excellent professional skills. I believe we will become good friends.
Many foreign customers and friends who don’t know us have tried to communicate with us, and they all found that their decision was correct. Maybe we only need one face-to-face communication. We welcome you to our beautiful China and our factory. , I believe you will be very impressed by us
In April 2023, we will have our own booth at the Shanghai International Refrigeration Exhibition. I believe friends who have been there have seen us. We brought our newly developed products and our best-selling products to this exhibition, and many customers came here because of it. Come, we will participate in more exhibitions in the future and bring more of our more creative products.
I hope you can come then, my friend.
I hope you can come then, my friend.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–199 piece: US $190 / piece
- 200–499 piece: US $185 / piece
- 500+ piece: US $180 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.

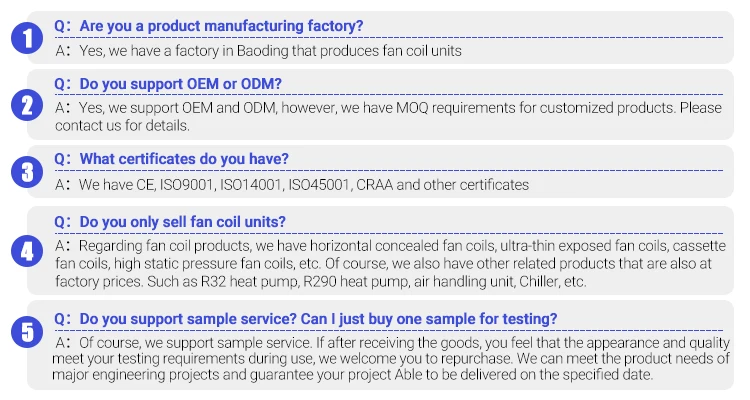

Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
