The fan coil unit listed here carries power supply 220-240v/1ph/50hz, heating capacity 2.37-9.8, documented exactly as the manufacturer publishes it. Made by Beijing Midea Overseas Engineering&technology Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan Coil Unit
- Model Number: FCU-Duct
- Power Supply: 220-240v/1ph/50hz
- Power Input: 22-114Kw
- Heating Capacity: 2.37-9.8
- Cooling Capacity: 1.52-5.8Kw
- Refrigerant: R-410A
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Refrigerant | R-410A |
| Mounting Type | Floor Standing |
| Compressor Brand | GMCC |
| Fan Motors Type | Brushless |
| Motor Type | AC Motor |
| Filter Type | High-Efficiency Particulate Air Filter |
| Application | Hospital, Hotel, School, Warehouse, Office, Mall |
| Key Selling Points | High-Accuracy, Low Maintenance Cost, Famous Brand Low Voltage Components, Remote Monitoring, Long Service Life, Remote Control, Energy Saving |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump, Engine, Condenser, Compressor |
| Place Of Origin | Chongqing China |
| Weight (Kg) | 30 |
| Brand Name | Midea |
| Model Number | FCU-Duct |
| Dimension(L*W*H) | 50*30*30cm |
| Product Name | Midea Fan coil units |
| Power Supply | 220-240v/1ph/50hz |
| Function | Heating Cooling |
| Heating Capacity | 2.37-9.8 |
| Cooling Capacity | 1.52-5.8Kw |
| Coil | 3 |
| Sound Pressure Drop | 29-46 |
| Power Input | 22-114Kw |
| Fan Type | CCentrigugal ,forward-curved Blades |
| Fan Motor Type | Low noise 3-speed fan motor |
| Selling Units | Single item |
| Single Package Size | 60X30X30 cm |
| Single Gross Weight | 30.0 kg |
Product Details
Product Presentation
Midea HVAC Building Technologies Heat Pump for small to large buildingsFan coil units Duct series
Midea fan coil units are divided into ceiling exposed type, ceiling concealed type, wall-mounted type and floor-standing type according to their structure, design and installation method. The air volume ranges from 150CFM to 2200CFM
(255m3 /h~3740m3 /h). It is a highly versatile product suitable for hospitals, office buildings, hotels, airports and
various other applications.
(255m3 /h~3740m3 /h). It is a highly versatile product suitable for hospitals, office buildings, hotels, airports and
various other applications.
Why Choose Us
1.Experience
Over 50-years Experience in Air
Conditioning/HVAC System. With more than 50 years of experience, we have successfully completed dozens of large-scale HVAC projects and have a deep understanding of global HVAC projects.
2.Professional design
We have a professional design team, can provide you with a suitable AC plane design according to your architectural plan, we will provide you with the most suitable design
scheme.
3.Professional selectoion
According to the different design scheme, we will choose the most suitable design scheme for you from a more professional perspective.
4.Providing One-Stop Solution of HVAC System
We can provide one-stop service, which will save you a lot of money and time. Indoor units and outdoor units, control system, installing accessories, tools and Supply HVAC all materials, including air conditioners, ventilation, installation accessories, etc.
5.Technical Support
We can provide HVAC commissioning service. Air conditioner project engineers can guide and supervise product installation on site.
6.After-sales service
We have Global After-Sales System with expertise installation service. Ensure your after-sales worry-free.
Product Line
Produc name | Fan coil units AC/DC 2-Pipe/4Pipe Duct series | ||||||
Type | 2-Pipe (2/3/4 Row ) Duct | 4-Pipe Duct | |||||
Power supply | 220-240V/1Ph/50Hz | 220-240V/1Ph/50Hz | |||||
Air flow(H/M/L) | 170-2380m³/h 100-1400CFM | 170-2380m³/h 1001400CFM | |||||
Heating capacity | 2.37-21Kw | 2.22-15.5Kw | |||||
Cooling capacity | 1.52-21Kw | 1.52-11.5Kw | |||||
Ciol row | 2/3 | 2/3 | |||||

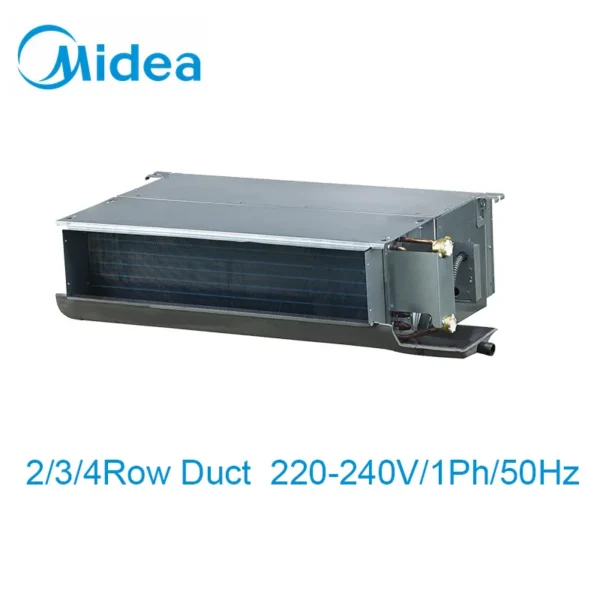

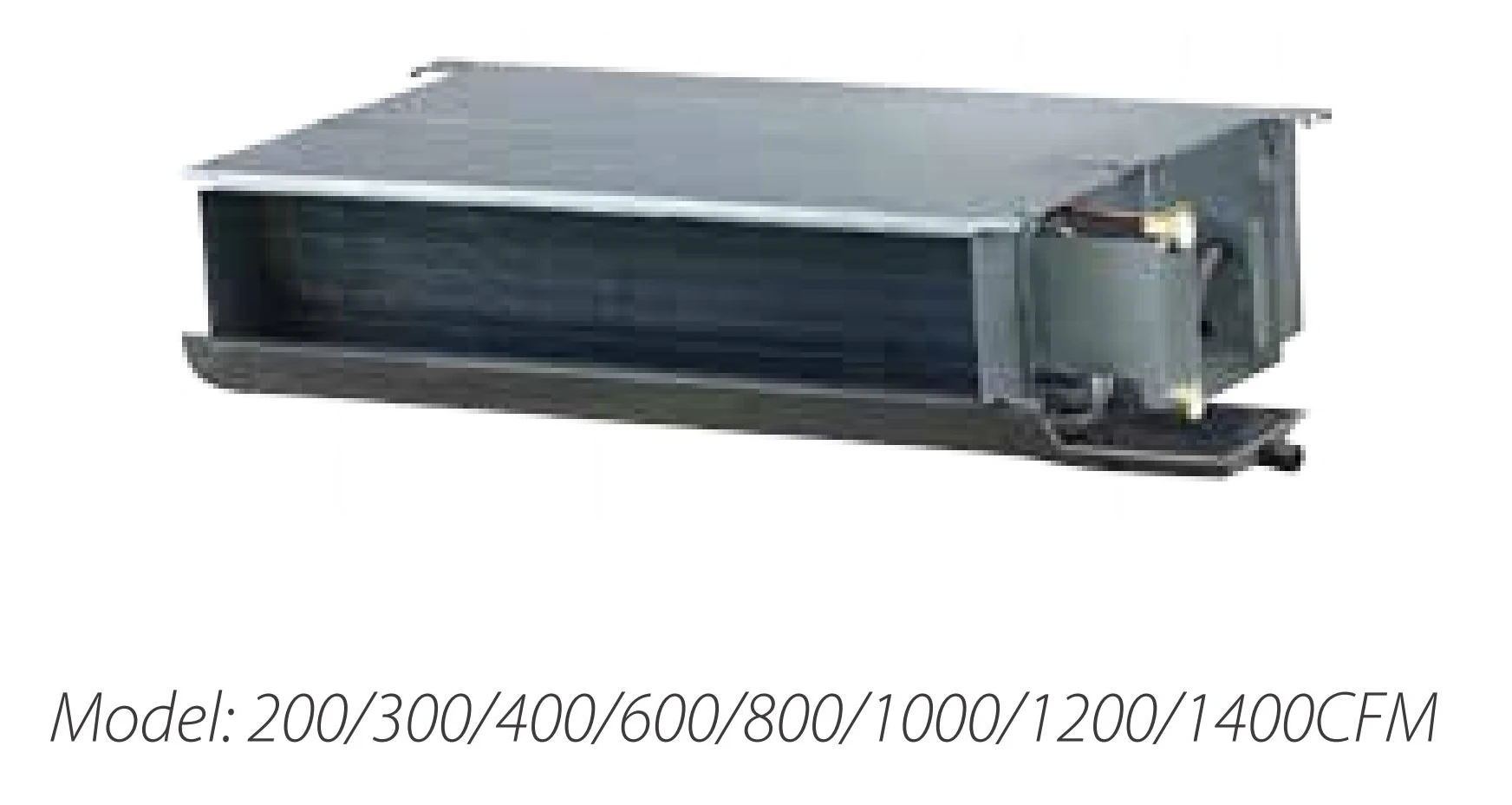

Duct series
—Slim, compact design for limited space with duct distribution to the indoor space.
Features
—2, 3 or 4 row for 2-pipe system and 3 row can be customization for 4-pipe system.
—Versions for standard, A4 and large difference temperature type.
—Washable filter: Iron frame filter is standard, and aluminum frame filter can be customized.
—Compatible with two types of air return: Back return is standard, bottom return is optional.
—Left or right hand piping connections are easily change in filed.
—Available for fresh air intake.
—EAH is optional (for 2-Row, 3-Row, 4-Row Duct).
—Versions for standard, A4 and large difference temperature type.
—Washable filter: Iron frame filter is standard, and aluminum frame filter can be customized.
—Compatible with two types of air return: Back return is standard, bottom return is optional.
—Left or right hand piping connections are easily change in filed.
—Available for fresh air intake.
—EAH is optional (for 2-Row, 3-Row, 4-Row Duct).

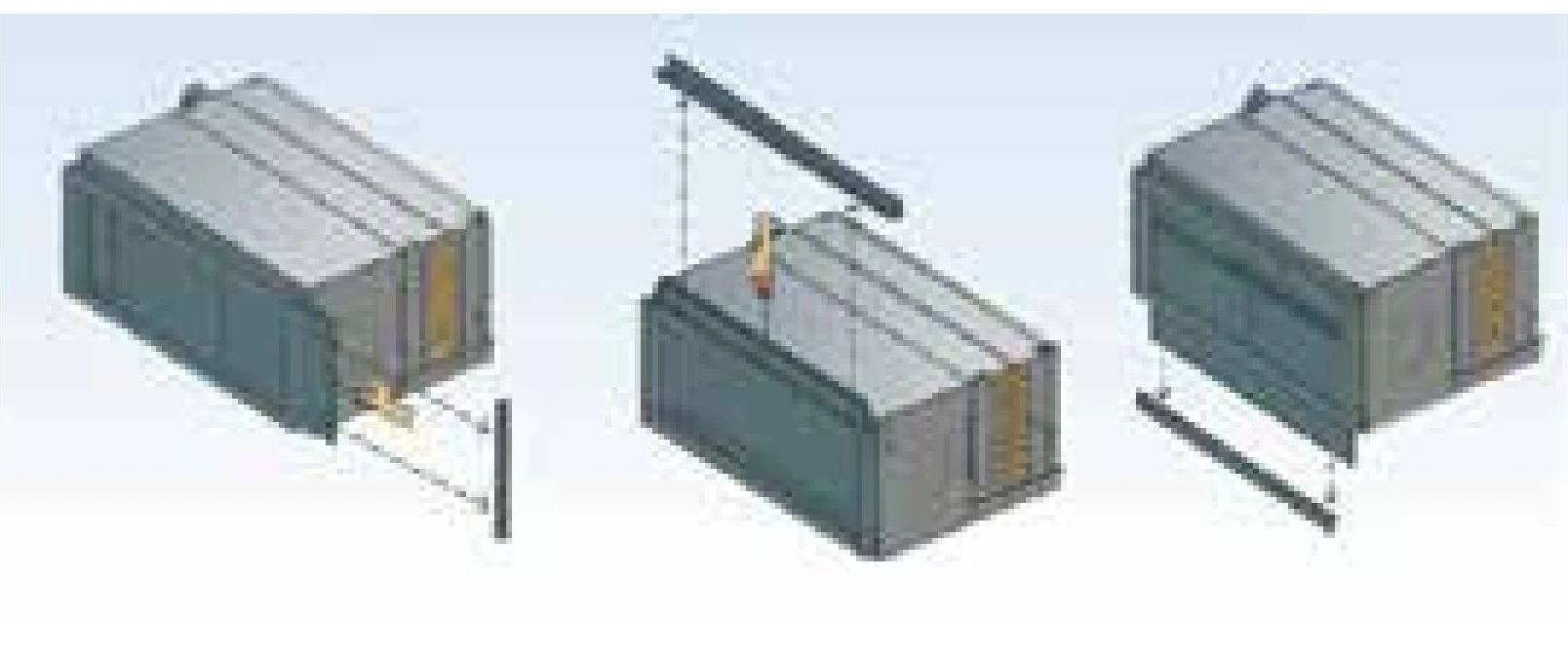

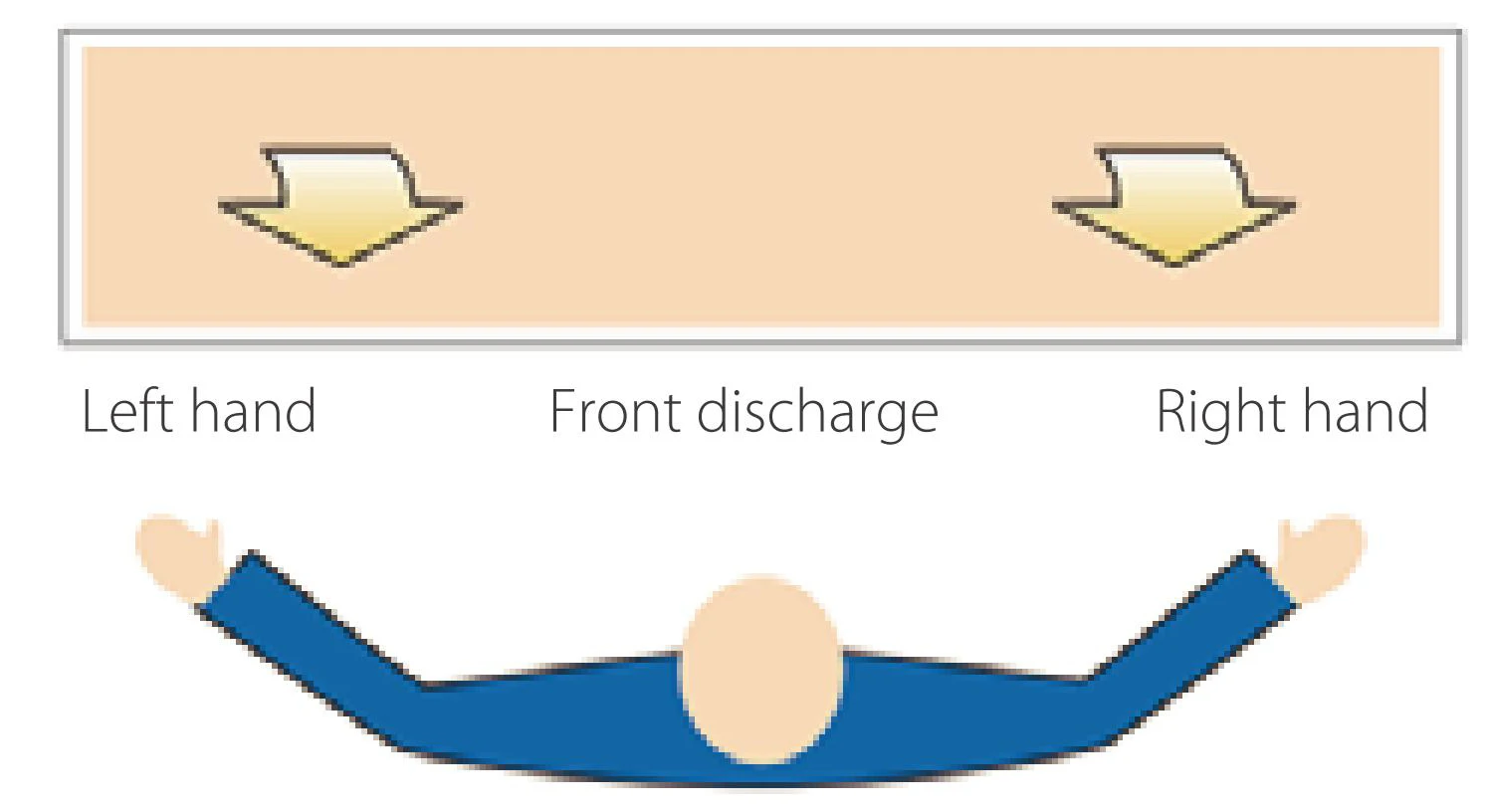

1.Flexible Installation
—Left and right hand piping connections are optional, flexible installation

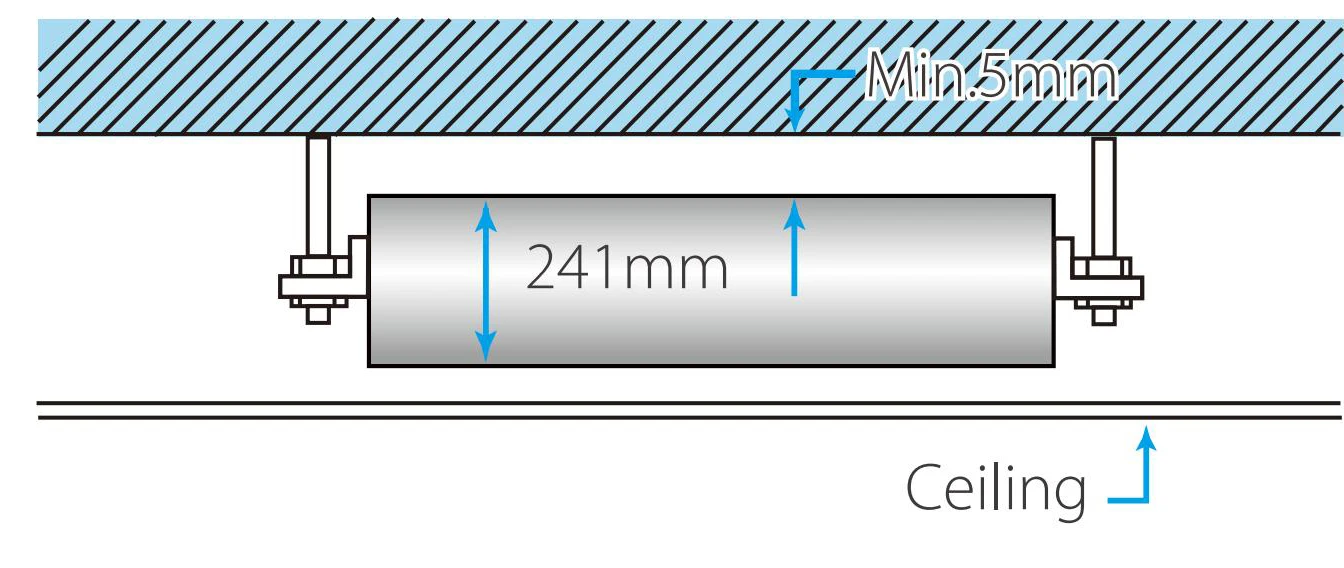

2.Compact Size
—All the units are 241mm hight, easy for limited space to installation.

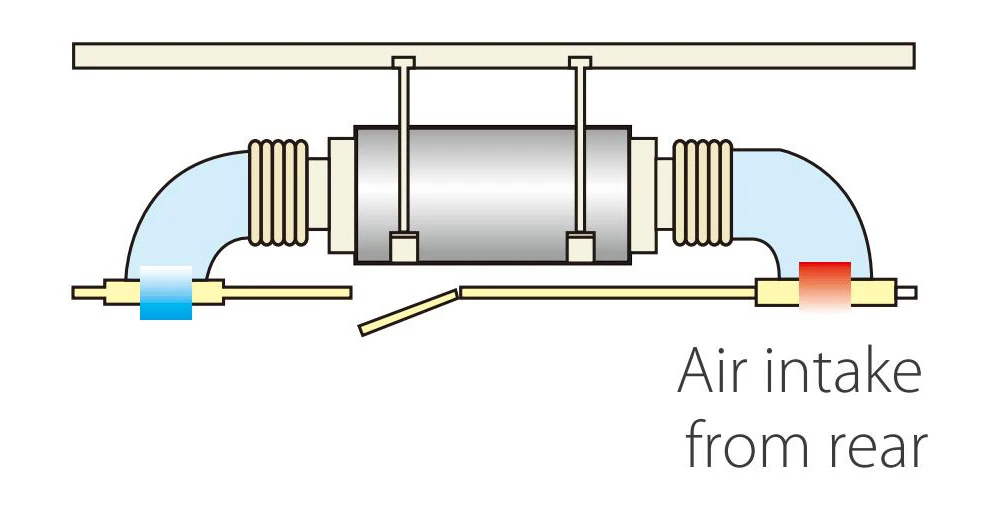

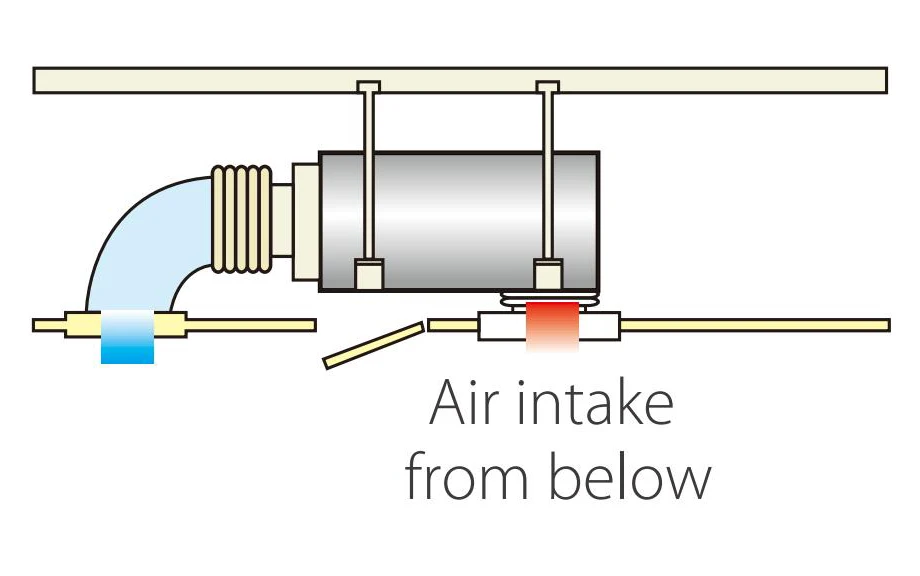

3.Flexible Air Inlet Port Installation
—To provide the flexibility to adapt to differing installation situations, the air inlet may be positioned either on the under side or the rear of the unit.
––pan are optional to protect the ceiling from moisture.

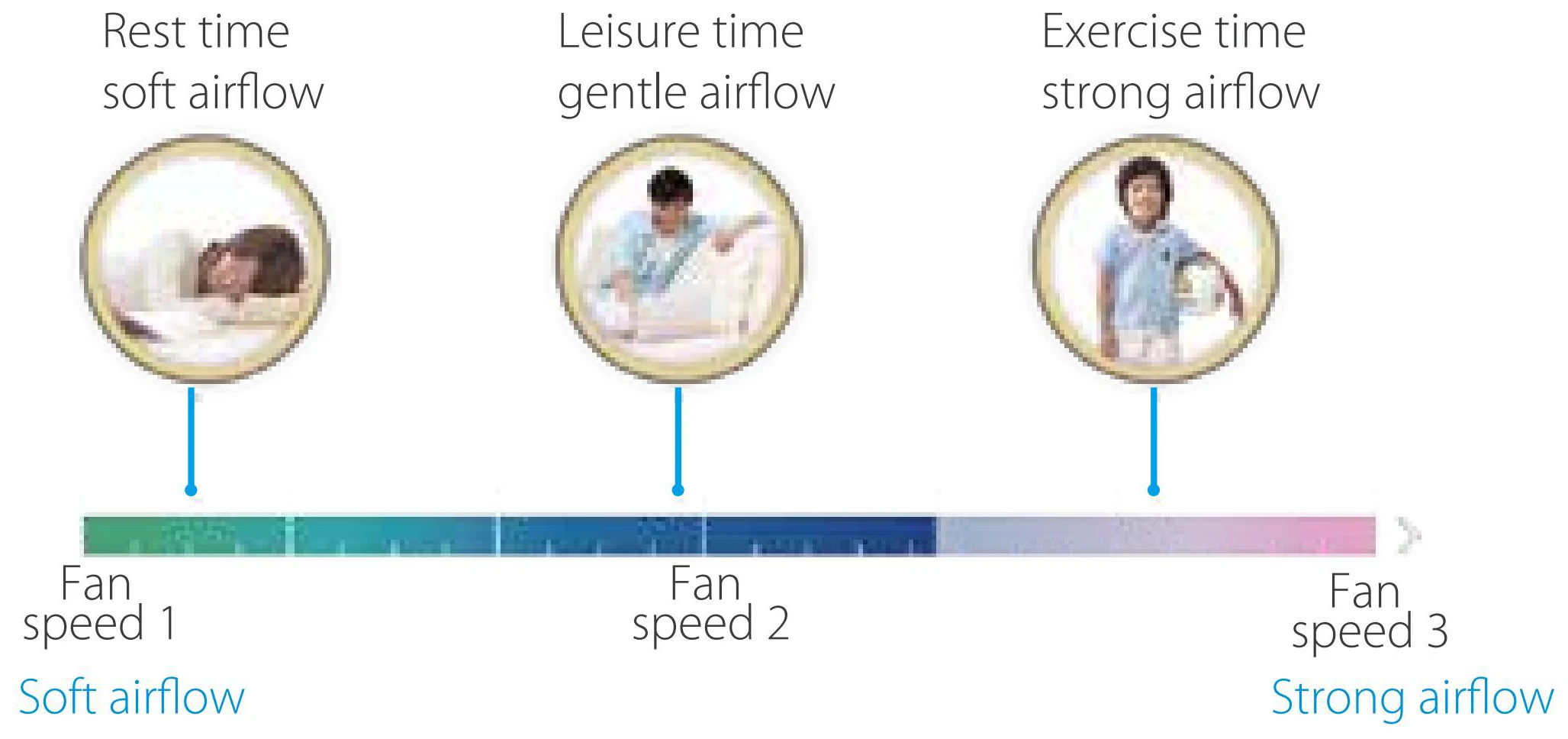

4.Multiple Fan Speeds
—The AC/DC Series comes with 3 fan speed option to meet the needs of different indoor conditions.

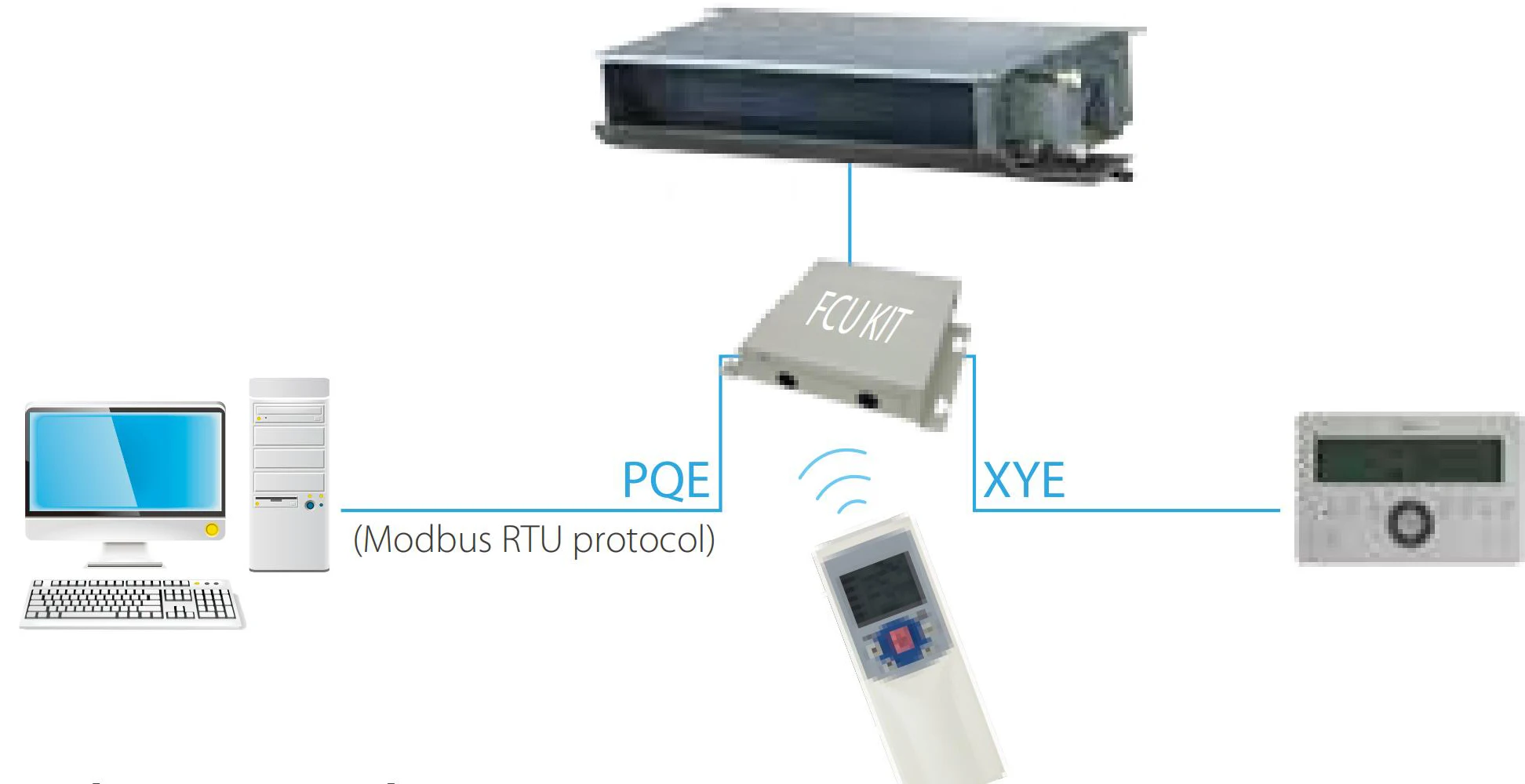

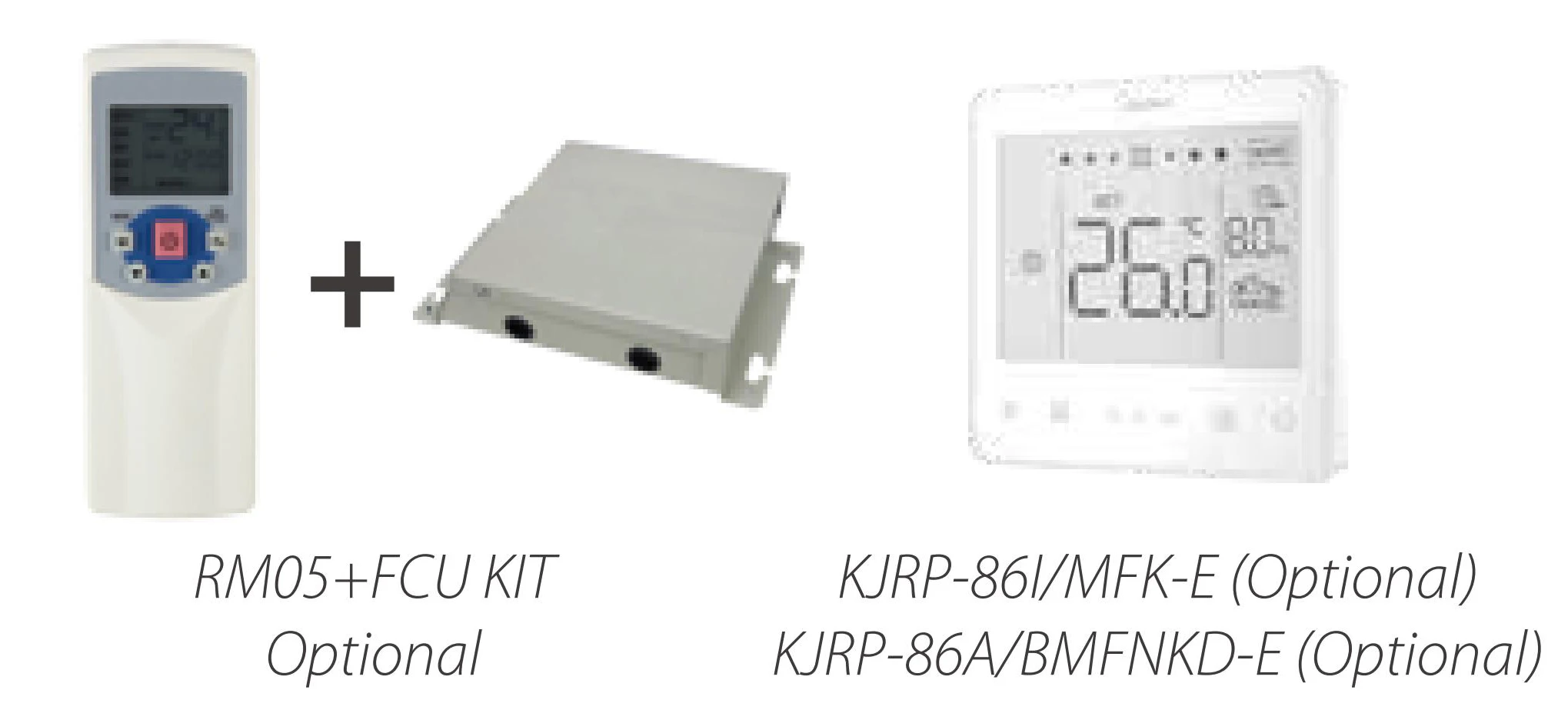

5.Control solutions
—The duct series controlled by Wired controller, Central controller or BMS need to be customization FCU KIT.

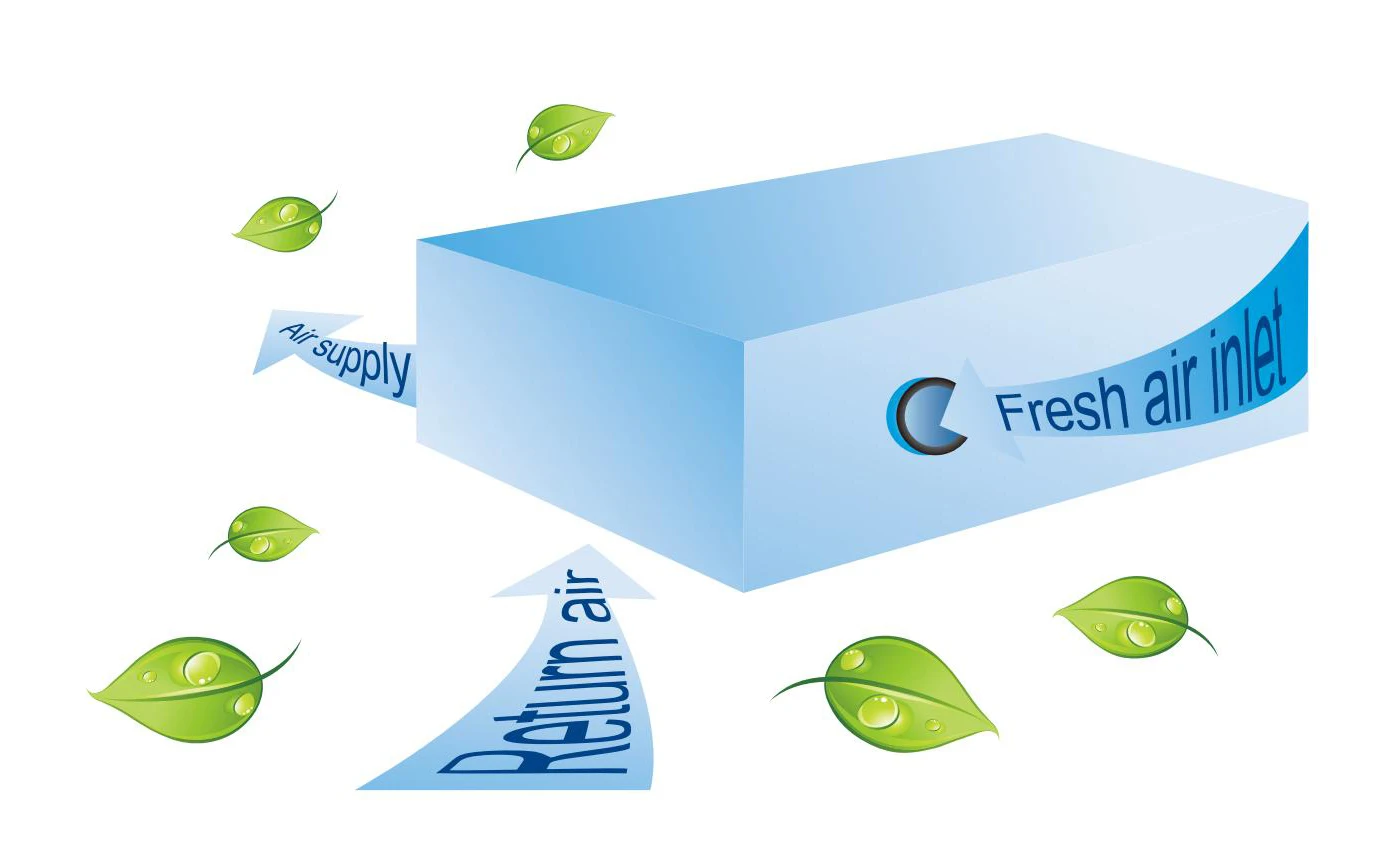

6.Fresh Air Intake
—A reserved outside air intake port allows outdoor air to be induced directly into the unit, negating the need for a separate ventilation system.
—Knock out hole is available in the unit.
—Accessories such as booster fan must be supplied on field and installed.
—Knock out hole is available in the unit.
—Accessories such as booster fan must be supplied on field and installed.
7.Washable filter
—Iron frame filter is standard, and aluminum frame filter can be customized.
—Air outlet flange and multi-direction pull-out filter can be customized.
—Air outlet flange and multi-direction pull-out filter can be customized.
7.Certifications and Authorization
IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification
How to get a quick quotation?
Information needed Midea Group's management system before prepare quotation details for you.
1.Project name :building name or building type, such as ××× office project, residential house project etc.
2.Project accurate address;
3.Your company contact information ＆ address；
4.Please provide product list or engineer drawing with product type marked.
5.When you expect to process purchase ＆ logistics for this project?
6.Is it tender project or not? Because tender project you may need our authorization letter.
Product packaging
We will use cartons and wooden cases to protect your goods from shock and try our best to ensure that your goods will not be damaged during transportation.
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
Midea Product Show
We have a lot of successful project experience, you can trust to give the project to us.
Company Profile
Contact US
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–19 set: US $2400 / set
- 20–29 set: US $2000 / set
- 30+ set: US $1200 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is 220-240v/1ph/50hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
