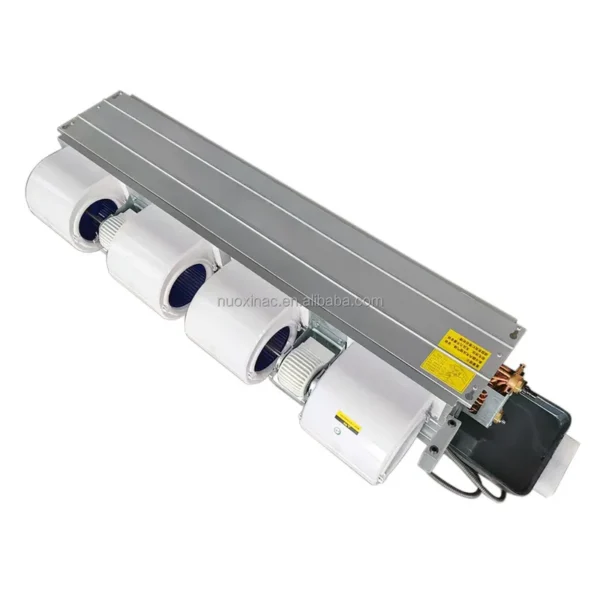

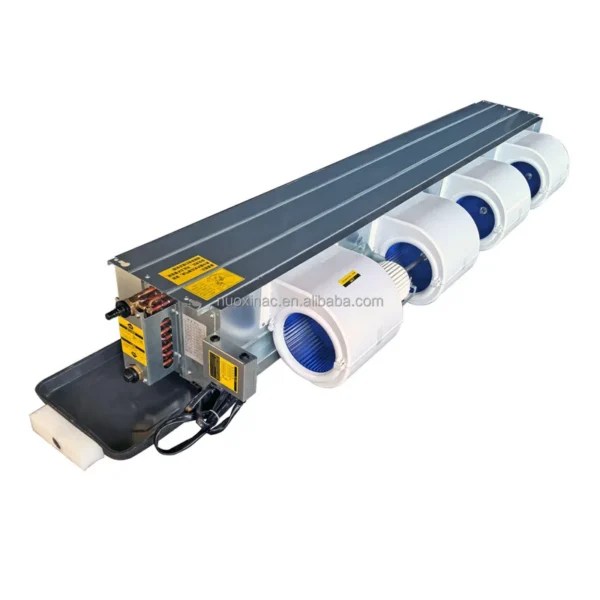

Key specification for this fan coil unit: 220V, 50/60Hz, cooling capacity 1.8-12.6KW. Everything below is reproduced from the factory data sheet. Made by Guangdong Nuoxin Industry Co., Ltd. (2 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan Coil Unit
- Model Number: FP- 238WA
- Voltage: 220V, 50/60Hz
- Cooling Capacity: 1.8-12.6KW
- Heating Capacity: 2.7-18.9KW
- Material: Galvanized Steel Casing
- Fan Speed: 3 Fan Speed
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Mounting Type | Ceiling Mount |
| Compressor Brand | None |
| Fan Motors Type | AC |
| Motor Type | AC Motor, DC Motor |
| Filter Type | G2 Nylon Filter |
| Key Selling Points | Easy To Operate, Remote Control |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 30 |
| Brand Name | NuoXin |
| Model Number | FP- 238WA |
| Static Pressure | 12Pa, 30Pa, 50Pa |
| Function | Cooling / Heating |
| Voltage | 220V, 50/60Hz |
| Cooling Capacity | 1.8-12.6KW |
| Heating Capacity | 2.7-18.9KW |
| Fan Speed | 3 Fan Speed |
| Motor | AC / DC Motor |
| Installation | Ceiling Mounted |
| Material | Galvanized Steel Casing |
| Tube & Fin | Copper Tube & Aluminum Fins |
| Selling Units | Single item |
Product Details
* Fan Coil Unit Introduction

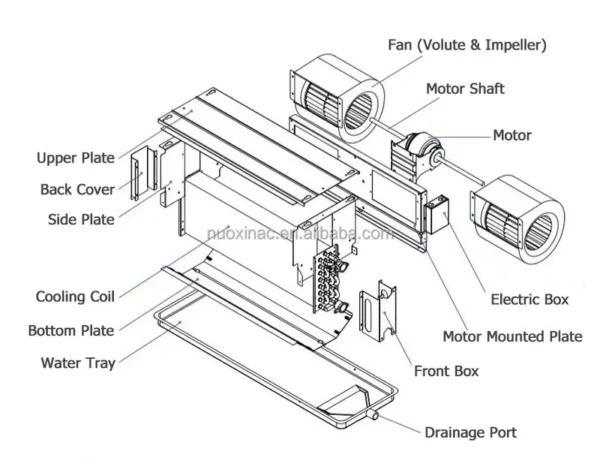

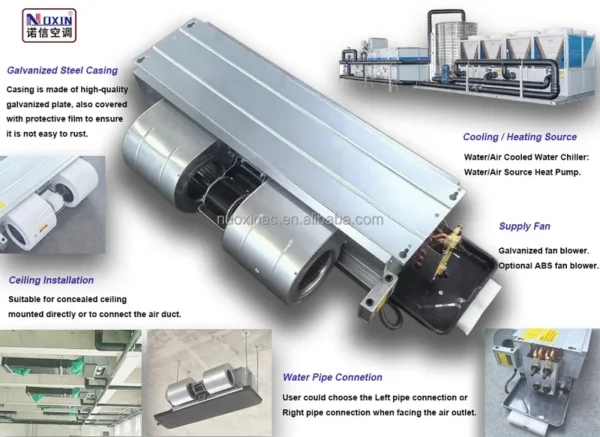

The fan coil unit is the terminal unit that directly delivers cold and hot air to the room through external cooling and hot water. It has the functions of cooling, heating or cooling / heating respectively. It is mainly composed of a volute centrifugal fan, heat exchanger coil, fan motor, condensation pan and galvanized sheet casing, it is a universal terminal device for the water type central air conditioning and heat pump systems.

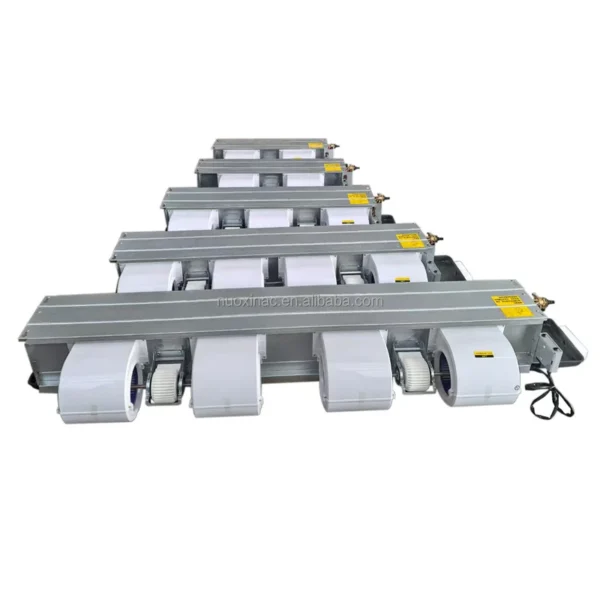

The horizontal concealed fan coil unit also called duct type fan coil unit which is ceiling mounted, with air volume ranges from 340m³/h to 2380m³/h (high speed). The series has rigorous design and reasonable manufacturing structure. Widely used in hotels, apartments, office buildings, hospitals and other public buildings.

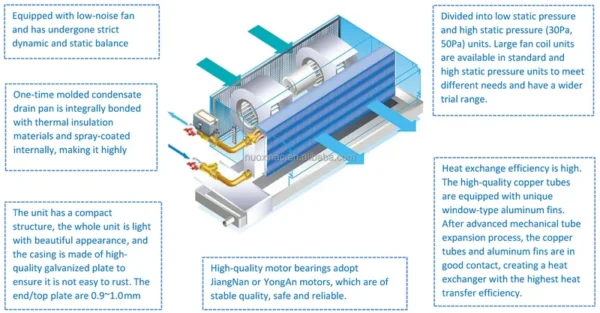

* Safe, reliable, long life. Each heat exchanger coil has been tested for leaks under pressure (above 2.0MPa); the inlet and outlet water pipes (water collection heads) adopt forged brass structures, which are reliable Durable; all materials are fireproof. * High performance & high efficiency. The cooling coil is made of high-quality and high-efficiency drawn copper tubes, which are mechanically expanded and bonded through double-flanged sine wave window-type aluminum fins. The surface of the fins is hydrophilic, resulting in low wind resistance and high efficiency. * Exquisite structure, sturdy and durable.
The casing is molded from galvanized sheet, with exquisite appearance and high strength. * Safe operation and energy saving. The motor has a heating and power-off protection device, uses ultra-low-noise rolling bearings, does not require user refueling and maintenance, and has a service life of up to 35,000 hours; the slender shaft of the motor has been specially treated to be corrosion-free.
* Advanced equipment and perfect technology. The sheet metal fully automatic blanking production line has a blanking error of 0.01mm. The CNC bending machine has precise bending angles and the high-speed fin production line has high production efficiency. The fully automatic straightening, cutting and bending equipment ensures precise copper pipe lengths and smooth elbows. No wrinkles, every welding point of the fully automatic welding equipment is firm and even.
* Large air airflow & low noise. It adopts an ultra-wide-angle volute and is equipped with a double-inlet forward-inclined airfoil centrifugal galvanized steel wind wheel, which has undergone strict dynamic and static balance testing. The air inlet is equipped with an air guide ring to prevent airflow from entering the impeller, ensuring high efficiency and low noise of the unit.
Product Paramenters
Details Images
Installation Instructions
FAQ
Q1: What information do you need to provide a suitable unit and quotation?
A1: We need to know the following information in order to suggest the suitable water chiller models:
(1) Air flow (In CFM, CMH or others)?;
(2) Cooling capacity (In KW, USRT, TON, Kcal/h, Btu/h or others)?
(3) Power supply (110V, 220V, 240V, 50Hz/60Hz).
(4) AC motor or DC Motor?
(5) Order quantity or other special requirements?
(2) Cooling capacity (In KW, USRT, TON, Kcal/h, Btu/h or others)?
(3) Power supply (110V, 220V, 240V, 50Hz/60Hz).
(4) AC motor or DC Motor?
(5) Order quantity or other special requirements?
Q2: What is the warranty of products?
A2: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year. If you would like to know more, welcome to contact us at any time!
A2: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year. If you would like to know more, welcome to contact us at any time!
Q3: Are you a factory manufacturer or a trading company?
A3: We are a manufacturer located in Dongguan city, a coastal city in southern of China, with over 20 years of experience in the production of refrigeration equipment. Our factory covers an area of 30,000 square meters and we have more than 120 employees, welcome to visit our factory at any time!
Company Profile
Our company certification
Guangdong Nuoxin Industry Co., Ltd. (Hereinafter referred to as "Nuoxin") Established in [2018 Year], "Nuoxin" is a widely known in delivering tailored industrial air conditioner solutions, specializing in non-standard customization for diverse sectors.
Our main products including refrigeration host device, Water and DX system central AC, Terminal unit AHU and Fan coil unit, Customized integrated DX AC, Clean/Purified constant temp. and humidity AC and other special industry/Commercial use AC. With ISO 9001 certification and adhering to strict national quality standards.
More than 200 skilled workers with over 8 years of refrigeration equipment expertise, and 30+ technical engineers to design and produce high-quality, cost-effective solutions. Our core strengths include rapid turnkey delivery, seamless pre-sales to post-installation support, competitive pricing, and a proven track record in exporting to worldwide markets with on-site overseas technical assistance. Supported by more than 60 sales professionals domestic and foreign trade, we stay higher in similar industry through active participation in major international exhibitions and continuous R&D innovation.
Workshop and Projects installation photos
Product packaging & Delivery
Exhibition & Customer Photos
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–19 unit: US $160 / unit
- 20–49 unit: US $150 / unit
- 50–99 unit: US $145 / unit
- 100+ unit: US $140 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is 220V, 50/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
