This air handling unit is published with the manufacturer’s full specification — power supply 220~230V/380~400V/3PH/50/60HZ, 50KW. Made by Guangdong Nuoxin Industry Co., Ltd. (2 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit
- Model Number: NFG-80-4R
- Power Supply: 220~230V/380~400V/3PH/50/60HZ
- Power: 1.5KW
- Cooling Capacity: 50KW
- Air Flow: 8000m³/h
- Warranty: 1 Year
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Ceiling Mount |
| Compressor Brand | Copeland, Bitzer, Emerson, Sanyo |
| Fan Motors Type | AC |
| Key Selling Points | Competitive Price, Low Maintenance Cost, Easy to Operate, High Safety Level, Long Service Life, Famous Brand Low Voltage Components |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pressure Vessel, Engine |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 175 |
| Brand Name | NOXIN |
| Model Number | NFG-80-4R |
| Dimension(L*W*H) | 1700*1150*750mm |
| Product Name | Air Handling Unit |
| Function | Cooling Heating |
| Power Supply | 220~230V/380~400V/3PH/50/60HZ |
| Keyword | Air Handling Unit-Horizontal |
| Installation | Panel |
| Cooling Capacity | 50KW |
| Power | 1.5KW |
| Air Flow | 8000m³/h |
| Fan Type | Centrifugal Fan |
| Application | Supper Marekt |
| Selling Units | Single item |
Product Details
① COMPACT and STURDY STRUCTURE. The combined air handling unit adopts advanced and excellent structural engineering structure, combining multiple technical measures. Ensure that the noise of the air handling unit is low and that it is running perform well. ② COST EFFECTIVE. High efficiency air supply and cooling capacity, lightweight in shape, easy to install, safe and free of condensation. ③ CONFIGURATION FLEXIBLE and CHANGEABLE. According to functional requirements, configure mixing section, filter section, cooling and addition air treatment functional sections such as heating, humidification, dehumidification, heat recovery and disinfection combination.

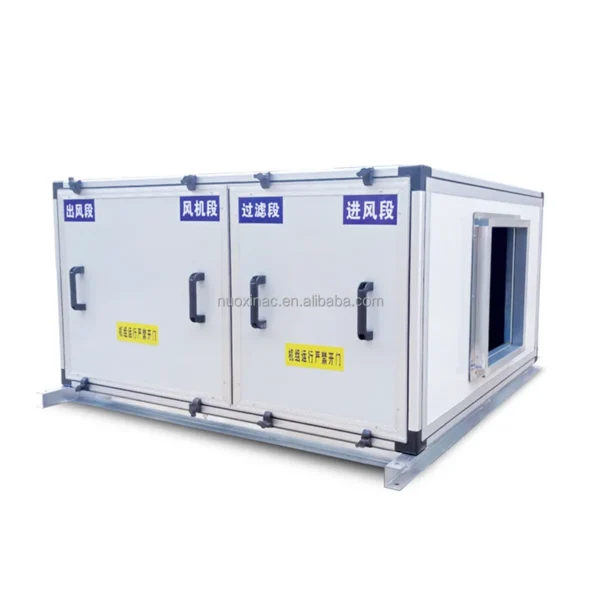

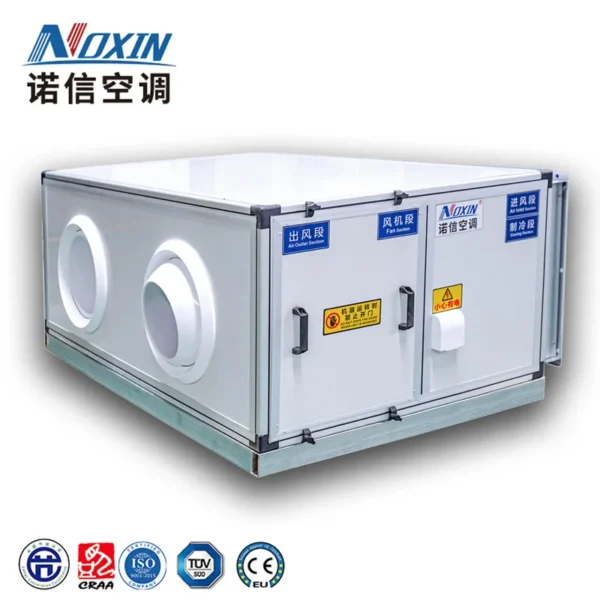

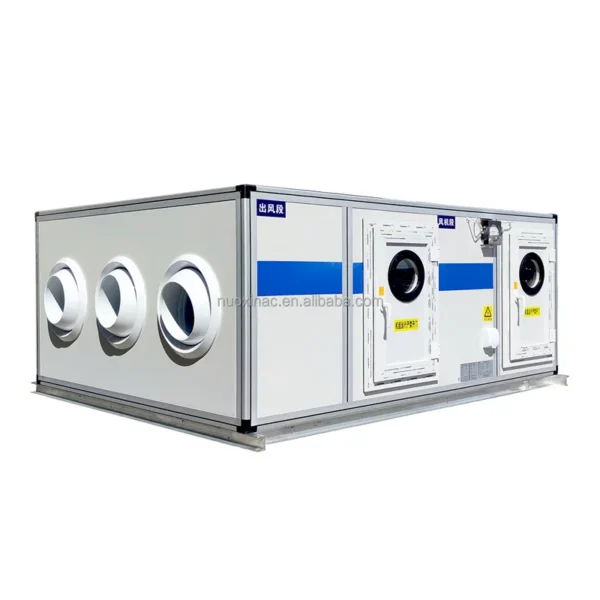

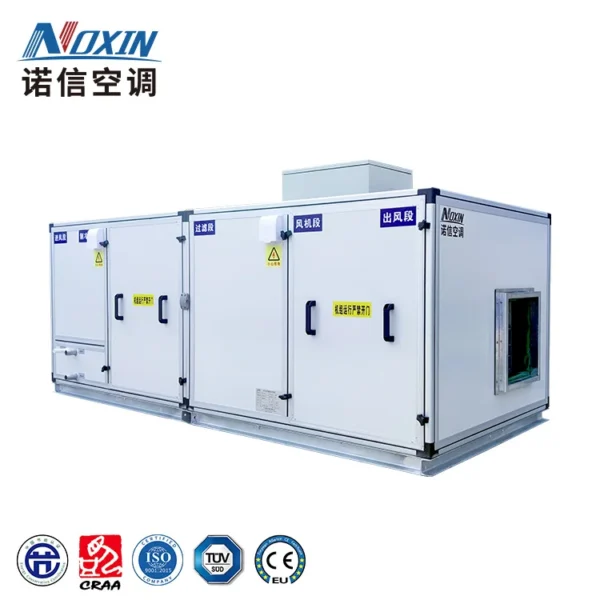

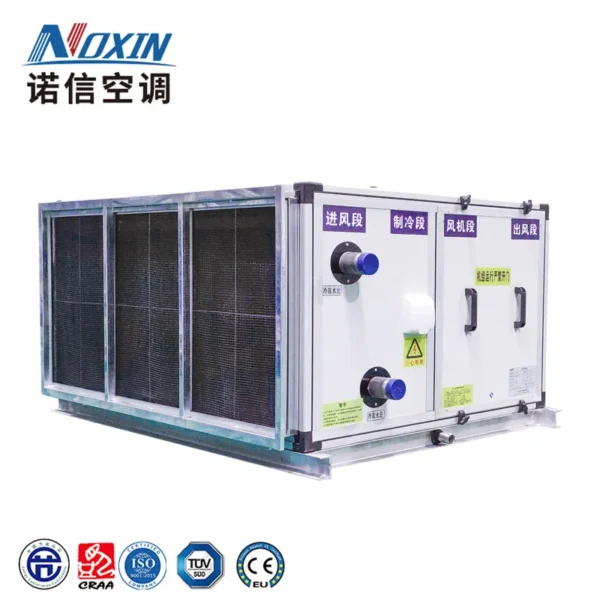

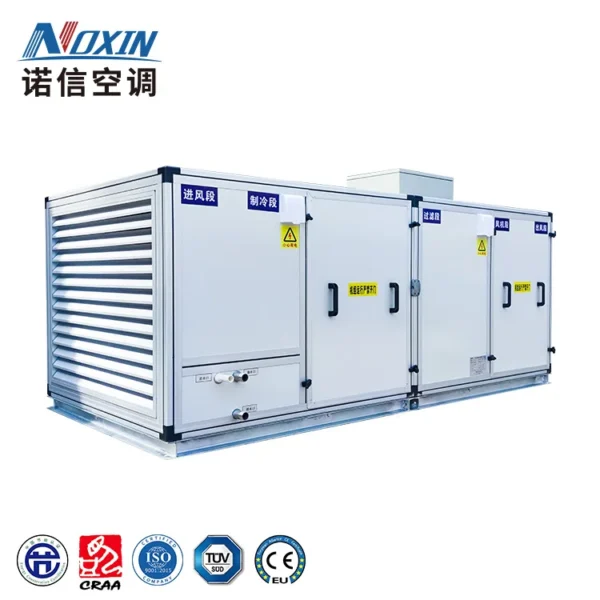

Overall Appearance
Product Paramenters
No. | Item | Specification | ||
1 | Unit Model | NFG-80-4R | ||
2 | Air Flow | 8000.00CMH | ||
3 | External static pressure | 250.00Pa | ||
4 | Input Power of Fan Motor | 1.50KW | ||
5 | Cooling Capacity | 50.00KW | ||
6 | Connection Pipe Diameter | DN50 (2inch) for Cooling | ||
7 | Heating Capacity | 57.50KW | ||
8 | Connection Pipe Diameter | DN50 (2inch) for Heating | ||
9 | Filtration Grade | G2 detachable nylon mesh air conditioning filter | ||
10 | Power Supply | AC220~380V/3PH/50/60HZ | ||
11 | Dimension L*W*H | 1700*1150*750mm | ||
12 | Unit Weight | 175.00KG | ||
Kindly please pay attention to the information as below: 1. Cooling capacity condition: Chilled water inlet/outlet 7℃/12℃, ambient temperature 35℃. 2. Heating capacity condition: Hot water inlet/outlet 60℃/40℃, ambient temperature 6~7℃. 3. Customized combined air handling unit base on project, such as HEPA filter, sterilization section etc. | ||||
Product Details
NUOXIN Company pursues outstanding quality. The average service life of its products is 10 to 15 years. High-quality production components and strict inspection standards ensure that each unit can operate stably at the customer's project site. A timely after-sales maintenance team regularly follows up on the feedback of the unit operation.
1. Motor. Y series three-phase asynchronous motor. Insulation above Class B, the highest IP54 protection, high efficiency, energy saving, high starting torque, low noise, small vibration, safe and reliable operation. Could be driven by belts or directly, can use variable frequency motors or brand EC fans. It precisely controls the air volume and regulates the air circulation speed, making the airflow more uniform and improving the heat exchange efficiency.

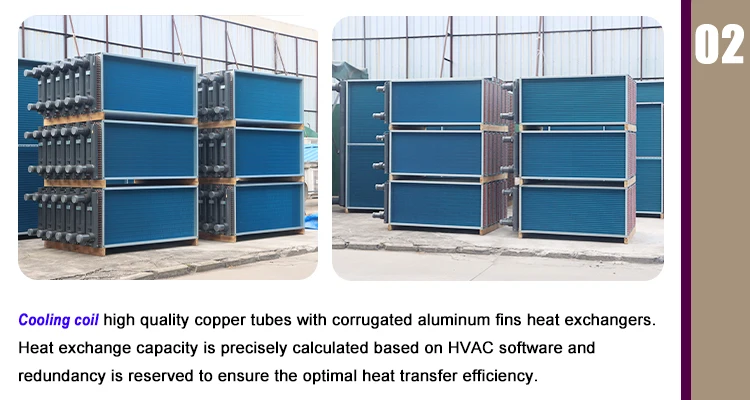

2. Water Cooling Coil. High-efficiency purple copper tube through corrugated hydrophilic aluminum fins heat exchanger, highly efficient heat exchange and long service life. Transfering heat via water. Fins expand surface area, enhancing heat exchange with air. Air flows over fins, facilitating efficient thermal transfer for cooling/heating.
3. Supply Fan. Belt drive forward, forward multi-wing centrifugal fan, also could use the VFD fans or EC fans. Fans pass all the static and dynamic balance correction, low noise, static pressure with high efficiency. Unit static pressure could be customized according to user requirements. Centrifugal fan Selecting the appropriate fan based on the air volume and the fan selection software, and pair it with a high-quality motor. Then, use belt drive to form the power and air supply system of the entire unit.
4. Structure Frame & Panel. Using 4277 # cold-proof bridge aluminum profiles. Aluminum frame, solid structure, good corrosion resistance, beautiful appearance, easy installation. 25mm PU double skin panel; optional for 50mm; Inside and outside plate is 0.426mm color plate, the middle layer material is polyurethane insulation (PU).The PU panel could use 50mm for small air flow models based on clients' requirement.

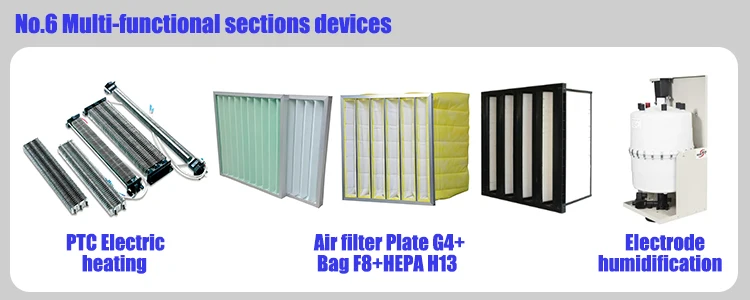

5. Filters. Primary filter G4 / Medium-efficiency filter(F5-F9) / HEPA filter(H11-H14), sing Nonwoven cloth, beautiful and durable. G4 Primary filter used for pre-filtration in air conditioning systems to intercept large particles larger than 5μm, highest filtration efficiency is up to 90%. F8 bag type medium efficiency filter with filtration efficiency 95%. Used to intercept particles ranging from 0.8 to 1.2μm.
6. Electric Heating. For heating demand, clients could choose below heating methods based on demand. Hot Water Coil Heating; Steam Heating Coil Heating; Electric Heater: PTC ceramic electric heating.
7. Humidifier. The humidifier is widely used for different application including clean room, spray room, hospital, biology laboratory etc. The humidifier including Electrode humidifier, High pressure mist humidification, High pressure spray humidification, Wet film humidifier etc, which could achive ±5% humidity range.
8. Differential pressure gauge. Observing the air pressure difference betweenthe G4 and F8 filters in real time. Once a certain value is reached, the filters inside the unit need to be cleaned or replaced.

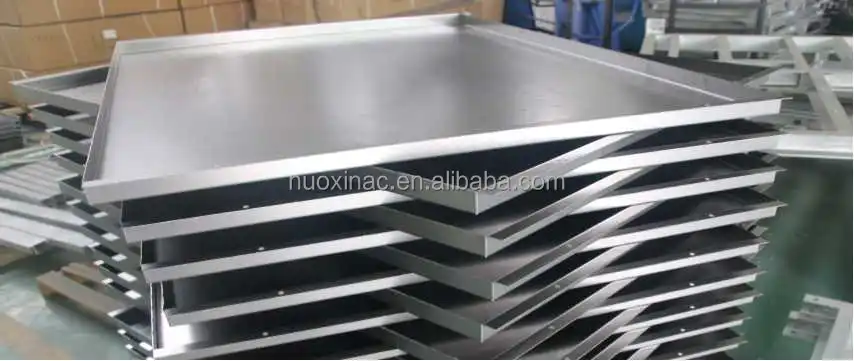

9. Water Tray. Thickness: δ = 0.8 ~ 1.5mm High-quality stainless Steel, with overall insulation. Corrosion-resistant, anti-rust and thermal insulation performance, the water tray with a tilting structure for smooth drainage.
10. Access Door. Color Steel access door is Beautiful, generous and with strong high temperature sealing performance, prevent water leak or air leakage.

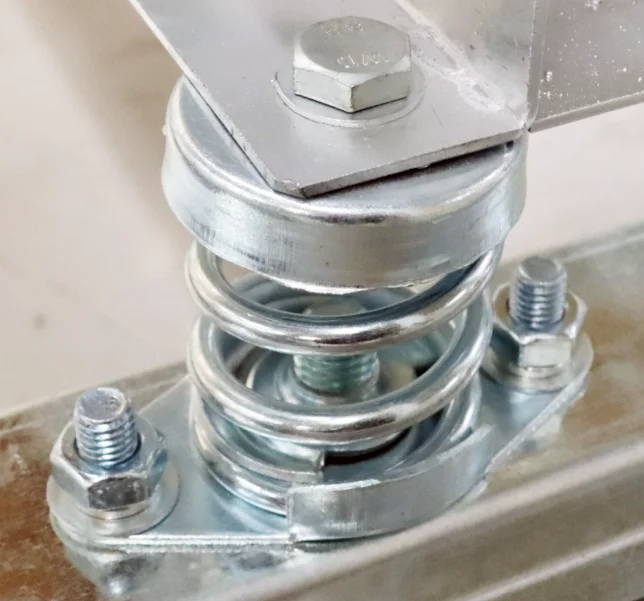

11. Shock Absorbing Spring. Mounted on the base of fan motor to prevent the vibration during operation, reduce noise and extend service life.
Company Profile
Nuoxin Company has five major production bases, namely the Dongguan production base, the Zhejiang production base, the Vietnam production base, the Thailand production base, and the Sichuan production base, covering a total area of approximately 200,000 square meters. Its products are sold worldwide and it maintains close cooperative relationships with Southeast Asia, the Middle East, Africa, North America, and South America on a long-term basis.
Guangdong Nuoxin Industry Co., Ltd. (Hereinafter referred to as "Nuoxin") Established in [2018 Year], "Nuoxin" is a widely known in delivering tailored industrial air conditioner solutions, specializing in non-standard customization for diverse sectors. Our main products including Water Chiller, Water and DX system central AC, Terminal unit AHU and Fan coil unit, Customized integrated DX AC, Clean/Purified constant temp. and humidity AC and other special industry/Commercial use AC. With ISO9001 certification and adhering to strict national quality standards.
More than 200 skilled workers with over 8 years of refrigeration equipment expertise, and 30+ technical engineers to design and produce high-quality, cost-effective solutions. Our core strengths include rapid turnkey delivery, seamless pre-sales to post-installation support, competitive pricing, and a proven track record in exporting to worldwide markets with on-site overseas technical assistance. Supported by more than 60 sales professionals domestic and foreign trade, we stay higher in similar industry through active participation in major international exhibitions and continuous R&D innovation.
More than 200 skilled workers with over 8 years of refrigeration equipment expertise, and 30+ technical engineers to design and produce high-quality, cost-effective solutions. Our core strengths include rapid turnkey delivery, seamless pre-sales to post-installation support, competitive pricing, and a proven track record in exporting to worldwide markets with on-site overseas technical assistance. Supported by more than 60 sales professionals domestic and foreign trade, we stay higher in similar industry through active participation in major international exhibitions and continuous R&D innovation.
Nuoxin Company's products are widely utilized across various industries, primarily serving applications such as: Cooling solution for industrial production workshops and warehouses; Hospital operating rooms and Laboratories; Pharmaceutical manufacturing facilities; Spray production lines; Electronic equipment assembly workshops; Clean rooms for precision instruments; Lithium battery production environments; Food processing workshops; and Cosmetic production facilities etc. Additionally, the air conditioner are applied in commercial and public buildings including Shopping malls, Supermarkets, Stadiums, Subway stations, Airports, Hotel, Schools, Libraries, Museums, and Cinemas.
Product Package
Exhibition & Customer Photos
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–19 unit: US $949 / unit
- 20–49 unit: US $919 / unit
- 50+ unit: US $879 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is 220~230V/380~400V/3PH/50/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
