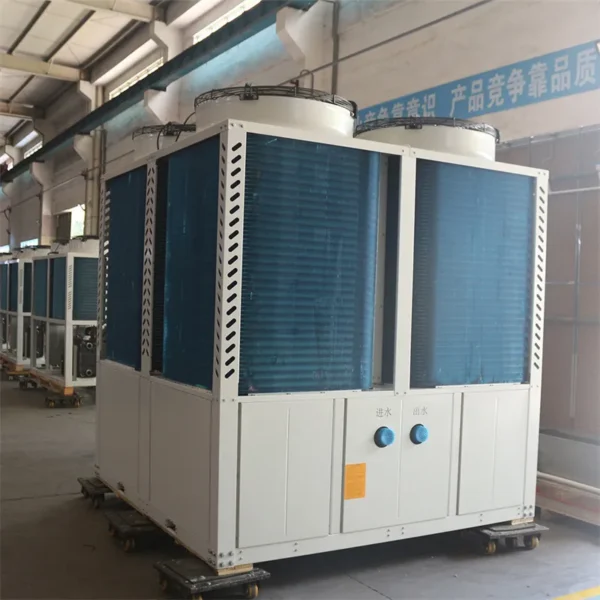

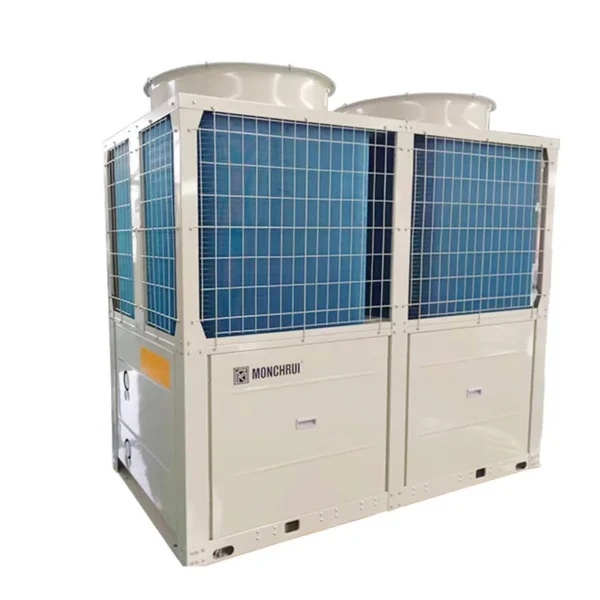

Efficient scroll water chiller — 380V/3N~/50HZ, 270kW. The complete factory specification follows. Made by Shenzhen Monchrui Industry Development Co., Ltd. (9 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Efficient Scroll Water Chiller
- Model Number: MRAC270AR3
- Power: 84.3KW
- Voltage: 380V/3N~/50HZ
- Cooling Capacity: 270kW
- Heat Capacity: 288kW
- Refrigerant: R410A
Technical Specifications
| Voltage | 380V/3N~/50HZ |
|---|---|
| Power | 84.3KW |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Model Number | MRAC270AR3 |
| Place Of Origin | Guangdong, China |
| Brand Name | MONCHRUI |
| Dimension(L*W*H) | 2360*2210*2520 |
| Working Temperature Range | -15~48℃ |
| Cooling Capacity | 270kW |
| Heat Capacity | 288kW |
| Refrigerant | R410A |
| COP | 3.20W/W |
| Throttling Device | Electronic expansion valve |
| Compressor Type | Scroll Hermetic |
| Fan Type | Axial |
| Heat Exchanger Type | High efficiency vacuum brazed plate |
| After Warranty Service | Video technical support |
| Selling Units | Single item |
Product Details
Overview
Modular air cooled chiller
Monchrui modular air-cooled/water-cooled chiller is one of the leading products carefully designed by Monchrui Company with many years of design experience and integrating the advantages of similar products at home and abroad. It has more than 20 years of design and production history. Monchrui air-conditioning design , Production, technology, operation and maintenance, and service technology are mature, and the unit performance is superior. Monchrui Air Conditioning adopts self-developed modular chiller technology, which is stable and reliable. It is your best choice for energy saving, environmental protection and comfort of the central air conditioning system.We have standard air-cooled series chillers (including standard series chillers, low-temperature series chillers, ultra-low temperature series chillers, inverter series chillers, heat recovery series chillers) and water-cooled series chillers
Products Description

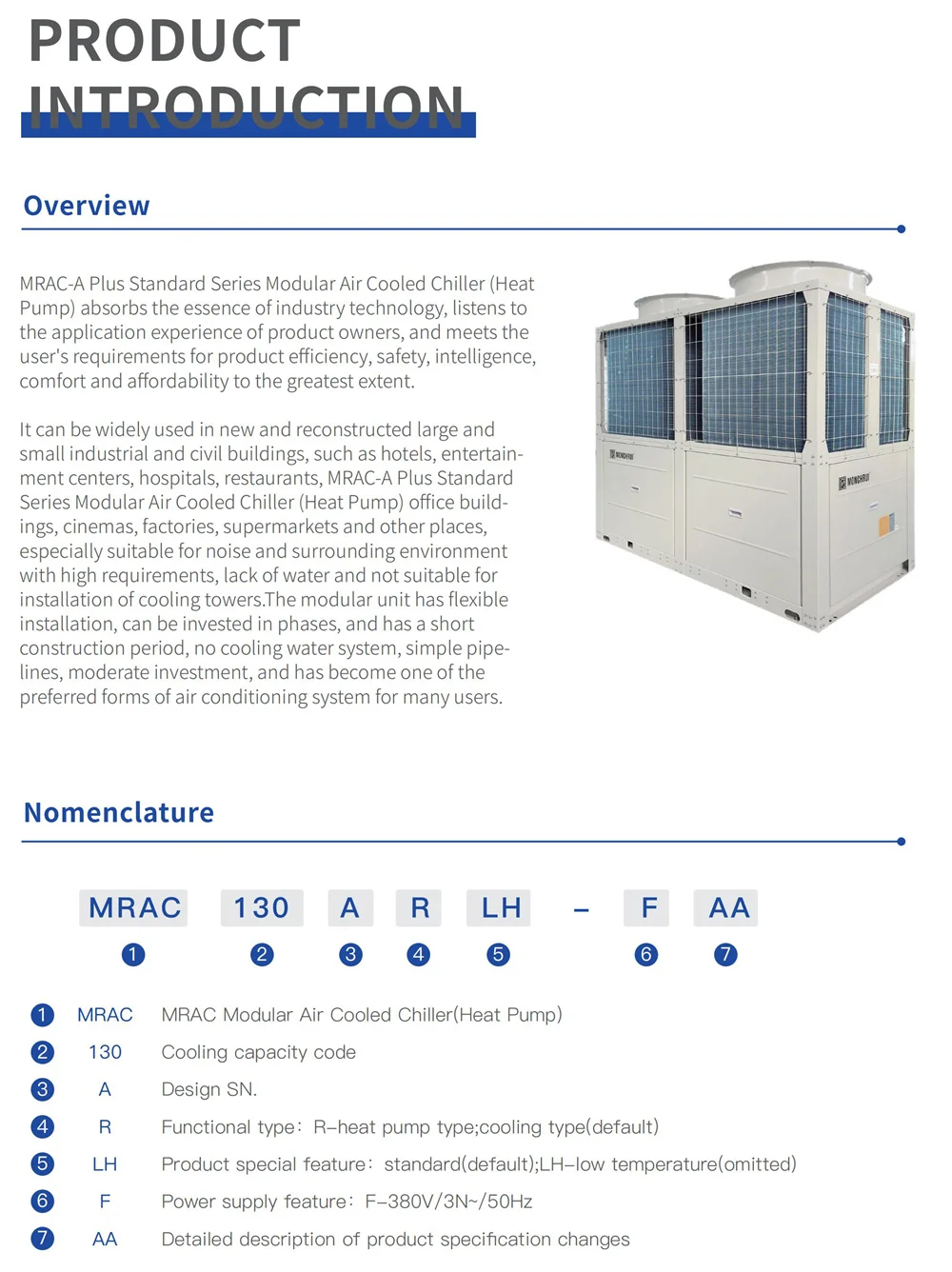

Product introduction
MRAC-A Plus Standard Series Modular Air Cooled Chiller (Heat Pump) absorbs the essence of industry technology, listens to the application experience of product owners, and meets the user's requirements for product efficiency, safety, intelligence, comfort and affordability to the greatest extent.It can be widely used in new and reconstructed large and small industrial and civil buildings, such as hotels, entertainment centers, hospitals, restaurants, MRAC-A Plus Standard Series Modular Air Cooled Chiller (Heat Pump) office buildings, cinemas, factories, supermarkets and other places, especially suitable for noise and surrounding environment with high requirements, lack of water and not suitable for installation of cooling towers.The modular unit has flexible installation, can be invested in phases, and has a short construction period, no cooling water system, simple pipelines, moderate investment, and has become one of the preferred forms of air conditioning system for many users.

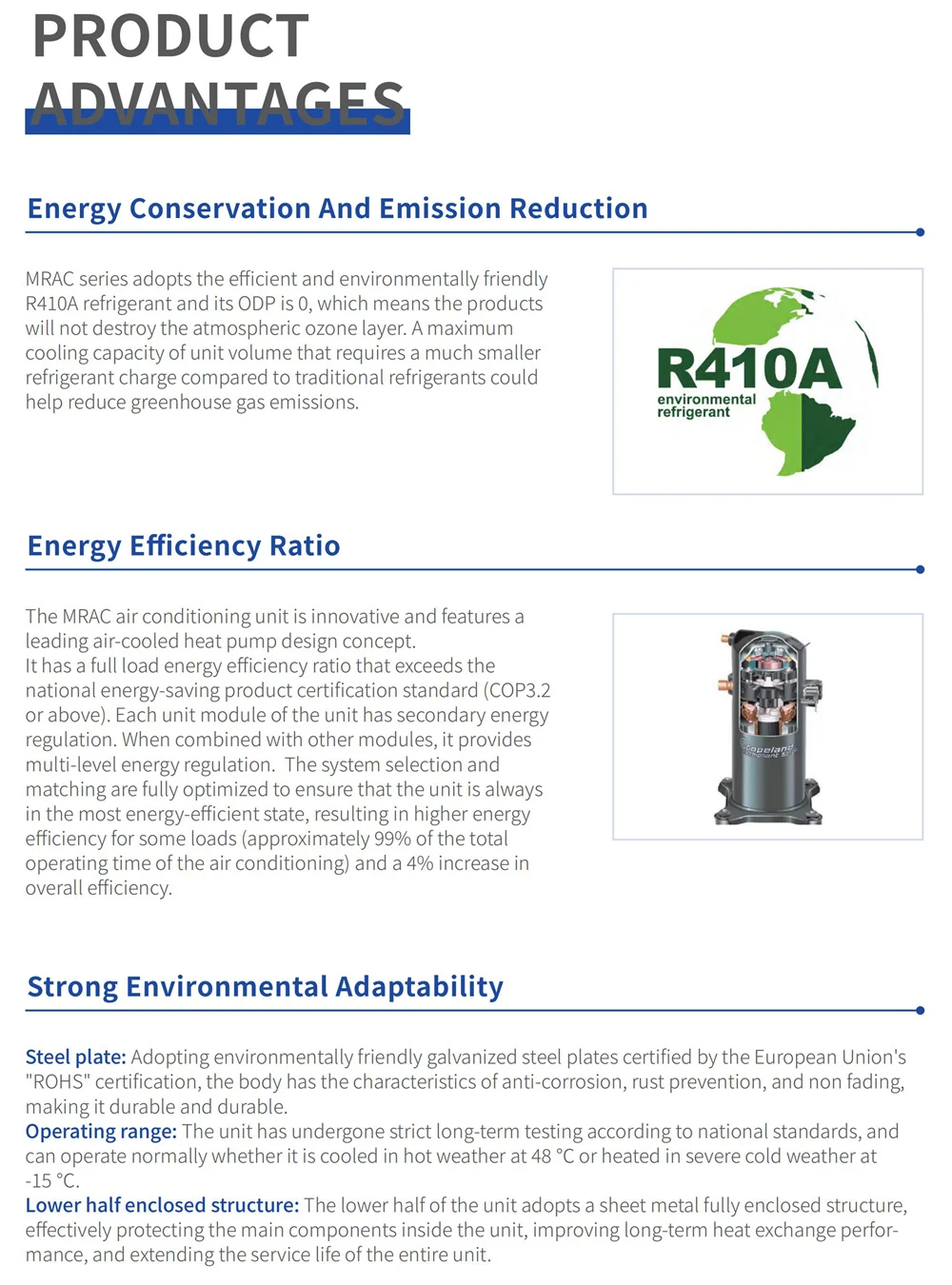

Product advantages
Energy Conservation And Emission Reduction MRAC series adopts the efficient and environmentally friendly R410A refrigerant and its ODP is 0, which means the products will not destroy the atmospheric ozone layer. A maximum cooling capacity of unit volume that requires a much smaller refrigerant charge compared to traditional refrigerants could help reduce greenhouse gas emissions. Energy Efficiency Ratio The MRAC air conditioning unit is innovative and features a leading air-cooled heat pump design concept. It has a full load energy efficiency ratio that exceeds the national energy-saving product certification standard (COP3.2 or above). Each unit module of the unit has secondary energy regulation. When combined with other modules, it provides multi-level energy regulation. The system selection and matching are fully optimized to ensure that the unit is always in the most energy-efficient state, resulting in higher energy efficiency for some loads (approximately 99% of the total operating time of the air conditioning) and a 4% increase in overall efficiency. Strong Environmental Adaptability Steel plate: Adopting environmentally friendly galvanized steel plates certified by the European Union's "ROHS" certification, the body has the characteristics of anti-corrosion, rust prevention, and non fading, making it durable and durable. Operating range: The unit has undergone strict long-term testing according to national standards, and can operate normally whether it is cooled in hot weather at 48 ℃ or heated in severe cold weather at -15 ℃. Lower half enclosed structure: The lower half of the unit adopts a sheet metal fully enclosed structure, effectively protecting the main components inside the unit, improving long-term heat exchange performance, and extending the service life of the entire unit.

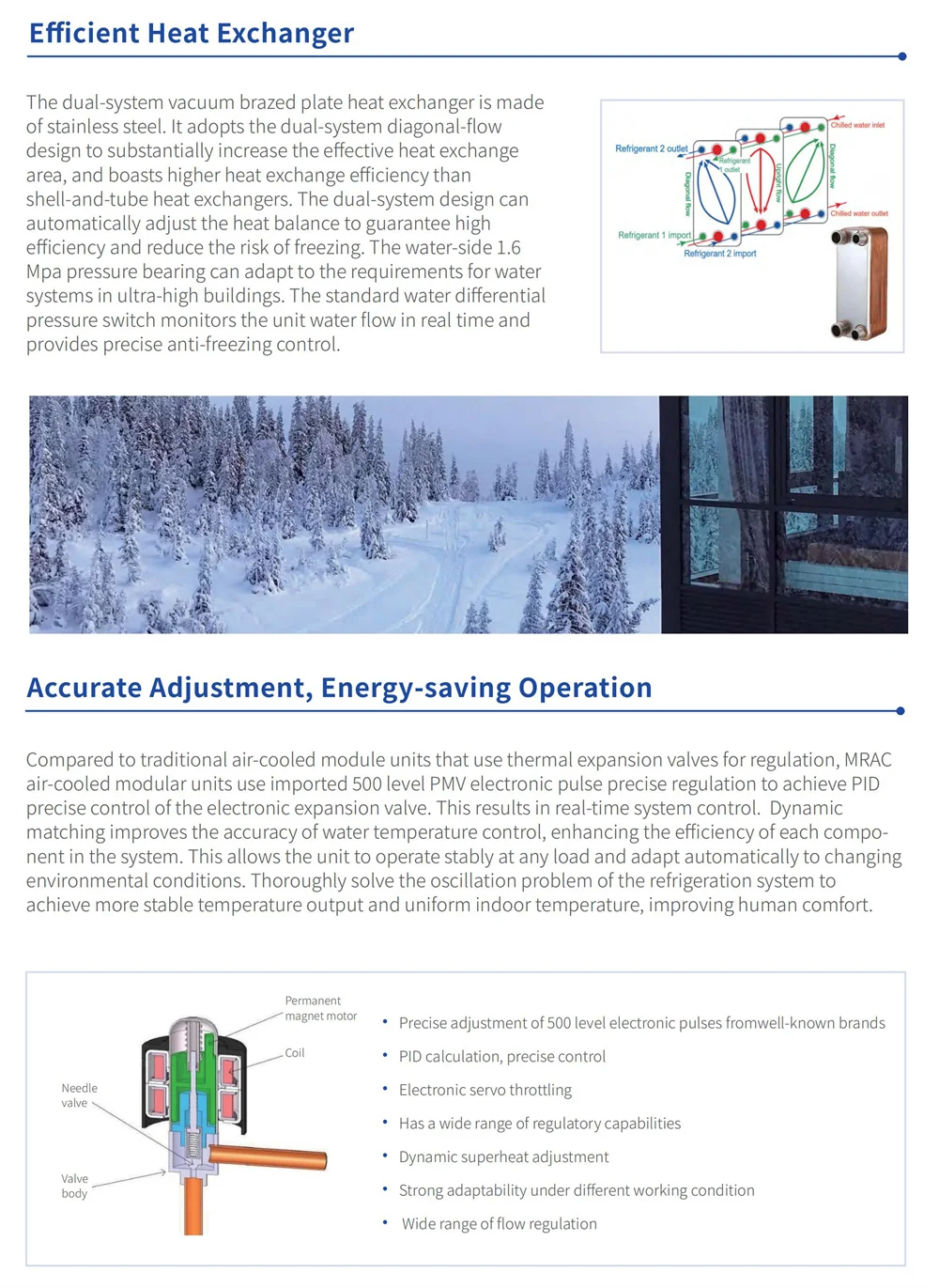

Efficient Heat Exchanger
Efficient Heat Exchanger The dual-system vacuum brazed plate heat exchanger is made of stainless steel. It adopts the dual-system diagonal-flow design to substantially increase the effective heat exchange area, and boasts higher heat exchange efficiency than shell-and-tube heat exchangers. The dual-system design can automatically adjust the heat balance to guarantee high efficiency and reduce the risk of freezing. The water-side 1.6 Mpa pressure bearing can adapt to the requirements for water systems in ultra-high buildings. The standard water differential pressure switch monitors the unit water flow in real time and provides precise anti-freezing control. Accurate Adjustment, Energy-saving Operation Intelligent Defrosting Technology Compared to traditional air-cooled module units that use thermal expansion valves for regulation, MRAC air-cooled modular units use imported 500 level PMV electronic pulse precise regulation to achieve PID precise control of the electronic expansion valve. This results in real-time system control. Dynamic matching improves the accuracy of water temperature control, enhancing the efficiency of each component in the system. This allows the unit to operate stably at any load and adapt automatically to changing environmental conditions. Thoroughly solve the oscillation problem of the refrigeration system to achieve more stable temperature output and uniform indoor temperature, improving human comfort.

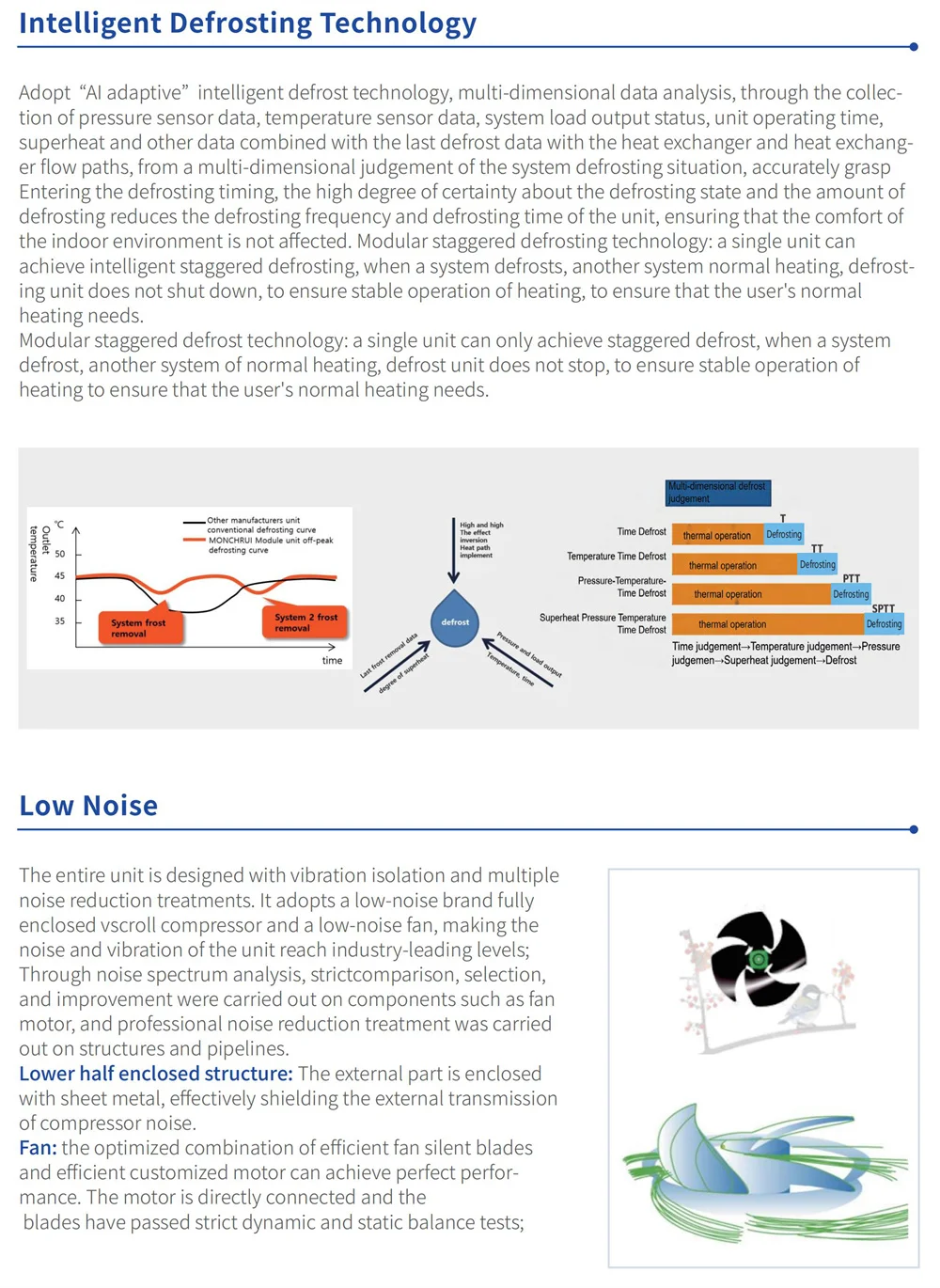

Intelligent Defrosting Technology
Adopt “AI adaptive” intelligent defrost technology, multi-dimensional data analysis, through the collection of pressure sensor data, temperature sensor data, system load output status, unit operating time, -superheat and other data combined with the last defrost data with the heat exchanger and heat exchanger flow paths, from a multi-dimensional judgement of the system defrosting situation, accurately grasp -Entering the defrosting timing, the high degree of certainty about the defrosting state and the amount of defrosting reduces the defrosting frequency and defrosting time of the unit, ensuring that the comfort of the indoor environment is not affected. Modular staggered defrosting technology: a single unit can achieve intelligent staggered defrosting, when a system defrosts, another system normal heating, defrosting unit does not shut down, to ensure stable operation of heating, to ensure that the user's normal heating needs. Modular staggered defrost technology: a single unit can only achieve staggered defrost, when a system defrost, another system of normal heating, defrost unit does not stop, to ensure stable operation of heating to ensure that the user's normal heating needs. Low Noise The entire unit is designed with vibration isolation and multiple noise reduction treatments. It adopts a low-noise brand fully enclosed scroll compressor and a low noise fan, making the noise and vibration of the unit reach industry-leading levels; Through noise spectrum analysis, strict comparison, selection, and improvement were carried out on components such as fan motor, and professional noise reduction treatment was carried out on structures and pipelines. Lower half enclosed structure: The external part is enclosed with sheet metal, effectively shielding the external transmission of compressor noise. Fan: the optimized combination of efficient fan silent blades and efficient customized motor can achieve perfect performance. The motor is directly connected and the blades have passed strict dynamic and static balance tests;

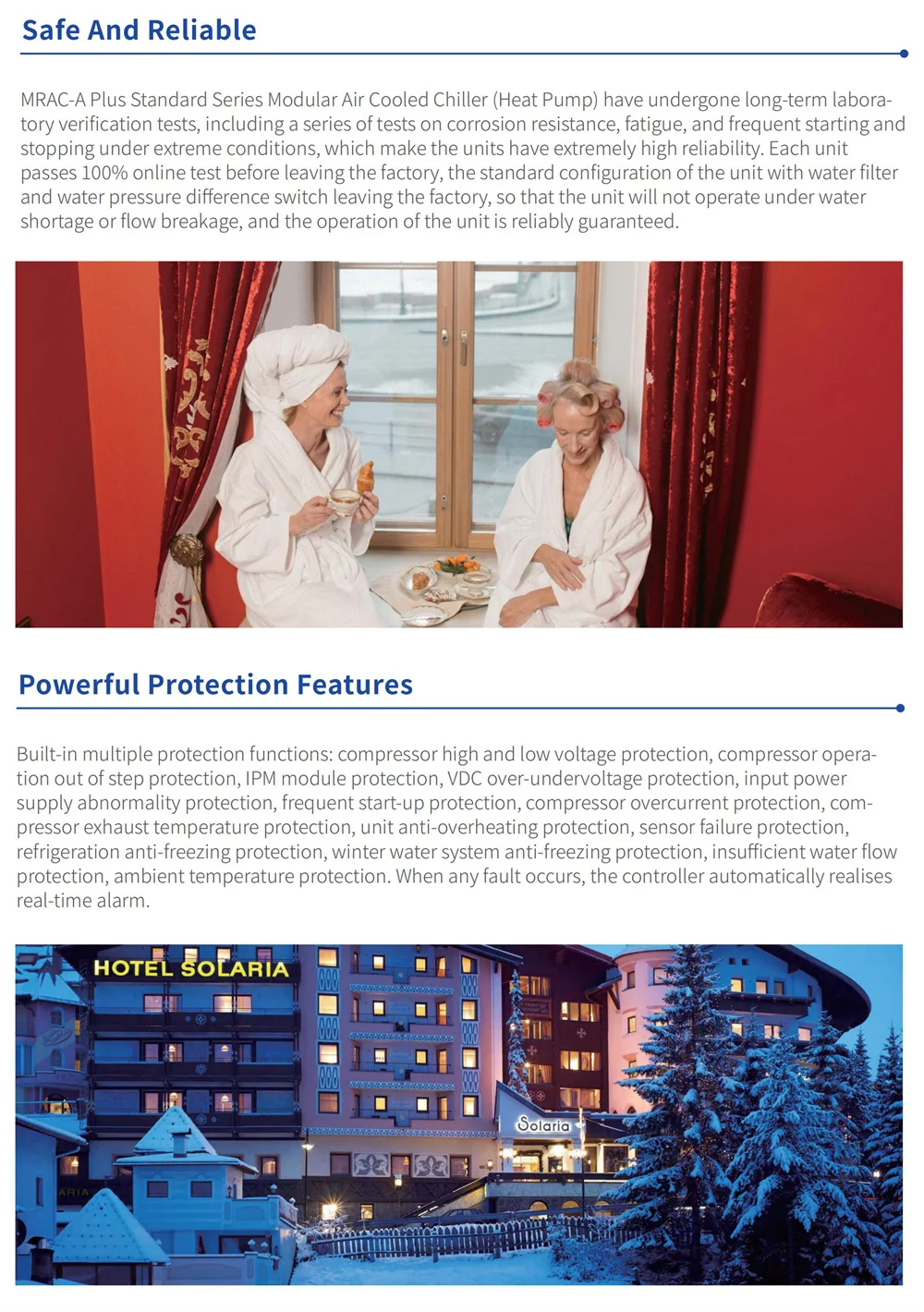

Safe And Reliable
MRAC-A Plus Standard Series Modular Air Cooled Chiller (Heat Pump) have undergone long-term laboratory verification tests, including a series of tests on corrosion resistance, fatigue, and frequent starting and stopping under extreme conditions, which make the units have extremely high reliability. Each unit passes 100% online test before leaving the factory, the standard configuration of the unit with water filter and water pressure difference switch leaving the factory, so that the unit will not operate under water shortage or flow breakage, and the operation of the unit is reliably guaranteed. Powerful Protection Features Built-in multiple protection functions: compressor high and low voltage protection, compressor operation out of step protection, IPM module protection, VDC over undervoltage protection, input power supply abnormality protection, frequent start-up protection, compressor overcurrent protection, compressor exhaust temperature protection, unit anti-overheating protection, sensor failure protection, refrigeration anti-freezing protection, winter water system anti-freezing protection, insufficient water flow protection, ambient temperature protection. When any fault occurs, the controller automatically realises real-time alarm.

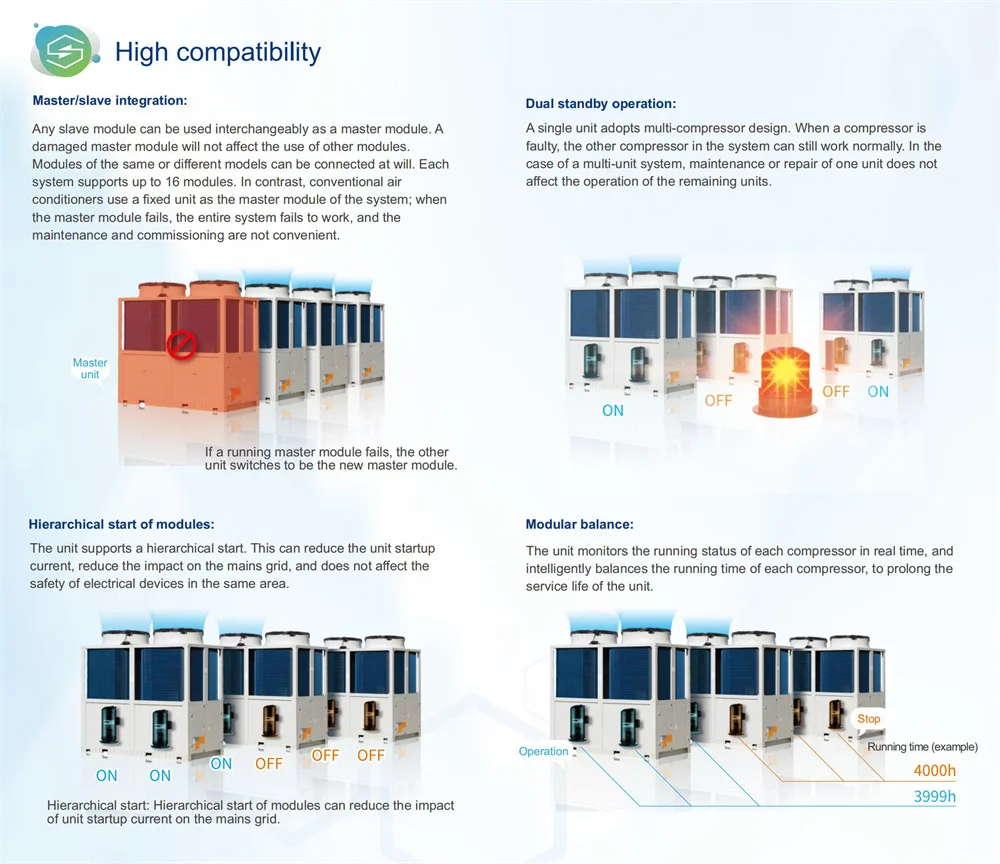

High compatibility
Master/slave integration: Any slave module can be used interchangeably as a master module. A damaged master module will not affect the use of other modules. Modules of the same or different models can be connected at will. Each system supports up to 16 modules. In contrast, conventional air conditioners use a fixed unit as the master module of the system; when the master module fails, the entire system fails to work, and the maintenance and commissioning are not convenient. Dual standby operation: A single unit adopts multi-compressor design. When a compressor is faulty, the other compressor in the system can still work normally. In the case of a multi-unit system, maintenance or repair of one unit does not affect the operation of the remaining units Hierarchical start of modules: The unit supports a hierarchical start. This can reduce the unit startup current, reduce the impact on the mains grid, and does not affect the safety of electrical devices in the same area. Modular balance: The unit monitors the running status of each compressor in real time, and intelligently balances the running time of each compressor, to prolong the service life of the unit.

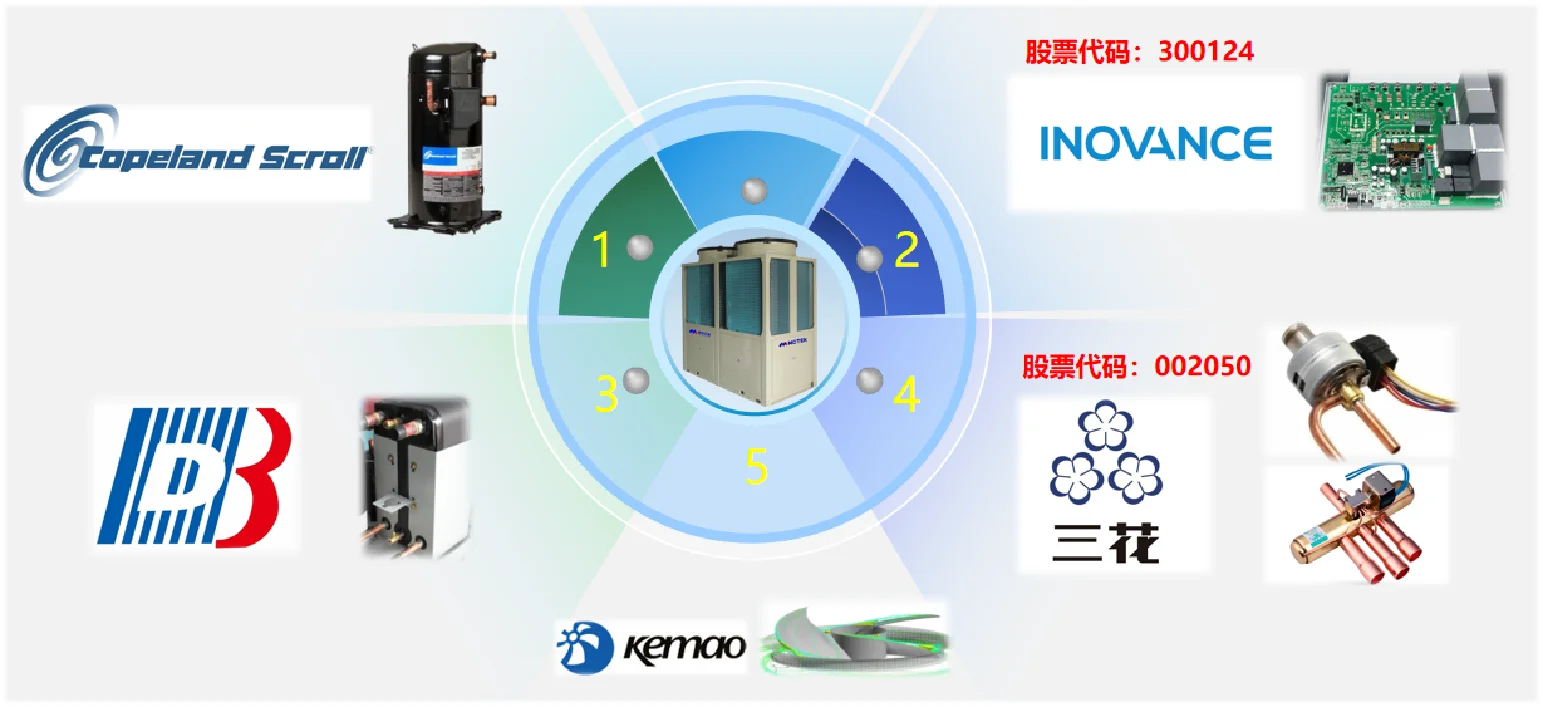

Top-level components, cost-effective

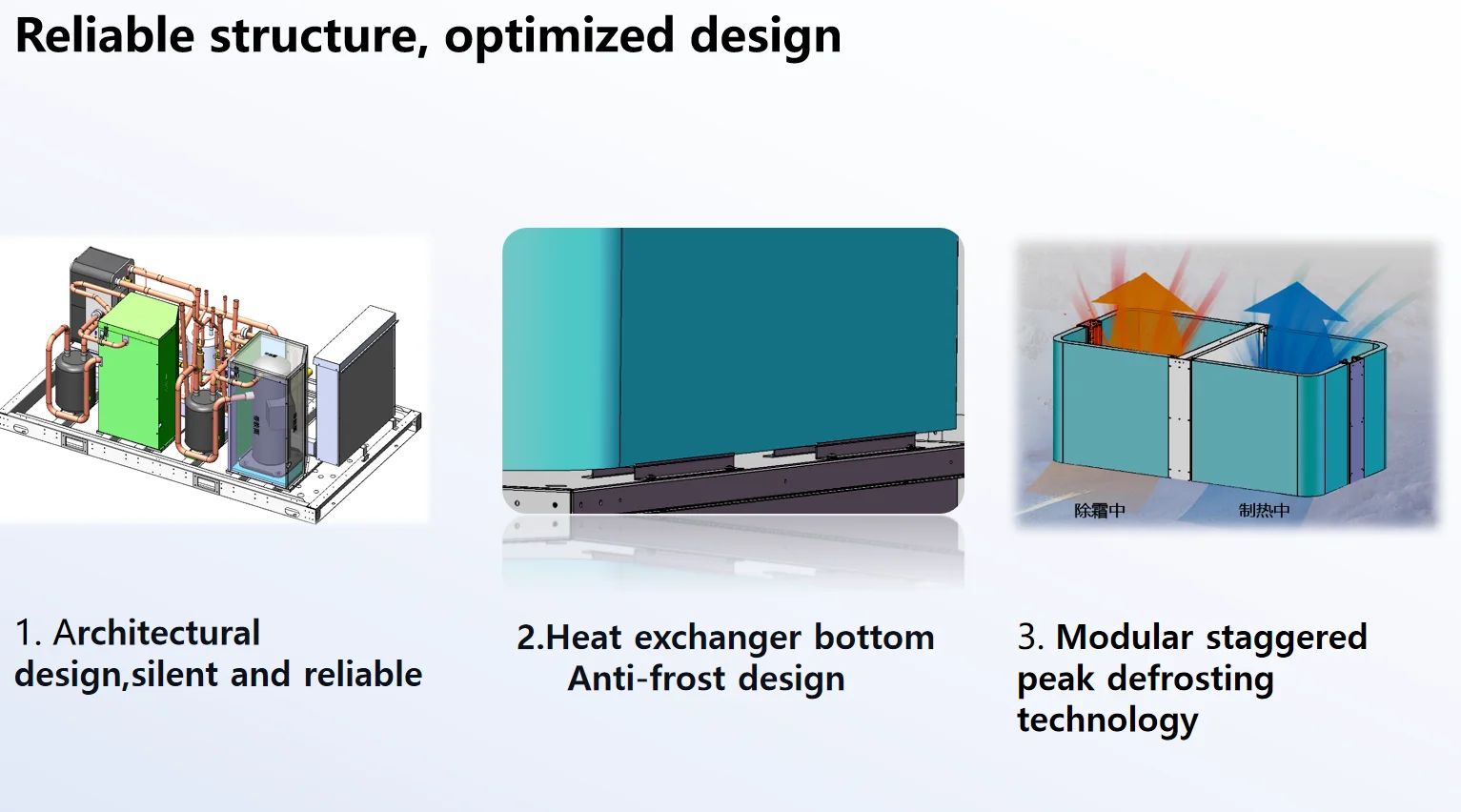

Reliable structure, optimized design
1.Architectural design,silent and reliable, 2Heat exchanger bottom Anti-frost design, 3 Modular staggered peak defrosting technology

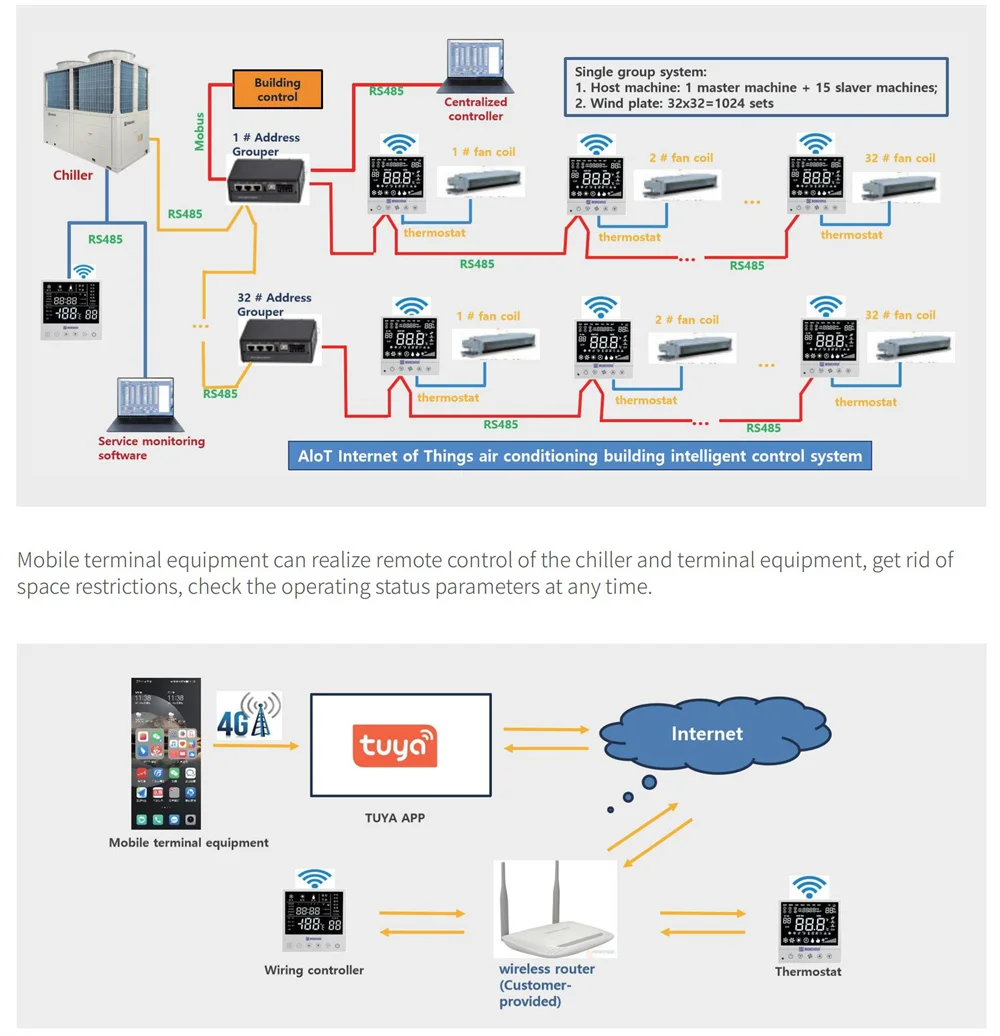

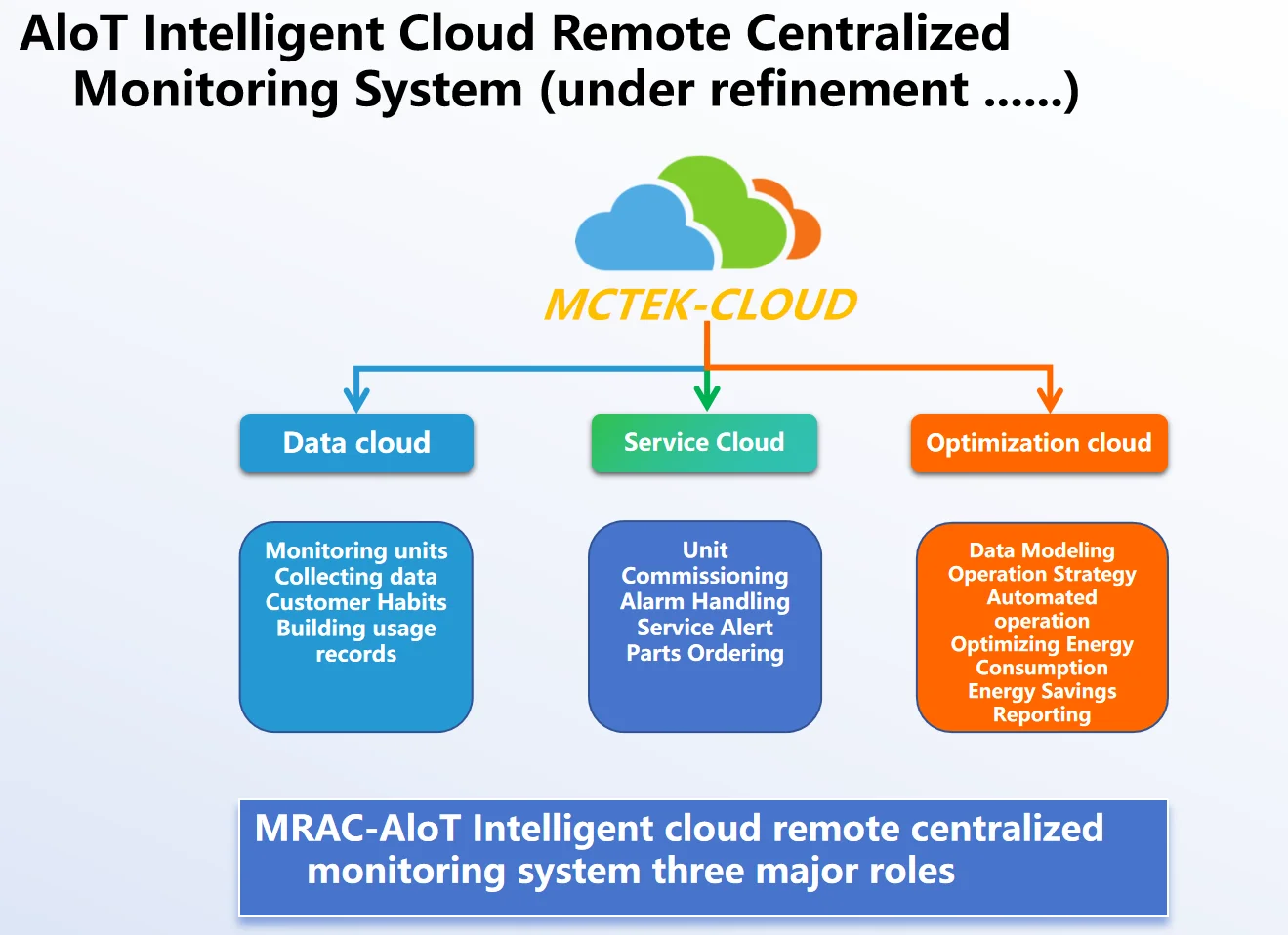

AloT Intelligent Cloud Remote Centralized Monitoring System (under refinement ……)
MRAC-AloT Intelligent cloud remote centralized monitoring system three major roles
AIoT Air Conditioner Intelligent Control Technology
The unit adopts the “IoT + AI Intelligence" technology and choose a remote service system through protocol to monitor the operation status of the unit in real-time. It can also be connected through WIFI to intelligently monitor the unit. The wiring controller of the unit independently controls 16 master and slaver unit. The outdoor unit can network with up to 32 packet addresses, and each packet controller can control up to 32 pcs fan coils. The entire network can implement intelligent control of up to 32×32=1024 pcs fan coils. Each grouping device can be equipped with a VIP thermostat (VIP has the function of setting the outdoor unit operating mode). The thermostat can achieve automatic address registration function for terminal units within the entire network, greatly facilitating installation and maintenance work. Mobile terminal equipment can realize remote control of the chiller and terminal equipment, get rid of space restrictions, check the operating status parameters at any time.

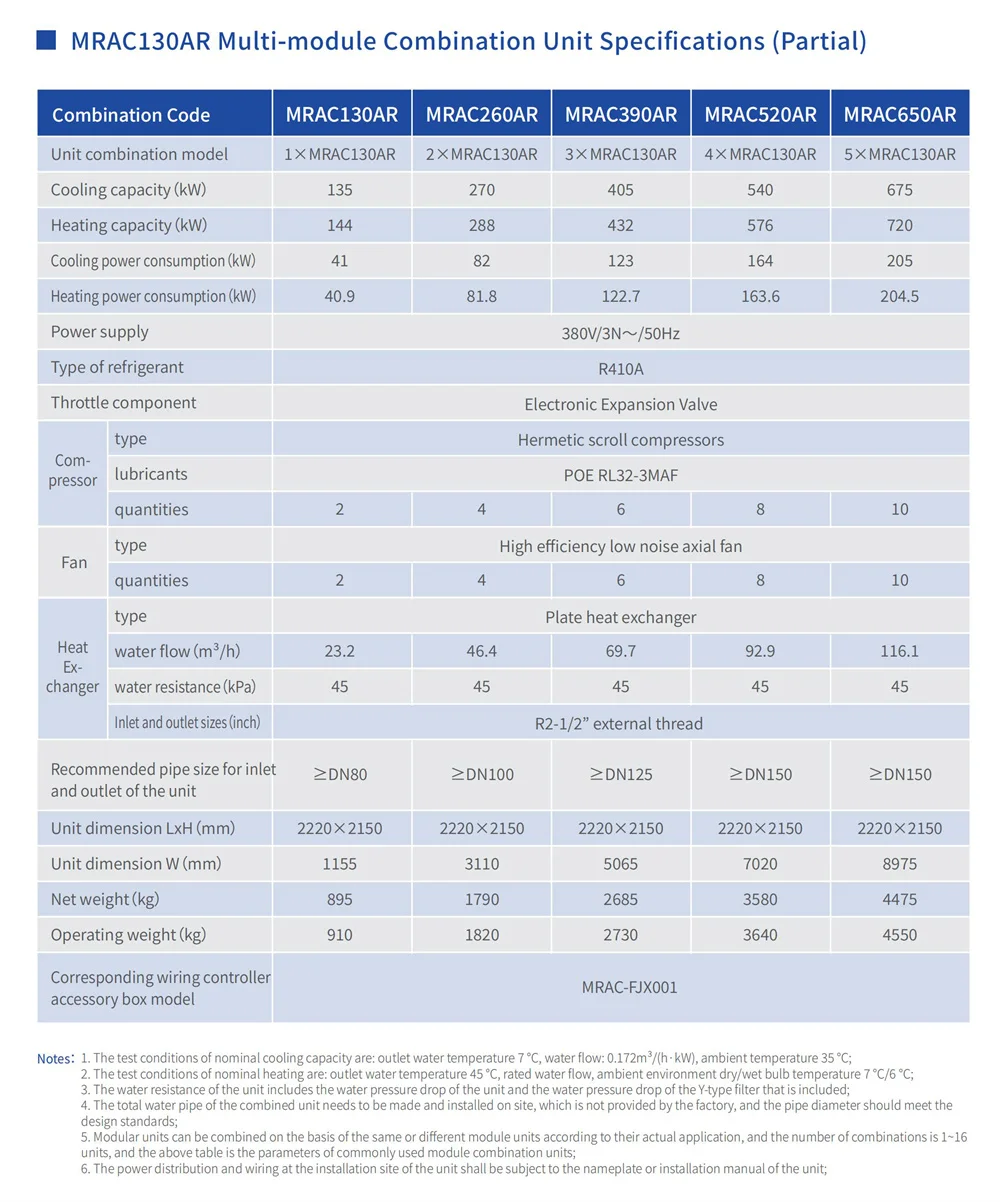

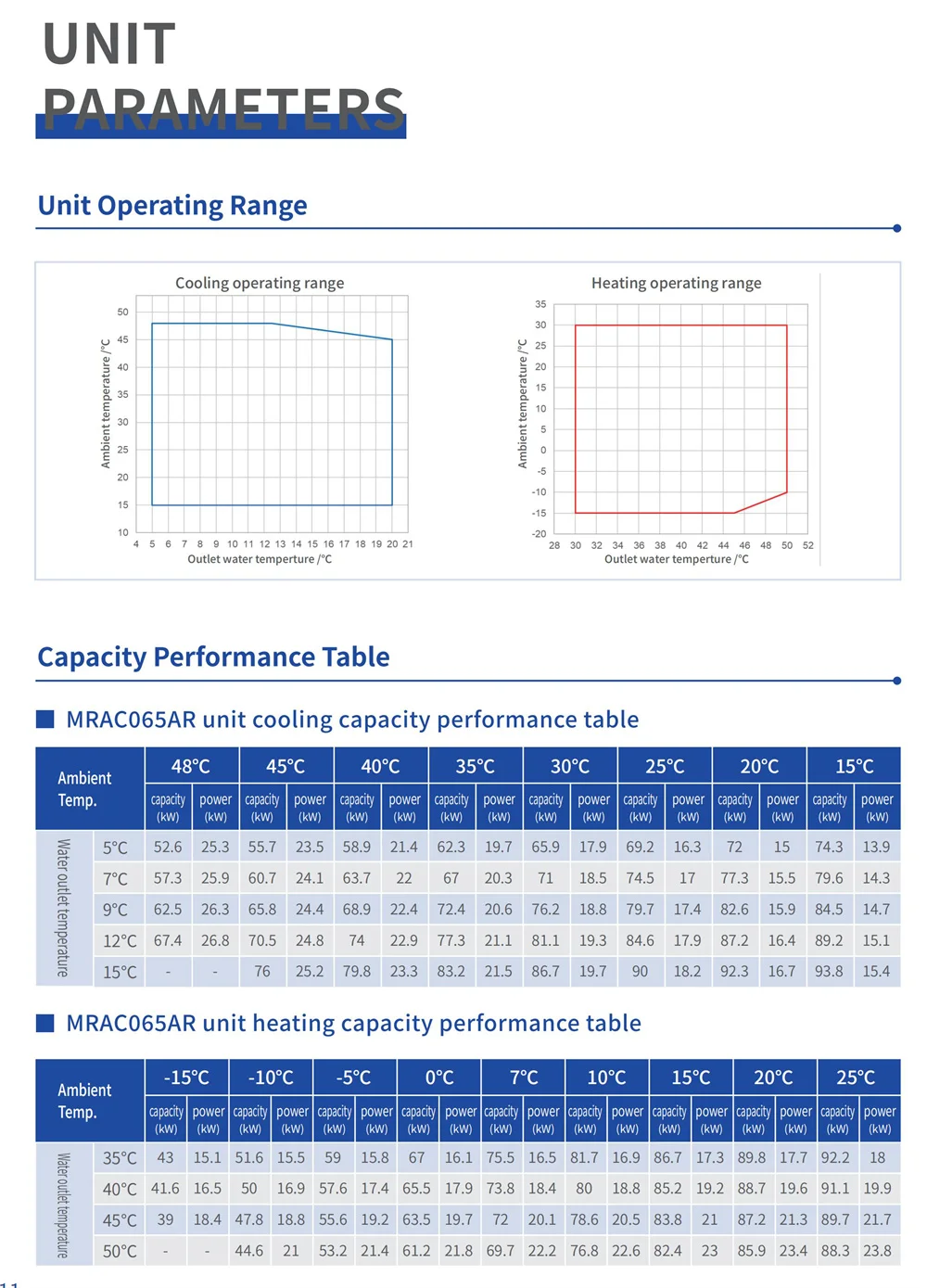

Product Specifications
Remark
1. The test conditions of nominal cooling capacity are: outlet water temperature 7 °C, water flow: 0.172m³/(h·kW), ambient temperature 35 °C; 2. The test conditions of nominal heating are: outlet water temperature 45 °C, rated water flow, ambient environment dry/wet bulb temperature 7°C/6 °C; 3. The total water pipe of the combined unit needs to be made and installed on site, 4. which is not provided by the factory, and the pipe diameter should meet the design standards; 5. Modular units can be combined on the basis of the same or different module units according to their actual application, and the number of combinations is 1~16 units, and the above table is the parameters of commonly used module combination units; 6. The power distribution and wiring at the installation site of the unit shall be subject to the nameplate or installation manual of the unit;
Recommend Products

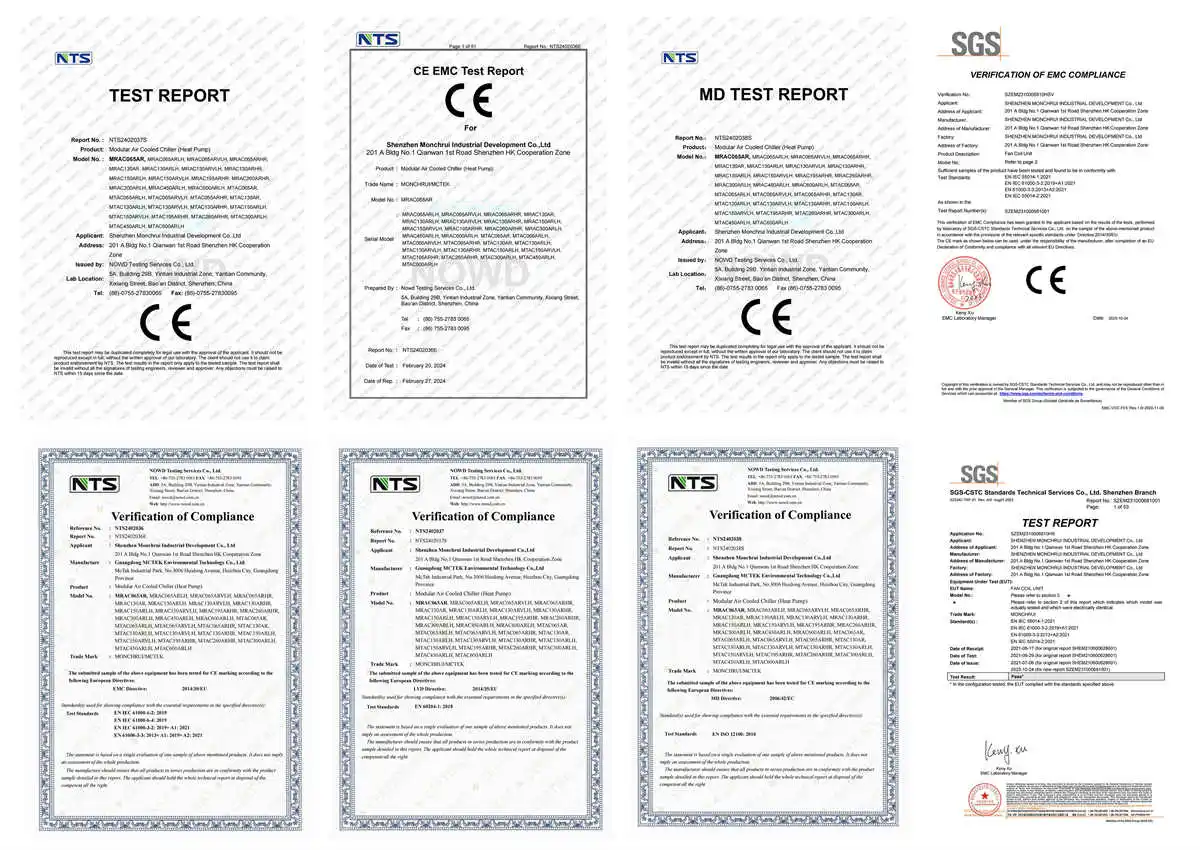

Certifications

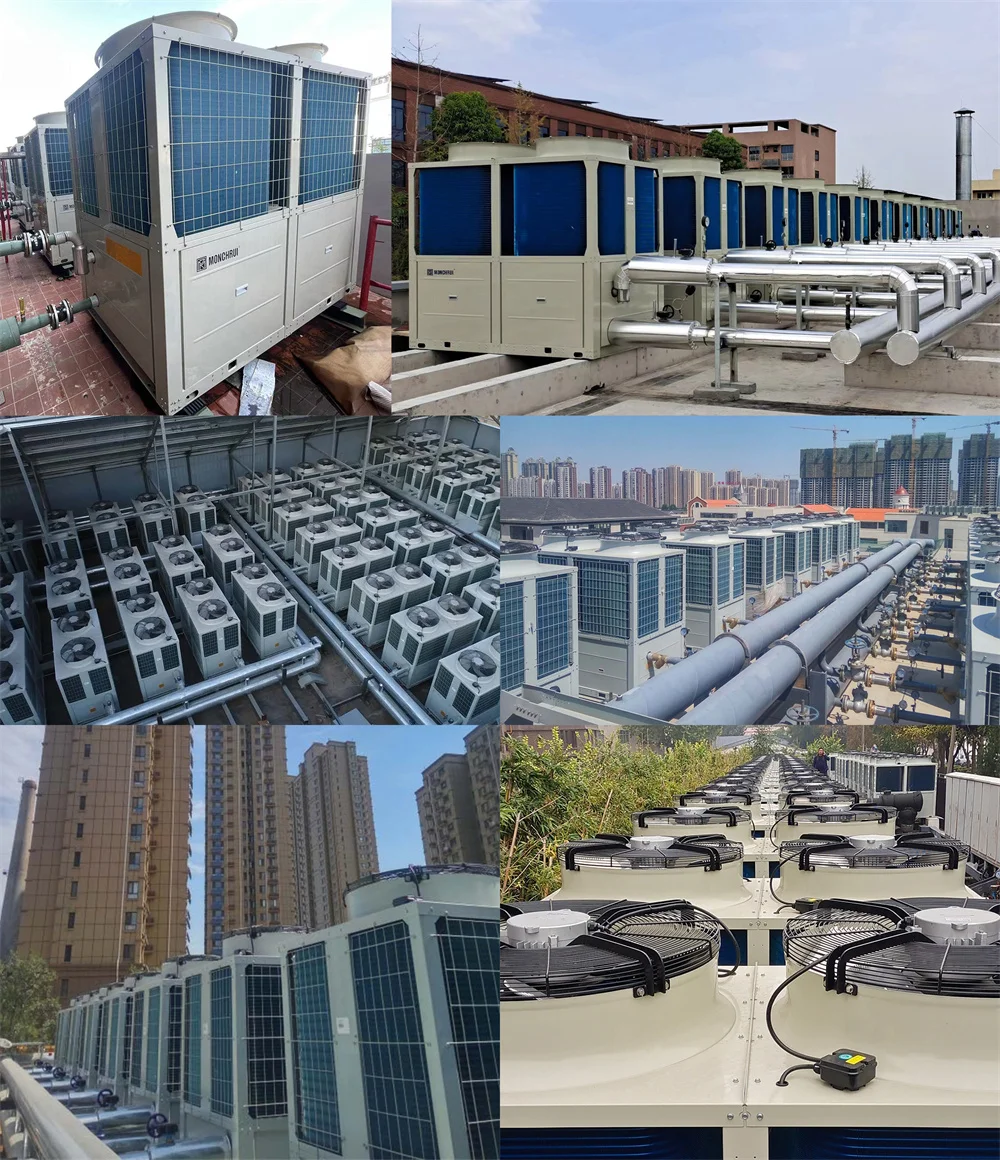

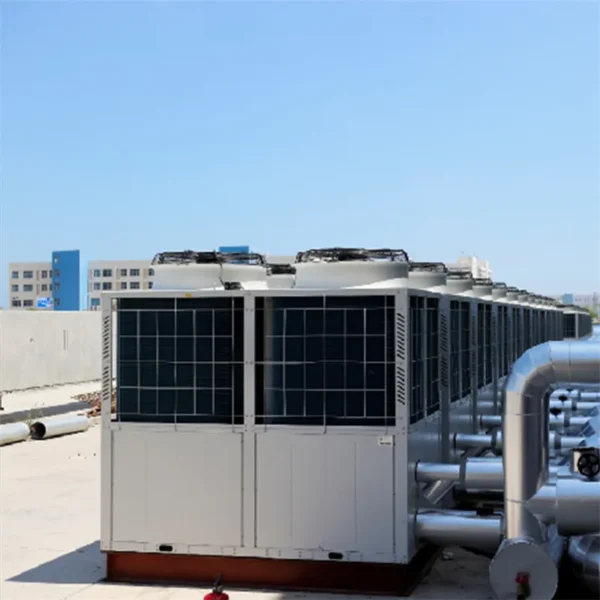

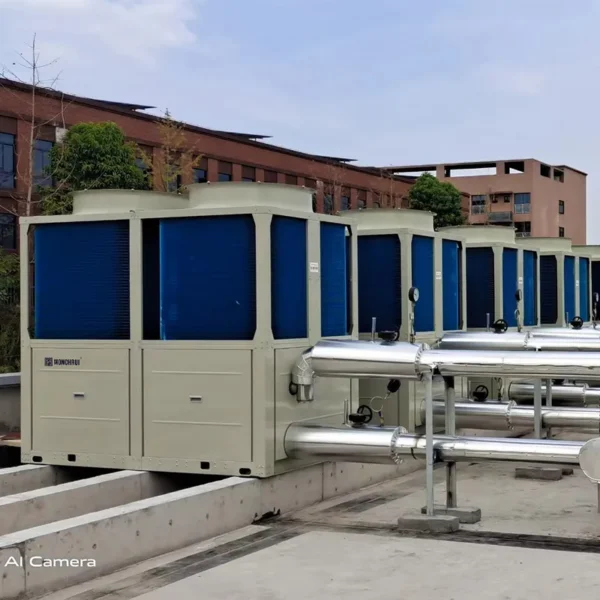

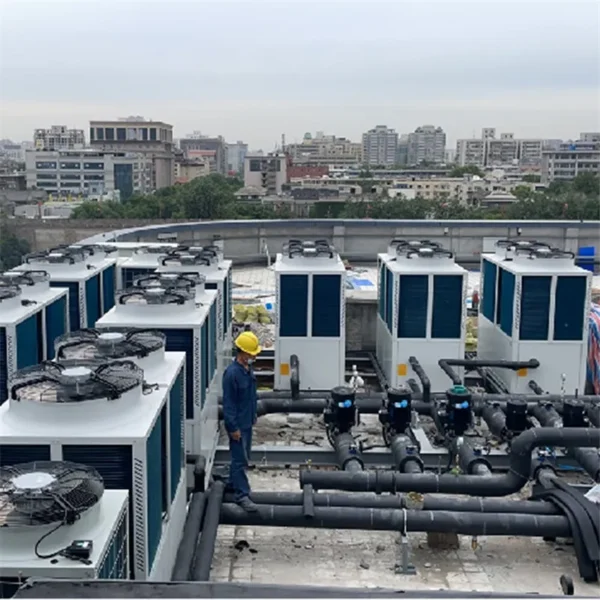

Project case
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $12033 / piece
- 10–19 piece: US $11922 / piece
- 20+ piece: US $11796 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this efficient scroll water chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the efficient scroll water chiller be supplied for my local voltage?
The standard configuration is 380V/3N~/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
