Key specification for this fan: voltage 220/380, 1100w. Everything below is reproduced from the factory data sheet. Made by Qingzhou Boost Temperature Control Equipment Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan
- Model Number: BST-1380
- Power: 1100w
- Voltage: 220/380
- Material: Galvanized sheet/Stainless steel
- Blade Material: Stainless steel
- Rotated Speed: 1400rpm
Technical Specifications
| Condition | New |
|---|---|
| Warranty | 1 Year |
| Model Number | BST-1380 |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 68 |
| Brand Name | BOOST |
| Product Name | 48" 50" 51" 54" 56" 57" fan poultry fan/greenhouse fan/chicken fan |
| Application | Greenhouse/Livestock Farm/Poulty farm |
| Material | Galvanized sheet/Stainless steel |
| Voltage | 220/380 |
| Power | 1100w |
| Certification | CE/ISO9001/CCC |
| Blade Diameter | 1270mm |
| Blade Material | Stainless steel |
| Rotated Speed | 1400rpm |
| Air Volume | 44000m3/h |
| Showroom Location | None |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2020 |
| Warranty Of Core Components | 1 Year |
| Applicable Industries | Farms, Food & Beverage Shops, Printing Shops, Food & Beverage Factory, Machinery Repair Shops, Manufacturing Plant, Hotels, Energy & Mining, Garment Shops, Home Use, Food Shop, Advertising Company, Retail, Building Material Shops, Restaurant, Construction works |
| Core Components | ALL |
| Selling Units | Single item |
| Single Package Size | 50X50X40 cm |
| Single Gross Weight | 20.000 kg |
Product Details

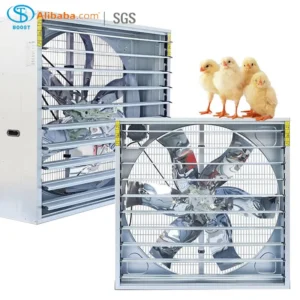

Products Description of Poultry Greenhouse Fan
Heavy duty Wall mounted 24" 36" 48" 50" 51" 54" 56" 57" fan poultry fan/greenhouse fan/chicken house fan exhaust fan
BOOST Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Model | Drive | Blades Diameter(mm) | Dimension (mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed (rpm) | Air flow (m³/hr) | Input power (KW) | Noise (db) |
BST480 | Diect | 380 | 480*480 | 1400 | 1400 | 3000 | 0.18 | ＜70 |
BST600 | Direct | 500 (20inch) | 600*600 | 1400 | 1400 | 5700 | 0.37 | ＜70 |
BST800 | Belt | 710 (28inch) | 800*800 | 660 | 1400 | 18000 | 0.37 | ＜65 |
BST900 | Belt | 750 (30inch) | 900*900 | 630 | 1400 | 22000 | 0.55 | ＜65 |
BST1000 | Belt | 900 (36inch) | 1000*1000 | 610 | 1400 | 25000 | 0.75 | ＜65 |
BST1100 | Belt | 1000 (40inch) | 1100*1100 | 600 | 1400 | 32500 | 0.75 | ＜65 |
BST1220 | Belt | 1100 (44inch) | 1220*1220 | 460 | 1400 | 38000 | 0.75 | ＜64 |
BST1380 | Belt | 1270 (50inch) | 1380*1380 | 458 | 1400 | 44000 | 1.1 | ＜64 |
BST1530 | Belt | 1400 (56inch) | 1530*1530 | 325 | 1400 | 55800 | 1.5 | ＜64 |
Motor
Brand: Chinese motor and Siemens motor Certificate: CCC Protection class: IP55 grade
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Heavy duty Wall mounted 24" 36" 48" 50" 51" 54" 56" 57" fan poultry fan/greenhouse fan/chicken house fan exhaust fan
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Heavy duty Wall mounted 24" 36" 48" 50" 51" 54" 56" 57" fan poultry fan/greenhouse fan/chicken house fan exhaust fan

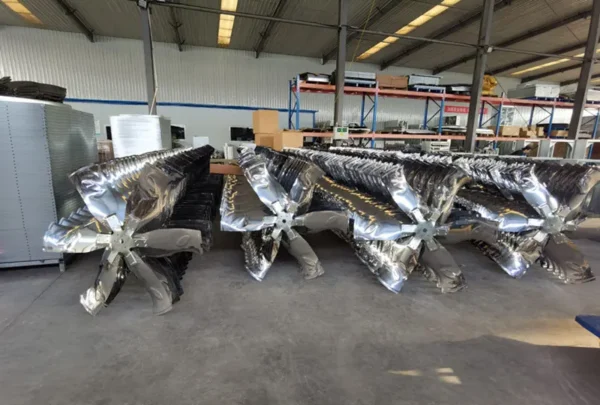

Fan blade which punching formed
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Heavy duty Wall mounted 24" 36" 48" 50" 51" 54" 56" 57" fan poultry fan/greenhouse fan/chicken house fan exhaust fan
Italligent Dynamic-Fan balance Test
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Wall mounted industrial Agricultural Poultry axial exhaust fan greenhouse ventilation fans for Poultry House ,Pig house
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Wall mounted industrial Agricultural Poultry axial exhaust fan greenhouse ventilation fans for Poultry House ,Pig house
Heavy duty Wall mounted 24" 36" 48" 50" 51" 54" 56" 57" fan poultry fan/greenhouse fan/chicken house fan exhaust fan
Frame 275g Thicken galvanized sheet
We has advanced production technology with automatic equipment. professional production line, NC-based professionalequipment.Auto
punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.
punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.
Opening system-Centrifugal System
Made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased
strength. No broken . Long service life.The angle of blade hub is designed after double tested which can be fix with blade exactly.
Shutters open/close automatically
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Belt pulley
Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to
reinforcing rib to increased strength. No broken . Long service life.
reinforcing rib to increased strength. No broken . Long service life.
Heavy duty Wall mounted 24" 36" 48" 50" 51" 54" 56" 57" fan poultry fan/greenhouse fan/chicken house fan exhaust fan
Belt
We have Sanlux belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3times than Type A
Modified B type belt,so that service life increase 3times than Type A
Heavy duty Wall mounted 24" 36" 48" 50" 51" 54" 56" 57" fan poultry fan/greenhouse fan/chicken house fan exhaust fan
Fan safe net
Fan protection mesh guard is made by hot-dip galvanized wire with electrostafic plastic spraying.It's no easy to get
rusty.Attractive and durable.
rusty.Attractive and durable.
Heavy duty Wall mounted 24" 36" 48" 50" 51" 54" 56" 57" fan poultry fan/greenhouse fan/chicken house fan exhaust fan

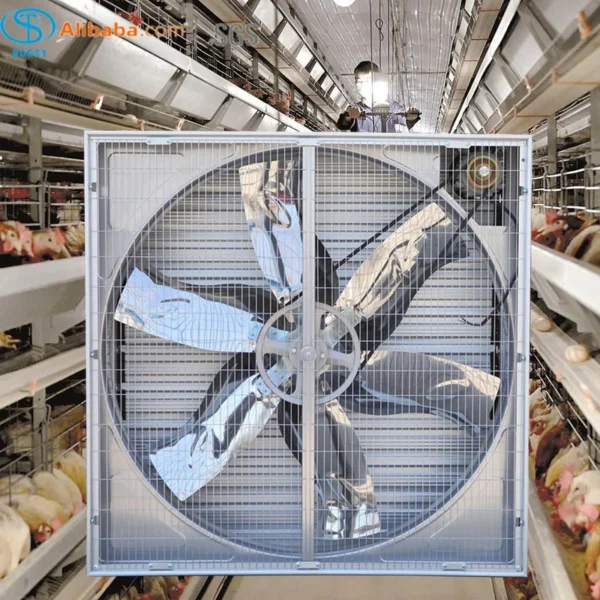

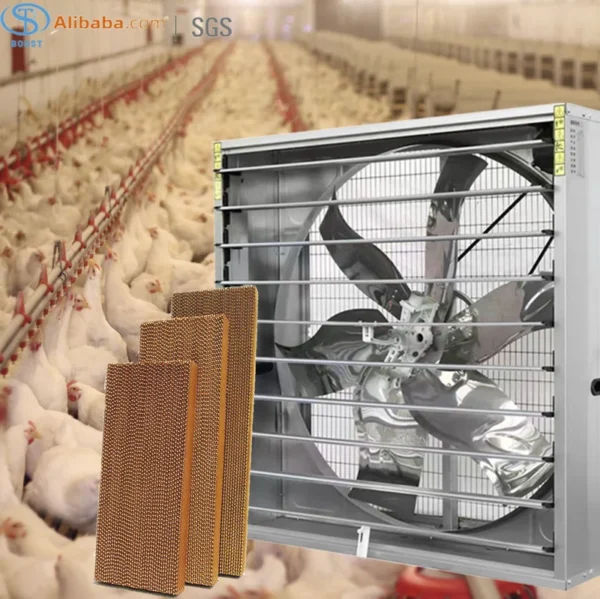

Details of Poultry Greenhouse fan
How to produce Poultry Greenhouse Exhaust fan
Shearing machine
Bending Machine
CNC Laser Cutting Machine
CNC Punching Machine
Assembling
Package
How to install Exhaust Fan
Remarks
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .
3. The Expansion screws and Self tapping screw can be used to fix .
Industrial Cooling Poultry Farm exhaust fan Warehouse Greenhouse Ventilation fan 50 inch 1400 mm heavy duty Wall mounted

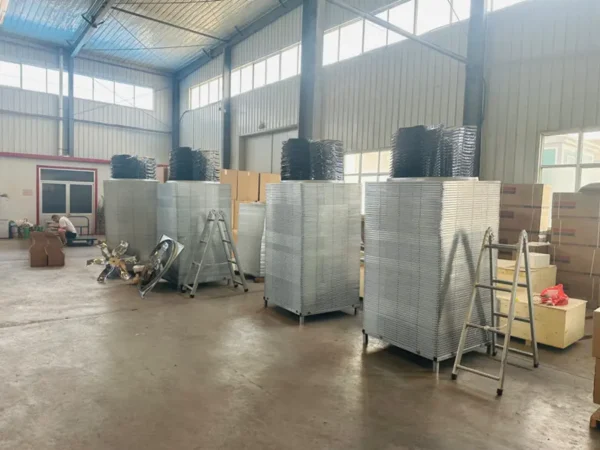

Factory&Workshop
WHY choose BOOST?
BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
Heavy duty Wall mounted 24" 36" 48" 50" 51" 54" 56" 57" fan poultry fan/greenhouse fan/chicken house fan exhaust fan
Certifications

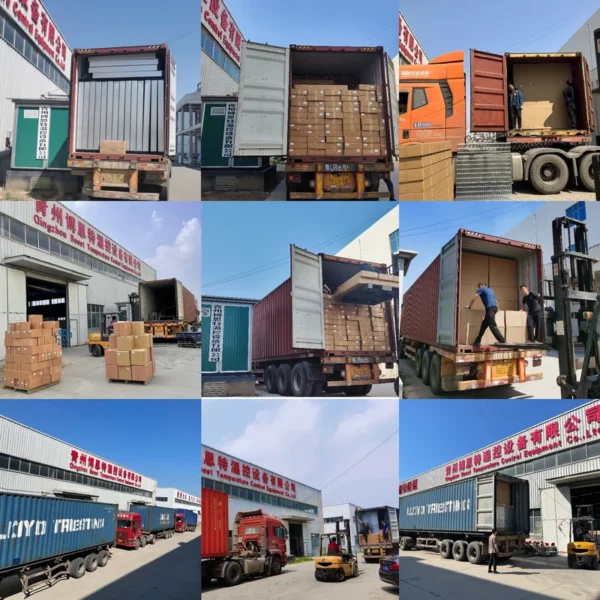

Packing&Shipping
After Sales Service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–99 set: US $100 / set
- 100+ set: US $70 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this fan carry?
It is supplied with CE/ISO9001/CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the fan be supplied for my local voltage?
The standard configuration is 220/380. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Boost Temperature Control Equipment Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Boost Temperature Control Equipment Co., Ltd. range on HVACR Nexus.
