This far infrared ceramic panel is published with the manufacturer’s full specification — voltage 220/230v, power source Electric. Made by Yancheng Xinrong Electronic Industries Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Far Infrared Ceramic Panel
- Model Number: XR-IR500
- Power Source: Electric
- Voltage: 220/230v
- Material: Ceramic
- Warranty: 1 Year
- After Warranty Service: Video technical support
Technical Specifications
| Type | Air Heater |
|---|---|
| Power Source | Electric |
| Voltage | 220/230v |
| Material | Ceramic |
| Core Components | resistance wire |
| Key Selling Points | Long Service Life |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 0.5 |
| Brand Name | XR |
| Dimension(L*W*H) | 245*60mm; 240*80mm; 120*120mm; 120*60mm |
| Working Temperature Range | -10 – 500 ℃ |
| Item | Long wave far infrared outdoor ceramic heater |
| Heating Wire | Ni-Cr or FeCrAl |
| Thermocouple | With or without |
| Working Temperature | 300C-700C |
| Color | white/black/yellow |
| Model Number | XR-IR500 |
| After Warranty Service | Video technical support |
| Certification | ISO9001 |
| Selling Units | Multiple of 10 items |
| Package Size Per Batch | 25X7X7 cm |
| Gross Weight Per Batch | 0.500 kg |
Product Details

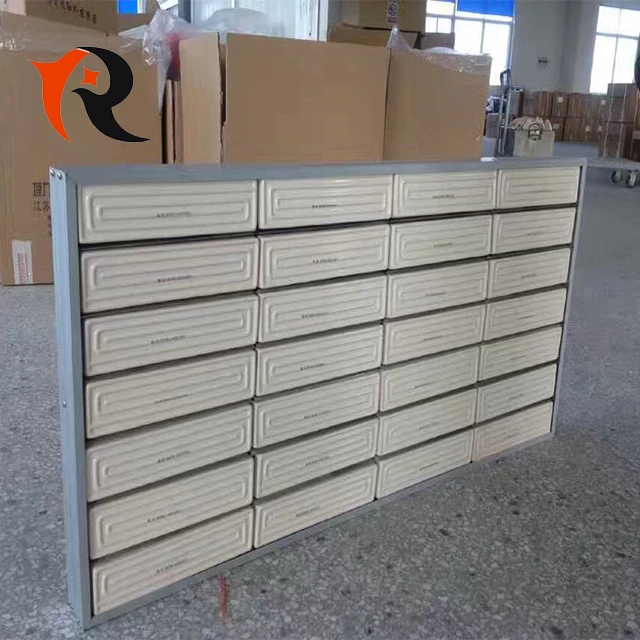

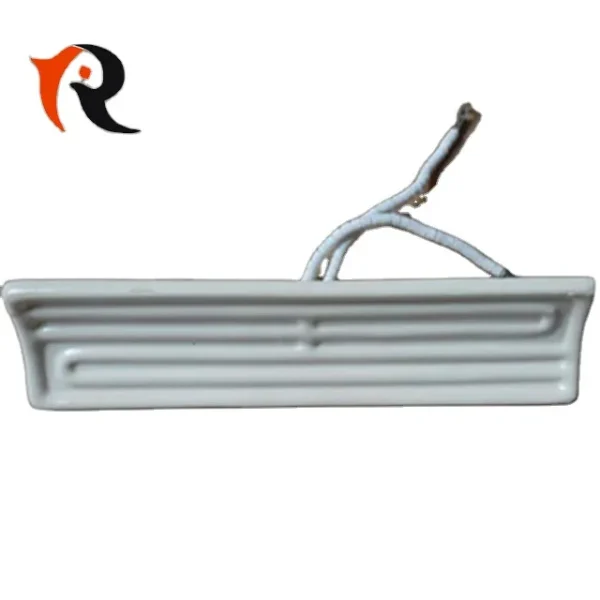

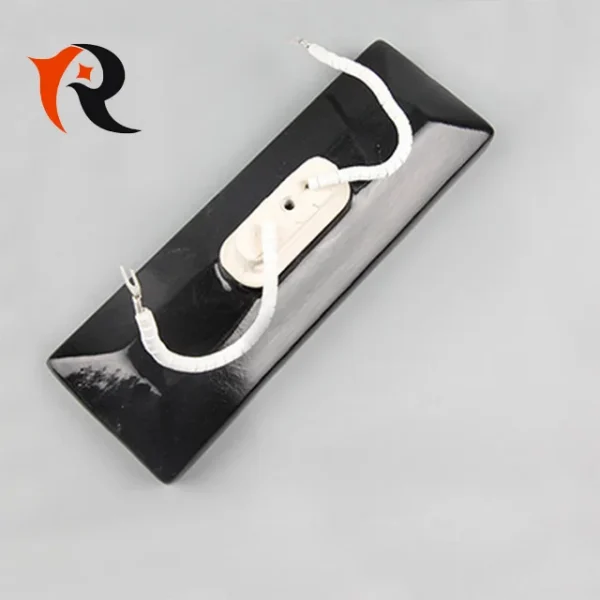

Infrared ceramic plate heater for vacuum forming machine

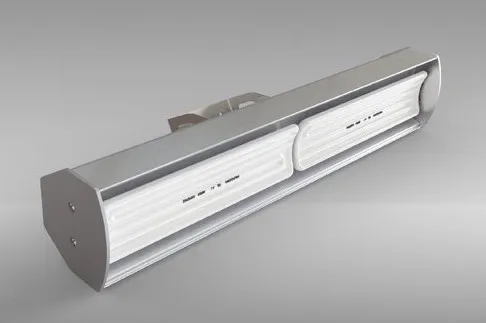

Ceramic infrared heat elements are efficient, robust heaters which provide long wave infrared radiation. The ceramic heaters and infrared heaters are used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Ceramic elements produced by Ceramicx include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.
Dimension: | 245 x 60, 240 x 80, 120 x 120, 120 x 60, 60 x 60 etc. |

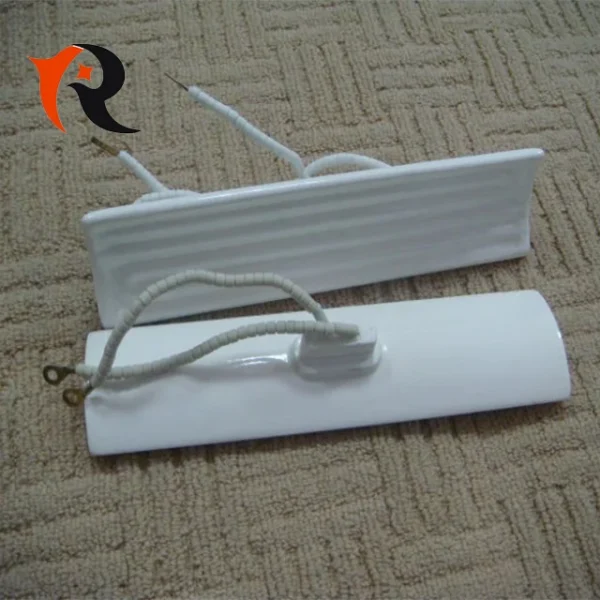

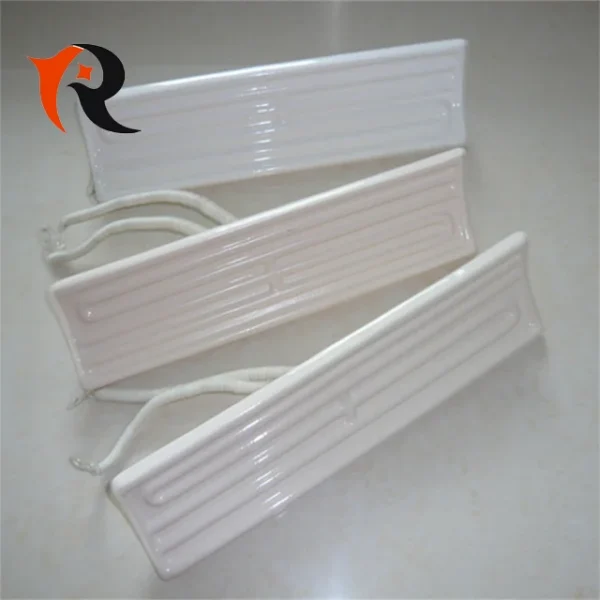

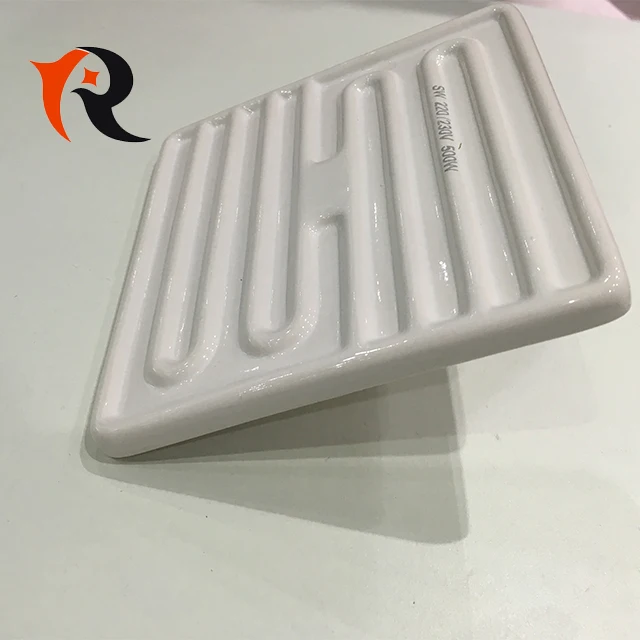

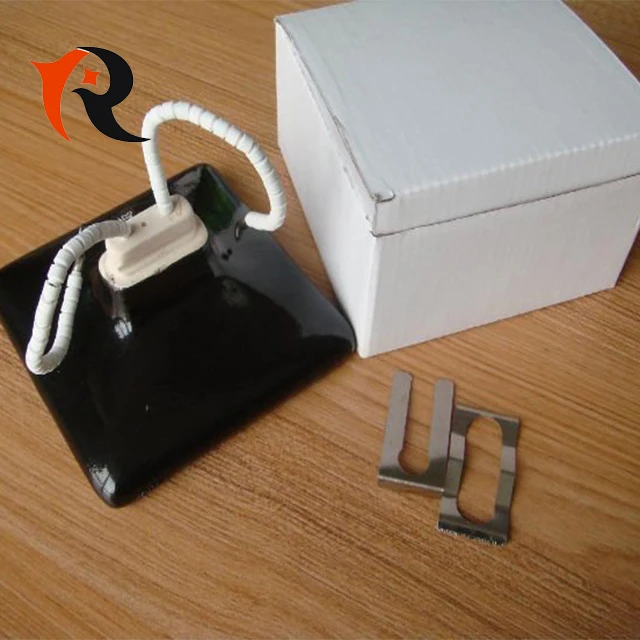

Shapes: | Trough, Hollow and Flat |
Insulation Material: | Ceramic |
Conductor Material: | Nichrome Wire |
Voltage: | 220 volts, 380 volts, 110 volts |
Wattage: | 250 watts – 1000 watts |
Lead Connection: | Ceramic Bead Lead Wire 150mm |
Thermocouple: | Optional, K or J Type |
Operating Temperature: | 300C – 700C |
Recommended Radiation Distance: | 100mm – 200mm |
Features
* Durable, splash-proof, non-corrosive finish
* Watt densities from 3 w/cm² (tolerance within +/- 2% )
* Maximum temperature output is 1292 F (700 C.)

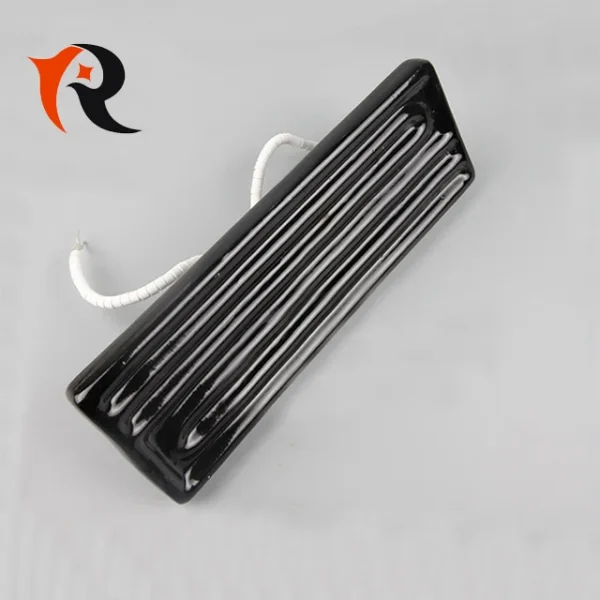

* Available color in white/ black/yellow
* Estimated life in excess of 10,000 hours
* Available With thermocouple & without thermocouple
Application
* Thermoforming
* Packaging
* Paint Curing
* Printing
* Drying
The key questions which need to be answered before selecting a infrared ceramic heater are:
1.What's the type of Heater?
2.What wattage and voltage will be used?
3.What is the diameter and heated length required?
4.What is maximum temperature and how long required to reach your temperature?
5.Drawing or Sample required for special configuration
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the products, training how to use the products
* Service will be always online.
Packaging | ||
Size | 40 (L) * 30 (W) * 30 (D) | |
Weight | 20KGS | |
Packaging Details | The normal package is carton(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will use pe film for packing or pack it according to customers special request. | |
Q2. This is the first time for me to use this kind of product. Can you provide the design scheme?
A2. We are a professional integrated solution supplier, we will provide you with our solutions and drawings for your reference.
Q3. What data do I need to provide so that you can help me design the product I need?
A3. You need to tell us the volume you need to heat, the temperature difference, the hourly wind flow rate, the heating medium,and the use environment. Then we can design the style you need for you.
Q4. How long do you usually take to make delivery?
A4. We will deliver the goods within 15 working days after confirming the drawing with you.
Q5. What kind of transportation do you usually use?
A5. We generally use sea, land and air transport, according to your needs to choose the right mode of transport for you.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $5.5 / piece
- 100–499 piece: US $5 / piece
- 500–999 piece: US $4.5 / piece
- 1000+ piece: US $4.3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this far infrared ceramic panel?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this far infrared ceramic panel carry?
It is supplied with ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the far infrared ceramic panel be supplied for my local voltage?
The standard configuration is 220/230v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yancheng Xinrong Electronic Industries Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Yancheng Xinrong Electronic Industries Co., Ltd. range on HVACR Nexus.
