Key specification for this far infrared panel: 110v,220v,380v customized, power source Electric. Everything below is reproduced from the factory data sheet. Made by Yancheng Vinson Technology Co., Ltd. (8 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Far Infrared Panel
- Power Source: Electric
- Voltage: 110v,220v,380v customized
- Material: Ceramic
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Type: Infrared Heater
Technical Specifications
| Type | Infrared Heater |
|---|---|
| Power Source | Electric |
| Voltage | 110v,220v,380v customized |
| Material | Ceramic |
| Core Components | ceramic heater |
| Key Selling Points | Easy To Operate |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Brand Name | VINSON |
| Dimension(L*W*H) | 110x140mm |
| Working Temperature Range | 30 – 800 ℃ |
| Color | Black,white, yellow,red |
| Shape | customzied |
| Thermocouple | K or J |
| Element Type | Trough / Flat / Hollow |
| Size | 60×122, 122x122mm, 60x245mm, 80x245mm or customized |
| Wattage | Customized |
| Selling Units | Single item |
| Single Package Size | 20X10X10 cm |
| Single Gross Weight | 1.000 kg |
Product Details

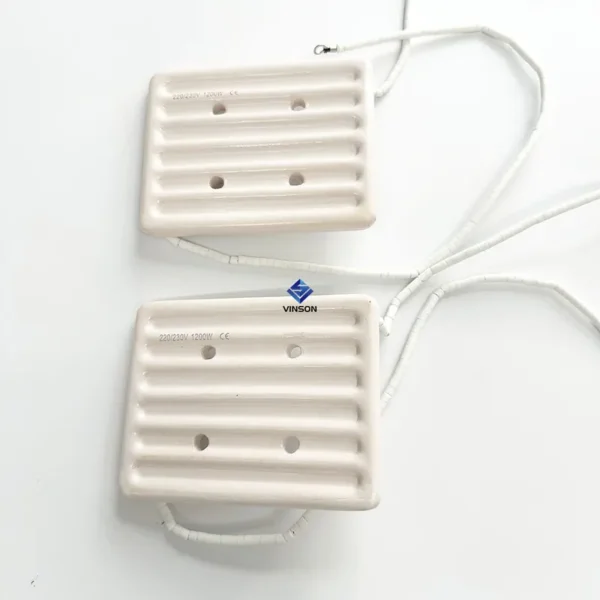

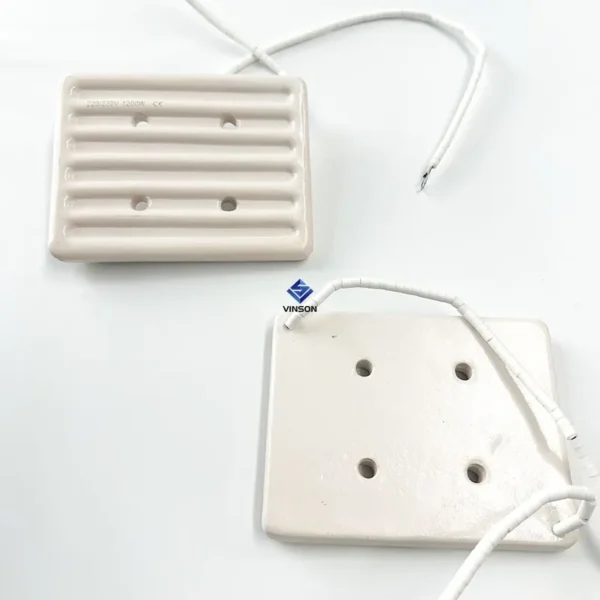

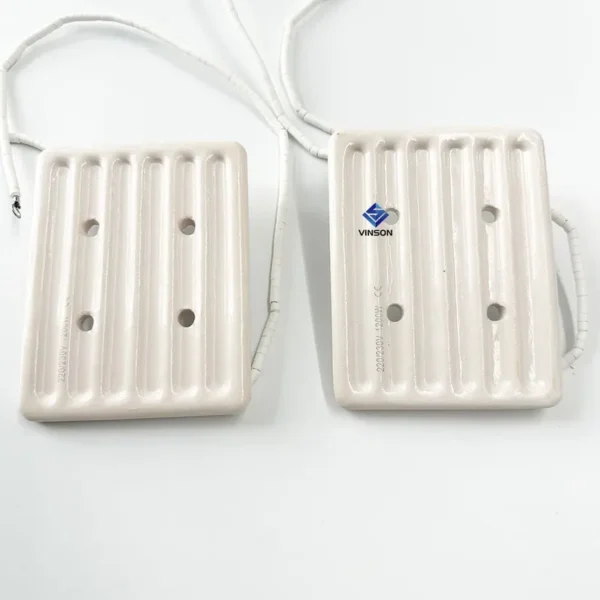

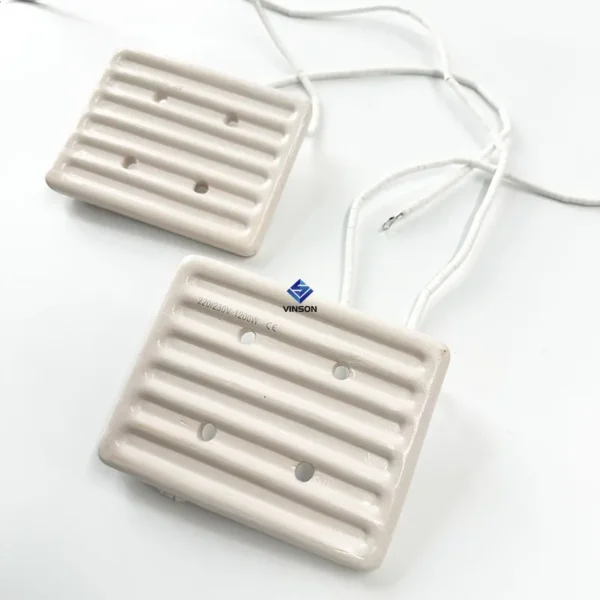

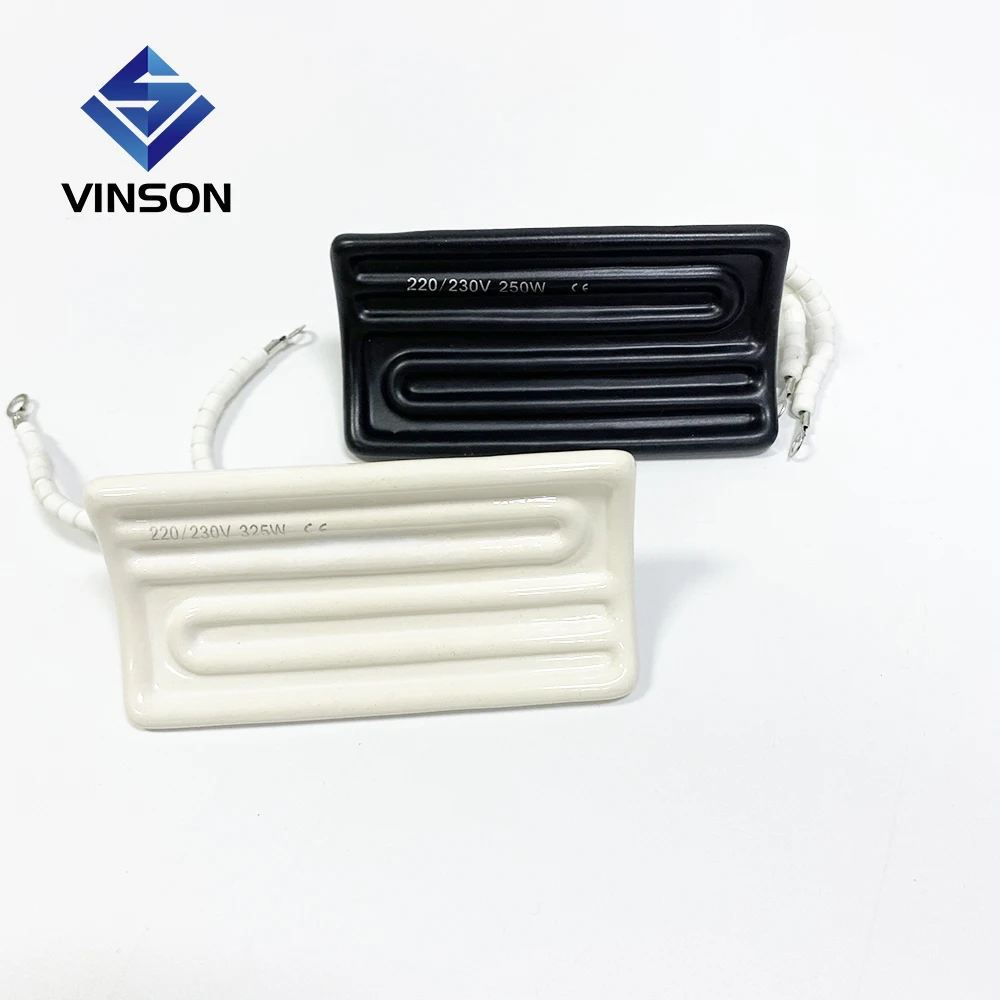

230V 380V 600W 800W 1200W far infrared panel flat ceramic heater 110*140mm industrial electric heating element
Ceramic infrared heater is made out of ceramics.
1. Radioactive properties: a maximum monochromatic radiation components reached 0.9, the normal total radiation rate is greater than 0.83.

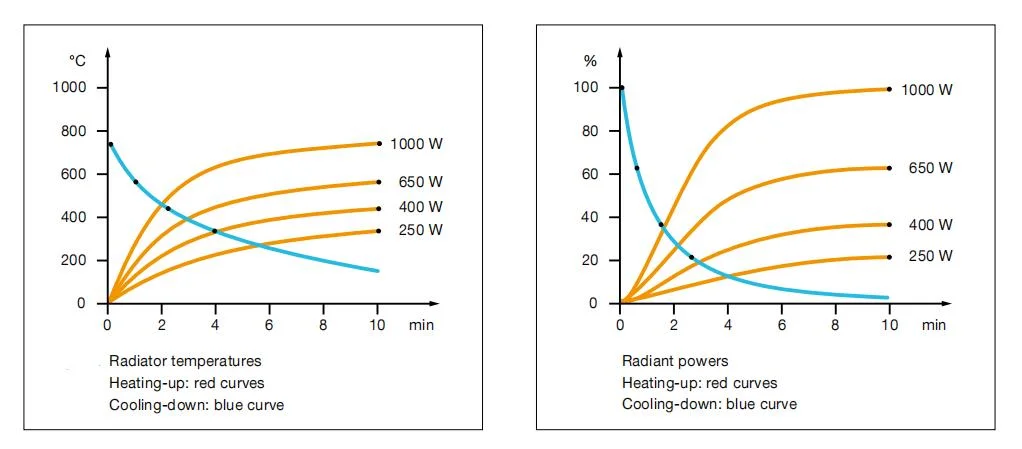

2. Thermal response time: from room normal temperature to a constant value of the radiant panel surface temperatures less than 20 minutes.
3. Degeneration of hot and cold resistance: five alternating hot and cold test of no peeling, no cracking.
Radiating temperature inhomogeneity | ≤ 15% |
Power error | The rated working voltage ≤ 5% |
Cold insulation resistance | 500V megger> 2mΩ |
Thermal insulation resistance | 500V megger> 0.5mΩ |
Using life | > 3000 hours |
Features
1.Extremely high temperatures, limited largely by the maximum temperature of the emitter
2.Fast response time, on the order of 1–2 seconds Temperature gradients, especially on material webs with high heat input
3.Focused heated area relative to conductive and convective heating methods
4.Non-contact, thereby not disturbing the product as conductive or convective heating methods do
Applications
* PET perform heating in stretch blow molding machines
* Printing Ink drying in offset machines
* Screen-printing curing on T-shirts and textiles
* Powder coating curing
* Rubber coated drying
* Sterilizing/mirror coating drying in glass industries
* Paint baking
* Paper coating drying
* All type of lamination
* Preheating prior to embossing

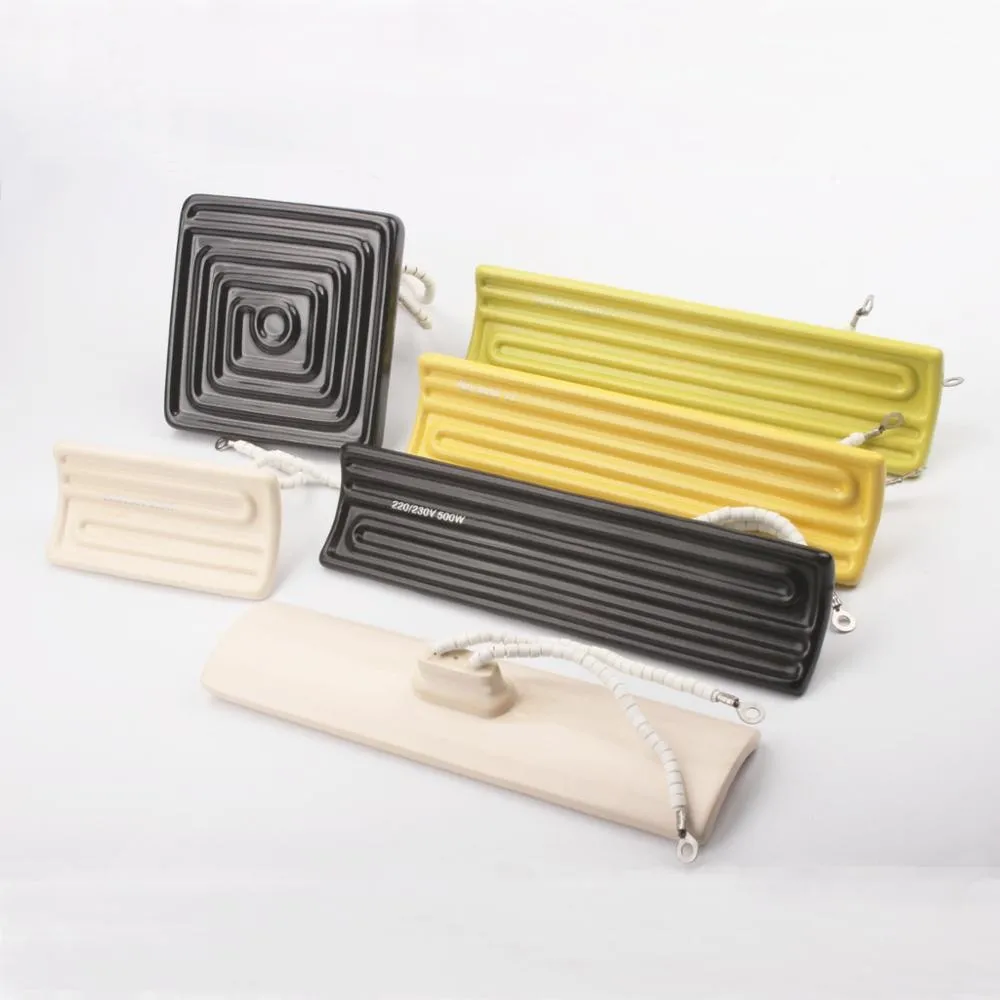

Table

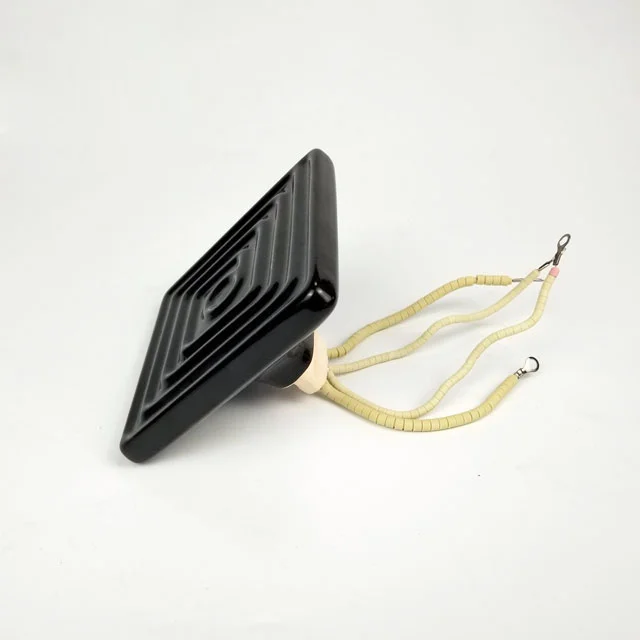

1) square IR Ceramic heater(hollow type & flat type) , customized
Model | Size | Voltage | Wattage | Max.Temperature |
VN-101 | 122X122 mm | 220v/230v | 150w-1000w | 800°C |
VN-102 | 60×60 mm | 220v/230v | 100w-300w | 350°C |
2) rectangle flat IR Ceramic heater(hollow flat & solid flat type ) , customized
Model | Size | Voltage | Wattage | Max.Temperature |
VN-103 | 245×80 mm | 220v/230v | 300w-1000w | 800°C |
VN-104 | 245x60mm | 220v/230v | 300w-1000w | 800°C |
VN-105 | 122x60mm | 220v/230v | 200-600w | 500°C |

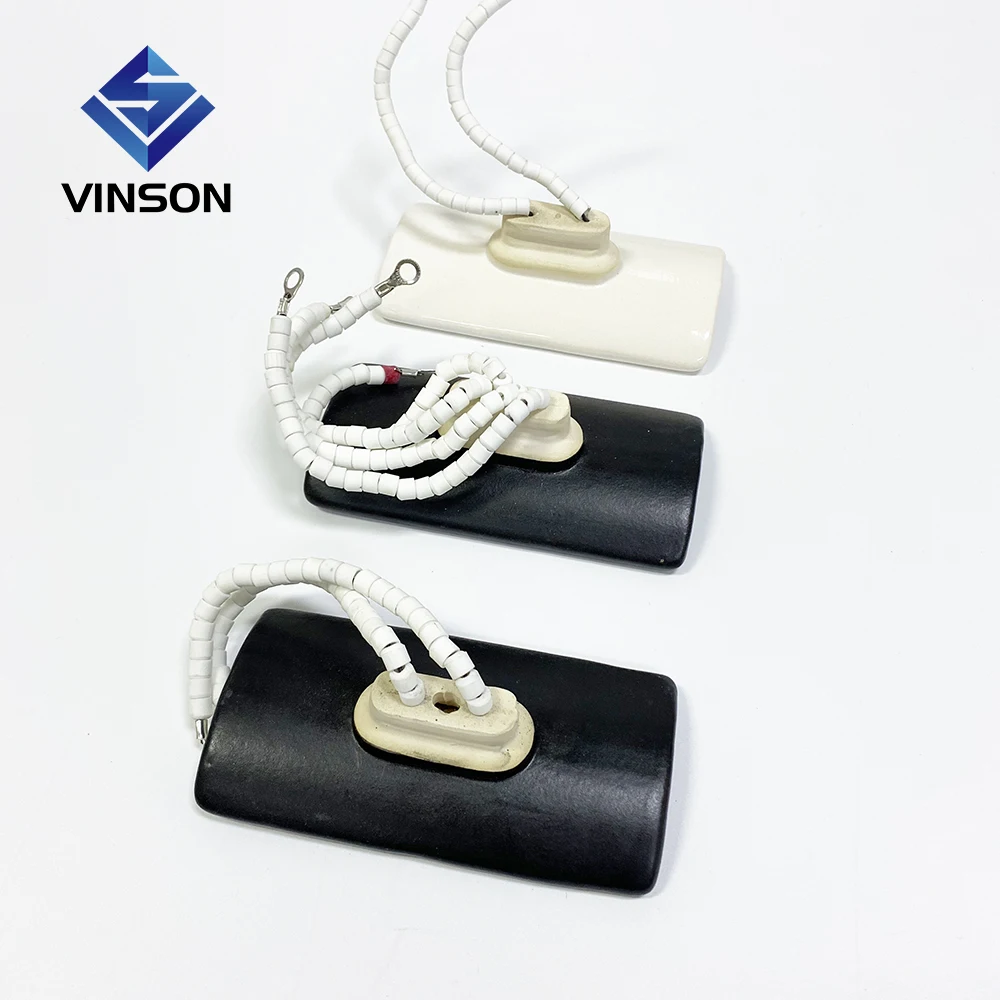

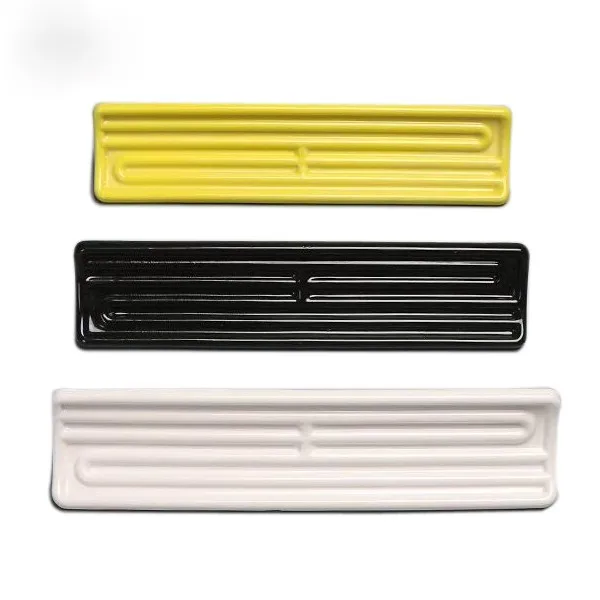

3) rectangle curved IR Ceramic heater, customized
Model | Size | Voltage | Wattage | Max.Temperature |
VN-106 | 285x60mm | 220v/230v | 150w-1000w | 800°C |
VN-107 | 245x110mm | 220v/230v | 300w-1500w | 900°C |
VN-108 | 245x60mm | 220v/230v | 150w-1000w | 800°C |
VN-109 | 122x60mm | 220v/230v | 100w-300w | 350°C |
Note:
1)Color: bright black, black, bright white, white, bright beige, yellow
2) with or W/O thermocouple K or J
3) Packing: 1 piece in one box, carton + wood pallet
4) The OEM and ODM order is available, custom for you

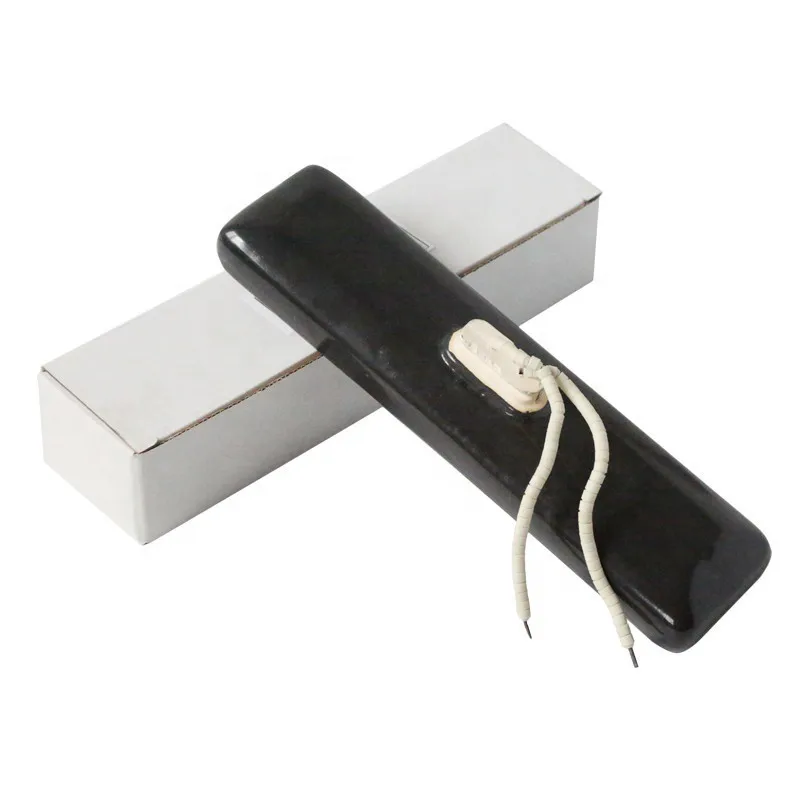

Packaging for Ceramic Heater Element
1) plastic bag + carton for Ceramic Heater Element
2) wooden box for Ceramic Heater Element
Shipping for Ceramic Heater Element
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available

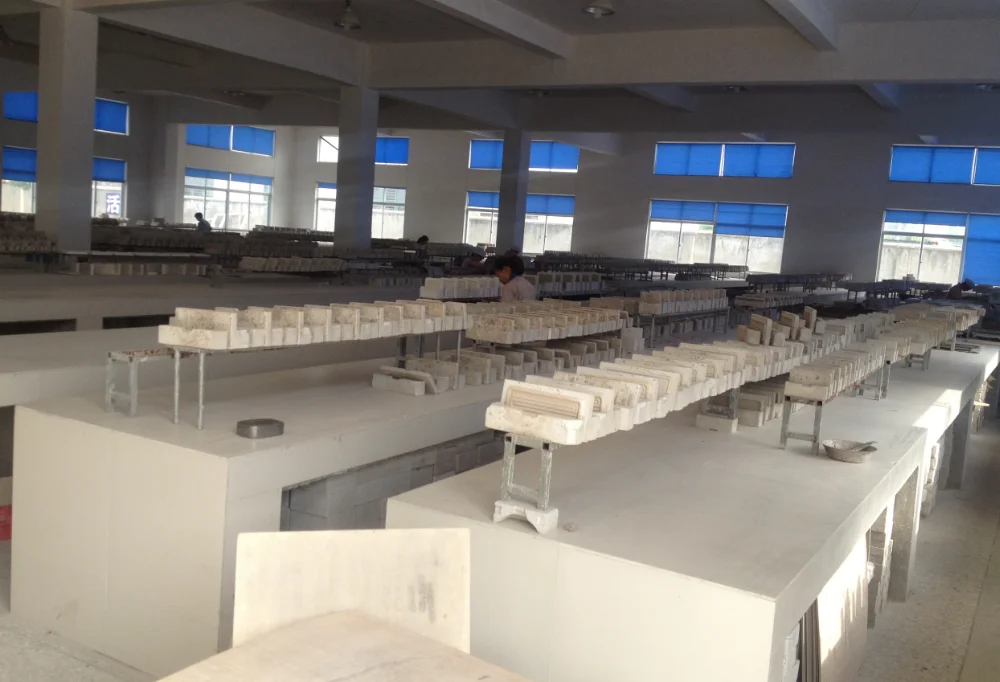

Yancheng Vinson Technology Co., Ltd was established in 2001 and has about 20 years' production history. We have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development.
"Quality is in my hand, Customer is in my heart" Quality is our culture, Our products have been exported to Europe, America, Asia, Mid East etc more than 200 countries. We are extensively used in electric heating and other industries. We hope our products and services can benefit your company, and our cooperation can be mutually beneficial win-win situation.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $9.5 / piece
- 100–499 piece: US $6.5 / piece
- 500+ piece: US $5.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this far infrared panel?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the far infrared panel be supplied for my local voltage?
The standard configuration is 110v,220v,380v customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
