Key specification for this fast cooling glycol chiller: voltage 110-127Vac or 220-240Vac, capacity in bbl 1/2HP 1 hp 2 HP chiller. Everything below is reproduced from the factory data sheet. Made by Shenzhen Mega Technology Co., Ltd. (7 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fast Cooling Glycol Chiller
- Power(W): 1HP Glycol chiller 220V
- Voltage: 110-127Vac or 220-240Vac
- Machinery Capacity: 26L, 53L, 83L
- Capacity In BBL: 1/2HP 1 hp 2 HP chiller
- Refrigerant: R32
- Warranty: 1 Year

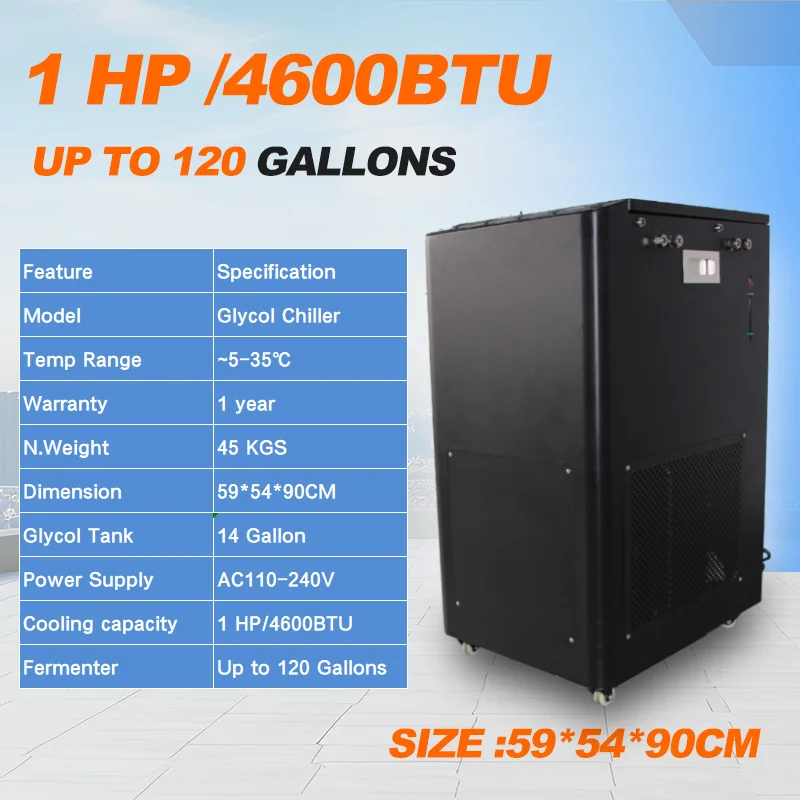

Technical Specifications
| Machinery Capacity | 26L, 53L, 83L |
|---|---|
| Processing Types | Home Beer Fermenting Equipment |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Core Components | Pump, Pressure Vessel, PLC, Other |
| Key Selling Points | Automatic |
| Video Outgoing-Inspection | Provided |
| Processing | Fermenting Equipment |
| Place Of Origin | Guangdong, China |
| Weight | 45 KG |
| Brand Name | OEM or ODM |
| Voltage | 110-127Vac or 220-240Vac |
| Power(W) | 1HP Glycol chiller 220V |

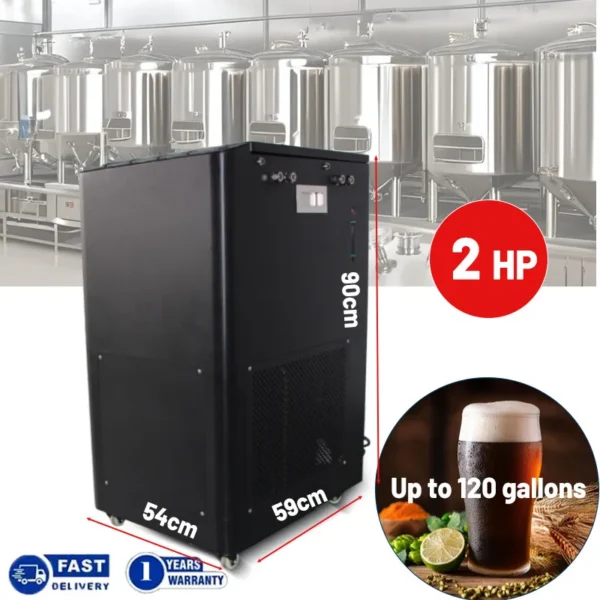

| Dimension(L*W*H) | L59*W54*H90cm for 1HP |
| Type | 1hp 2hp Glycol chiller 220V |
| Product Name | 1hp glycol chiller for Home Brewing |
| Fermenter | Up to 120 Gallons |
| Refrigerant | R32 |
| Temperature Range | -5~35 °C |
| Item | glycol chiller home brewing |
| Keywords | glycol chiller |
| Protective Devices | Comprehensive protections |
| Feature | Circulating Cooling Water |
| Capacity In BBL | 1/2HP 1 hp 2 HP chiller |
| Selling Units | Single item |
| Single Package Size | 61X65X98 cm |
| Single Gross Weight | 68.0 kg |
Product Details
Product name | Glycol Chiller for Beer Brewing Wineries cooling system |
Type | Air-cooled |
Voltage input | AC220-240, 50Hz/110-127V, 60Hz |
Cooling capacity | 1100W-5500w |
Heating capacity | 1/2P, 1HP, 1.5P, 2HP, 1/3HP |
Refrigerant | R410a |
Warranty | 1 year |
Function | Cold / cold+hot，self-maintaining water temp. |
Working Temperature Range | -5 – 35℃ or customized. |
Package | Carton or color box or plywood box. |
Application | For Brewing, beverage, beer, wine, wort |
Certification | CE, ROHS, IPX4/5, FCC, IC, SAA or more. |
key selling point： function
Size | BTU needed for Cold crash | BTU needed to Maintain Cold | BTU needed for Fermentation |
5 gal | 350 | 100 | 50 |
10 gal | 600 | 175 | 70 |
15 gal | 850 | 250 | 100 |
1 BBL | 1500 | 450 | 175 |
HP | Reservoir | BTU/hr@28F | Max Number of Fermenters | Max size of any single Fermenter | Electrical | Dimensions | Weight |
1/3 HP | 1.25 Gal. | 2,000 BTU/hr | 4 | 15gal* (Non-jacketed**) | 110 – 120V / 3.9A / 450W | 16.25″W x 18″D x 12.5″H | 41lbs |
1/2 HP | 2 Gal. | 2,500 BTU/hr | 4 | 1BBL (Non-jacketed**) | 110 – 120V / 3.9A / 450W | 16.25″W x 20.75″D x 13″H | 47lbs |
1 HP | 3 Gal. | 5,000 BTU/hr | 8 | 1 BBL (Non-jacketed**) | 110 – 120V / 7.2A / 830W | 19.25″W x 28.25″D x 16″H | 69lbs |
Application
A1: Mega has been manufacturing and selling industrial chillers since 2015, Mega has a rich experience in refrigeration field,
Mega also offer very good after-sale service, that's why Mega has long-term partners with many well-known brands and startups.
Mega also sincerely hope to become your company’s highly efficient, long-term partner!
Q2: When did Mega start the ice bath chillers.
Q2: Mega has been the first company which developed and produced the ice bath chiller in China since 2019, over the past four
years, 85% of ice bath chillers have been supplied by Mega.
Q3: How to choose a right machine?
A3: If you have an experience in using this chiller, you can choose the right one according to the specification data of the
machine that you have used. If no, you can check the specification sheet and choose a suitable one according to the water volume
and the water temp before cooling, the target temp and cooling time you expected, or please let us help, Mega has a professional
engineer team who will be happy to give you a recommendation.
Q4: How would i know if your ice bath machine is compatible with my existing bathtub or pool? and is it easy for me to install?
A4: You don't have to be a technical person to start using Mega ice bath machine, it is very easy for you to install and
operation, simply use your existing bath you like or any tubs/pools will work very well.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fast cooling glycol chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fast cooling glycol chiller be supplied for my local voltage?
The standard configuration is 110-127Vac or 220-240Vac. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

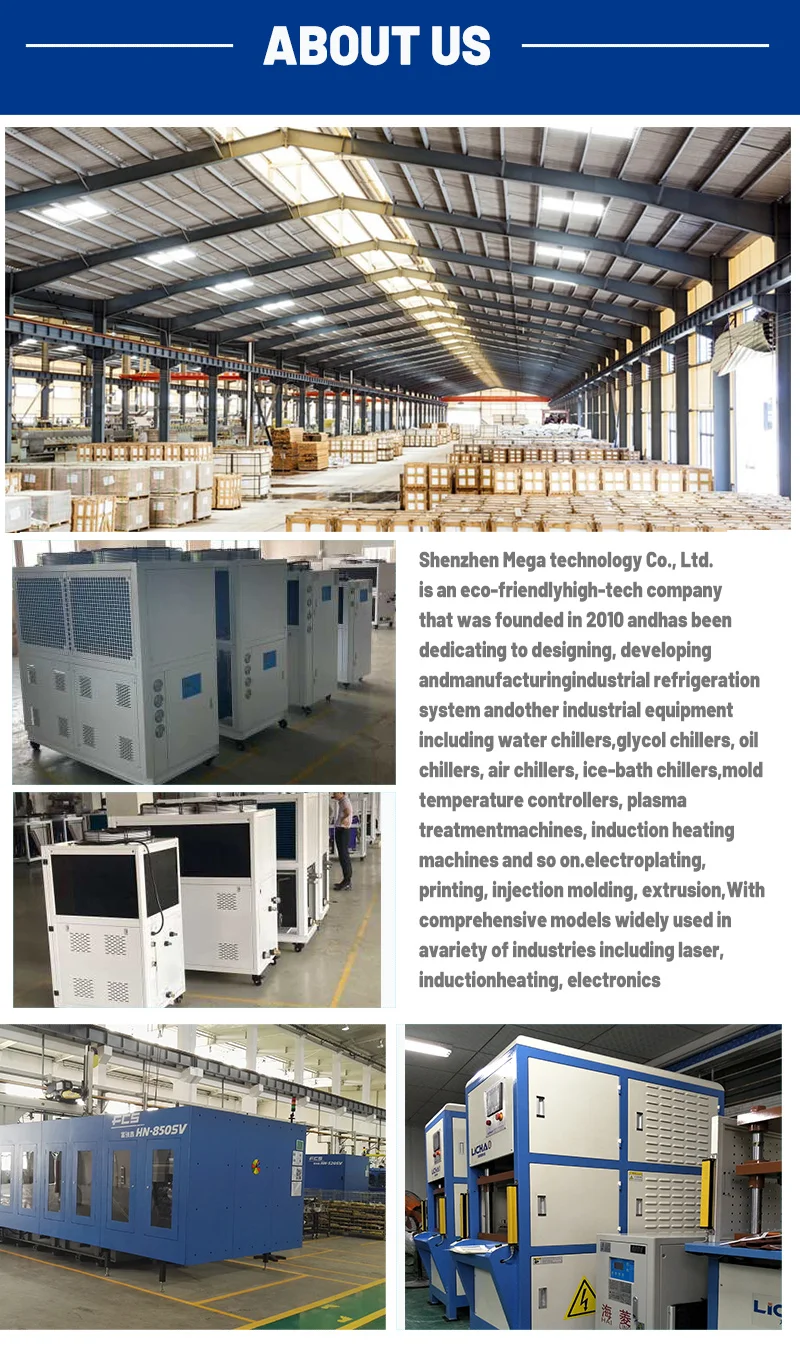

About the Manufacturer
This product is produced by Shenzhen Mega Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Mega Technology Co., Ltd. range on HVACR Nexus.
