Ffu filtration heat pump — voltage 110/120V, 220/230V, blade material Galvanized Plate. The complete factory specification follows. Made by Zhongshan Pengfei Electrical Appliance Co., Ltd. (8 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ffu Filtration Heat Pump
- Model Number: YWF.G2S-300-287AA0A, YWF.G2S-300-287AA20, YWF.G2S-315-255AA0A, YWF.G2S-315-255AA10
- Voltage: 110/120V, 220/230V
- Blade Material: Galvanized Plate
- Impeller Material: Galvanized Plate
- Rotor Material: Aluminum casting
- Housing Material: DC04
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 110/120V, 220/230V |
| Blade Material | Galvanized Plate |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | Dailor |
| Model Number | YWF.G2S-300-287AA0A, YWF.G2S-300-287AA20, YWF.G2S-315-255AA0A, YWF.G2S-315-255AA10 |
| Impeller Material | Galvanized Plate |
| Rotor Material | Aluminum casting |
| Housing Material | DC04 |
| Protection Class | IP44 |
| Insulation Class | F |
| Bearing | Maintenance free ball bearing |
| Diameter | 300mm, 315mm |
| Height Of Impeller | 287mm, 255mm |
| Motor Poles | 2 |
| Packaging Details | 1. 10-20pcs per carton, it’s based on the model you need. 2. Foam packing or with inner box, it’s based on customers requirement. |
| Port Of Dispatch | Xiaolan Port or Zhongshan Port |
| Selling Units | Single item |
| Single Package Size | 44.45X43.4X25.5 cm |
| Single Gross Weight | 2.1 kg |
| Supply Ability | 200000 pieces per Month |
Product Details
| Backward Centrifugal Fan Sizes | 133mm ~ 560mm |
| Forward Centrifugal Fan Sizes | 120mm ~ 250mm |
| Single Inlet Blower Fan Sizes | 120mm ~ 200mm |
| Double Inlet Blower Fan Sizes | 120mm ~ 146mm |
| Axial Fan Sizes | 200mm ~ 710mm |
| Inline Duct Fan Sizes | 100mm ~ 315mm |
| Voltage | AC Input: 115V, 120V, 220V, 230V, 380V, 400V |
| DC Input: 12V, 24V, 48V | |
| EC Input: 220V, 230V, 380V, 400V | |
| Power | Up to 2300W |
| Speed | Up to 4528RPM |
| Airflow | Up to 24000m3/h |
| Speed Control | Speed controller (AC) or 0-10V/PWM Input (DC&EC) |
| Approvals | CCC, CE, RoHs, UL, CUL |

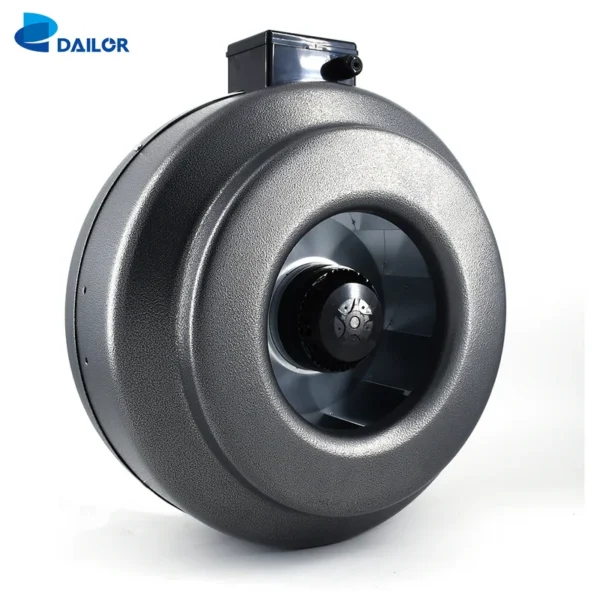

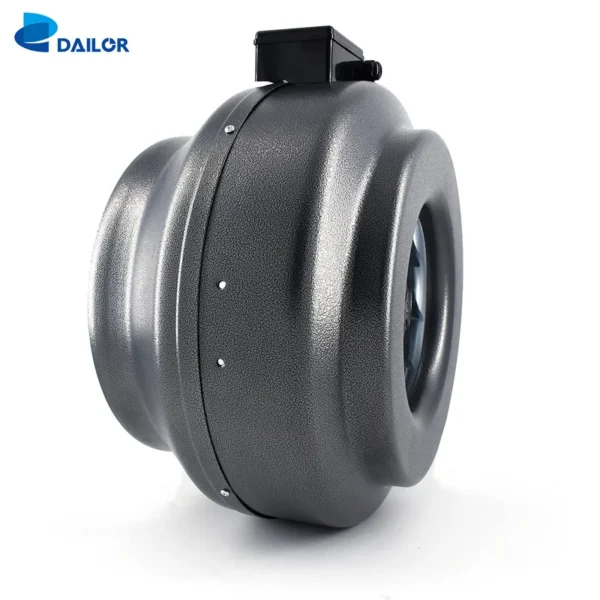

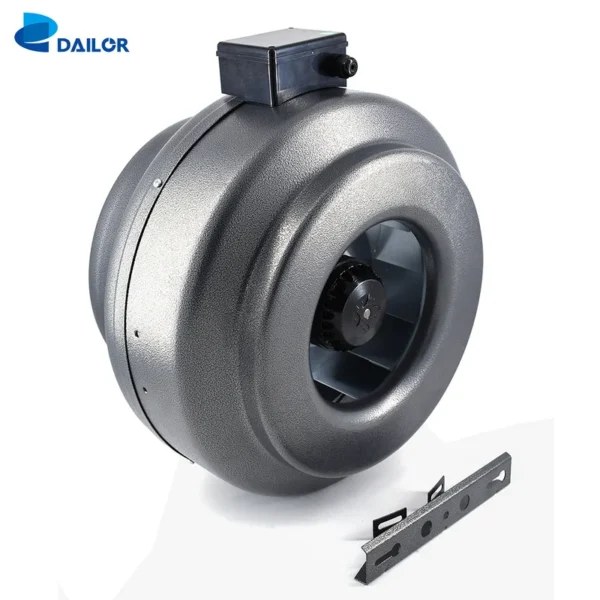

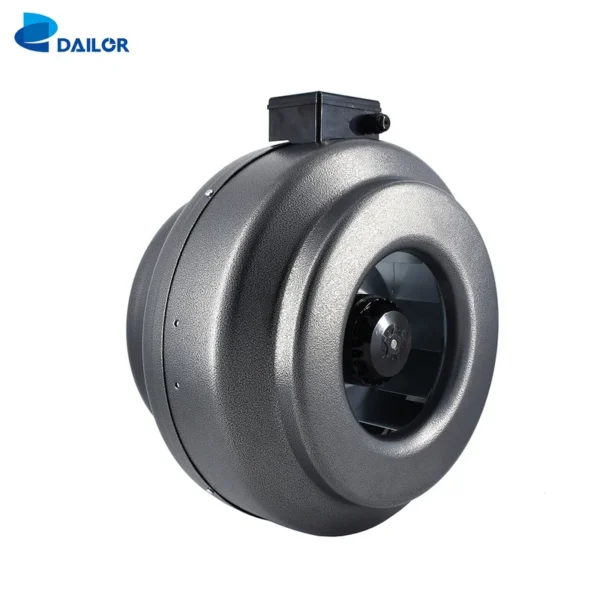

φ300mm Duct Fan
Specification of φ300mm Duct Fan
|
Volatge |
Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Curve No. | Operating Temperature | |
| Model No. | V | Hz | A | W | RPM | μF | m³/h/CFM | dB(A) | # | Min/Max(℃) |
| YWF.G2S-300-287AA0A | 110/120 | 50 | 1.59 | 179 | 2560 | 28 | 1450/852 | 75 | (1) | -30/+60 |
| 60 | 2.19 | 248 | 2720 | 28 | 1520/894 | 75 | (2) | -30/+60 | ||
| YWF.G2S-300-287AA20 | 220/230 | 50 | 0.85 | 187 | 2560 | 7 | 1450/852 | 74 | (1) | -30/+60 |
| 60 | 1.19 | 257 | 2730 | 7 | 1520/894 | 75 | (2) | -30/+60 |
—————————————————————————————————————————————————-

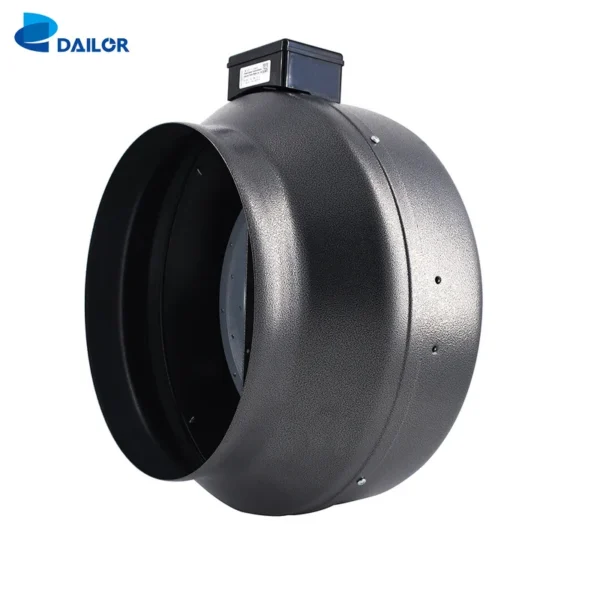

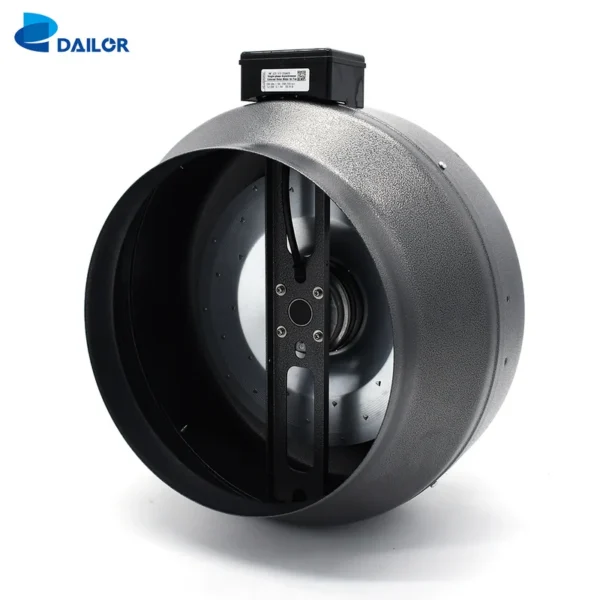

φ315mm Duct Fan
Specification of φ315mm Duct Fan
|
Volatge |
Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Curve No. | Operating Temperature | |
| Model No. | V | Hz | A | W | RPM | μF | m³/h/CFM | dB(A) | # | Min/Max(℃) |
| YWF.G2S-315-255AA0A | 110/120 | 50 | 1.61 | 182 | 2550 | 28 | 1470/864 | 74 | (1) | -30/+60 |
| 60 | 2.21 | 252 | 2660 | 28 | 1520/894 | 75 | (2) | -30/+60 | ||
| YWF.G2S-315-255AA10 | 220/230 | 50 | 0.84 | 180 | 2575 | 7 | 1470/864 | 74 | (1) | -30/+60 |
| 60 | 1.18 | 255 | 2725 | 7 | 1520/894 | 75 | (2) | -30/+60 |

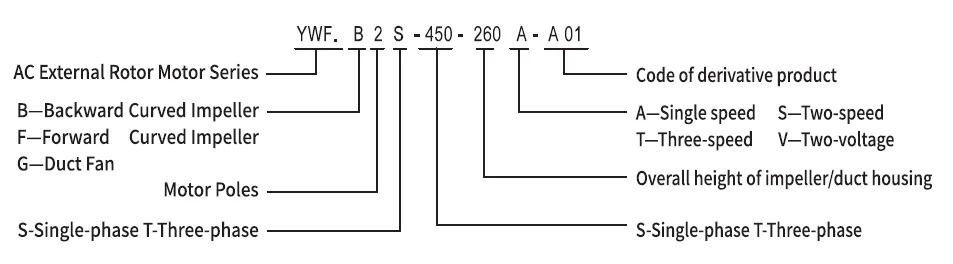

Model Numbering(For example)
- Please kindly click on the model you want for more details:
100mm Inline centrifugal duct fan 125mm Inline centrifugal duct fan 150mm Inline centrifugal duct fan
160mm Inline centrifugal duct fan 200mm Inline centrifugal duct fan 250mm Inline centrifugal duct fan
300mm Inline centrifugal duct fan 315mm Inline centrifugal duct fan
Quality Control
From selecting raw material, making motor parts, to assembling final product, Pengfei motor values every detail of the motor producing process. Full sets of equipments and skilled staffs also make the quality control more accurate. 100% test and inspection achieve good quality and satisfy our customers greatly.
FAQ
1. Are you a trade company or a manufacturer?
A: We are manufacturer in China. We have ISO, CCC, ROHS, CE certification. OEM & ODM services are available.
2. What is your MOQ?
A: Our minimum order quantity is 30pcs.
3.What is your delivery date?
A: The delivery date is about 25 days after receipt of payment.
4. What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
5. Can you send free samples?
A: Yes, free samples are available, you just need to pay the express fee. You can provide your a/c like DHL, UPS or you can call your courier to pick up from our factory.
Most importantly, all of our products can be customized. Don’t hesitate, contact us to get more info and customize your products.
Ordering and Pricing
- Minimum order quantity: 30 piece
- Volume pricing:
- 30–999 piece: US $80 / piece
- 1000–4999 piece: US $55 / piece
- 5000+ piece: US $35 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
