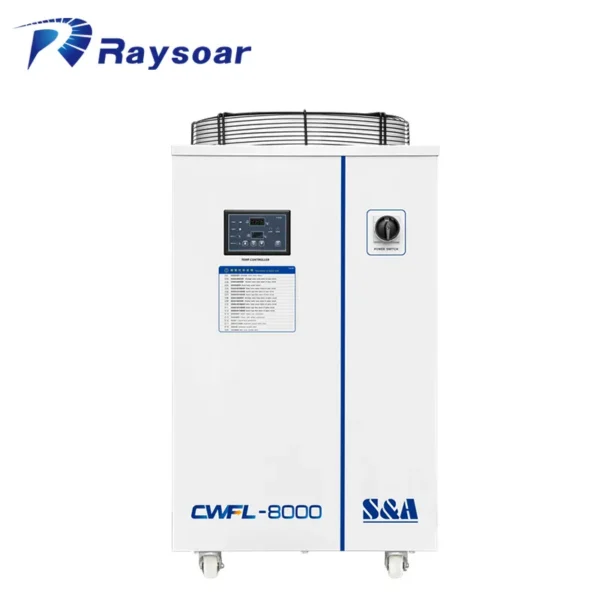

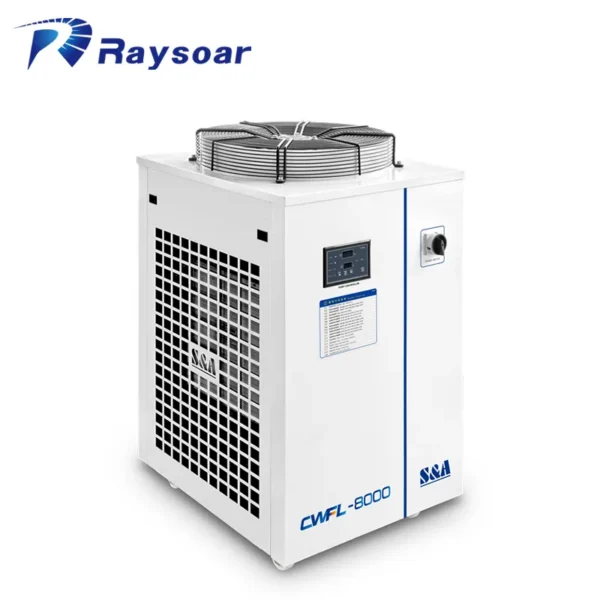

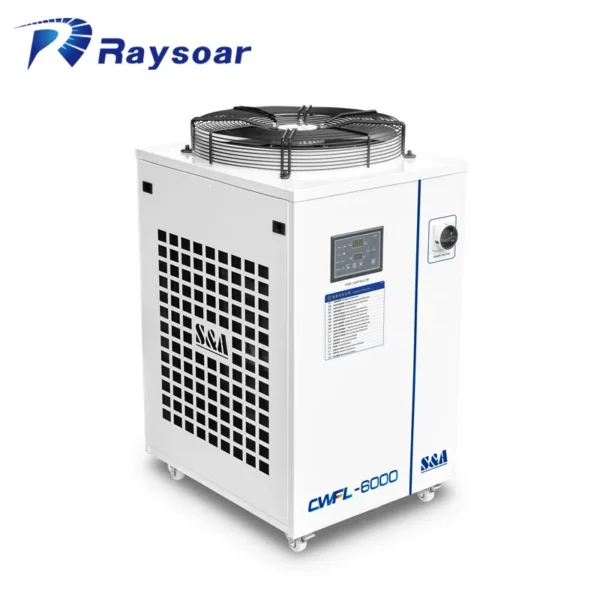

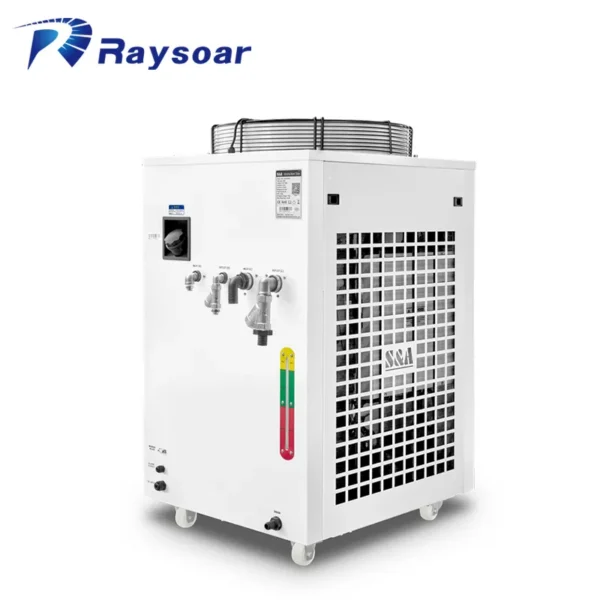

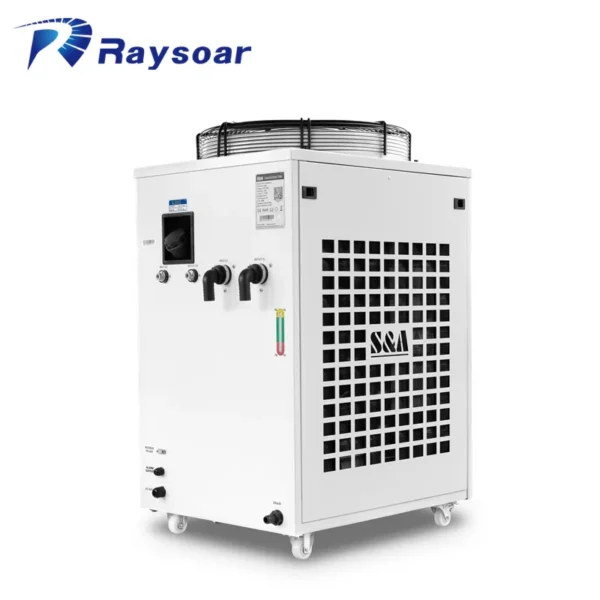

Fiber Laser Water Chiller, 6000W, 8000W, TEYU, CWFL

Fiber laser water chiller — 6000W/8000W. The complete factory specification follows. Made by Shanghai Raysoar Electromechanical Equipment Co., Ltd. (5 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Fiber Laser Water Chiller

• Power: 6000W/8000W
• Warranty: 2 Years
• Place Of Origin: Shanghai, China
• Spare Parts Type: Laser Component
• Laser Type: Fiber Laser
• Accessory Type: Fiber Laser Water Chiller

Technical Specifications

Product Details

Product Overview

Product Specifications

Model	CWFL-6000			CWFL-8000
Parameter	CWFL-6000ENS04	CWFL-6000FNS04	CWFL-8000ENS04	CWFL-8000FNS04
Voltage	AC 3P 380V			AC 3P 380V
Frequency	50Hz	60Hz	50Hz	60Hz
Current	2.1~18.8A	2.1~22.4A	2.1~24.8A	2.9~22.6A
Max. power consumption	7.4kW	8.6kW	9.86kW	9.72kW
Heater power	1kW+1.8kW			1kW+1.8kW
Precision	±1°C			±1°C
Reducer	Capillary	Capillary	Capillary	Capillary
Pump power	1.1kW	1kW	1.1kW	1kW
Tank capacity	40L			40L
Inlet and outlet	Rp1/2"+Rp1"			Rp1/2"+Rp1"
Max. pump pressure	61.5m	59m	61.5m	59m
Rated flow	1.5L/min + >50L/min			2.5L/min + >65L/min
N.W.	108kg	101kg	141kg
G.W.	122kg	115kg	158kg
Dimension (L×W×H)	76×56×102cm			88 × 66 × 119 cm
Package dimension	78×65×117cm			95 × 77 × 135 cm

Product Features

The S&A CWFL series chillers adopt independent dual-temperature control technology and are capable of cooling fiber lasers ranging from 1,000W to 240,000W. They provide precise and reliable cooling support for equipment of different power levels, ensuring that the laser source maintains efficient and stable operation at all times. This makes the CWFL series an ideal cooling solution for fiber laser applications.

Energy Saving

Overcurrent Protection For Compressor

Over Temp Alarm

Flow Alarm

Dual Temp Control

For Fiber Laser Cooling

By cooling the laser device, our industrial chiller can keep laser output power stable and ensure light beam quality to improve the working life and cutting accuracy of the laser device.

Premium axial fan, Quiet, efficient heat dissipation，Maintenance-free

S&A Quality Control

Production Environment & Facilities

Regular calibration and maintenance of production & testing equipment to ensure accuracy. 6S site management with defined material and product zones to improve efficiency.

Supply Chain Management

Carefully assess suppliers and establish quality contracts to secure raw materials. 100% IQC prevents nonconforming materials from entering production.

Production Process Control

The MES system enables complete digital production monitoring and control. An average first-pass yield above 95.5% ensures efficiency and stable quality.

Product Inspection & Testing

In-process quality checkpoints (IPQC) for real-time quality control. 100% final quality control (FQC) ensures every unit meets standards.

Product Release & Delivery

Comprehensive review of quality records before release for compliance. Batch traceability for precise recording and full production tracking.

Customer Feedback & After-Sales Service

Handle customer quality concerns promptly and apply corrective actions. Regular customer satisfaction surveys drive product and process improvement.

S&A Sales Network

Certifications

             UL certificate                         SGS certificate                                                   ISO certificate

             Product patent                          CE approved                           ROHS compliant                   REACH compliant

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fiber laser water chiller?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
