Key specification for this fiberglass axial exhaust fan: 380V/220V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Qingzhou Big Cubic Industry And Trade Co., Ltd. (14 years on the platform, typical reply ≤15h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fiberglass Axial Exhaust Fan
- Model Number: DLF-1460
- Power Source: Electric
- Voltage: 380V/220V
- Blade Material: Stainless Steel
- Warranty: 1 Year
- Certification: ce,CCC
Technical Specifications
| Voltage | 380V/220V |
|---|---|
| Type | exhaust fan |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Oil Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | big cubic |
| Model Number | DLF-1460 |
| Color | White |
| Certification | ce,CCC |
| Applicable Industries | Building Material Shops |
| Selling Units | Single item |
| Single Package Size | 150X62X150 cm |
| Single Gross Weight | 55.0 kg |
Product Details
Performance Features
Model | Propeller Dia.(mm/inch) | Rated Speed(r/min) | Air Flow(m³/h) | Rated Power(KW/HP) | Voltage | Complete Size(mm) | Installation Hole Size |
DLF-560 | 380/15" | 950 | 8000 | 0.37/0.5 | 380V/220V 50HZ/60HZ | 560*560*450 | 500*500 |
DLF-660 | 480/19" | 950 | 10000 | 0.37/0.5 | 660*660*450 | 600*600 | |
DLF-850 | 660/25" | 700 | 13000 | 0.37/0.5 | 850*850*450 | 800*800 | |
DLF-1060 | 880/36" | 520 | 28000 | 0.55/0.75 | 1060*1060*560 | 1000*1000 | |
DLF-1260 | 1080/43" | 520 | 40000 | 0.75/1 | 1260*1260*560 | 1200*1200 | |
DLF-1460 | 1250/50" | 520 | 44000 | 1.1/1.5 | 1460*1460*600 | 1400*1400 |

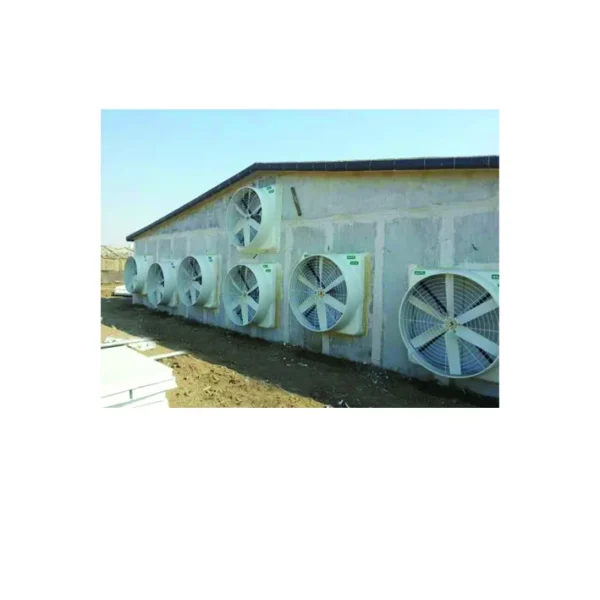

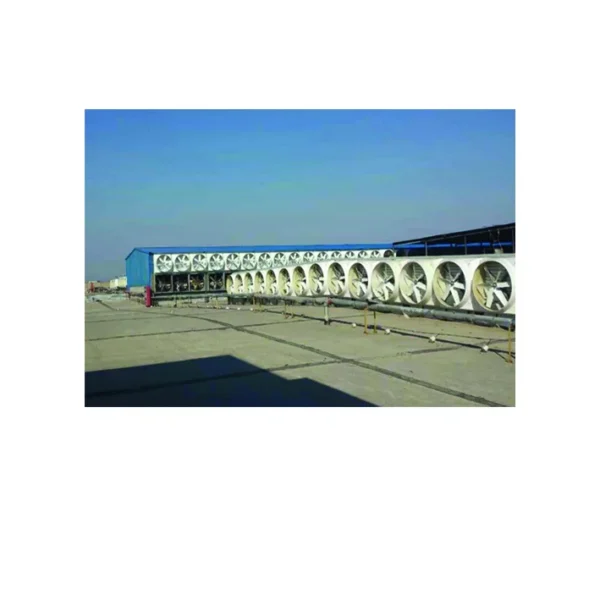

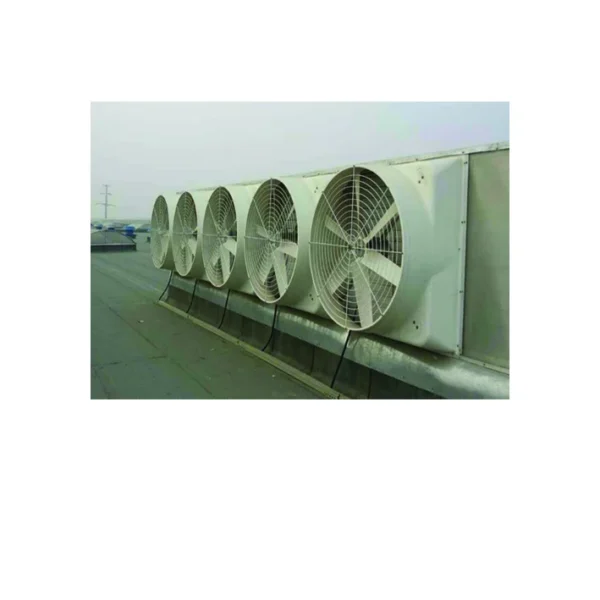

The products in our company are widely used in Agriculture, horticulture, Husbandry,Workshop, textil, Mine,Chemical Engineering,Supermarket, Medicine, Grain&Cereal, Vegetable and Lumbering and so on.Under a good condition of management, According to rich experience and constant understanding of interna tional market, our salesmen can do further analysis under the customers 'environment in order to know the need of customers best, providing a comprehensive and careful service. Our company is devoting itself to devel oping generally with the target of supplying customers with the first class products and service.
Our company has set up more than 200 sales branches in more than 20 provinces in the country, The products are exporting to dozens of countries or regions such as: Asia (India, Thailand, Indonesia, Bangladesh )，Europe ,America, Africa and so on.
Ordering and Pricing
- Minimum order quantity: 57 set
- Volume pricing:
- 57+ set: US $120 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fiberglass axial exhaust fan?
The standard minimum order quantity is 57 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this fiberglass axial exhaust fan carry?
It is supplied with ce,CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the fiberglass axial exhaust fan be supplied for my local voltage?
The standard configuration is 380V/220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Big Cubic Industry And Trade Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Qingzhou Big Cubic Industry And Trade Co., Ltd. range on HVACR Nexus.
