Key specification for this finned air duct heater: 110 V, 230 V, 120 V, 220 V, 380 V, heating capacity Tubular heating element. Everything below is reproduced from the factory data sheet. Made by Taizhou Hoterwill Import & Export Co., Ltd. (2 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Finned Air Duct Heater
- Power Source: Electric
- Voltage: 110 V, 230 V, 120 V, 220 V, 380 V
- Heating Capacity: Tubular heating element
- Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Air Heater |
|---|---|
| Power Source | Electric |
| Voltage | 110 V, 230 V, 120 V, 220 V, 380 V |
| Material | Stainless Steel |
| Core Components | Other |
| Key Selling Points | Long Service Life |
| Temperature Range | High-Temperature |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | Tubular heating element |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 1.5 |
| Dimension(L*W*H) | customized |
| Working Temperature Range | 0 – 500 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description

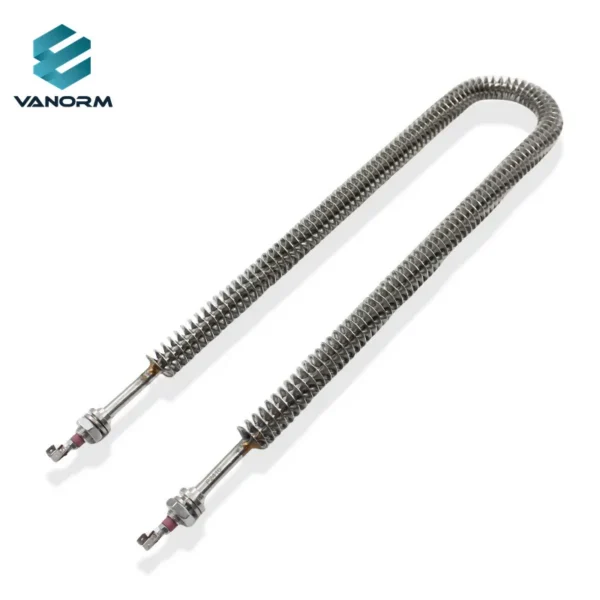

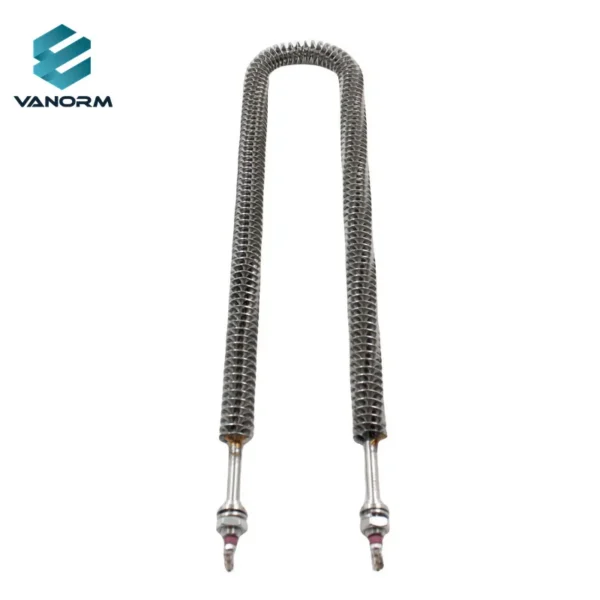

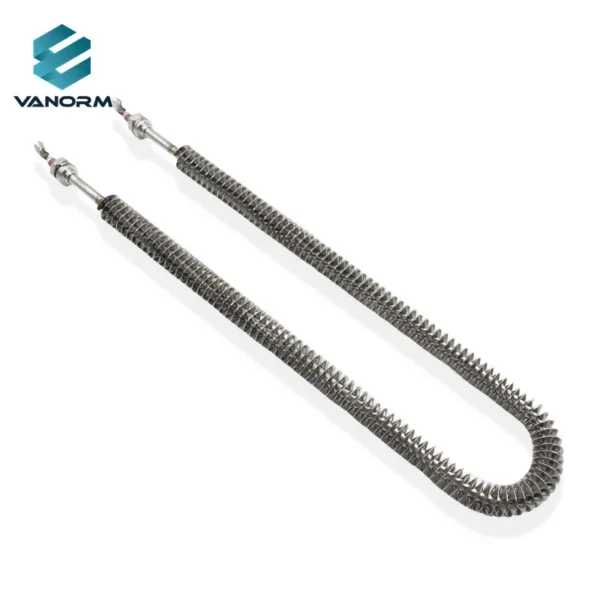

High Power Finned Air Duct Heater 220V 2Kw for Industrial Heating Process
Finned Heater are the most common heaters and are best suited for a large number of applications such as conduction, convection, and radiation. the heaters can be produced almost any shape or size.

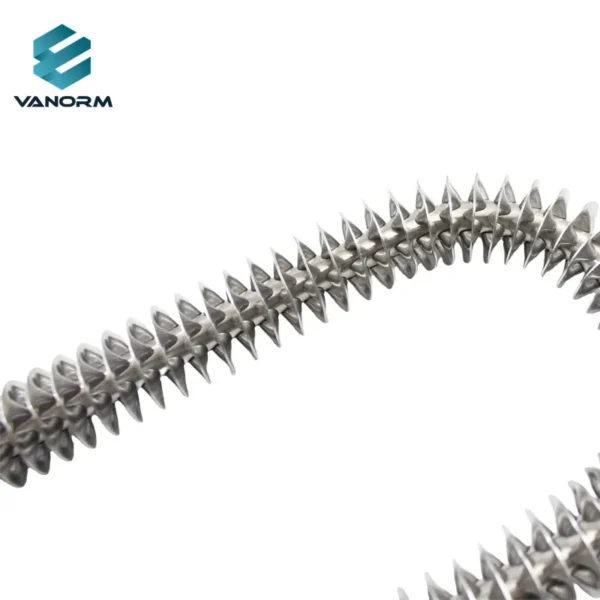

Air duct electric finned tubular heater is constructed like basic tubular elements with the addition of continuous spiral fins, 4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.
Air duct electric finned tubular heater is constructed like basic tubular elements with the addition of continuous spiral fins, 4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.
Finned Tubular Heating Element
This kind of finned heating elements are always used for Air Duct Heaters.

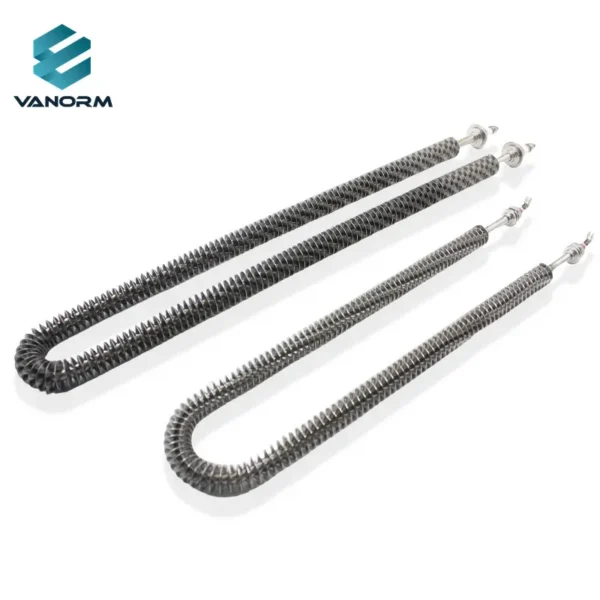

We can produce the "I,W,U"shape for you. The voltage and watt can always be supported customized.Specification
Technical Details | ||
Construction Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc | |
Tube Material | stainless steel 304/321/316/310S,Incoloy 800 840 | |
Ppwer Tolerance | Tolerance±10% | |
Use of Alloys | Suitable for heater tube AISI 304 in water or humid enviroment max temperature up to 170°C. In air max 220°C | |
Thread | M12 M14 M16 M18 | |
Watt Density | Tube watt density of 30 watts sq in-suitable for many uses | |
Custom | Custom configurations, lengths, watts, volts available | |
TUBE MATERIAL | FIN MATERIAL | TUBE DIA.(MM) | FIN HEIGHT (MM) | FIN THICKNESS (MM) | FIN PITCH (MM) |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ6.7 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ8 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ9 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ10 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ12 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ14 | 5-10 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ16 | 5-10 | 0.3-0.4 | 5-10 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ20 | 5-10 | 0.3-0.4 | 7-10 |
1. Drawing if have
2. Power,voltage,shape
3. Working temperature
4. Material requirement
5. Screw size if have
6. Quantity
Details Images

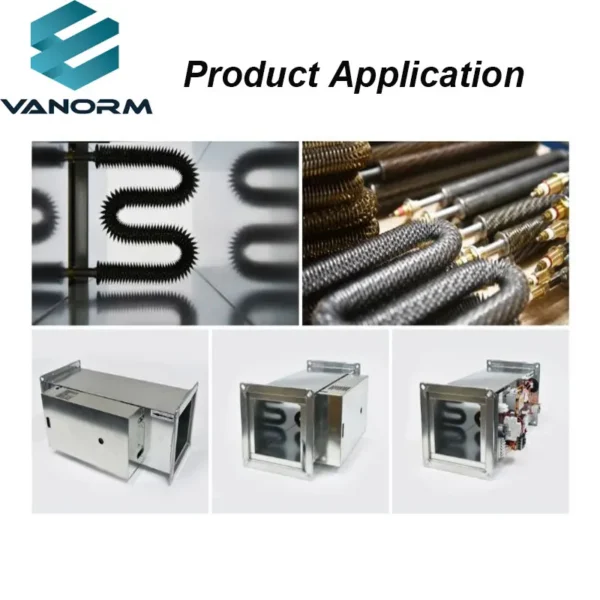

Application
1. load bank
2. oven
3. Paint booth
4. dryer
And so on
Related Products
Our core competencies:
1.Vertical Manufacturing Expertise:The factory which we cooperated with operating professional production facilities, they maintain full control over Research and development. This vertical integration ensures stringent quality compliance (ISO 9001, CE,CQC,Rohs, UL) and enables competitive pricing without intermediaries. 2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements. 3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements. 4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support. 5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
Certifications
Our products had passed the CE CQC UL and Rohs certificated.
Product Packaging Solutions
1.Our services include individual unit packaging with optional labeling to streamline operations and reduce time costs. 2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation. 3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.
FAQ
1. Q:Who are we?
A:Our factory was established in 1996, and the foreign trade sales team was established in 2021
2.Q: Can we use our own forwarder?
2.Q: Can we use our own forwarder?
A: Of course. We can ship it to them.
3.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T, PayPal, Cash;
Language Spoken: English,Chinese
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T, PayPal, Cash;
Language Spoken: English,Chinese
4. Q: How do I place an order?
A: Please email your order to us and we will confirm with you.
Before quotation, we would like to confirm the product information with you, such as size and quantity. In any case, please
contact us directly via email or online message.
contact us directly via email or online message.
5. Q: How do we guarantee quality?
A: We strictly follow the quality management standards of production; Check the workshop every 2 hours; And has its own research and development team and laboratory.
6. Q:What can you buy from us?
A: Electrical appliances and Ventilation Product; If there are other needs, we can also help customers purchase.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $15 / piece
- 100–499 piece: US $10 / piece
- 500+ piece: US $5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this finned air duct heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the finned air duct heater be supplied for my local voltage?
The standard configuration is 110 V, 230 V, 120 V, 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
