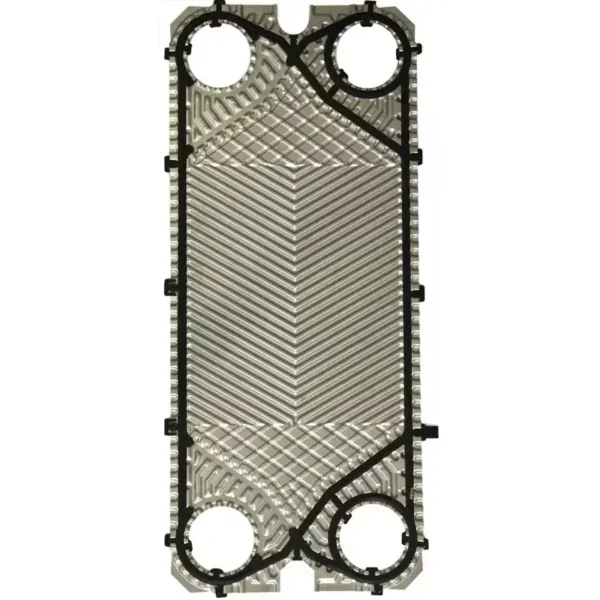

Key specification for this flexible stainless steel gasket: material Stainless Steel, heat exchanger type Plate Heat Exchanger. Everything below is reproduced from the factory data sheet. Made by Hubei Aesima Heat Exchange Equipment Co., Ltd. (1 year on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.

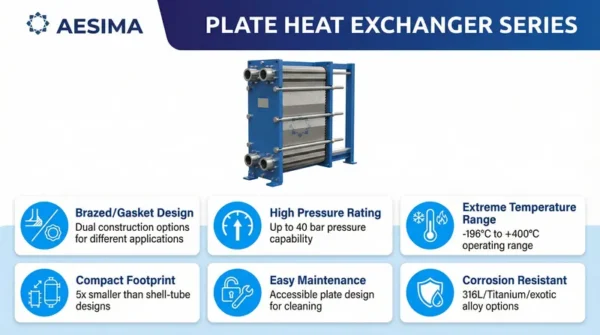

Key Features of This Flexible Stainless Steel Gasket
- Flow Capacity: 50gpm
- Material: Stainless Steel
- Frame Material: Carbon Steel / Stainless Steel
- Plate Material: AISI 304 / AISI 316L / Titanium
- Gasket Material: NBR, EPDM, PTFE
- Warranty: 1 Year
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Flow Capacity | 50gpm |
| Fluid Compatibility | Steam, Oil, Cooling Water, Chemical Fluid, Milk |
| Material | Stainless Steel |
| Maximum Operating Temperature | -40°C to 180°C |
| Core Components | Engine, Plate Material |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price, Long Service Life, Removable Plates, 4 Gasket Types Available,, SS316L/Titanium Plate, Easy Cleaning, Custom OEM |
| Working Temperature Range | -40°C to 180°C |
| Place Of Origin | Hubei, China |
| Weight (Kg) | 130 |
| Brand Name | AESIMA |
| Liquid Flow Rate | Customized |
| Maximum Pressure Rating | 3.0MPa(435.11psi) |
| Dimension(L*W*H) | Customized based on drawings or working conditions |
| Frame Material | Carbon Steel / Stainless Steel |
| Plate Material | AISI 304 / AISI 316L / Titanium |
| Working Pressure | Up to 2.5Mpa (standard: 1.6 Mpa) |
| Heat Transfer Area | 1 m² to 2,500 m² per frame |
| Medium | water, drinks,oil, milk |
| Plate Thickness | 0.4-1.0 mm (standard: 0.6 mm) |
| Connection Sizes | DN 25 to DN 300 (1" to 12") |
| Gasket Material | NBR, EPDM, PTFE |
| Function | Liquid-Liquid Heat Exchange, Heating, Cooling, Condensing, Evaporating |

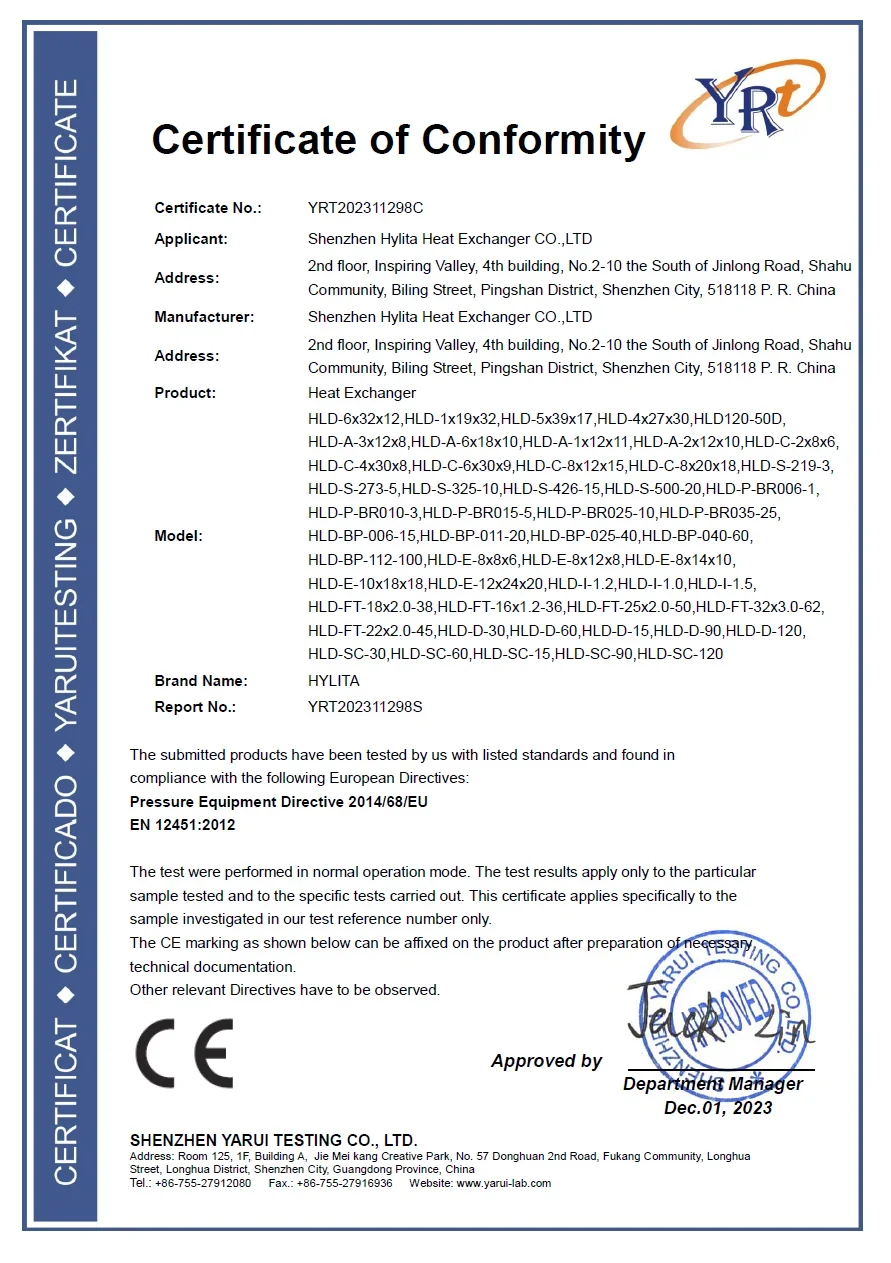

| Certification | ASME / CE / ISO 9001 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |

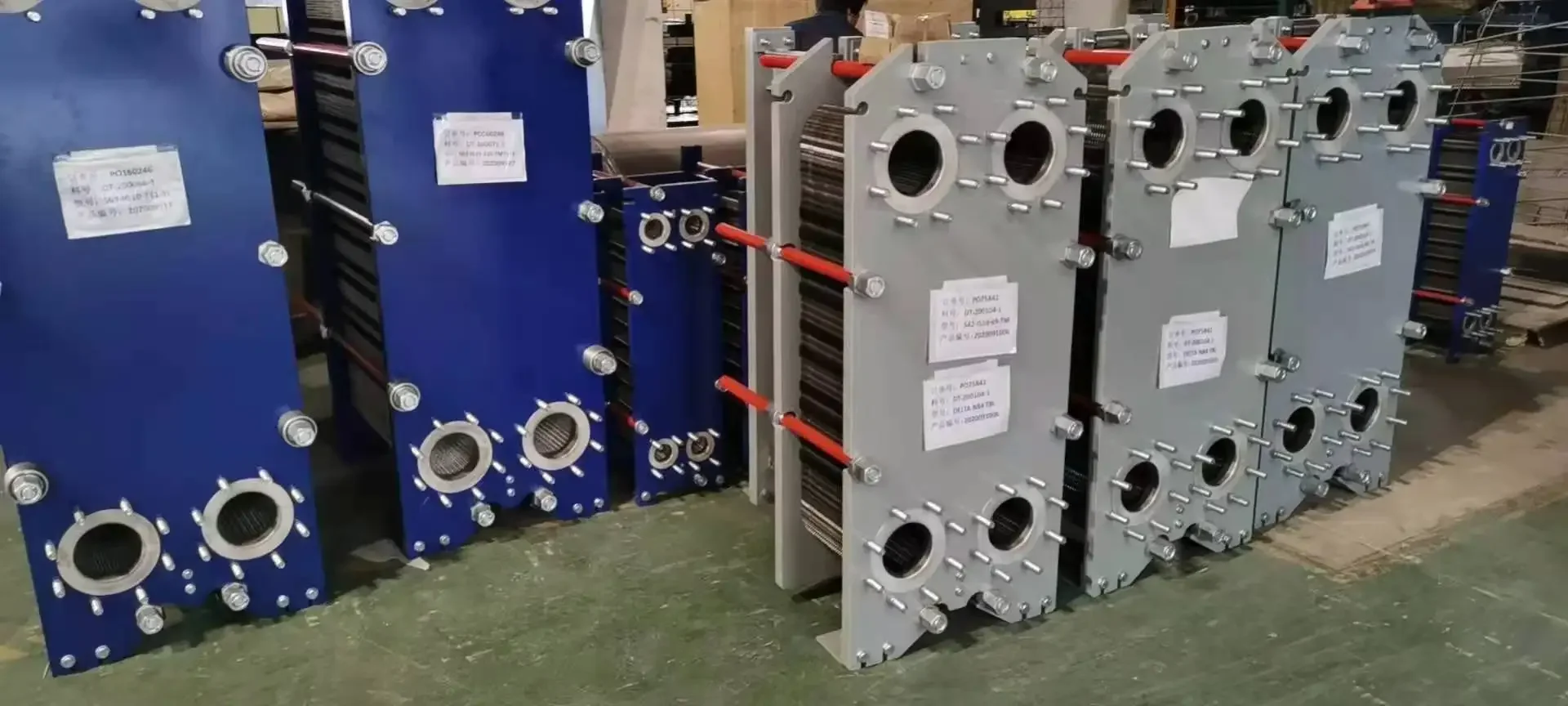

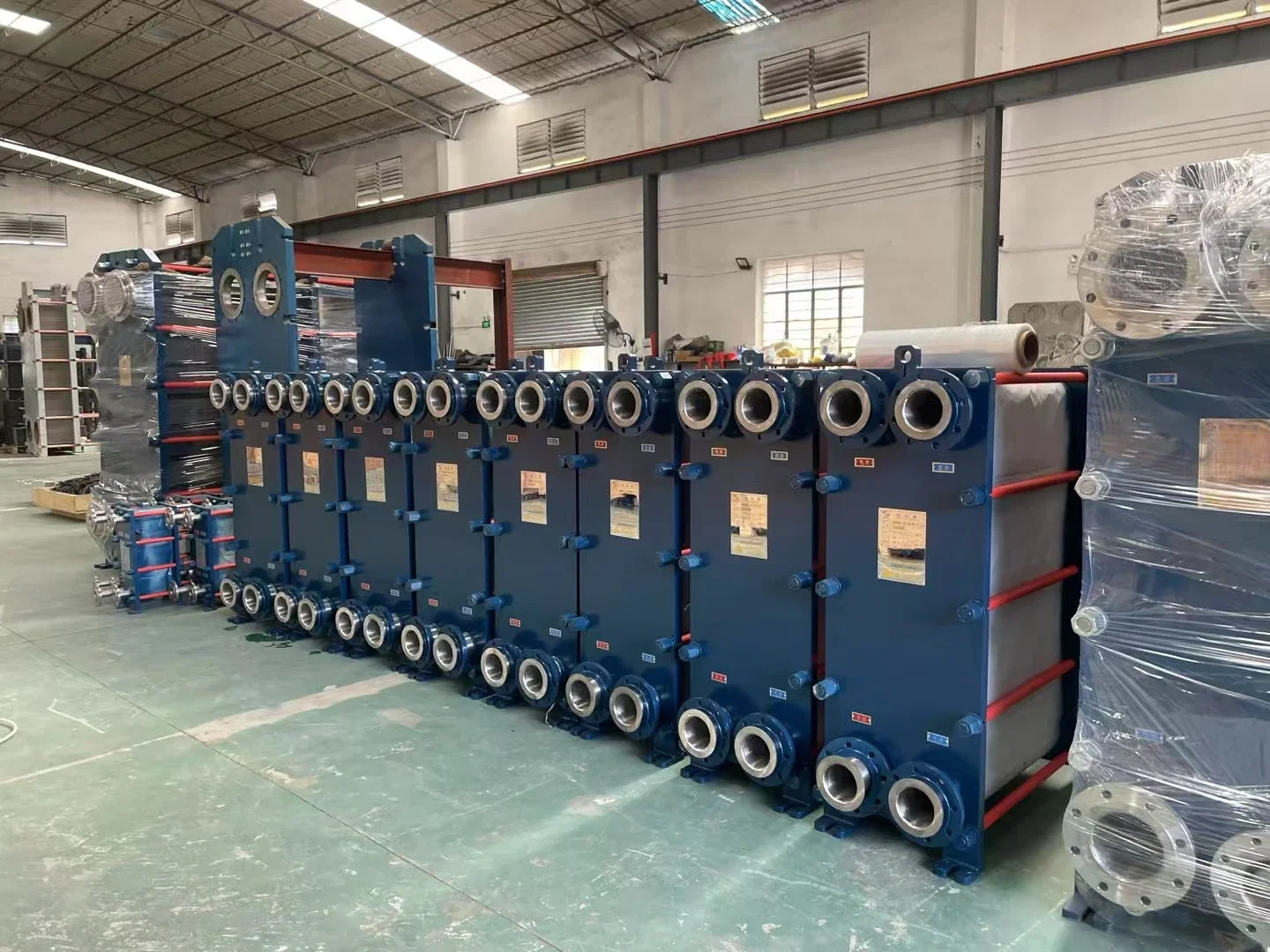

Product Details

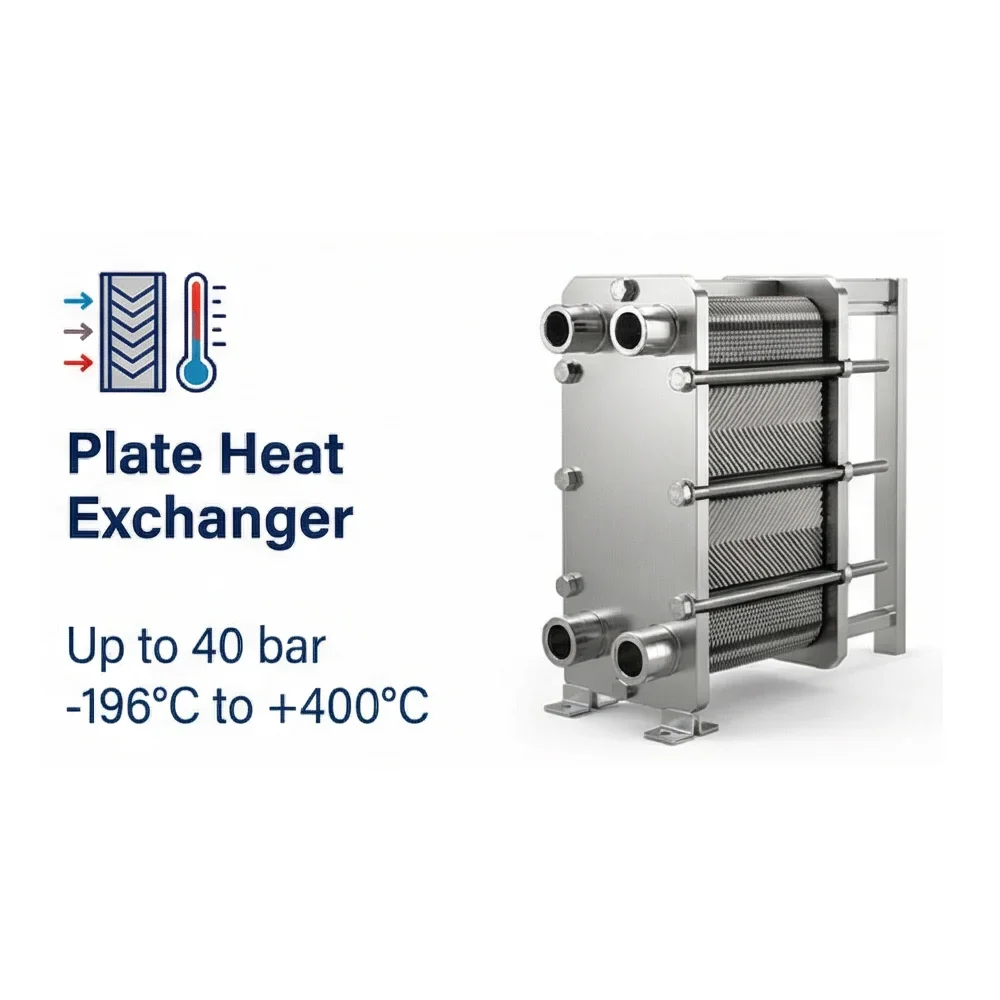

1. What It Is & What It Does

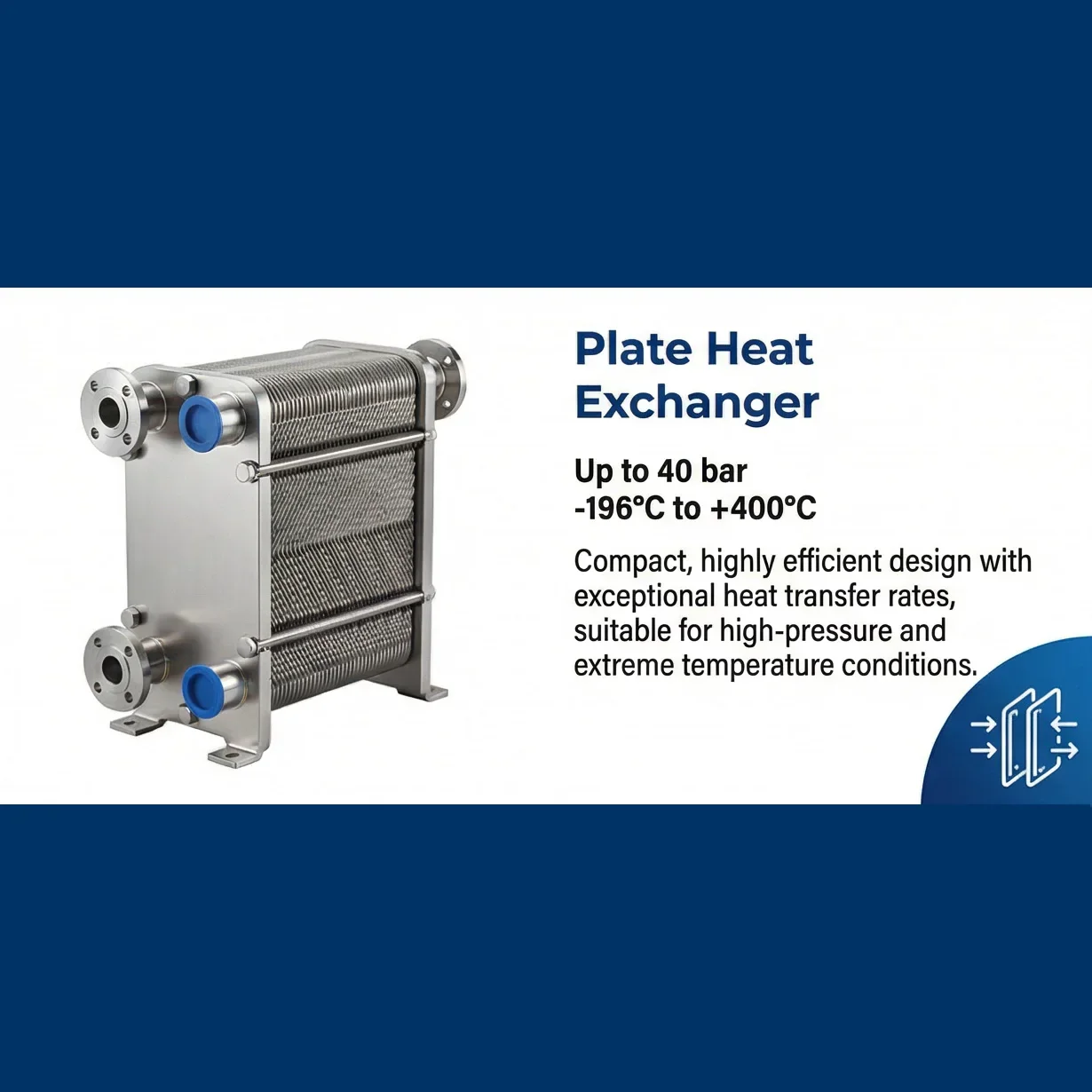

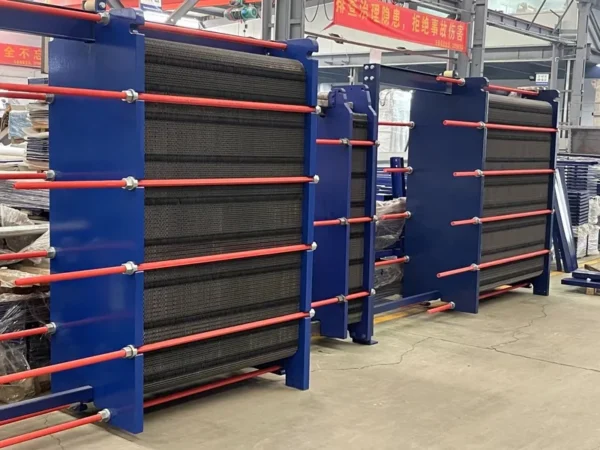

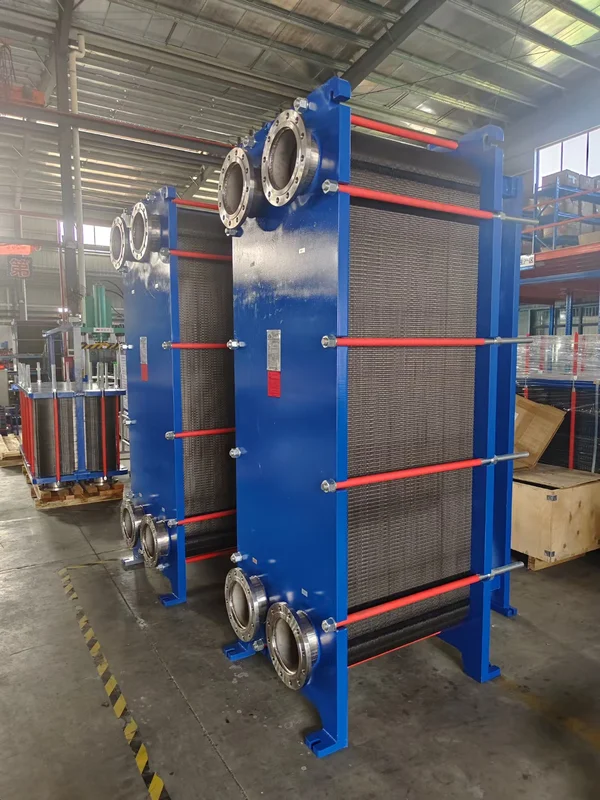

AESIMA Gasketed Plate Heat Exchangers use stacked metal plates with wavy corrugations and rubber gaskets to transfer heat between two fluids flowing in alternate channels. The wavy plate design creates turbulence, enabling high heat transfer rates in a compact footprint. Unlike welded designs, gaskets are replaceable, allowing you to add or remove plates to adjust capacity.
What it does: Two fluids flow through alternating channels formed by corrugated plates. The wavy pattern creates intense
turbulence, dramatically improving heat transfer efficiency compared to smooth surfaces.
Typical uses: HVAC systems, food & beverage processing, district heating networks, swimming pool heating, industrial coolingloops, compressed air aftercoolers.
Key specifications: pressures up to 30 bar, temperatures -40°C to +200°C, with plate configurations from10-500+ plates.
What it does: Two fluids flow through alternating channels formed by corrugated plates. The wavy pattern creates intense
turbulence, dramatically improving heat transfer efficiency compared to smooth surfaces.
Typical uses: HVAC systems, food & beverage processing, district heating networks, swimming pool heating, industrial coolingloops, compressed air aftercoolers.
Key specifications: pressures up to 30 bar, temperatures -40°C to +200°C, with plate configurations from10-500+ plates.

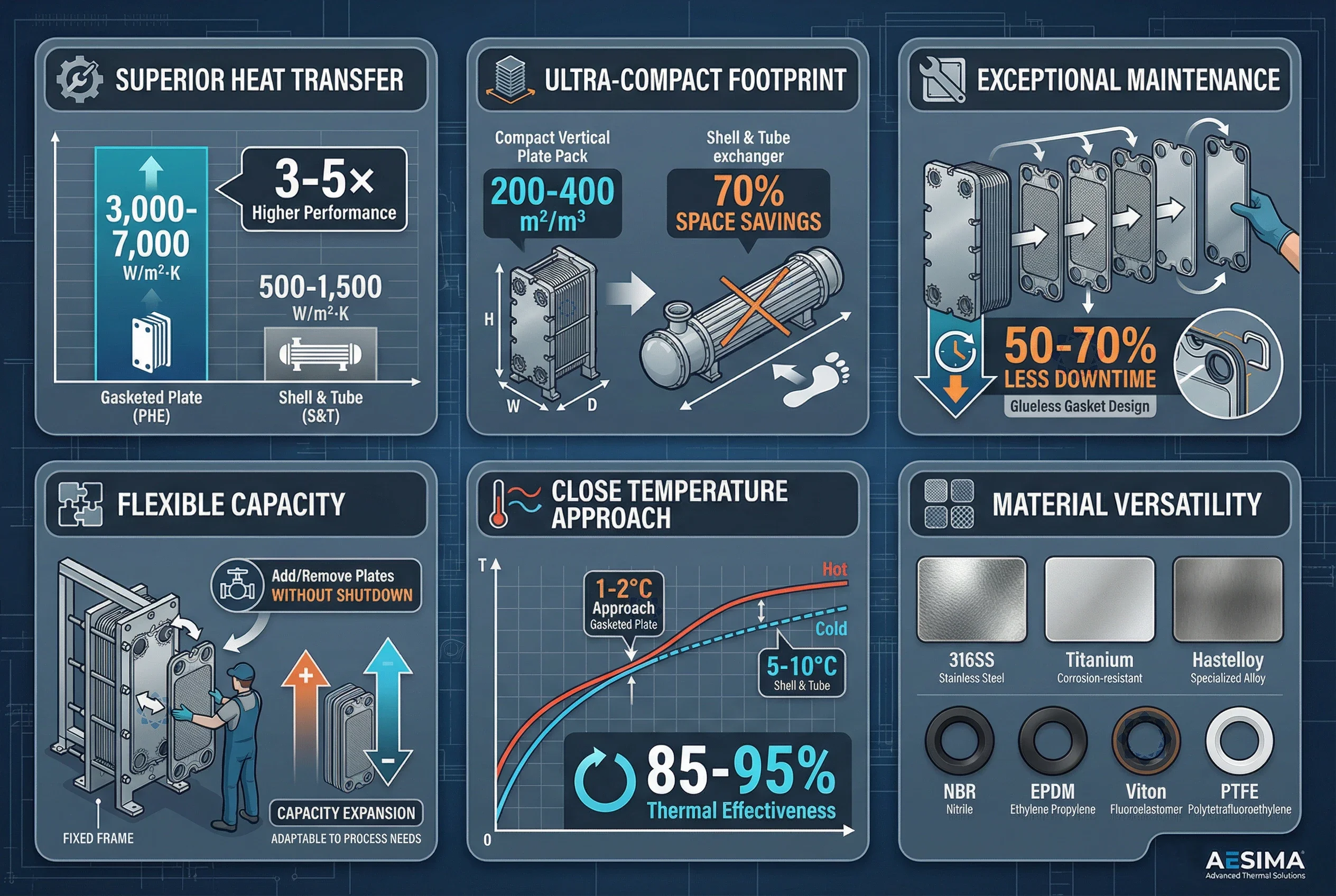

2.Why Choose Us

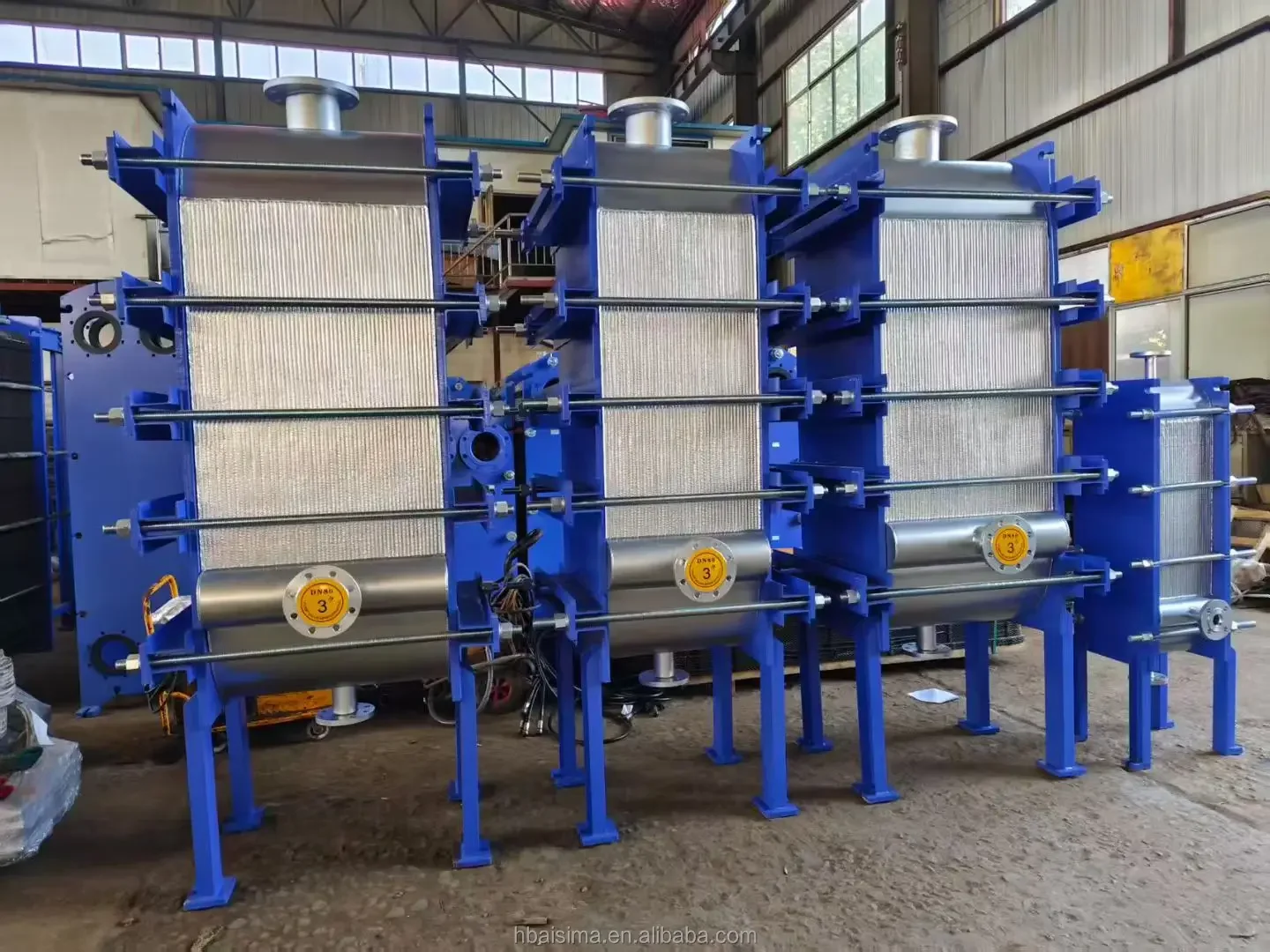

Compact & Lightweight — Delivers the same heat transfer as shell and tube exchangers in 1/5 the volume and 1/3 the weight. Perfectfor space-constrained installations (rooftops, mechanical rooms).
Easy Capacity Adjustment — Add or remove plates to increase/decrease capacity without replacing the entire unit. Ideal for businesses outgrowing their current equipment.
Maintainable — Gaskets replace in minutes; no welding or hot work required. Removable plate stacks allow chemical or mechanicalcleaning for fouling services.
Superior Heat Transfer — Plate corrugations create turbulent flow, achieving 85-95% thermal effectiveness with approach
temperatures as low as 3-5°C.
Cost-Effective — Lower material and energy costs throughout lifecycle. Wide gasket material selection (nitrile, EPDM,
fluoroelastomer) adapts to different fluids at minimal cost.
Easy Capacity Adjustment — Add or remove plates to increase/decrease capacity without replacing the entire unit. Ideal for businesses outgrowing their current equipment.
Maintainable — Gaskets replace in minutes; no welding or hot work required. Removable plate stacks allow chemical or mechanicalcleaning for fouling services.
Superior Heat Transfer — Plate corrugations create turbulent flow, achieving 85-95% thermal effectiveness with approach
temperatures as low as 3-5°C.
Cost-Effective — Lower material and energy costs throughout lifecycle. Wide gasket material selection (nitrile, EPDM,
fluoroelastomer) adapts to different fluids at minimal cost.

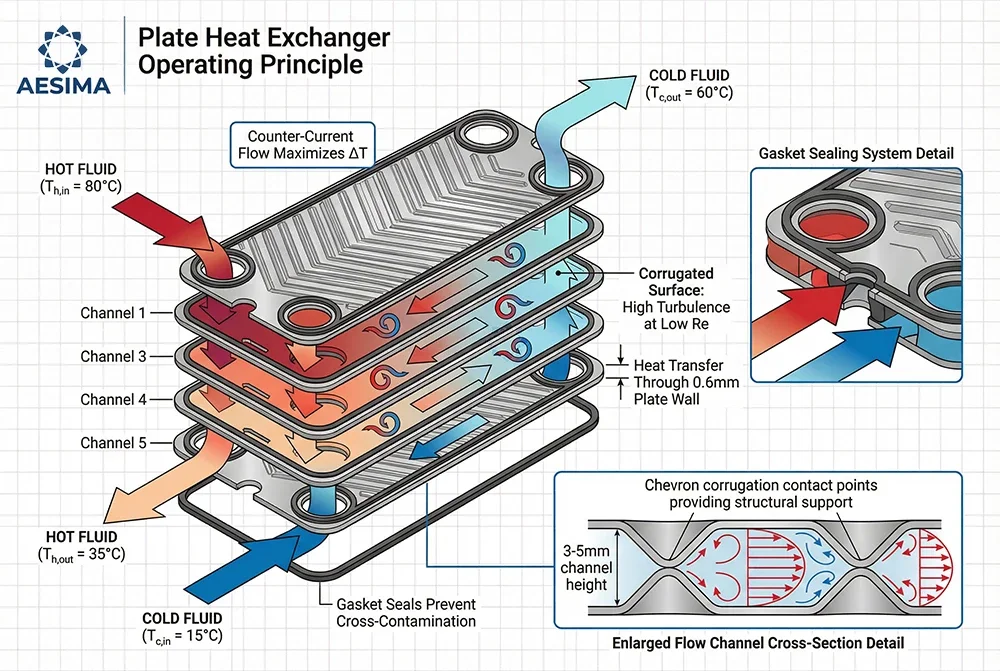

Gasketed Plate Heat Exchanger working principle diagram showing exploded isometric view with corrugated plates featuring 60° chevron patterns, elastomeric gaskets sealing four-port system, counter-current flow paths (hot fluid in red cooling through channels 1-3-5, cold fluid in blue heating through channels 2-4-6), temperature gradients visualized, cross-section detail showing turbulent flow in 3-5mm channels with contact points

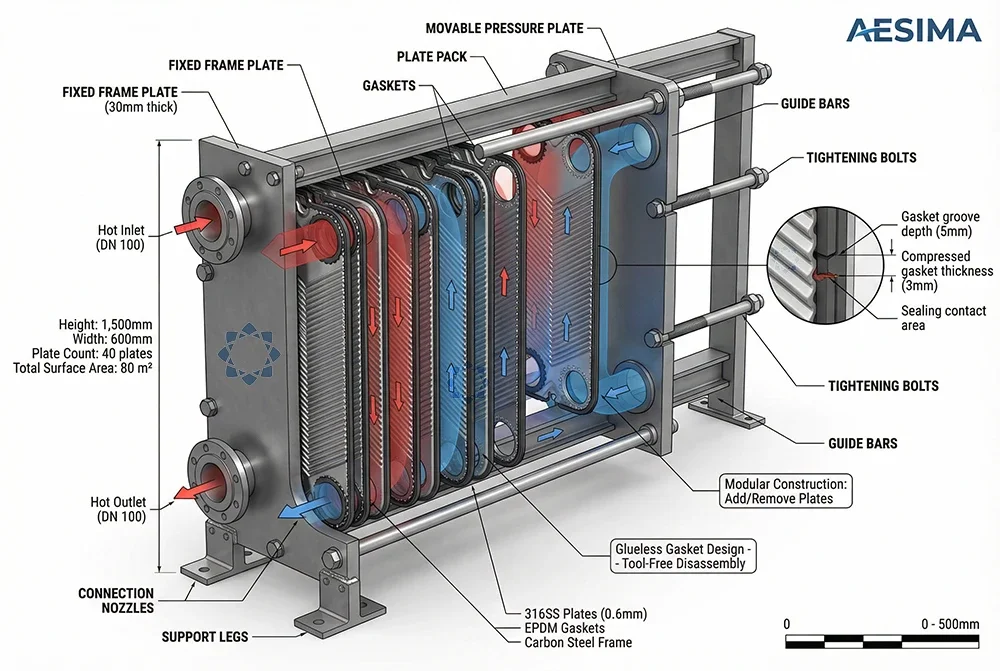

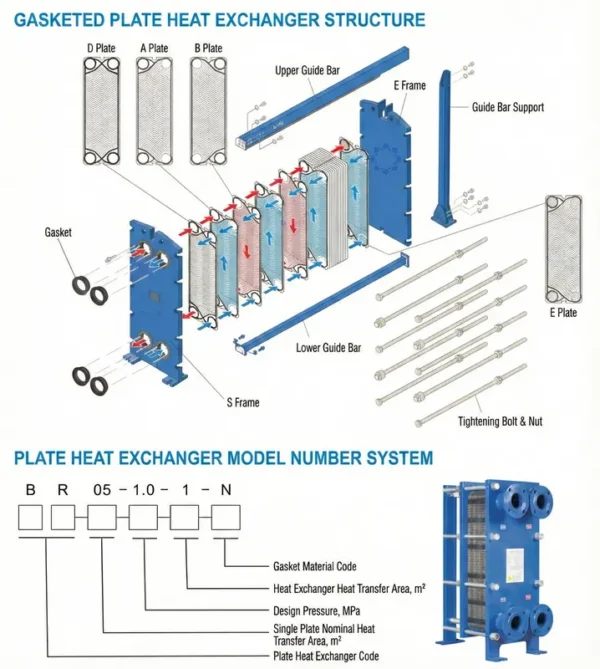

3D cutaway technical rendering of Gasketed Plate Heat Exchanger assembly: fixed frame plate with four corner nozzles, movable pressure plate on guide bars, internal plate pack (30-40 corrugated 316SS plates with dark EPDM gaskets), tightening bolt compression system, translucent flow visualization showing counter-current hot/cold fluid paths, gasket compression detail inset, dimensional annotations (1,500mm height, 80 m² area), glueless modular construction

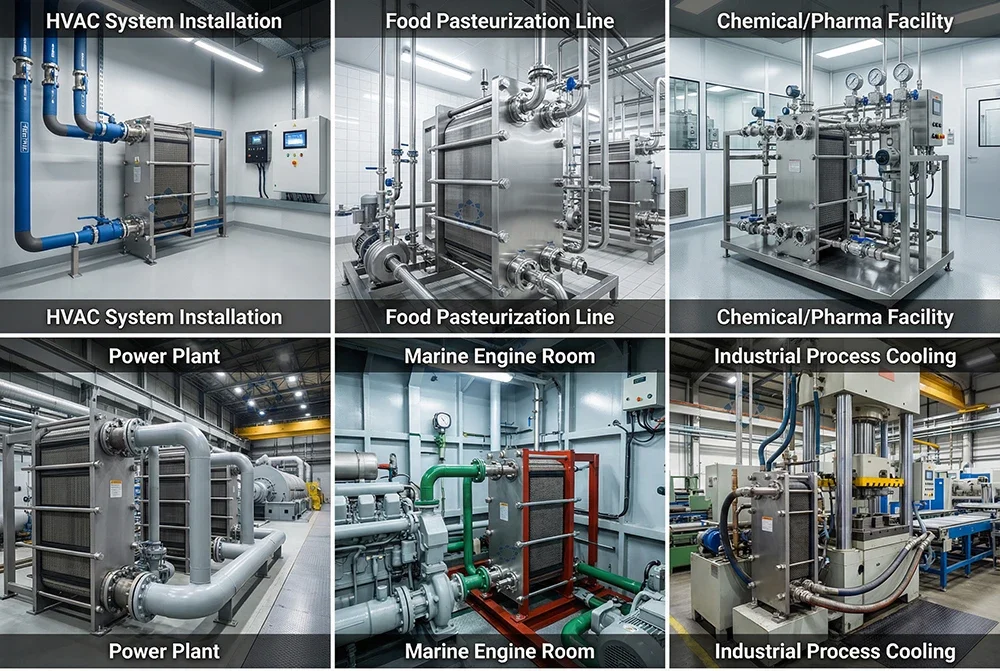

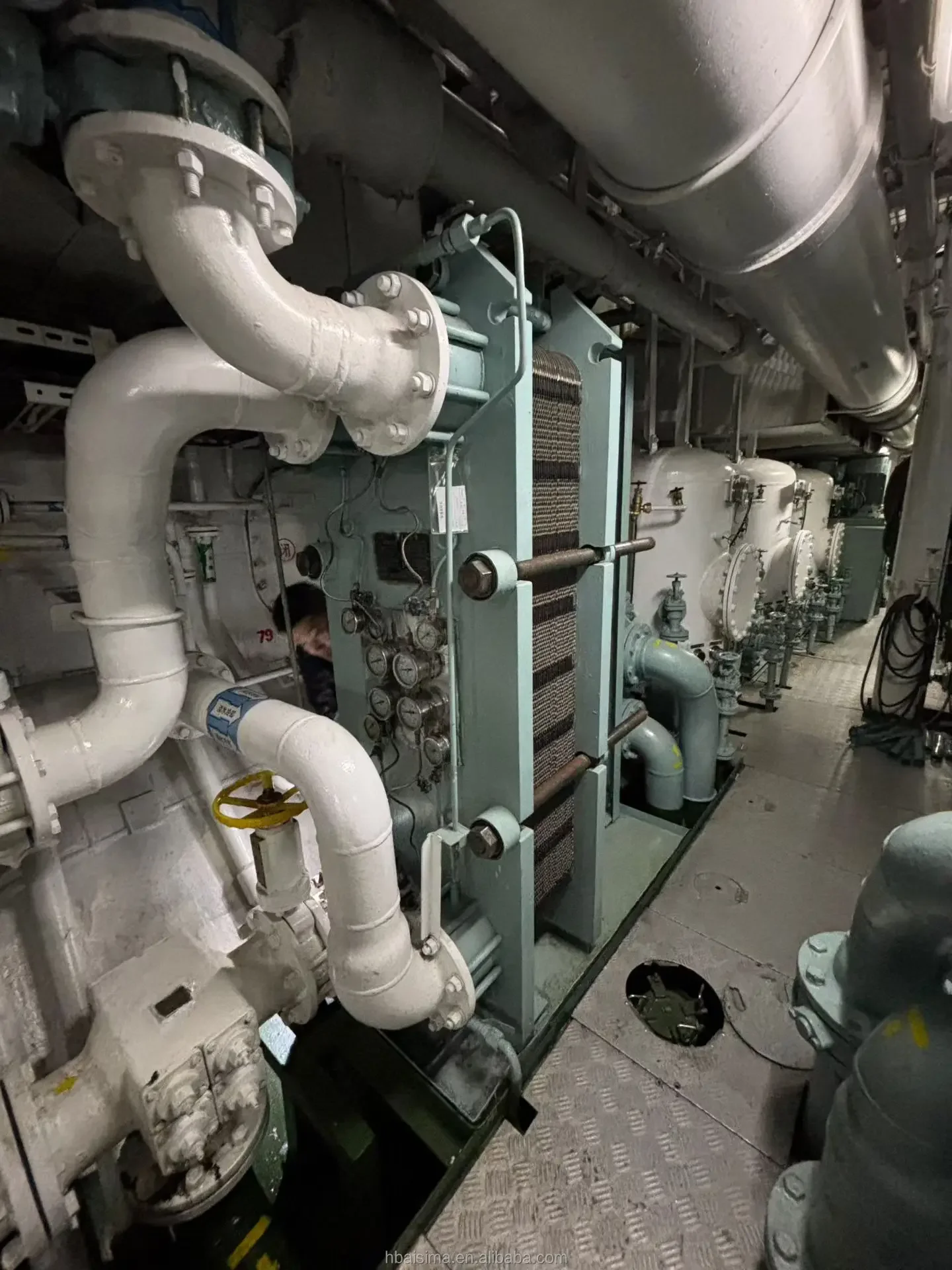

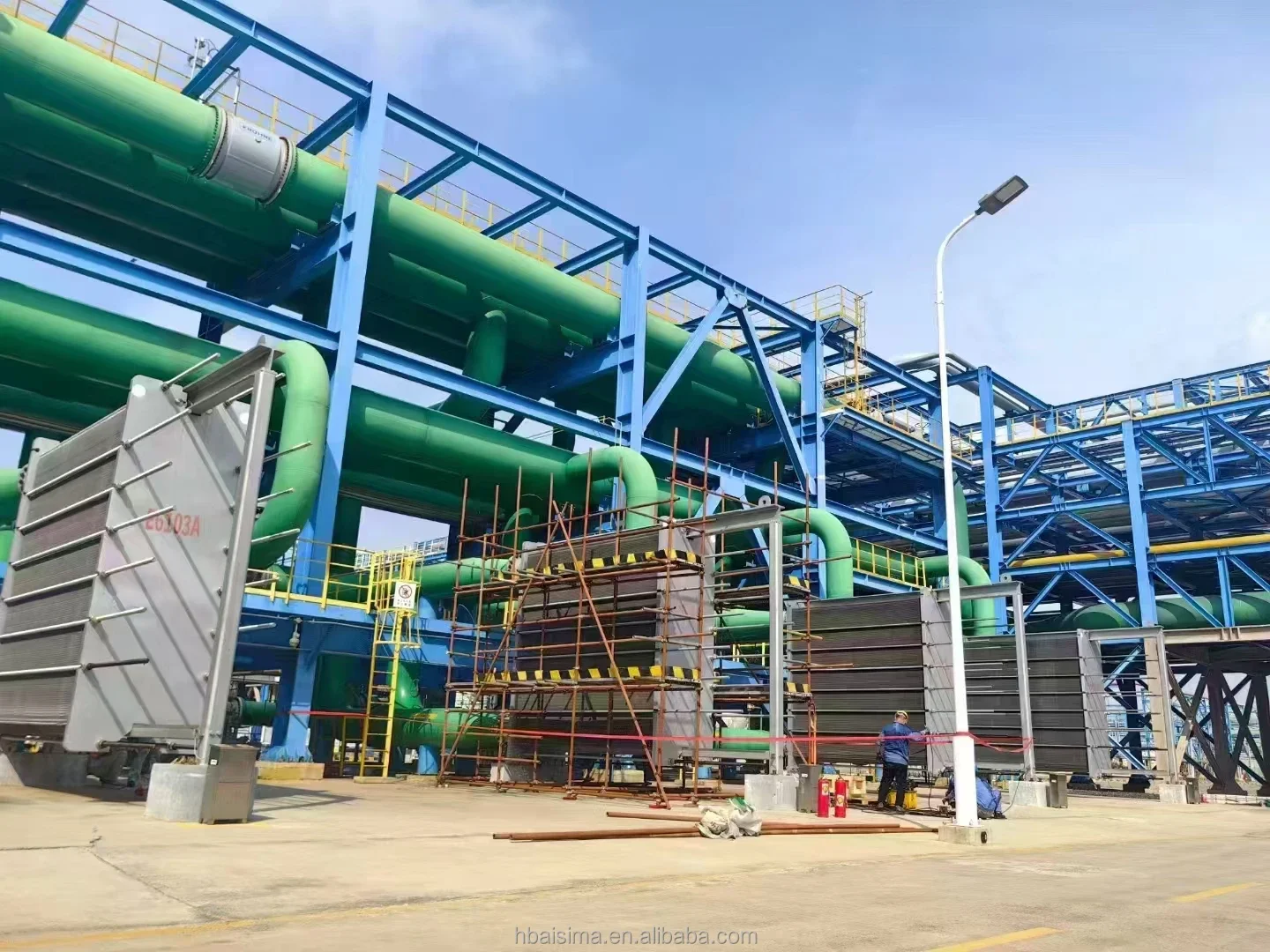

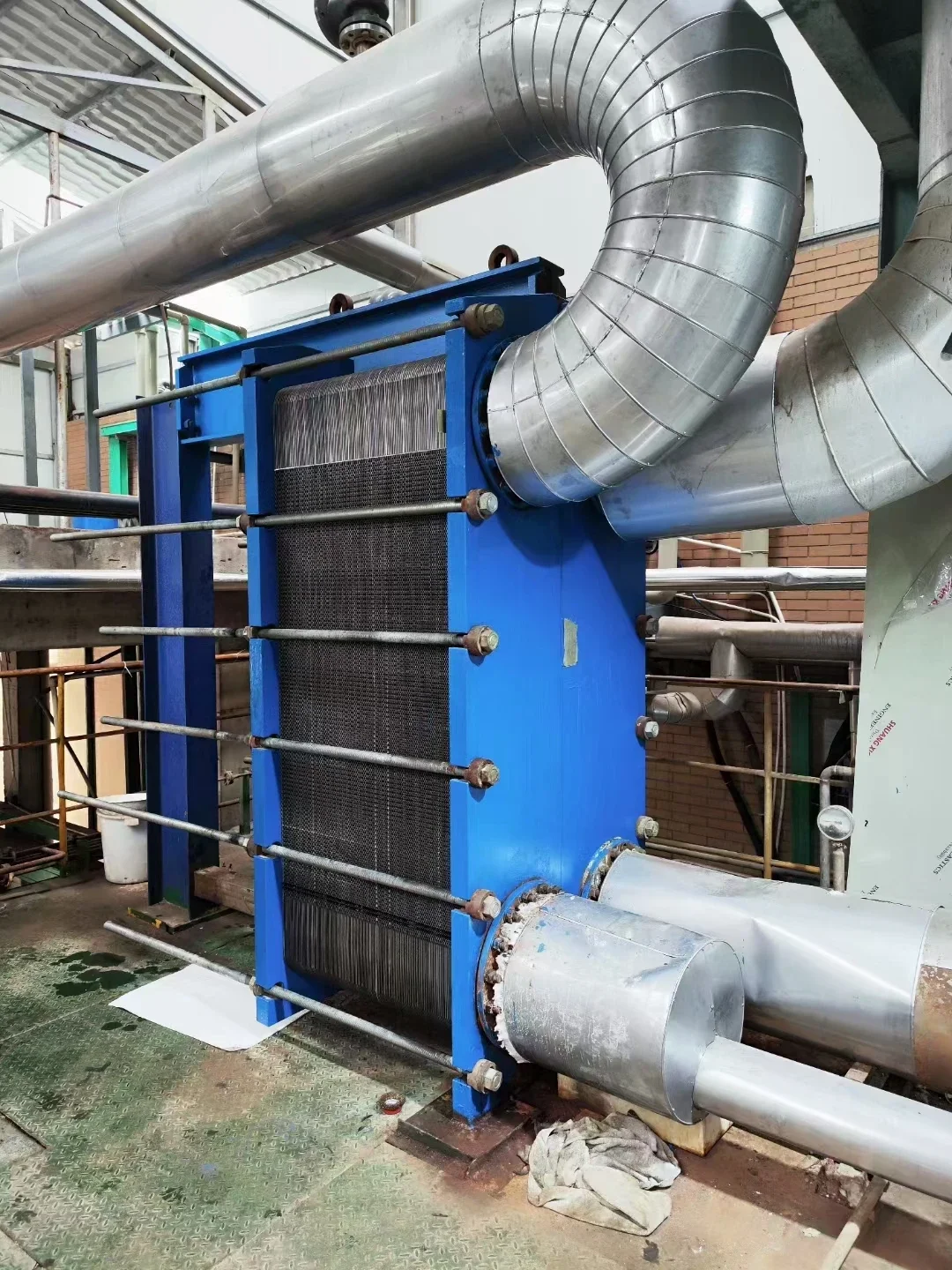

3. Where to Use It
Sector | Application | Typical Gasket/Materia | Rationale |
uD83CuDFE2 HVAC Systems | Central heating/cooling stations, district heating loops | EPDM / NBR | Reliable -20 to +120°C range; proven in millions of units |
uD83CuDF7D️ Food & Beverage | Pasteurization, product heating/cooling, sanitization loops | FKM / EPDM | Sanitary design , easy disassembly cleaning |
uD83CuDFCA Swimming Pools & Spas | Efficient heating systems with rapid response | EPDM | Chlorine-resistant gaskets; maintains pool comfort |
uD83CuDFED Industrial Cooling | Compressed air aftercoolers, hydraulic system coolers | Nitrile / EPDM | Reliable -10 to +100°C; proven durability in heavy industry |
uD83DuDCCA Data Centers | Precision cooling loops for server racks, emergency backup | FKM / EPDM | Redundancy capable; modular scalability for growth |
☀️ Renewable Energy | Solar thermal systems, heat pump integration loops | EPDM | Extended service life ; zero-leakage design |
*And more | *And more |
4.How We Tailor
Material Customization — Matching Your Fluid Chemistry
Plate Materials:
* Stainless Steel 304: General industrial applications, water services, HVAC
* Stainless Steel 316/316L: Enhanced corrosion resistance for brackish water, mild acids, food processing
* Titanium: Seawater cooling, chlorinated process streams, aggressive chemicals
* Nickel Alloys (Inconel, Hastelloy): Extreme corrosion/temperature applications (hot acids, alkalis)
* Special Alloys (254SMO, AL-6XN): High-chloride environments, offshore applications
* Graphite: Corrosive acid services where metal plates are unsuitable
Frame & Hardware:
Carbon steel with epoxy or powder coating for standard applications; stainless steel for corrosive environments or sanitary
requirements.
NBR (Nitrile) | $ | Mineral oils, low-cost industrials |
EPDM Gaskets | $$ | Water cooling, HVAC, most common applications |
FKM (Viton) | $$$ | Chemical resistance, refrigerants, food processing |
PTFE-Lined Gaskets | $$$$ | Aggressive chemicals, extreme services |
OEM Service Workflow
For Standard Services (clean water, light oils) → Standard Gasketed Design — Lowest cost, nitrile gaskets, 10-100 plates typical.Easy capacity expansion.
For Corrosive or Aggressive Fluids — Specify stainless steel plates (304/316), specialty gaskets (EPDM, fluoroelastomer), or even titanium plates for seawater cooling.
For High-Fouling Services — Wider plate spacing (low density) for easier cleaning. Larger plate selection (bigger channels) accommodates particles or sludge without blockage.
For Capacity Scaling — Design with modularity in mind: install 50% of required plates now, add more when demand grows. No replacement needed.

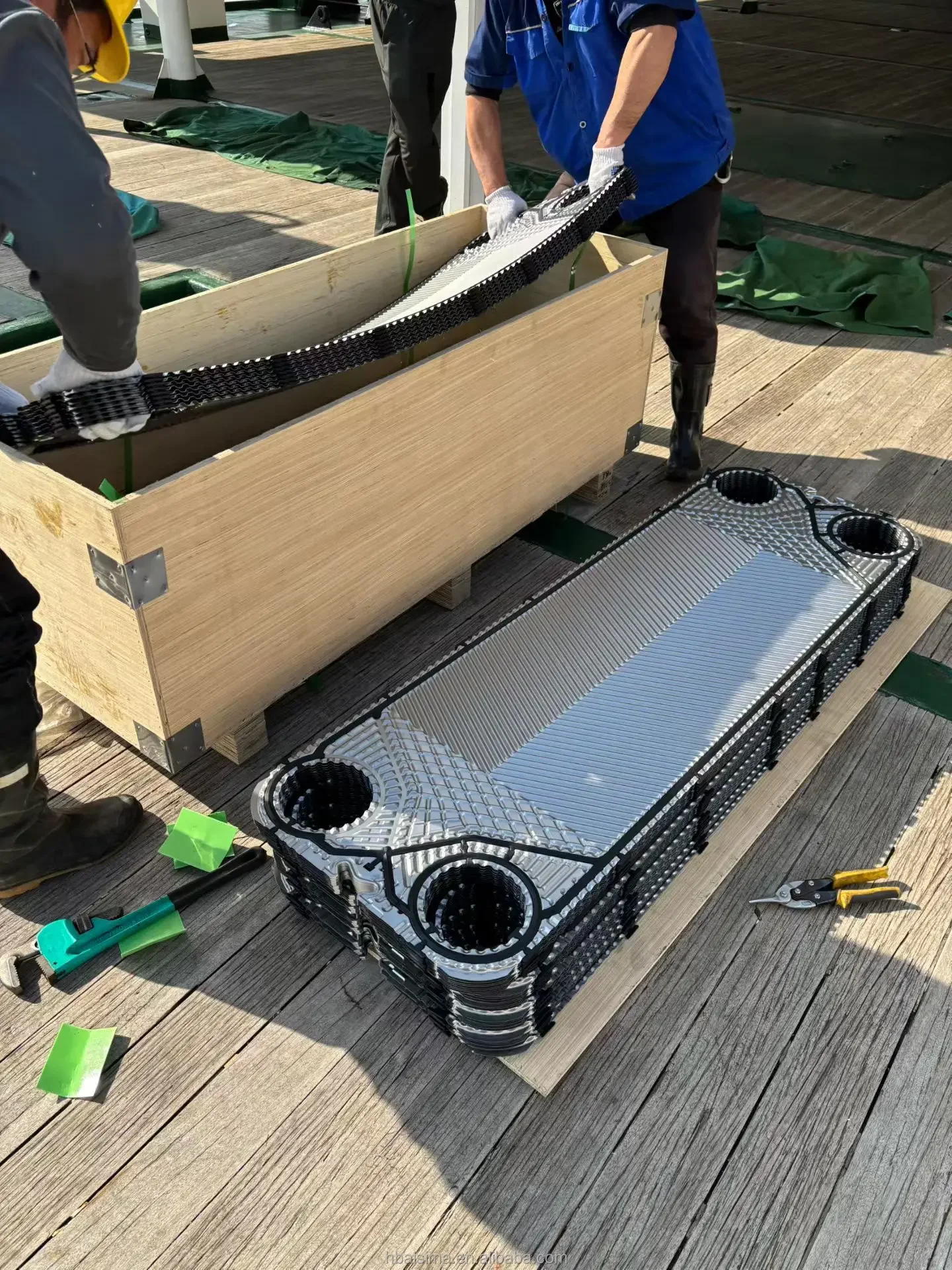

Gasket Material Selection: Nitrile (most common, -40°C to +80°C), EPDM (higher temperature to +120°C), Fluoroelastomer (aggressive chemicals to +150°C).
For Corrosive or Aggressive Fluids — Specify stainless steel plates (304/316), specialty gaskets (EPDM, fluoroelastomer), or even titanium plates for seawater cooling.
For High-Fouling Services — Wider plate spacing (low density) for easier cleaning. Larger plate selection (bigger channels) accommodates particles or sludge without blockage.
For Capacity Scaling — Design with modularity in mind: install 50% of required plates now, add more when demand grows. No replacement needed.
Gasket Material Selection: Nitrile (most common, -40°C to +80°C), EPDM (higher temperature to +120°C), Fluoroelastomer (aggressive chemicals to +150°C).
Gasket Material | Temperature Range | Best For | Chemical Compatibility |
NBR (Nitrile) | -15°C to +110°C | Water, oils, moderate temps | Good for water, oils, hydrocarbons |
EPDM | -40°C to +150°C | High-temp water, steam | Excellent for water, steam, chemicals |
Viton | -15°C to +180°C | Aggressive chemicals | Superior for acids, solvents, hydrocarbons |
PTFE | -40°C to +180°C | Extreme chemical resistance | Outstanding for nearly all chemicals |
Silicone | -60°C to +150°C | Food-grade applications | FDA-compliant, high-temp flexibility |

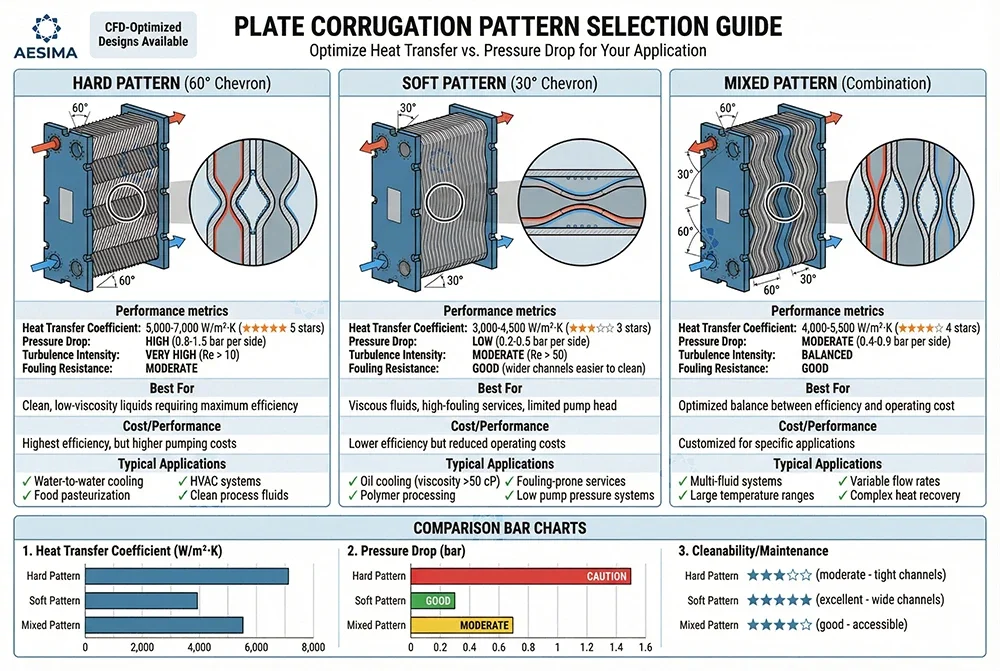

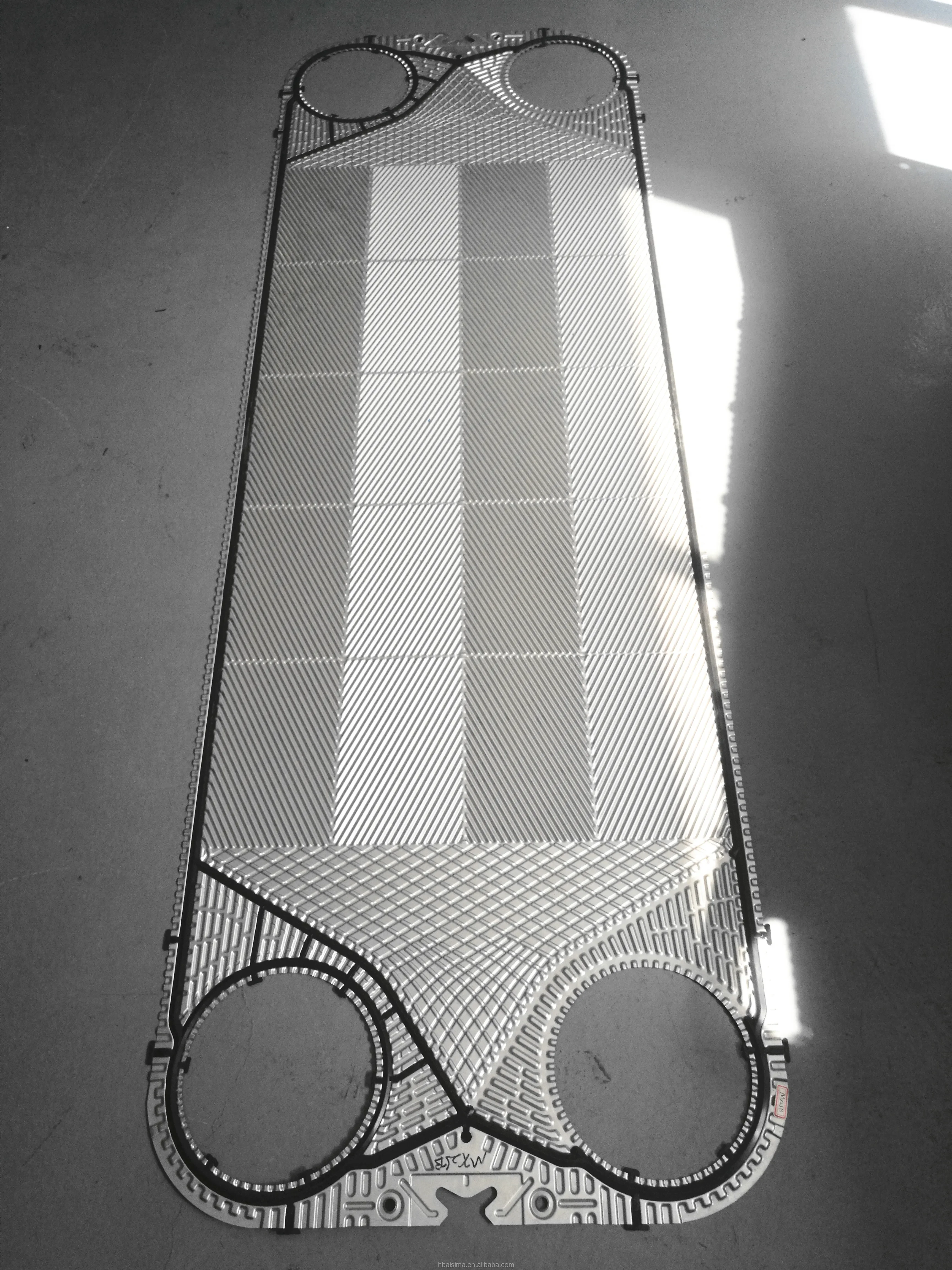

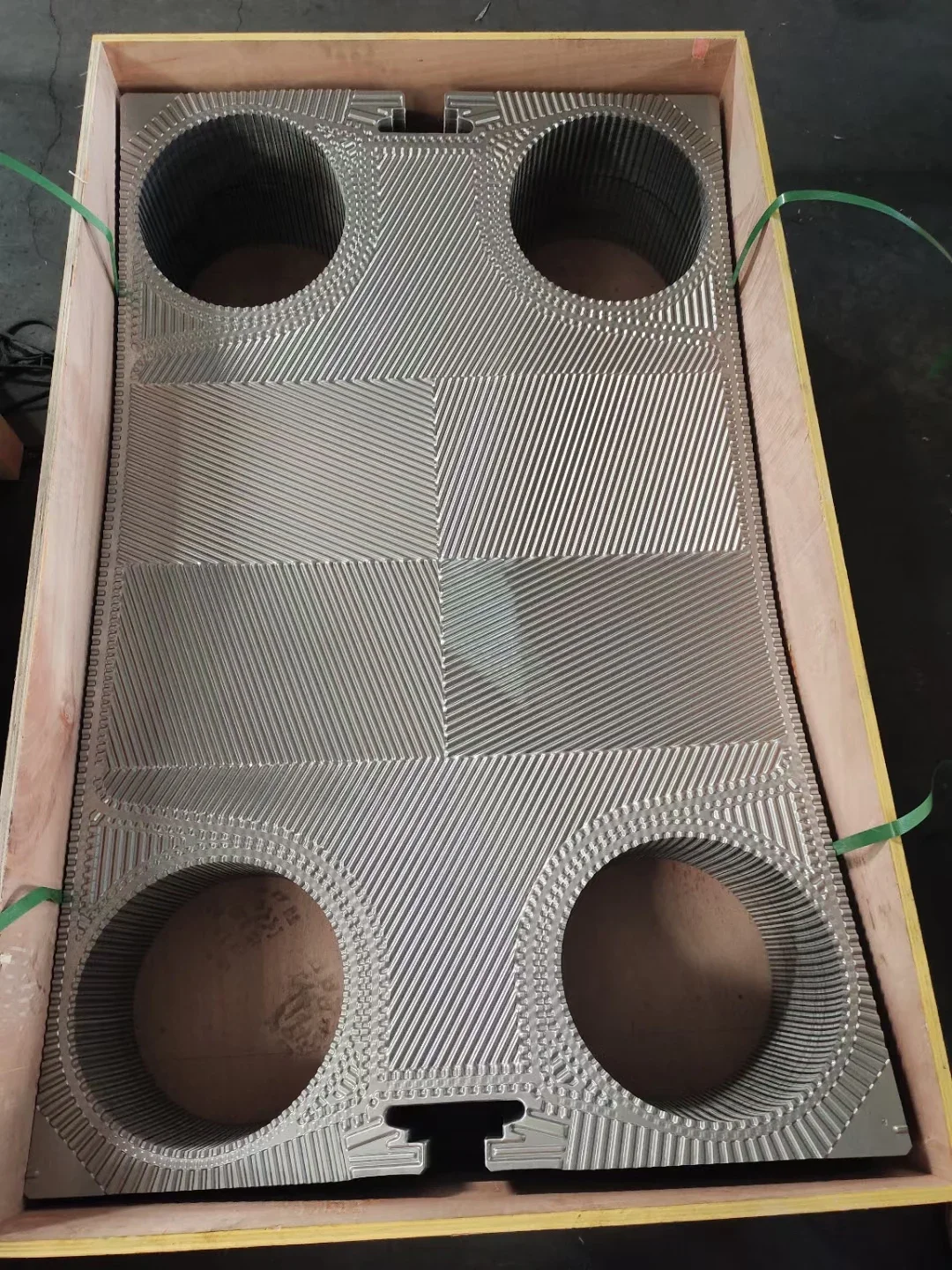

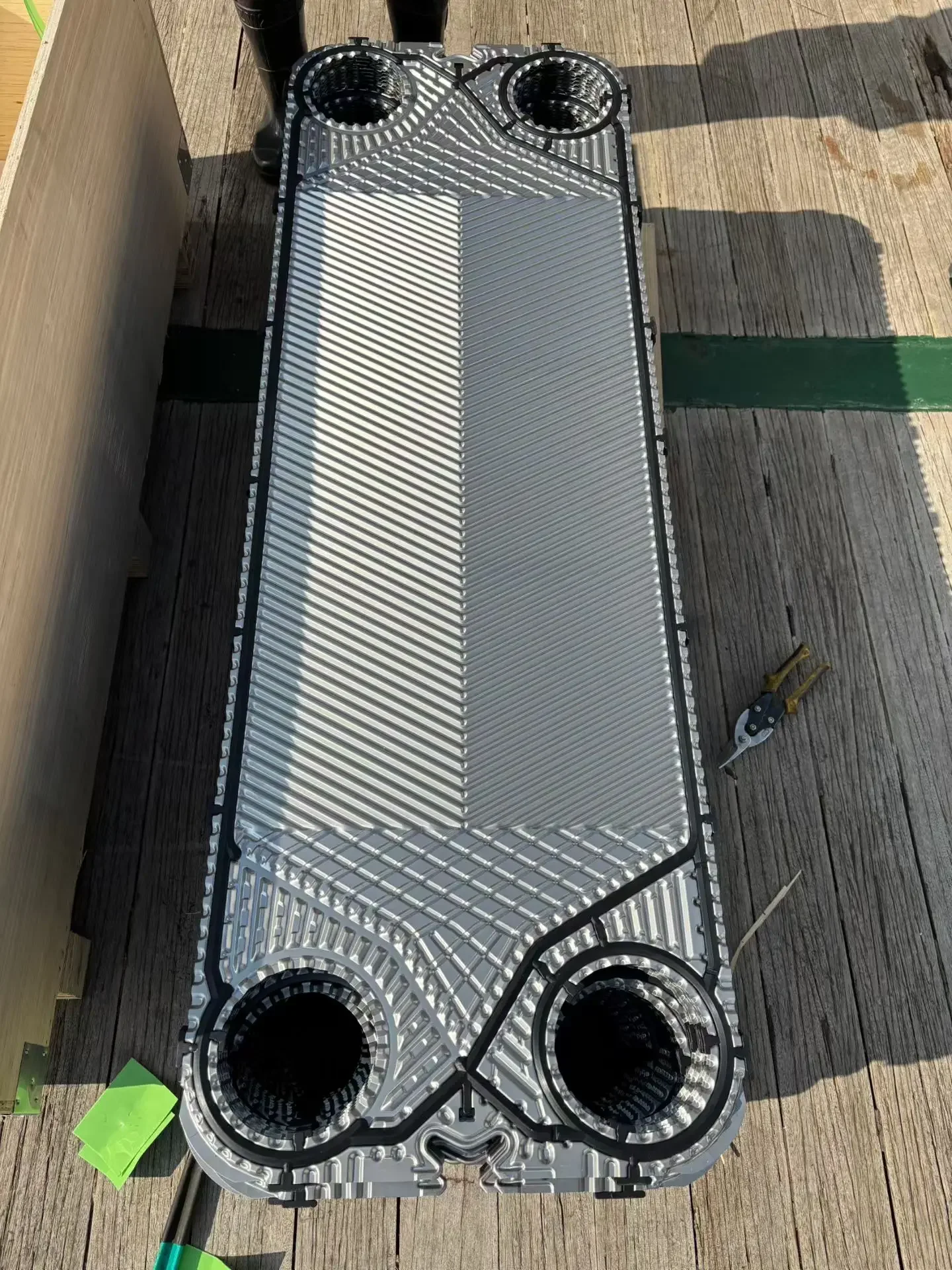

Plate Corrugation Selection
Hard Pattern (60° chevron)
* Best for: Clean, low-viscosity liquids requiring maximum heat transfer
* Pros: Highest heat transfer coefficient, compact design
* Cons: Higher pressure drop, increased pumping costs
* Typical applications: Water-water cooling, food pasteurization, HVAC
* Best for: Clean, low-viscosity liquids requiring maximum heat transfer
* Pros: Highest heat transfer coefficient, compact design
* Cons: Higher pressure drop, increased pumping costs
* Typical applications: Water-water cooling, food pasteurization, HVAC
Soft Pattern (30° chevron)
* Best for: Viscous fluids or high-fouling services
* Pros: Lower pressure drop, easier cleaning, suitable for limited pump head
* Cons: Moderate heat transfer coefficient, larger surface area required
* Typical applications: Oil cooling, polymer processing, high-fouling duties
Mixed Pattern
* Best for: Applications with varying fluid properties or flow rates
* Pros: Optimized balance between heat transfer and pressure drop
* Cons: More complex design, slightly higher cost
* Typical applications: Multi-fluid systems, large temperature ranges
* Best for: Viscous fluids or high-fouling services
* Pros: Lower pressure drop, easier cleaning, suitable for limited pump head
* Cons: Moderate heat transfer coefficient, larger surface area required
* Typical applications: Oil cooling, polymer processing, high-fouling duties
Mixed Pattern
* Best for: Applications with varying fluid properties or flow rates
* Pros: Optimized balance between heat transfer and pressure drop
* Cons: More complex design, slightly higher cost
* Typical applications: Multi-fluid systems, large temperature ranges
OEM Service Workflow
step 1: Thermal Load Analysis (24-48 hours)
↓ You provide: flow rates, inlet/outlet temps, pressure
↓ We calculate required plate count & configuration
↓ step 2: Configuration & Material Selection (1-2 days)
↓ Recommend frame size, plate type, gasket material
↓ Connection options & pressure rating confirmation
↓ Cost quote for single or batch order
↓ step 3: Sample Unit Inspection (1-2 weeks)
↓ Factory assembles sample with your gasket/material choice
↓ Performance test & pressure verification
↓ Approval required before production

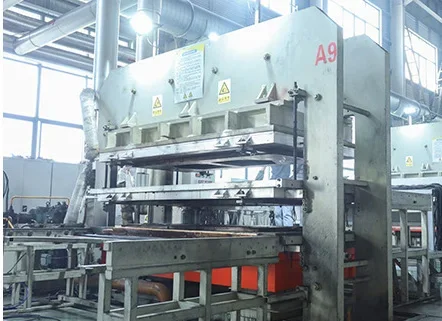

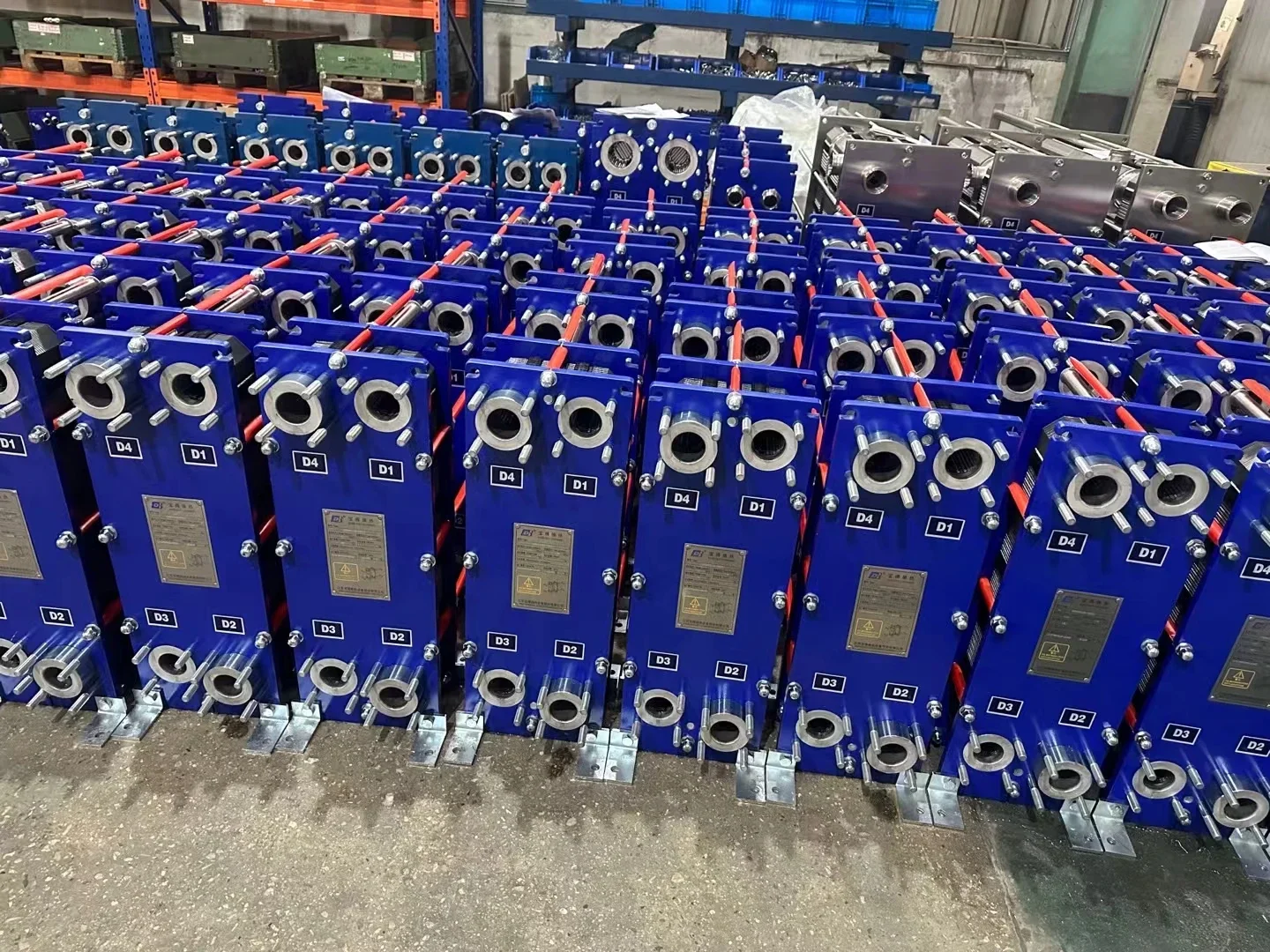

↓ step 4: Mass Production (2-4 weeks)
↓ Dedicated assembly for your order
↓ Weekly progress updates
↓ Final QA test & shipping documentation
AESIMA's Advantage: We Accept Small Orders That Large Factories Reject

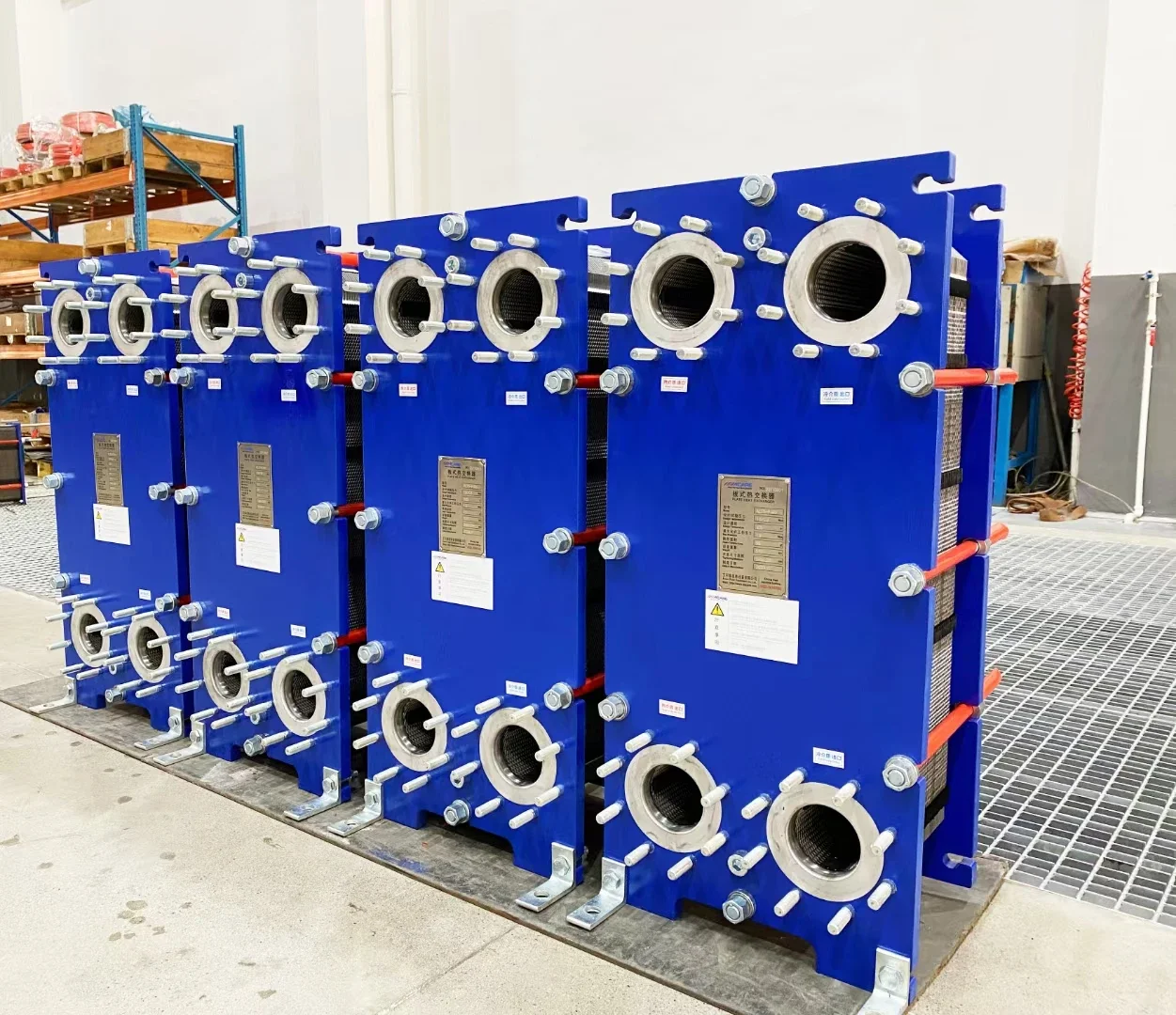

5.Reliability
6.FAQ & Service
