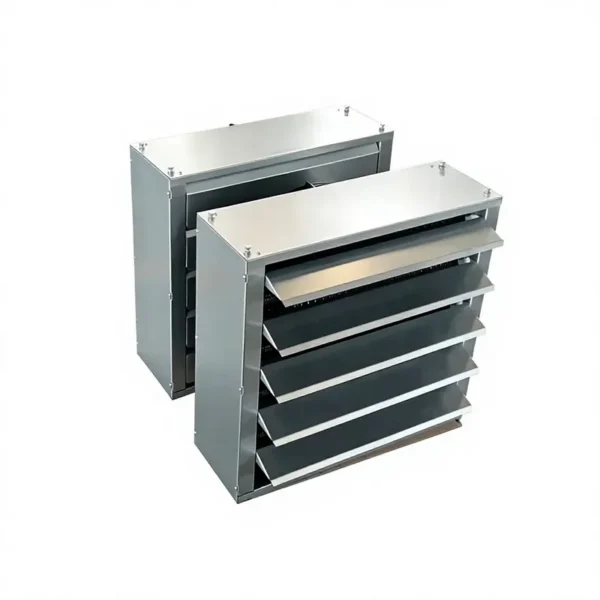

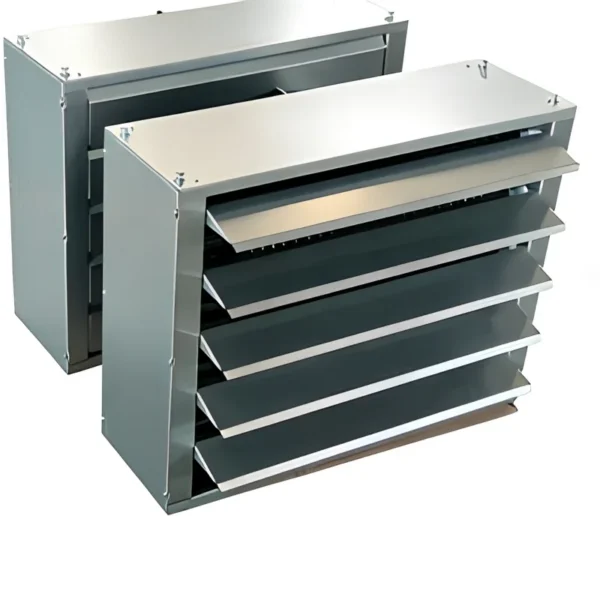

Flow Electric Heating Fan, 50kW, 7100m3/h, Axial

This flow electric heating fan is published with the manufacturer’s full specification — 380 V, 50KW. Made by Shenyang Qiaogong Cooling And Heating Technology Co., Ltd. (6 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Flow Electric Heating Fan

• Power Source: Electric
• Heating Power: 50KW/170600BTU
• Fan Power: 420W
• Voltage: 380 V
• Heating Capacity: 50KW
• Airflow: 7100m3/h

Technical Specifications

Product Details

Products Description

Product Features

Electric unit heater with axial fan is a heating product that directly uses electricity as a heating medium.It is mainly composed of electric heater, fan, housing, control system and other components.The electric heater can be a finned tube electric heater or a PTC ceramic heater. The series of products adopts axial fan.According to different working conditions, explosion-proof, high-temperature resistant or dust-proof and moisture-proof type can be customized.

The electric unit heater adopts low noise axial fan, forced air circulation, heating circulating air through the electric heater, so that the air in the room is uniformly heated. Model Description NF2-ZD NF -Unit heater 2-  The nominal airflow rate is 2000m3/h Z –   Axial fan D –   Electric heating

Product Applications

It is especially suitable for places with intermittent heating, or supplementary heating for areas where other heating methods are not effective. When heating in a certain space, be sure to match the temperature controller to prevent damage to the unit itself or other items in the space due to overheating. This series of electric heaters are widely used in factories, shops, ships, mining and so on.

Model	Electric heating capacity (kW)	Dimensions （L×W×H）(mm)	Airflow rate (m3/h)	Voltage (V～)	RPM	Power(kW)	Noise dB(A)
NF0.75-ZD	5	450×300×510	750	380	960	0.05	42
NF0.75-ZD	7.5	450×300×510	750	380	960	0.05	42
NF1.2-ZD	10	450×300×510	1200	380	1380	0.09	54
NF2-ZD	15	550×320×610	2100	380	1360	0.15	58
NF2-ZD	20	550×320×610	2100	380	1360	0.15	58
NF2-ZD	25	550×320×610	2100	380	1360	0.15	58
NF4-ZD	25	600×330×660	4200	380	1370	0.19	60
NF4-ZD	30	600×330×660	4200	380	1370	0.19	60
NF4-ZD	35	600×330×660	4200	380	1370	0.19	60
NF5-ZD	35	650×350×710	5050	380	1380	0.25	62
NF5-ZD	40	650×350×710	5050	380	1380	0.25	62
NF5-ZD	45	650×350×710	5050	380	1380	0.25	62
NF7-ZD	50	750×380×810	7100	380	1350	0.42	69
NF7-ZD	60	750×380×810	7100	380	1350	0.42	69
NF9.5-ZD	70	1000×400×1080	9500	380	1330	0.55	72
NF9.5-ZD	80	1000×400×1080	9500	380	1330	0.55	72
NF9.5-ZD	90	1000×400×1080	9500	380	1330	0.55	72
NF12-ZD	100	1200×420×1280	12000	380	1350	0.85	73
NF12-ZD	110	1200×420×1280	12000	380	1350	0.85	73
