The forced gas air heater listed here carries power source Gas, material Metal + plastic, documented exactly as the manufacturer publishes it. Made by Ningbo Singfun Central Heating Technology Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Forced Gas Air Heater
- Model Number: SFQ10-22A
- Power Source: Gas
- Power: 10KW
- Material: Metal + plastic
- Warranty: 1 Year
- Certification: CE,Rohs
Technical Specifications
| Heating Area | 50-100 sqm(538.19-1076.39ft2) |
|---|---|
| Installation | Portable |
| Function | Adjustable Thermostat, Overheat Protection, Tip-Over Protection, Waterproof |
| Application | Hotel, Garage, Commercial, Household |
| Use | Garden |
| Warranty | 1 Year |
| After-Sales Service Provided | Onsite Installation |
| Overheat Protection | Yes |
| App-Controlled | No |
| Private Mold | Yes |
| Packaging Types | Corrugated Box |
| Operating Language | English |
| Power Source | Gas |
| Place Of Origin | Zhejiang, China |
| Brand | Singfun |
| Model Number | SFQ10-22A |
| Product Name | SFQ10-22A |
| Recomended Usable Area | 50-100㎡ |
| Power | 10KW |
| Material | Metal + plastic |
| Net Dimension | 380*186.5*302mm |
| Packing Dimension | 405*217*290mm |
| Gross Weight | 4.6KG |
| Max .Gas Consuption | 727g/h |
| Certification | CE,Rohs |
| Selling Units | Single item |
| Single Package Size | 41X22X29 cm |
| Single Gross Weight | 4.6 kg |

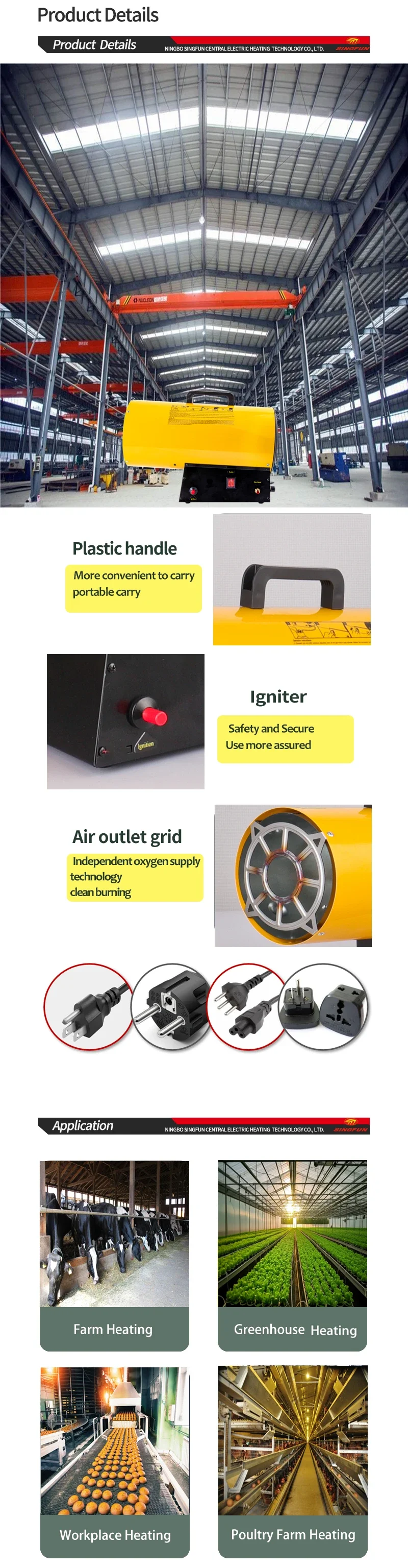

Product Details
Model | SFQ10-22A | SFQ15-22A | SFQ30-22A | SFQ50-22A |
Gas pressure | 0.7 bar | 0.7 bar | 0.7 bar | 1.5 bar |
Rated voltage | 220-240V～50Hz | 220-240V～50Hz | 220-240V～50Hz | 220-240V～50Hz |
Motor power input | 30W | 30w | 70w | 70w |
Max .gas consuption | 727 g/h | 1091 g/h | 2183 g/h | 3600g/h |
Max.heat input | 10KW | 15KW | 30KW | 50KW |
Hot air out put | 320 m³/h | 320 m³/h | 650 m³/h | 800 m³/h |
Net dimension | 380×186.5x302mm | 380×186.5x302mm | 475x220x350mm | 605x220x350mm |
Packing dimension | 405*217*290mm | 405*217*290mm | 498*255*355mm | 628*255*355mm |
QTY/40HQ | 2562 | 2878 | 1596 | 1149 |
N.W./G.W. | 3.3/4.6kg | 3.4/4.6kg | 5.3/6.9kg | 6.1/7.7kg |
IP Rating | IPX4 | IPX4 | IPX4 | IPX4 |
Recommend usable area | 50-80㎡ | 80-100㎡ | 160-180㎡ | 270-290㎡ |
industrial standards in 2007.As well as to be secretariat of central Electric Heating System Sub-Technical Committee of National
Technical Committee on Household Electrical Appliances of Standardization Administration of China.
A: Yes, we support to purchase samples, the sample cost and express cost will be refunded after placing the bulk order.
Q:Do you accept the OEM?
Q:Can you provide with other colors?
A:Yes, we can customize with your color.
Q:What is your MOQ?
A: 800sets for Electric fan heater, 300sets for Diesel/Kerosene fan heater, and
500sets for gas heater. Pls freely contact us before placing orders.
Q:What is your payment term?
A: T/T, L/C, OA, Western Union, Pay pal and etc.
Q: What is the shipping method?
A: It could be shipped by sea, by air or by express(DHL, UPS, TNT, FEDEX and ect). Please confirm with us before placing orders.
Q:How about warranty service?
A:The warranty period is 1 year, and we provide immediate factory technical support and strong after-sale support.
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000–2999 piece: US $28 / piece
- 3000–4999 piece: US $27 / piece
- 5000+ piece: US $26 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this forced gas air heater?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this forced gas air heater carry?
It is supplied with CE,Rohs documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Singfun Central Heating Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Singfun Central Heating Technology Co., Ltd. range on HVACR Nexus.
