This free standing centrifugal impeller is published with the manufacturer’s full specification — 220V, power source type Corded Electric. Made by Zhengzhou Jeek Electronic Technology Co., Ltd. (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Free Standing Centrifugal Impeller
- Model Number: 133/146
- Power Source Type: Corded Electric
- Voltage: 220V
- Material: Iron
- Blade Material: Stainless Steel
- Noise Level: 35–39 dB
Technical Specifications
| Duct Diameter | 8 in |
|---|---|
| Mounting | Free Standing |
| Voltage | 220V |
| Motor Type | AC Motor |
| Material | Iron |
| Blade Material | Stainless Steel |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 35–39 dB |
| Place Of Origin | Guangdong, China |
| Brand Name | JEEK |
| Model Number | 133/146 |
| Wire Lead | 3 /4wire |
| Noise Level: | 61DBA |
| Size | 146mm |
| Bearing Type | ball bearing |
| Application | air cooler system |
| Frame: | fan for evaporator |
| Weight | 2kg |

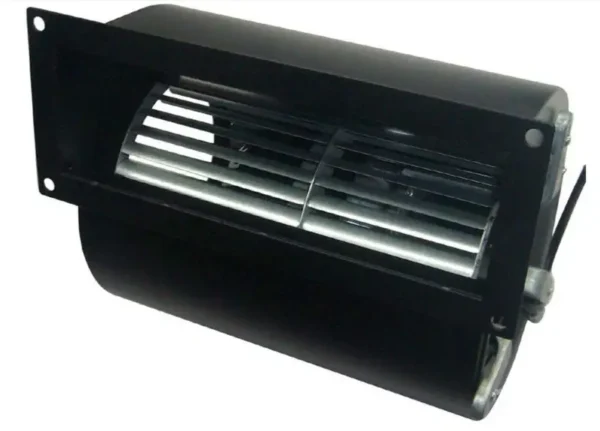

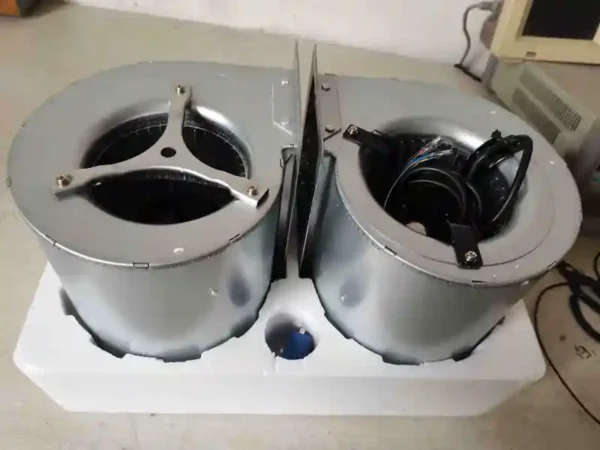

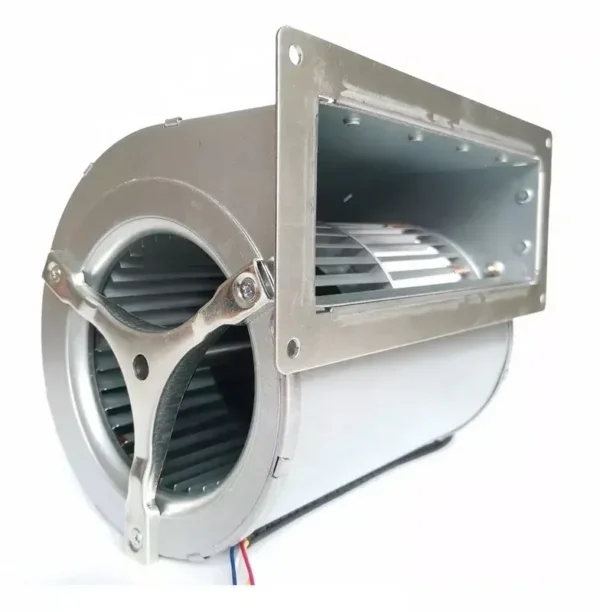

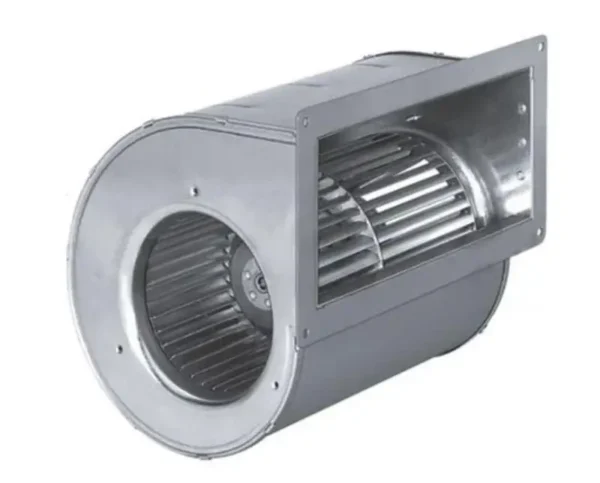

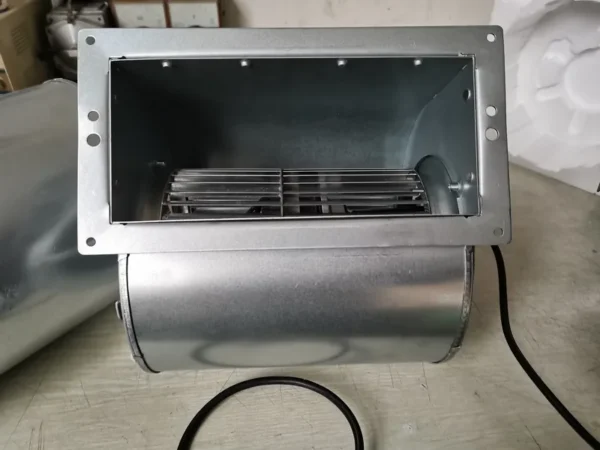

| Name | Centrifugal impeller dual inlet blower 230V EC motor |
| Certification | CE/ROHS/ |
| Working Life | 50000 hours |
| Selling Units | Single item |
| Single Package Size | 66X44X38 cm |
| Single Gross Weight | 11.0 kg |
Product Details
Specification | ||||||||||||||
Model Type: D2E133-L190-01F / Motor Type: 92mm | ||||||||||||||
Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure | |||||||
(VAC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) | |||||||
220 | 50/60 | 1.14/0.99/0.84 | 251/216/181 | 1410/1146/886 | 499/398/308 | 849/678/524 | 376/372/356 | |||||||
Details Description | ||||||||||||||
Current Leakage | <=0.25mA | |||||||||||||
Operation Mode | continuous operation S1 | |||||||||||||
Direction of Rotation | clockwise, seen on rotor | |||||||||||||
Mounting Position | at will | |||||||||||||
Insulation Class | "F" | |||||||||||||
Cable Length | 450mm | |||||||||||||
Bearing | ball bearing (NSK) | |||||||||||||
Net weight | 3.0kg | |||||||||||||
Surface of Rotor | electrophoresis | |||||||||||||
Number of Blades | / | |||||||||||||
Type of Protection | IP44 | |||||||||||||
Speed control | 3 steps | |||||||||||||
Approval | CE | |||||||||||||
Operate Life | >=40,000hours | |||||||||||||
*Motor Protection Function | ||||||||||||||
1. thermal protection | ||||||||||||||
We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by
ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance.
Price Guarantee
The products are sold by our own factory directly. So the reason for low price is simple: no middlemen.
Delivery Time Guarantee
We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to
avoid risk of any delay.
Service Guarantee
We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation
when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $60 / piece
- 10+ piece: US $44 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this free standing centrifugal impeller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this free standing centrifugal impeller carry?
It is supplied with CE/ROHS/ documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the free standing centrifugal impeller be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhengzhou Jeek Electronic Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Zhengzhou Jeek Electronic Technology Co., Ltd. range on HVACR Nexus.
