Freezer — 380 V, cooling capacity Customisation. The complete factory specification follows. Made by Chongqing Delers Technology Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Freezer
- Voltage: 380 V
- Cooling Capacity: Customisation
- Refrigerant: R-22, R-404A
- Warranty: 1 Year
- Place Of Origin: Chongqing, China
- Compressor Type: Scroll
Technical Specifications
| Cooling Capacity | Customisation |
|---|---|
| Temperature | -20-8c, 8-18c, 18-20c |
| Voltage | 380 V |
| Compressor Type | Scroll |
| Refrigerant | R-22, R-404A |
| Compressor Brand | Emerson |
| Core Components | Motor, Pressure Vessel |
| Warranty | 1 Year |
| Key Selling Points | High Productivity, Competitive Price, Easy To Operate, Eco-Friendly, Energy Saving |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Chongqing, China |
| Weight (Kg) | 215 |
| Dimension(L*W*H) | Customisation |
| Type | Air-Cooled |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Applicable temperature（0～20℃） | refrigerant(R22) | |||||||||||
evaporation temperature | -10℃ | -5℃ | 0℃ | 5℃ | 10℃ | 15℃ | ||||||
condensing temperature | Cooling capacity Q/power P (KW) | |||||||||||
30℃ | 13.21/4.45 | 15.52/4.61 | 18.03/4.77 | 20.80/4.94 | 23.88/5.08 | / | ||||||
40℃ | 15.16/4.89 | 15.16/5.05 | 17.66/5.21 | 20.42/5.38 | 23.50/5.53 | / | ||||||
50℃ | 14.74/5.40 | 14.47/5.55 | 17.20/5.72 | 19.93/5.89 | 22.97/6.05 | / | ||||||
Applicable temperature（-20～0℃） | refrigerant(R22) | |||||||||||
evaporation temperature | -35℃ | -30℃ | -25℃ | -20℃ | -15℃ | -10℃ | ||||||
condensing temperature | Cooling capacity Q/power P (KW) | |||||||||||
30℃ | / | 4.86/4.10 | 6.92/4.12 | 8.96/4.19 | 11.04/4.30 | 13.21/4.45 | ||||||
40℃ | / | 4.62/4.62 | 6.65/4.61 | 8.66/4.66 | 10.72/4.76 | 15.16/4.89 | ||||||
50℃ | / | 4.49/5.16 | 6.42/5.17 | 8.38/5.20 | 10.38/5.28 | 14.74/5.40 | ||||||

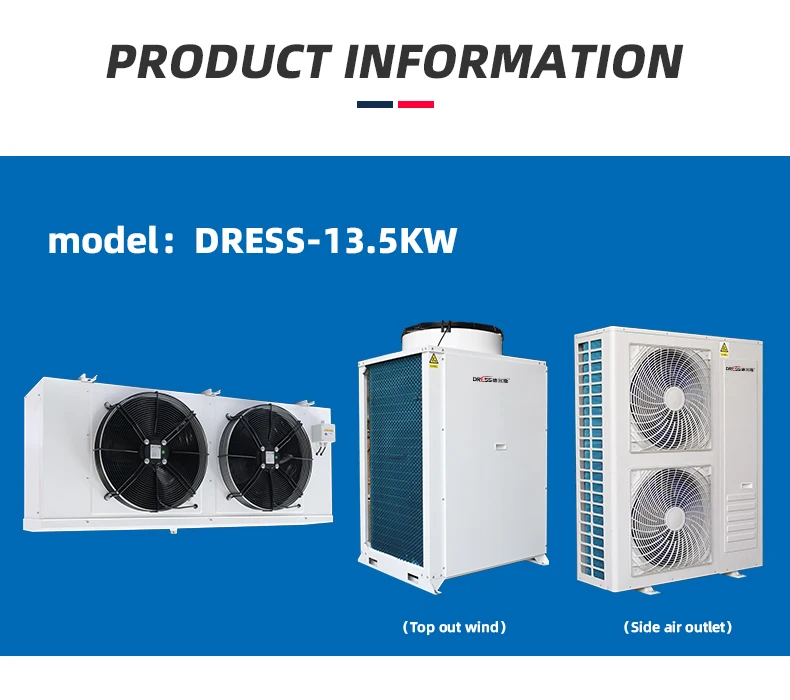

Top out air condensing motor | 6-stage external rotor motor | |||||||||||||||
quantity | power | 90W | rotation speed | noise | voltage | Blade diameter | capacitance | |||||||||
1 | 520W | 9500m³/h | 910r/min | 67dB | 220V | 630mm | 12μF | |||||||||

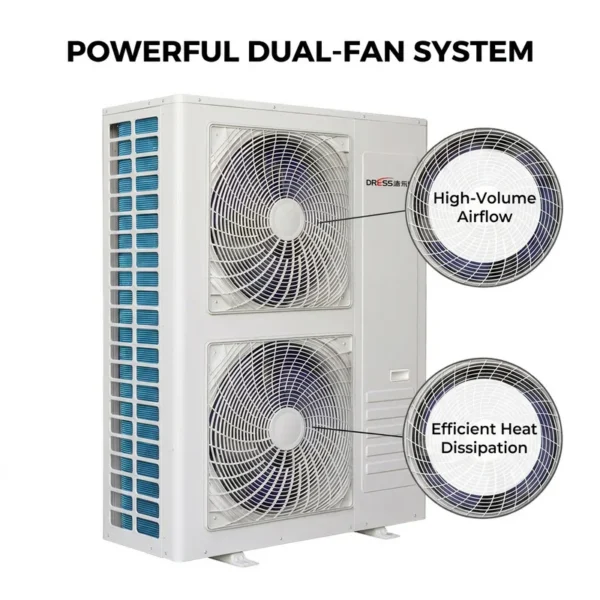

Side outlet condensing motor | Efficient and low-noise axial flow type | |||||||||||||||
quantity | power | air volume | rotation speed | noise | voltage | Blade diameter | capacitance | |||||||||
2 | 90W | 3500m³/h | 750r/min | 67dB | 220V | 490mm | 5μF | |||||||||
Air cooler motor | Efficient and low-noise external rotor | |||||||||||||||
quantity | power | air volume | rotation speed | noise | voltage | Blade diameter | / | |||||||||
2 | 420W | 6500m³/h | 1350r/min | 69dB | 380V | 500mm | / | |||||||||

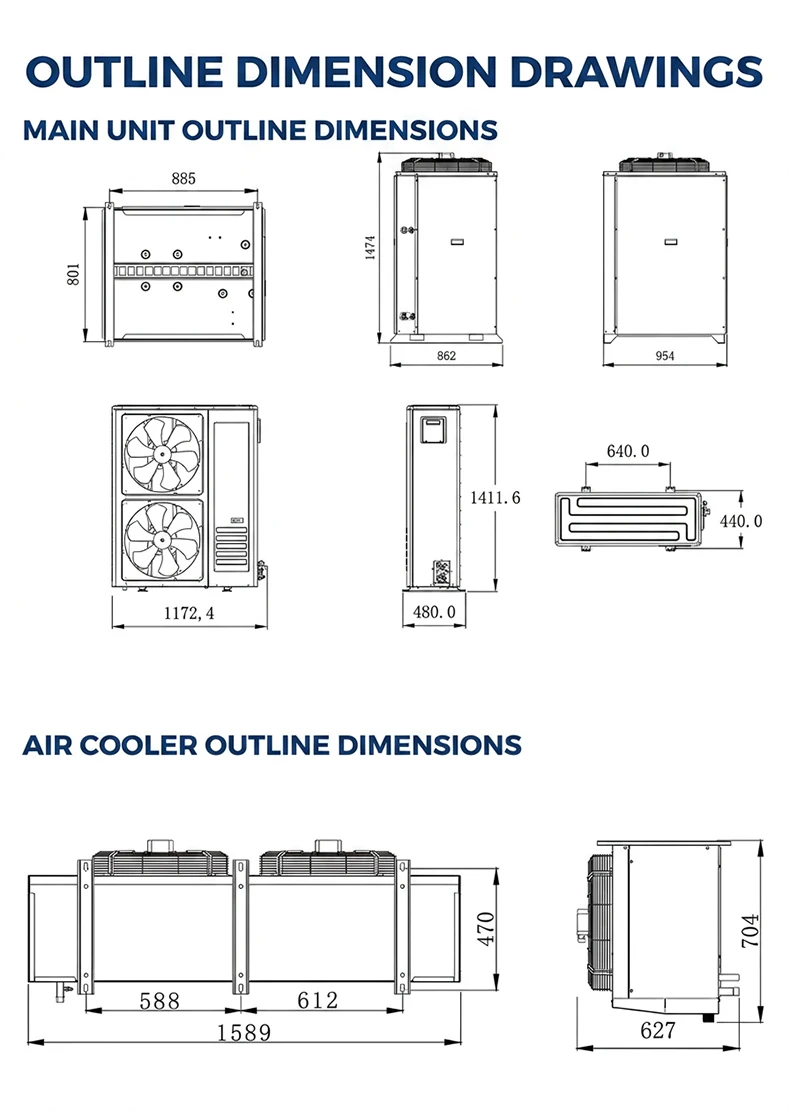

Top outlet air connection specifications | Liquid tube | trachea | weight | Pre charged refrigerant | Condenser size (width/depth/height) mm | air cooler size (width/depth/height) mm | ||||||
15.88mm | 25mm | 230㎏ | 8㎏ | 1676/627/704 | 1024/508/593 | |||||||
Side air outlet connection specifications | Liquid tube | trachea | weight | Pre charged refrigerant | Condenser size (width/depth/height) mm | air cooler size (width/depth/height) mm | ||||||
15.88mm | 25mm | 215㎏ | 8㎏ | 1172/490/1412 | 1024/508/593 | |||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the freezer be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
