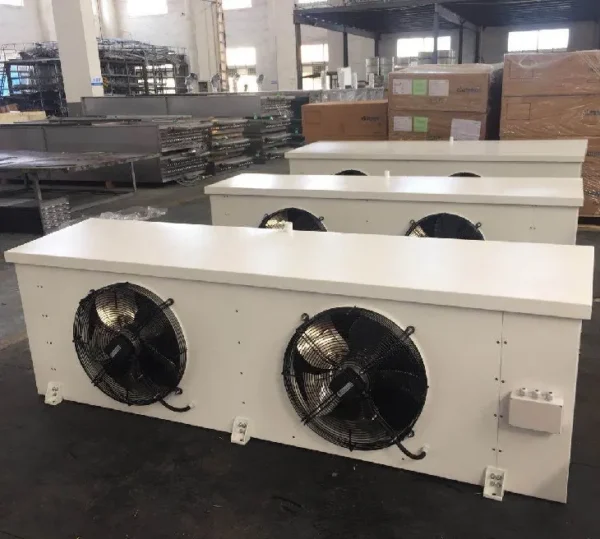

Key specification for this unit cooler: 220V/380V-Custom made, heating capacity 8.-169kw. Everything below is reproduced from the factory data sheet. Made by Changzhou Vrcoolertech Refrigeration Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Unit Cooler
- Power Supply: 220V/380V-Custom made
- Heating Capacity: 8.-169kw
- Material: aluminum, copper, SS304/316
- Warranty: 1 Year
- Place Of Origin: China
- Type: Air Cooler
Technical Specifications
| Type | Air Cooler |
|---|---|
| Mounting Type | Ceiling Mount |
| Compressor Brand | / |
| Fan Motors Type | AC |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Pressure Vessel |
| Place Of Origin | China |
| Weight (Kg) | 150 |
| Brand Name | VRcooler |
| Dimension(L*W*H) | 1300*510*740 |
| Product Name | coil as evaporator for for Poultry processing |
| Power Supply | 220V/380V-Custom made |
| Heating Capacity | 8.-169kw |
| FIn Type | Wave fin, flat fin |
| FPI | CUstom made |
| Tube Diameter | 9.52/12.7/15.8, according to the mold |
| Material | aluminum, copper, SS304/316 |
| Fan Brand | Custom made |
| Selling Units | Single item |
| Single Package Size | 100X32X65 cm |
| Single Gross Weight | 115.0 kg |
Product Details
Product description
1. Rational Design
·Experienced engineers use Italian advanced design software to design, meeting the demand accurately ·Product suitable to the latest refrigerant such as R410A, CO2, ammonia, glycol and other special refrigerants are available ·Pipeline design adopts the direct oil return and counter-current heat exchanger to avoid the accumulation of refrigeration oil, which make full use of the heat transfer area, improve the heat exchange efficiency and ensure the degree of superheat
2. Reliable raw materials
·The fans of air cooler are famous brand ZIEHL-ABEGG and EMB, reasonably match with the gap between blades and blast rings, and the design of hyperbolic air duct to achieve the maximum effect ·Copper tubes are multi-tooth and internal thread with high-efficiency. The copper rate is more than 99.9%. All of these increase the surface area and heat transfer efficiency. ·Shell material of air cooler is 3003 aluminum alloy or DC51-D+180g. The paint is outdoor type and treated with high-temperature curing, which makes the shell high in strength and anti-corrosion.
3. Quality control in all
·Management of factory was approved by ISO9001-2008 and product quality control is through all courses ·Quality control in all: incoming quality control process inspection, finished product inspection.
4. Various choices
·Provide multiple models and size, choices of fin and coil type to meet the demands of different applications ·A variety of anti-corrosion treatment products, stainless steel products and other customized products are available

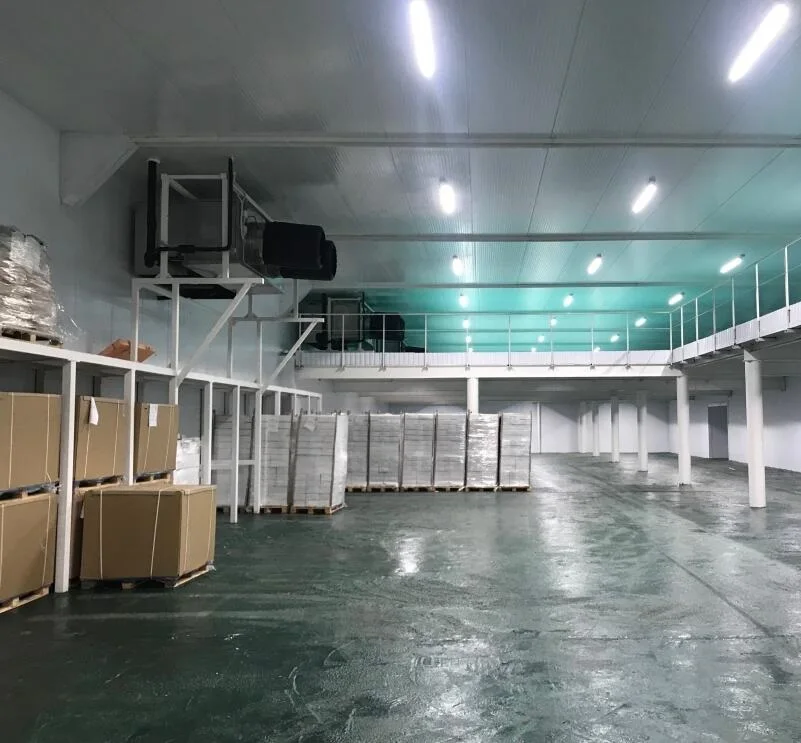

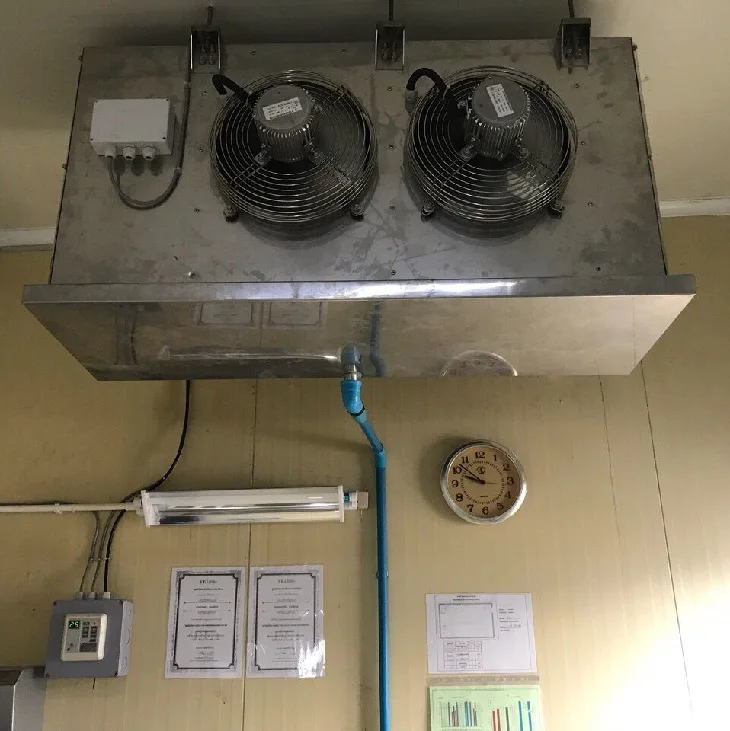

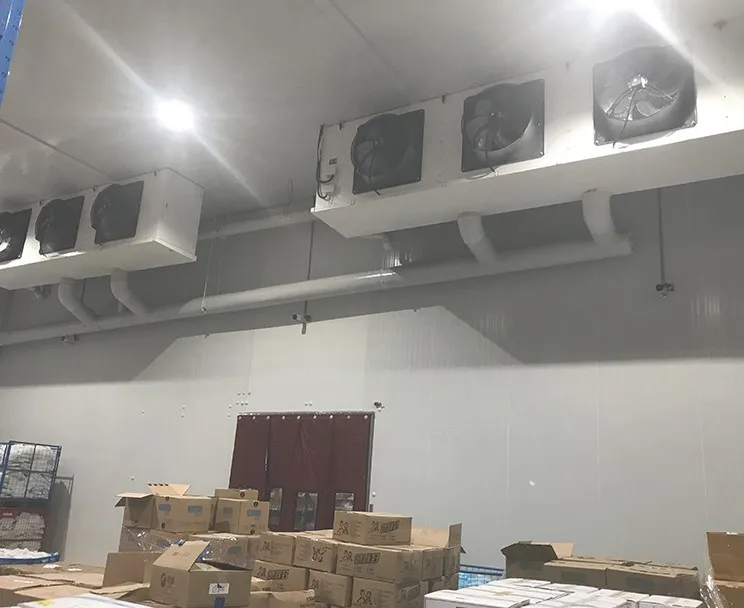

Customer feedback photos
Projects for Peru Food factory
Projects for Soy sauce factory in Thailand

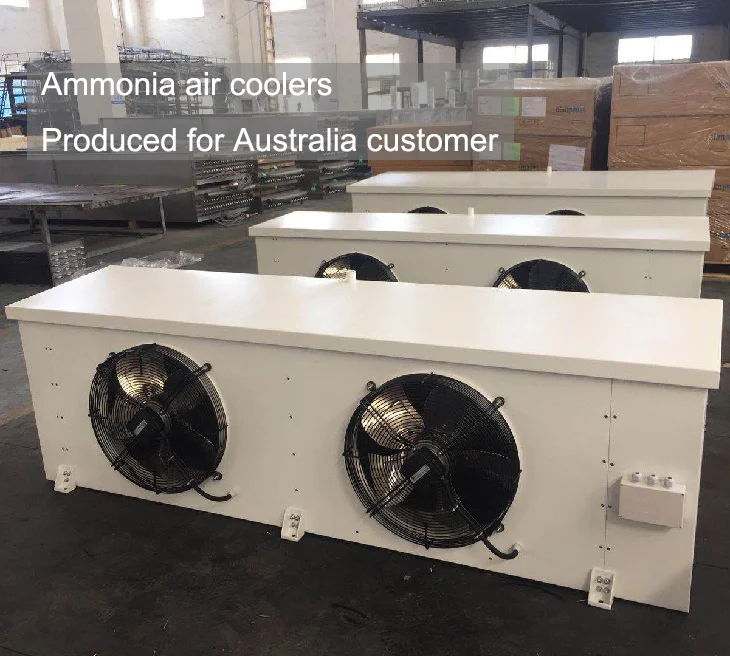

Projects for myanmar ammonia cold room
Projects for Canada green house
Projects for Russia cold room
Projects for Cargo hold on board in Philippines
Case study
Projects name: Glycol air cooler for Finland customer Customer's request: Hi, do you have air cooler for water-glygol mixture use? Our questions:
May I know how much percent glycol you use? Like 20%. Cooling capacity? Glycol pumped inlet temperature? Room temperature? Material you need? Stainless steel tube aluminum fin galvanized steel frame or not? Defrost type? Water defrost, hot air defrost or electrical defrost? Dual flow type or single flow type? Fan power? (V, PH, HZ) Quantity you need?
Customer's information:
50% glycol, capacity 15kw, Glycol pumped inlet temperature -30C, Room temperature -25C Material need SS tube, alumiinin fin, galvanized France ( SS frame on option ) Defrost type need electrical single flow type Fan power 230 1phase or 400v 3phase, 50 hz Quantity 3-10 units

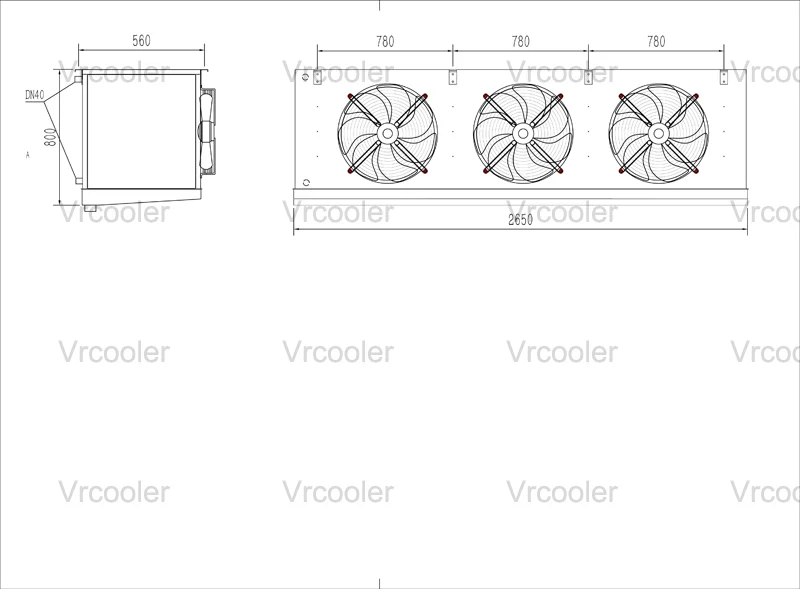

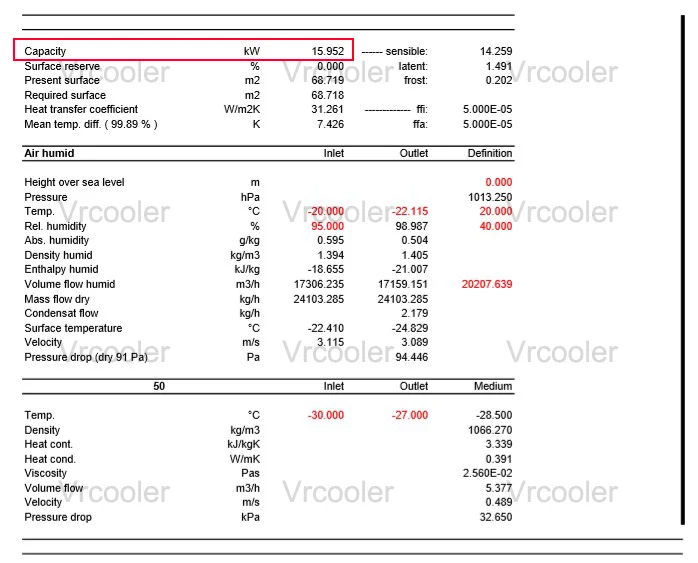

Our solution:
Customer's feedback: It seems interesting. What is size of inlet and outlet port of liquid? Power of electric defrost? Power of fans? Amount of fans? Delivery time? Our reply:
1. Inlet and outlet port DN40. 2. Power of electric defrost is 11.2kw. 3. Total 3 fans, power of each fan is 0.6kw, total 1.8kw. 4. Lead time would be 30 days.
Customer: One more question… what is weight of one unit?
Our reply: It is about 460kg. Hope this can help.
Customer: Great. Please send me PI.
Engineering Data
We have customized products for many customers, following are some projects we did before.
We can provide designing data and prodcution drawings.
We promise we use the design software sold by a well-known European HAVC software company. Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world. All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Our Company
MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co.,Ltd specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.
OUR MISSION
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality
A STRATEGIC LOCATION
Address: Qingsitang, Henglin Town, Wujin Dist, Changzhou, Jiangsu, China. Tel: +86-0519-81695177 E-mail: info@vrcooler.com ; sales@vrcooler.com Website: www.vrcoolertech.com ; www.vrcooler.com
QUALITY CERTIFICATES
Since 2004 UNI EN ISO 9001:2008 Quality System Since 2005 UNI EN ISO 14001:2004 Environmental Management System
Packing and delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–29 unit: US $1516 / unit
- 30–49 unit: US $1429 / unit
- 50+ unit: US $1382 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this unit cooler?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the unit cooler be supplied for my local voltage?
The standard configuration is 220V/380V-Custom made. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
