The freezer listed here carries 12V or 24V, type BLDC MOTOR, documented exactly as the manufacturer publishes it. Made by Foshan Shunde Kebaling Motor Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Freezer

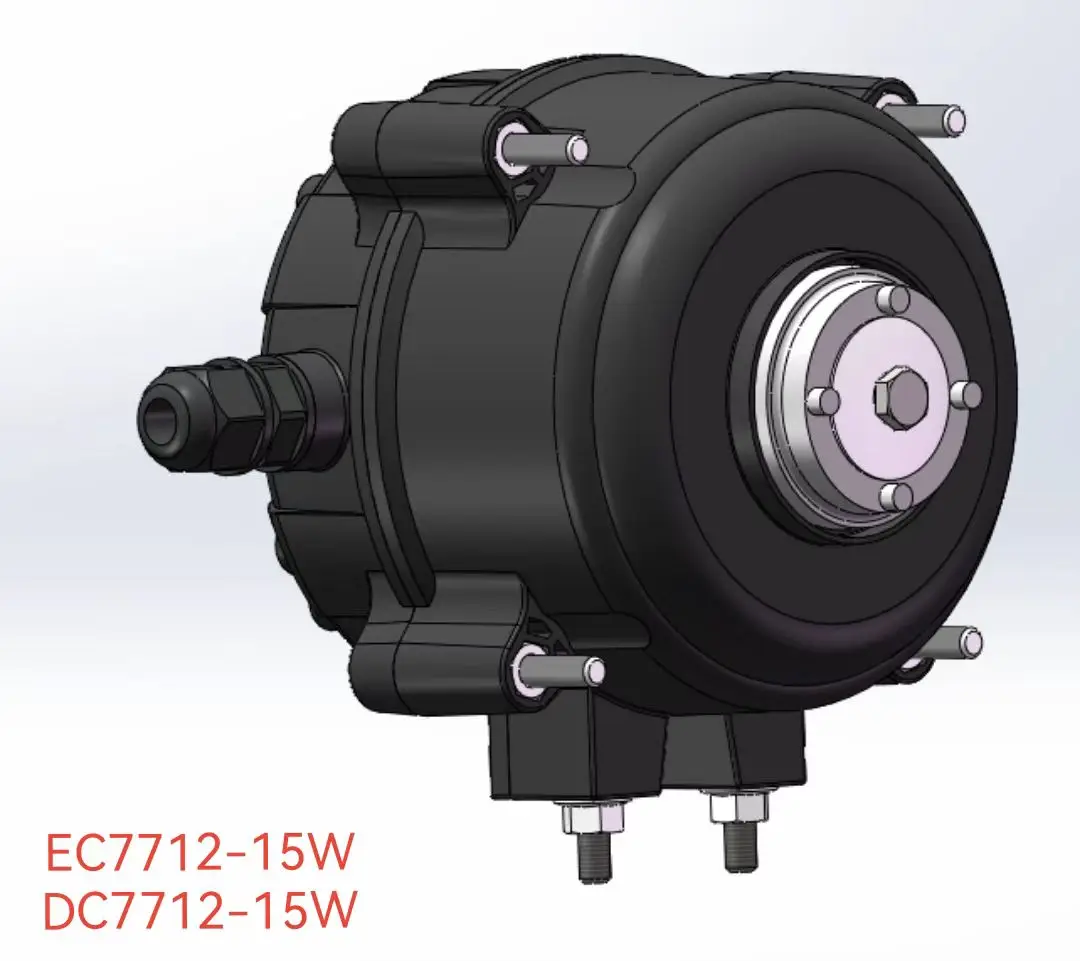

- Model Number: EC7712
- AC Voltage: 12V or 24V
- Voltage: 12V or 24V
- Warranty: 3 months ~ 1 year
- Place Of Origin: Guangdong, China
- Application: freezer cooler
Technical Specifications
| AC Voltage | 12V or 24V |
|---|---|
| Motor Mounting Type | Housing |
| Protect Feature | Waterproof |
| Efficiency | IE 1 |
| Warranty | 3 months ~ 1 year |
| Model Number | EC7712 |
| Brand Name | KBL |
| Place Of Origin | Guangdong, China |
| Frequency | customize |
| Type | BLDC MOTOR |
| Application | freezer cooler |
| Product Name | home appliance motor |
| Model | EC7712 |
| Voltage | 12V or 24V |
| Protection Class | IP65 |
| Insulation Class | B.F |
| Keywords | High Efficiency BLDC Motor |
| Ambient Temperature | -30C~+50C |
| Usage | refrigerator |
| Selling Units | Single item |
| Single Package Size | 48X39X16.5 cm |
| Single Gross Weight | 21.0 kg |
Product Details
item | Value | ||||||
Product Name | ECM Motor / Shaded Pole Motor with Holder , fan blades | ||||||

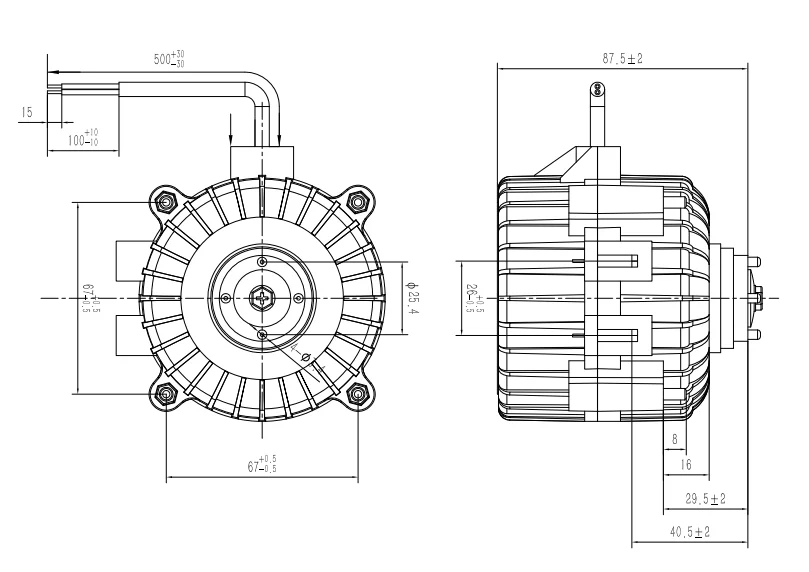

Mounting Dimensions | Totally same as traditional shaded-pole motors | ||||||
Voltage | AC220V-240V, AC10OV-120V, DC24V | ||||||
Output power | 5W, 15W, 20W | ||||||
Rotation direction | Single Rotation CCW / Reverse on start / Reverse on demand | ||||||
Insulation class | B/F | ||||||
Working ambient temperature | -30℃ ~+50℃ | ||||||
Protection class | Class II | ||||||
Type of protection | IP65 | ||||||
Mounting operation | Any | ||||||
Bearings | Maintenance-free ball bearing | ||||||
Motor protection | Via electronics | ||||||
Service life | 50000 hours | ||||||
Features & advantages | • Our EC motors have been realized so to reach an IP65 protection making them suitable for working in the high humidity and dust environment. • The dual chamber design leads the motor can be effectively separated from electronic control area in order to avoid dust and humidity enter into the cavity of control board. • Their thermoplastic housing and protection level has achieved class II, therefore the earth conductor will be unnecessary and the cost will be reduced. • Constant speed control allows the motor to maintain a constant speed across a wide range of voltages and fan blades. | ||||||
We are based in Guangdong, China, start from 2009,sell to Domestic Market(40.00%),Eastern Asia(24.00%),Africa(15.00%),Southern Europe(10.00%),Mid East(5.00%),Southeast Asia(3.00%),South Asia(3.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
shaded-pole motors,gearboxes,DC permanent motors,capacitor-run motors,freezer fan motor
4. why should you buy from us not from other suppliers?
Our comapny integrates independent research, degin, manufature, sales. it owns 8 set of high-speed punches imported from Japan, more than 500 sets of other equipments and about 500 million yuan fixed assets.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese
Ordering and Pricing
- Minimum order quantity: 5000 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this freezer?
The standard minimum order quantity is 5000 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the freezer be supplied for my local voltage?
The standard configuration is 12V or 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Shunde Kebaling Motor Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Foshan Shunde Kebaling Motor Co., Ltd. range on HVACR Nexus.
