Freezing equipment — 380V, 100kg/h-1500kg/h. The complete factory specification follows. Made by Henan Ocean Machinery Equipment Co., Ltd. (10 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Freezing Equipment
- Power(W): 20-46kw
- Voltage: 380V
- Cooling Capacity: 100kg/h-1500kg/h
- Capacity: 100-5000kg/h
- Material: Stainless Steel 304
- Warranty: 1 Year
Technical Specifications
| Type | Tunnel Freezer |
|---|---|
| Voltage | 380V |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Key Selling Points | High Productivity |
| Power(W) | 20-46kw |
| Place Of Origin | Henan, China |
| Cooling Capacity | 100kg/h-1500kg/h |
| Brand Name | Ocean |
| Dimension(L*W*H) | customized |
| Name | iqf tunnel freezer |
| Usage | Fruits Vegetables Meats Seafood Freezing |
| Function | Quick-freezing Food |
| Material | Stainless Steel 304 |
| Application | Food Quick Frozen Machine |
| Feature | High Freezing Effiency |
| Capacity | 100-5000kg/h |
| Temperature | -40±2 degree Celsius |
| MOQ | 1 Set |
| Advantage | Easy Operation High Efficiency |
| Selling Units | Single item |
| Single Package Size | 850X500X450 cm |
| Single Gross Weight | 1000.000 kg |
Product Details
Product Description
Introduction
Fluidized Quick Freezing Machine Adopts The Latest And Advanced Design Ideal, Combines The Latest Technology Of Other Same Products From Sweden And Canada, It Is The Most Efficiency And Most Advanced Quick Freezing Machine Now. The Machine Is Advanced,Creative And Scientific In The Structure, Which Has Realized Fluid Suspension Freezing With High Speed, Short Time, High Efficiency, High Output, Good Quality In Freezing And Low Energy Consumption, Reliable Running, Easy Operation, Wide Application And Convenient Cleaning.
Application
Applicable To All Kinds Of Marine Products, Meat Products, Foods (Such As Breads, Dumplings, Fish Balls And So On), And A Variety Of Fruits And Vegetables, Especially Suitable For The Products Which Are Can't Adopts The Fluidized Freezing Way, Freezing Time Range From 6 To 100 Minutes Adjustable.

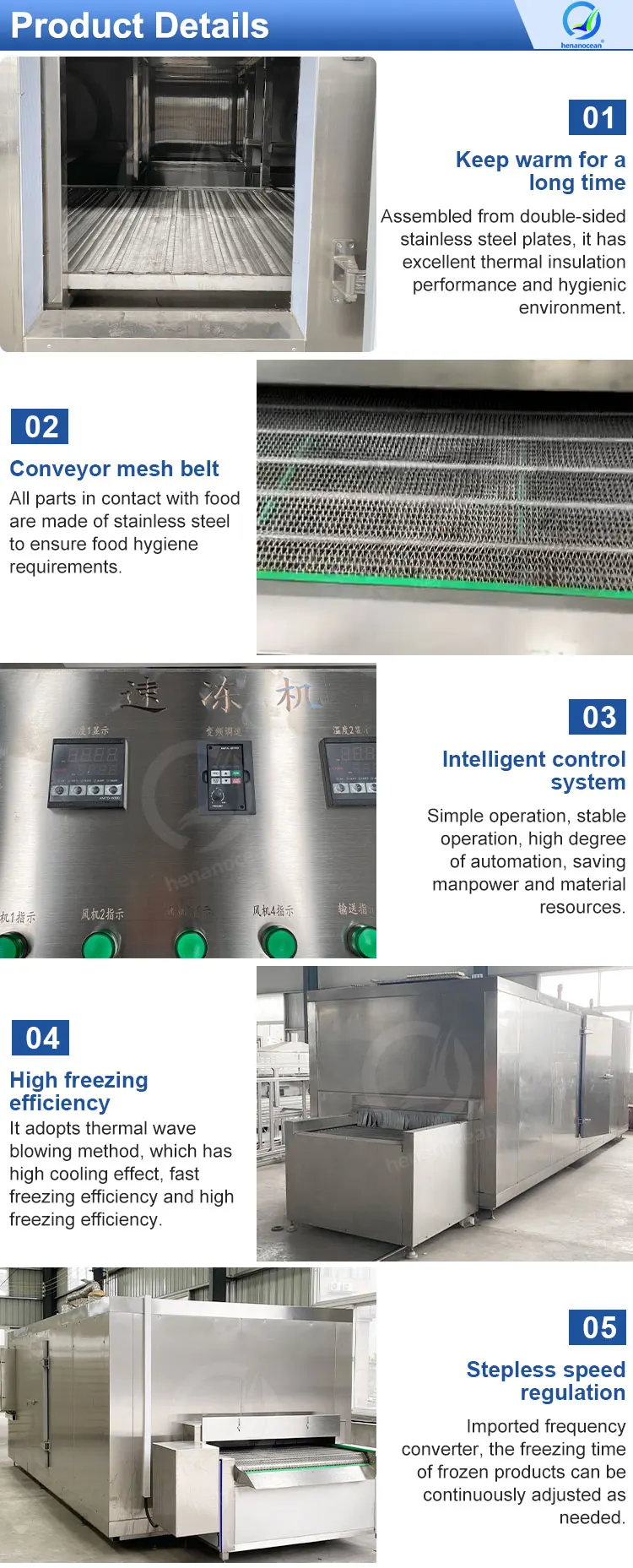

Features
1. Single Belt For Crust Hardening Applications
2. Fast And Efficient Cooling With Multiple Level Conveyor Belts
3. Belts Can Operate Independently At Various Speeds Or On A Cascade Principle
4. Low Maintenance With A Fully Accessible Stainless Steel Design
5. Design Provides Rapid Freezing With Lowest Power Consumption
6. Adjustable Air Speed For Controlled Processing Of Light And Delicate Products
7. Full Freezing Up To 1500 Kg/Hr
8. Cost Effective Alternative To Running A Cryogenic Nitrogen Tunnel Freezer
Technical Parameter
Suit For | Fish, Sardines, Mackerel, Tilapia, Etc. |
Mesh belt form | 304 Stainless Steel Wire Woven Mesh Belt |
Placement | Place on the conveyor belt directly |
Primary temperature | 20℃（central） |
Discharge temperature | －18℃（central） |
Freezing time | 10-30min, can be adjusted |
Freezing temperature | -35℃ |
Cooling consumption | 20kW（+35℃/-42℃） |
Freezing capacity | 100kg/h-1500kg/h |
Production Details
Related Products
Packing & Shipping
Install waterproof membrane to reduce dust and water pollution
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Company Information
1. More than 20 years of professional mechanical equipment manufacturers.
2. R&D team keep sustained technology improving anddeveloping.
3. Strict Q.C.and full process monitoring management.
4. ISO 9001, ISO 14001, ISO 45001, CE. BSCI, ETL certificated.OEMODM services.
5. Self owned professional R&D capacity,lab, QC capability.
Certification and Approva
Oversea Customer Visit
Exhibition Photos
Oversea After-sales Service
Our Services
1. 24-hour communication service.
2. Fast logistics provides you with smooth delivery service; if you are not familiar with customs clearance, we can provide you with door-to-door delivery (DDU&DDP).
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.
FAQ
Q1: What's your company after- sales service ?
A1: Our machine will be checked three times before shipment to ensure that the
machine itself has no problems. If the machine has some problems under incorrect operation:
1. improper operation problem, we will solve all the usage problems by video call.
2. machine parts problem, we will send you accessories to ensure the normal use of the machine.
3. In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company.
Q2: Do you provide any warranty about your equipment ?
A2: One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos,To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ?
A3: We have reliable forwarder agent which can ship items to you by sea/air/
Express to your home. We will help you choose the most suitable shipping service.
Q4: Does your company provide training ?
A4: Yes, we provide a series of instructional videos and after-sales service
videos,supporting Chinese, English, French, Spanish, and Arabic.
Q5: Differences from other brands in China ?
A5: We are not only selling machines, we pay more attention to after-sales service.We have always believed that the customer's reputation is the best advertisement.We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $40000 / set
- 3–4 set: US $39000 / set
- 5+ set: US $38000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this freezing equipment?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the freezing equipment be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Ocean Machinery Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Henan Ocean Machinery Equipment Co., Ltd. range on HVACR Nexus.
