The function cooling heating motor listed here carries power supply 220-240V/1/50Hz or 208-230V/1/60Hz, type Fan Coil Unit, documented exactly as the manufacturer publishes it. Made by Guangdong Xingfeng Refrigeration Equipment Co., Ltd. (14 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Function Cooling Heating Motor
- Model Number: GAG-2.5FCU
- Power Supply: 220-240V/1/50Hz or 208-230V/1/60Hz
- Warranty: 2 Years
- Warranty Of Core Components: 2 years
- Place Of Origin: Guangdong, China
- Application: Offfice
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Mounting Type | DUCT |
| Fan Motors Type | AC |
| Key Selling Points | Eco-Friendly |
| Warranty | 2 Years |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 10 |
| Brand Name | GAGGIA or OEM |
| Model Number | GAG-2.5FCU |
| Dimension(L*W*H) | 88*56*20 |
| Function | Cooling Heating |
| Application | Offfice |
| Noise | Low Noise |
| Power Supply | 220-240V/1/50Hz or 208-230V/1/60Hz |
| EER | 3.02-4.72 |
| Control | Wired Controller |
| Applicable Industries | hotels |
| Warranty Of Core Components | 2 years |
| Selling Units | Single item |
| Single Package Size | 88X50X26 cm |
| Single Gross Weight | 12.000 kg |
Product Details

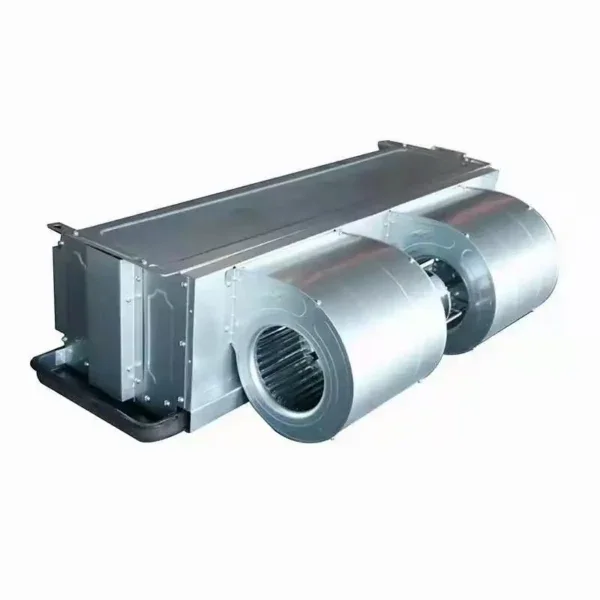

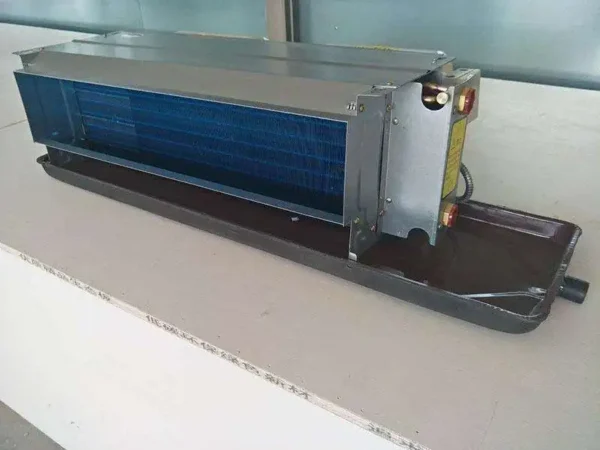

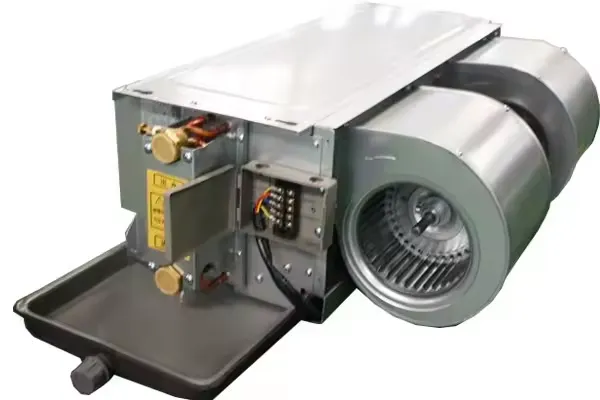

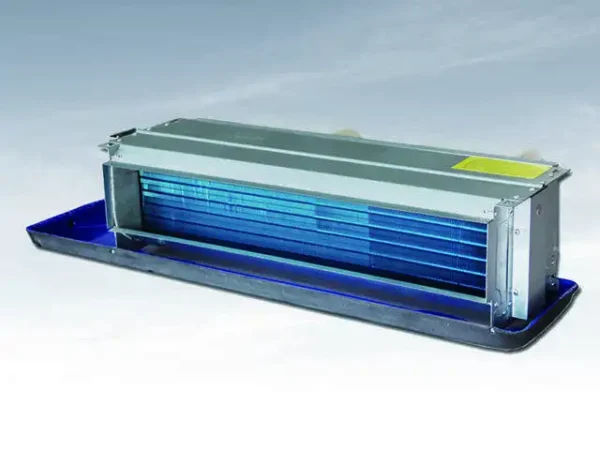

The fan coil unit is the ideal terminal product of central air conditioning system.
It is consist of heat exchanger, strainer, fan, water pans, exhaust air valve and support.
It is continuously exchanged the central heating or cooling air with indoor air.
To keeping a constant room temperature. It can meet the demands of cooling, heating or humidification,
and then create a fresh, quiet, and warm environment.
Application:
It is widely used in office building, commercial building, restaurant, factory, bank, hospital, market, hotel,and other large
space commercial and civil buildings.
Detail parameters of GAG-2.5FCU consealed fan coil
| Model | GAG- | 2.5FCU | |
| Air flow(m3/h) | High speed | 510 | |
| Medium speed | 383 | ||
| Low speed | 255 | ||
| Cooling capacity | High | W | 2700 |
| BTU | 9215 | ||
| Medium | W | 2500 | |
| BTU | 8533 | ||
| Low | W | 2300 | |
| BTU | 7850 | ||
| Heating capacity | High | W | 4050 |
| BTU | 13823 | ||
| Medium | W | 3750 | |
| BTU | 12799 | ||
| Low | W | 3500 | |
| BTU | 11946 | ||
| Power input | 50 | ||
| Power supply | 220V/1ph/50-60Hz | ||
Heat Exchanger | Type | Copper pipes covered into aluminum fins, fin pitch 2.2mm | |
| Water supply(kg/h) | 475 | ||
| Water pressure drop(kPa) | ≤30 | ||
| Working pressure(MPa) | 1.6MPa | ||
| Fan motor quantity | 1 | ||
| Pipe | Inlet/outlet water pipe | 3/4 " internal thread | |
| Condensation water pipe | 3/4" external thread | ||
Dimension | L mm | 880 | |
| W mm | 500 | ||
| H mm | 260 | ||
| Weight | Kg | 10 | |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–49 piece: US $110 / piece
- 50–119 piece: US $98 / piece
- 120+ piece: US $88 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this function cooling heating motor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the function cooling heating motor be supplied for my local voltage?
The standard configuration is 220-240V/1/50Hz or 208-230V/1/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Xingfeng Refrigeration Equipment Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Xingfeng Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
