Functional module induction heater — 220 V, heating capacity good. The complete factory specification follows. Made by Guangdong Jiangxin Electronic Technology Co., Ltd. (5 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Functional Module Induction Heater
- Power Source: Electric
- Rated Power: 8kw
- Power Adjustment Range: 20%~100%
- Voltage: 220 V
- Voltage Adaptation Range: 160V~280V
- Heating Capacity: good
Technical Specifications
| Type | Induction Heating Machine |
|---|---|
| Power Source | Electric |
| Voltage | 220 V |
| Material | Stainless Steel |
| Core Components | PLC, IGBT |
| Key Selling Points | Low Maintenance Cost |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | good |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 6.8 |
| Brand Name | Jonson |
| Dimension(L*W*H) | 356mm*186mm*178mm |
| Working Temperature Range | 0 – 800 ℃ |
| Rated Power | 8kw |
| Voltage Adaptation Range | 160V~280V |
| Adapt To Ambient Temperature | -20 Degrees Celsius to 50 Degrees Celsius |
| Structure | Wall-Mounted |
| Working Frequency | 5~40Hz |
| Adapt To Environmental Humidity | Less Than or Equal to 95% |
| Rated Input Current | 30-36 (A) |
| Heat Conversion Efficiency | ≥95% |
| Power Adjustment Range | 20%~100% |
| Selling Units | Single item |
| Single Package Size | 36X19X19 cm |
| Single Gross Weight | 10.000 kg |
Product Details
Products Description

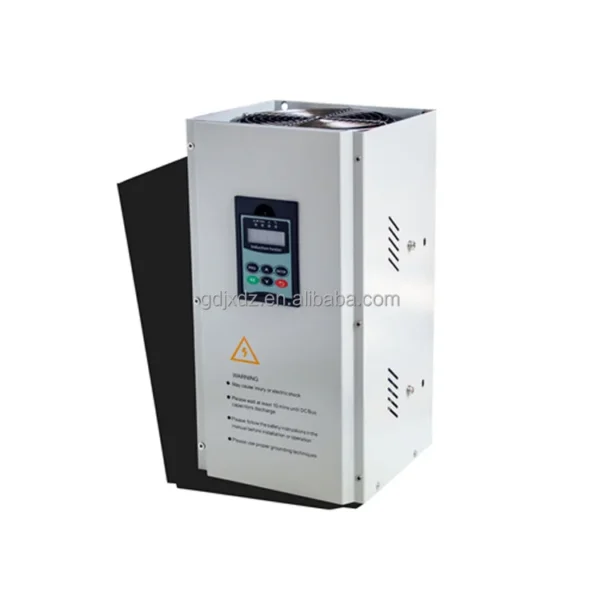

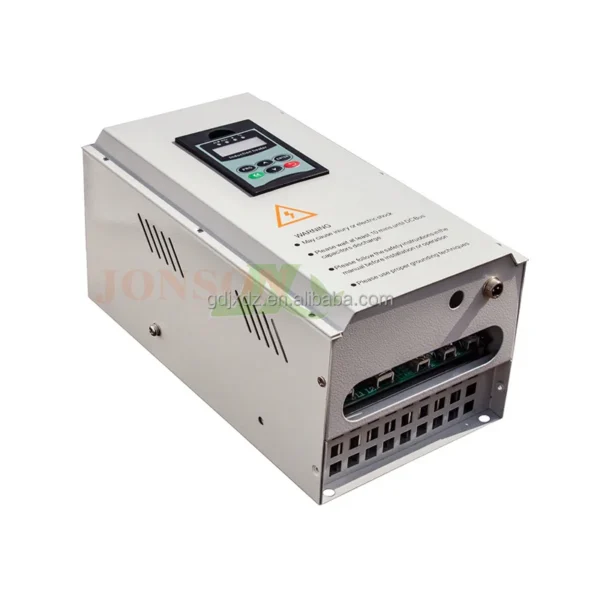

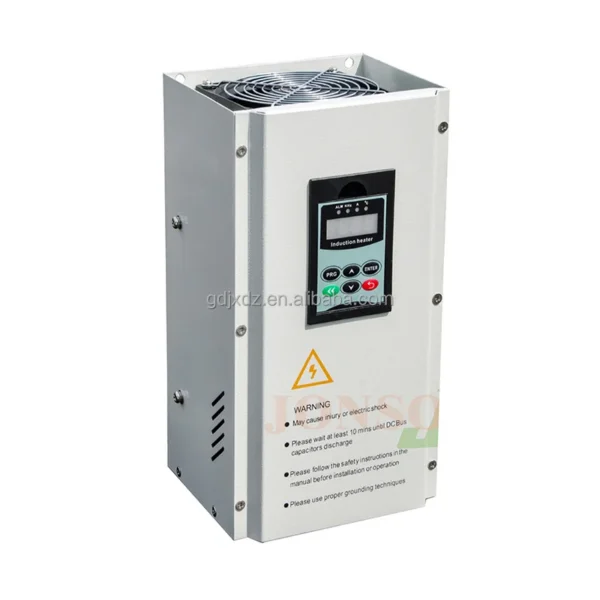

Full bridge 220V / 8KW inductioninduction heater Full bridge 8KW220V digital inductionheating controller is a multi-purpose high-efficiency heating and energy-saving product. It has significant power saving effects, fast heating speed, high thermal efficiency, and lower production environment temperature. This product adopts the company's fifth-generation digital processing platform technology, an embedded 32-bit processing system, and full digital phase-locked tracking processing. The motherboard has rich interfaces and supports the standard modbus RTU communication protocol, which can easily realize touch screen man-machine dialogue and remote control. In addition, it has the advantages of fast tracking speed, high precision, strong adjustability, strong coil adaptability, easy installation, and simple debugging. It can be widely used in high-efficiency heating equipment such as plastic machinery, food machinery, and commercial induction cookers.
The key to choosing an inductionheater depends on these four points
1,Specialization: DSP high-speed operation control, digital programmable technology, high-speed optocoupler drive, open hardware architecture
2,Stable performance: The half-bridge IGBT module is used as the main circuit structure, which can save power by 30% ~ 80%, and the thermal efficiency can reach 95%, which can be customized:
3,Worry-free after-sale: one year warranty, professional technical staff guidance, lifetime cost maintenance of wearing parts, after-sales customer service one-to-one tracking service:
4,Quality assurance: 15 years of careful development, EU CE certification, ISO9001 quality management certification
1,Specialization: DSP high-speed operation control, digital programmable technology, high-speed optocoupler drive, open hardware architecture
2,Stable performance: The half-bridge IGBT module is used as the main circuit structure, which can save power by 30% ~ 80%, and the thermal efficiency can reach 95%, which can be customized:
3,Worry-free after-sale: one year warranty, professional technical staff guidance, lifetime cost maintenance of wearing parts, after-sales customer service one-to-one tracking service:
4,Quality assurance: 15 years of careful development, EU CE certification, ISO9001 quality management certification
Product Paramenters
rated power | Single-phase 8KW |
Rated input current | 30-36 (A) |
Rated output current | 50-75 (A) |
Rated voltage frequency | AC 220V/50Hz |
Voltage adaptation range | constant power output at 300 ~ 400V |
Power adjustment range | 20% ~ 100% stepless adjustment(That is: adjustment between 0.5 ~ 8KW) |
working frequency | 5~40KHz |
Main circuit structure | Full bridge series resonance |
Soft start mode | Fully electrically isolated soft start heating / stop mode |
Support PID adjustment power | Identify 0-5V input voltage |
RS485 communication | moddbus RTU standard communication protocol |
Adaptive coil parameters | 8KW 10 square line, length 40m, inductance 200 ~ 250uH |
Coil to load distance(Thermal insulation thickness) | 20-25mm for circle, 15-20mm for plane, 10-15mm for ellipse and within 10 mm for super ellipse |
Description
The control board of induction devices has been specially designed to save energy in the heating needs of injection molding, extrusion machines and cable production machines as a result of 15 years of R&D. After the installation of the product, injection molding machine etc. Energy savings of 30% to 80% will be achieved in the electrical energy required to heat the such devices. Therefore, induction heating devices are ideal heating equipment especially for specified machines.
Company Profile
Guangdong Jiangxin Electronic Technology Co., Ltd.
Guangdong Jiangxin Electronic Technology Co., Ltd. is an extraordinary energy-saving solution provider. Its products and solutions are widely used in heating, chemical industry, mold manufacturing, plastic machinery, food processing and other industries. The company has a strong product R & D and engineering technology team, which is committed to transforming wisdom into excellent products and services, meeting the needs of different customers and continuously creating value for customers.
Jiangxin electromagnetic is a brand of Guangdong Jiangxin Electronic Technology Co., Ltd. and is committed to promoting the sustainable and steady development of China's energy conservation and emission reduction. With its comprehensive advantages in the field of electromagnetic induction heating, we strive to become a leader in the industry. Taking improving the earth's natural environment as its own responsibility, meeting the principle of social sustainable development, and building reliable and stable green energy-saving products and solutions for users are the key to maintaining the advantages of the company.
Adhering to the purpose of "scientific and technological innovation and military quality", we solemnly promise that the service life of the whole machine is guaranteed for ten years, one year free maintenance and lifelong maintenance. We believe that with your care and support and our tireless efforts, Jiangxin Electronics will enter a brilliant future with you.
Jiangxin electromagnetic is a brand of Guangdong Jiangxin Electronic Technology Co., Ltd. and is committed to promoting the sustainable and steady development of China's energy conservation and emission reduction. With its comprehensive advantages in the field of electromagnetic induction heating, we strive to become a leader in the industry. Taking improving the earth's natural environment as its own responsibility, meeting the principle of social sustainable development, and building reliable and stable green energy-saving products and solutions for users are the key to maintaining the advantages of the company.
Adhering to the purpose of "scientific and technological innovation and military quality", we solemnly promise that the service life of the whole machine is guaranteed for ten years, one year free maintenance and lifelong maintenance. We believe that with your care and support and our tireless efforts, Jiangxin Electronics will enter a brilliant future with you.
Certifications
Exhibition
Product Shipping
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
-Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep goodquality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
VR
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–19 piece: US $322 / piece
- 20–49 piece: US $305 / piece
- 50+ piece: US $290 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this functional module induction heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the functional module induction heater be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
