This gas heater is published with the manufacturer’s full specification — material Alumina Ceramic, type Ceramic Plates. Made by Pingxiang Zhongci Environmental Ceramics Material Co., Ltd. (6 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Gas Heater
- Model Number: ZC-FAR
- Material: Alumina Ceramic
- Place Of Origin: Jiangxi, China
- Application: Industrial Ceramic
- Type: Ceramic Plates
- Size: Customers’ Requests
Technical Specifications
| Material | Alumina Ceramic |
|---|---|
| Application | Industrial Ceramic |
| Type | Ceramic Plates |
| Place Of Origin | Jiangxi, China |
| Brand Name | Zhongci |
| Model Number | ZC-FAR |
| Name | honeycomb porous ceramic plate for burner |
| Size | Customers’ Requests |
| Maximum Use Temperature: | 1000℃ |
| Suface Treatment | finish grinding |
| Color | white Yellow black |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

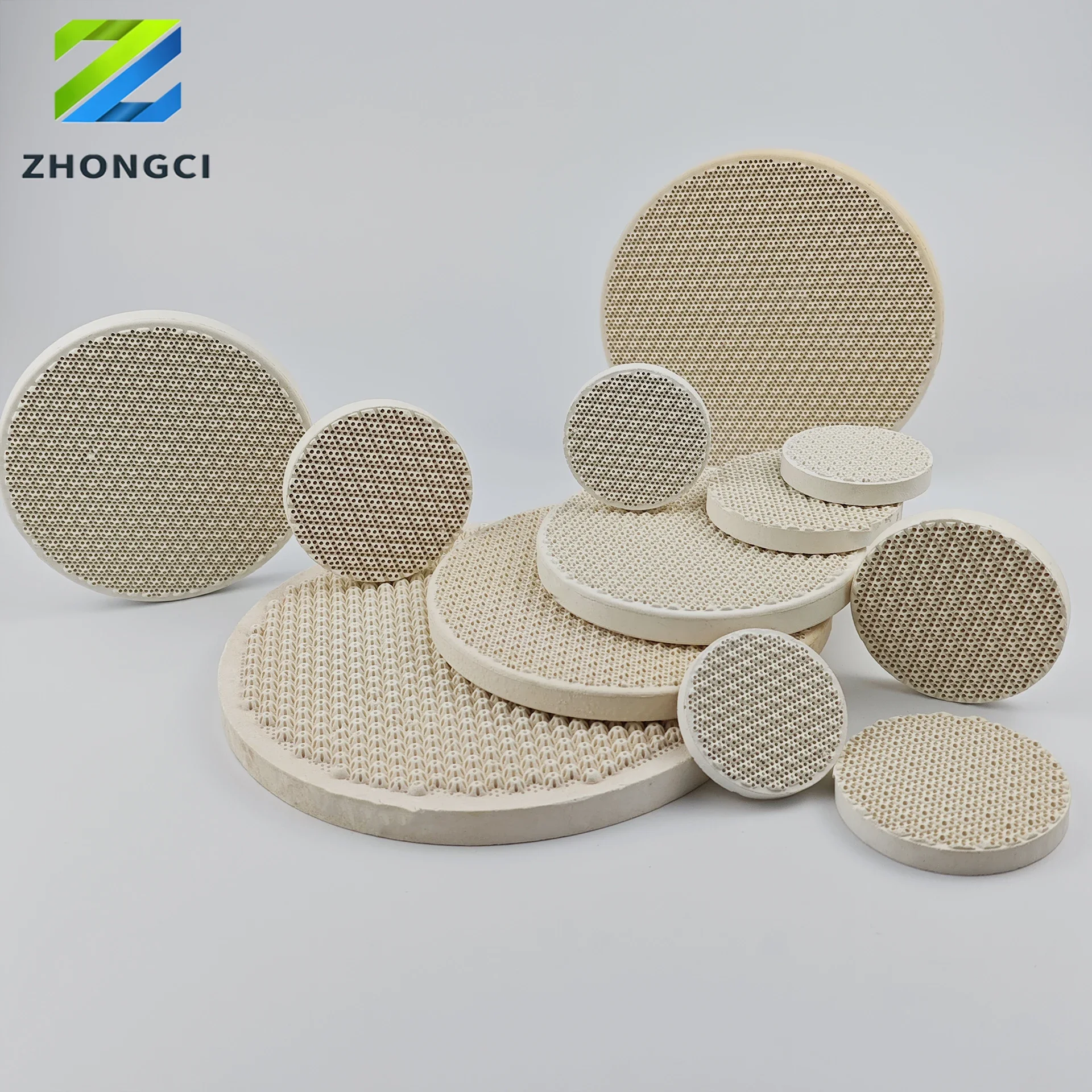

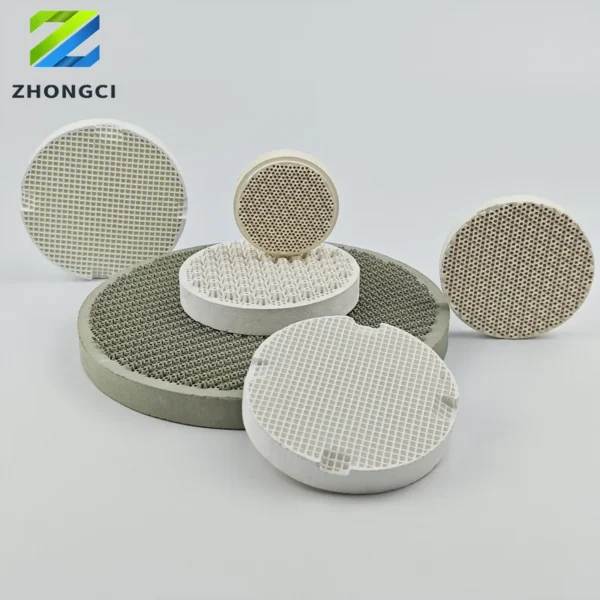

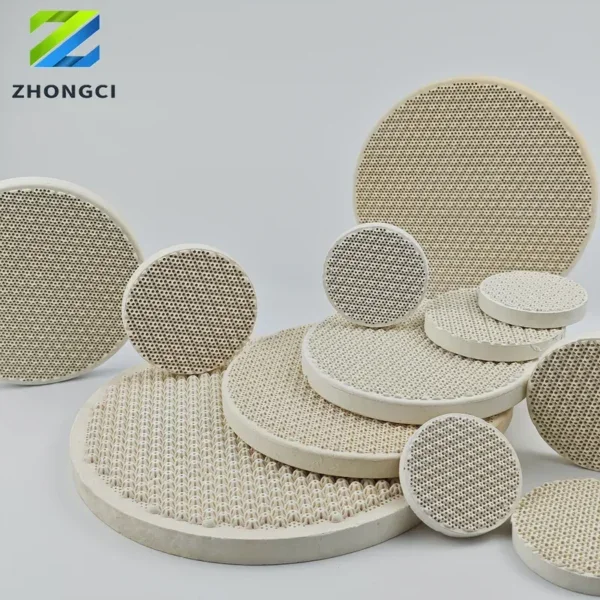

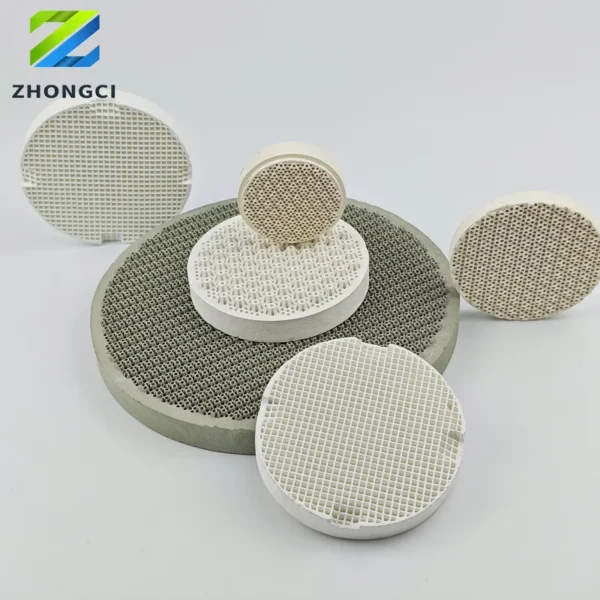

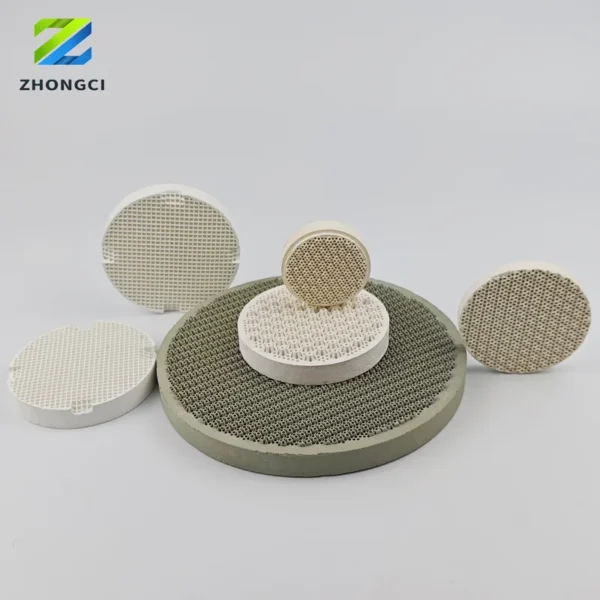

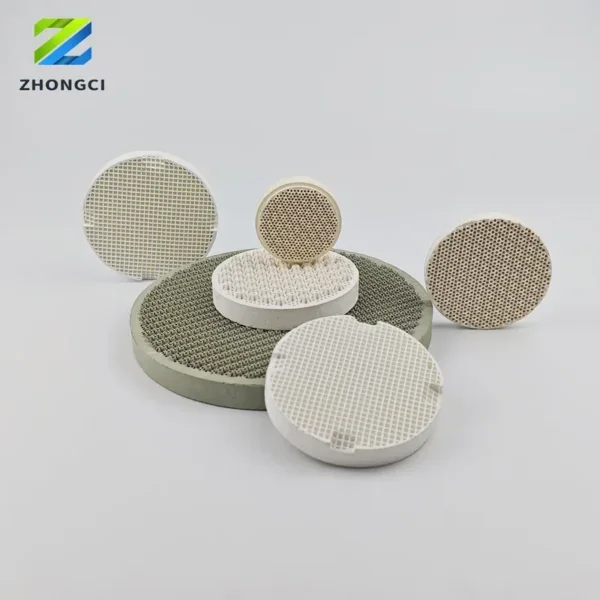

Hot sale 1100C infrared honeycomb porous industrial casting ceramic plate
Cordierite ceramic is one of the most popular ceramics for its properties of excellent thermal stability, high refractoriness, good chemical durability, low dielectric constant, and low thermal expansion. Cordierite ceramic is extensively used in important industrial applications such as micro electronics, refractory products, heat exchanger for gas turbines, thermal shock-resistant table ware, catalyst supports, and porous ceramics. Low-expansion cordierite is suitable for being applied at high temperature circumstance where a good thermal shock resistance is required.This unique property of cordierite is caused by the negative lattice expansion in c-axis direction,which provides excellent resistance to thermal shock as well as low thermal conductivity.
| Hole type | Square hole | Round hole |
| Material | Cordierite | Cordierite |
| Volume | 0.45-0.65g/cm3 | 0.45-0.65g/cm3 |
| Hole density | 200-320 hole/in2 | 260/280/320/520 hole/in2 |
| Wall thickness | – | 0.18-0.23/0.28-0.33/0.35- 0.40mm |
| Hole length | – | 1.06/1.13/1.2mm |
| Hole diameter | 1.12/1.25/1.42mm | – |
| Hole center distance | 1.8/2.2/2.7mm | 1.33-1.59mm |
| Holefraction | 33.5-46.5% | 63.5-73.5% |
| Water absorption rate | >46% | >40% |
| Thermal expansion coefficient | 2.0-2.3×10-6 | 2.0-2.5×10-6 |
| Thermal stability | 850℃-25℃,Not cracking in 3 times | 1200℃-25℃,Not cracking in repeated air cooling |
| Softening temperature | >1375℃ | >1375℃ |
| Surface burning temperature | 1000℃-1200℃ | 1000℃-1200℃ |
| Carbon monoxide release rate | ≤80ppm | ≤80ppm |
| Nitrogen oxide release rate | ≤10ppm | ≤10ppm |
| Compressive strength (longitudinal) | >13.0Mpa | >10.0Mpa |
| Compressive strength (lateral) | >6.0Mpa | >3.0Mpa |
Advantage
1. Uniform radiant burning
2. Excellent thermal shock resistance
3. Save up to 40~50% energy cost
4. Burn without flame, high burning efficiency
5. Reduce the harmful gas (CO, NOx) more than 90%

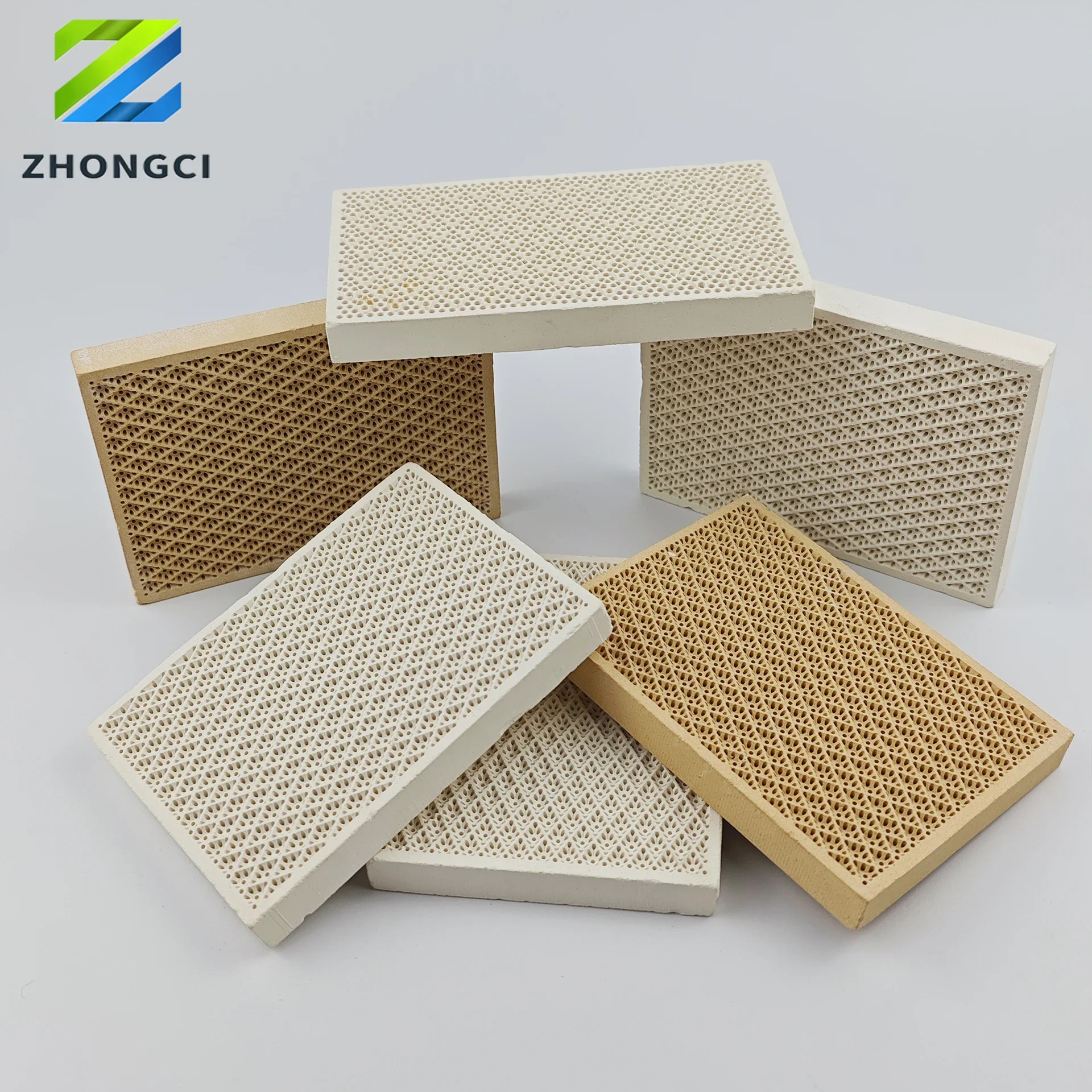

Standard size
| Diamond pattern (mm) | 134*92*13 | 133*131*13 | 186*134*13 |
| "8" pattern (mm) | 172*123*13 | 88*132*13, | 180*130*13 |
| Plum blossom patter (mm) | 208*148*13 | 162*62*13 | 160*60*13 |
Application
Widely used in various burners, ovens, fryers, heaters and barbecue set which burn gas.
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gas heater?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
