Gauges Indicator for Boiler, SS, magnetic

Gauges indicator for boiler — material SS, type magnetic. The complete factory specification follows. Made by Xi ‘an Kangyate Measurement And Control Technology Co., Ltd. (3 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Gauges Indicator For Boiler

• Model Number: KYT2354
• Material: SS
• Display Panel Housing Material: Aluminium alloy
• Warranty: 1 Year
• Place Of Origin: Shaanxi
• Type: magnetic

Technical Specifications

Product Details

Product Introduction

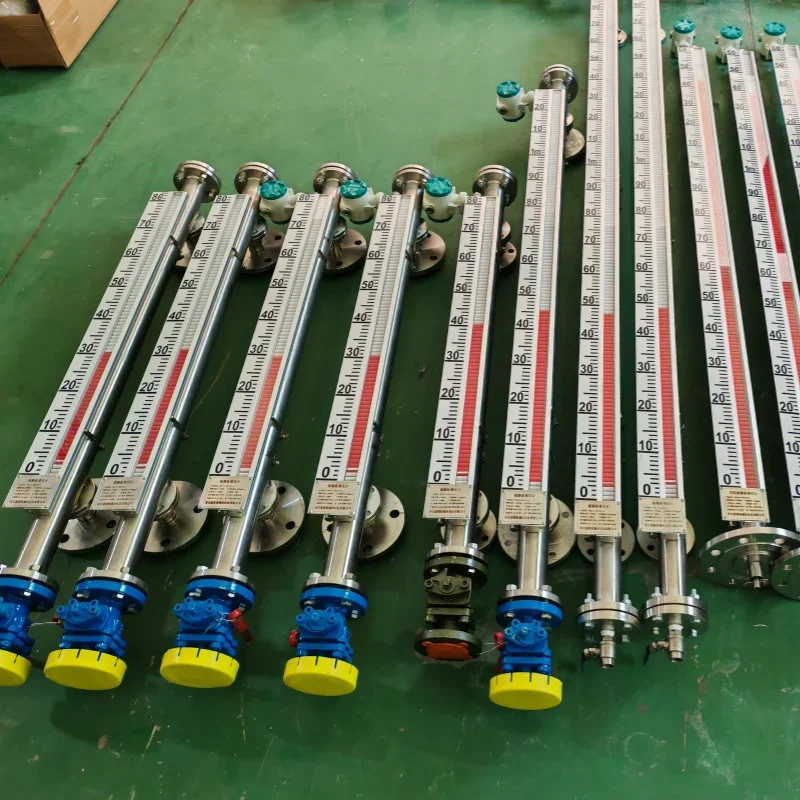

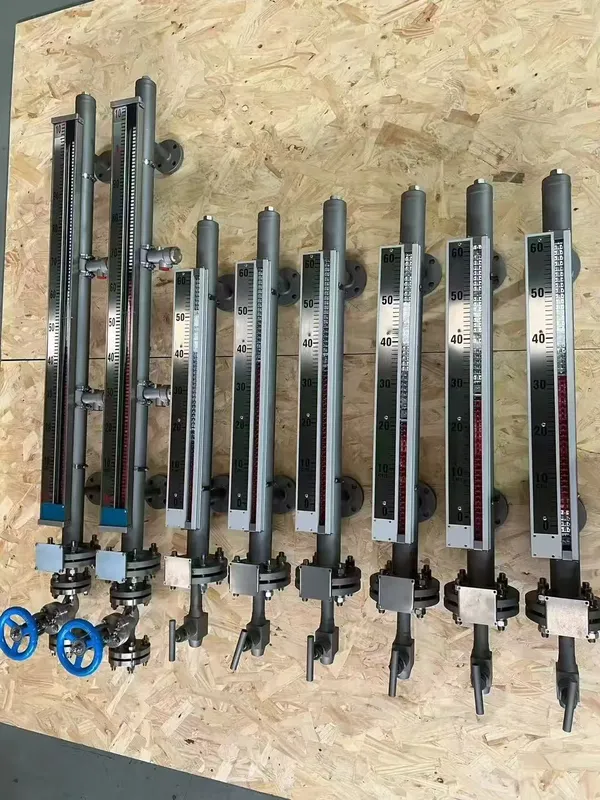

Best Magnetic Level Indicator And Nice Magnetic Level Gauge Price

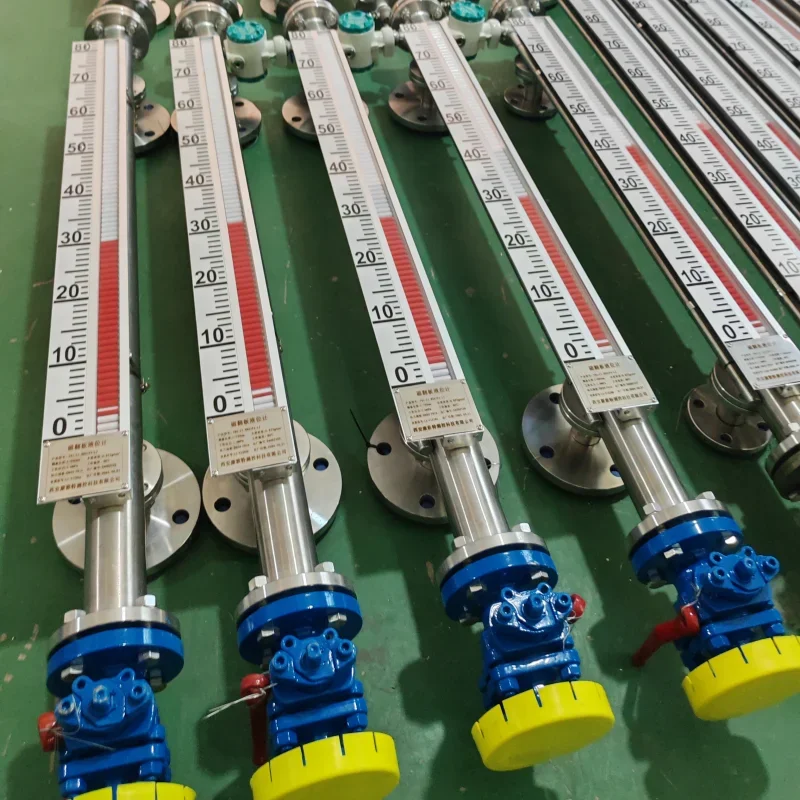

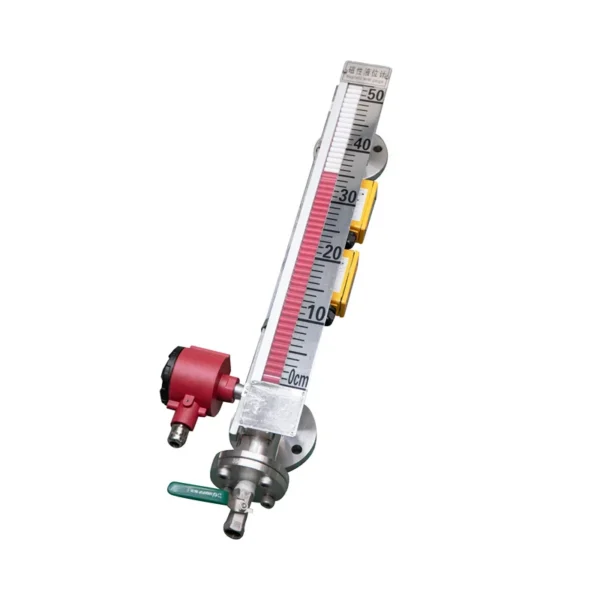

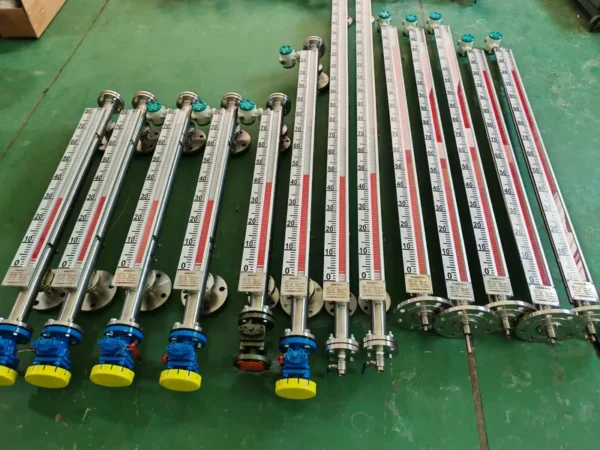

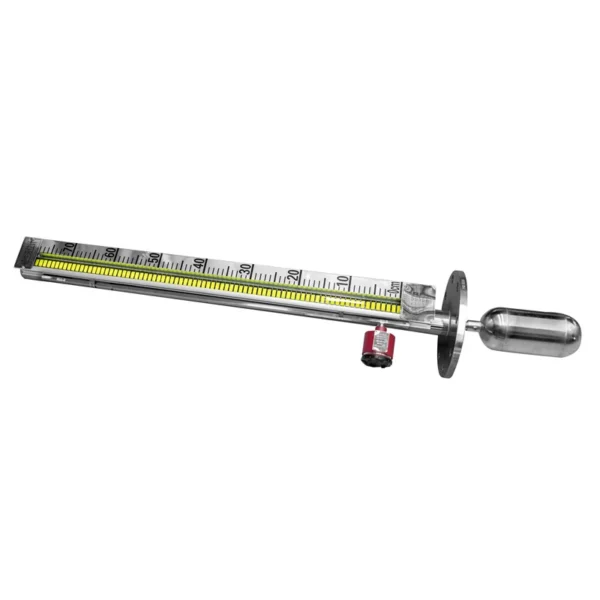

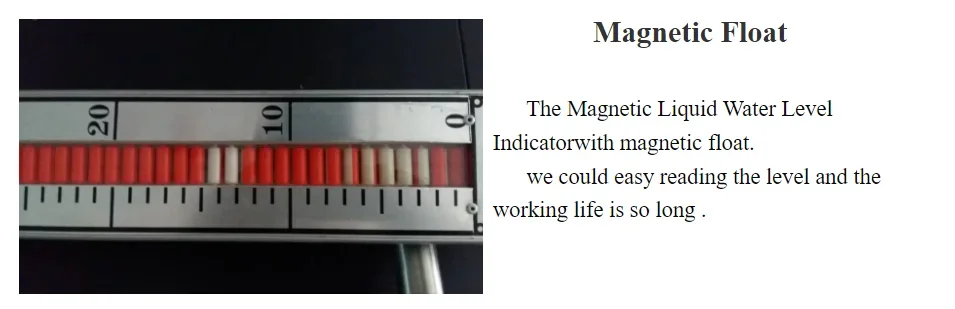

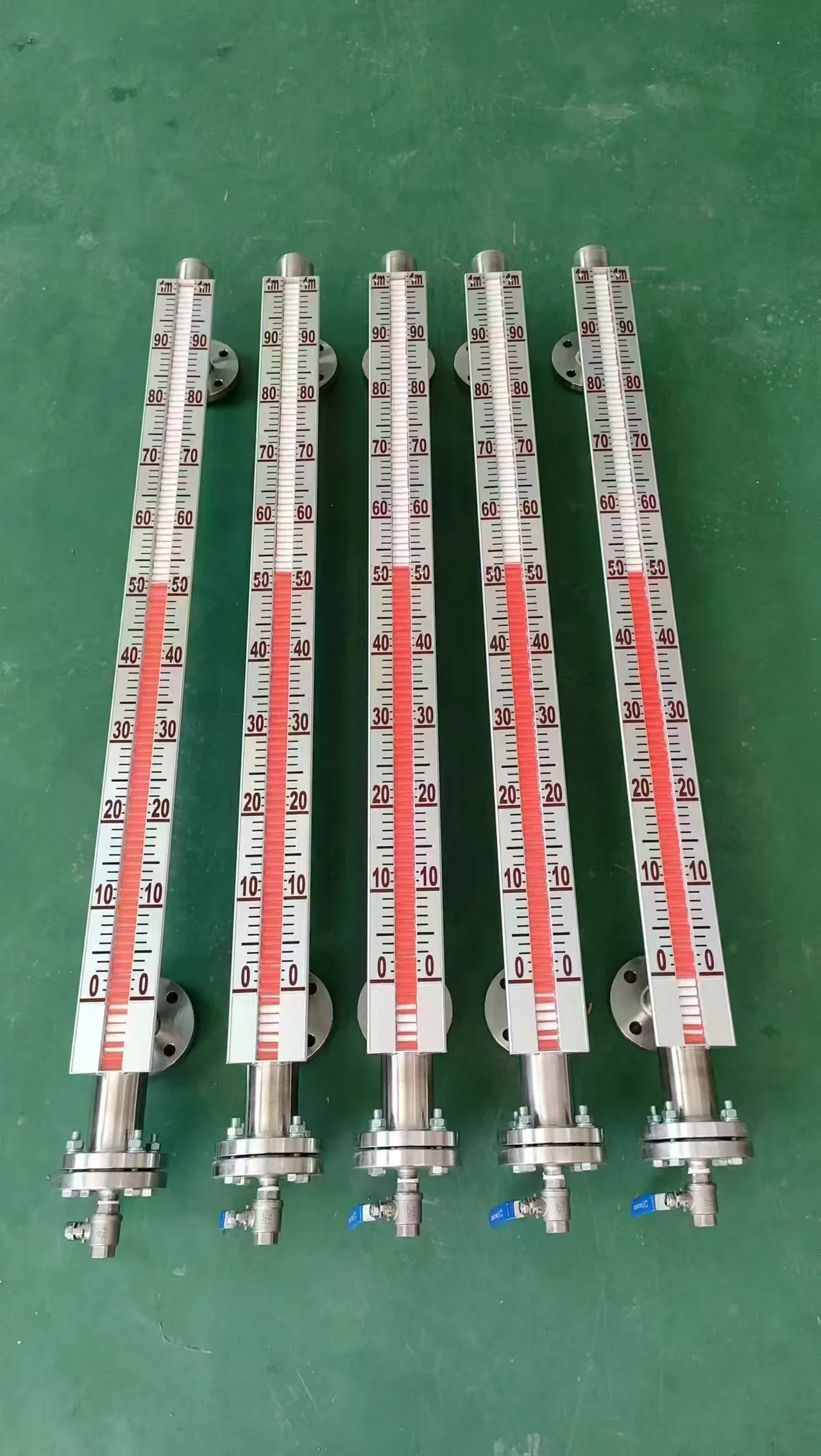

Mgnetic level Indicator application developed from based on the principle of buoyancy and magnetic coupling. When the measured level in the container movements, the dominant tube level gauge also will lift the float, the permanent magnet inside the float is transferred to the magnetic level indicator by magnetic field coupling, driving the red, white turned columns flip 180 degrees, when when the liquid level rises, the column turned from white to red when the level drops, the column turned from red to white, pointer red, white circles located at the medium level of the actual height of the container, in order to achieve the level instructions.

Magnetic level gauge electrical signal is implemented by a combination of remote and basic level remote device. Level remote device by the UR-type resistance sensors and UB type R / I converter modules, the transmitter sensor in the form of bundled fixed to the outside of the main conduit UHZ type level gauge magnetic flap so that it is level count the same magnetic coupling system. When the magnetic float moves up and down with the liquid level, the level corresponding to the position of the reed that is the role of the magnetic field inside the float pull resistor chain resistance to change by switching module will change the resistance signal into a standard two-wire 4 ~ 20mADC output signal, the signal can be easily and III-type electric instrument, display instrument supporting the use, can also be indicative of the light beam, the digital display regulator supporting the use of alarm, so as to display, control, regulation and alarm purposes.

Production Parameters

Product Details

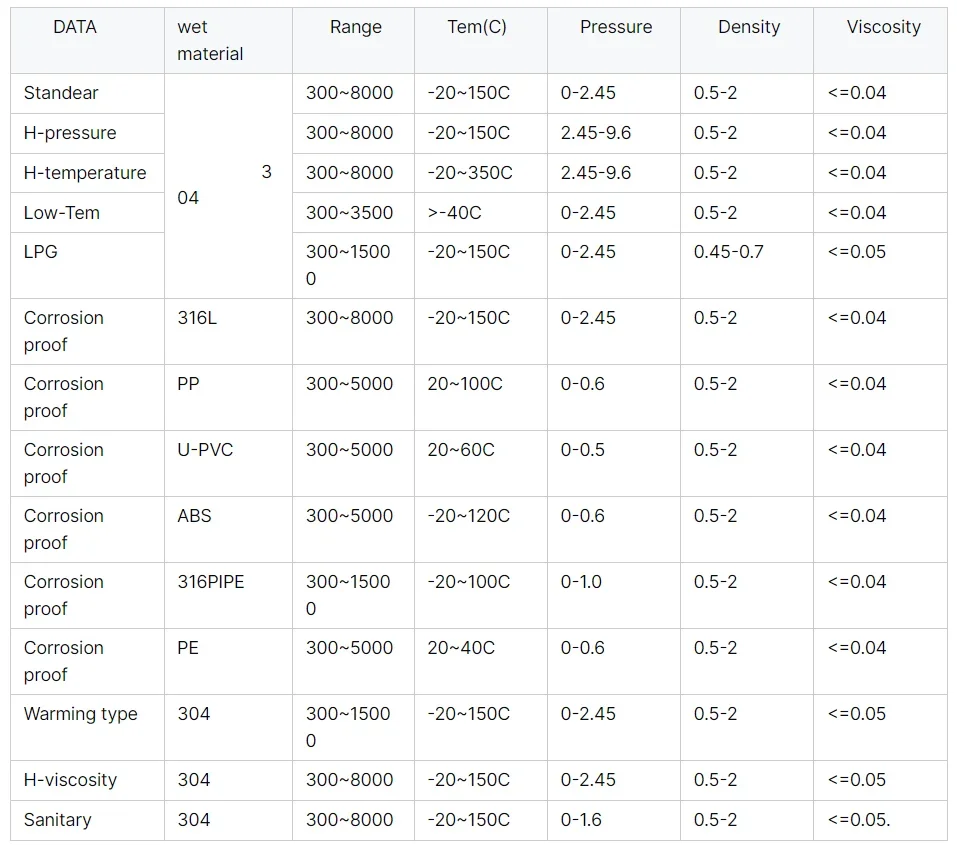

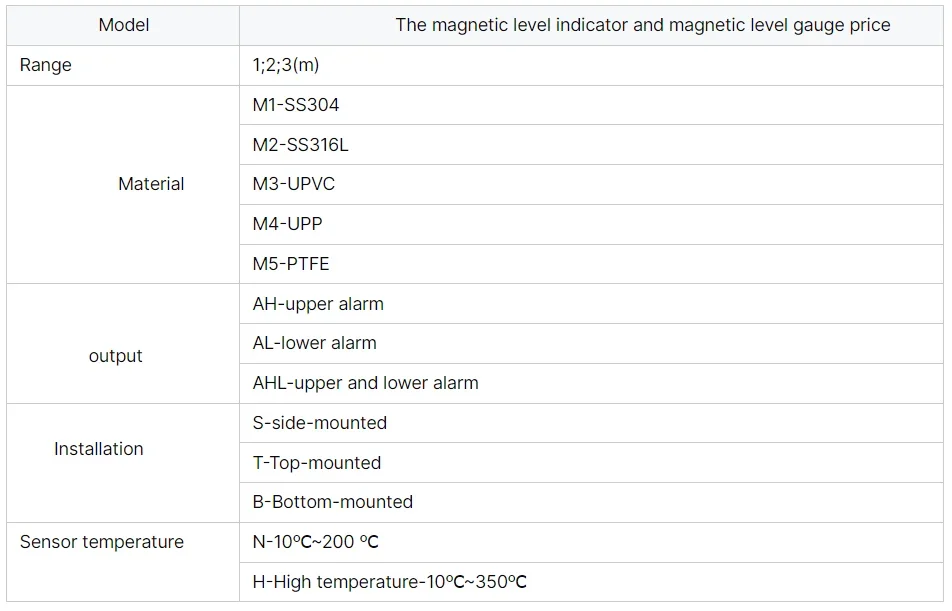

Selection Guide tank level gauge magnetic float level sensor

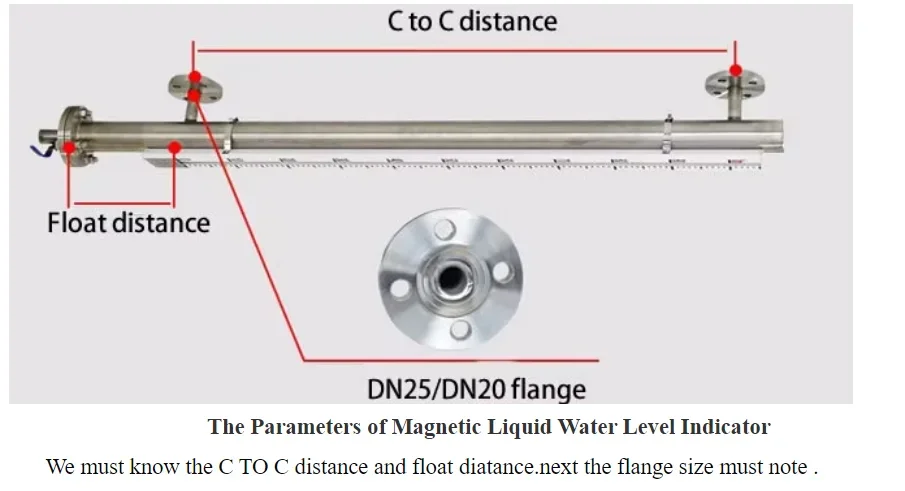

Measuring length

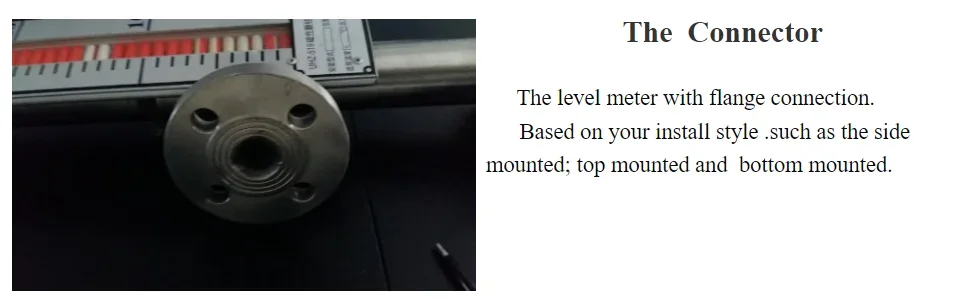

Connection flange standards
Media name and density
Medium temperature
Medium pressure
Installation
Material selection

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–4 piece: US $209 / piece
  • 5–999 piece: US $199 / piece
  • 1000+ piece: US $188 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this gauges indicator for boiler?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Xi ‘an Kangyate Measurement And Control Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full Xi ‘an Kangyate Measurement And Control Technology Co., Ltd. range on HVACR Nexus.
