Gear motor — 12V, 24V, 36V, 48V, 310V, type Brushless Motor. The complete factory specification follows. Made by Guangzhou Dmke Intelligent-Technology Co., Ltd. (5 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Gear Motor
- Model Number: D5BLD/RV30/RV40/RV50/RV63
- Rated Power: 90-750W
- Rated Voltage: 12V, 24V, 36V, 48V, 310V
- Speed(RPM): 20-267RPM/Custom
- Warranty: 1 year
- Place Of Origin: Guangdong, China
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | 90-750W |
| Speed(RPM) | 20-267RPM/Custom |
| Efficiency | IE 2 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Frame | 86MM(3.39in) |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Totally Enclosed |
| Usage | Fan, AGV/Robot/Forklift/Packing Machinery/Industrial Machine/Automatic Machine/Smart Appliances |
| Warranty | 1 year |
| Continuous Current(A) | 0.12A-15.63A |
| Model Number | D5BLD/RV30/RV40/RV50/RV63 |
| Torque | 1.93N.m-55N.M(1.42lb.ft-40.57lb.ft) |
| Place Of Origin | Guangdong, China |
| Brand Name | DMKE |
| Motor Type | 86mm Brushless Worm Gear box DC Motor |
| Direction Of Rotation | CW/CCW |
| Rated Voltage | 12V, 24V, 36V, 48V, 310V |

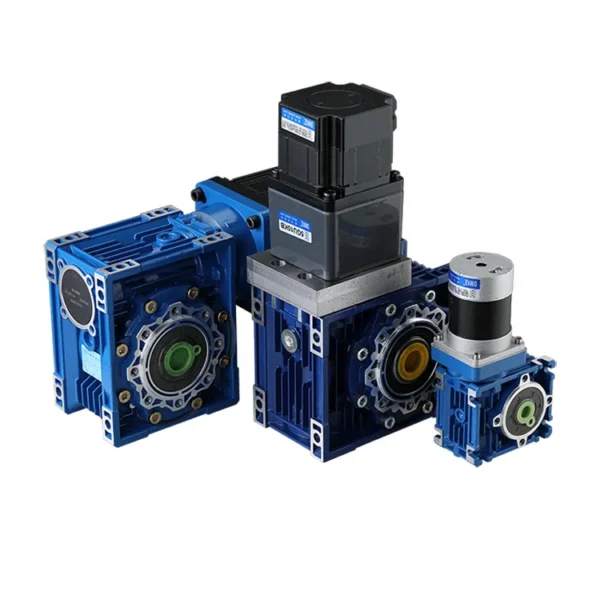

| Worm Gearbox Type | RV30,RV40,RV50,RV63 |
| Poles | 4 poles |
| Moter Length | 65mm-130mm |
| Protection Rank | IP54 |
| Certificates | CCC, CE, ROSH, LVD, EMC |
| Environment Temperature | 0-50℃ |
| Customized | Motor length, power, shaft, speed, voltage, controller, etc. |
| Selling Units | Single item |
| Single Package Size | 50X20X20 cm |
| Single Gross Weight | 60.0 kg |
Product Details
A. High power range from 50W to 2KW
B. Dia: 57mm-110mm
D. Rich stock and fast shipping time in 10 working days
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
K.High-performance and stable matching driver and controller
Dimensions (Unit: mm )
Mounting screws are included with gear head.
Motor Power (W) | 90 | 150 | 200 | 300 | 450 | 600 | 750 | ||||||
Motor Length(mm) | 65 | 80 | 80 | 90 | 130 | 130 | 130 | ||||||
Motor Rated Speed(rpm) | 2000 | 2000rpm | |||||||||||

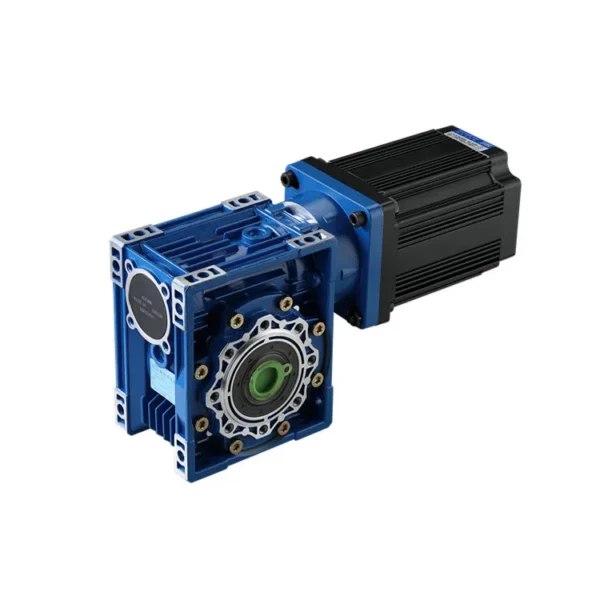

86mm BLDC Motor with RV50 Worm Gearbox Size Dimensions

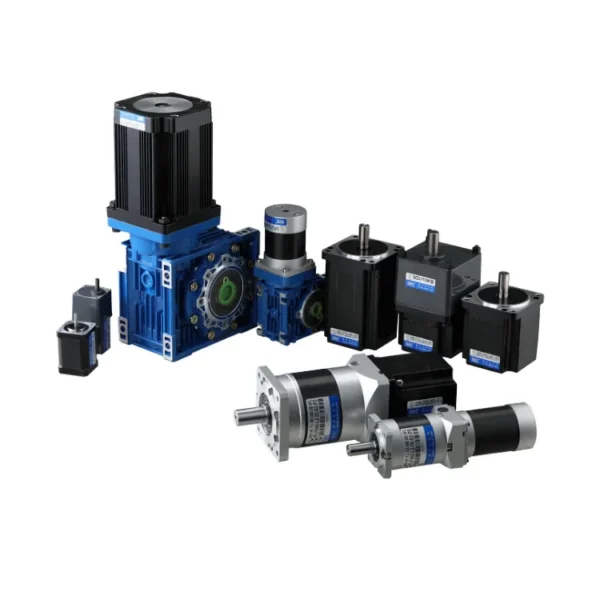

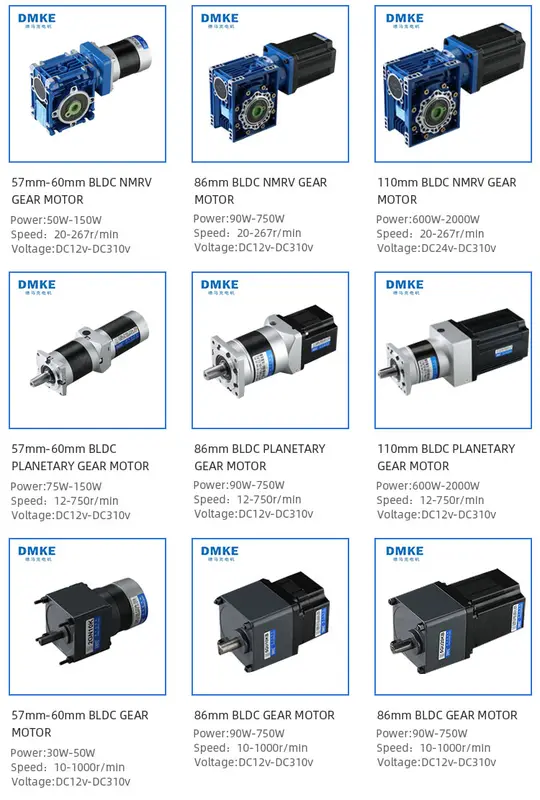

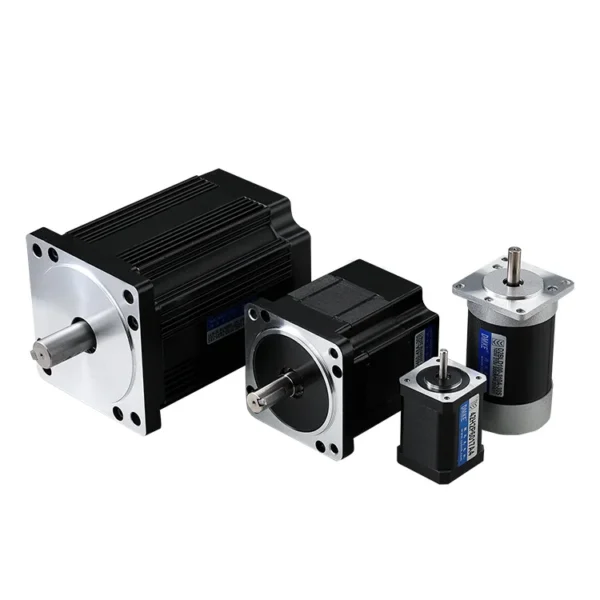

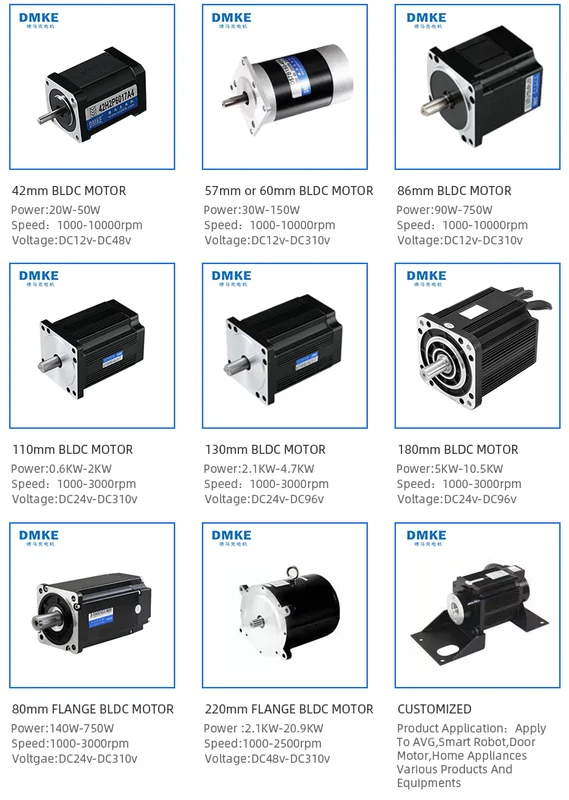

Our main products are brushless dc motor, brushless controller, dc servo motor and controller, planetary gear motors, worm gear motors, brush dc motor and AC motor. They are widely used in AGV, RGV, robots, barrier gate, lifting equipment, cleaning machines, medical equipment, cafe machinery, packing machinery, amusement game machines, automobiles, industrial equipment etc.
With a plant area of 4000 square meters, we have the independent design and development capabilities and strong technical force,with an annual output of more than 1 million units. We can accept OEM motor and controller based on customers’ need.
Q1: What kind motors you can provide? |
A1: For now, we mainly provide Brushless DC Motor, DC Servo Motor, Drive Dheel, Servo Electric Cylinder, Gearbox, Motor Controller, with diameter range from 16 to 220mm, and power range from 5W to 20KW. |
Q2: Are you motors reversible? |
A2: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection. |
Q3: Is it possible for you to develop new motors if we provide the tooling cost? |
A3: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation. Welcome to click here to send your requirements. |
Q4: What is your after-sales services? |
A4: A) Free maintenance within 12 months guarantee, lifetime consultant. B) Professional solutions in installation and maintenance. |
Ordering and Pricing
- Minimum order quantity: 3 set
- Volume pricing:
- 3–49 set: US $178 / set
- 50+ set: US $152 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gear motor?
The standard minimum order quantity is 3 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this gear motor carry?
It is supplied with CCC, CE, ROSH, LVD, EMC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the gear motor be supplied for my local voltage?
The standard configuration is 12V, 24V, 36V, 48V, 310V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
