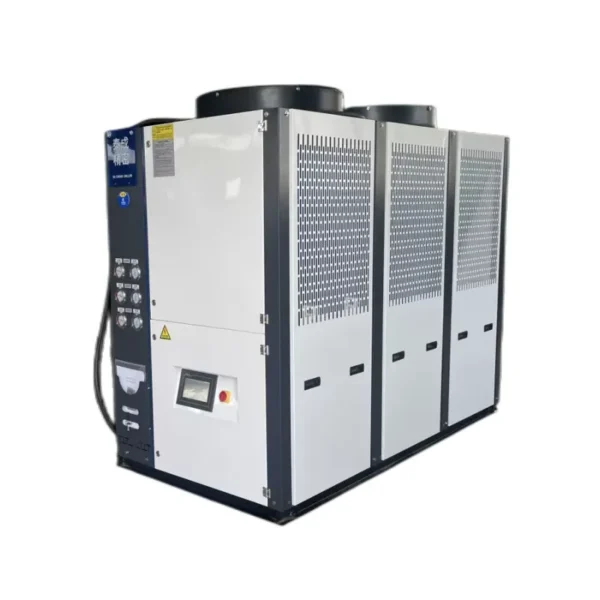

Key specification for this glycol water chiller: cooling capacity 5ton ~40 Ton glycol chiller, 41.66 Kw. Everything below is reproduced from the factory data sheet. Made by Shandong Taicheng Precision Technology Co., Ltd. Jinan Branch (4 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Glycol Water Chiller
- Power: 41.66 Kw
- Compressor Power: 9.05 Kw*4
- Voltage: 3PH-380V-50Hz or according to customer need
- Cooling Capacity: 5ton ~40 Ton glycol chiller
- Refrigerant: R22 / R407c / R134a / R507
- Warranty: 1 Year
Technical Specifications
| Voltage | 3PH-380V-50Hz or according to customer need |
|---|---|
| Power | 41.66 Kw |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump, Compressor, Fan, Evaporator, Condenser |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 1350 |
| Brand Name | TAICH |
| Dimension(L*W*H) | 2500*1460*2000 mm |
| Working Temperature Range | -10℃-+35 ℃ |
| Product Name | Glycol Water Chiller For Jinan Brewery Equipment Supplier |
| Cooling Capacity | 5ton ~40 Ton glycol chiller |
| Application | Industry process cooling, plastic injection, extrusion chiller |
| Compressor Power | 9.05 Kw*4 |
| Compressor Brand | Hermetic Scroll Compressor |
| Condenser | Air cooling aluminum foll finned |
| Heat Exchanger | Shell and tube |
| Water Flow | 18.79 m3/h |
| Refrigerant | R22 / R407c / R134a / R507 |
| Remote Control | WIFI Connection |
| Selling Units | Single item |
| Single Package Size | 2500X1460X2000 cm |
| Single Gross Weight | 1350.0 kg |
Product Details
Product Overview

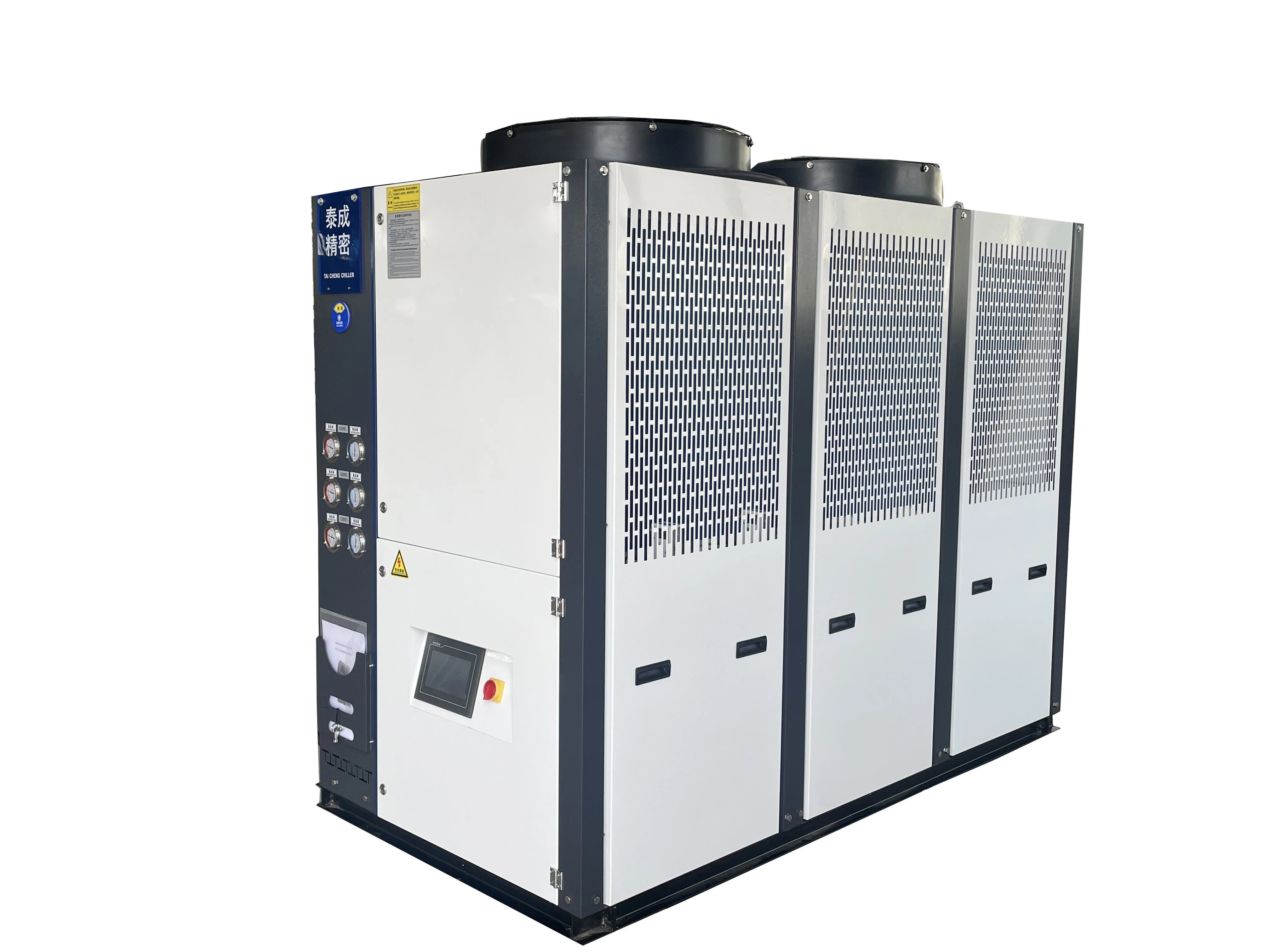

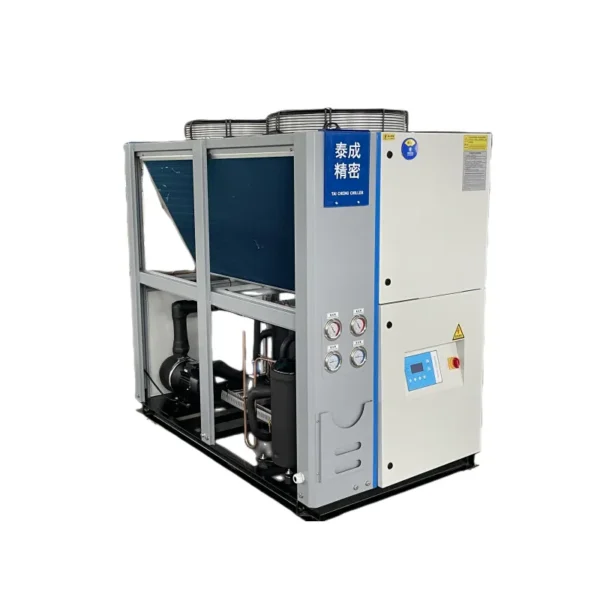

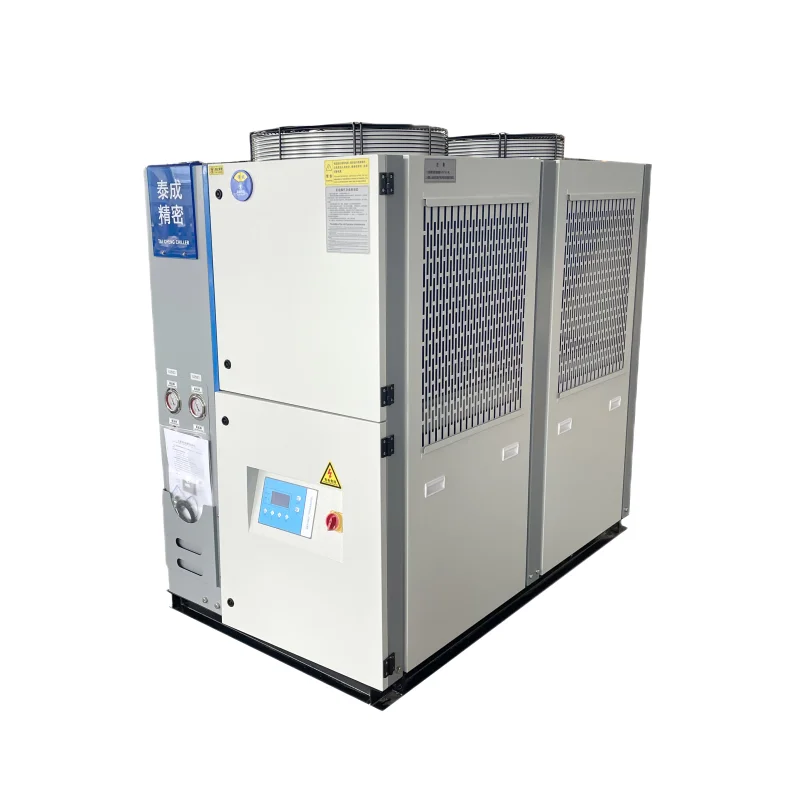

Beer Fermentation 5 Ton 10 Ton 15 Ton 20 Ton Glycol Water Chiller For Jinan Brewery Equipment Supplier
TAICH believe that customer will not only need a chiller, but also a supplier with rich experience in the cooling field to solve your cooling problems. TAICH Chiller have 15 years experience refrigeration engineer team, and 10 years manufacture experience, can support you a professional water cooling solution and stable quality chillers, we will be your reliable partner.
TAICH Water cooled chiller with the follow performance which can ensure your future use feel happy.
Specification:
1. Outlet temperature range: -10 C ~+35 deg C 2. Pump included 3. Stainless steel tank included 4. No need cooling tower, convenient for use. 5.Electric Power saving. 6.“V" Type Air Cooled finned condenser, with good heat exchange. 7.Micro-computer intelligent control system; SIEMENS PLC option. 8.Temperature automatic control no need operate by manual. 9. CE, UL, SGS certificate 10. No need to install a cooling tower Easy installation&Operation and maintenance
Product Paramenters
Manufacturing Technique
Water Chiller Control System
TAICH has developed a highly intelligent PLC and PC-level computer control system, which can be used for remote monitoring and control. Simple operation, connect with power supply directly, with lower failure, and high safety factor, easy installation. User can set the parameter as real working need, intuitive and reliable; SIEMENS PLC is workable.

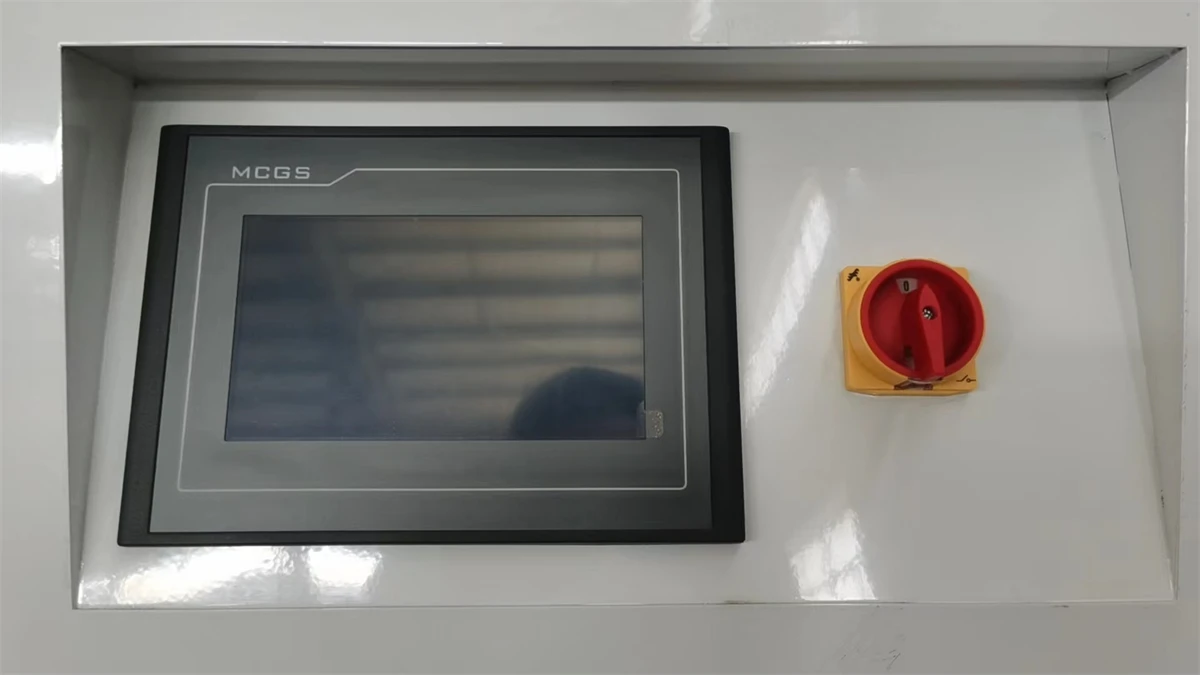

Touch Type Panel
SIEMENS Brand Control System; Touch Type LED Panel
Electric Components
Schneider Brand Electric Components

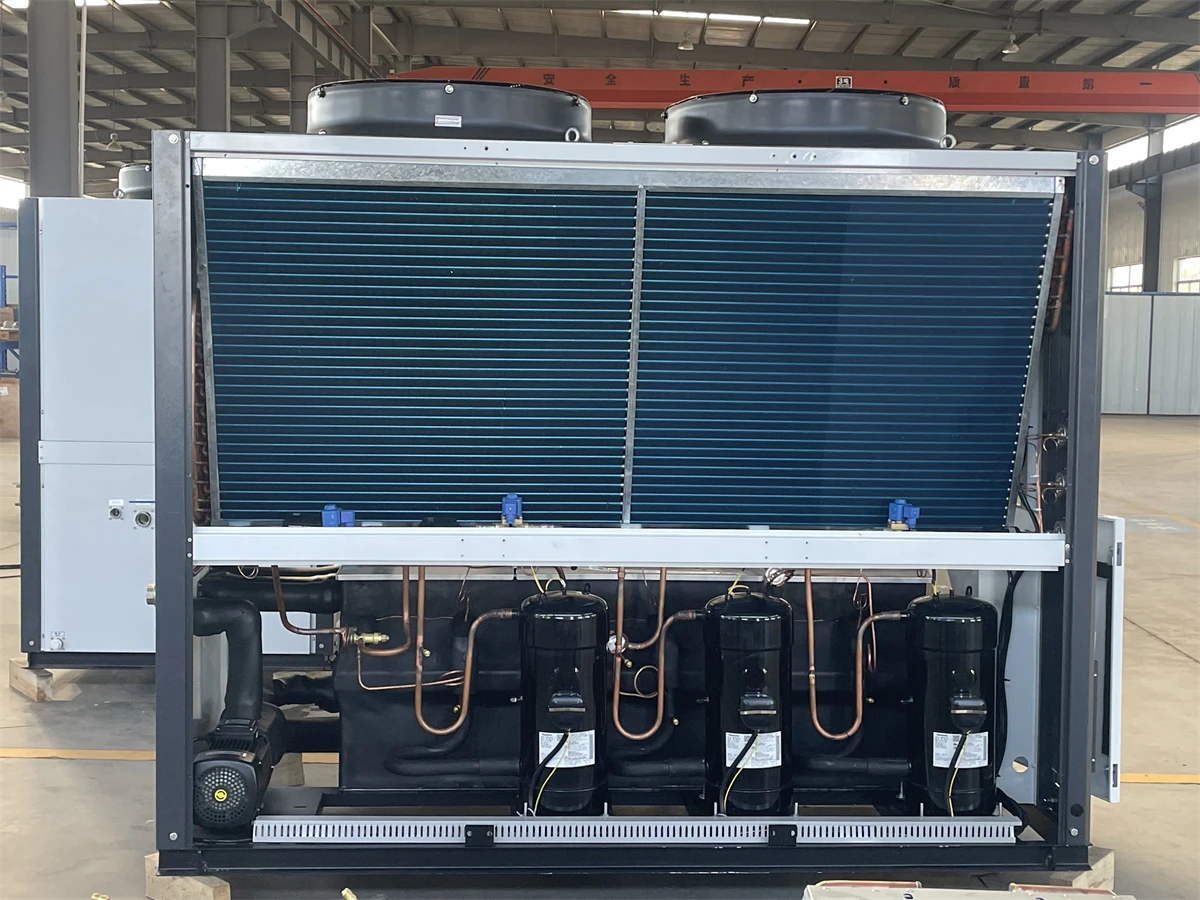

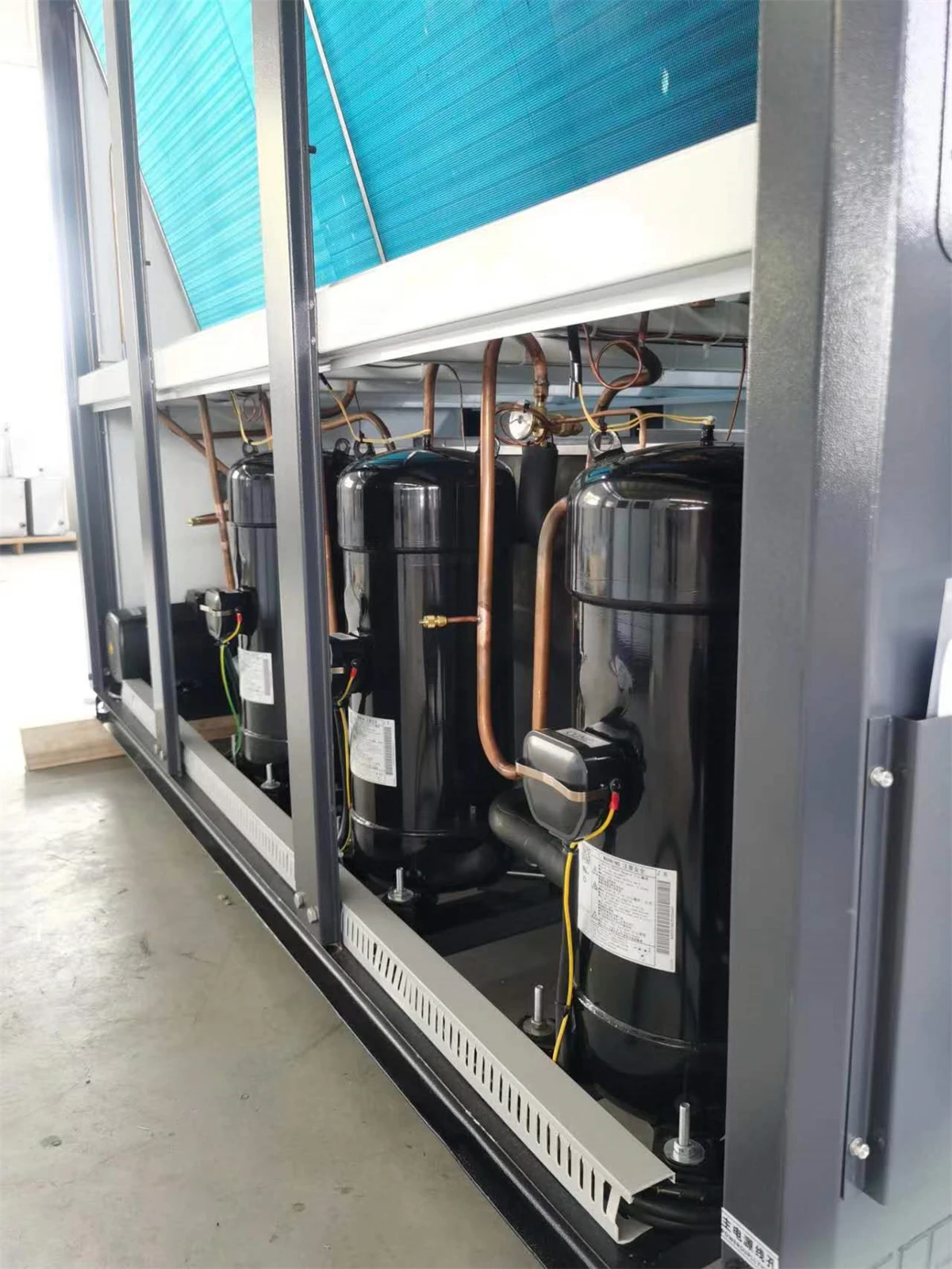

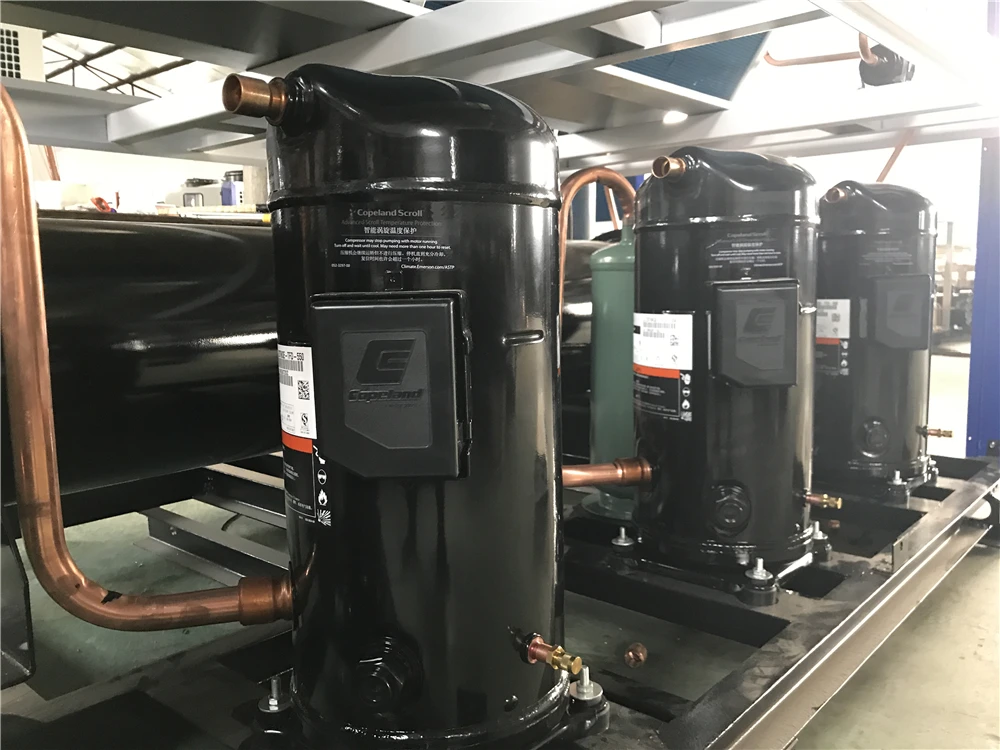

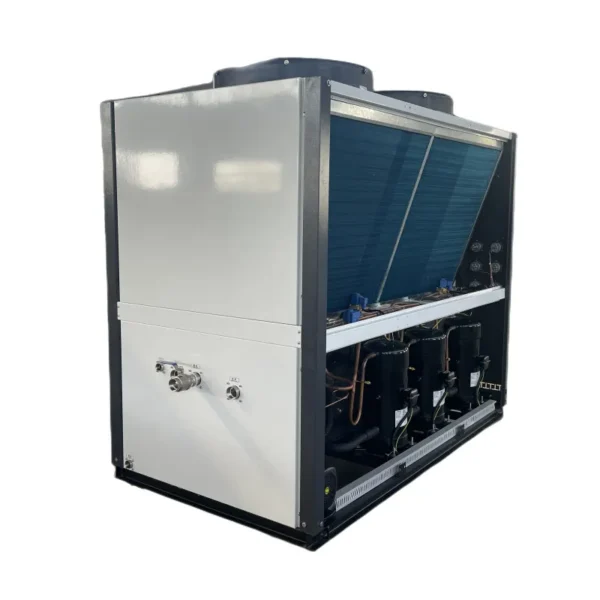

Industrial Water Chiller Compressor
It adopt the world famous brand hermetic scroll type compressor, which can saving 20-30% energy than the reciprocating compressor. It's running more stably, reliably, with high efficiency, fewer failures, less vibration, lower noise and easy maintenance. The compressors can automatically running alternately according to the load change, to balance the running speed of each compressor, and greatly extend the service life of the chiller.

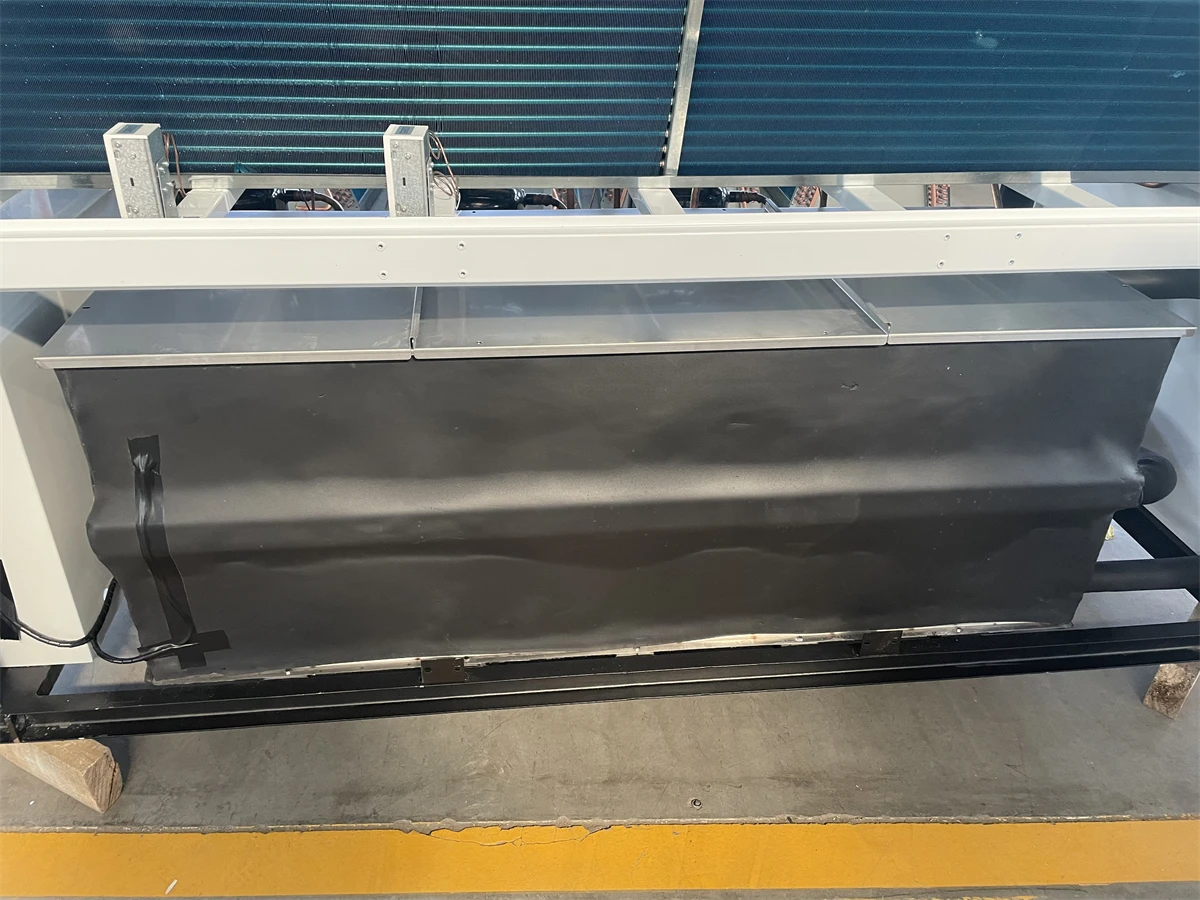

Heat Exchanger -Evaporator
(1). Tank with coil: If customer will connect with a closed water loop;
(2). Shell and tube: If customer will connect with a open water loop;
(3). It adopts internal and external threaded tubes, the inner surface of the copper tube is threaded and surface is smooth, the cooling efficiency is higher. The outside of the evaporator is insulated with 25mm thick PE insulation board, no condensation, and small loss of cooling capacity.
(2). Shell and tube: If customer will connect with a open water loop;
(3). It adopts internal and external threaded tubes, the inner surface of the copper tube is threaded and surface is smooth, the cooling efficiency is higher. The outside of the evaporator is insulated with 25mm thick PE insulation board, no condensation, and small loss of cooling capacity.

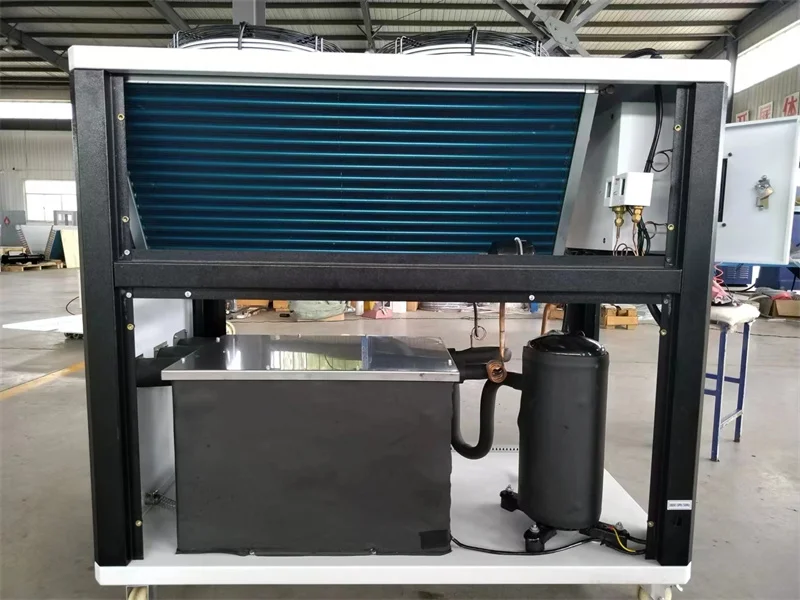

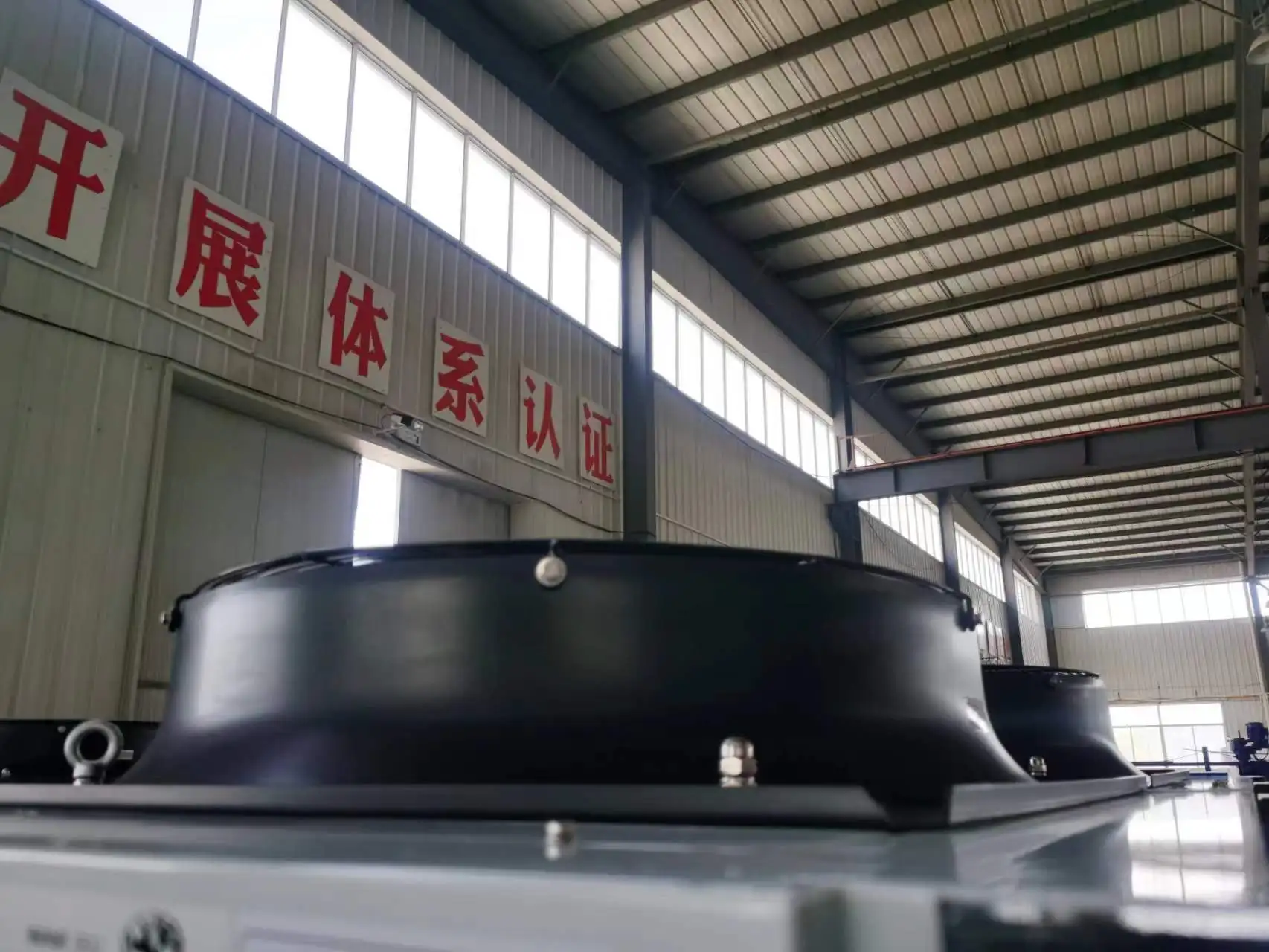

Condenser
Equipped with high-efficiency transverse slit fins and internal threaded copper tubes, with high heat exchange efficiency and good stability.

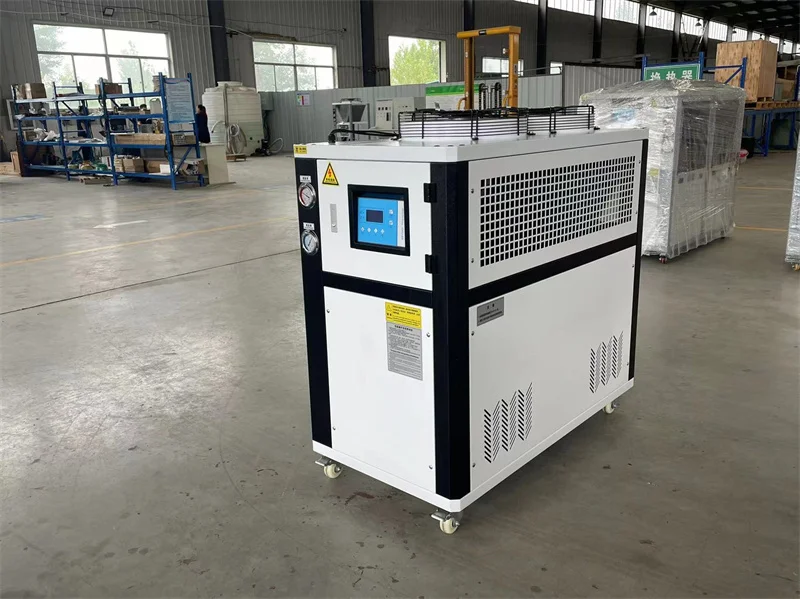

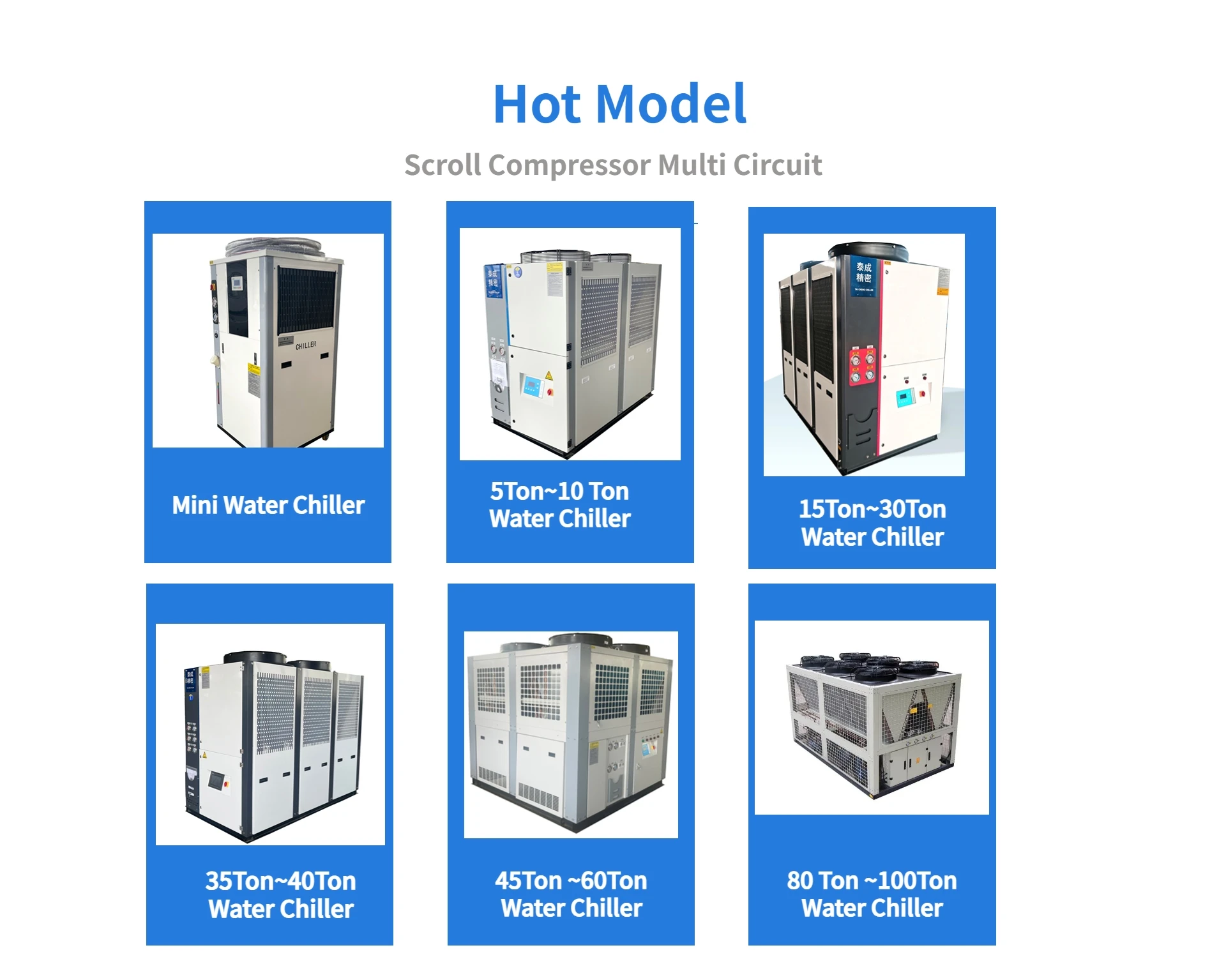

Hot Sale 5HP-40HP Industrial Air Cooled Water Chiller / Water Cooling Machine

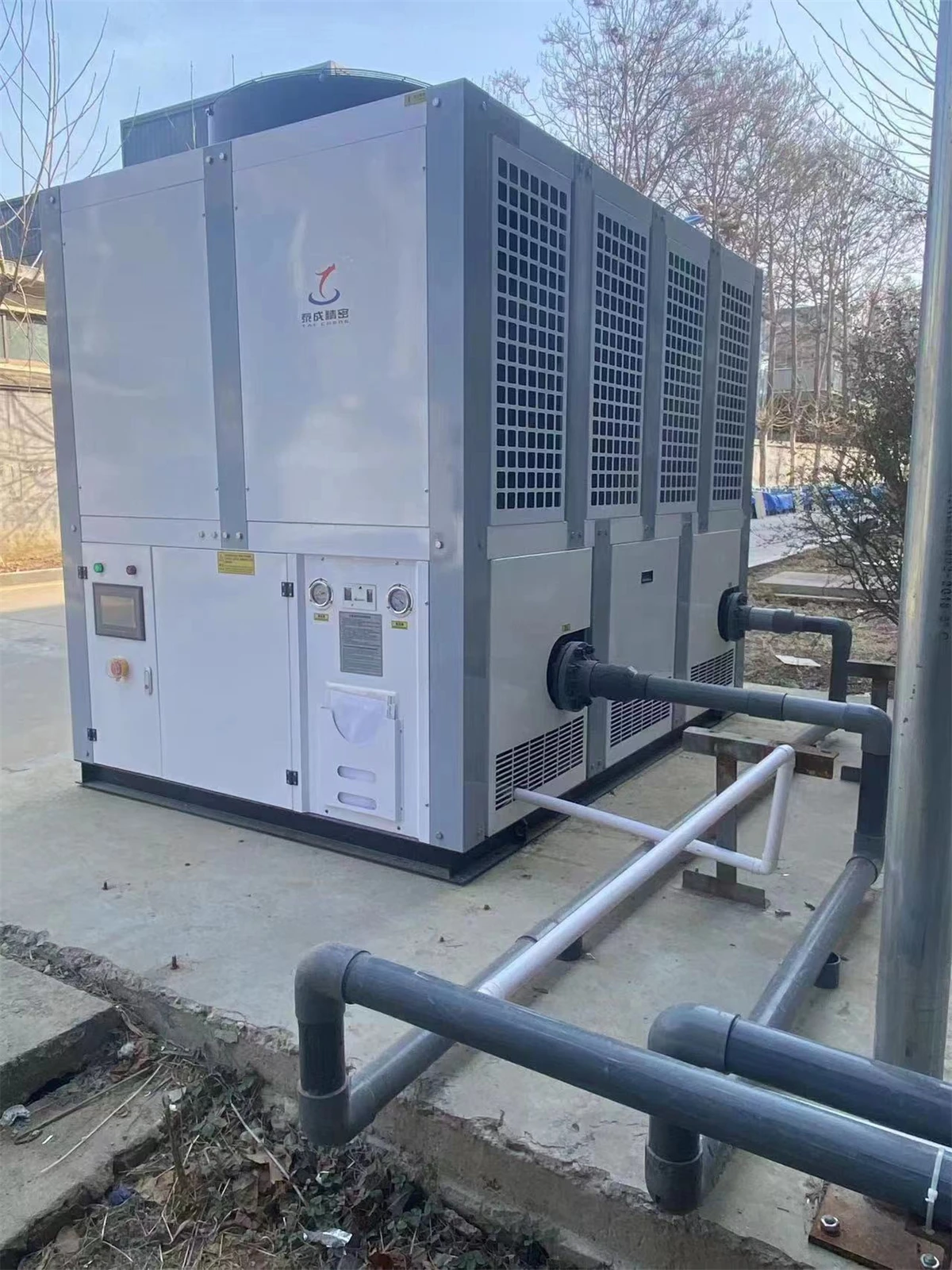

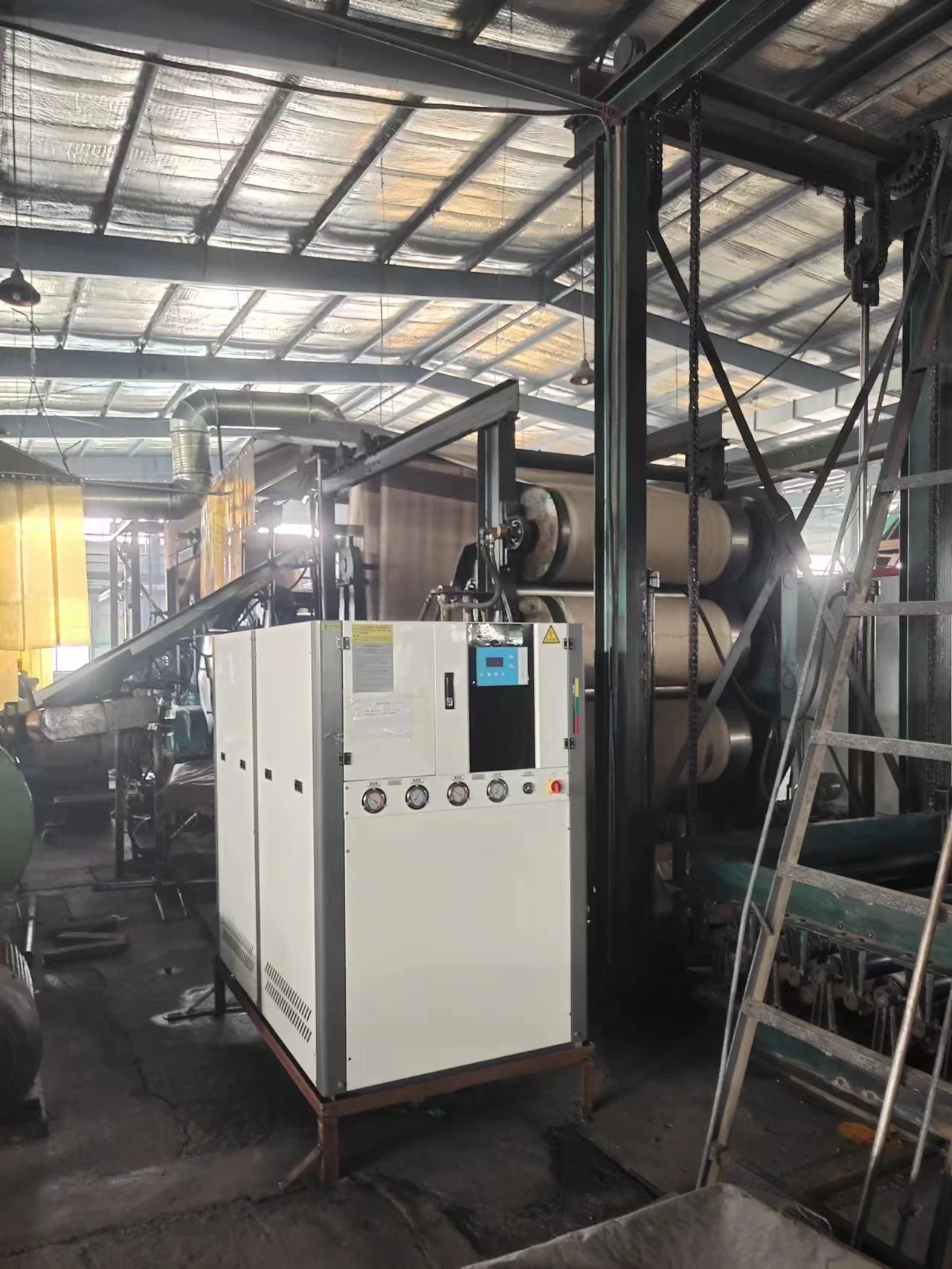

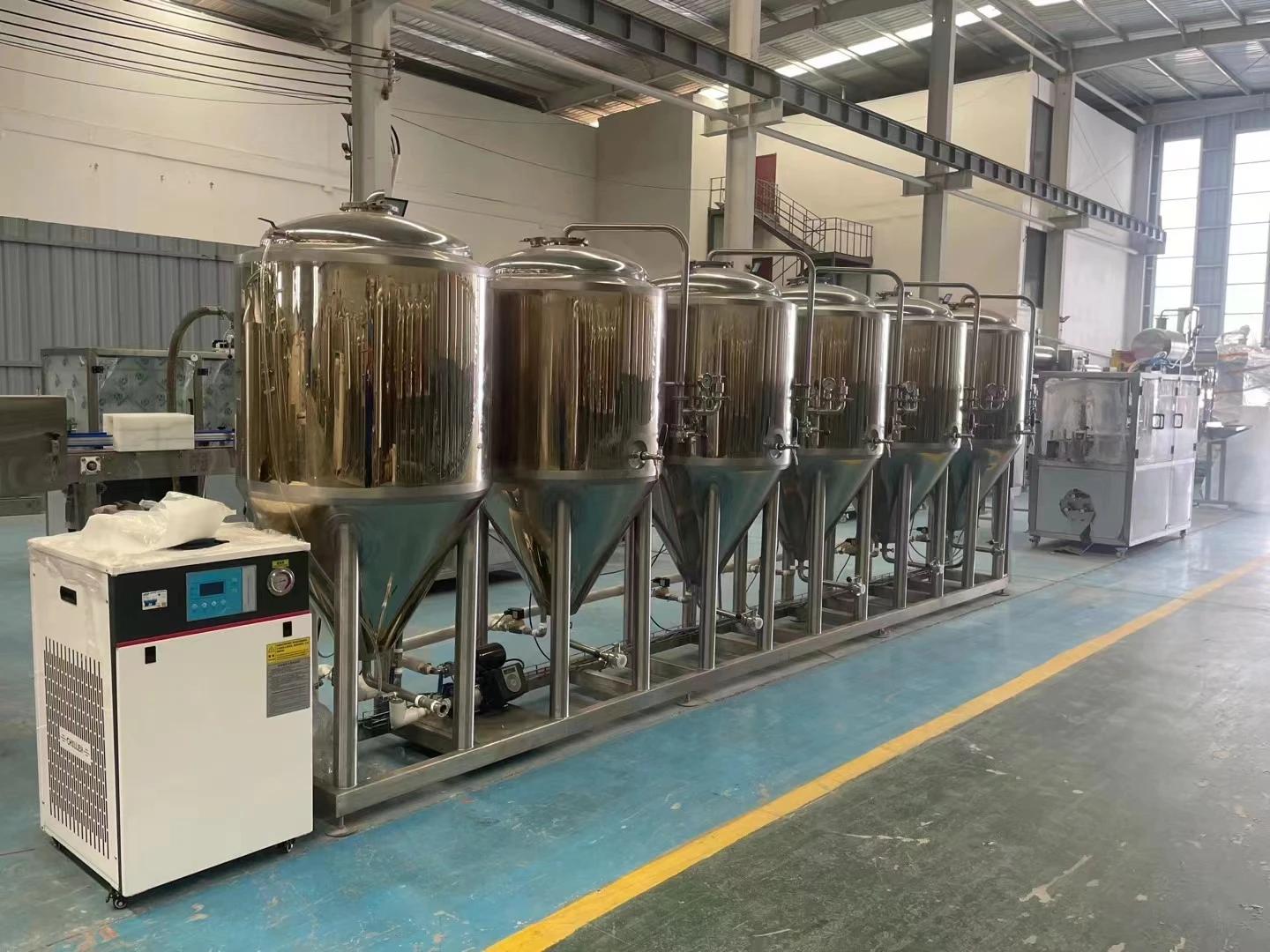

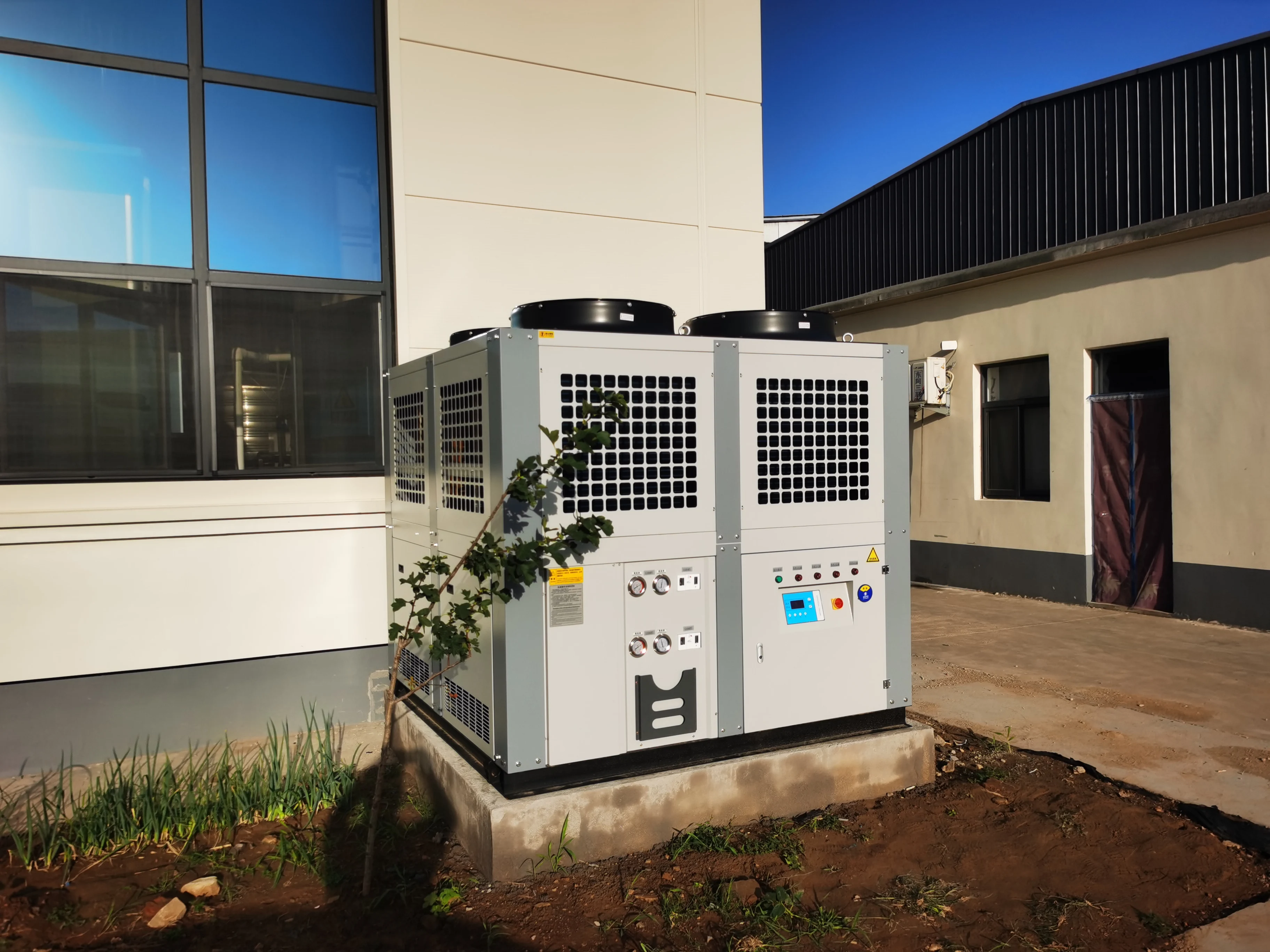

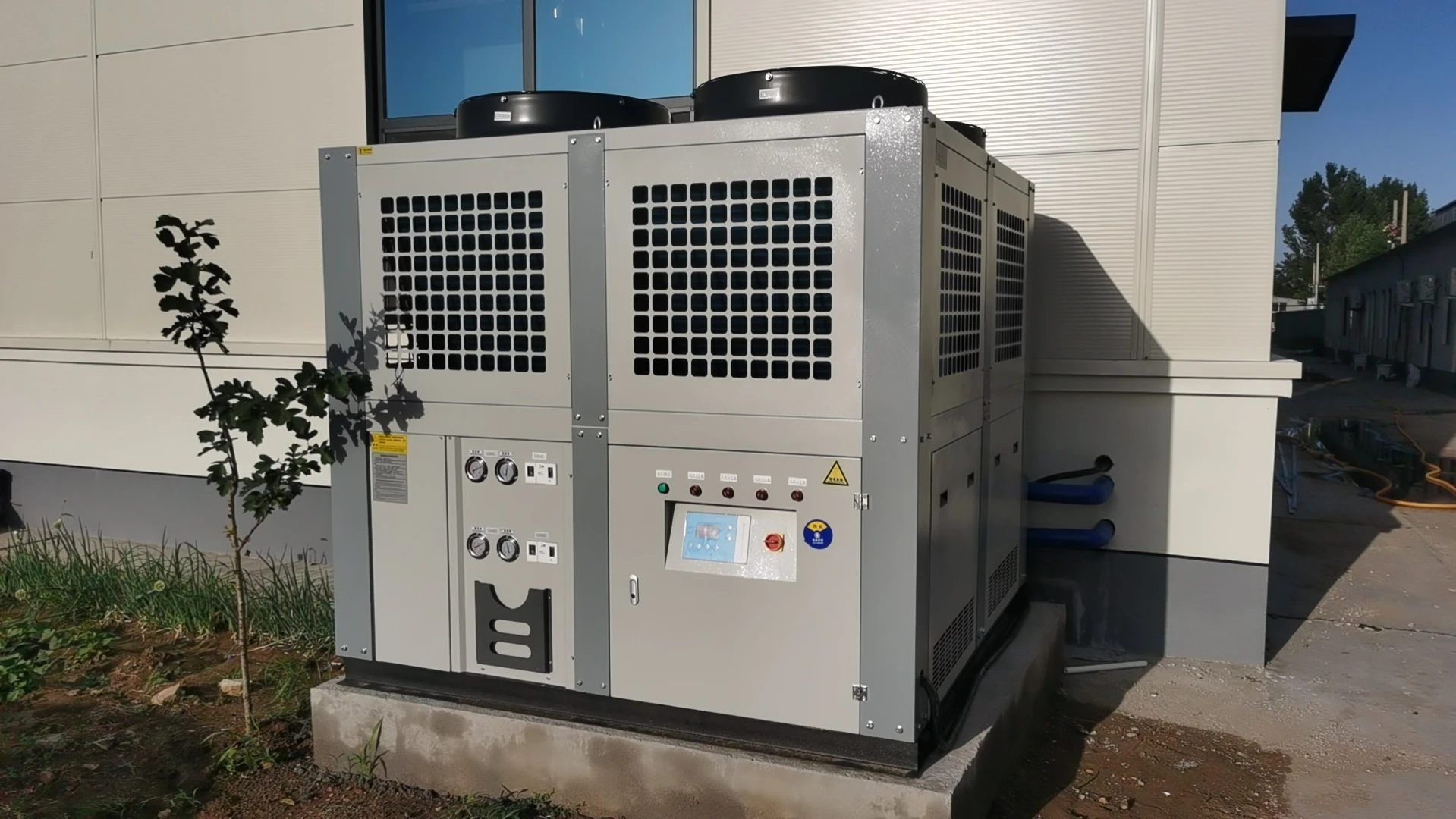

Successful Project
TAICH industrial water chiller with best price, widely application:
PVC Line Chiller, Extruder, Injection; and any other industry required outlet temperature no less than +7C; workable for +7C~35C chiller; Brewery, winery, fermentation workable for -5C chiller; Or lower outlet such as -10C, -15C; you can send me message to get the detailed specification.
Certifications
Company Profile
TAICH-Your Reliable Industrial Water Chiller Manufacturer
1. With 15,000 square meters workshop; with three management system: R&D Center, Manufacturing center and Quality control center. With CNC machining center, automatic pipe bending machine, laser welding machine, high-frequency welding machine, high and low temperature testing platform and etc high-end manufacturing and testing equipment , so from the R&D to production to quality control, all-round guarantee of product delivery.
2. 40+ Skilled Workers and 15+ experienced R&D,Service Team.
3. 5000+ Annual Sales Chiller Units, Provided To 100+ Countries Market.
4. 10+ Years Experience In Industrial Cooling Worked For 50+ Field.
5. "Quality first, technological innovation" is our product concept, which requires us to be extremely responsible to customers, with zero tolerance for product defects, and requires us to focus on product optimization. We believe that by adhering to the business philosophy of "quality for survival, service for development" to build the company into a strong enterprise in the industrial refrigeration industry!
Recommend Products

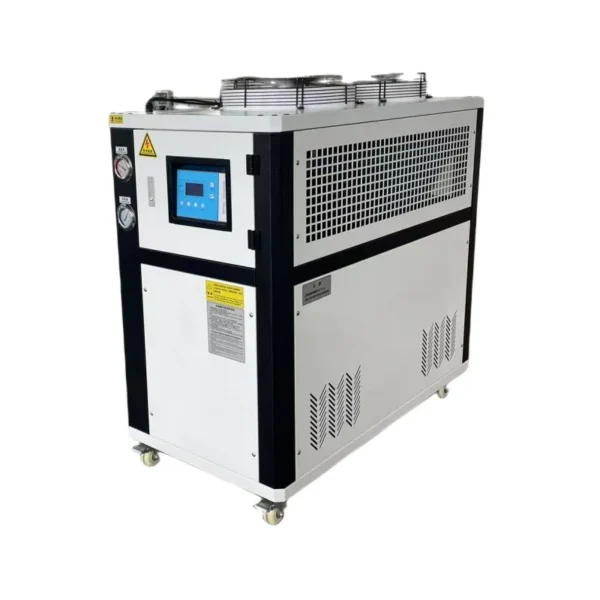

Air Cooled Scroll Chiller
Capacity: 1 Kw~120 Kw

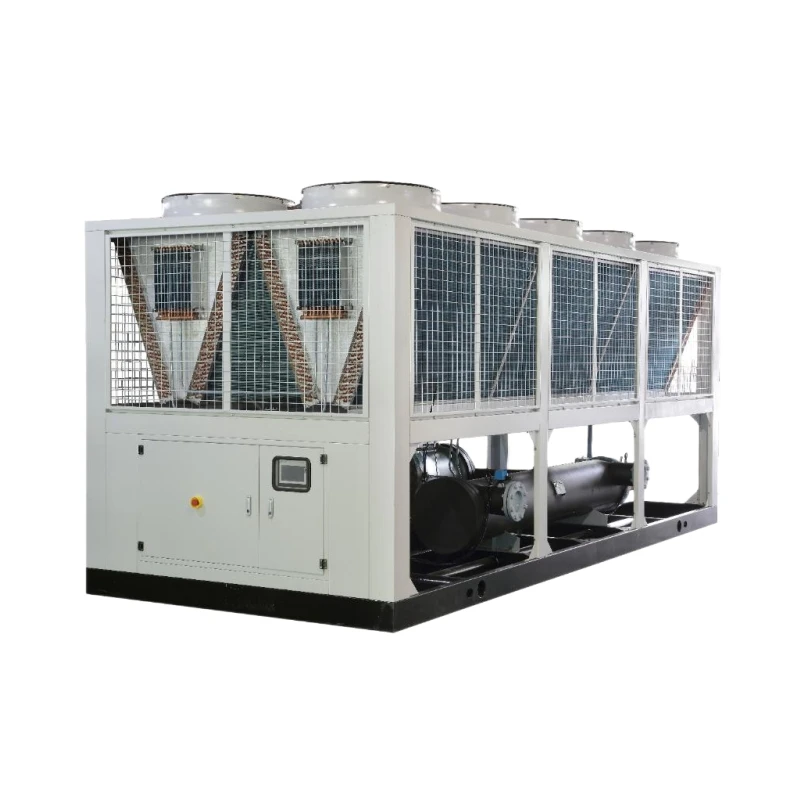

Air Cooled Screw Chiller
Capacity: 80Kw ~600Kw

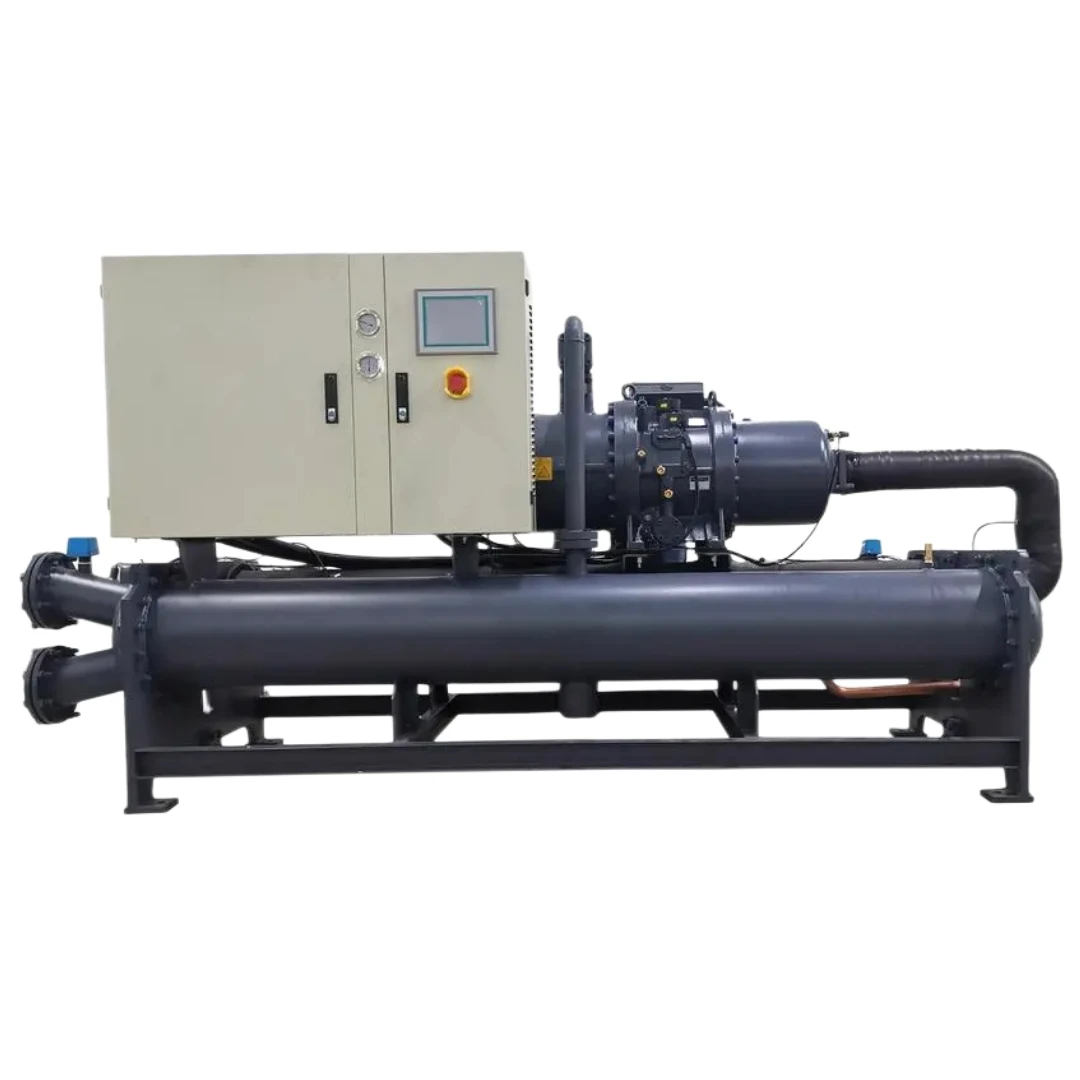

Water Cooled Screw Chiller
Capacity: 90 Kw ~1500 Kw
FAQ
Q 1: If you are manufacturer or trader?
Reply: We are manufacturer, all product will be factory direct price, and factory one to one directly service.
Q 2: How can I choose a right water chiller model?
Reply: If you can make sure the cooling capacity need, can find the suitable model according to our parameter data, or inform us, we choose for you. If you are not sure the cooling capacity, can inform us:
(1). Your process line description, such as what's the industry, what's the production capacity, what's the power and etc;
(2). What's the water flow in your system?
(3). What's the inlet and outlet temperature need?
(4).Or any more information you can share us, we will calculate and suggest a suitable water chiller proposal for you.
If you are looking for the most suitable Water Chiller, TAICH Chiller is the right choice.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this glycol water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the glycol water chiller be supplied for my local voltage?
The standard configuration is 3PH-380V-50Hz or according to customer need. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
