Key specification for this grain dryer with motor: power 13.45, model 5HCY-21. Everything below is reproduced from the factory data sheet. Made by Wuhan Bailong Star Machinery Co., Ltd. (6 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Grain Dryer With Motor
- Power(W): 13.45
- Production Capacity: 21t/d
- Warranty: 1 Year
- Place Of Origin: Anhui, China
- Weight: 5400
- Dimension(L*W*H): 2700*2080*10046
Technical Specifications
| Production Capacity | 21t/d |
|---|---|
| Core Components | Motor |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Multifunctional |
| Place Of Origin | Anhui, China |
| Weight | 5400 |
| Brand Name | BAILONG |
| Power(W) | 13.45 |
| Dimension(L*W*H) | 2700*2080*10046 |
| Model | 5HCY-21 |
| Product Name | Crossed-flow Type Grain Dryer |
| Usage | drying grains |
| Selling Units | Single item |
Product Details
Product advantages:
"5HCY-21 Grain Drying Machine"
is a new type of cross flow drying equipment, suitable for drying grains such as rice, wheat, barley, and seeds (drying corn and rapeseed requires separate ventilation holes). It can effectively remove moisture from grains, ensure grain quality, and facilitate grain storage and processing. This product has a wide range of uses and can be used for drying operations in grain depots, rice processing plants, seed processing plants, grain drying and storage stations, rural grain farmers, and large, medium, and small grain purchasing and distribution units.
The 5HCY series cross flow circulation grain dryer is a new type of dryer designed and manufactured by integrating the advantages of various domestic and foreign dryers and combining them with the actual situation in China. The machine has a compact structure and advanced design, with no upper agitator design. The original upper agitator structure of the dryer is eliminated, and the lifting machine adopts an inclined chute for feeding grains, which utilizes the self weight of grains to freely fall and reduce compression and crushing; Large drying section design, high strength without deformation, reasonable grain discharge flow rate in the drying layer, uniform drying, and high drying rate. It has the advantages of uniform drying, low crushing rate, adjustable temperature control, and online moisture monitoring, which can meet the drying needs of users in different installed capacities of large, medium, and small circulating grain dryers. This machine has a dedicated dust removal fan, which is energy-saving and environmentally friendly. It emits less dust at the work site, has a high degree of automation control, and has good grain quality after drying. It can be equipped with heat pumps, biomass hot air stoves, fuel/gas stoves, etc., to meet the drying requirements of different grains and different moisture levels to the maximum extent, improve the drying quality and output of grains, and reduce drying costs.
| Model | 5HCY-21 | |
| Structure type | Batch type circulating | |
| Drying way | Indirect heating | |
| Drying type | Crossflow | |
| Overall Dimension(L*W*H)mm | 2700*2080*10046 | |
| Max Dimension(L*W*H)mm | 4040*4180*12190 | |
| Batch volume(t/d) | 21 | |
| Moisture reduction rate(%/h) | 0.5-1.2 | |
| Height of drying layer(mm) | 1446 | |
| Height of the tempering layer(mm) | 6864 | |
| Weight(kg) | 5400 | |
| Effective volume(m3) | 38.4 | |
| Hot air temperature range(°C) | 40-90 | |
| Number of fan | 1 | |
| Total power of fan(kw) | 13.45 | |
| Productivity(t/h) | 21 | |
| Device | Safety device | Full grain alarm device, thermal relay, temperature controller, grain temperature sensor, hot air temperature sensor. overload protection, leakage protection device |
|
| Standard device | On-line Moisture meter, on-line temperature detector, dryer base, dryer discharging layer, drying layer, tempering layer, elevator, hot air blower, Guard railing, ladders, etc. |
Crossed-flow type working procedure:

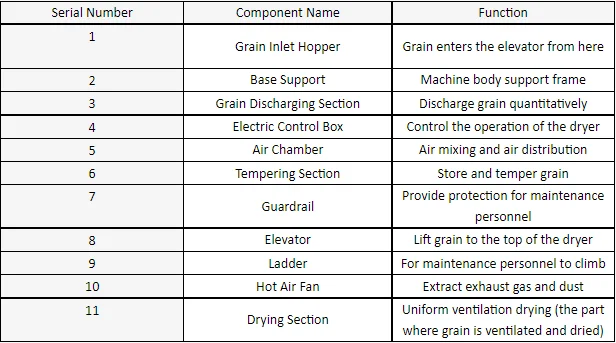

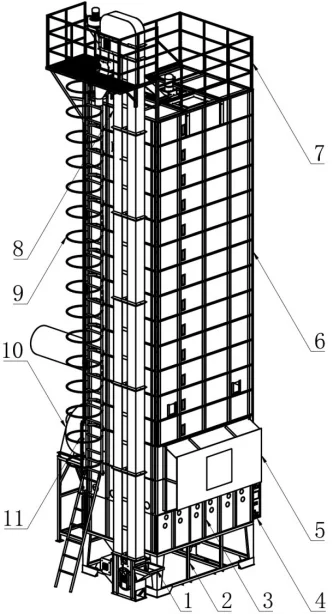

Product composition:

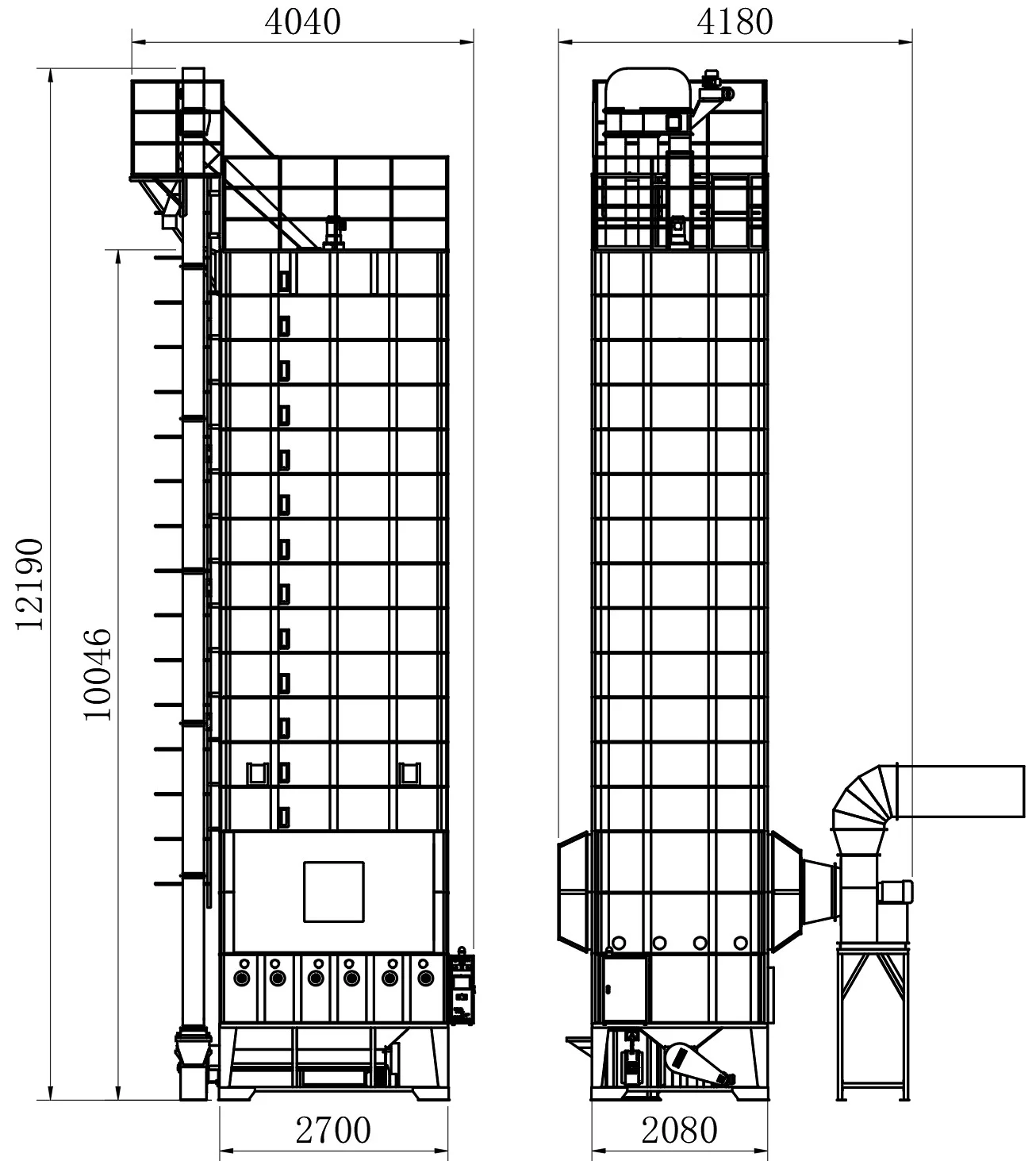

Dimensions:
1. who are we?
We are based in Hubei, China, start from 2018,sell to South Asia(31.00%),Southeast Asia(20.00%),Domestic Market(11.00%),Africa(10.00%),South America(8.00%),Eastern Asia(7.00%),Central America(4.00%),Northern Europe(2.00%),North America(2.00%),Mid East(2.00%),Eastern Europe(1.00%),Western Europe(1.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Food Processing Machinery,Poultry Equipment,Agricultural Machinery,Rice Milling Machinery
4. why should you buy from us not from other suppliers?
1. High Quality Products with EU & Japan standard. 2. Good bank reputation. 3. Good Salary & Good Welfare.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,Express Delivery;
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English,Chinese,Spanish,Arabic,French,Russian,Hindi.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $19999 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this grain dryer with motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
