Greenhouse livestock air cooler — material 100gsm wood paper, type 5090/7090/7060. The complete factory specification follows. Made by Weifang Bangmu Machinery Co., Ltd. (7 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Greenhouse Livestock Air Cooler
- Model Number: 7090/7060
- Material: 100gsm wood paper
- Warranty: 1 Year
- Certification: CE
- Place Of Origin: Shandong, China
- Type: 5090/7090/7060
Technical Specifications
| Condition | New |
|---|---|
| Warranty | 1 Year |
| Model Number | 7090/7060 |
| Place Of Origin | Shandong, China |
| Brand Name | BOOMY |
| Product Name | Greenhouse livestock air cooler evaporative honey Comb pad |
| Type | 5090/7090/7060 |
| Material | 100gsm wood paper |
| Weight | 24kgs/m^3 |
| Packing | carton box |
| Certification | CE |

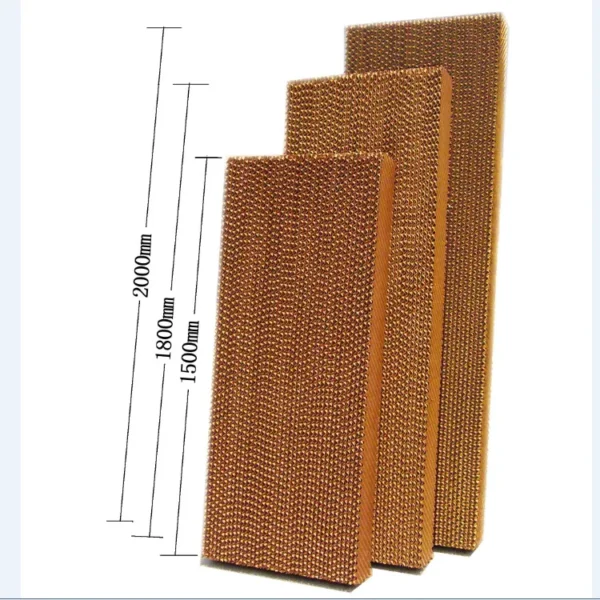

| Size | 2000/1800/1500*600(300)*200/150/100MM |
| MOQ | 10CBM |
| Color | Brown or Black coating |
| Packaging Details | carton box |
| Port Of Dispatch | Qingdao |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 1200 cubic meters per Month |
Product Details
Greenhouse evaporative honey Comb cooling pad
|

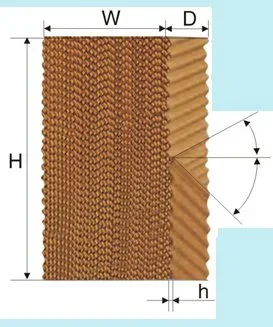

H: Hight W: Width D: Thickness h:Flute high α:wave angle β:wave angle |
|||
|
|
7090 |
5090 for cooler |
7060 |
|
H(mm) |
1000/1200/1500/1800/2000 etc. |
1000/1200/1500/1800/2000 etc. |
1000/1200/1500/1800/2000 etc. |
|
W(mm) |
600.300.etc |
600.300.etc |
600.300.etc |
|
D(mm) |
100/150/200/300.etc |
100/150/200/300.etc |
100/150/200/300.etc |
|
h(mm) |
7 |
5 |
7 |
|
α |
45 |
45 |
15 |
|
β |
45 |
45 |
45 |
| BM SERIES 7090/7060 /5090 COOLING PAD Greenhouse evaporative honey Comb cooling pad | ||
|
Low pressure drop when wet, leading to lower operating costs •No water carry-over •Low scaling •Self cleaning •Strong and self supporting •Long life time •Low running costs •Quick and easy to install •Environmentally friendly •Consistant high quality |
||
|

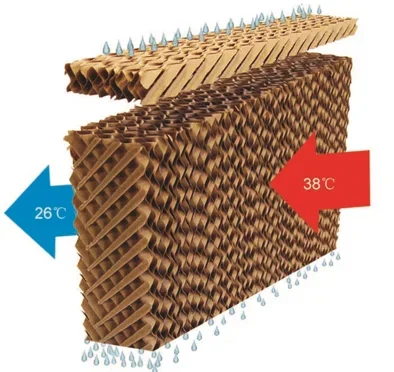

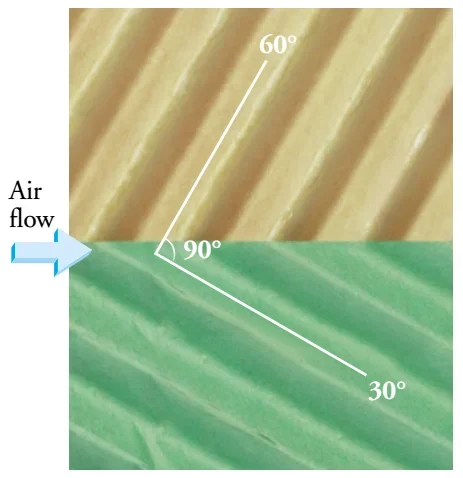

The evaporative cooling pad: consists of specially impregnated and corrugated cellulose paper sheets with different flute angles, one steep (60 deg) and one flat (30 deg) that have been bonded together. This unique design yields a cooling pad with a high evaporation efficiency while still operating with a very low pressure drop. In addition scaling is kept to a minimum and no water carryover occurs due to the fact that the water is directed to the air inlet side of the pad. This is where most of the ration takes place. |
|
|
|
Cooling pad paper:it has high intensity structure,corrosion resistant,long service life.(MH cooling pad paper is from the Kiamusze City,thickness:100gsm,Width 600mm,7090,we use 84-88 pc paper.5090,about 120pcs paper). |
 |
|
|
The distribution pad: constitutes a vital part of a complete system and should always be ordered in combination with MH evaporative cooling pads. Placed on top of the cooling pad it ensures a uniform supply of the water to the cooling pad and minish the risk of dry spots. |
 |
|
|

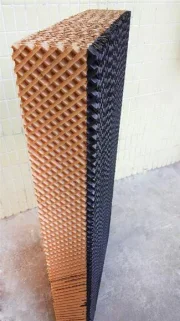

One side black coating treatmeant:1)It is a tough and resilient optional edge treatment applied to the air entering face of our cooling pad. It has been formulated to withstand repeated cleaning without damaging the pad. 2)Blacking coating cooling pad is nonporous and quick drying. It prevents algae and minerals from anchoring themselves into the substrate of the pad, so they fall off when dried. 3)it also protects the cooling pads from the damaging effects of severe weather and long term exposure to UV light. The black/green protective edge coating extends the life of the pad over that of non-treated pads. |
 |
|
|

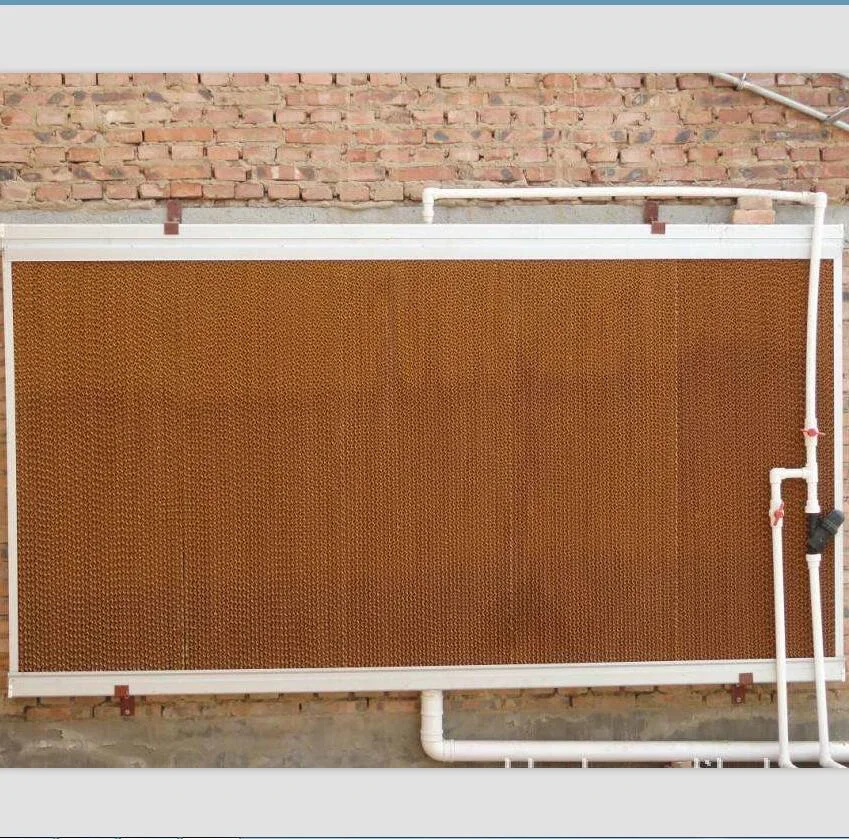

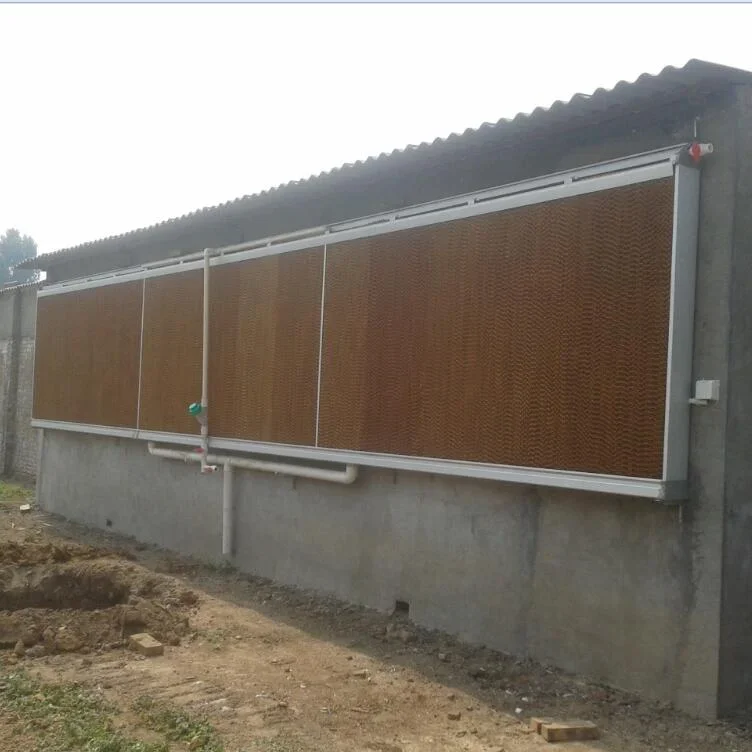

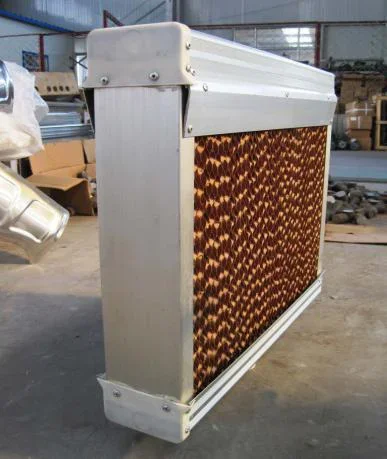

The evaporative cooling pad wall The aluminum alloy frame(1.3mm+_thickness) or the stainless steel and galvanized steel The inner pipe,water inlet and outlet are included.(25#,32#/50#,75# pipe) |
 |
|
|

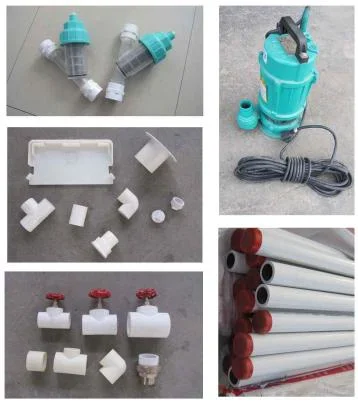

The complete evaporative cooling pad wall system includes outside pipe system,water filter,water tank,water pump,water supply and drainage kit. |
 |
|
The Usage of the Cooling Pad—Greenhouse evaporative honey Comb cooling pad:
Weifang Bangmu Machinery Co.,ltd is located in Qingzhou City, Shandong, China. Our factory is mainly producing poultry farm equipment such as silo system, automatic pan feeding system, automatic nipple drinking system, ventilation system, cooling pad system, heating system, environment control system, curtain, etc.
Ventilation System is our main products,it include the Exhaust fan, Cooling pad, Temperature Control Box. We professionally design the whole system for customers. With the help of CAD software and advanced technology abroad, we aim to design products that exhibit energy saving properties that operate with high efficiency, all while maintaining environmental friendliness.
We had set up many pieces of sucessful projects in many countries such as Saudi Arabia, UAE, Qatar, Indonesia, Thailand, Vietnam Pakistan, Australia…etc.
We control the quality of our products with the help of the ISO9001:2000 system, in the hope of providing our clients with products that exhibit genuine originality, good quality and decent prices.High quality equipment with competitive prices are deeply welcomed by our clients all over the world.
We will, as always, continue to demonstrate extensive cooperation with all friends from all walks of life for a wonderful future.
Ordering and Pricing
- Minimum order quantity: 60 cubic meter
- Volume pricing:
- 60+ cubic meter: US $8.9 / cubic meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this greenhouse livestock air cooler?
The standard minimum order quantity is 60 cubic meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this greenhouse livestock air cooler carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
