Key specification for this handler ahu with filter: airflow 2000~50000m3/h, type Air Handling Unit. Everything below is reproduced from the factory data sheet. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Handler Ahu With Filter
- Cooling Capacity Range: 27.4~605.1Kw
- Heating Capacity Range: 30.7~663.9Kw
- Airflow: 2000~50000m3/h
- Warranty: 1 Year
- Place Of Origin: Beijing, China
- Application: Printing factory/cinema/supper marekt/restaurant/Offfice/Kindergarten
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Floor Standing |
| Fan Motors Type | AC |
| Key Selling Points | Low Maintenance Cost, Eco-Friendly, Automatic, High-Accuracy, Competitive Price, Easy To Operate, High Safety Level, High Productivity, Long Service Life, Energy Saving |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC |
| Place Of Origin | Beijing, China |
| Weight (Kg) | 60 |
| Brand Name | Airwoods / Benclimate / Holtop |
| Dimension(L*W*H) | customized size |
| Airflow | 2000~50000m3/h |
| Cooling Capacity Range | 27.4~605.1Kw |
| Heating Capacity Range | 30.7~663.9Kw |
| Humidifier Type | Wet film/dry steam/double gasified/electrode/electricity heating |
| Filter Class | G4+F7+H10+H13 |
| Optional Control | PLC/DDC (with actuator and valves) |
| Fan Type | direct driven/belt driven/AC/EC plug fan |
| Insulation Thickness | 25/50mm |
| Air To Air Heat Recovery Device | Sensible/Enthaply heat wheel |
| Application | Printing factory/cinema/supper marekt/restaurant/Offfice/Kindergarten |
| Selling Units | Single item |
| Single Package Size | 200X100X100 cm |
| Single Gross Weight | 500.000 kg |
Product Details
We are BAQ (Building Air Quality)Integrated Solutioner Specialist
Mainly cover below sectors:
Turn-Key Engineering Project
Building HVAC solution (residential & commercial)
Manufacturing Process HVAC Solution
Clean Room Solution (electric, food process, laboratory, etc.)
VOCs Solution (volatile organic compounds)
Modern Agriculture (Mushroom, Hatchery, etc.)
Product name | Air handling unit | ||||
Material | Steel | ||||
Function | Heat recovery,adjust cold/heat/humidity | ||||
Application | Home,office,factory,plaza,toilets and other house | ||||
Filter class | G4+F7+H10 | ||||
Place of origin | Beijing,China | ||||

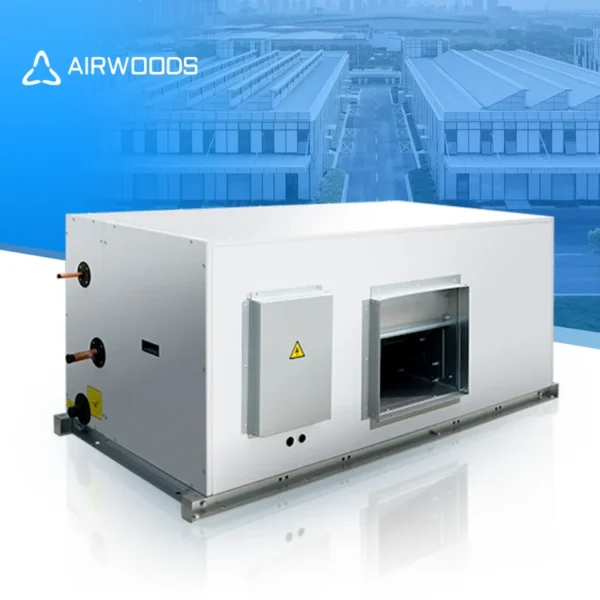

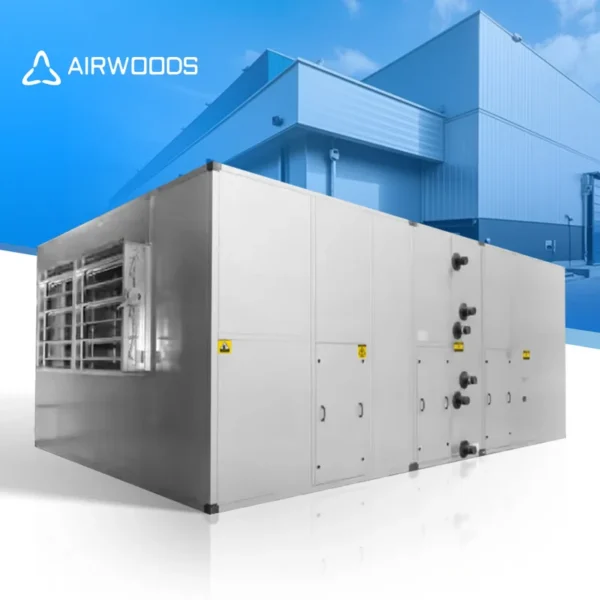

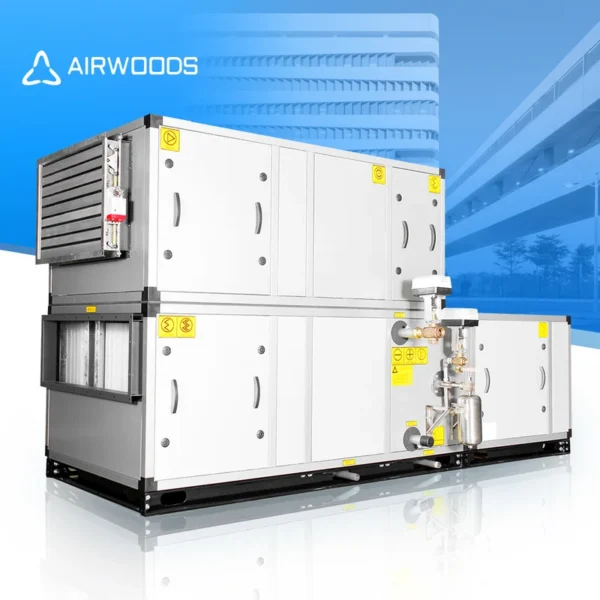

Air Handling Units AHU
We preserve increasing and perfecting our solutions and service. At the same time, we function actively to do research and growth for OEM Customized Air Handling Unit Ventilation. ahu recuperator. ahu air handling unit
AHU Feature:
High-strength frame work structure: The frame work is formed by one-piece rolling ofcolor coated stee,and the internal adopt highstrength and insulated pVC sleeves to form aunique cold-break bridge structure, whichenhance the mechanical strength, and isolatingthe wet and cold air to protect the condensationon the surface of the unit.
What we can do for you?
1) We produce high quality AHU based on clients' need and help clients doing project design.
2) We offer a package(turn-key) service including engineering, design, installation, aftersale service,etc.
3) We are especially professionl and strong in cleanroom HVAC engineering.
What kind of HVAC job that we can do?
1) Food, Eectronic, Textile, Tobacco Industry, Hotels, Office, Sports Center, Exhibition center, etc.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $6666 / unit
- 10+ unit: US $3000 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this handler ahu with filter?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
