Key specification for this window air conditioner: voltage 220-240V, airflow 20/40/50. Everything below is reproduced from the factory data sheet. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Window Air Conditioner
- Input Power: 6-7.8w
- Voltage: 220-240V
- Airflow(L/M/H): 20/40/50
- Material: ABS Plastic
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Application | Apartment, Home Office, Living Room, Bedroom |
|---|---|
| Material | ABS Plastic |
| Installation | Wall-mounted |
| Feature | Flexible, Energy Saving, Easy Install |
| Design Style | Modern, Contemporary, European |
| Warranty | 1 Year |
| After-Sale Service | Free Spare Parts |
| Project Solution Capability | total solution for projects |
| Place Of Origin | Guangdong, China |
| Brand Name | Airwoods |
| Voltage | 220-240V |
| Frequency | 50/60Hz |
| Input Power | 6-7.8w |
| Current | 0.04-0.06 A |
| RPM | 2000(max) |
| Airflow(L/M/H) | 20/40/50 |
| Regeneration Efficiency | ≤ 92% |
| Controller | Remote controller |
| Selling Units | Single item |
| Single Package Size | 54.6X36.6X31 cm |
| Single Gross Weight | 6.000 kg |
Product Details
Product Description

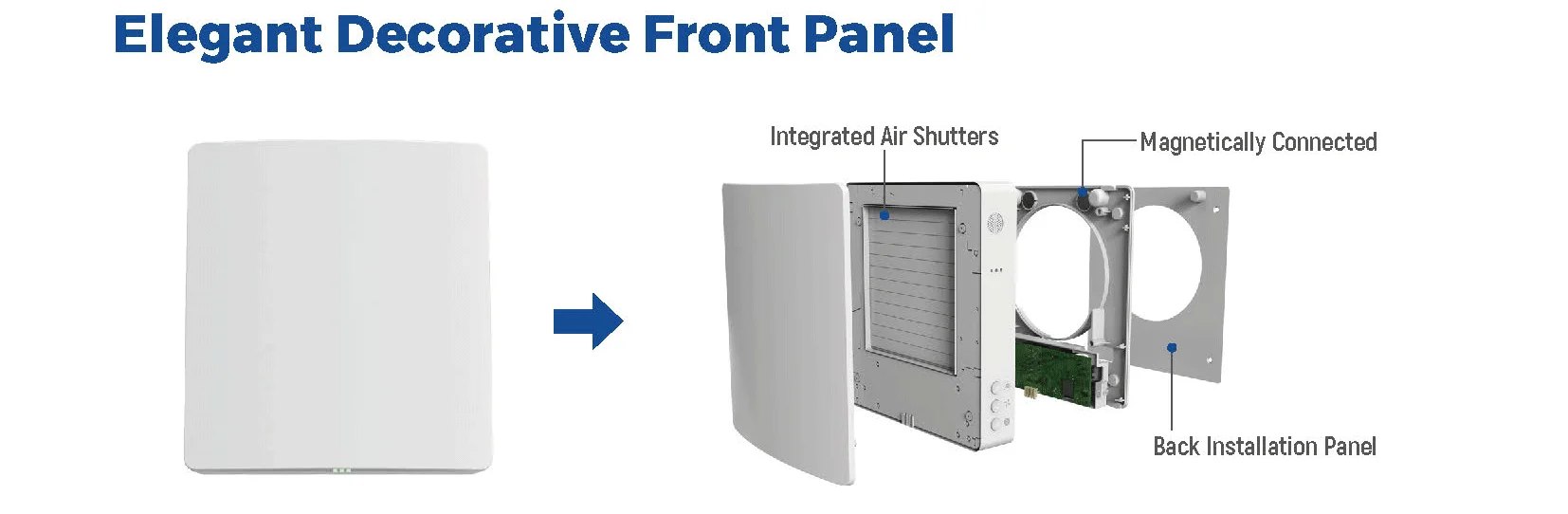

1.Elegant decorative front panel.

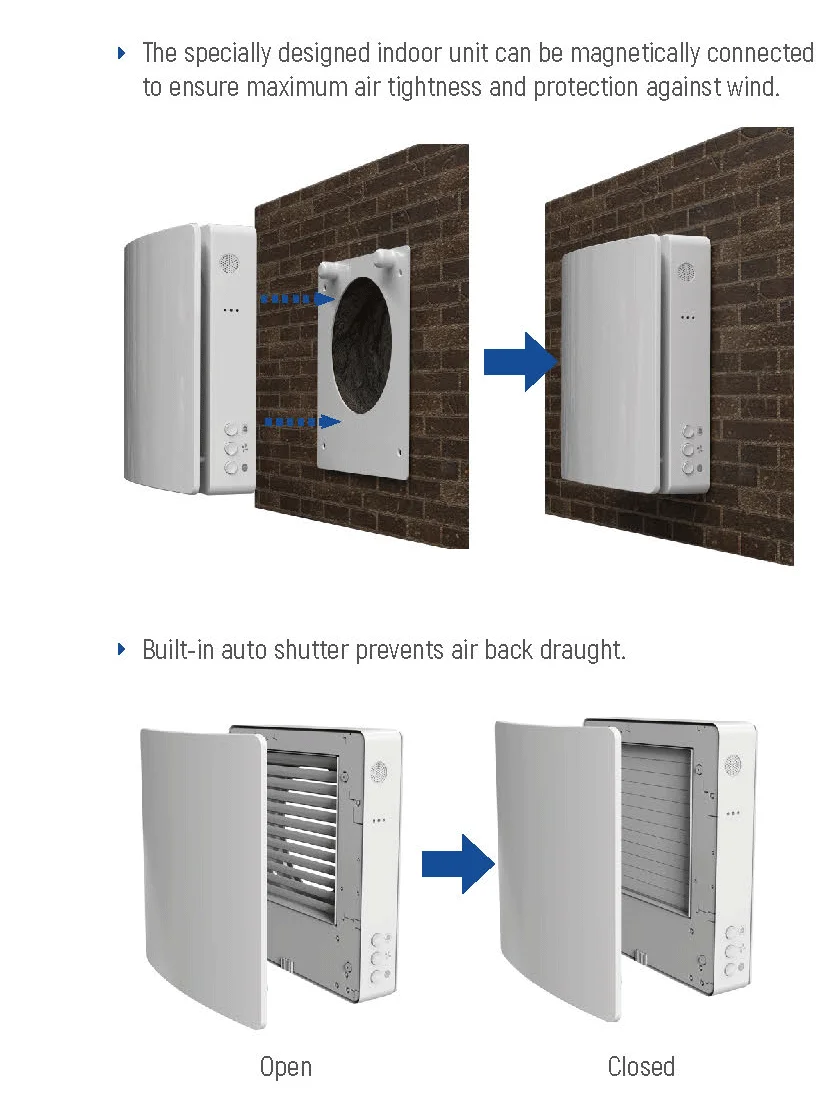

2.Automatic shutter to prevent back draught.
3.Frost and condensation free.
4.One-stop installation through the internal wall with a single hole.
5. High thermal efficiency. Built-in high-tech ceramic energy regenerator with maximum heat recovery efficiency of 97%.
6.Reversible 3 speed EC duct fan with low power consumption of 7.8W.
7.Free-cooling: when the unit detects that the utdoor temperature is within ±1°C of the set temperature, it automatically switches to supply more fresh air.
8.Prefilter and F7 (MERV11) filter as standard to keep air clean.

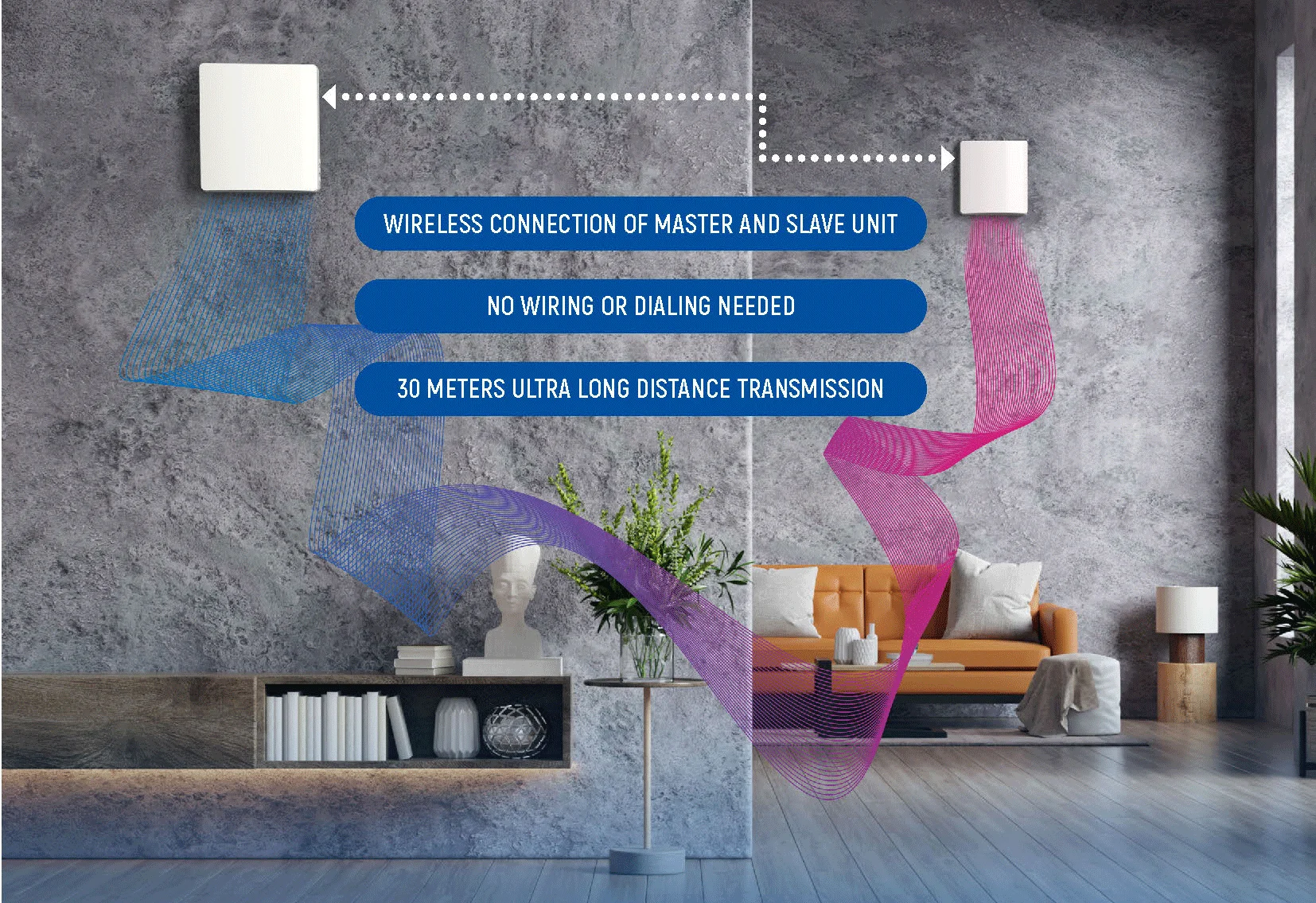

9.Flexible operation, working individually or in pairs.
10.High ingress protection with IPX4.
11.Quiet operation of less than 32.7dB(A).
12.Easy control. Unit can be controlled via button, remote controller and WIFI (Smart APP). With APP, user also can create scene control and group control.
13.Controlled by Android or iOS smartphone via the cloud server from anywhere in the world.
14.Smarter IAQ control. Standard CO2 sensor to display real-time concentration and controls the unit to supply more fresh air to dilute the CO2 concentration, and optional humidity sensor and IAQ detector.

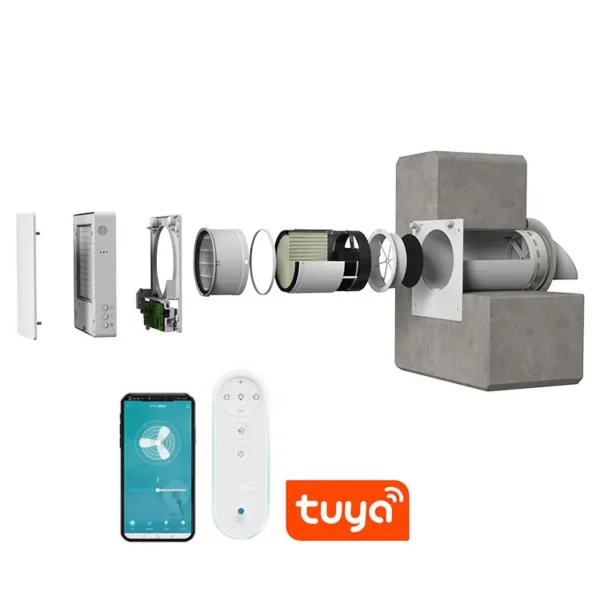

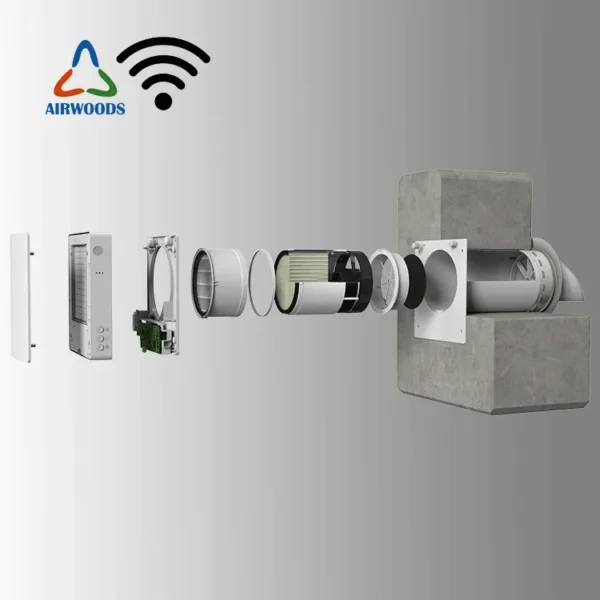

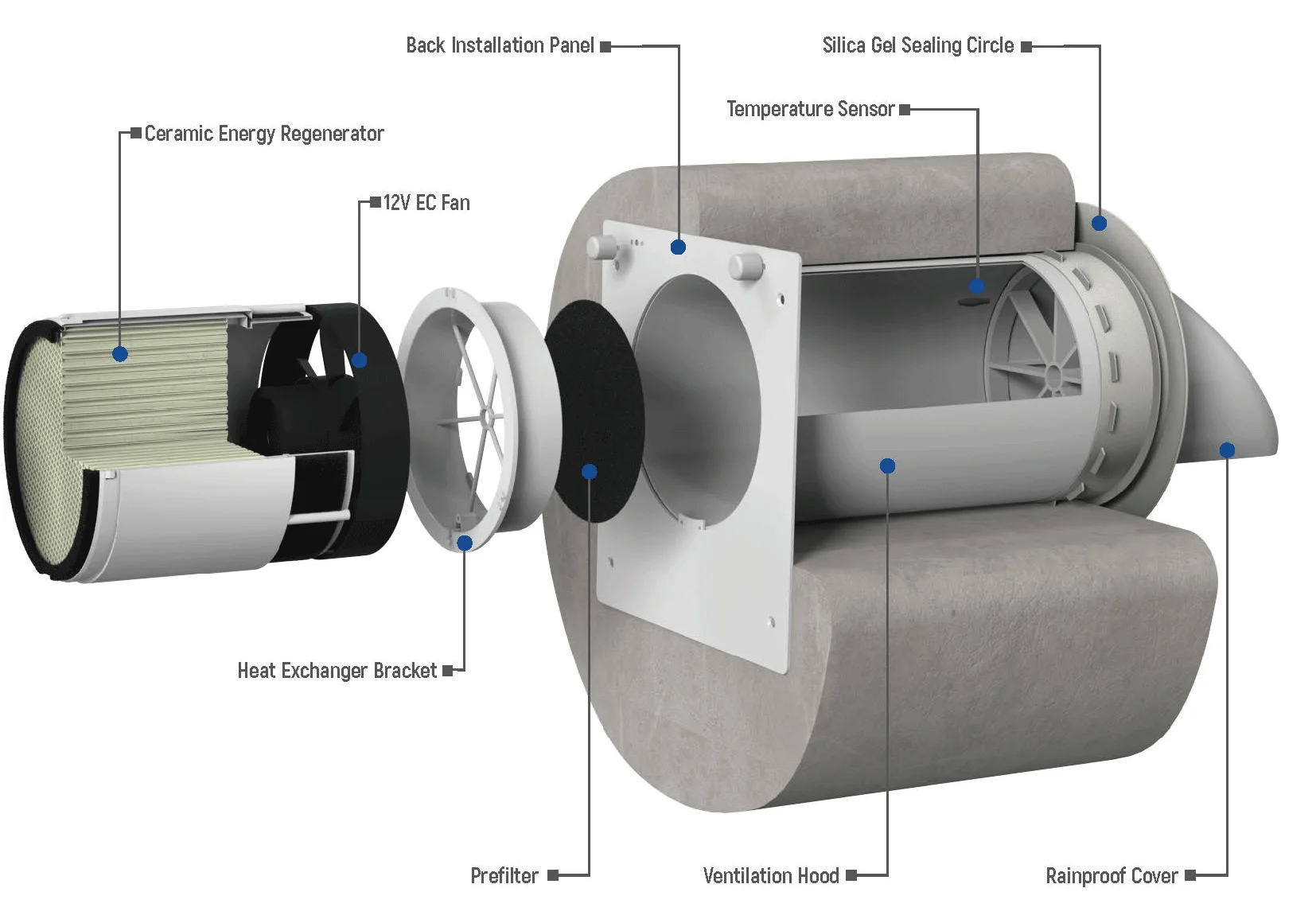

Product Structure
Reversible DC Motor
The reversible axial fan is with EC technology. The fan is characterised by low power consumption and silent operation. The fan motor has built-in thermal protection and ball bearings for long life.
Ceramic Energy Regenerator
The high-tech ceramic energy accumulator with a regeneration efficiency of up to 97% ensures heat recovery from the exhaust air to heat or cool the supply air flow. Due to its cellular structure, the unique regenerator has a large air contact surface and high heat conducting and accumulating properties.
The ceramic regenerator is treated with an antibacterial composition to prevent bacterial growth inside.
The ceramic regenerator is treated with an antibacterial composition to prevent bacterial growth inside.

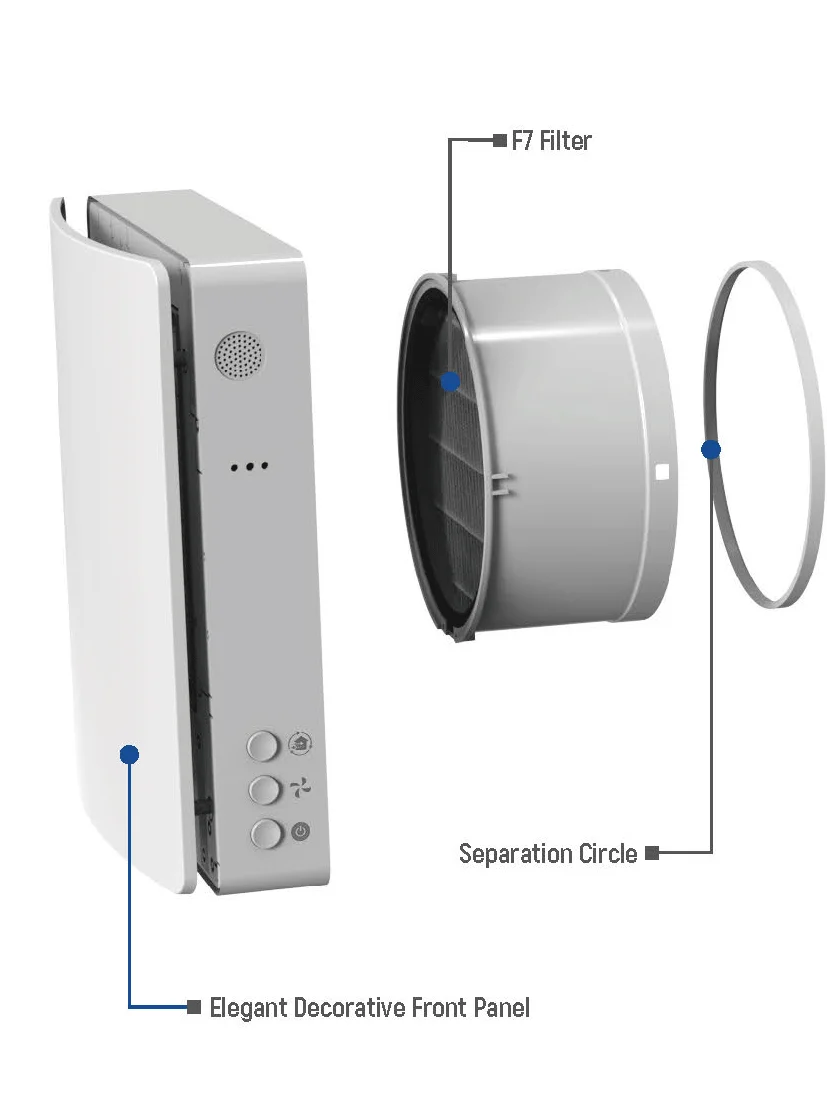

Air Filters
Two integrated air pre-filters and a F7 air filter are fitted as standard to provide supply and extract air filtration. The filters prevent the ingress of dust and insects into the supply air and contamination of the fan parts.
The filters are also antibacterially treated.
The filters are cleaned with a vacuum cleaner or by flushing with water.
The antibacterial solution will not be removed.
The filters are cleaned with a vacuum cleaner or by flushing with water.
The antibacterial solution will not be removed.
ENERGY SAVING

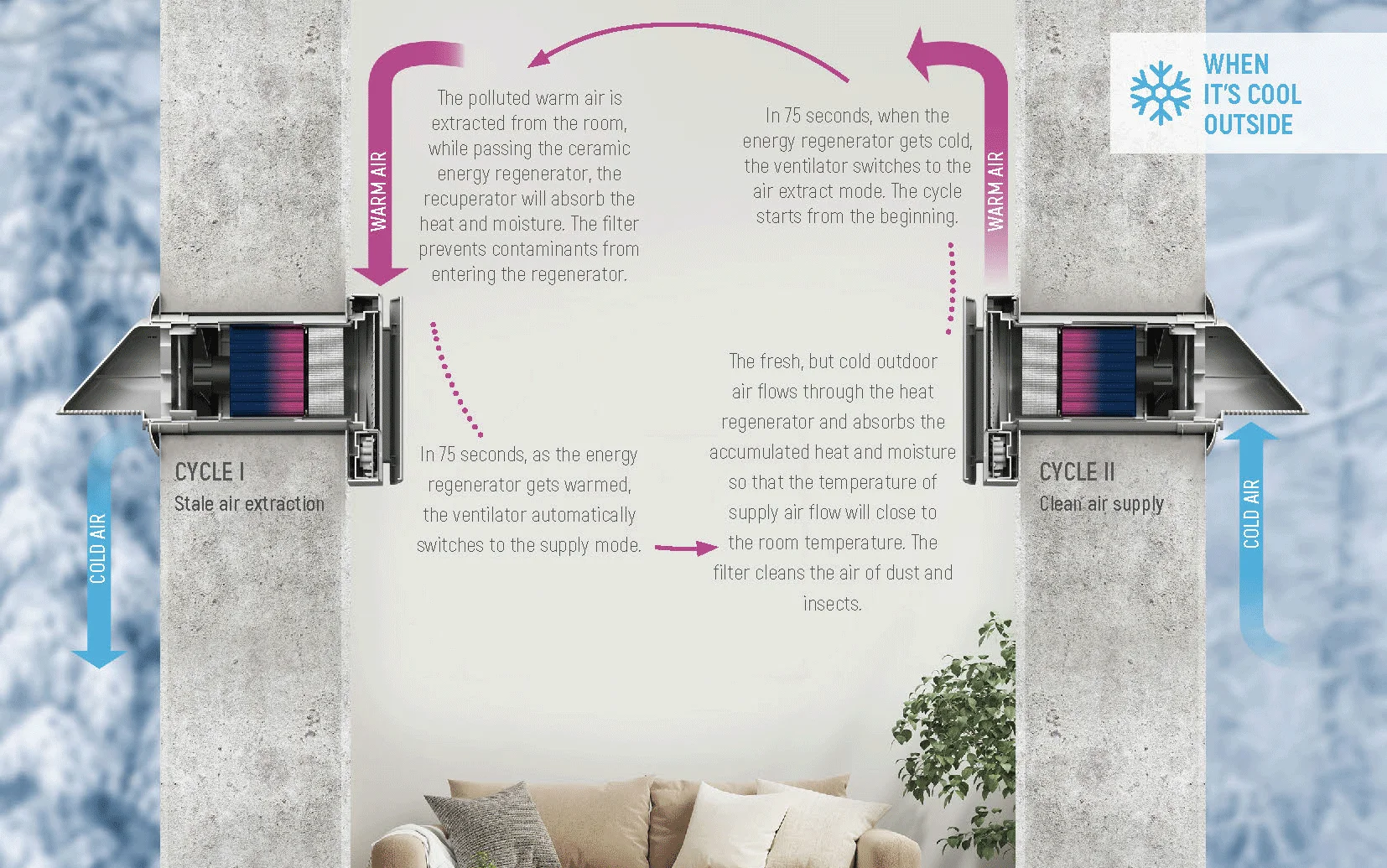

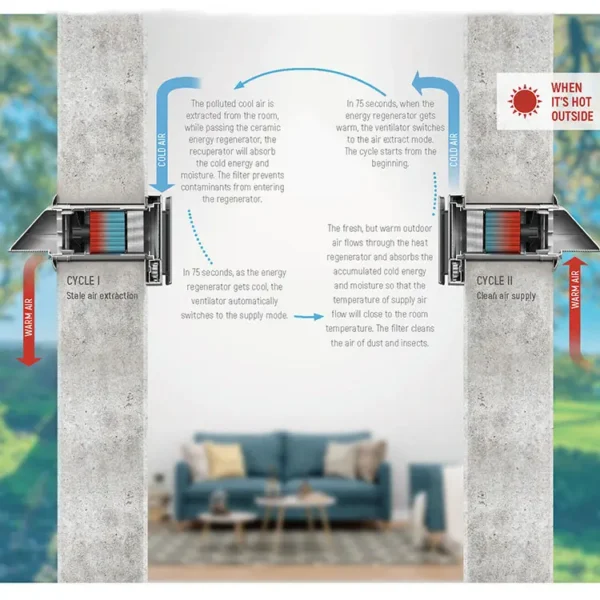

The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.
The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.

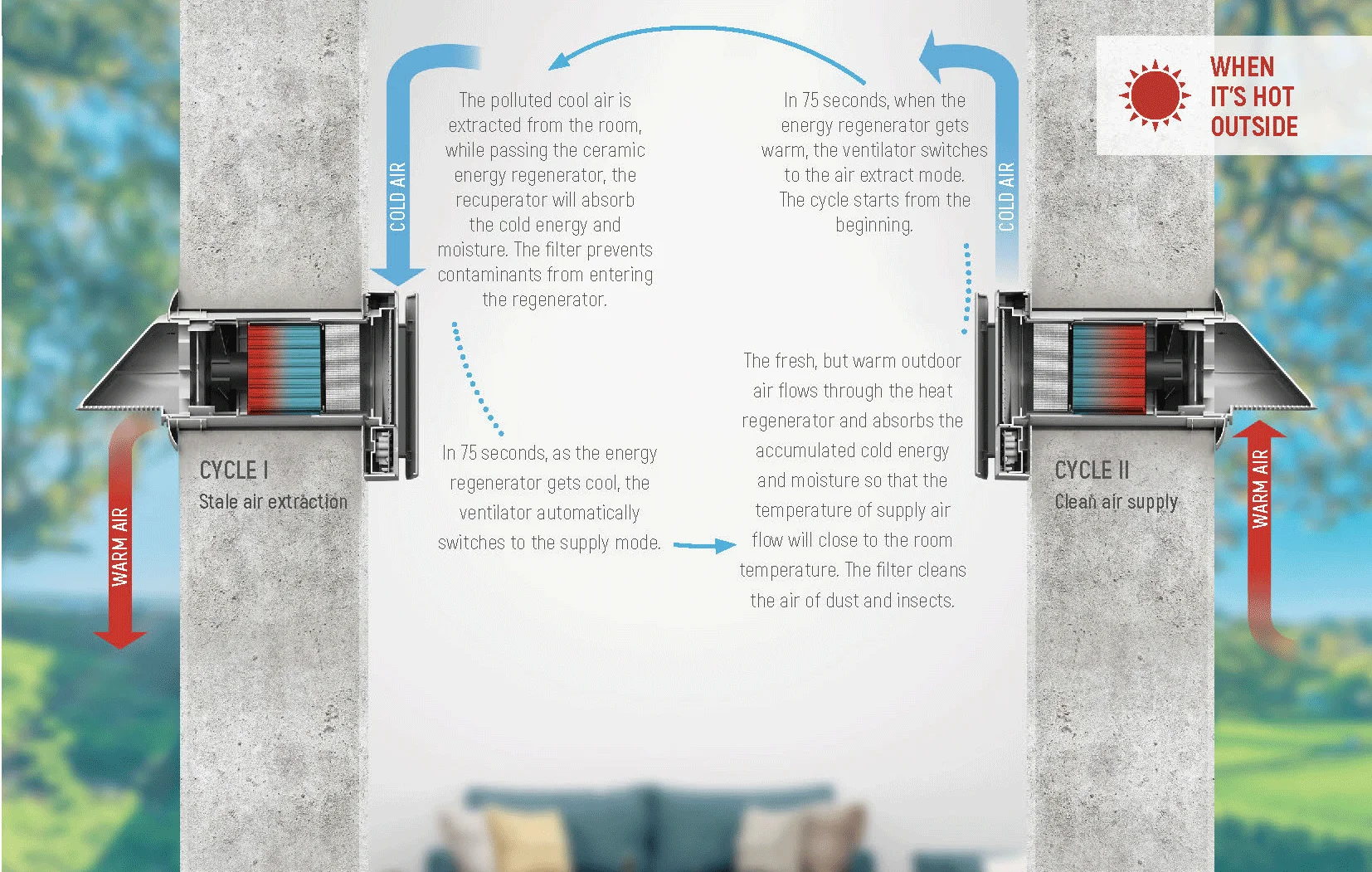

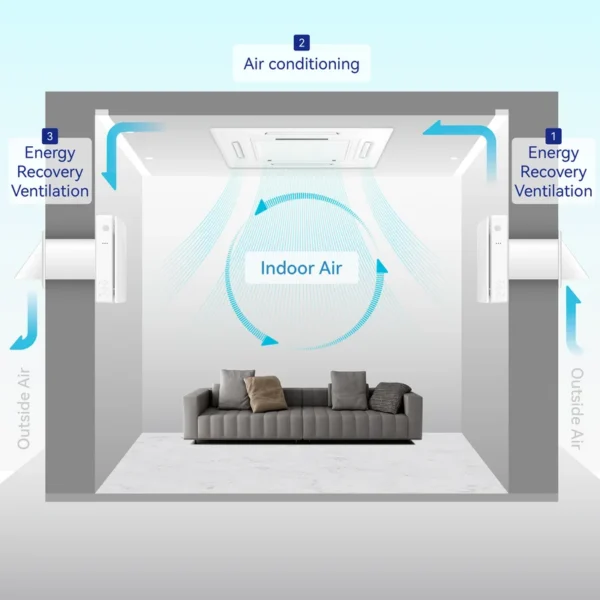

The ventilator operates in the heat recovery mode with two cycles. Two units intake/exhaust air alternately at the same time to achieve balance ventilation. It will increase the indoor comfort and make ventilation more effective. The heat and humidity in the room can be recovered during ventilating and the load on cooling system can be reduced in summer.
Model No. | AV-TTW5-W | ||||
Voltage | 100V~240V AC /50-60Hz | ||||
Power [W] | 6 | 7 | 7.8 | ||
Current [A] | 0.04 | 0.05 | 0.06 | ||
Air flow in regeneration mode [m3/h] | 20 | 40 | 50 | ||
Air flow in energy recovery mode [m3/h] | 14 | 27 | 32 | ||
SFP [W/m3/h] | 0.43 | 0.31 | 0.35 | ||
Sound pressure level at 1 m distance [dBA] | 28 | 32.9 | 36.7 | ||
Sound pressure level at 3 m distance [dBA] | 12 | 27.5 | 31.9 | ||
Regeneration Efficiency | Up to 97% | ||||
SEC | Class A | ||||
Transported air temperature [°C] | -20~50 | ||||
Ingress Protection Rating | IP22 | ||||
RPM | 2000 (max) | ||||

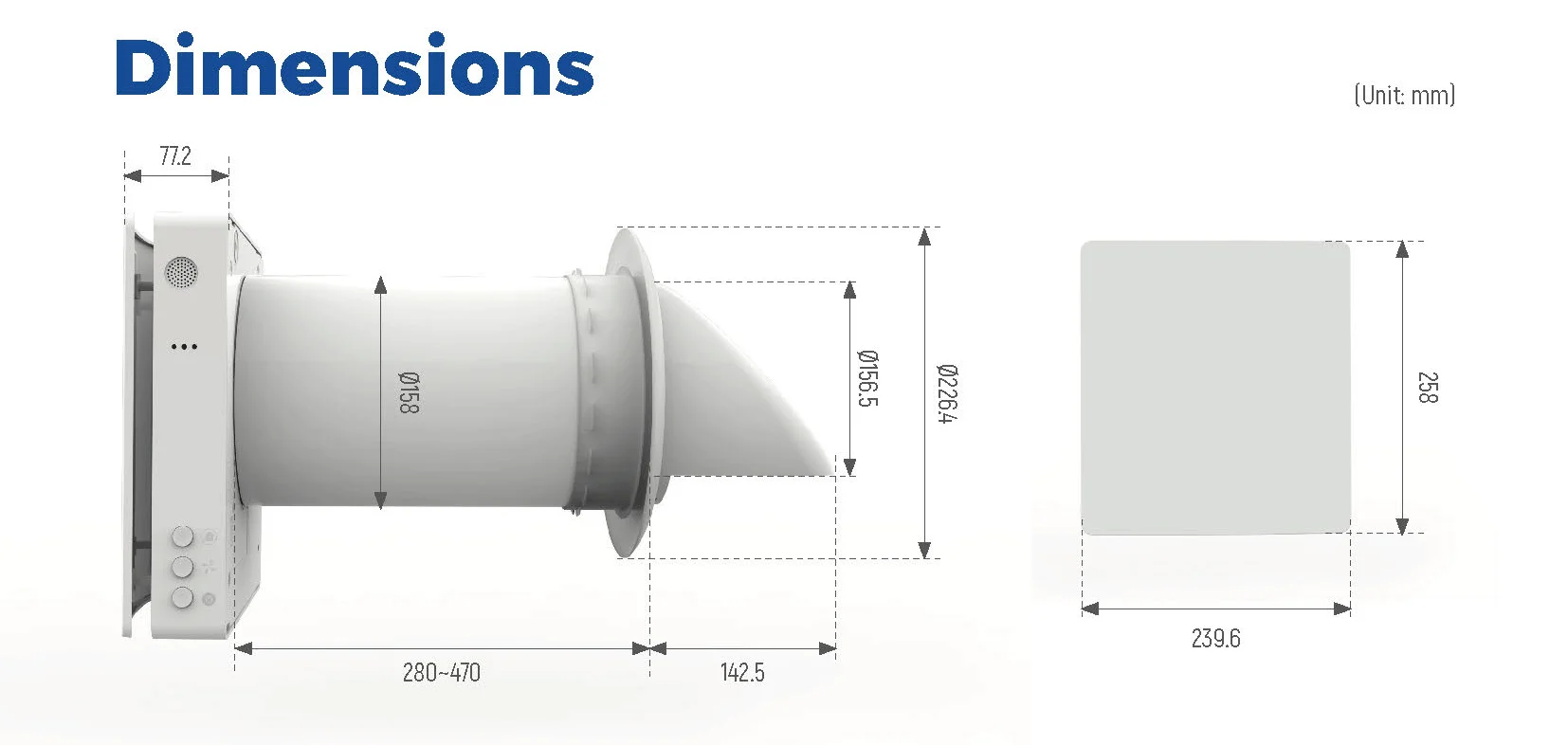

Diameter of duct [mm| | 158mm | ||||
Type of installation | Wall mounting | ||||
Net Weight | 4.2kg | ||||

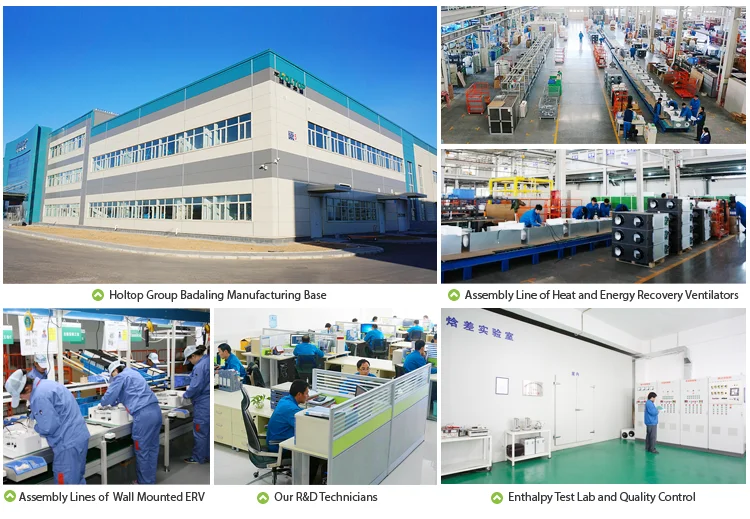

Company Profile
Certifications
FAQ
1. How to select the suitable model ?
Before we make recommendations to you, we may need below information:
* Where do you want to apply it?
* What is the room size/ room type/ number of person
We will make advice to you according to your specific conditions, based on the airflow required and application.
2. Why choose Holtop as a business partner?
Because Holtop can be a trustworthy supplier, a fore runner in the production of air to air heat recovery equipment/ fresh air purification equipment for more than 18 years.
3. How about your product quality?
Our professional R&D team, certificates of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT, customer feedback, and long-term customer relationship can speak for themselves.
4. Do you work with famous brands ?
Yes, we have established reliable relationship and been a regular supplier to MIdea, Haier, Hitachi, LG, Mcquay, Trane Technology, Gree, etc.
5. Where is your market?
Currently, we mainly export to Europe, the Middle East, Southeast Asia, and is expanding.
PS: Follow our Alibaba store & add the product to " my favorite" , to get new arrivals, trending and special discounts for you!
Before we make recommendations to you, we may need below information:
* Where do you want to apply it?
* What is the room size/ room type/ number of person
We will make advice to you according to your specific conditions, based on the airflow required and application.
2. Why choose Holtop as a business partner?
Because Holtop can be a trustworthy supplier, a fore runner in the production of air to air heat recovery equipment/ fresh air purification equipment for more than 18 years.
3. How about your product quality?
Our professional R&D team, certificates of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT, customer feedback, and long-term customer relationship can speak for themselves.
4. Do you work with famous brands ?
Yes, we have established reliable relationship and been a regular supplier to MIdea, Haier, Hitachi, LG, Mcquay, Trane Technology, Gree, etc.
5. Where is your market?
Currently, we mainly export to Europe, the Middle East, Southeast Asia, and is expanding.
PS: Follow our Alibaba store & add the product to " my favorite" , to get new arrivals, trending and special discounts for you!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $175 / piece
- 50–99 piece: US $150 / piece
- 100–499 piece: US $140 / piece
- 500+ piece: US $135 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this window air conditioner?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the window air conditioner be supplied for my local voltage?
The standard configuration is 220-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
